Product description - Saga S7H High Bright 7" Monitor from Ikan
- Saga S7H High Bright 7" Monitor | Ikan Tech Corner

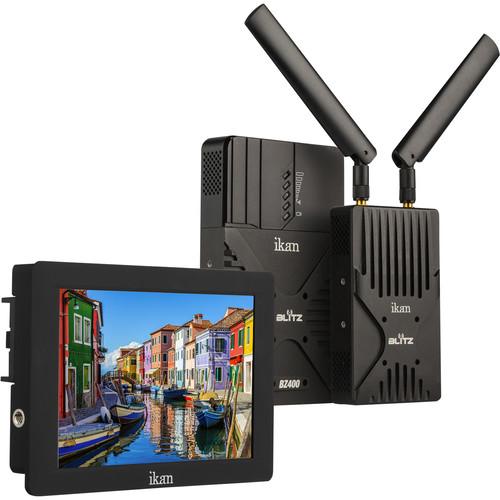

The Blitz 400 Pro Wireless Uncompressed 3G-SDI/HDMI Video Kit from ikan features uncompressed, zero-delay wireless video. With a 400' range, this system is suitable for various uses, such as wireless follow focus systems and applications for gimbal and steadicam operators. It supports both HDMI 1.3 and 3G-SDI so you can transmit uncompressed high definition video up to 1080 60p.
The transmitter is small and lightweight and can be almost mounted anywhere, like to a camera shoe mount. The receiver features five internal antennas to ensure a strong signal as well as four LED signal strength indicators, making it easy to see the signal strength. The Blitz 400 is made of durable machined aluminum and is designed to be easy to set up. Just power on the units and they will sync in about 20 seconds or less.

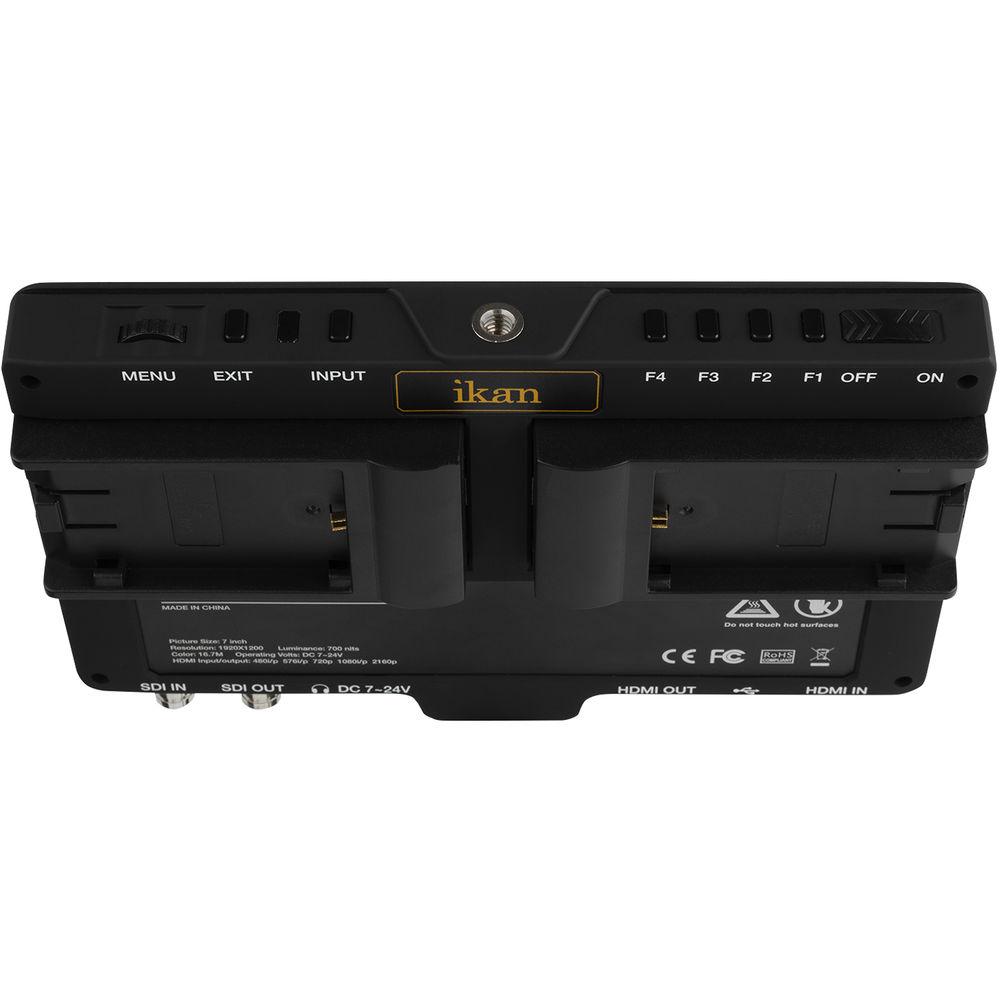

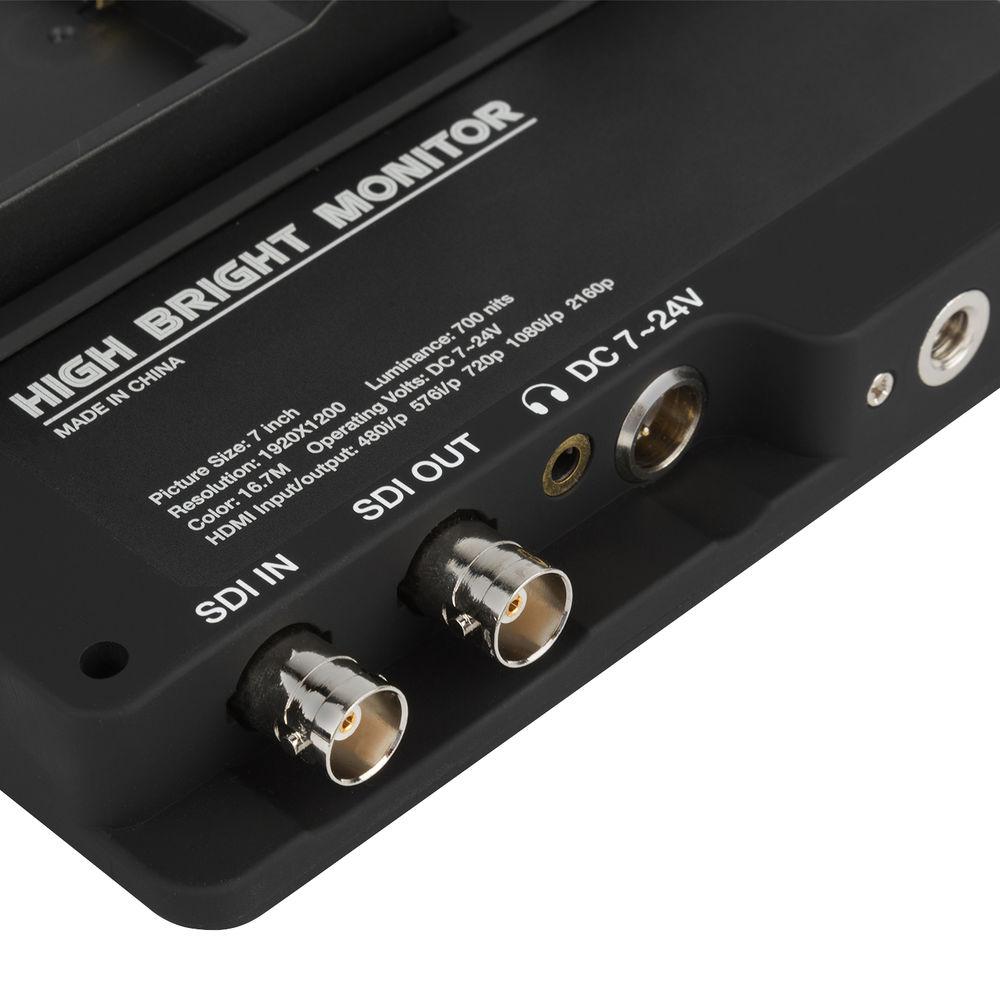

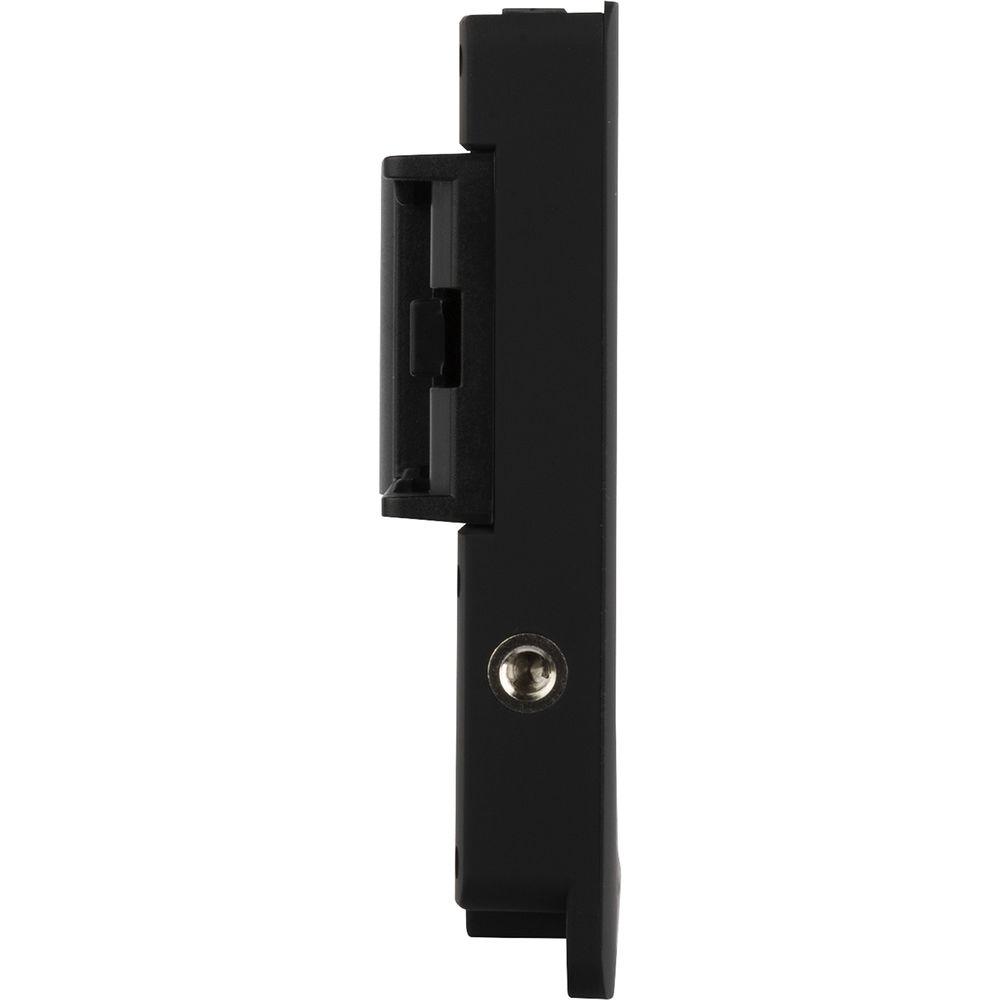

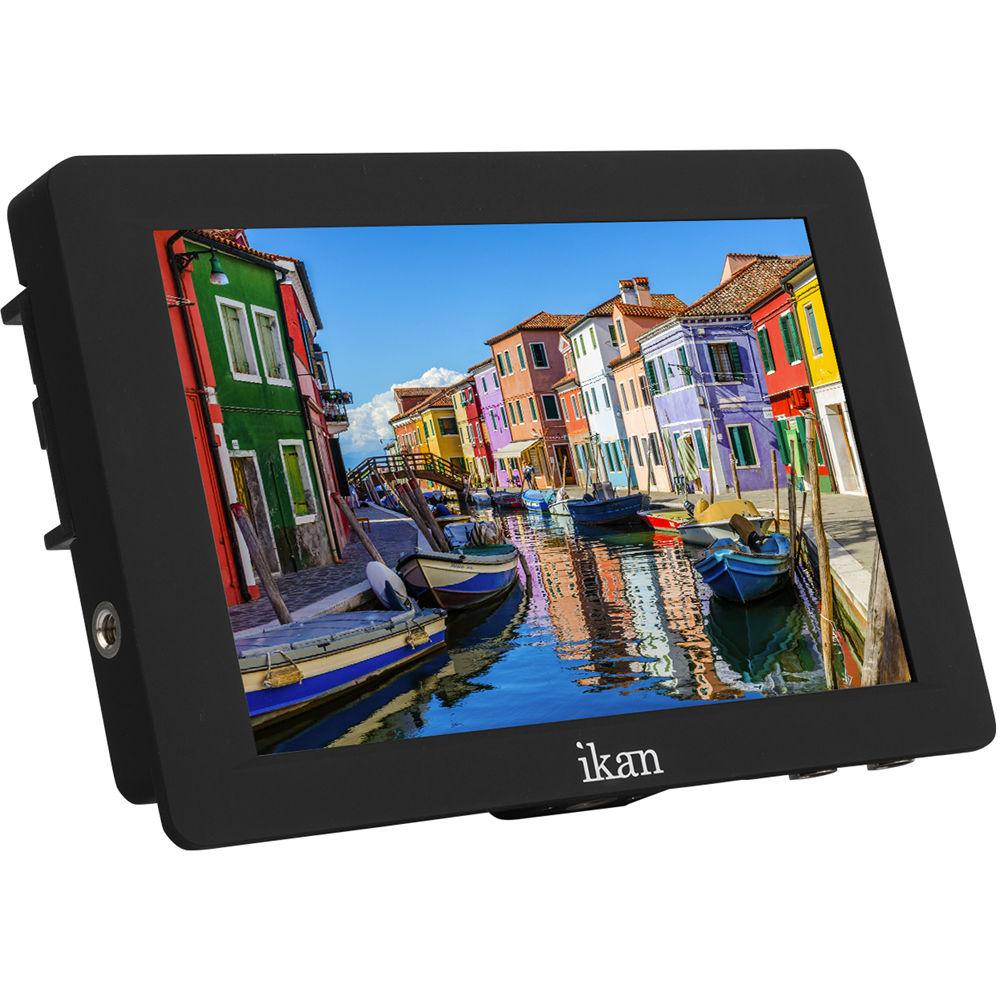

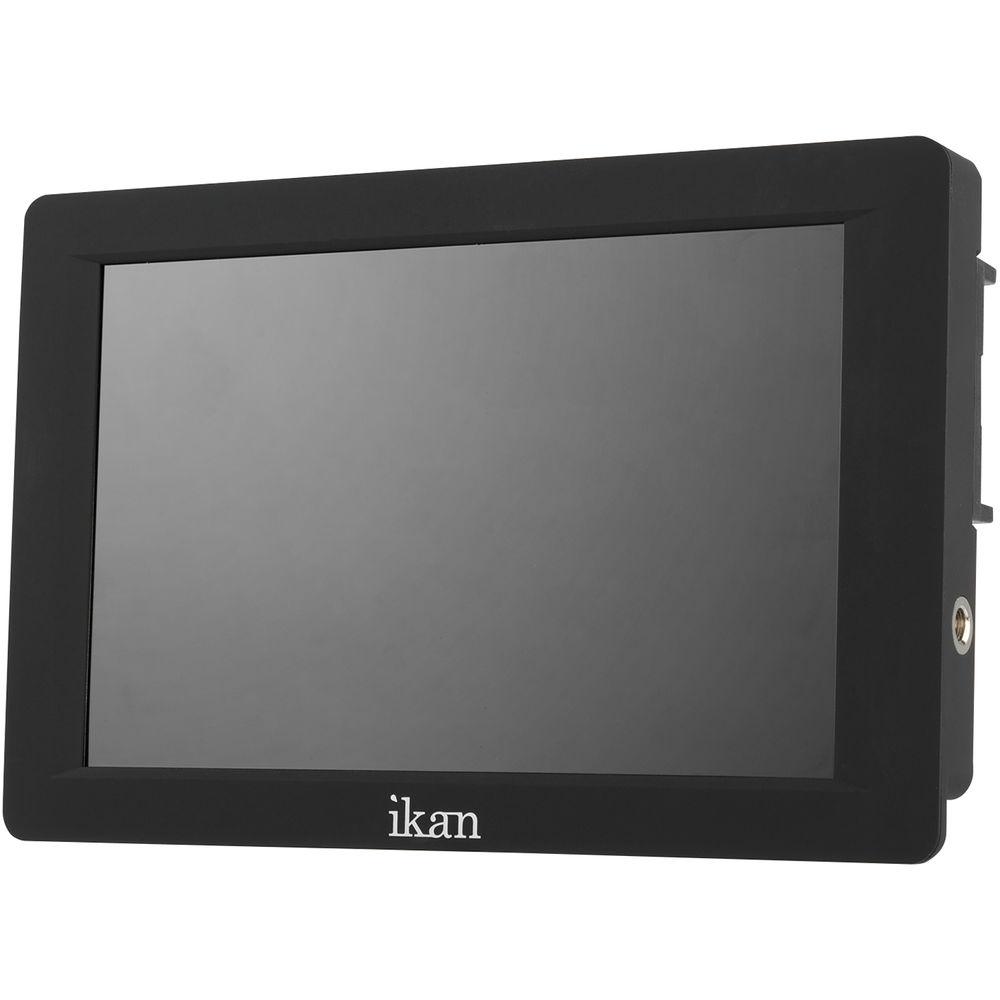

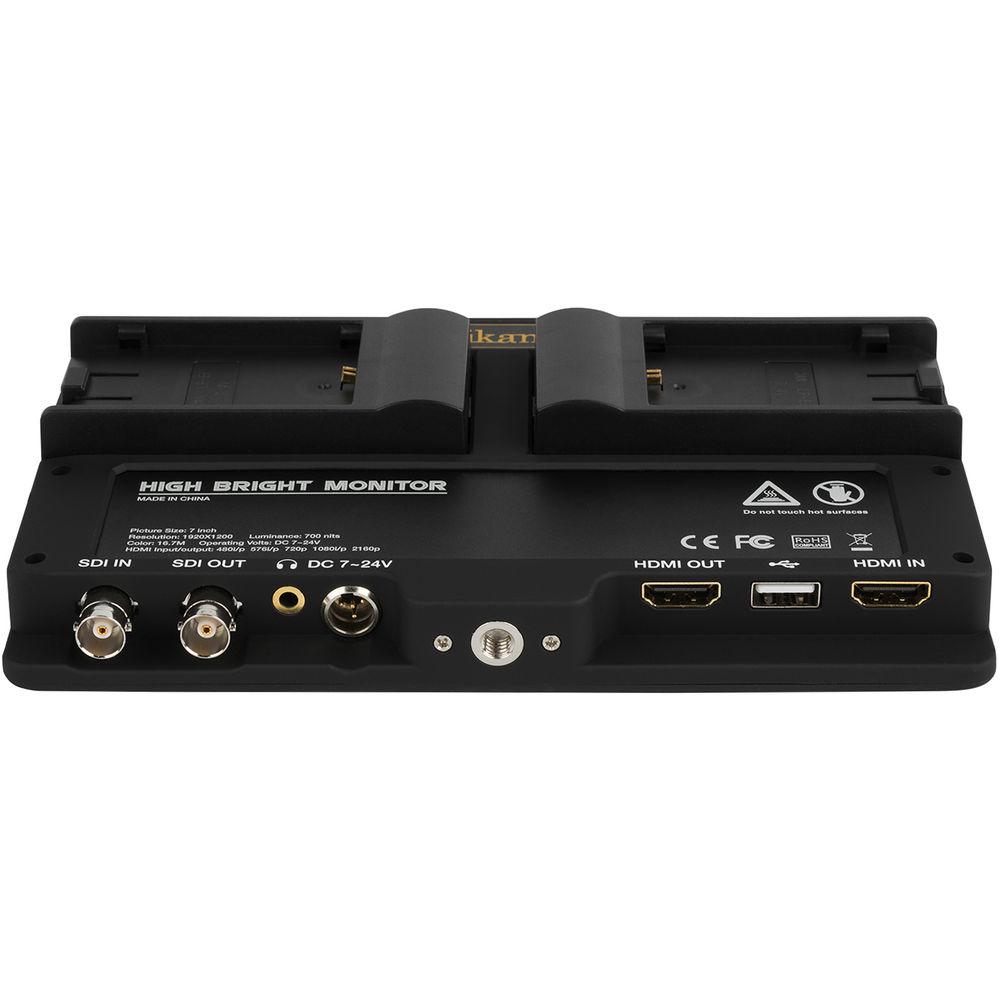

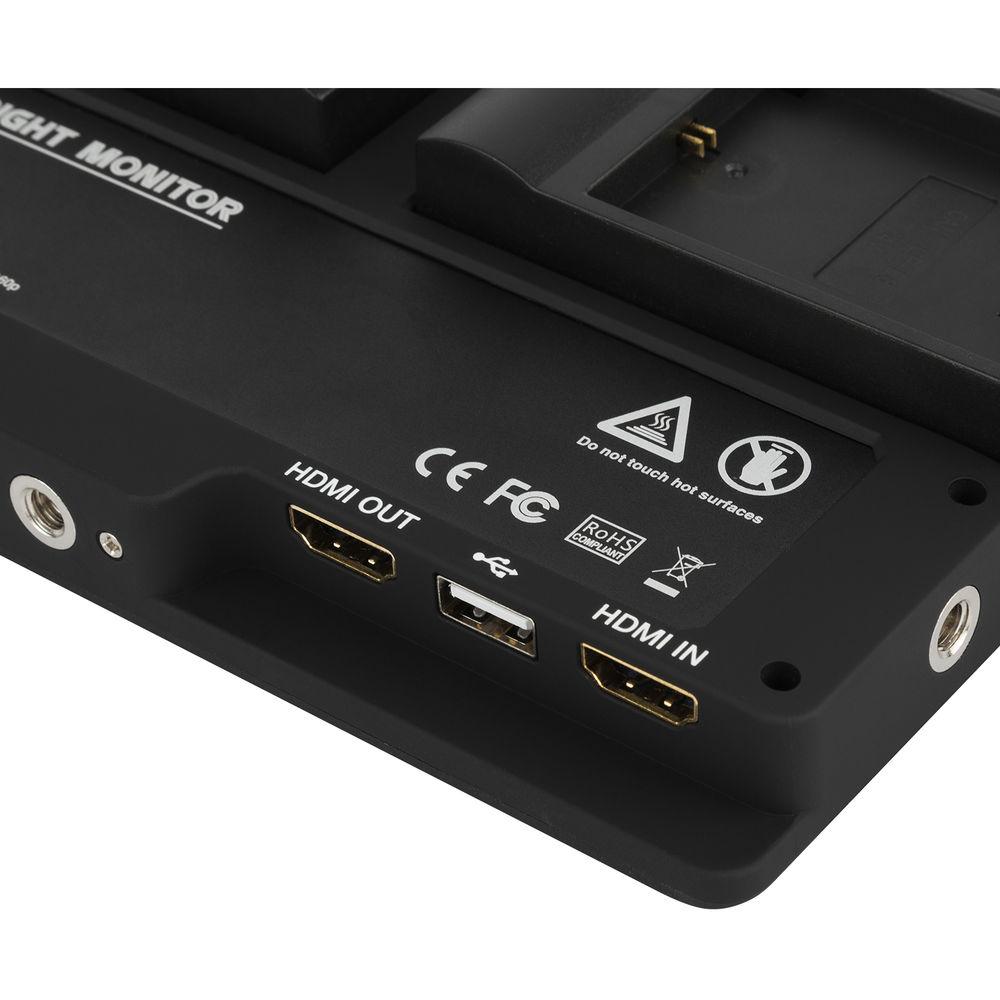

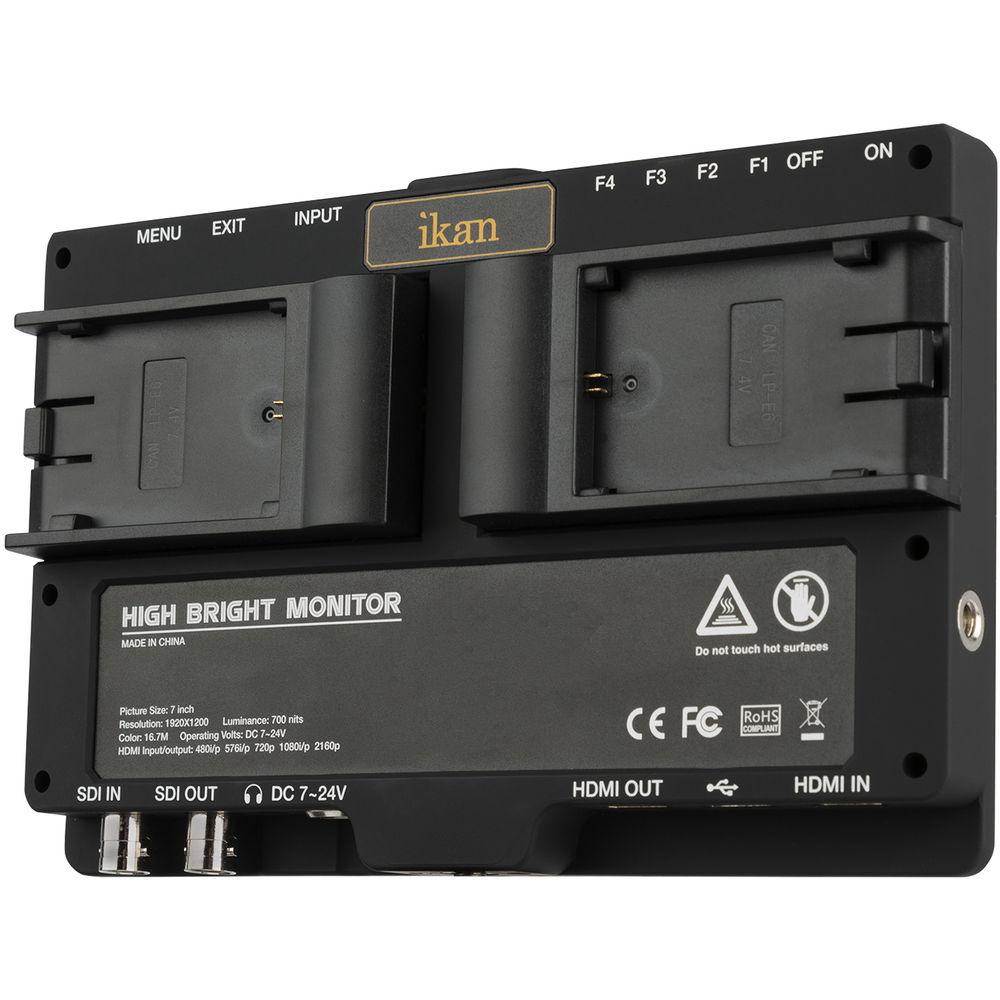

The included Saga 7" On-Camera Monitor is a great addition to your DSLR, mirrorless, or cinema camera rig. Its slim profile is lightweight, and internal processing allows the Saga to display UHD and DCI 4K input signals from HDMI, as well as professional HD or SD signals over SDI. While the 700 cd/m?-bright IPS LCD screen is natively 1920 x 1200 in resolution, using the 1:1 pixel mapping allows you to achieve sharp focus, even with 4K video - Transmits uncompressed, zero-delay wireless video
- 3G-SDI and HDMI inputs and outputs
- Up to 400' line of sight range
- Supports up to four receivers connected to one transmitter

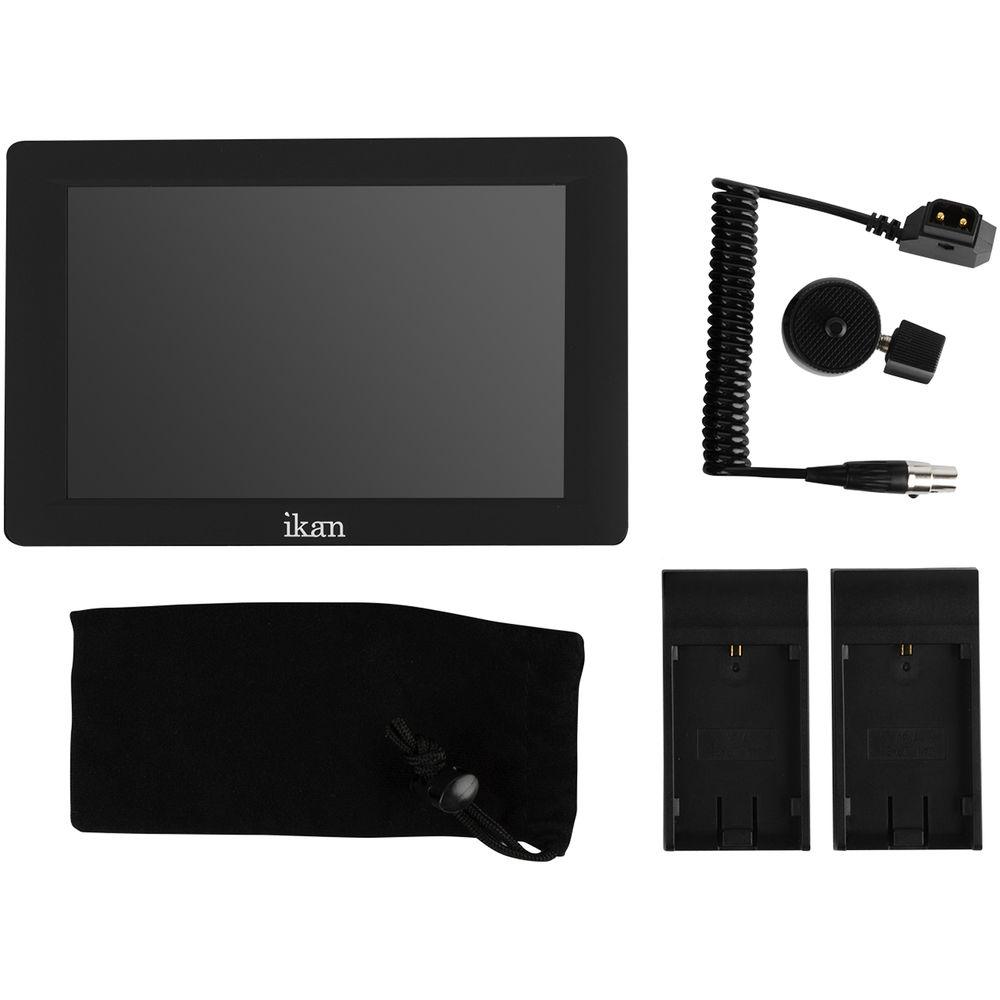

UPC: 847983023073 In the Box ikan Blitz 400 Pro Wireless Uncompressed 3G-SDI/HDMI Video Kit with Saga S7H On-Camera Field Monitor Saga 7" High-Brightness On-Camera Monitor Transmitter Receiver Shoemount Adapter for Transmitter Articulating Arm Clamp 2 x 5GHz Antennas (SMA Female) 2 x D-Tap to Lemo Compatible Cables Hard Case Limited 1-Year Warranty One Sheet PDF 145.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Blitz 400 Pro Wireless Uncompressed 3G-SDI HDMI Video Kit with Saga S7H On-Camera Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan Blitz 400 Specs | | | Frequency Bands | 5.1 to 5.9 GHz | | Band | 40 MHz | | Interface | 3G-SDI input (BNC female)
HDMI input (Type A female)
2 x antenna Ports (RF-2 SMA male)
DC input (4-pin LEMO female) | | Input Video Formats | HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94, 1080p 23.98/24/25/29.97/30/50/59.94/60
SDI: 3G, HD, and SD-SDI (Auto Selected), SMPTE-259/274/292/296/372/424/425 | | Input Audio Format | SDI embedded 4-channel 24-bit / 48 kHz | | Signal Indicator | Power: Green
Video: Yellow | | Modulation Mode | OFDM 16QAM | | Transmission Power | Maximum 21 dBm | | Input Voltage | 7 to 36 VDC | | Power Consumption | <6.5 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Compliance | FCC, CE | | Dimensions | 4.5 x 2.6 x 0.9" (115 x 67 x 23 mm) | | Weight | 9.5 oz (270 g) | | | | Frequency Bands | 5.1 to 5.9 GHz | | Band | 40 MHz | | Interface | 3G-SDI input (BNC female)
HDMI output (Type A female)
DC input (4-pin LEMO female) | | Output Video Format | HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94, 1080p 23.98/24/25/29.97/30/50/59.94/60
SDI: 3G, HD, and SD-SDI (Auto Selected), SMPTE-259/274/292/296/372/424/425 | | Audio Output | SDI embedded 4-channel 24-bit / 48 kHz | | Signal Indicator | Power: Green / Wireless Signal 5 x Green
Video: Yellow | | Modulation Mode | OFDM 16QAM | | Receiver Sensitivity | -75 dBm | | Input Voltage | 7 to 36 VDC | | Power Consumption | <6.5 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Compliance | FCC, CE | | Dimensions | 5.98 x 3.7 x 0.9" (152 x 95 x 23 mm) | | Weight | 12.5 oz (355 g) | | | | Package Weight | 13.2 lb | | Box Dimensions (LxWxH) | 18.0 x 16.2 x 6.5" |
