User Manual for ikan Blitz 600 3G-SDI HDMI Uncompressed Wireless Video System Click to enlarge the picture
Contents of the user manual for the ikan Blitz 600 3G-SDI HDMI Uncompressed
- Product category: Wireless Transmission Systems ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Wireless Transmission Systems
 |
User manual for the ikan Blitz 600 3G-SDI HDMI Uncompressed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

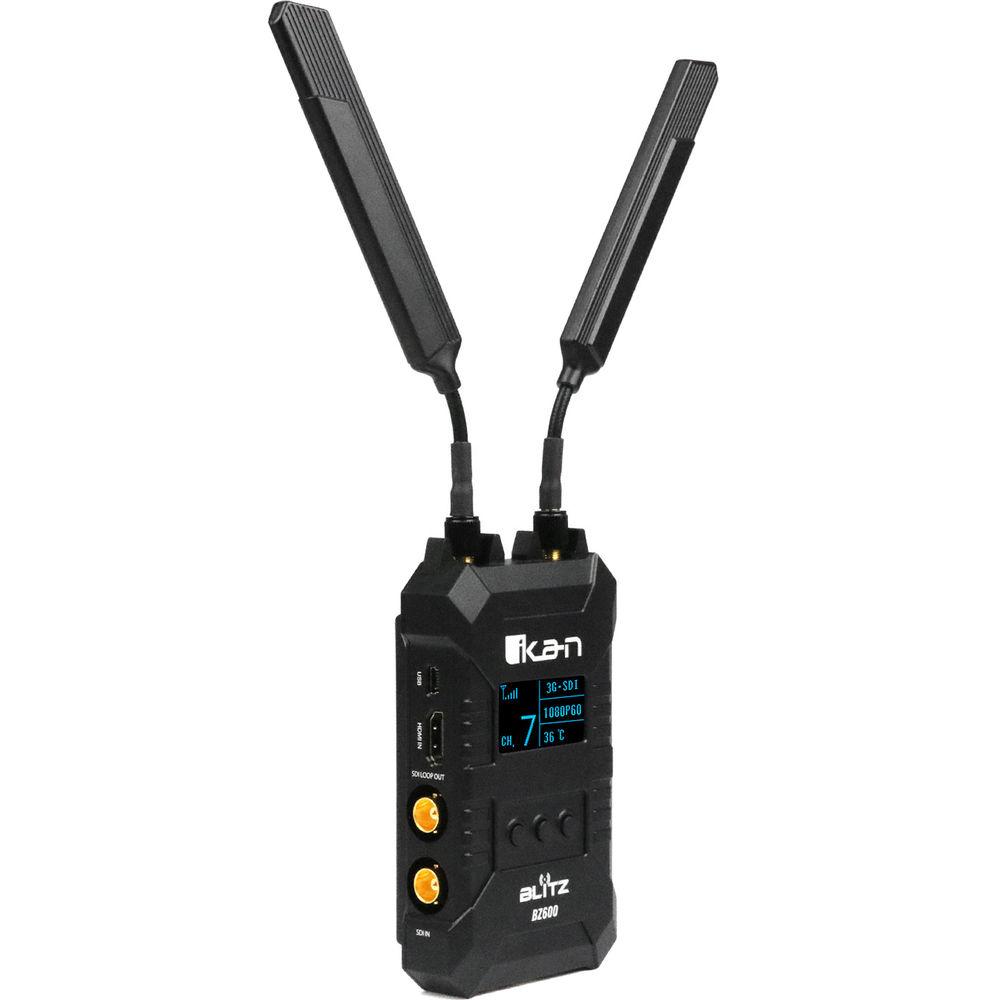

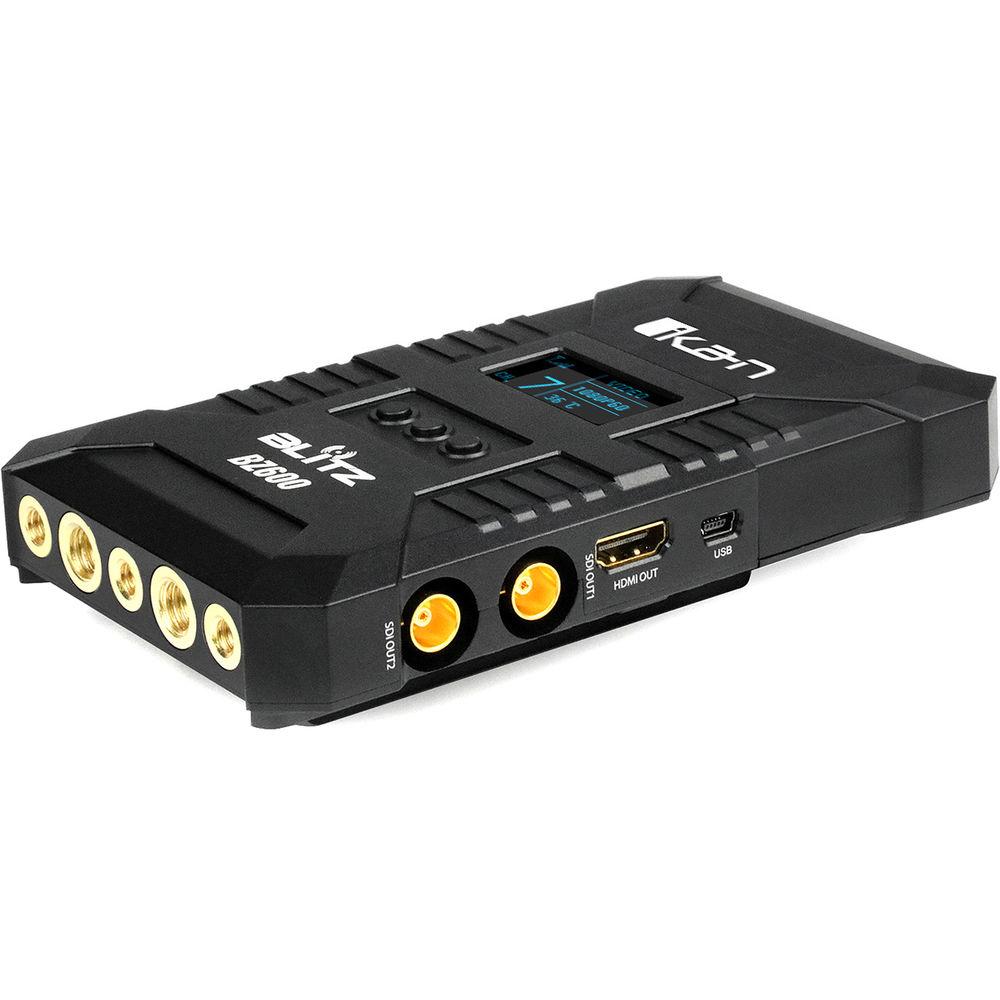

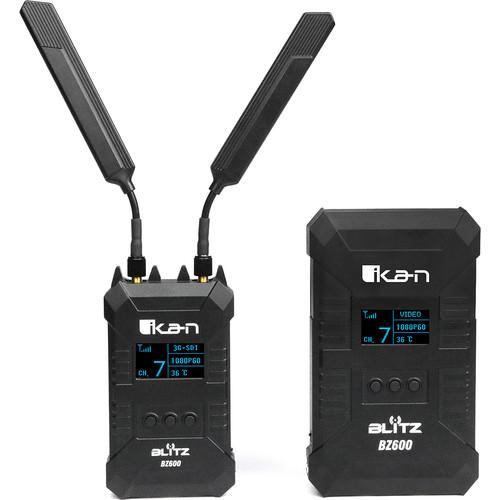

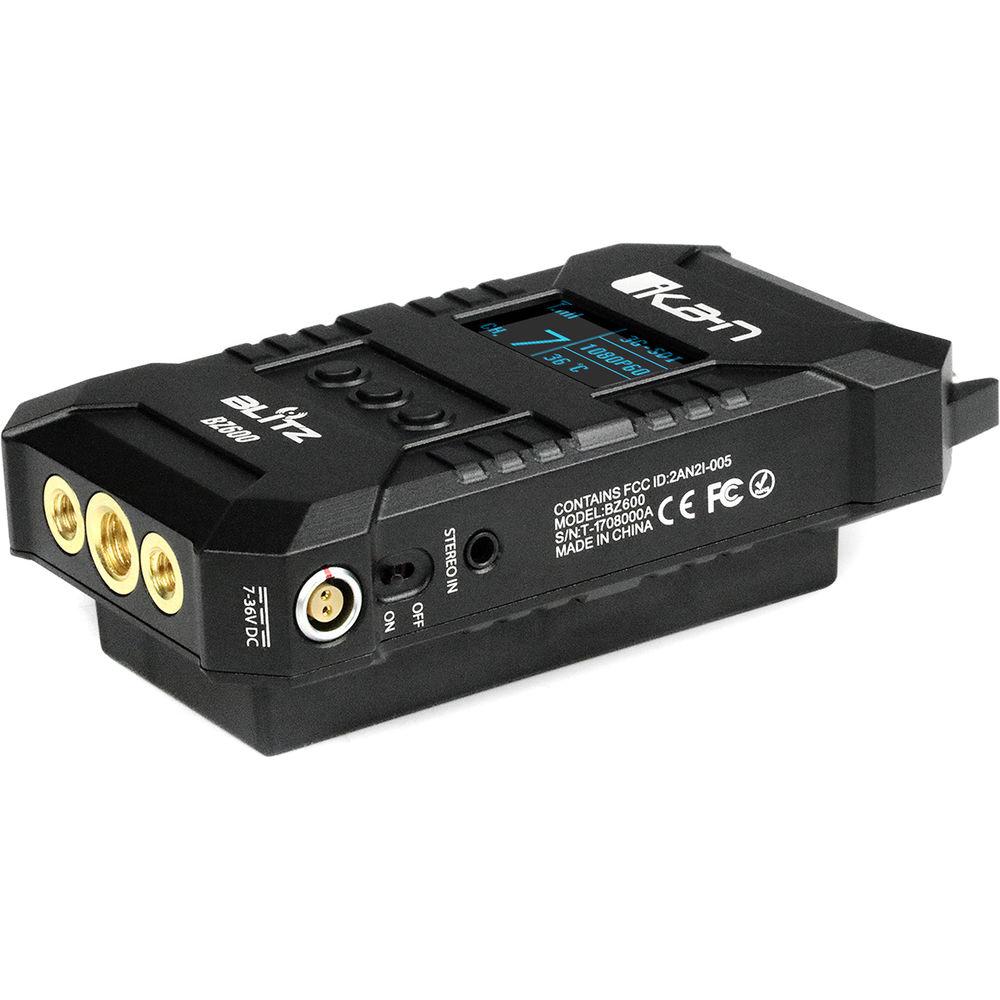

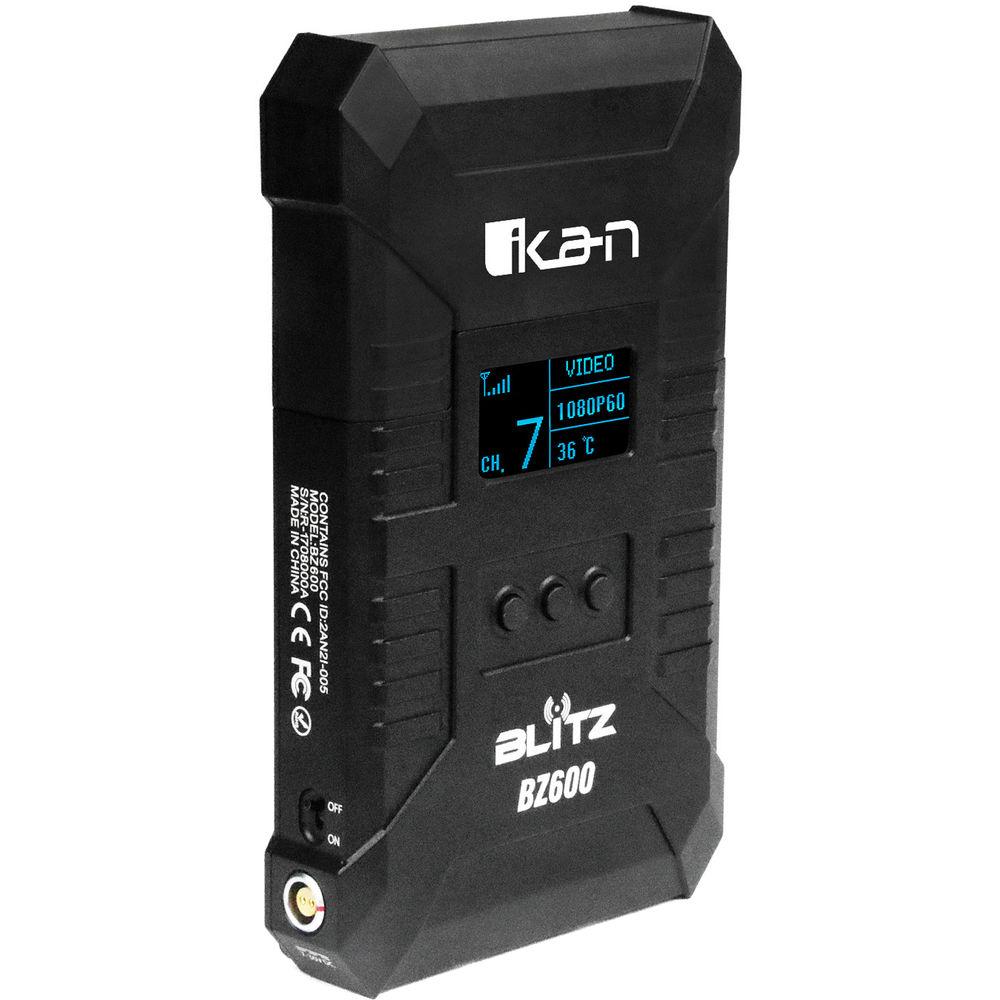

Product description The ikan Blitz 600 3G-SDI/HDMI Uncompressed Wireless Video System features uncompressed, 10-bit 4:2:2, zero-delay wireless video. The 5 GHz system features a maximum line-of-sight range of 1308' and an optimal signal range up to 600'. It supports both HDMI and 3G-SDI so you can transmit uncompressed high-definition video, and it supports HDMI to 3G-SDI cross conversion. The included Sony L-series battery plates come pre-installed and allow you to power the units easily and reliably. You can supply power externally with the included D-Tap to LEMO cables, allowing you to use the same pro batteries that are powering your camera to also power the Blitz.
The Blitz 600 is made from durable metal, and it features a bright, easy-to-read display. The transmitter can utilize either the three included standard omnidirectional or the two included unidirectional mushroom antennas to ensure a strong signal, and it supports the connection of up to four receivers. The Blitz 600 comes equipped inside a durable hard case to make transport easy. An articulating arm, a clamp, a shoe adapter, an AC adapter, and two D-Tap to LEMO cables are included to help you mount the units. - Transmits uncompressed 10-bit 4:2:2 wireless video with zero delay

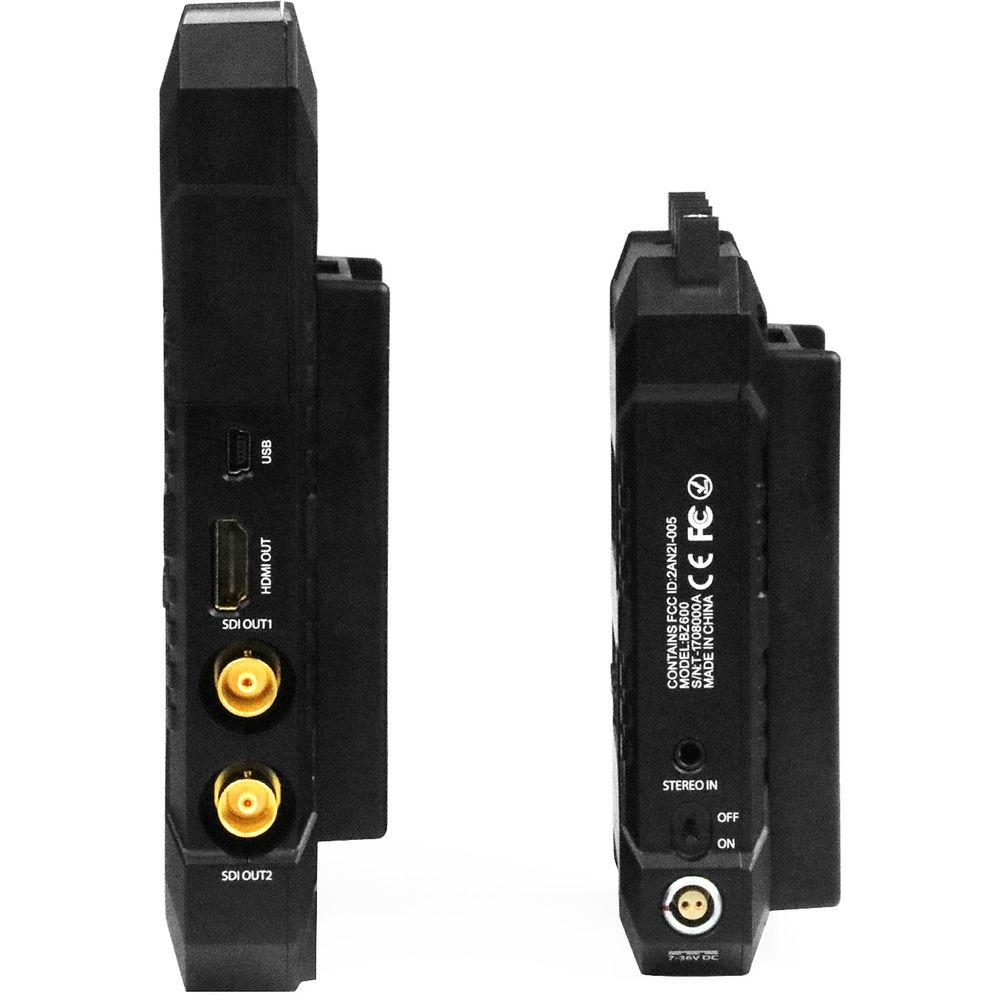

- 3G-SDI and HDMI inputs and outputs and supports HDMI to SDI cross conversion
- Optimal range is 600' line-of-sight; the Blitz 600 will work at a range of 1308' with signal degradation
- Supports Sony L-series batteries
- Supports up to four receivers connected to one transmitter

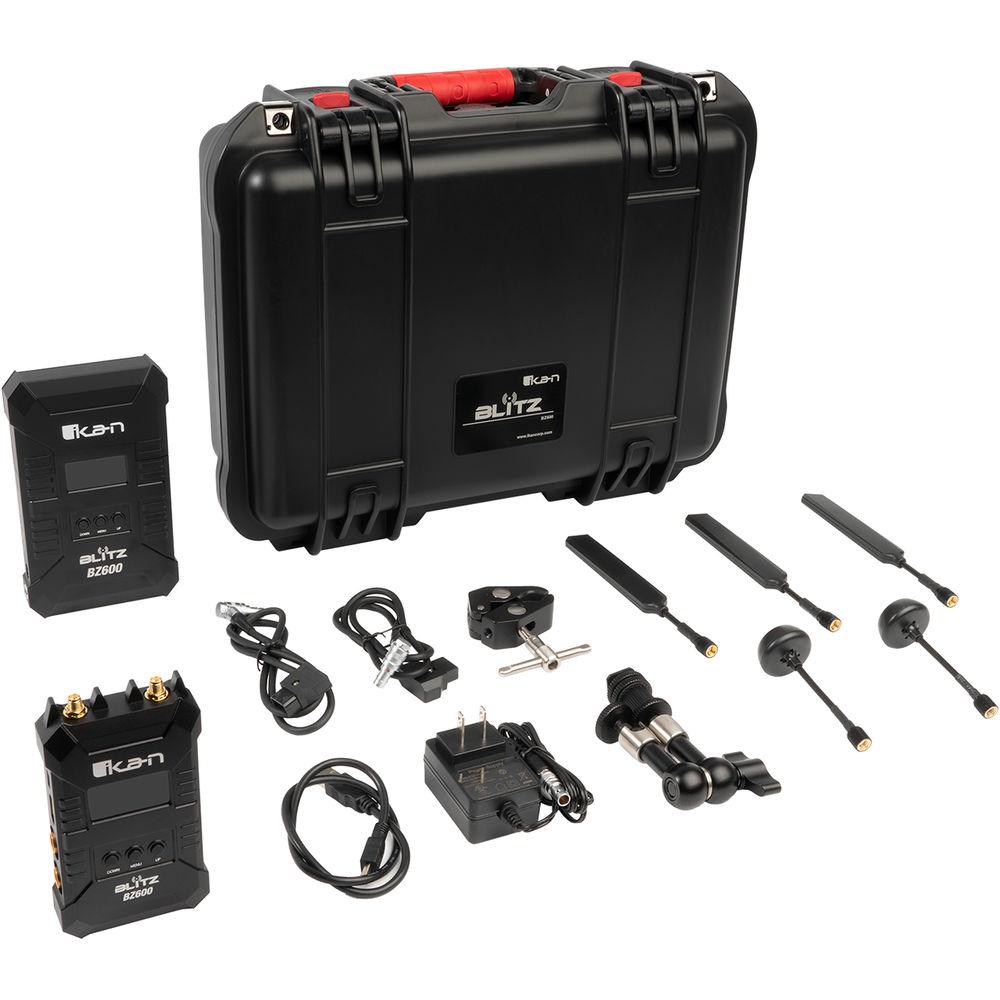

UPC: 847983029181 In the Box ikan Blitz 600 3G-SDI/HDMI Uncompressed Wireless Video System BZ600 Receiver BZ600 Transmitter Clamp Articulating Arm Shoe Adapter AC Adapter 2 x D-Tap to LEMO Cables 2 x Mushroom Antennas 3 x 5 GHz Antennas Hard-Shell Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Blitz 600 3G-SDI HDMI Uncompressed Wireless Video System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan BZ600 Specs | Material of Construction | Metal | | Battery Type | Tx and Rx: Sony L-Series | | Inputs | 1 x HDMI
1 x 3G-SDI
1 x 3.5 mm Audio | | Outputs | 1 x HDMI
1 x 3G-SDI Loop Out | | Frequencies | 5.1 to 5.9 GHz
40 MHz Band | | Wireless Range | 600' / 182.9 m | | Modulation Mode | OFDM 16QAM | | Transmission Power | 17 dBm, Maximum | | Input Voltage | 7 to 36 VDC | | Dimensions | Rx and Tx: 5.9 x 3.7 x 0.9" / 15 x 9.4 x 2.3 cm | | Weight | Not Supplied by Manufacturer | | | | Package Weight | 8.84 lb | | Box Dimensions (LxWxH) | 15.9 x 13.0 x 6.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
