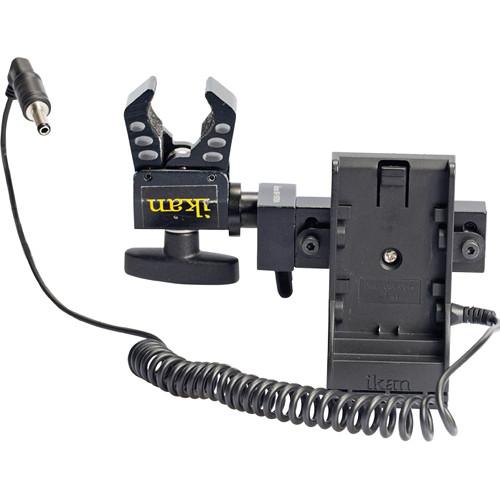

User Manual for ikan BMC-PWR-PN-SU Blackmagic Clamp Click to enlarge the picture
Contents of the user manual for the ikan BMC-PWR-PN-SU Blackmagic Clamp
- Product category: Battery Mounting Plates ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Battery Mounting Plates
|
User manual for the ikan BMC-PWR-PN-SU Blackmagic Clamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description - Blackmagic Power Solutions
The ikan BMC-PWR-PN-SU Blackmagic Clamp can be mounted on to rails, tripods, or any clamp point. This clamp works with multiple DV battery options, and extra battery life for the BMC is a cinch with Ikan’s element power pinch clamp.
The CHES-JR Cheese Stick Jr. is a simple block with a hard, anodized, machined aluminum finish and a variety of industry standard, threaded, mounting holes. There are three 1/4-20, two 3/8-16, and two pairs of M4-7 connections. Connect battery plates to rail mounts, articulating arms to base plates, or just about any mounting situation you can imagine.
The ELE-15SA 15mm Stud Adapter is a stud compatible with 15mm rod systems. Simply thread a 1/4 socket head screw though the stud adapter and it can be attached to almost any component that receives a 1/4 screw. Pair this component with our rod adapters, cheese sticks, or plates and you can make a variety of quick-release configurations or adjustable assemblies.
The ELE-PN Pinch Clamp is a lightweight and compact grip solution. The Pinch Clamp's padded jaw provides a stronger hold on round, square, and flat objects than a traditional clamp. With one 1/4"-threaded hole on one side and a 3/8" version on the other, the Ikan Elements Pinch Clamp is ideal for adding articulating arms, lighting, and monitor mounting accessories.
The AC107-SU Sony Battery Adapter is compatible with any Sony-style "BP-U" series batteries and can be used to power most devices which require a 12 V power supply. The snug connection ensures that your battery will stay connected in the most rigorous shooting conditions. - BMC-PWR-PN-C Blackmagic Clamp
-
- Mounts securely to your rails
- Can be added to your rig without adding weight
- Allows for added battery life for the camera
- Cheese Stick Jr. (CHES-JR)
-
- Contains all standard production industry thread sizes (1/4-20, 3/8-16, and M4-7)
- Designed to make all your production set-ups easier
- Black anodized, machined aluminum finish
- 15mm Stud Adapter
-
- Universal fit for any 15mm rods
- Completely modular
- Anodized black, machined aluminum finish
- Pinch Clamp
-
- 1/4-20- & 3/8-16-threaded holes
- Robust and durable jaws made from extruded aluminum
- Better grip with ergonomic aluminum casting knob
- Spring loaded jaws for smooth adjustments
- Aluminum material
- AC107-SU Sony "BP-U" Battery Adapter
-
- 12 V power
- Compatible with multiple products
- Accepts Sony "B-PU" series batteries
UPC: 847983007219 In the Box ikan BMC-PWR-PN-SU Blackmagic Clamp Cheese Stick Jr. Universal Mounting Accessory aaezzqeyxbffwtvcvdsxyfdeftxbrerzee 15mm Stud Adapter Elements Pinch Clamp ELE-15RDA AC107S-U Battery Adapter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan BMC-PWR-PN-SU Blackmagic Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan BMC-PWR-PN-SU Specs | Material | Pinch Clamp: Aluminum | | Size | Fit Tube: Pinch Clamp: 13 to 35 mm | | Attachment | Pinch Clamp: 1/4 & 3/8" | | Surface | Fit Flat Size: 5 to 20 mm | | Dimensions | 5.5 x 4 x 3" (139.7 x 101.6 x 76.2 mm)
Cheese Stick Jr.: 3 x 1 x 0.5" (76.2 x 25.4 x 12.7 mm)
Sony "BP-U" DV Battery: 1.75 x 1 x 4" (44.45 x 25.4 x 101.6 mm | | Weight | 2 lb (0.90 kg)
Cheese Stick Jr.: 0.15 lb (0.06 kg)15mm Stud Adapter: 0.05 lb (0.02 kg)
Pinch Clamp: 0.28 lb (0.12 kg)
Sony "BP-U" DV Battery: 3 oz (85.04 g) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 8.7 x 6.4 x 3.4" |
