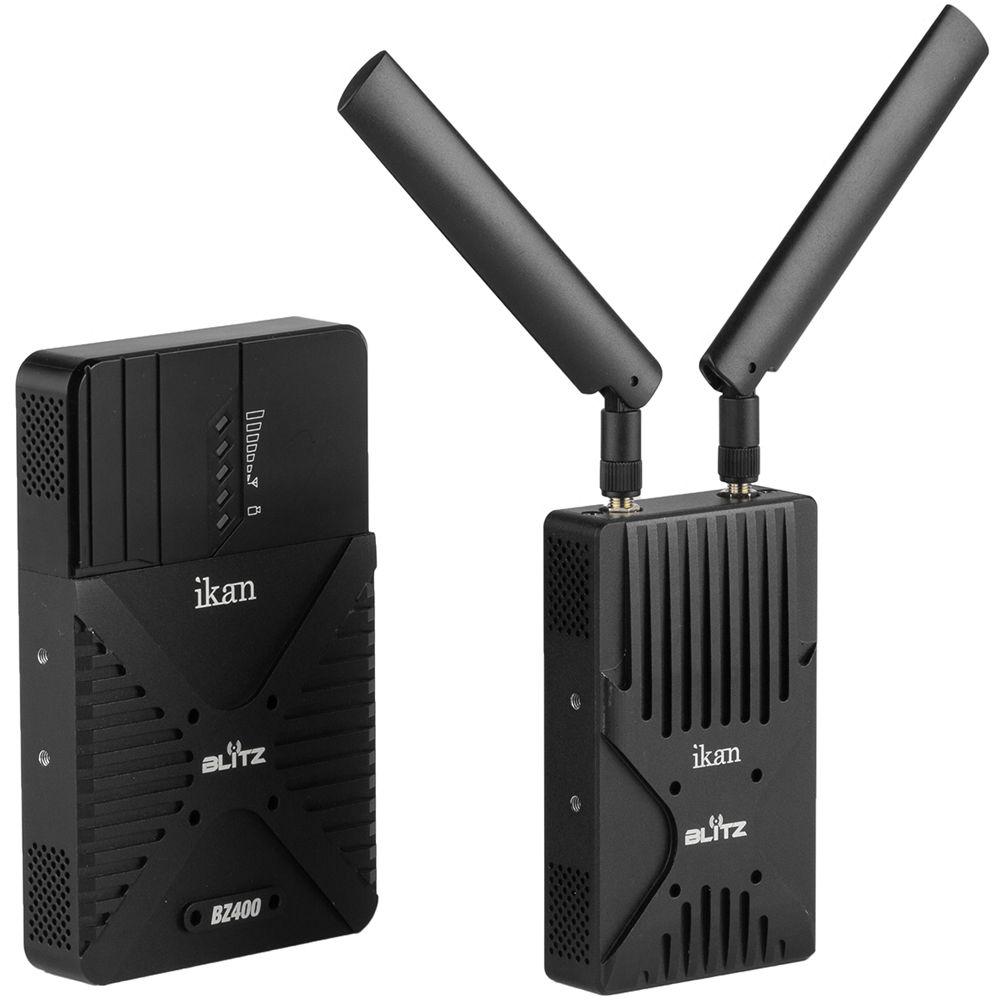

User Manual for ikan BZ400 Pro Wireless Uncompressed Zero Delay HD Video System Click to enlarge the picture
Contents of the user manual for the ikan BZ400 Pro Wireless Uncompressed Zero
- Product category: Wireless Transmission Systems ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Wireless Transmission Systems
 |
User manual for the ikan BZ400 Pro Wireless Uncompressed Zero contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description - The Blitz Wireless Video Transmitter and Receiver Kits | Ikan Tech Corner

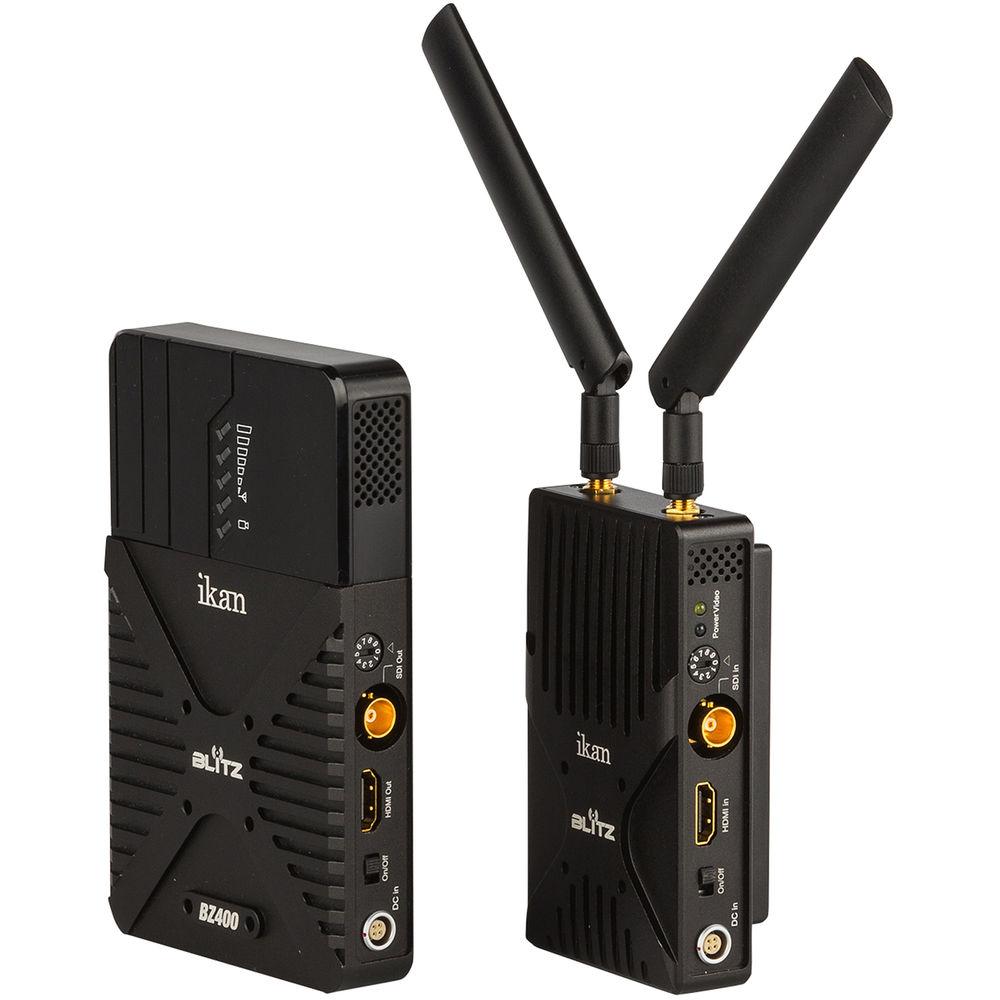

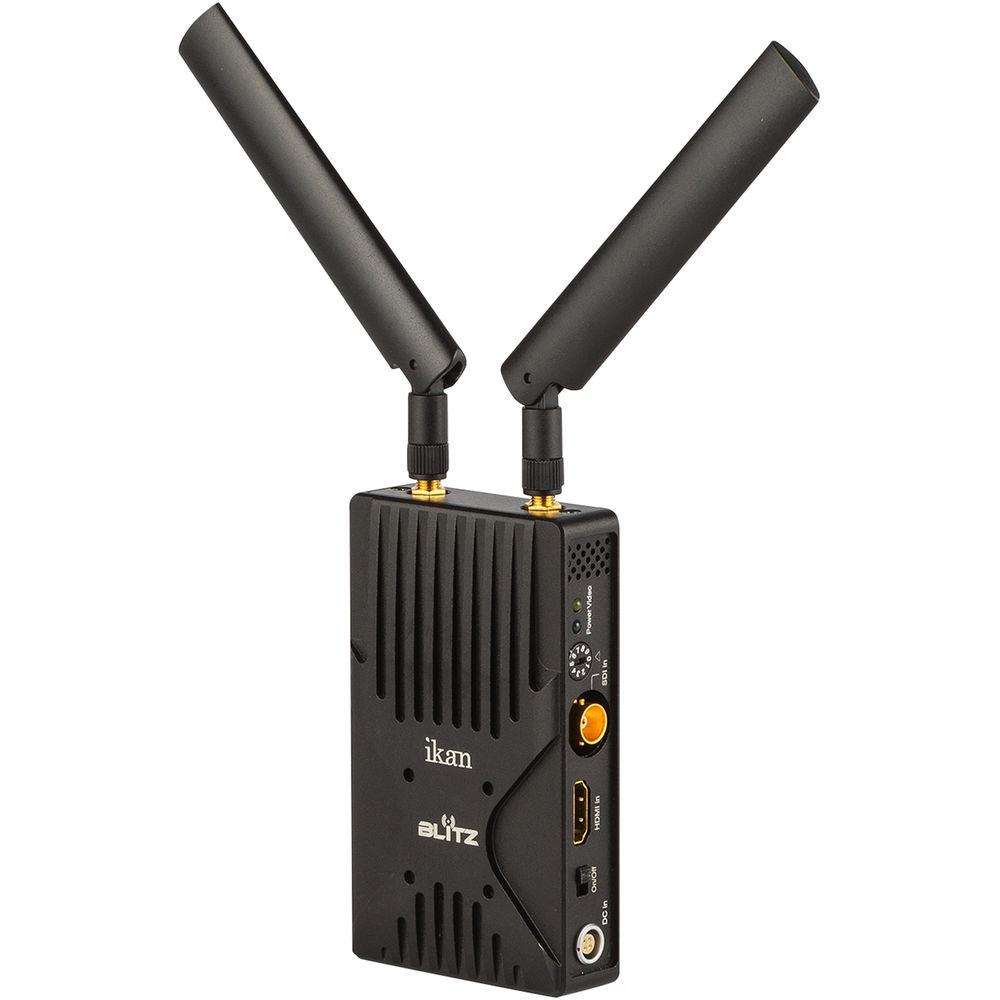

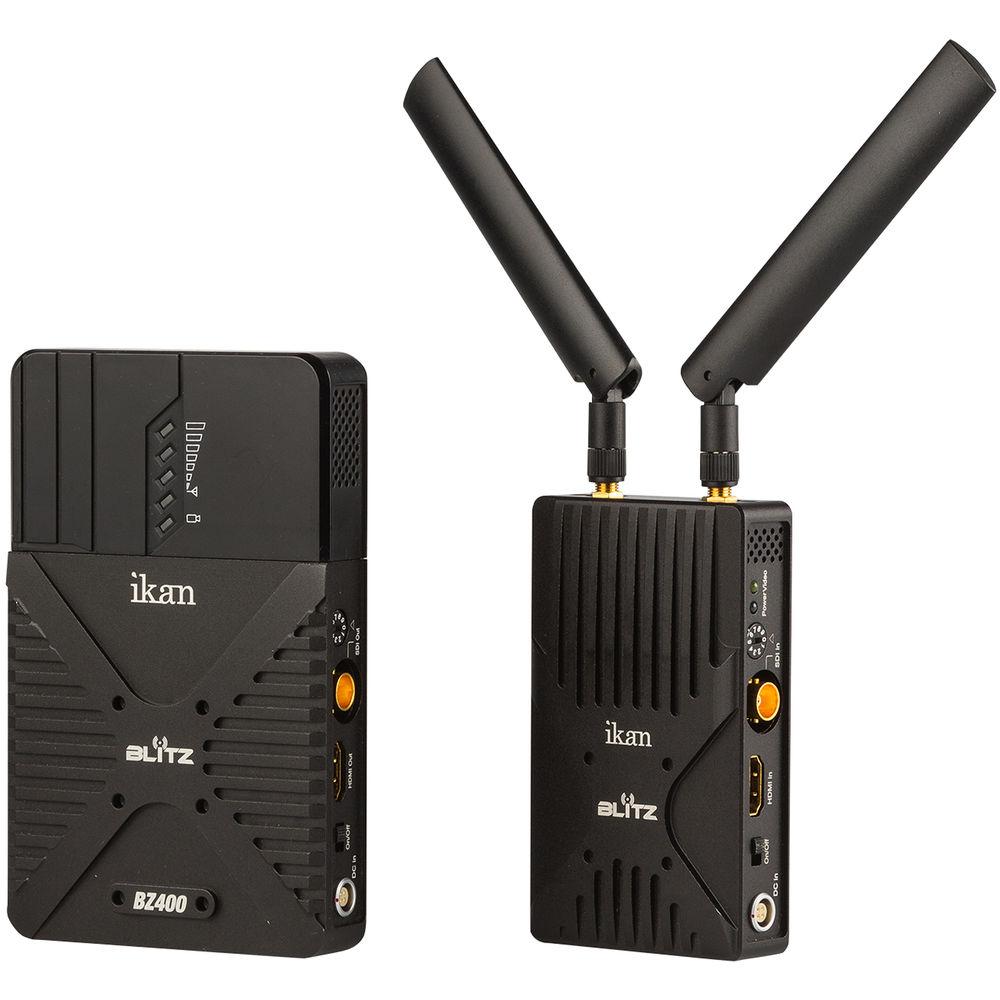

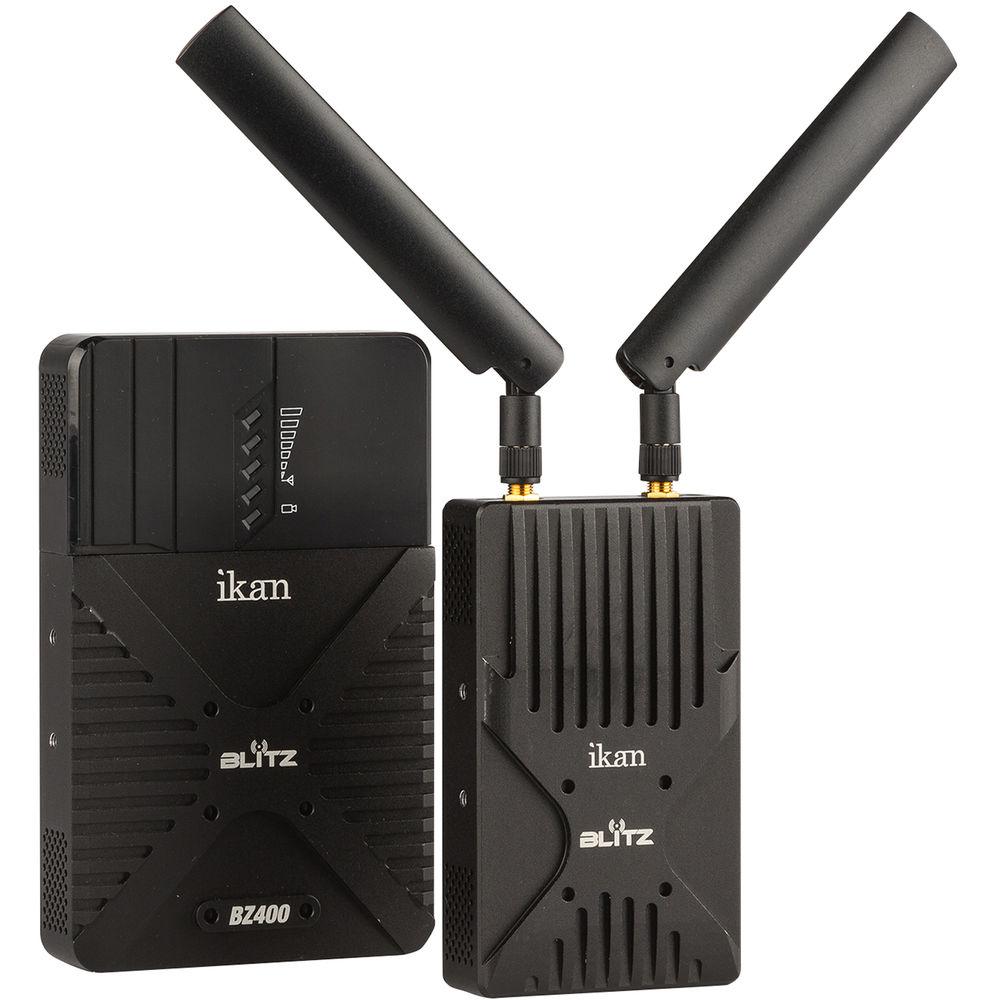

The ikan Blitz 400 Pro 3G-SDI/HDMI Wireless Video System features uncompressed, zero delay wireless video transmission. The system features a maximum range of 984' line-of-sight, and an optimal range of up to 400'. Both HDMI 1.3 and 3G-SDI video uncompressed HD video is supported. This Pro kit fleshes out the basic Blitz 400 bundle with two Sony NP-F750 L-series type batteries, a dual charger, and two shoe mount adapters. Both the transmitter and receiver also incorporate 4-pin LEMO connectors for drawing power from the same pro batteries used with your camera.

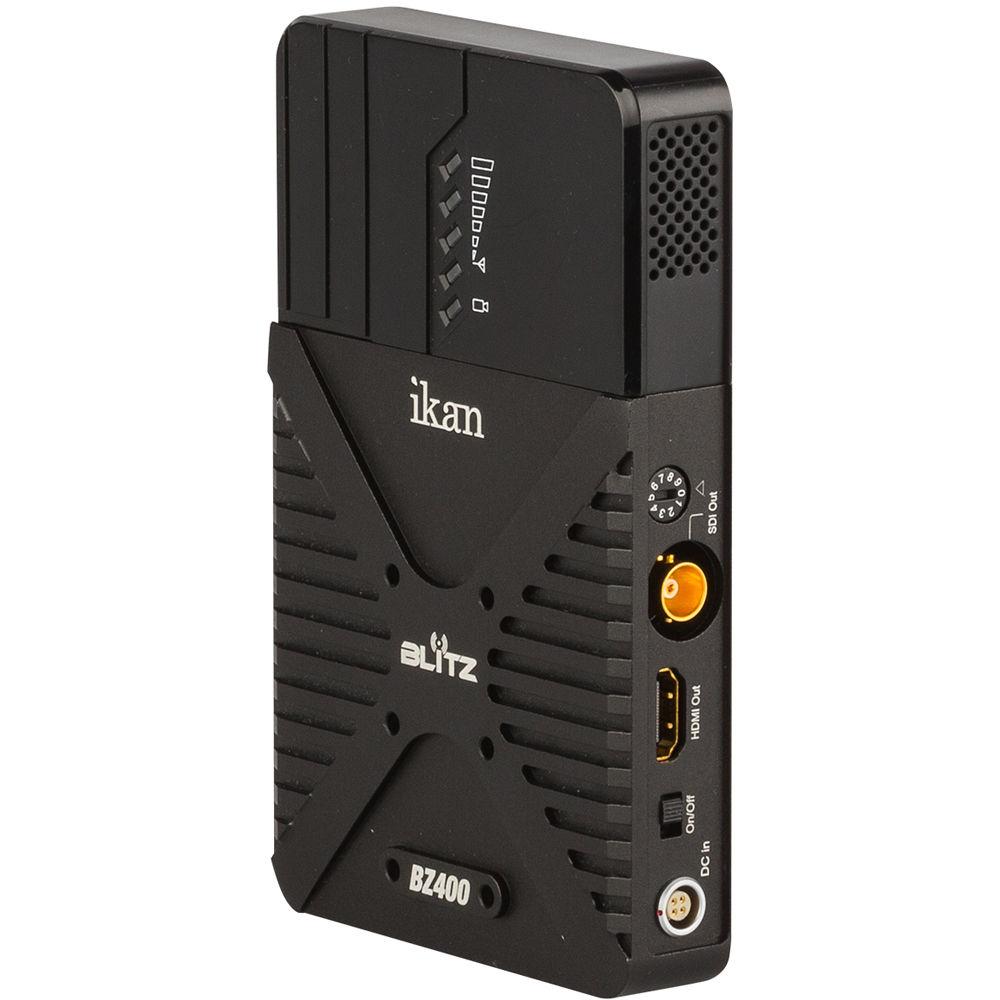

The lightweight, compact Blitz 400 Pro units are made from durable machined aluminum. Just power the units on and they will sync in about 20 seconds or less. The receiver features five internal antennas to ensure a strong signal, as well as four signal strength LED indicators. An articulating arm, a clamp, pre-installed battery plates, and two D-Tap to LEMO cables are included to help you mount and power the units. A durable hard case is included for safely transporting all the Blitz 400 Pro system components. Features - Transmits uncompressed wireless video with zero delay
- 3G-SDI and HDMI inputs and outputs
- Optimal range is 400' line-of-sight; maximum range is 984'
- Includes two NP-F750 Sony L-series type batteries and one dual charger
- One transmitter is capable of supporting up to four receivers
- Compatible with the ikan Quick Mount system; it also includes shoe mount adapters for each unit

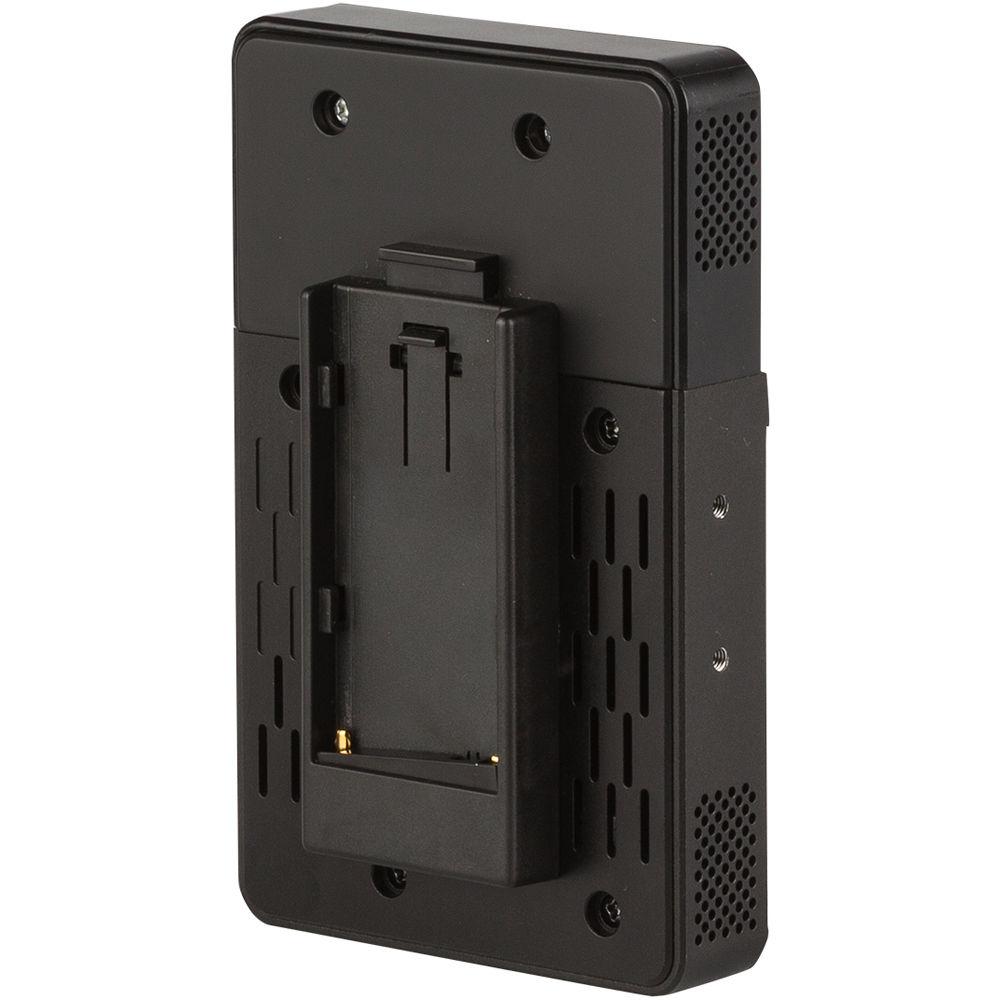

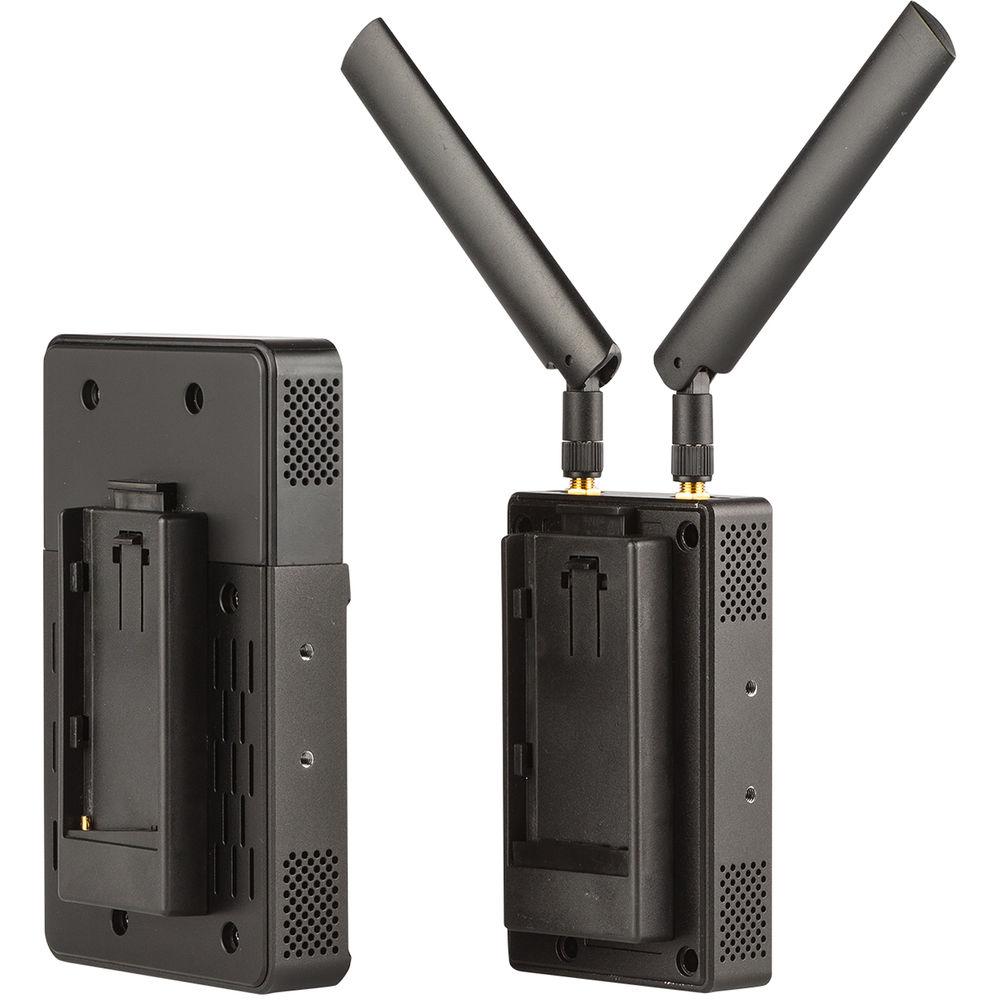

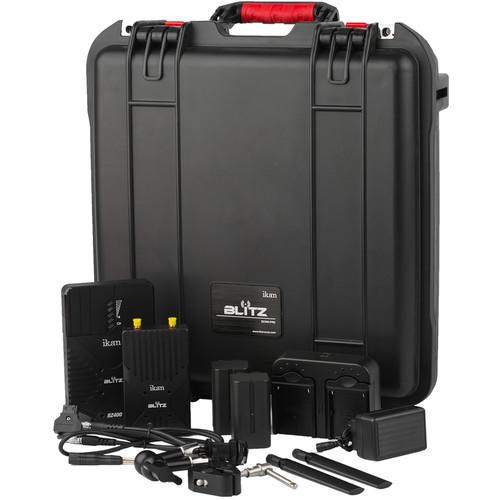

UPC: 847983022281 In the Box ikan BZ400 Pro Wireless Uncompressed Zero Delay HD Video System Transmitter Receiver Articulating Arm Clamp Dual Sony L-Series Battery Charger Hard Case 2 x Shoe Mount Adapters 2 x 5 GHz Antenna (SMA Female) 2 x P-Tap to LEMO-Type Cables 2 x NP-F750 L-Series Compatible Battery (7.4V, 5800 mAh) xebzrubrvfseqerucxtwa 2 x Sony L-Series Battery Plate (Installed) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan BZ400 Pro Wireless Uncompressed Zero Delay HD Video System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan BZ400-Pro Specs | | | Interface | 3G-SDI BNC, input
HDMI Type A, input
2 x RF-2 SMA male antenna ports
DC 4-pin LEMO, input | | Input Video Formats | HDMI:
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94
720p 50/59.94/60
625i, 525i
SDI:
3G/HD/SD-SDI (Auto-Selected)
SMPTE-259/274/292/296/372/424/425 | | Input Audio Format | SDI-embedded 4-Ch 24-bit / 48 kHz | | Indicators | Power: Green
Video: Yellow | | Frequency Bands | 5.1 to 5.9 GHz | | Modulation Mode | OFDM 16QAM | | Transmission Power | Max 21 dBm | | Band | 40 MHz | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Input Voltage | 7 to 36 VDC | | Power Consumption | <6.5 W | | Compliance | FCC, CE | | Dimensions | 4.5 x 2.6 x 0.9" (11.5 x 6.7 x 2.3 cm) | | Weight | 9.5 oz (270 g) | | | | Interface | 3G-SDI BNC, input
HDMI Type A, output
DC 4-pin LEMO, input | | Output Video Format | HDMI:
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94
720p 50/59.94/60
625i, 525i
SDI:
3G/HD/SD-SDI (Auto-Selected)
SMPTE-259/274/292/296/372/424/425 | | Audio Output | SDI embedded 4-Ch 24-bit / 48 kHz | | Indicators | Power: Green
Wireless Signal: 5 x Green
Video: Yellow | | Frequency Bands | 5.1 to 5.9 GHz | | Modulation Mode | OFDM 16QAM | | Sensitivity | -75 dBm | | Band | 40 MHz | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Compliance | FCC, CE | | Input Voltage | 7 to 36 VDC | | Power Consumption | < 6.5 W | | Dimensions | 5.9 x 3.7 x 0.9" (15.2 x 9.5 x 2.3 cm) | | Weight | 12.5 oz (355 g) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 18.0 x 16.0 x 6.5" |
