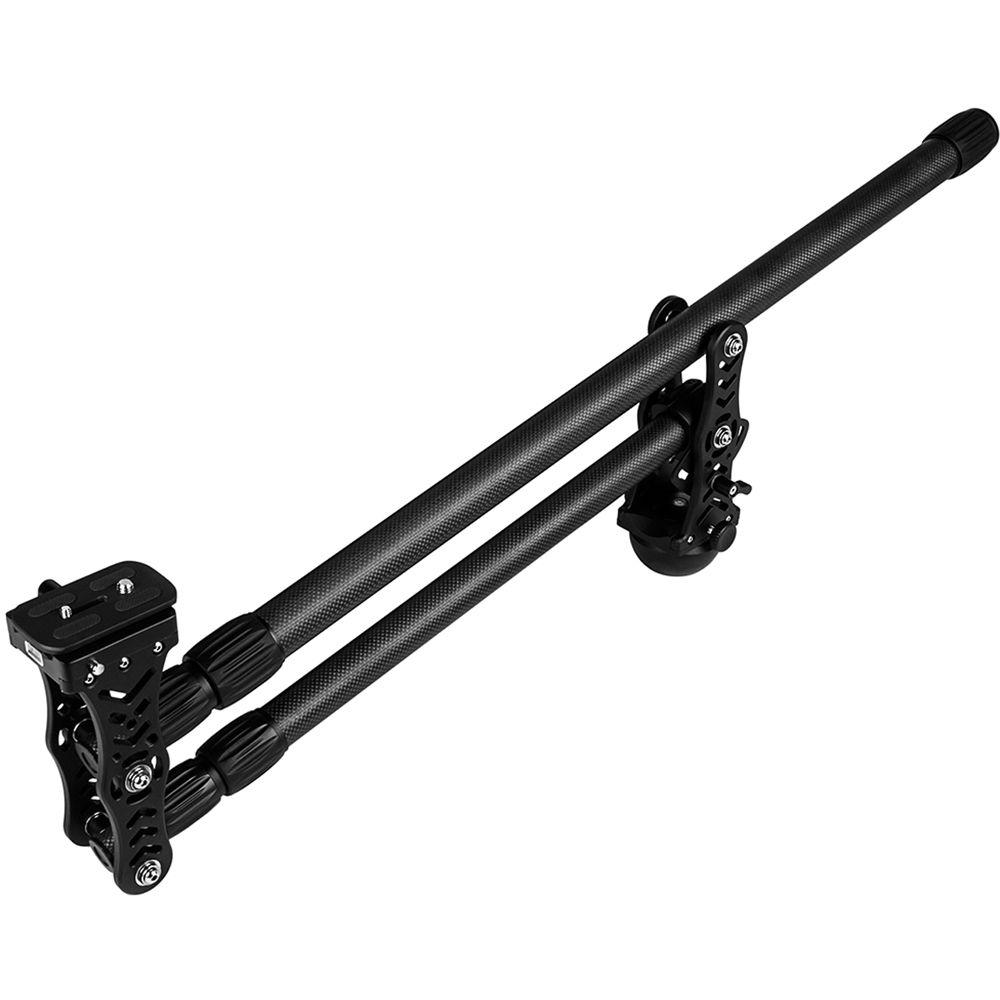

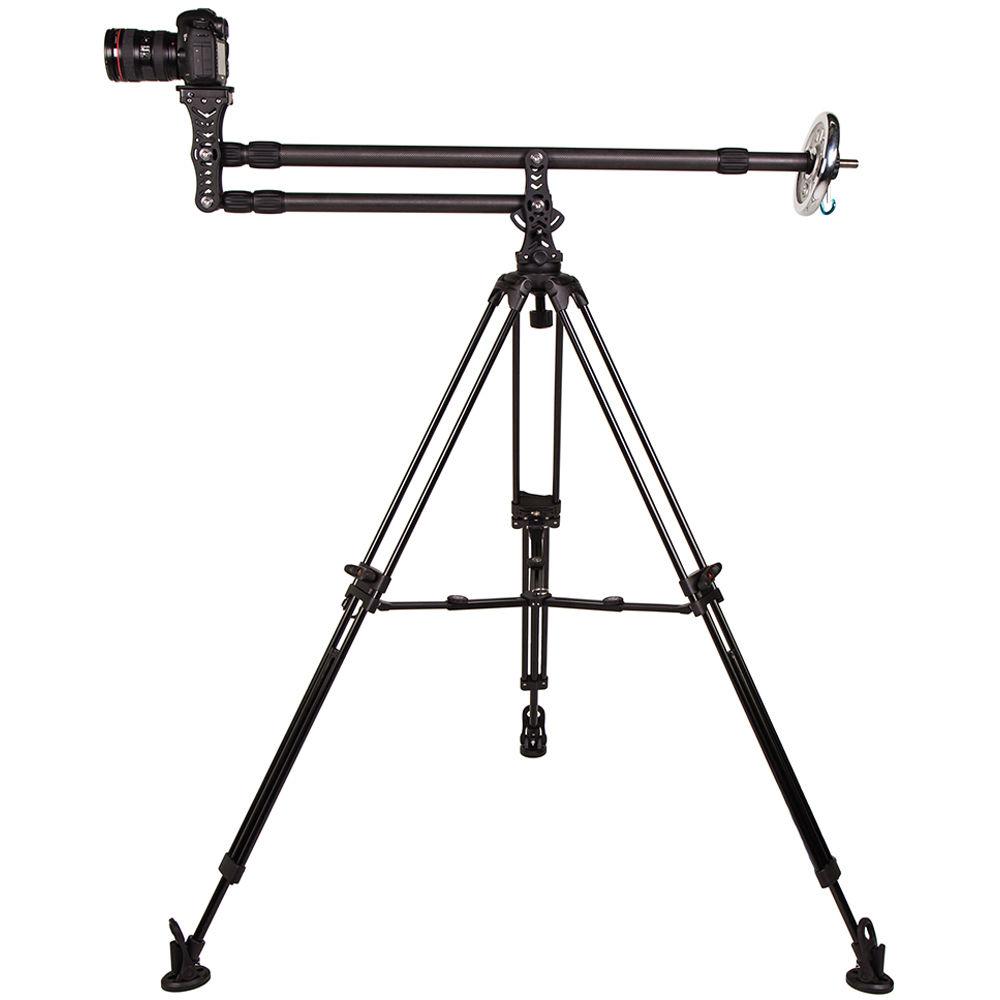

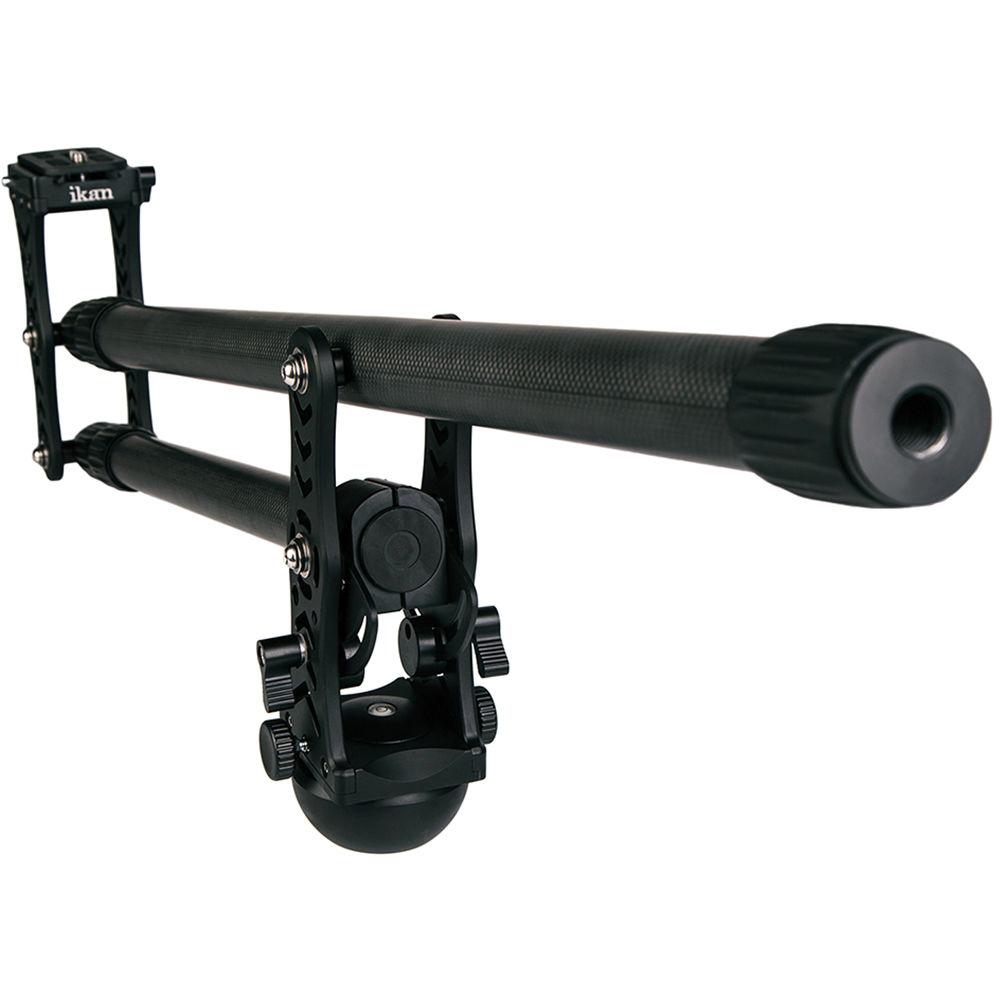

Product description ikan's Carbon Fiber Mini-Jib weighs only seven pounds yet supports a payload of up to thirteen pounds. It is a 2 section jib, that can be extended to just over four feet from the fulcrum point. The jib mounts to tripods with a 75mm bowl fitting, or you can remove the jibs 75mm half ball and mount the jib on a 3/8"-16 mounting system, allowing you to use this on flat plate tripods or other surfaces.

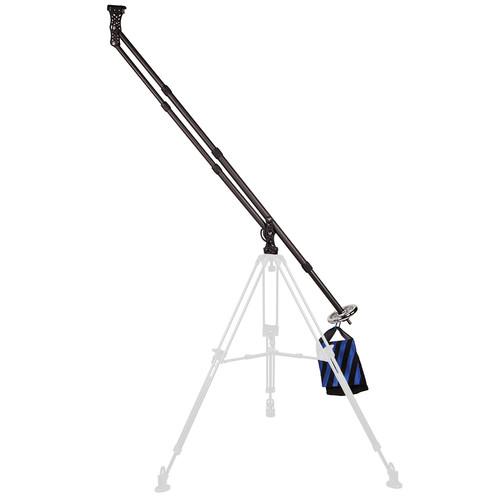

You can mount your camera directly to the camera platform of the jib, or use the included 75 mm bowl adapter to mount a ball head onto the jib arm. The two integrated bubble levels allow you to precisely control and adjust the level of the Jib Arm. The jib includes a threaded counterweight bolt that you thread into the back of the jibs extendable counterweight tail arm. This bolt allows you to mount the included gym style weight as well as optional weights and then extend the tail to counterbalance your camera.An included weight bag, allows you to quickly add more weight to your rig, without having to unscrew the weight safety, add weight, and then secure the weights again. The jib and its included accessories fit in the included carry sack for easy storage and transport. - The jib supports cameras weighing up to 13 pounds, and features independent pan and tilt locks. It extends from 21.5 to 50" from the fulcrum point. When mounting the jib to tripod, not included, please take incto account the weight of the jib arm, camera, accessories, and any counterbalance weights.

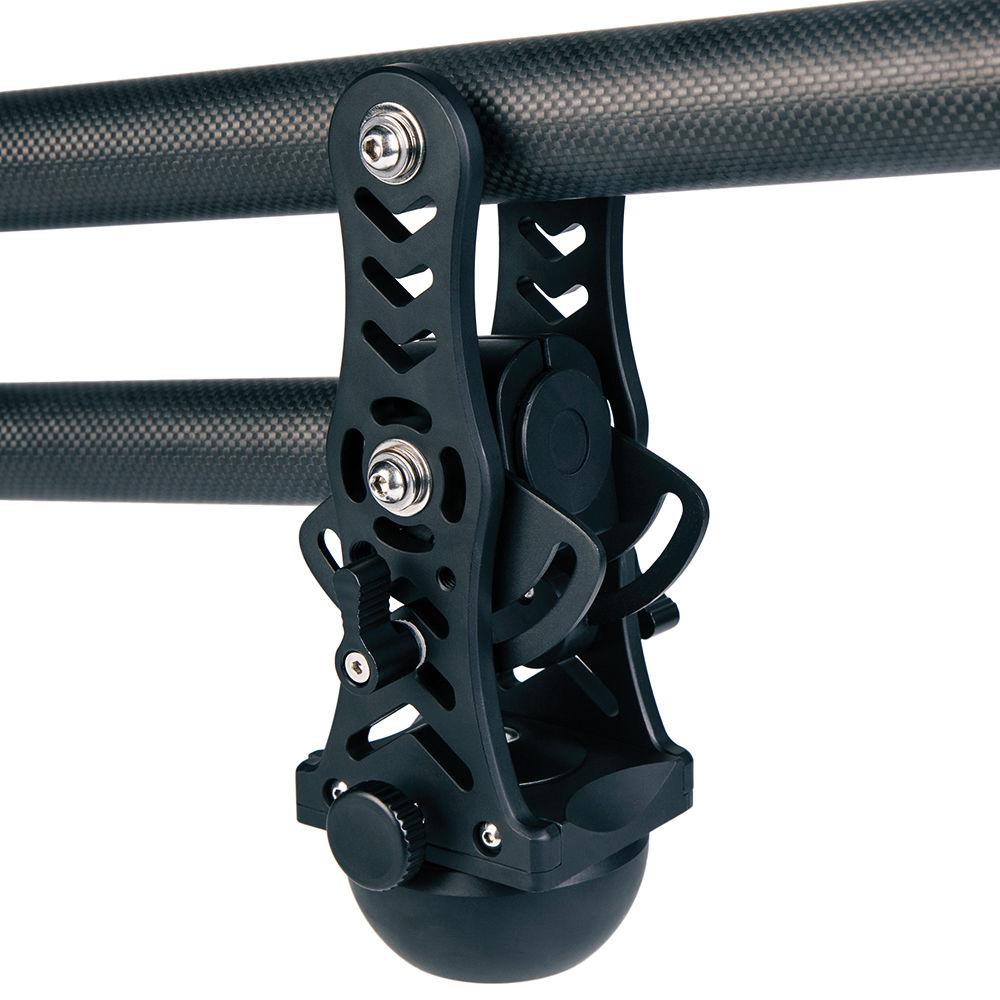

- The jib mounts onto tripods with either a 65 or 75mm bowl fitting. The jibs half ball integrates a flat base allowing you to mount the jib on a flat surface. You can remove the threaded tripod tie-down rod and mount the jib directly to compatible tripod heads with a 3/8"-16 tie-down.
- The included threaded weight rod threads into the counterbalance tail shaft of the jib. This allows you to locally source optional gym style weights to counterbalance your jib.
- Using the included weight bag with carabiner and washer allows you to mount the weight bag on the threaded weight rod, and then add and remove weight to counterbalance you set up without having to remove the counterweight retaining nut.

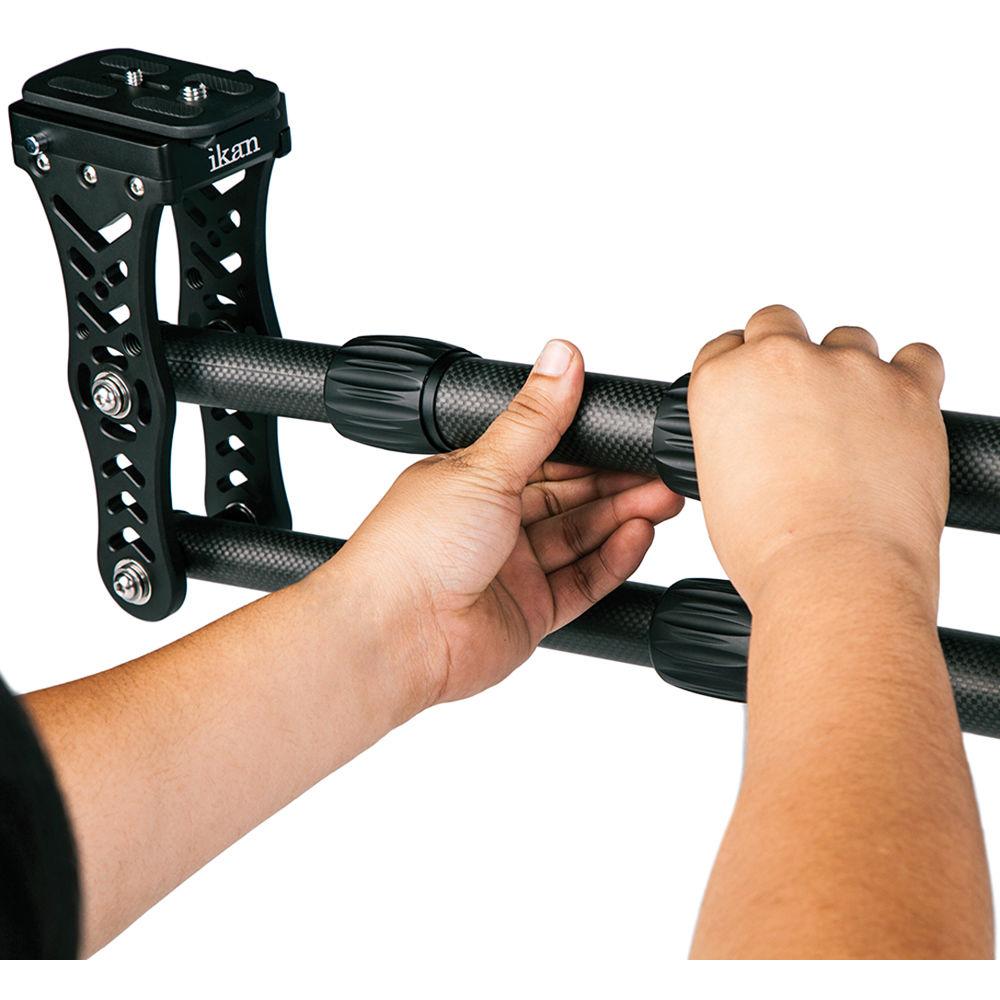

- The camera platform accepts an included QR plate, so you can quickly mount your camera or optional flat base fluid head to the camera platform. If you wish to mount an optional fluid head with 75mm half ball to the jib arm, the included QR 75mm half ball adapter can be used in place of the regular QR plate.
- Two integrated levels allow you to level your jib.

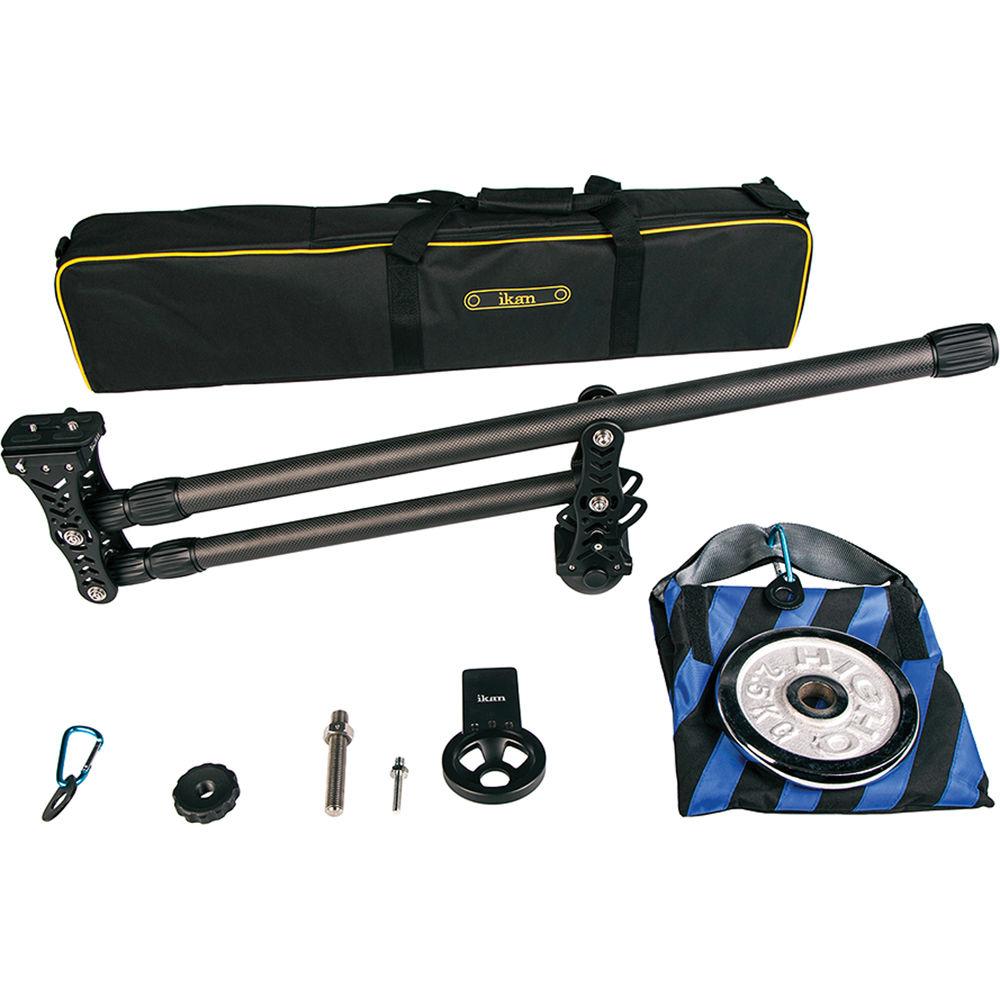

UPC: 847983012381 In the Box ikan Carbon Fiber Mini-Jib Jib Level Knob Quick release Camera Plate 75mm Half Bowl Quick Release Adapter Counterweight Bag Carabiner & Washer for Weight Bag 5.5 Pound Counterweight Tail Threaded Counterweight Bolt Counterweight Retainer Nut Jib Base Mounting Bolt Transport Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Carbon Fiber Mini-Jib in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan JIB-01C Specs | Construction | Carbon fiber | | Payload Capacity | 13 lb / 5.9 kg | | Counterbalance System | User Supplied Weights | | Extension Range | Min: 21.5" / 54.6 cm
Max: 50" / 127 cm | | Tilt Lock | Yes | | Pan Lock | Yes | | Pan Range | 360° | | Tripod Attachment | 75mm Ball or 3/8"-16 Threaded | | Camera Attachment | QR Plate | | Head Attachment | 75mm Ball | | Head Arm Leveling | Collar locks | | Leveling Indicators | 2 x Integrated bubble levels | | Weight | 7 lb / 3.2 kg | | | | Package Weight | 16.4 lb | | Box Dimensions (LxWxH) | 39.0 x 10.0 x 6.0" |
