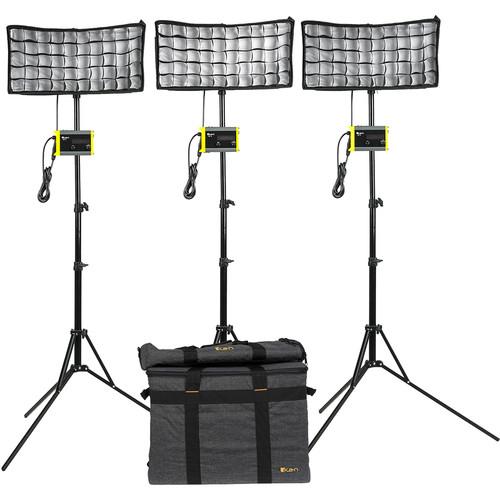

ikan CB8 Canvas Bi-Color 3-Point LED

User Manual for ikan CB8 Canvas Bi-Color 3-Point LED Light Kit

• Product category: LED Lights ikan
• Brand: ikan
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ikan LED Lights

Product description

• CB8 Canvas Bi-Color 2800-6500K Bendable LED Panel
  • Assembly Tutorial for Soft Box on the Canvas Bendable LED Panel | Tech Tip
  A lot of manufacturers laud their lighting products' capabilities as "flexible", but when ikan says it about their CB8 Canvas Bi-Color 2800-6500K Bendable LED Panel, they mean it - literally. ikan has mounted 336 LEDs on a 20 x 10" mat, and if you've ever wished your light source could conform to your needs to light a subject, this is it. And with a weight of just 1 lb and a thickness of just 1/2 inch, you can easily tape it in place out of sight. Like all LED fixtures the Canvas light is energy efficient but this one equals the incandescent output of a 300W flood light while consuming just 24W and generating just about zero heat. And with a 120° beam angle this small LED source can light a wide field. The Canvas light comes with a controller that works separately from the mat for maximum freedom of placement. Its adjustment capabilities include variable color from 3200 to 5600K to meet any ambient light challenge with a high CRI/TLCI rating of 95/96, indicating accuracy in rendition of color. Light intensity is variable too, from 10 to 100% to fine-tune the output. For those who value flexibility but would also like a solid panel, ikan includes an X-Holder and Mounting Pin to hold the mat rigid at its full 20 x 10" spread. The special receiver has a 5/8" hole tapped it its barrel so that it mounts horizontally on a light stand, while the end that connects to the Canvas light rotates about 180° for precise placement. The X-Holder facilitates mounting the included softbox to take the edge off the bright LEDs. There's also a fabric grid that narrows the Canvas light's beam to permit selective lighting. Power requirements are flexible too. The light includes a holder for V-mount batteries, as well as a converter that conveniently allows you to use NP-F-style camera batteries when away from mains current. Ready for worldwide use, the Canvas Bi-Color Panel ships with a 110 to 240 VAC power supply.
  Bendable Fabric LED Panel
  • The Canvas light is a lightweight solution to even the most challenging lighting problems.
  Color Rendition
  • The High CRI and TLCI ensures that professionals get an accurate color output. The Canvas bi-color light gives you total control of the color from 2800-6500K.
  Beam Angle

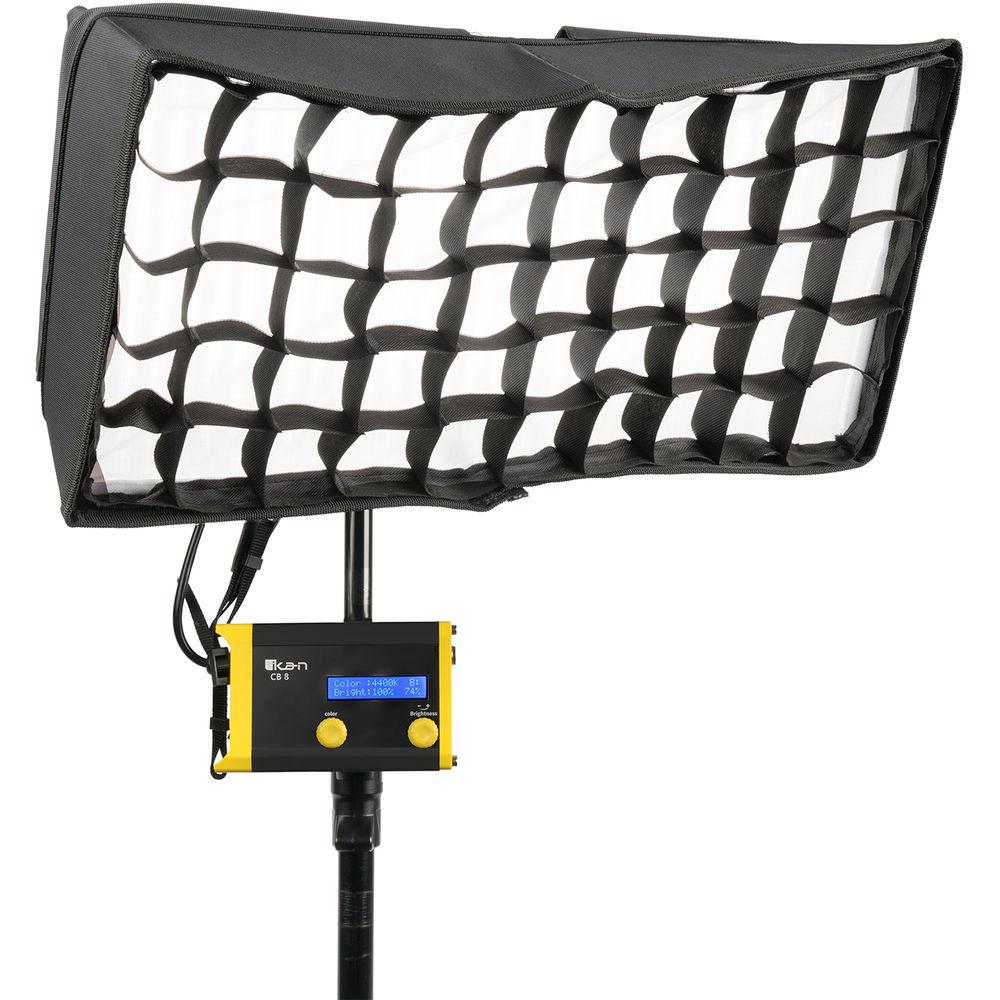

  • The wide 120° beam angle allows a lot of light to be directed towards the subject. With or without a softbox, the Canvas LED Light gives the user the ability to create a soft visual environment. The included softbox and eggcrate grid allow for soft, controlled light.

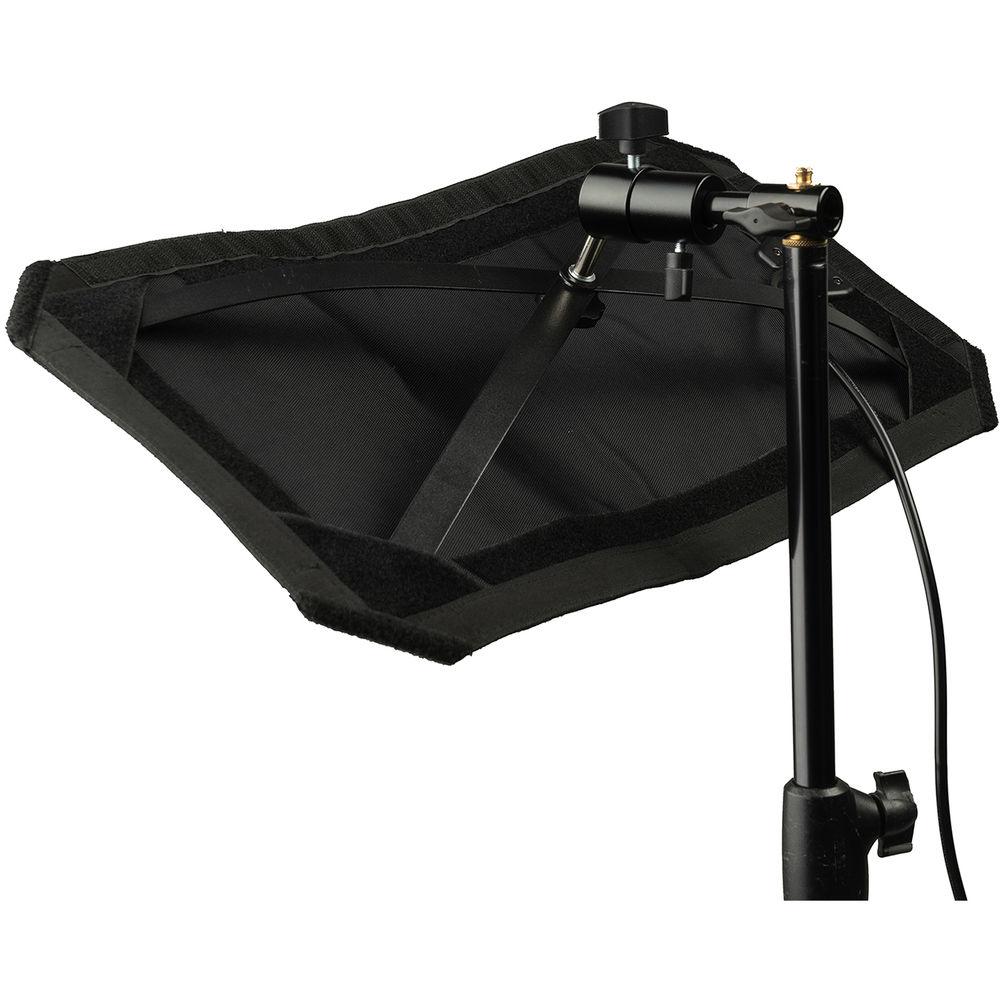

  X-Holder and Mounting Pin
  • The X-Holder Mount with a 5/8" receiver is rigid to keep the light fixture in place. The Baby Pin Mount with 90° receiver hole allows mounting and pointing the light in any direction.

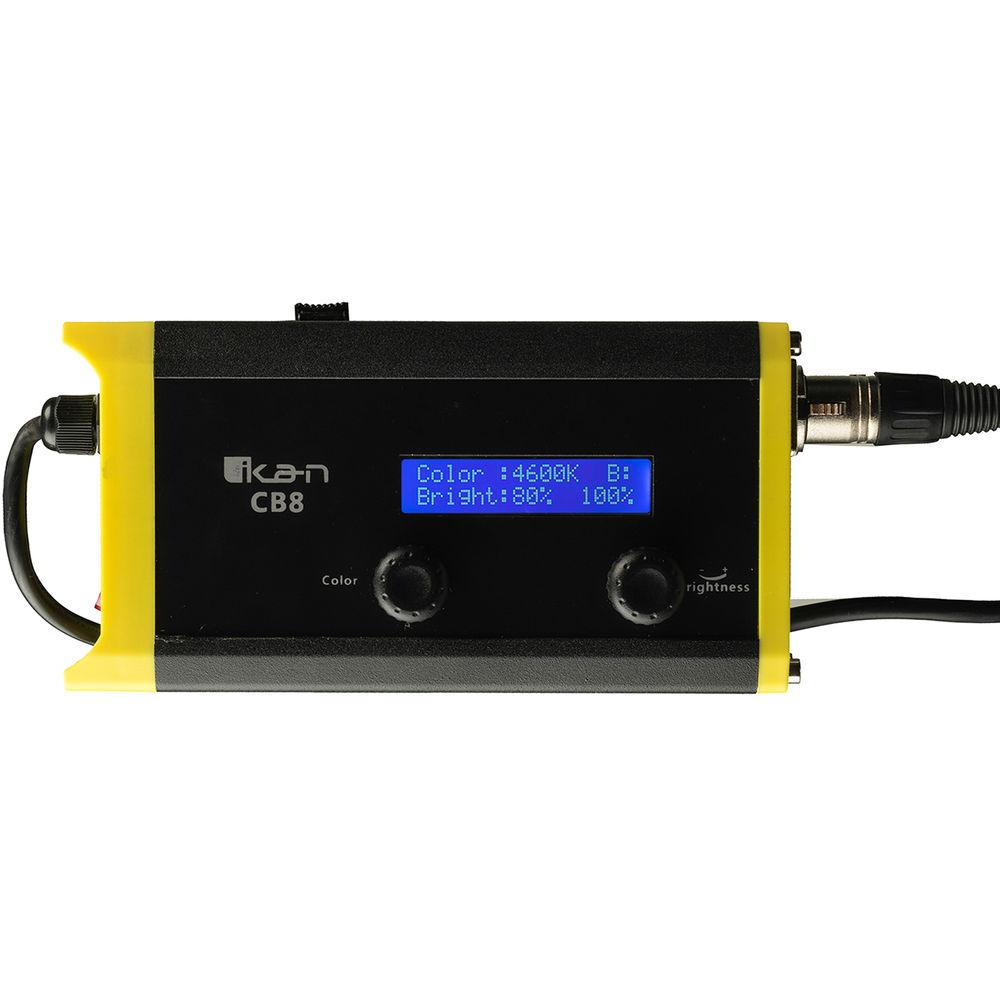

  CB8 Controller
  • The controller gives you complete control over the light to adjust the color and brightness. It includes a 6' extension cable.
  Power Options
  • The Canvas CB8 can be powered by a V-mount pro battery or the convenience of DV batteries. Power accessories are included.
  300 Watt Equivalent
  • The CB8 is equivalent to a 300W incandescent soft light and only draws 24W.
  UPC: 847983026029

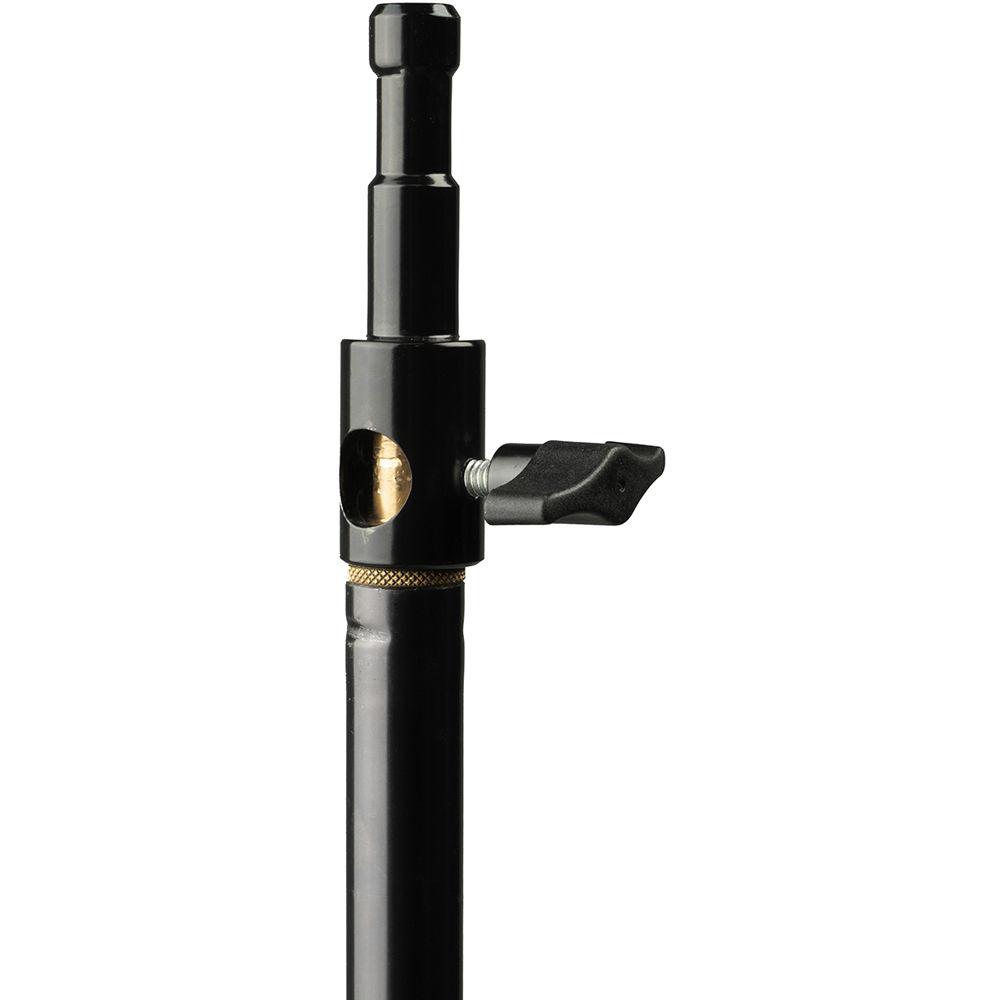

• Compact Light Stand Version 3 (74") The Compact Light Stand Version 3 from Ikan is a space-saving support that rises to a height of 74" and, thanks to a clever reverse folding leg design, folds down to just 21" in length. The matte black stand boasts extra long legs that ensure it doesn't tip over easily, as well as a 5/8" top stud. UPC: 847983015184

• 5/8" Baby Pin with 90° Mount Holes

• Controller Box

• Eggcrate

• Hanging Strap

• Locking V-Mount Strap

• Power Cord

• Power Supply

• Softbox

• V-Mount to DV Mount Converter

• X-Holder with Ball Mount

• Carrying Bag

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Kit Bag for CB8 Lights
• Stand Bag
• 6 x Sony L-Style Battery
• 3 x Dual-Battery Charger
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CB8 Canvas Bi-Color 2800-6500K Bendable LED Panel

  Beam Angle	120°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 95 TLCI 96
  Cooling System	Passive
  Dimming	Yes, 10 to 100%
  Display	LCD
  Number of LEDs	336
  Fixture Dimensions	20.0 x 10.0 x 0.5" / 50.8 x 25.4 x 1.3 cm
  Fixture Weight	1 lb / 0.45 kg

  Battery Plate	1 x V-Mount 1 x Sony P-Series

  Fixture Mount	5/8" Receiver
  Accessory Mount	None

  Remote Control Type	None

  AC Input Power	110 to 220 VAC, 50 / 60 Hz
  DC Input Power	7.4 to 14.8 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	24 W

  Cable Length	6' / 1.83 m

  Power Supply Output	15 VDC

  Box Dimensions (LxWxH)	15.95 x 9.75 x 9.55"

• Compact Light Stand Version 3 (74")

  Load Capacity	7 lb / 3.2 kg
  Mounting Options	5/8" Stud
  Number of Sections	4
  Maximum Working Height	74" / 188 cm
  Minimum Working Height	23" / 58.4 cm
  Collapsed Height	23" / 58.4 cm
  Leg Shape	Rectangular
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black

  Box Dimensions (LxWxH)	23.75 x 3.5 x 3.5"
