Product description - ikan D12 Field Monitor Kit for V-Mount w/ Built-In Hard Case

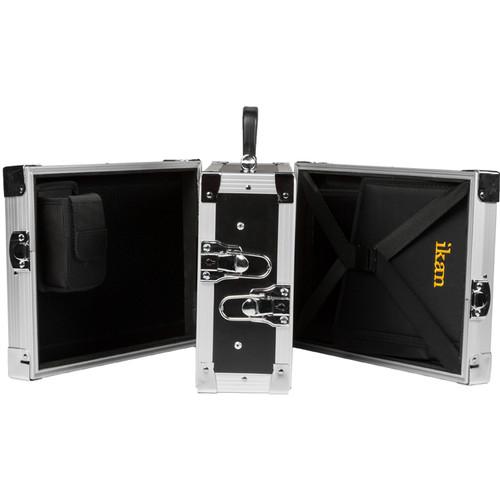

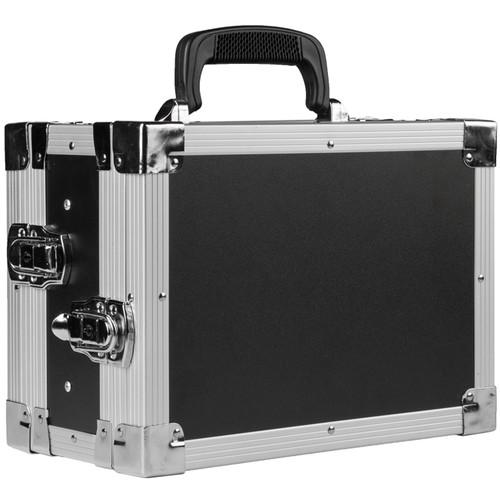

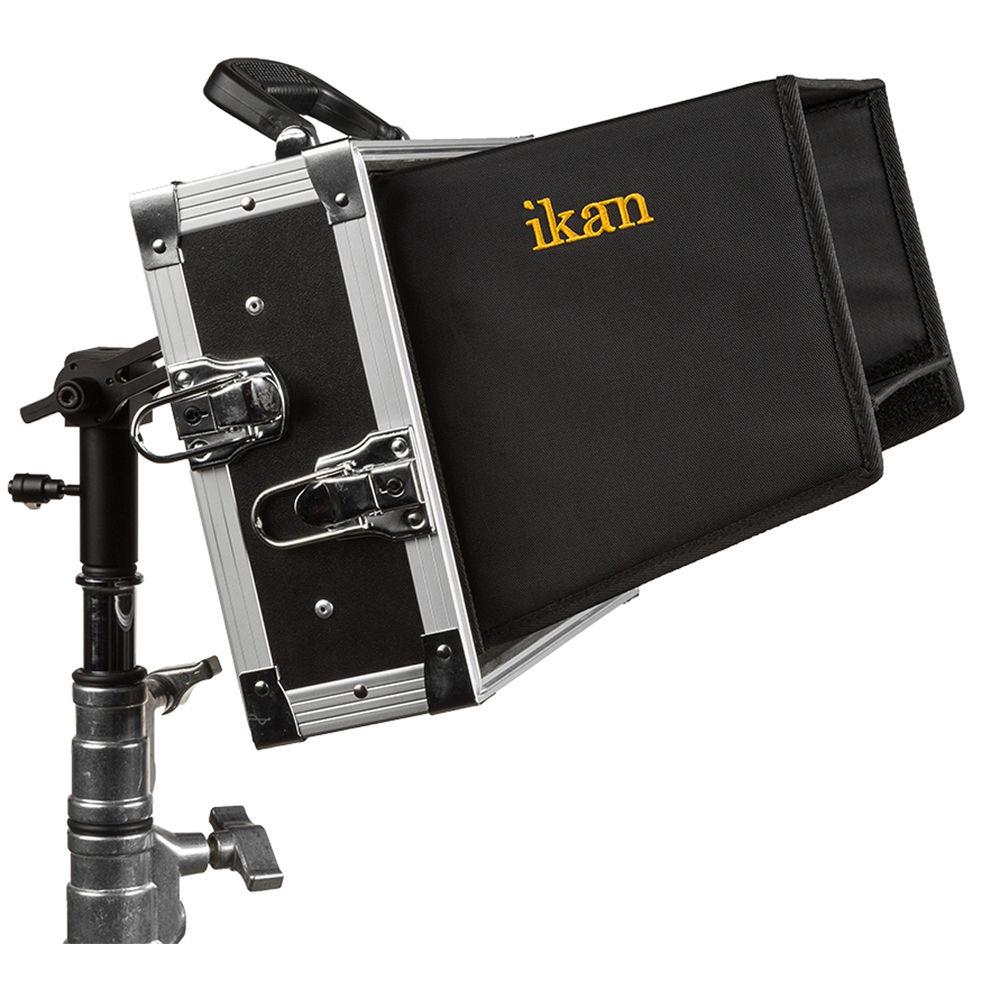

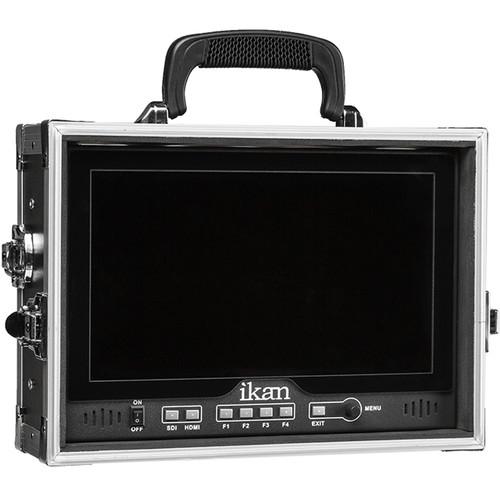

The D12-FK 12" HDMI/3G-SDI LCD Monitor Field Kit from ikan integrates a D12 monitor into a durable hard case with an attached V-mount battery plate, a Gold Mount battery plate, and an attached adjustable aluminum stand mount. It also includes a four-sided sun hood and a screen protector. This kit allows for handy transport, and the stand mount allows for easy placement and viewing in the field. The hard case features a front door as well as a rear door for quickly accessing all the monitor's functions. The front door holds the sun hood in place while the rear door holds the AC adapter when not in use. The D12 monitor features a native 1920 x 1080 IPS LCD panel with loopthrough SD/HD/3G-SDI and HDMI inputs and outputs. The IPS technology provides a 178° viewing angle, left to right and top to bottom with true-to-life color reproduction. The monitor incorporates a variety of image display tools including; False Color, Peaking, Clip Guides, and DSLR Scaling. On-screen Tally indication allows you to use this as a monitor for a studio camera or for monitoring in a multi-camera shoot. The included four-sided sun hood folds up and stores in the front door of the case. It easily attaches to the monitor with magnets. Rosettes on the attached stand mount provide both strong support and adjustability for the monitor. Once the monitor is set at the desired angle, it can be locked into position by tightening the rosettes. The monitor is powered from the included AC adapter via a threaded COAX power connector, or you can power it using the built-in 4-pin mini XLR. It accepts a voltage range from 7 to 12 VDC, allowing you to use a variety of batteries to power the monitor in the field. - Full HD (1920 x 1080) IPS LCD panel for better color and viewing angles
- Integrated into a durable hard case for portability
- Comes with an attached V-Mount battery plate and an attached adjustable stand mount
- Gold Mount battery plate is also included for more portable power options
- 3G-SDI and HDMI inputs and outputs
- False Color, Peaking, Clip Guides, DSLR Scaling, and Histogram
UPC: 847983019236 In the Box ikan D12-FK 12" HDMI/3G-SDI LCD Monitor Field Kit for V-Mount & Gold Mount with Hard Case D12 Monitor with Integrated Hard Case Gold Mount Battery Plate Sun Hood Screen Protector AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan D12-FK 12" HDMI 3G-SDI LCD Monitor Field Kit for V-Mount & Gold Mount with Hard Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan D12 Specs | LCD Size | 11.6" / 29.5 cm | | Display Technology | IPS | | Video System | PAL / NTSC / SECAM (auto-detected) | | Resolution | 1920 x 1080 | | Supported Signals | 3G-SDI:
1920 x 1080p @ 50, 59.94, 60 Hz
HD-SDI:
1280 x 720p @ 50, 59.94, 60 Hz
1920 x 1080i @ 50, 59.94, 60 Hz
1920 x 1080psf @ 23.98, 24, 25, 29.97, 30 Hz
1920 x 1080p @ 23.97, 24, 25, 29.97, 30 Hz
SD-SDI:
720 x 480i @ 60 Hz
720 x 576i @ 50 Hz
HDMI:
720 x 480i & 720 x 480p @ 59.94, 60 Hz
720 x 576i & 720 x 576p @ 50 Hz
1280 x 720p @ 50, 59.94, 60 Hz
1920 x 1080i @ 50, 59.94, 60 Hz
1920 x 1080psf @ 24, 25, 29.97, 30 Hz
1920 x 1080p @ 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz | | Pixel Pitch | 0.1335 x 0.1335 mm | | Brightness | 350 cd/m2 | | Viewing Angle (H/V) | 178°/178° | | Contrast Ratio | 700:1 | | Response Time | 25 ms | | Input and Output Connectors | Input:
SD/HD/3G-SDI: 1 x BNC
HDMI: 1 x Full size
Output:
SD/HD/3G-SDI: 1 x BNC
HDMI: 1 x Full size
Headphone: 1 x 3.5 mm mini jack
Tally:
1 x RJ45 | | Speaker | 2 x 2 W (built-in) | | Picture Controls | False Color, Peaking, Clip Guides, DSLR Scaling, and Histogram
Tally system (on-screen) | | Remote Control | Not Specified by the Manufacturer | | Power Requirements | 7 to 24 VDC | | Power Consumption | 16 W | | Power Connector | 1 x mini 4-pin XLR
1 x Threaded Coax
1 x V-Mount battery plate
1 x Gold Mount battery plate | | Material | Steel and aluminum | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Dimensions | 10 x 13 x 7" / 25.4 x 33 x 17.7 cm | | Weight | 12.5 lb / 5.6 kg | | | | Package Weight | 17.35 lb | | Box Dimensions (LxWxH) | 14.2 x 10.4 x 8.6" |
