Product description - D24 Native 4K Production Monitor | Ikan Tech Corner

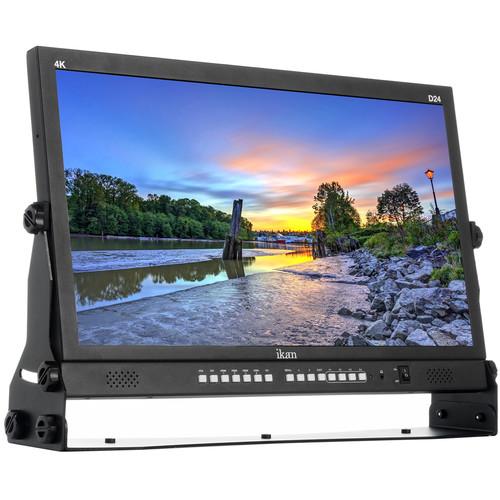

Suitable for both location and studio work, ikan's D24 - 23.8" Native Ultra HD 4K Monitor with Quad Split Display and 3G-SDI, HDMI 2.0 Input that features a native 1920 x 1080 IPS LCD panel and loop-through SD/HD/3G-SDI, and HDMI inputs and outputs. The removable desk stand features three 1/4"-20 threaded mounting holes that provide a variety of mounting possibilities. The monitor displays 4K DCI, 4K UHD, HD and even SD video. It autosenses whether the input is NTSC, PAL, or SECAM compatible and autoselects the correct display system. The 3G-SDI input loops through to the 3G-SDI output, so you can easily display your video and send it down stream without requiring a splitter. HDMI input #1 supports the HDMI 2.0 protocol, allowing the monitor to input a 4K signal, the other three inputs support the HDMI 1.4 protocol. Although the HDMI inputs are not loop through, the monitor can display all four HDMI inputs simultaneously as a quad split display.
The IPS screen provides good color and contrast, even when the screen is viewed from off-axis. The monitor incorporates a variety of image display tools including; peaking, picture-in-picture, image freeze, over scan, zoom, and check field. On-screen Tally indication allows you to use this for monitoring a multi-camera shoot. The monitor includes a removable desk stand for support and is powered via 12 VDC via a 4-pin XLR or V-Mount battery plate. - HD Resolution
- The IPS LCD screen features 3840 x 2160 resolution, which provides you a crisp image, and the IPS technology provides a 178° viewing angle, left to right and top to bottom.
- User Interface
- The front panel features an On/Off switch, discrete input select, four assignable function buttons, menu, left, right, and exit button.
- Inputs

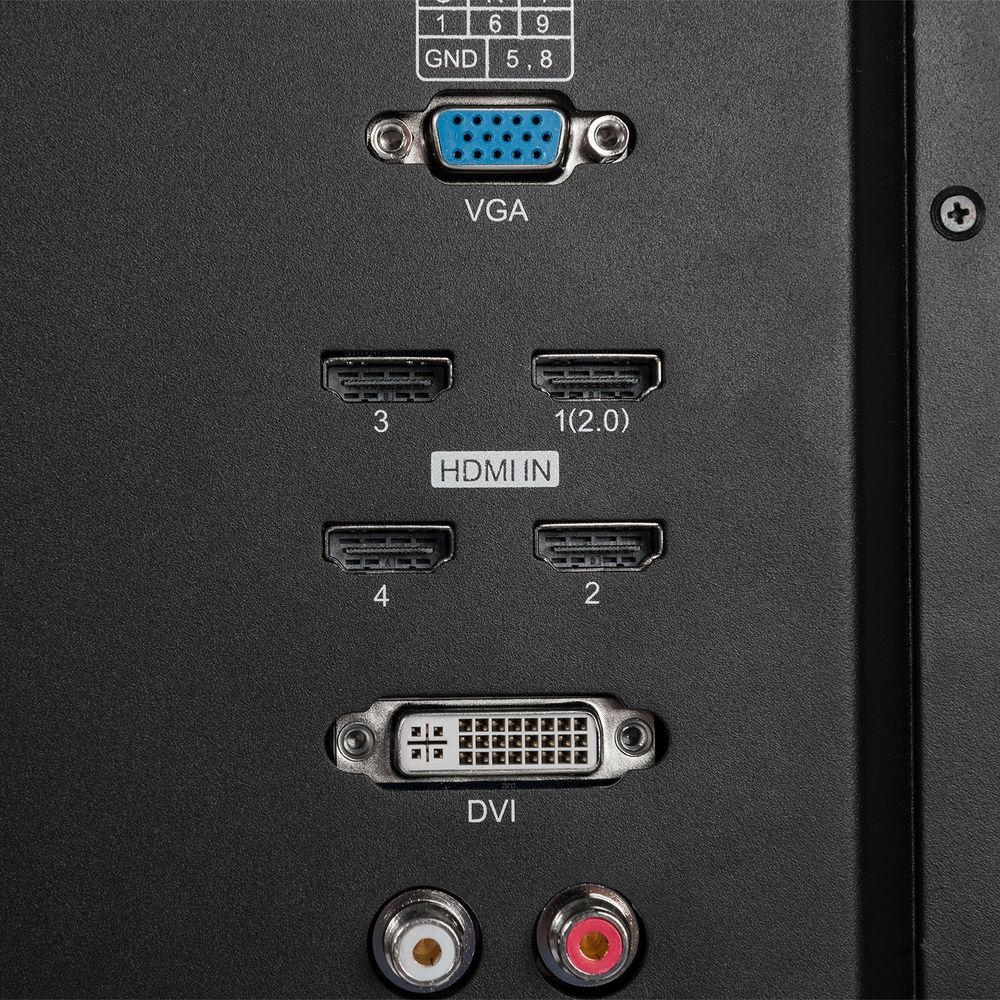

- The D24 features a loop-through 3G-SDI input/output, as well as four HDMI inputs, which can be used to display a quad view with each input displayed on one quadrant of the screen. HDMI inputs 2, 3, and 4 support HDMI 1.4, while HDMI input 1 supports the HDMI 2.0 protocol.
- Display Features
-
- Peaking
- Picture-in-picture
- Aspect Ratio
- Zoom
- Check Field
- Overscan
- Image Freeze
- On-Screen Three Color Tally Display
- Power
- The monitor accepts power via a V-Mount battery plate or a 4-pin XLR connector.
- Mounting
- The removable table stand permits up to 30° of articulation (15 forward and 15 back) and has incorporates three 1/4"-20 threaded mounting holes for securing to a flat surface.
UPC: 847983020584 In the Box ikan D24 - 23.8" Native Ultra HD 4K Monitor with Quad Split Display and 3G-SDI, HDMI 2.0 Input Desktop Stand Power Supply Sunhood Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan D24 - 23.8" Native Ultra HD 4K Monitor with Quad Split Display and 3G-SDI, HDMI 2.0 Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

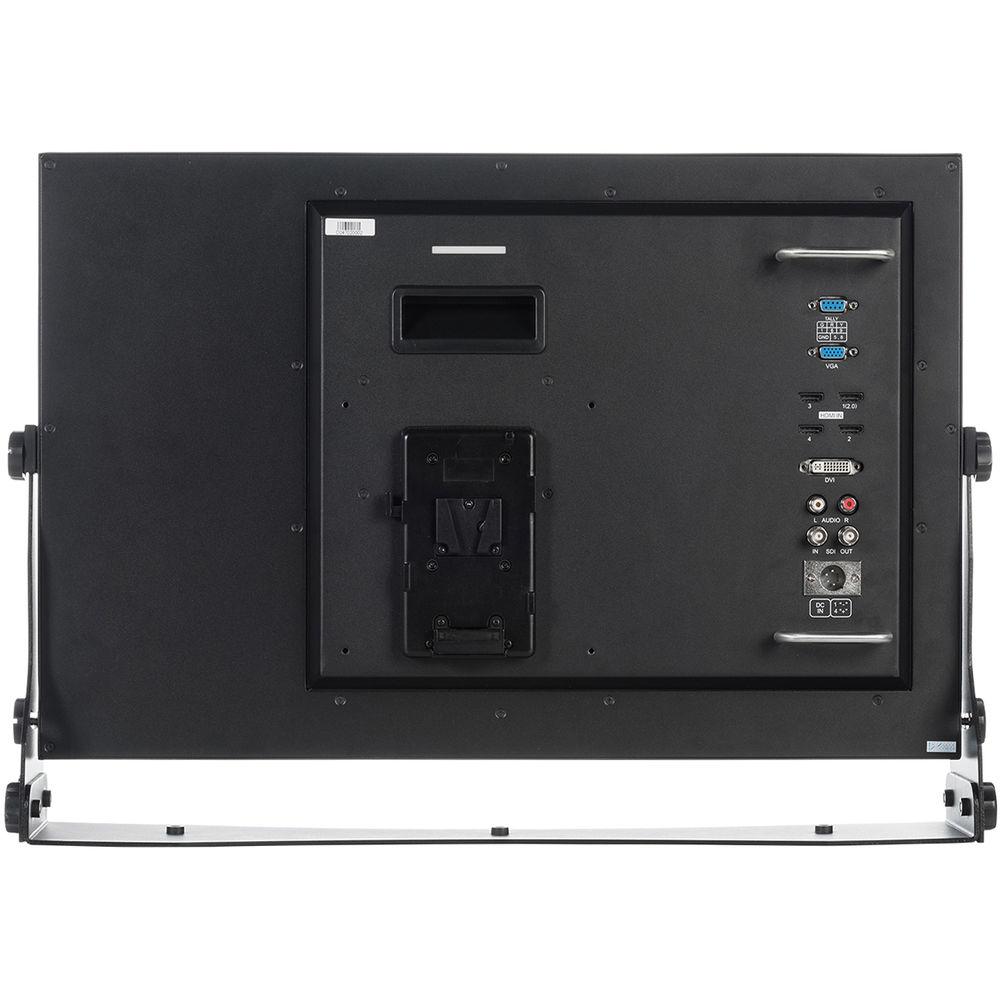

Technical parametersikan D24 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 23.8" / 60.5 cm | | Screen Resolution | 3840 x 2160 | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Maximum Brightness | 310 cd/m2 | | Contrast Ratio | 1000:1 | | Dot Pitch | 0.1905 x 0.1905 mm | | Response Time | 5 ms | | Image Controls | Focus Peaking, Pixel-to-Pixel Zoom, Screen Markers | | | | Video | 1 x BNC (3G-SDI) Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A (HDMI 2.0) Input
3 x HDMI Type A (HDMI 1.4) Input
1 x DVI-I Input
1 x DE-15/DB-15 (VGA) Input | | Audio | 1 x RCA Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x 4-Pin XLR Input | | Other I/O | 1 x Tally (DE-9/DB-9) | | Card Slot | None | | | | Video Format | SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 50/59.94/60
PAL
NTSC
HDMI
DCI 4K: 24
UHD 4K: 24/25/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 24/25/29.97/30
1080i: 50/59.94/60
720p: 50/59.94/60
NTSC
PAL
DVI
1080p: 24/25/30/50/60
1080PsF: 24/25/30
720p: 24/25/30/50/60
480p: 60
NTSC | | PC Resolutions | 1920 x 1200
1680 x 1050
1600 x 1200
1440 x 900
1360 x 768
1280 x 1024
1280 x 960
1280 x 800
1280 x 768
1152 x 870
1152 x 864
1024 x 768
832 x 624
800 x 600
640 x 480
720 x 400
640 x 350
640 x 400 | | | | DC Input Power | 13 to 18 VDC | | Battery Type | 1 x V-Mount | | Power Consumption | 42 W | | | | Mounting | 2 x 1/4"-20 Female | | | | Operating Temperature | 14 to 122°F / -10 to 50°C | | | | Material of Construction | Steel | | Dimensions (W x H x D) | 23.6 x 16.5 x 4.8" / 59.94 x 41.91 x 12.19 cm | | Weight | 16 lb / 7.3 kg | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 28.0 x 22.5 x 6.5" |
