Product description The ikan Delta 5" 4K HDMI On-Camera Monitor Deluxe Kit packages a battery, charger, HDMI cables, and soft carry case with the Delta 5" monitor and the accessories it comes with. The Deluxe Kit adds to the monitor everything you need to get started. The Delta 5" monitor features a 1080p touchscreen display and supports up to UHD 4K signal input. It has HDMI input and output and a USB input that supports 3D LUTs. Monitoring features include peaking, false color, image flip, histogram, pixel-to-pixel, and an audio meter. - Delta 5" On-Camera 4K HDMI Monitor with 3D LUT Support Add 4K monitoring to your camera rig with the Delta 5" On-Camera 4K HDMI Monitor from ikan. This 5" LCD monitor features 1080p resolution, touchscreen control, HDMI input and output, a USB port to load 3D LUTs, and supports up to UHD 4K input.

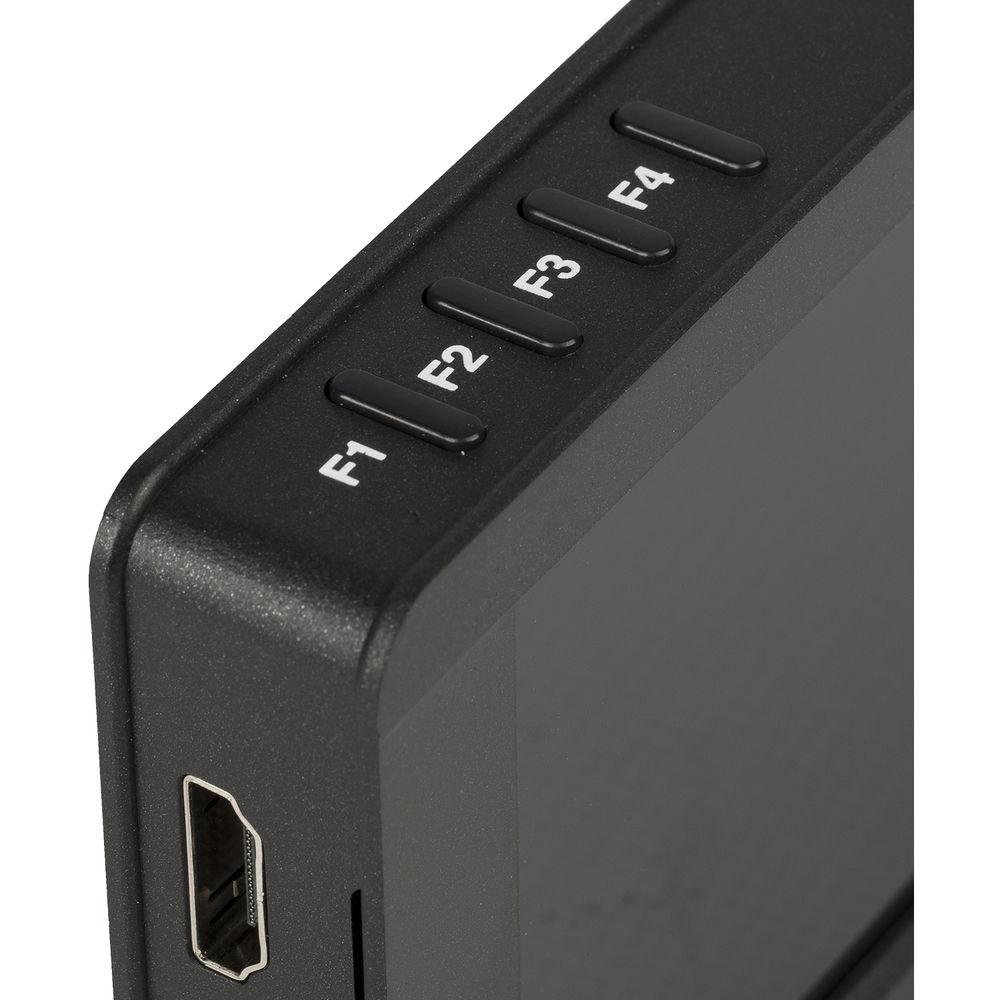

The LCD panel features a 440 ppi display with a 1000:1 contrast ratio and 450 cd/m2 brightness. Its touchscreen conveniently allows you to zoom your image with a pinch gesture and tap to access the menu settings. The on-screen controls include guides, peaking, zoom, pixel-to-pixel, histogram, underscan, and more. You can also control your settings with four physical, programmable buttons on top of the monitor.

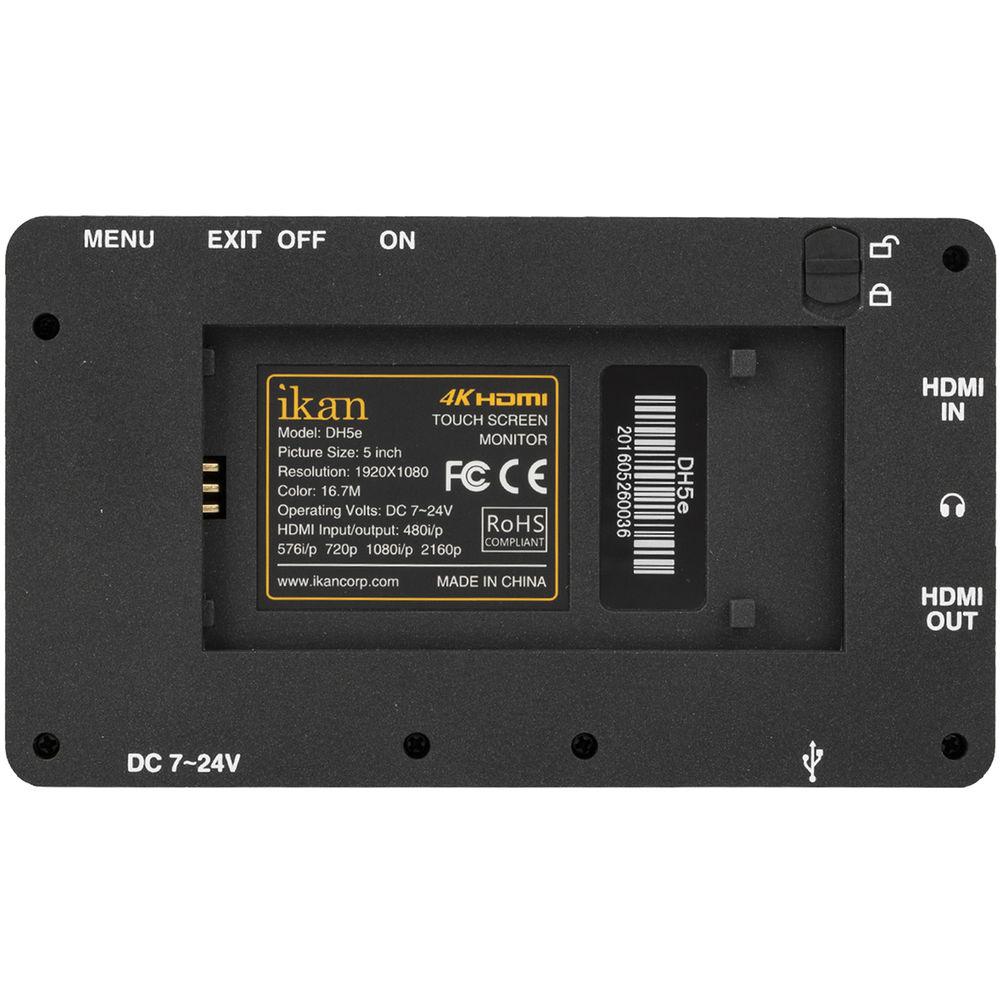

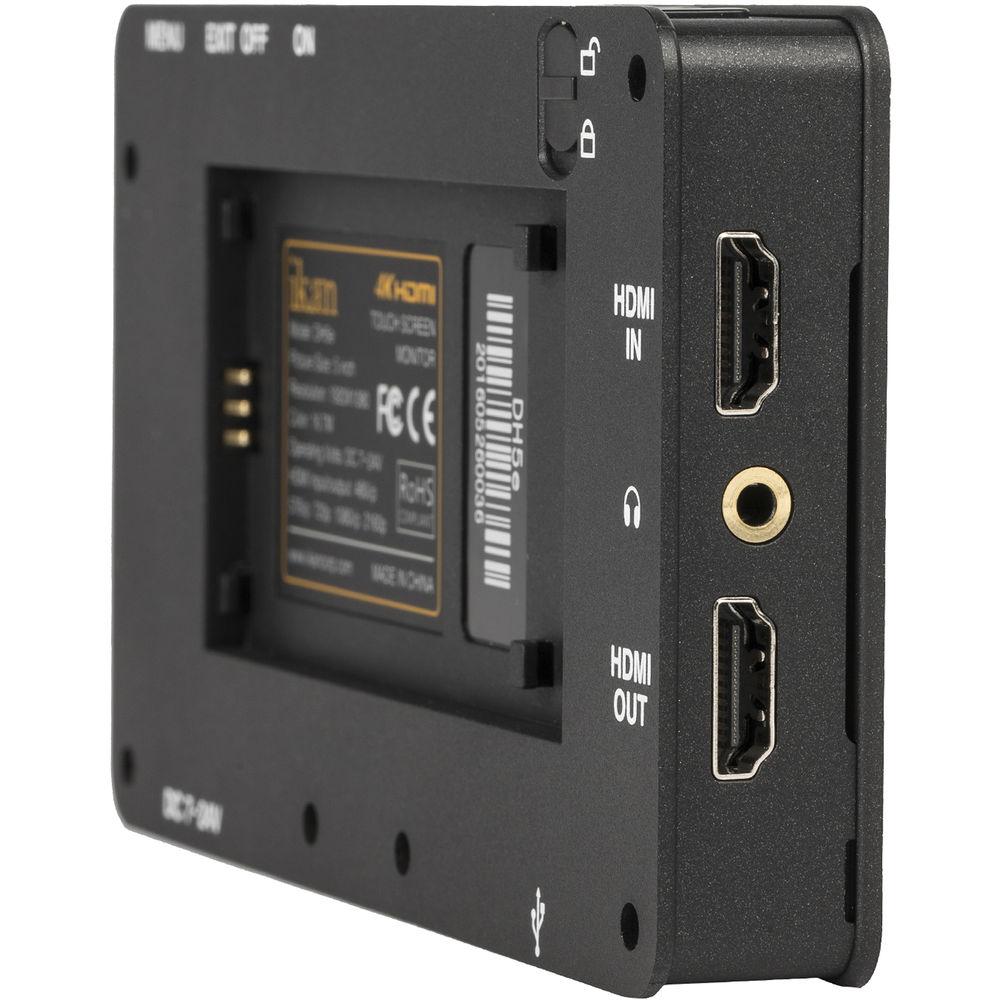

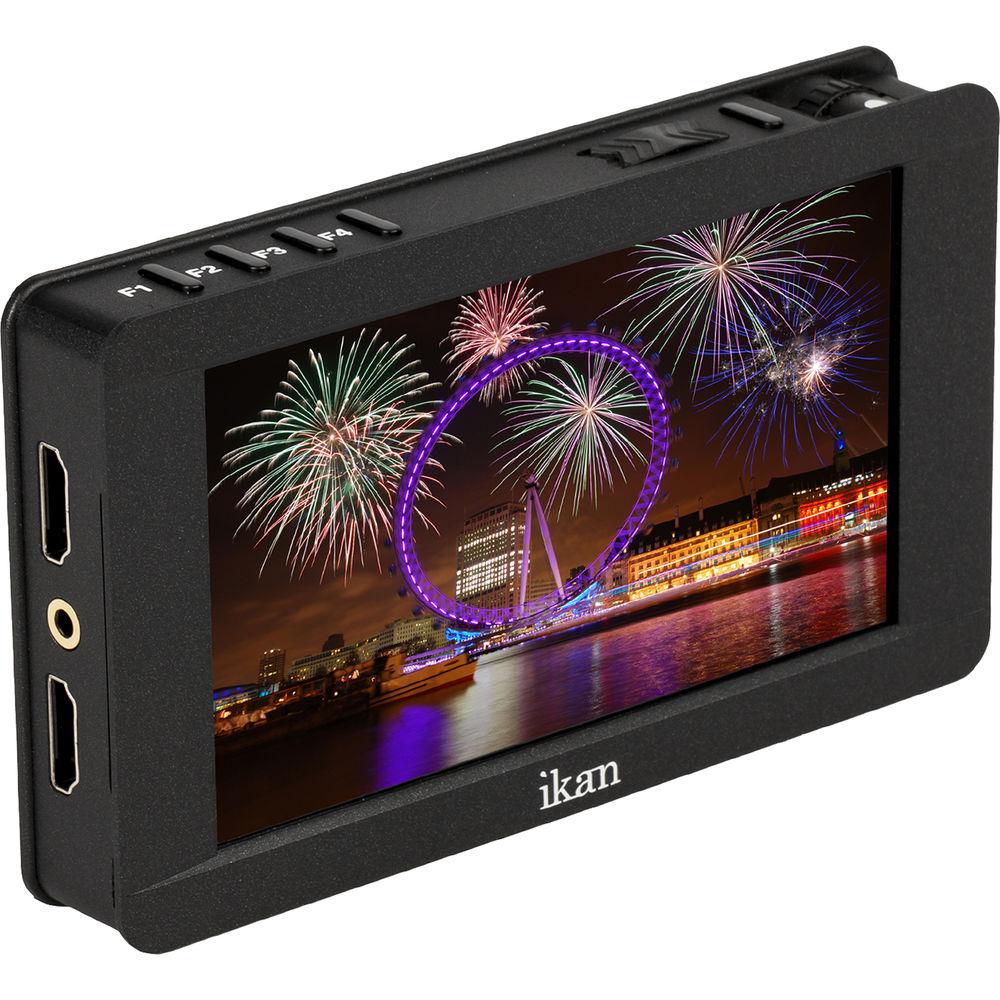

An L-series battery plate is built into the back of the monitor to provide portable power with a separately available battery, and an AC adapter is included to power the monitor from a wall plug. A 3.5mm headphone jack on the side of the monitor between the HDMI input and output allows you to monitor your audio levels. A standard 1/4"-20 female thread on the bottom allows you to mount the monitor on your gimbal, camera, tripod, cage, or other mounting accessories.
A sun hood, shoe mount, screen cleaning cloth, and screen protection film are also included with the monitor. - Display
-
- 1920 x 1080p touchscreen LCD display
- Supports up to UHD 4K input
- 440 ppi, 1000:1 contrast ratio, 450 cd/m2 brightness
- Touchscreen for pinch zoom and menu access by tap or physical buttons
- Software Features
-
- Monochrome peaking highlights the desired focus area in a bright, red outline
- 1:1 pixel-to-pixel mapping allows you to emphasize individual elements in the shot
- Extend HDMI video output setting to Normal, 3:2, 16:9, or Full-Screen
- Underscan constrains the size of your image so the monitor shows everything the camera is seeing
- Histogram
- False color
- Clip guides and grids
- Image flip
- Audio meter
- EVF mode
- Zoom
- Connectors
-
- HDMI input and output
- 3.5mm headphone jack
- USB port for loading 3D LUTs
- 1/4"-20 mounting thread
- Power
- AC power via 3.5mm barrel input and a built-in L-series battery mount on the back
- Extras
- A screen cleaning cloth, screen protection film, shoe mount, and sun hood are included
UPC: 847983027989 - NP-F550 L-Series Compatible Battery (7.4V, 2900 mAh) The NP-F550 L-Series Compatible Lithium-Ion Battery from ikan features a 7.4V output and 2900mAh capacity. It can be used with any device that accepts NP-F550 batteries. Compatible ikan devices include the iLED6, iLED144, iLED312 (-v2), ID508, and IB508. UPC: 847983006007

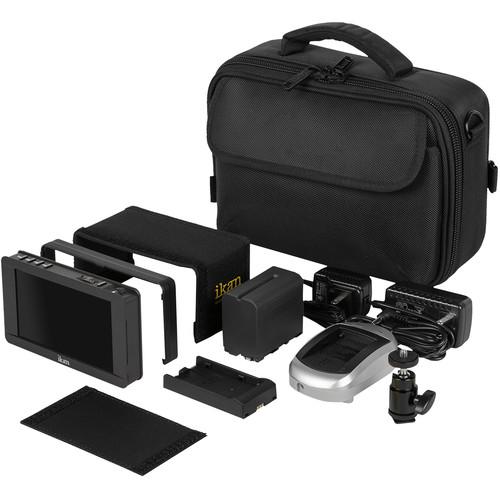

In the Box Bundle Items Delta 5" On-Camera 4K HDMI Monitor with 3D LUT Support sqfzdzvedaestruawtd NP-F550 L-Series Compatible Battery (7.4V, 2900 mAh)
Also Includes - Battery Charger
- Slim Mini-HDMI to HDMI Type A Cable (1.5')
- Slim Micro-HDMI to HDMI Type A Cable (1.5')
- Soft Carry Case
- Limited 1-Year Warranty
Quick start Guide PDF 479kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Delta 5" 4K HDMI On-Camera Monitor Deluxe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Delta 5" On-Camera 4K HDMI Monitor with 3D LUT Support
| | | Panel Type | Unspecified LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160° | | Touchscreen | Yes | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1000:1 | | Dot Pitch | 0.01925 x 0.05775 mm | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Pixels Per Inch (ppi) | 440 ppi | | Response Time | 20 / 20 ms (Rise / Fall) | | Finish | Matte | | Real-Time LUT Monitoring | SDR | | Image Controls | False Color, Focus Peaking, H/V Delay, Histogram, Pixel-to-Pixel Zoom, Underscan | | | | Video | 1 x HDMI Type A (HDMI 2.0) Input
1 x HDMI Type A (HDMI 2.0) Output | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x 3.5 mm Barrel Input | | Other I/O | 1 x USB 2.0 (USB Type-A) | | Card Slot | None | | | | Video Format | HDMI
UHD 4K
DCI 2K
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 24/25/29.97/30
720p: 23.98/24/25/29.97/30/50/59.94/60
1080i: 50/59.94/60
576p: 50
480p: 59.94/60 | | | | Pulldown Conversion | None | | Camera Trigger | None | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 6 W (Typical) | | | | Mounting | 1 x 1/4"-20 Female | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Material of Construction | Plastic | | Dimensions (W x H x D) | 5.59 x 3.23 x 0.79" / 142 x 82 x 20 mm | | Weight | 3.5 oz / 99 g | | | | Box Dimensions (LxWxH) | 14.75 x 7.75 x 3.2" | - NP-F550 L-Series Compatible Battery (7.4V, 2900 mAh)
| Mount / Series Type | Sony L-Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 21 Wh | | Amp-Hours | 2900 mAh | | Output Voltage | 7.4 VDC | | Dimensions (W x H x D) | 2.8 x 1.5 x 0.8" / 7.0 x 3.8 x 2.0 cm | | Weight | 0.2 lb / 90.7 g | | | | Box Dimensions (LxWxH) | 3.95 x 2.15 x 1.0" |
