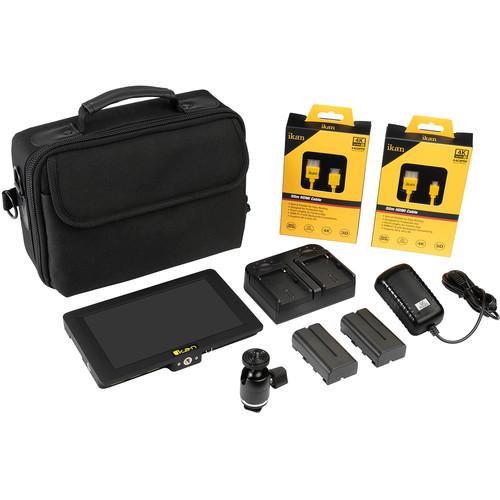

Product description This Delta 7" High Bright On-Camera 4K Monitor with 3D LUTs Deluxe Kit from ikan features a DH7-V2 Delta 7" High Bright on-camera monitor, two IBS-550 L-series batteries, a dual battery charger, a power adapter, a D-Tap power cable, two HDMI cables, a ball head with shoe mount, and a soft case to carry everything in the kit.

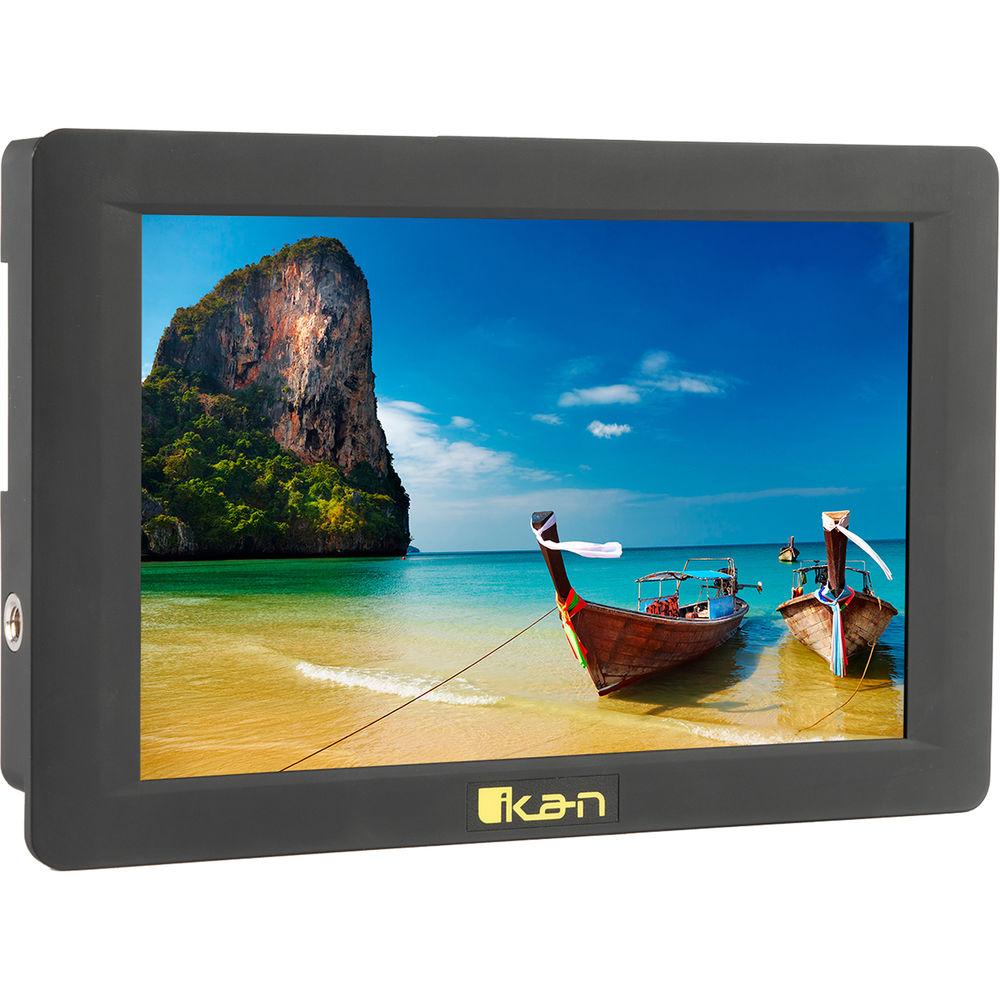

The monitor features 1200 cd/m² brightness so you can see clearly even in daylight conditions, and it supports DCI 4K, UHD 4K, HD, and SD resolution input. The two 2900mAh L-series batteries provide 7.4V output and can be charged simultaneously in the included charger. The included micro-HDMI and Mini HDMI cables provide connection to the camera. Read more below about the items in this kit. - Delta 7" 4K High Bright On-Camera Monitor with 3D LUTs The ikan Delta 7" 4K High Bright On-Camera Monitor with 3D LUTs offers a 1920 x 1200 display capable of displaying DCI 4K, UHD 4K, HD, and standard definition resolutions. The monitor features a maximum brightness of 1200 cd/m² and a contrast ratio of 1200:1, providing a crisp bright image indoors. One 1/4"-20 threaded hole on the bottom of the monitor lets you attach it to a 1/4"-20 mount, or use the one on the side as an alternate mount or for an accessory.

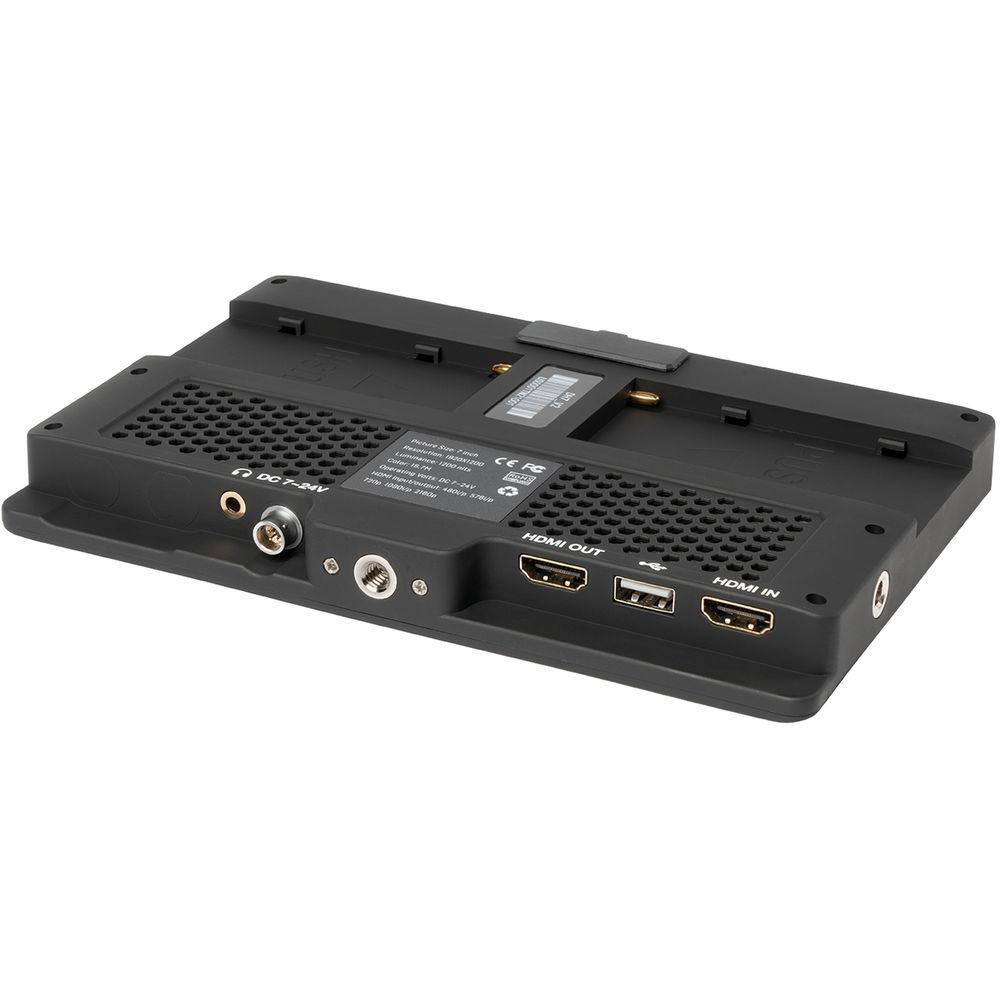

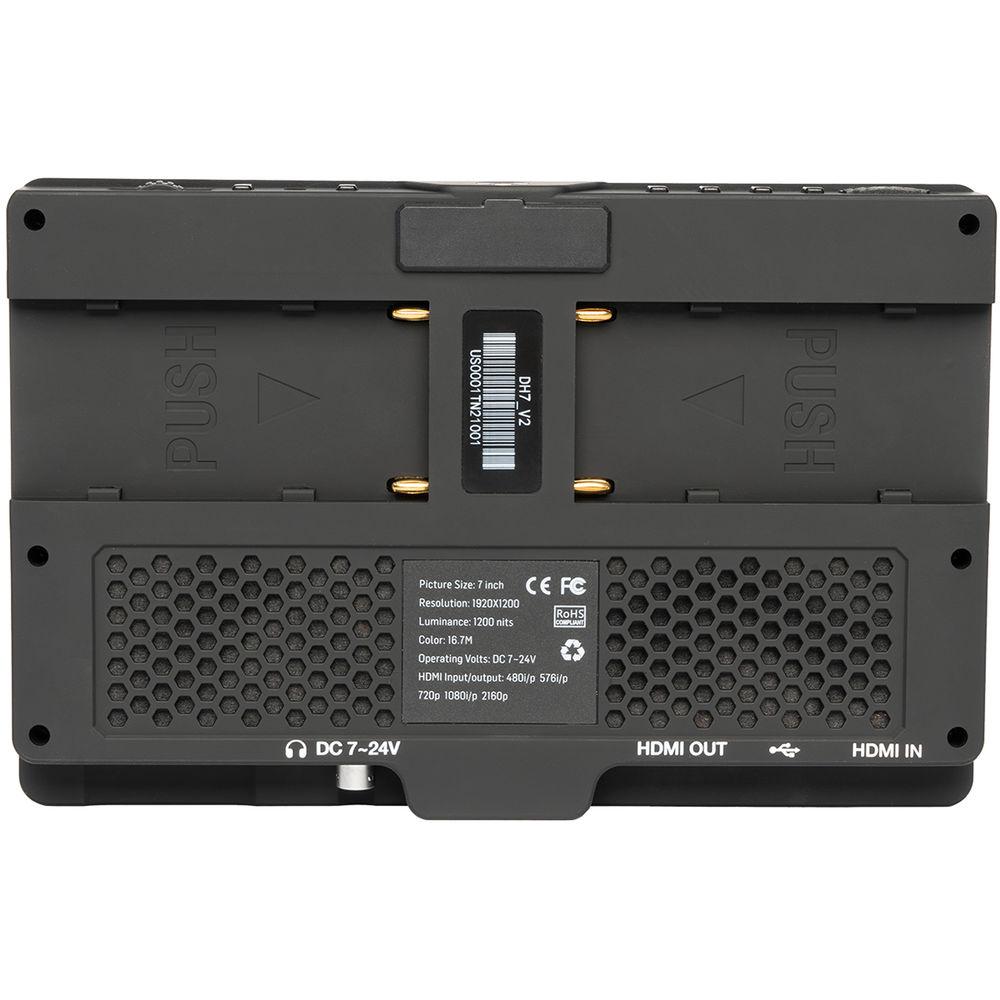

The monitor features one standard HDMI input, one standard HDMI output, and a 3.5mm headphone audio output. The USB Type-A port allows you to load 3D LUTs and custom cube files from a USB flash drive to preview the color of your raw footage.

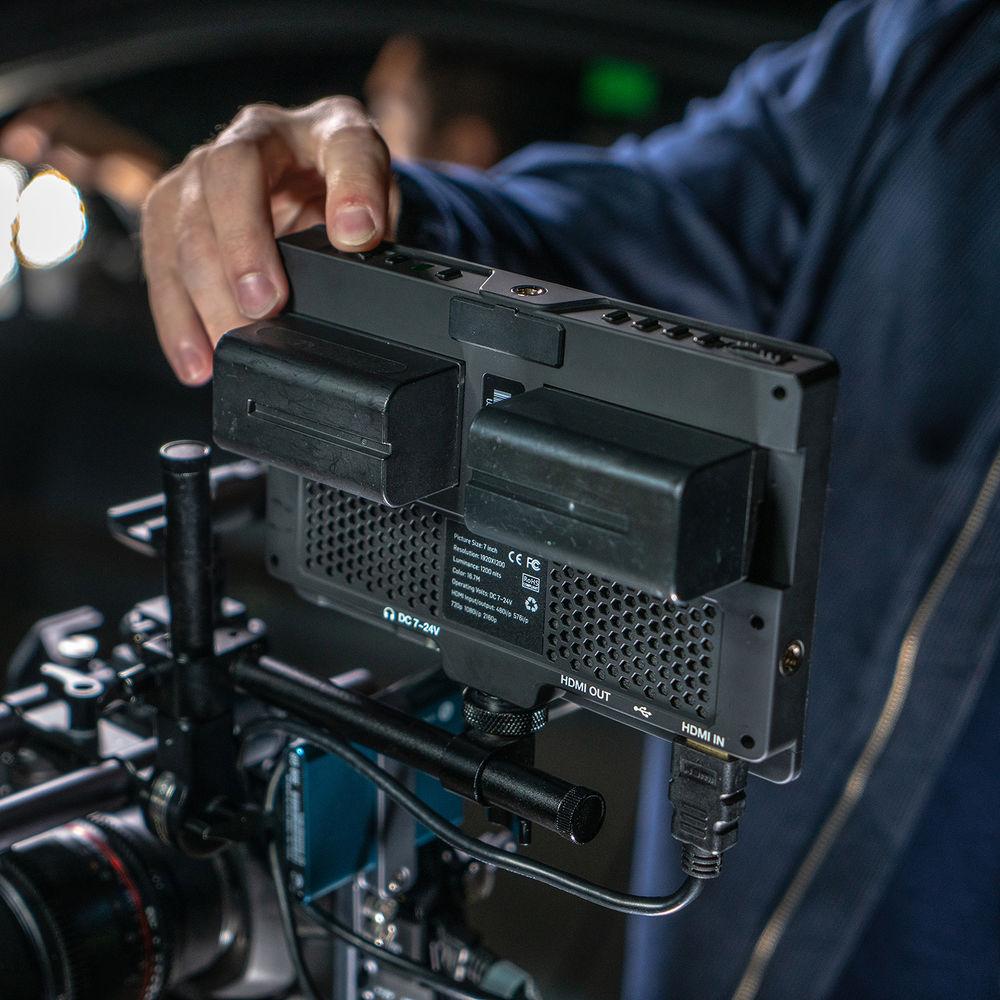

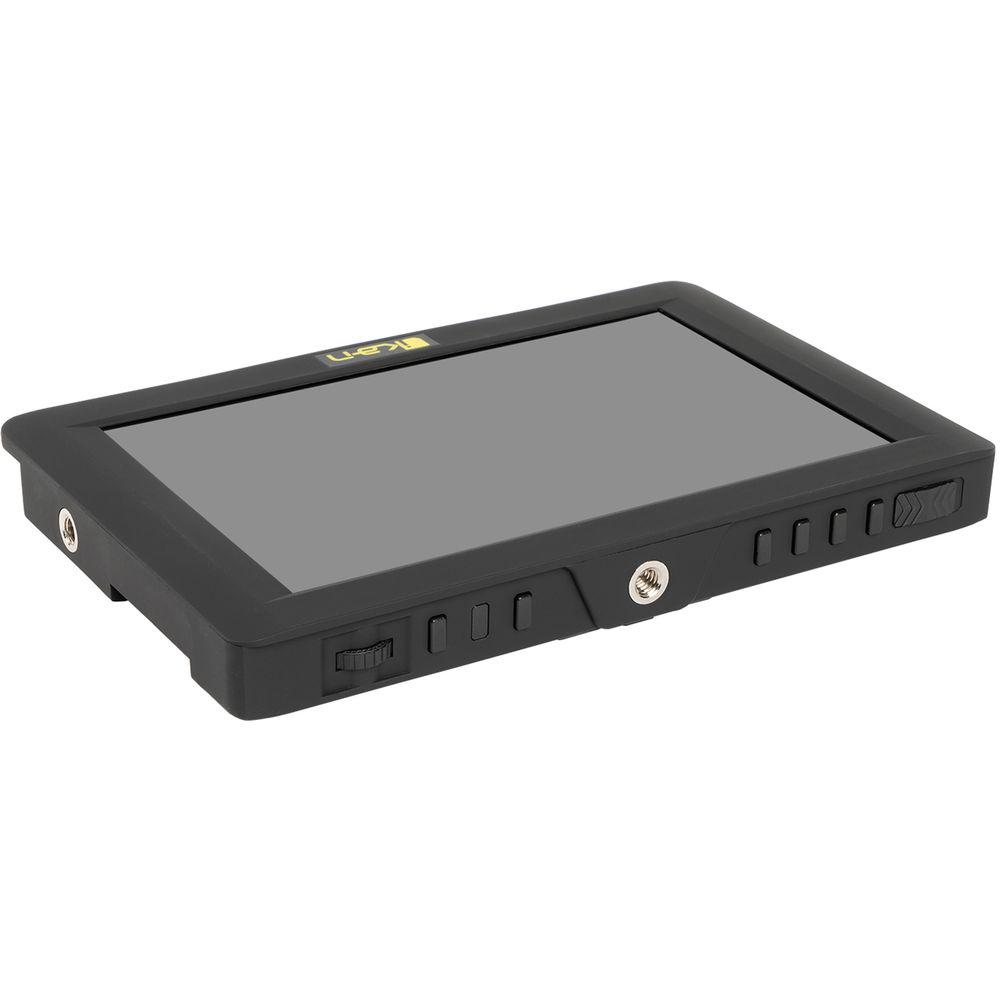

The 178° viewing angle on the ikan Delta provides off-axis viewing for the camera operator while allowing more than one person to view the image without color and contrast shifts. The built-in video assist toolset includes histogram, peaking, false color, pixel-to-pixel, clip guides, image flip, and an audio meter. It powers from a separately available power supply with the included D-Tap cable, or from its built-in dual battery mount, which can run on one or two L-series batteries. Batteries are sold separately. - 7" 1920 x 1200 on-camera monitor that supports DCI 4K, UHD 4K, HD, NTSC, and PAL resolutions
|
Upload User Manual
Have you got an user manual for the ikan Delta 7" High Bright On-Camera 4K Monitor with 3D LUTs Deluxe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Delta 7" 4K High Bright On-Camera Monitor with 3D LUTs
| | | Panel Type | Unspecified LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Touchscreen | No | | Maximum Brightness | 1200 cd/m2 | | Contrast Ratio | 1200:1 | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Finish | Matte | | Real-Time LUT Monitoring | SDR | | Image Controls | False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, Screen Markers | | | | Video | 1 x HDMI Type A Input
1 x HDMI Type A Output | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Mini-XLR Input | | Other I/O | 1 x USB 2.0 (USB Type-A) | | Card Slot | None | | | | Video Format | HDMI
DCI 4K: 24
UHD 4K: 24/25/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 24/25/29.97/30
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
PAL: 50
480p: 59.94/60
NTSC: 59.94/60 | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 2 x L-Series | | | | Mounting | 2 x 1/4"-20 Female | | | | Material of Construction | Plastic | | Dimensions (W x H x D) | 7.5 x 4.8 x 0.8" / 19.05 x 12.19 x 2.03 cm | | Weight | 0.5 lb / 227 g | | | | Box Dimensions (LxWxH) | 9.5 x 7.0 x 3.0" | - NP-F550 L-Series Compatible Battery (7.4V, 2900 mAh)
| Mount / Series Type | Sony L-Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 21 Wh | | Amp-Hours | 2900 mAh | | Output Voltage | 7.4 VDC | | Dimensions (W x H x D) | 2.8 x 1.5 x 0.8" / 7.0 x 3.8 x 2.0 cm | | Weight | 0.2 lb / 90.7 g | | | | Box Dimensions (LxWxH) | 3.95 x 2.15 x 1.0" |
