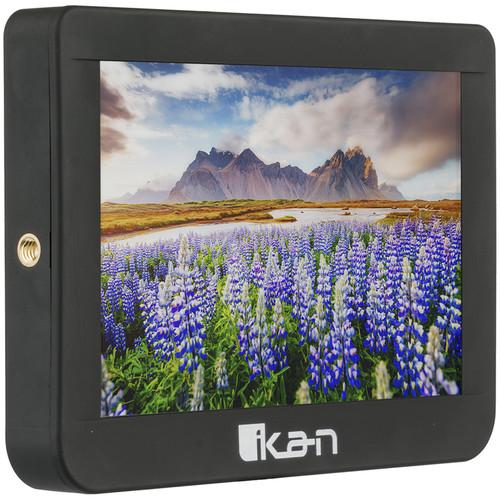

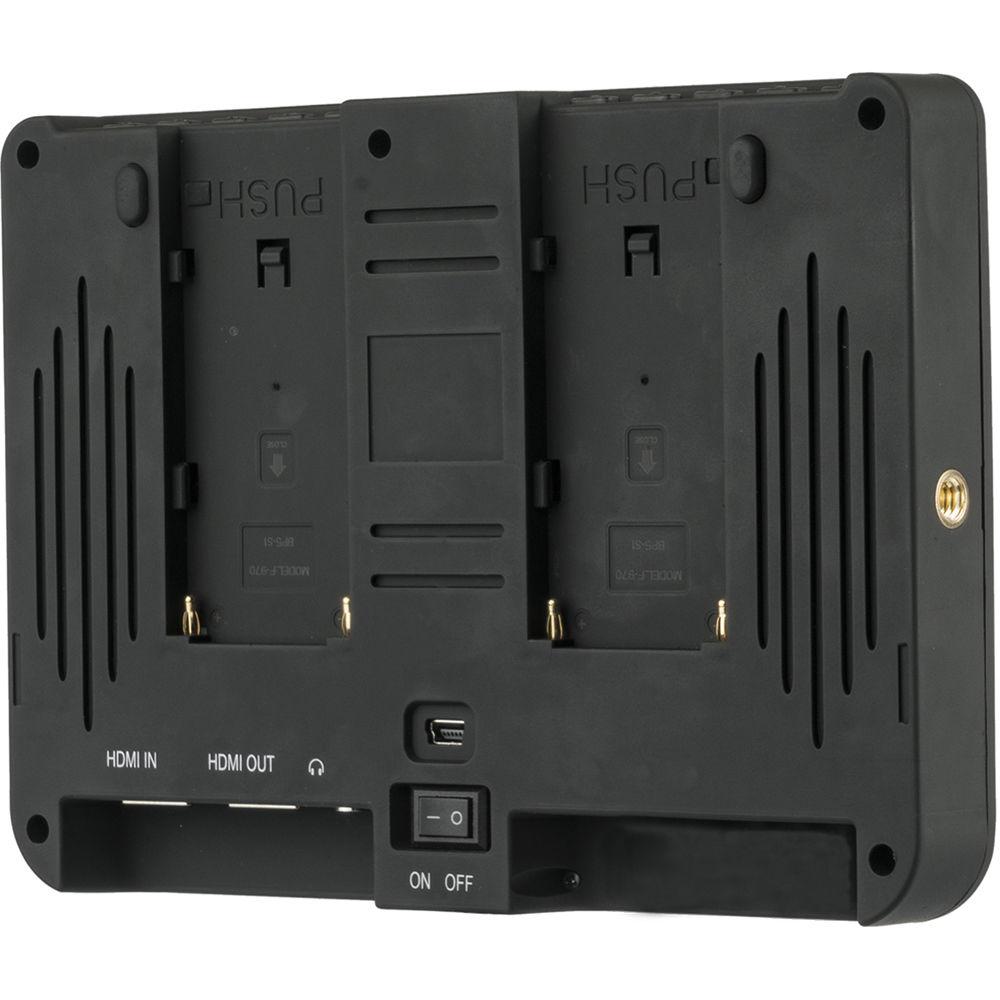

Product description the ikan Delta 7" On-Camera HDMI Monitor with 4K Support offers a native 1920 x 1200 display capable of displaying image resolutions including DCI 4K, UHD 4K, HD, and standard definition. The monitor features a maximum brightness of 450 cd/m² and contrast ratio of 1100:1, providing a crisp bright image indoors. The included sun hood protects the screen from glare when working outside. The 1/4"-20 threaded hole on the bottom of the monitor lets you attach the included shoe mount adapter for easy mounting onto your camera's accessory shoe.
The 178° viewing angle on the ikan Delta provides good off-axis viewing for the camera operator while allowing for more than one person to see the on-screen image without color and contrast shifts. The built-in imaging assist toolset includes false color, color peaking, zebra bars, histogram, 1:1 pixel zoom, image zoom, horizontal and vertical image flip, over- and underscan, and frame marker display. It powers from the included AC power supply or by two L-series batteries, sold separately. - Imaging Assist Tools
- The monitor features the following imaging tools:
- Toggle between mono colors: gray, red, green, and blue.
- Color peaking for focus adjustment, adjusting between red, green, and blue.
- False color and zebra bars for an easy exposure reference.
- Histogram for a more precise exposure evaluation.
- Horizontal and vertical image flip allow you to adjust the image if the monitor is used upside down or viewed in a mirror.
- Frame markers allow you to superimpose a center crosshair and a variety of frame lines over the image.
- Overscan allows you to see what might be cropped in normal transmission, while underscan enables seeing the edges of the image which may be obscured by the monitor's bezel.
- 1:1 pixel zoom enables you do display your image on a pixel-to-pixel level so you can see the image without scaling artifacts. This necessitates only seeing part of the image at a time if you are shooting a DCI/UHD 4K image.
- Audio
-
- The monitor can display audio levels on the screen, so you can have a visual reference to what you are hearing in your headphones.
- Frame Markers
-
- Crosshair: Displays a crosshair on the center of the screen.
- Safety guides: Safety border between 80%, 85%, 90%, 93%, and 96%.
- Aspect guides: Toggle border between 4:3, 2.35:1, and 1.85:1.
- Guide color: Change the color of guide to white, black, red, green, or blue.
- Video Configuration
-
- Aspect ratio: Toggle between Auto, 16:10, 16:9, 4:3, 1.85:1, and 2.35:1.
- Scan mode: Toggle between underscan and overscan.
- Pixel-to-pixel: 1:1 pixel-to-pixel mapping.
- Zoom: Allows operator to zoom into the image.
- Flip-H: Flips the image horizontally.
- Flip-V: Flips the image vertically.
- Image freeze: Freezes the image.
- Noise reduction: Assists in reducing the noise in the monitor.
- System Configuration
-
- Language support: English and Chinese.
- Guide masks: Off, low, middle, high.
- OSD duration: Off, 5 sec, 10 sec, 15 sec.
- Volume: 0 to 100.
- Reset: For resetting to factory settings.
- Update: For updating the monitor's firmware.
UPC: 847983026593 In the Box ikan Delta 7" On-Camera HDMI Monitor with 4K Support Power Adapter Shoe Mount Adapter Sun Hood Limited 1-Year Warranty Quick start Guide PDF 484.4kbvqtzzuruyasezbdtevxyuwxufddxzrt Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Delta 7" On-Camera HDMI Monitor with 4K Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

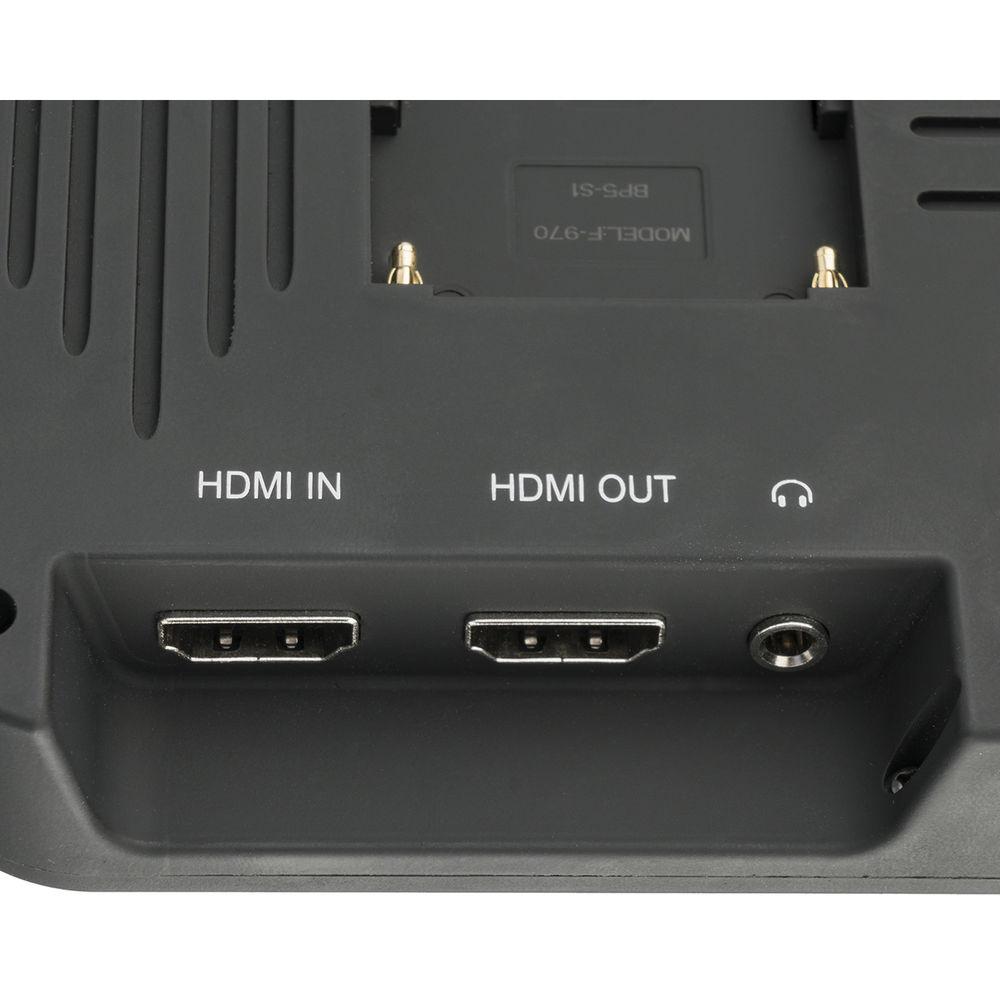

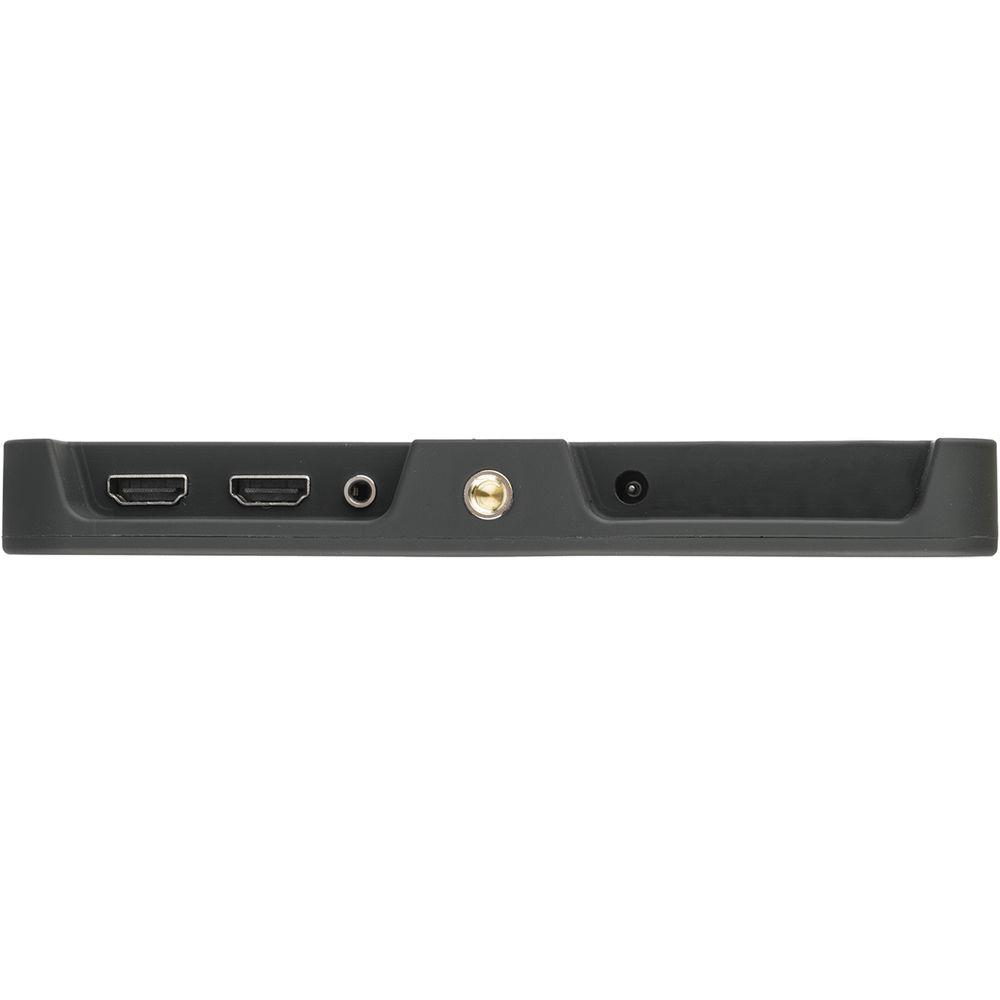

Technical parametersikan D7C Specs | | | Panel Type | Unspecified LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Viewing Angle | 178° (89/89) | | Touchscreen | No | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1100:1 | | Real-Time LUT Monitoring | No | | | | Video | 1 x HDMI Type A Input
1 x HDMI Type A Output | | Embedded Audio | HDMI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Coax Input | | Other I/O | None | | Card Slot | None | | | | Video Format | HDMI
DCI 4K: 24
UHD 4K: 24/25/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 24/25/29.97/30
1080i: 50/59.94/60
720p: 50/59.94/60
576p: 50
PAL: 50
480p: 59.94/60
NTSC: 59.94/60 | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 2 x L-Series | | | | Mounting | 1 x 1/4"-20 Female | | | | Dimensions (W x H x D) | 7.25 x 5 x 0.75" / 18.41 x 12.7 x 1.91 cm | | Weight | 1 lb / 0.45 kg | | | | Package Weight | 2.49 lb | | Box Dimensions (LxWxH) | 10.85 x 10.3 x 2.7" |
