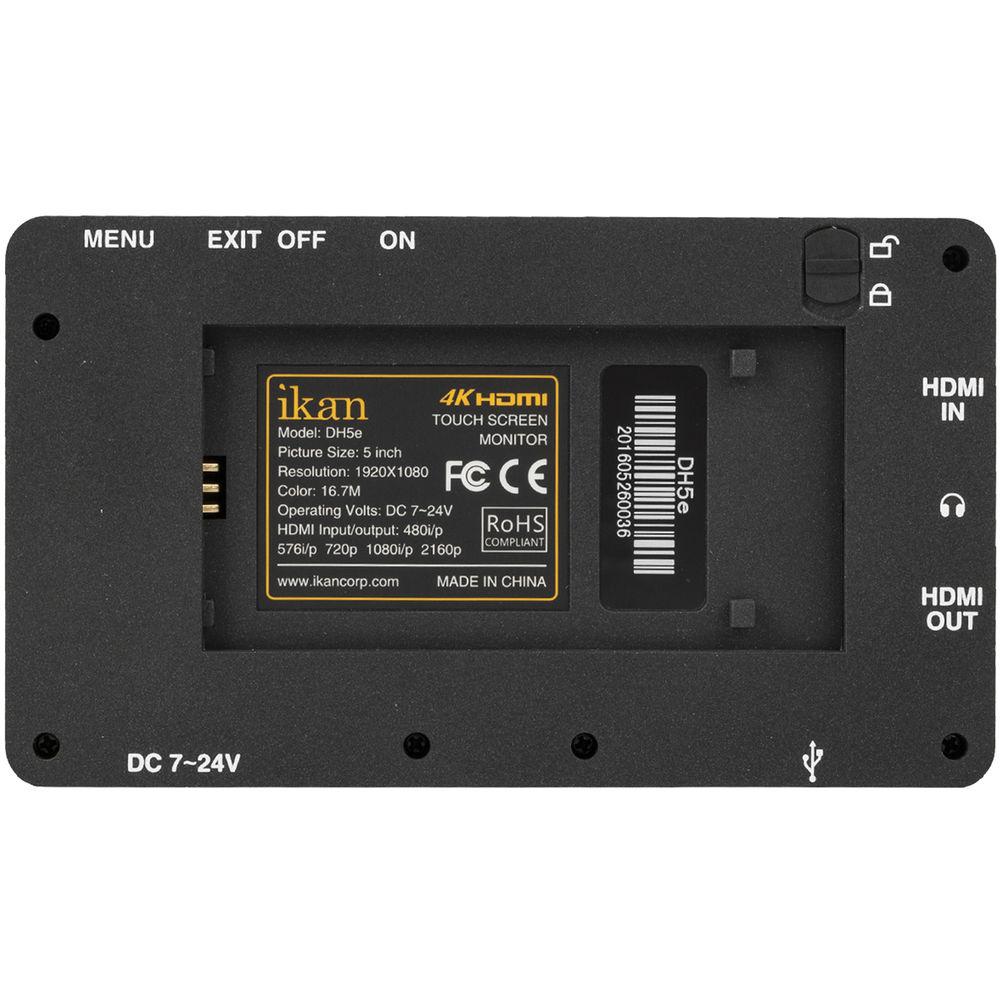

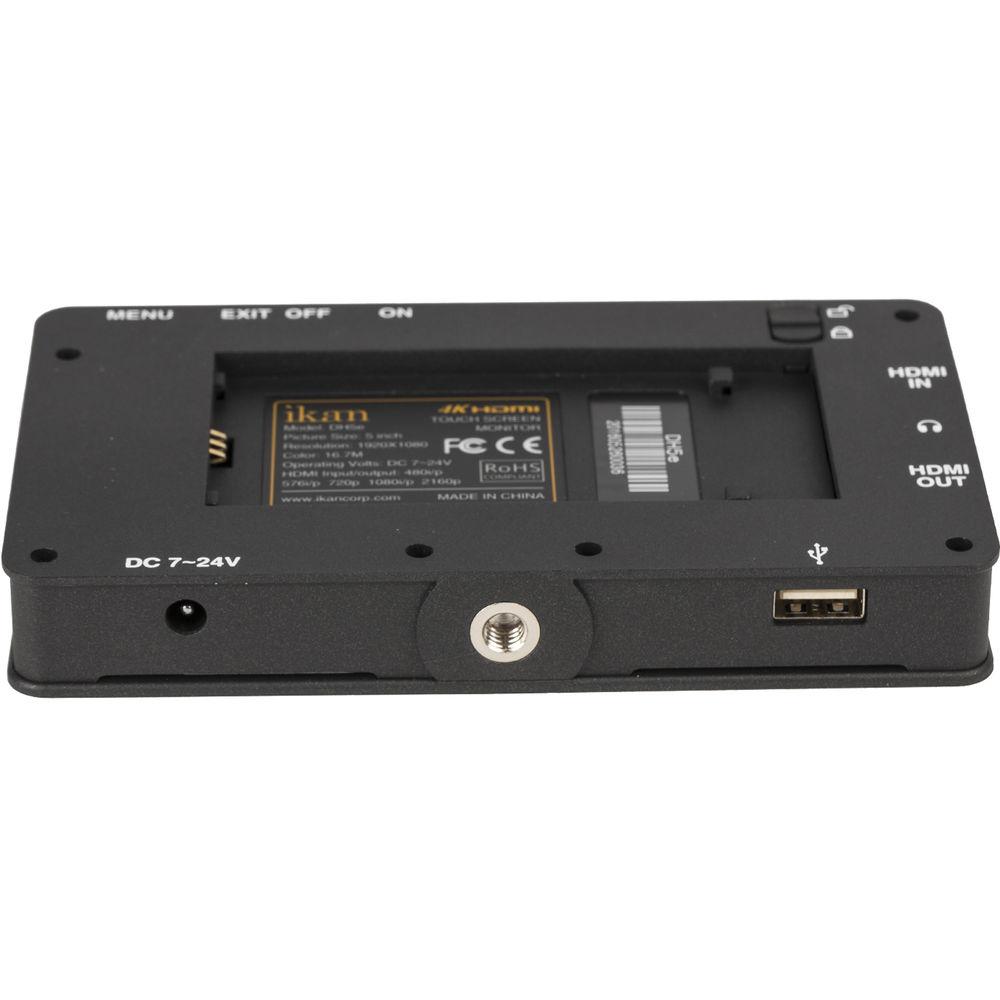

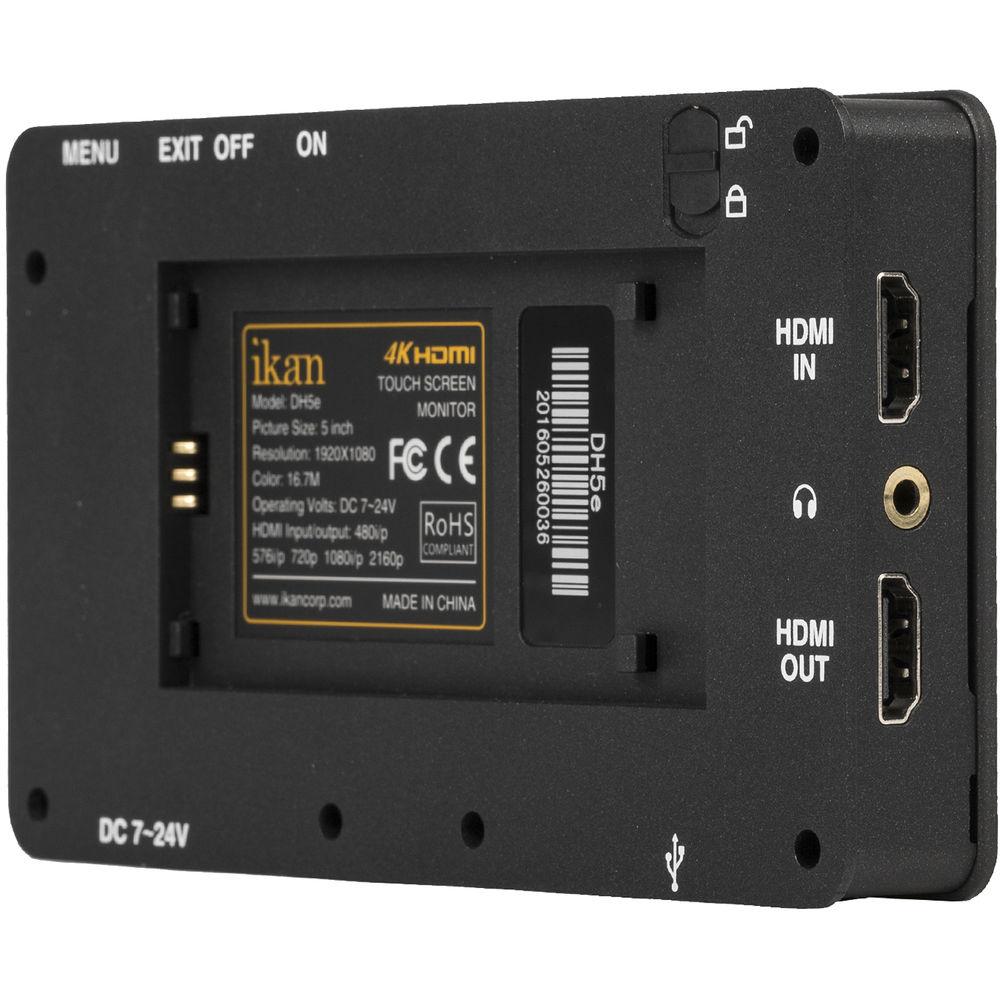

User Manual for ikan DH5e 5" HDMI On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the ikan DH5e 5" HDMI On-Camera Monitor
- Product category: On Camera Monitors ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan On Camera Monitors
 |
User manual for the ikan DH5e 5" HDMI On-Camera Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description - Ikan Corp: Tech Corner - 4K On-Camera LCD Monitors

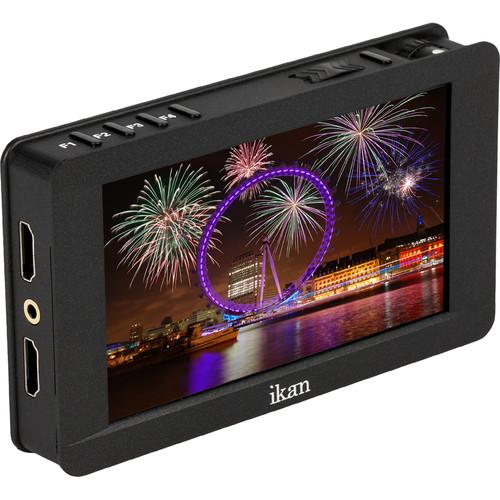

With more cameras supporting 4K HDMI output, having a monitor like the Ikan DH5e, which can handle 4K video, is important. Any video input over HDMI is passed through without modification. Whether in-line with a recorder or just for monitoring purposes, the advantage of 4K support does not end there. Focusing aids benefit greatly from the added image fidelity. Legacy workflows are still supported, with NTSC and PAL signals supported over HDMI. The LCD panel of the DH5e is LED backlit and features a resolution of 1920 x 1080. This resolution can display Full HD video without scaling, ensuring tack-sharp critical focus representation for HD productions. 4K video benefits from the 1:1 pixel mapping function for added assurance.
This monitor includes various accessories so you can use it right out of the box. For working in bright conditions, use the sun hood to block glare and reflections. Use the included ball mount to secure the monitor to a standard accessory shoe. Keep your screen in optimal condition with the included screen protector and cleaning cloth. If you have Canon LP-E6 or Sony L-Series type batteries, use one of the included swappable plates. An AC adapter is included for powering from a wall outlet. Other features may be added in the future, and the firmware can be updated by downloading from the Ikan website to the included USB flash drive. - Peaking
- Peaking highlights the sharpest (most in focus) areas of the image with a color outline. The VXF7 features two modes: monochrome and color. The monochrome mode shows the image in black and white with the red peaking outline, and the color peaking mode shows the image in color with a red peaking outline. Both the peaking color and sensitivity can be adjusted in the monitor's menu system
- Movable Pixel-to-Pixel Mapping
- 1:1 pixel-to-pixel mapping allows you to look at parts of your image without any scaling, so you can see the actual detail and not be fooled by scaling artifacts. Using the navigation keys, the non-scaled area can be moved to analyze other portions of the image.
- DSLR Scaling
- The DSLR Scaling function enables you to extend your DSLR's HDMI output to any option of four display options: Normal, 3:2, 16:9, or Full Screen.

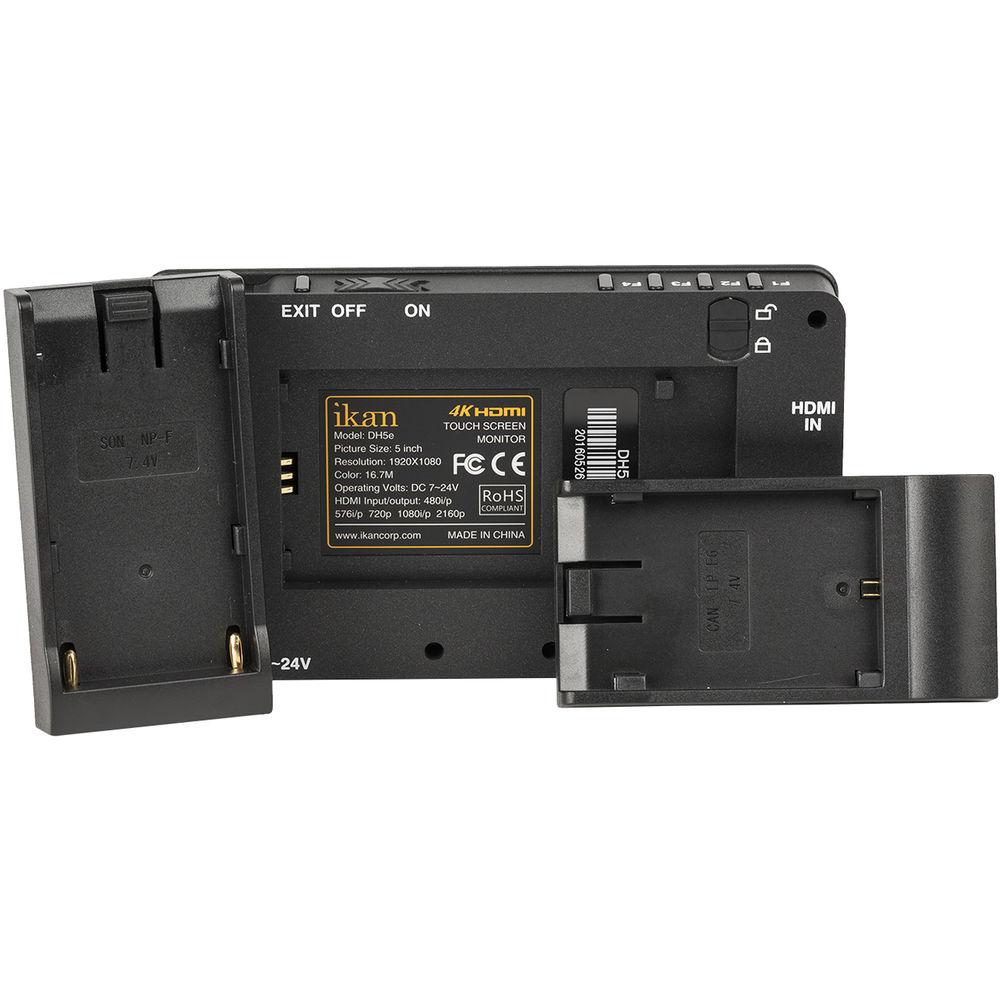

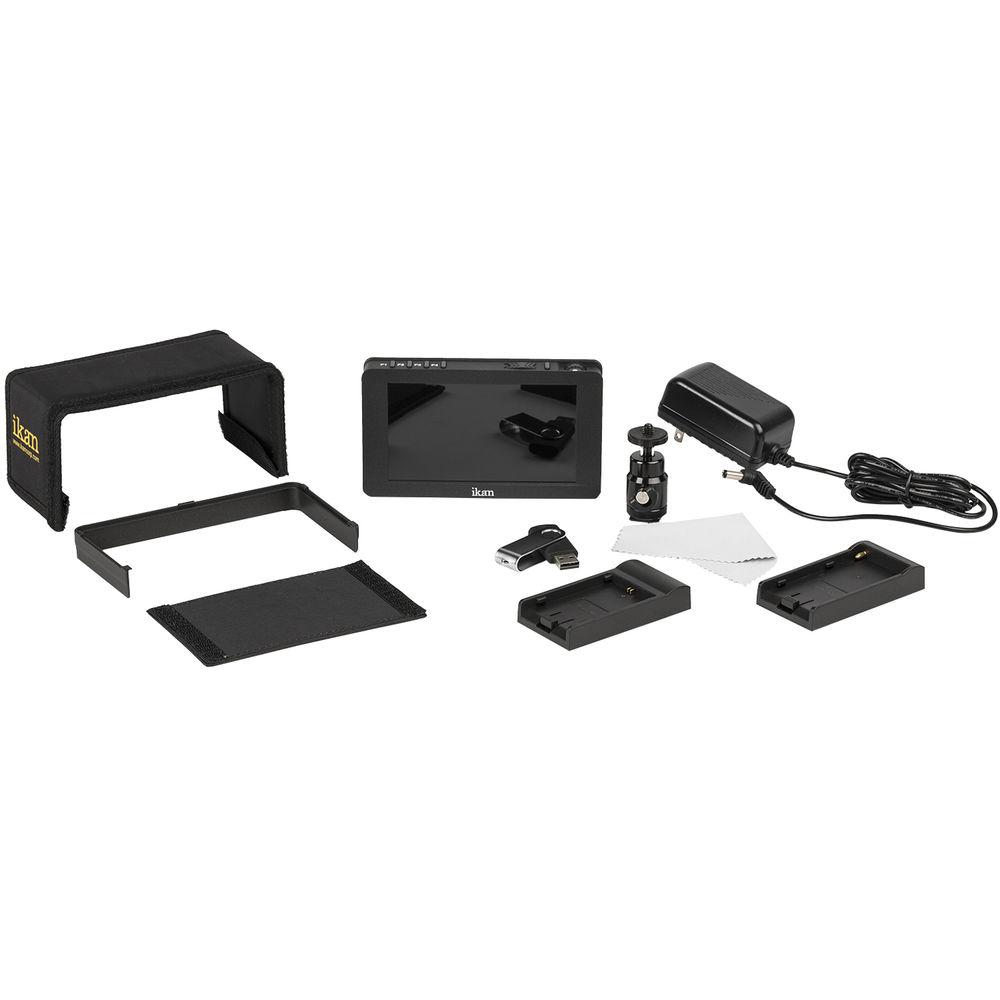

UPC: 847983018017 In the Box ikan DH5e 5" HDMI On-Camera Monitor LP-E6 Battery Plate L-Series Battery Plate AC Adapter Shoe Mount USB Flash Drive Sun Hood Film Screen Protector Screen Cleaning Cloth Limited 1-Year Warranty Quick start Guide PDF 680.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan DH5e 5" HDMI On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan DH5E Specs | | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1000:1 | | Dot Pitch | 0.01925 x 0.05775 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 20 ms | | Image Controls | Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Underscan | | | | Video | 1 x HDMI Type A Input
1 x HDMI Type A Output | | Audio | None | | Built-In Speaker | None | | Card Slot | None | | | | Video Format | HDMI
DCI 4K: 24
UHD 4K: 24/25/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
576p: 50
480p: 60
NTSC
PAL | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x LP-E6 or L-Series | | Power Consumption | 6 W | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Dimensions (W x H x D) | 5.5 x 3.2 x 0.7" / 142 x 82 x 20 mm | | Weight | 0.2 lb / 0.1 kg | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 14.7 x 7.7 x 3.0" |
