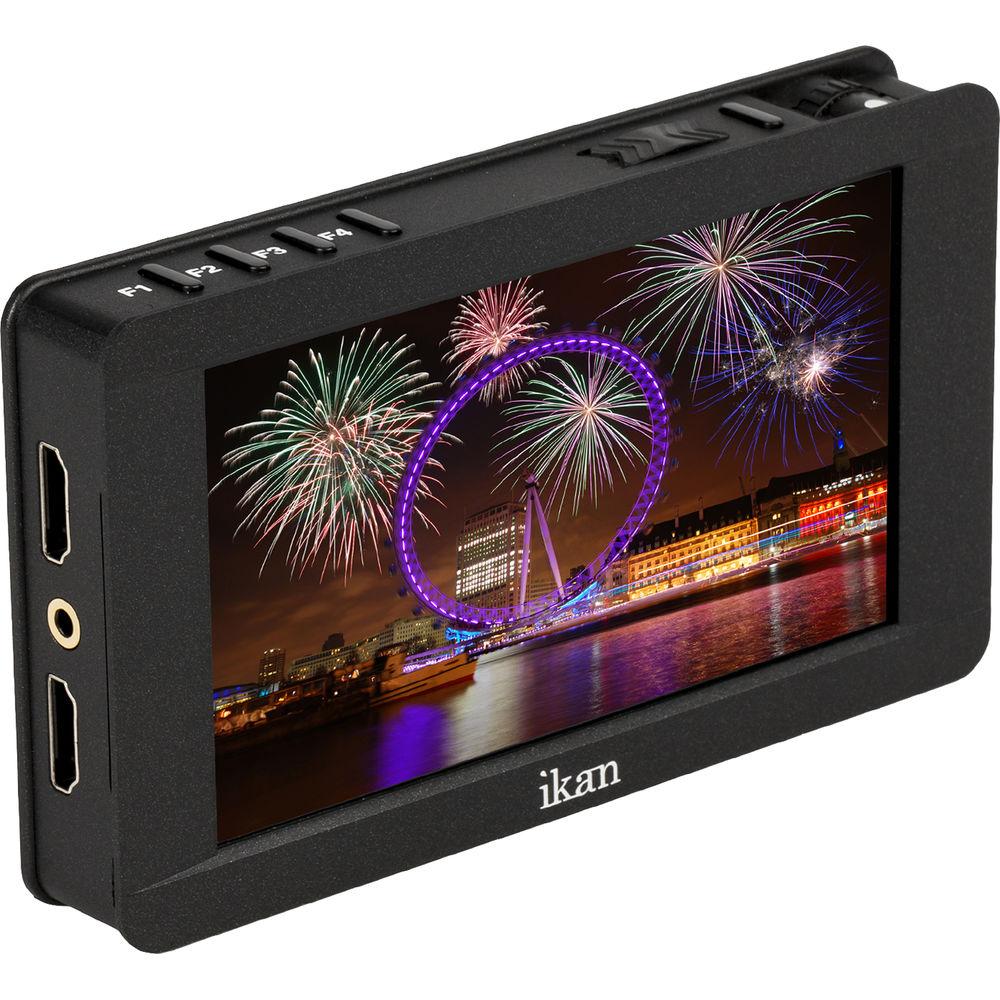

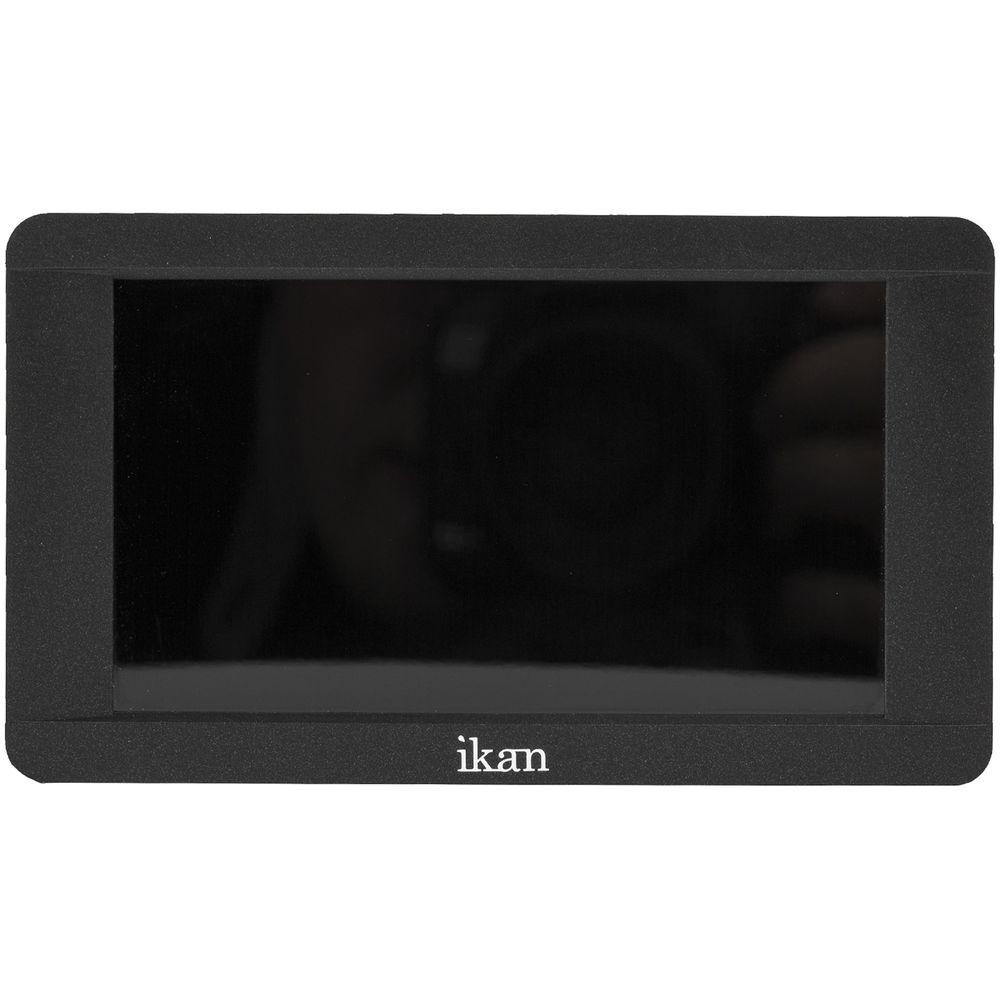

Product description The DH5e-DK On-Camera Field Monitor Deluxe Kit from ikan comes with the DH5e 5" LCD monitor, a Canon LP-E6 type battery with compatible adapter plate and charger, an AC adapter for powering the monitor, and a soft padded case for easy storage. This kit also includes a standard to micro HDMI cable, standard to mini HDMI cable, sun visor, sun hood, screen protector, screen wipe, and a USB drive for software updates.DH5e 5" on-camera LCD monitor features a Full HD 1920 x 1080 panel with 440 pixels per inch. In addition, it also features 4K and Ultra HD support and comes with an intuitive touch screen that allows for pinch-to-zoom and pixel-to-pixel.The DH5e is equipped with features like false color, peaking, zooming, guides, as well as histogram. It also features image flip so you can adjust the monitor according to your needs. It has both HDMI input and output, and a headphone output and audio meters for sound monitoring. - Key Features
- 5" 1920 x 1080 Full HD LCD panel
- DCI 4K and Ultra HD support via HDMI
- Includes a Canon LP-E6 type battery with adapter plate and charger

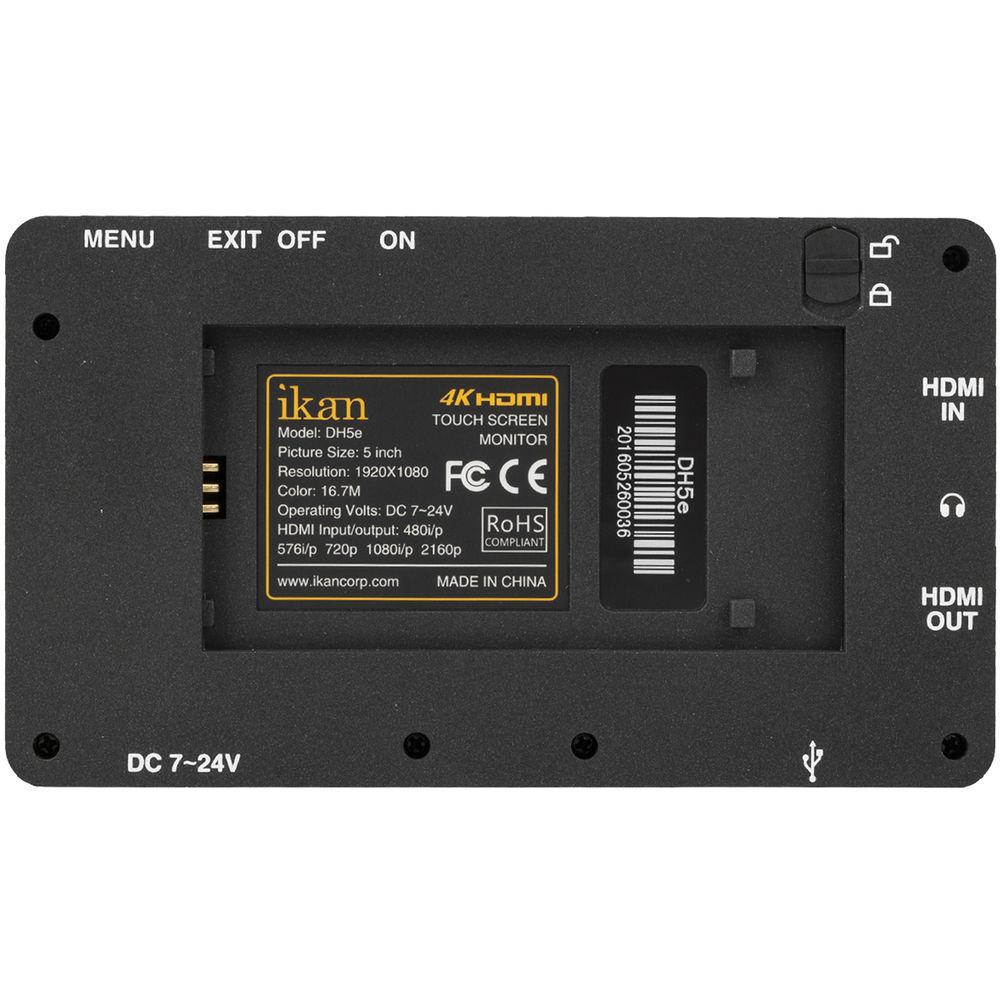

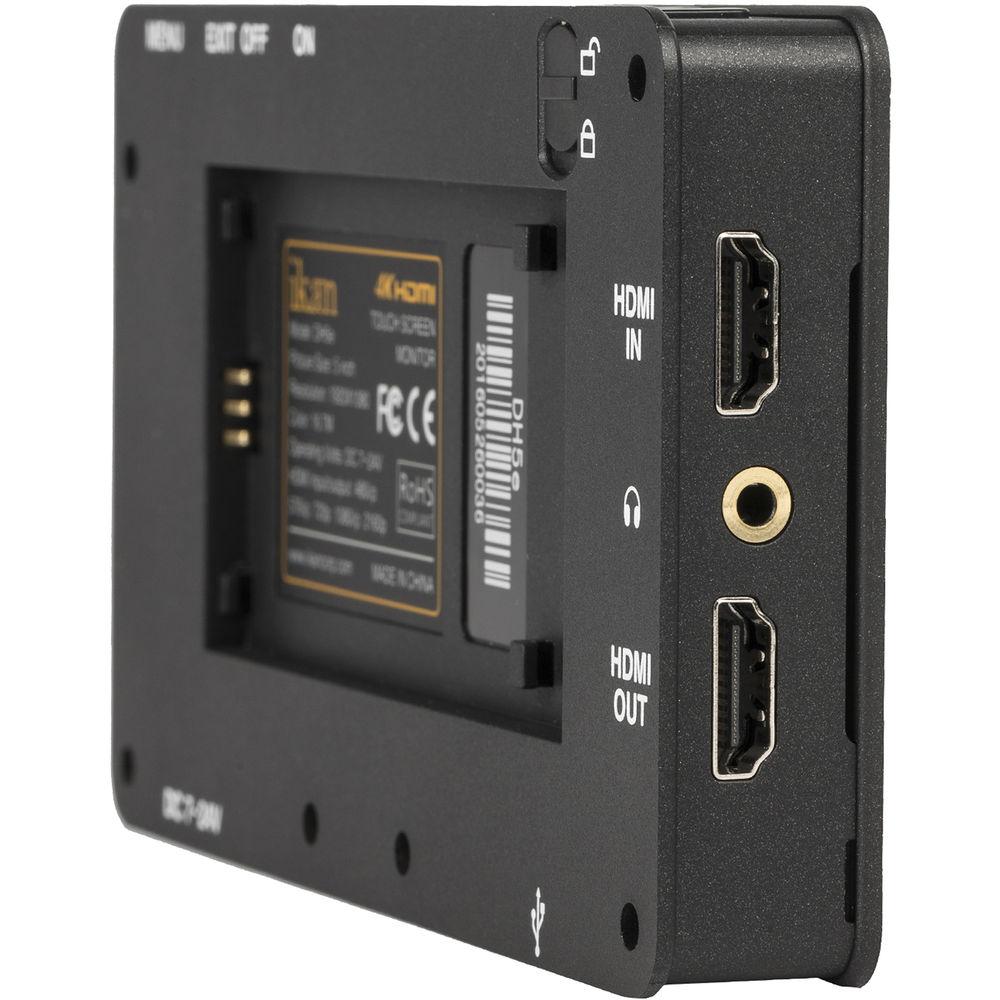

- HDMI input and output, plus a 3.5 mm headphone output
- Pinch-to-zoom pixel-to-pixel function
- Histogram and audio meters

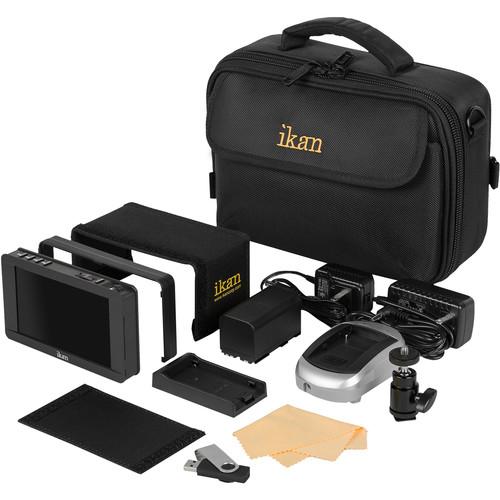

UPC: 847983017089 In the Box ikan DH5e-DK 5" On-Camera Field Monitor Deluxe Kit (Canon LP-E6 Type) DH5e On-Camera Field Monitor IBC-E6+ Lithium-Ion Battery Pack (7.2V, 2950mAh) BP5 Canon LP-E6 Battery Plate for ikan Monitors Canon LP-E6 Compatible Charger AC Adapter SM103 Camera Shoe Mount v.3 USB Drive HDMI-AC-18 Mini HDMI to Standard HDMI Cable (1.5') HDMI-AD-18 Micro HDMI to Standard HDMI Cable (1.5') Sun Visor Sun Hood Screen Protection Film Screen Cleaning Wipe Soft Padded Case Limited 1-Year Warranty Quick start Guide PDF 306.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan DH5e-DK 5" On-Camera Field Monitor Deluxe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan Dh5E Specs | LCD Size | 5" (12.7 cm) | | Backlight | LED | | Video System | PAL/NTSC/SECAM (auto-detected) | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Brightness | 450 cd/m2 | | Contrast Ratio | 1000:1 | | Viewing Angle (H/V) | 160° / 160° | | Color Depth | 16.7 Million | | Pixel Pitch | 0.01925 x 0.05775 mm | | Response Time | 20 ms | | Input and Output Connectors | HDMI video input and output
3.5 mm audio output | | Supported Signals | HDMI:
720 x 480i & 720 x 480p @ 59.94, 60 Hz
720 x 576i @ 50 Hz
1280 x 720p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
1920 x 1080i @ 50, 59.94, 60 Hz
1920 x 1080psf @ 24, 25, 29.97, 30 Hz
1920 x 1080p @ 23.97, 24, 25, 29.94, 30, 50, 59.94, 60 Hz
3840 x 2160p @ 24, 25, 30 Hz
4096 x 2160p @ 24 Hz | | Picture Controls | False color
Peaking
Pinch-to-zoom
Pixel-to-pixel
Guides
Histogram
Image flip
DSLR scaling
Underscan | | Remote Control | Not specified by the manufacturer | | Power Requirements | 7 to 24 VDC | | Power Consumption | 6 W | | Firmware Updates | Via USB port | | Housing | Heavy-duty plastic | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Dimensions | 5.5 x 3.2 x 0.7" (142 x 82 x 20 mm) | | Weight | 0.2 lb (0.1 kg) | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 11.3 x 8.3 x 6.8" |
