User Manual for ikan DH7 7" HDMI LCD Monitor Deluxe Kit with Canon 900-Series Type Battery, Plate, & Charger Click to enlarge the picture
Contents of the user manual for the ikan DH7 7" HDMI LCD Monitor
- Product category: On Camera Monitors ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan On Camera Monitors
 |
User manual for the ikan DH7 7" HDMI LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

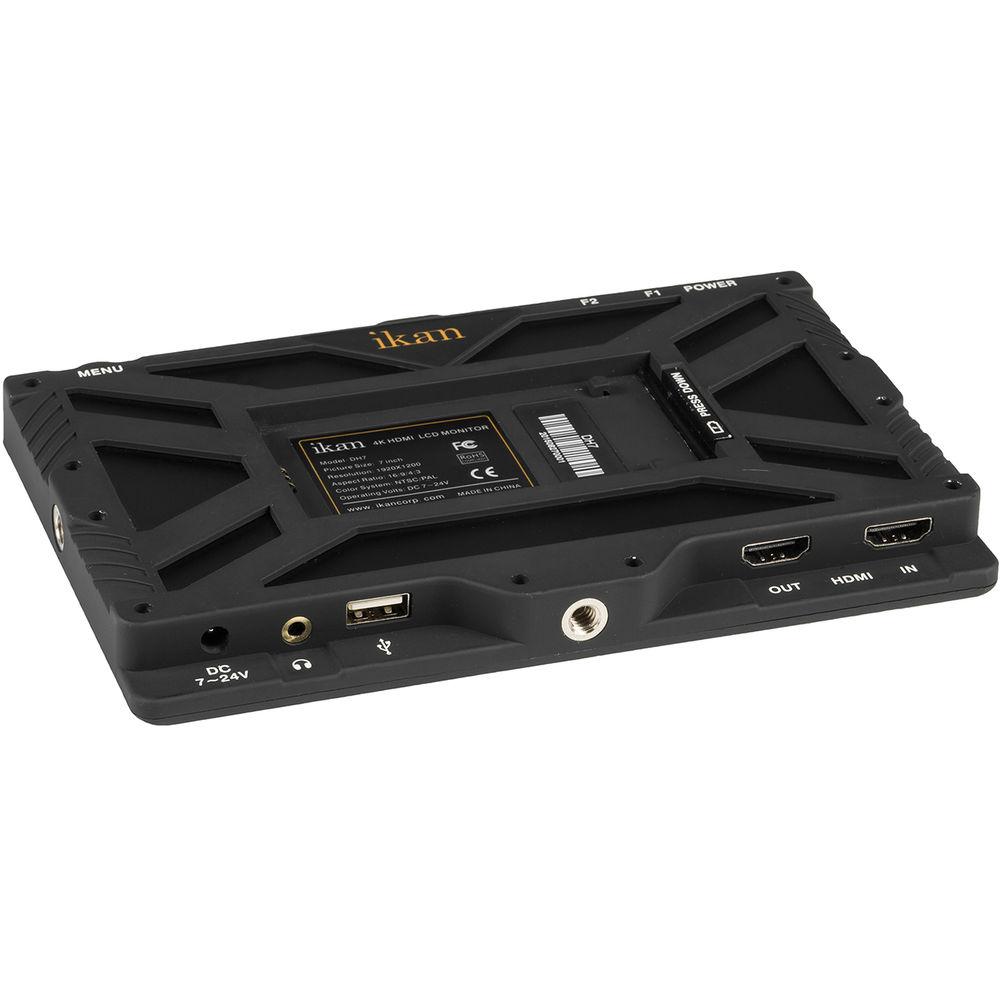

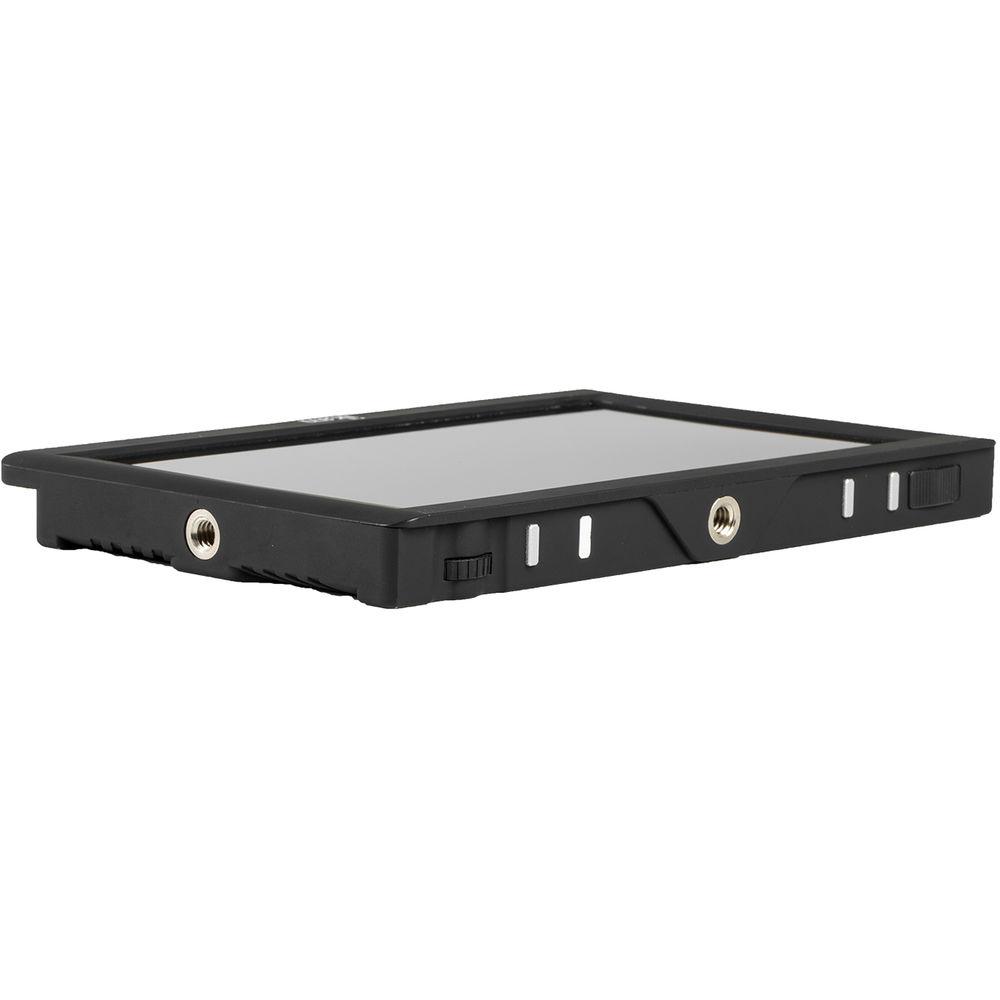

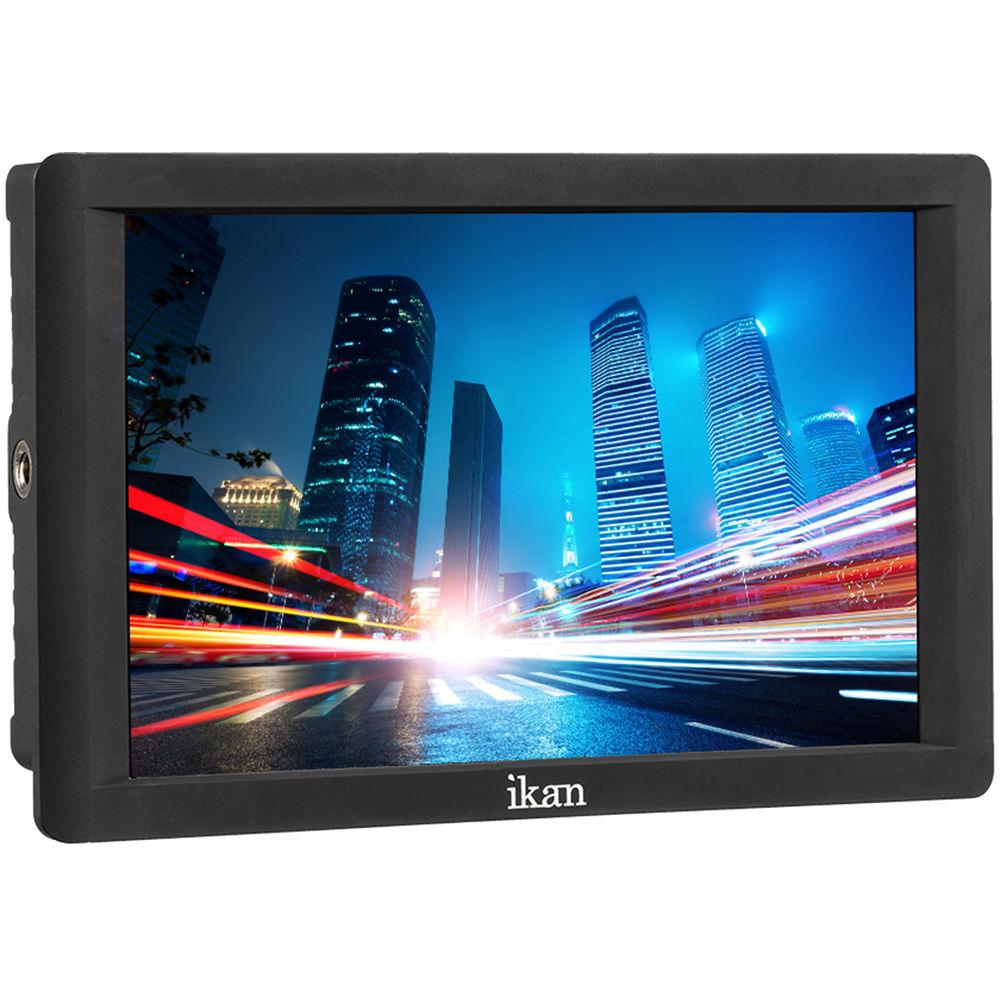

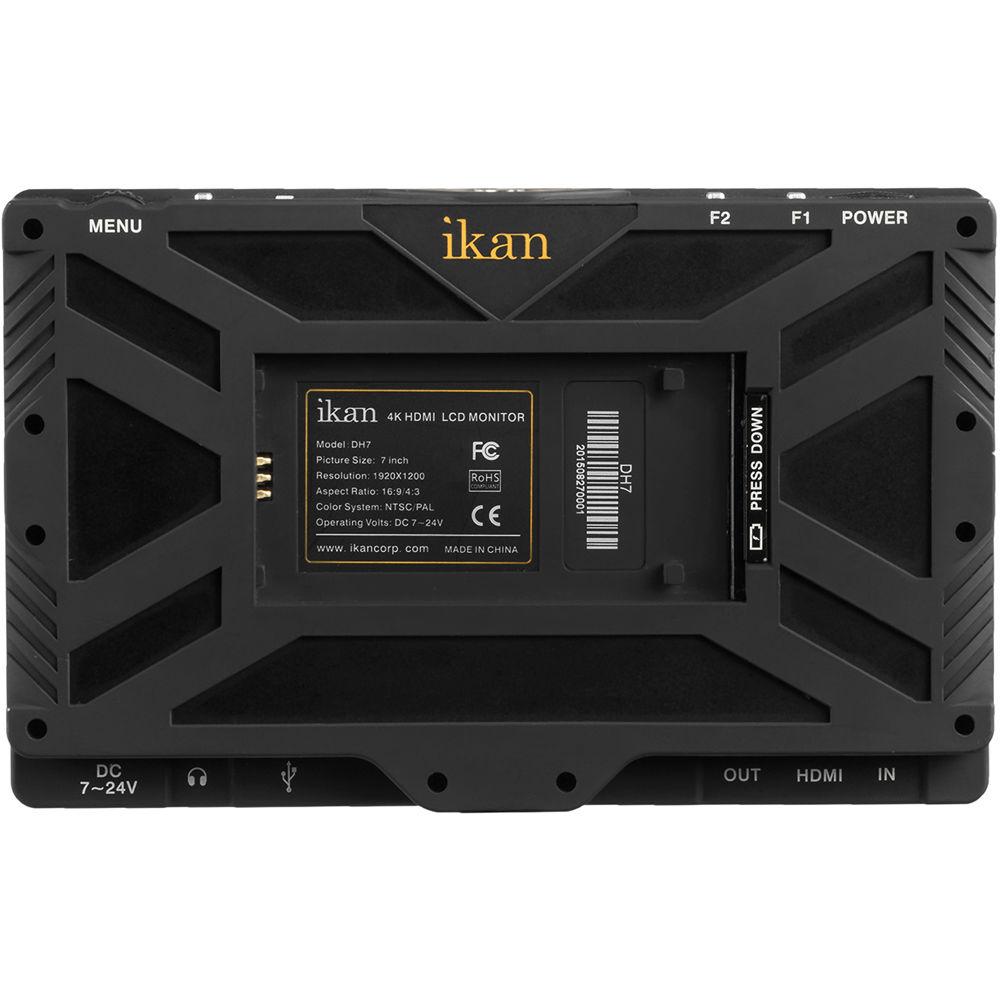

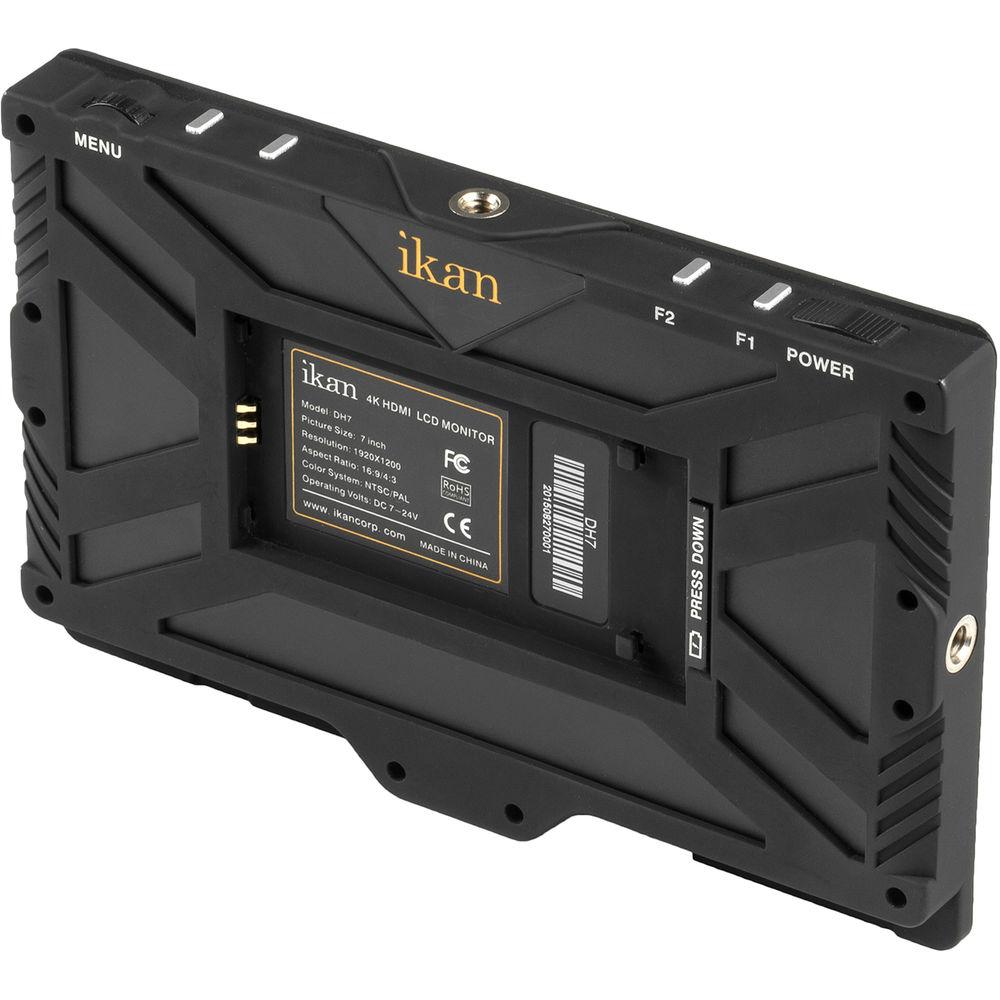

Product description The DH7 7" HDMI LCD Monitor Deluxe Kit from Ikan includes the DH7 7" Full HD HDMI Monitor with UHD 4K support, BP5 Canon BP-900-Series Battery Plate, ICH-945 Battery Charger, 1.5' Mini HDMI to HDMI Cable, 1.5' Micro HDMI to HDMI Cable, and an Ultra-Heavy Duty Camera Shoe Mount. The DH7 Monitor features a 1920 x 1200 WUXGA IPS panel, and downscales to display the incoming 4K image. The 4K-compatible HDMI connections can accept and provide loop-through 4K output signals over HDMI. The BP5-C Battery Plate supports Canon 900-series batteries. The ICH-945 is a charger designed specifically for both the Ikan IBC-945 and Canon brand 12 VDC camera batteries used on their line of camcorders.
The Mini HDMI and Micro HDMI cables enable you to use the DH7 with a wide variety of cameras. They can be used to connect a device with a Mini (type C) or Micro (type D) HDMI connector to a device with a full-sized HDMI connector. The removable sun hood mounts with three mounting screws, and the included screen protection film helps protect your screen from the rigors of production. The Ultra-Heavy Duty Camera Shoe Mount from Ikan is a 1/4"-20 mount that can mount directly onto a DSLR shoe, allowing for the attachment of accessories such as display monitors. This ball head has a single locking knob for fast and safe operation, and is easily removable. The included padded soft case protects your kit during transport and storage. - Ultra-Heavy Duty Camera Shoe Mount The Ultra-Heavy Duty Camera Shoe Mount from Ikan is a 1/4" mount that can mount directly to a DSLR shoe mount, and allows for the attachment of accessories like display monitors. This ball head has a single locking knob for fast and safe operation, and is easily removable.
Accessories attach via the 1/4"-20 screw thread on top and the bottom features a removable shoe mount. The head itself allows for 90° vertical articulation. UPC: 847983005116 - BP5 Canon BP-900 Series Battery Plate for ikan Monitors The ikan BP5 Canon BP-900 Series Battery Plate for ikan Monitors is compatible with ikan VK7, VK7i, VL5, D5, D5w, D7, D7w, and VH8 monitors, and it supports Canon 900 series batteries. UPC: 847983002672
- ICH-945 Battery Charger The Ikan ICH-945 is a charger designed specifically for both the Ikan IBC-945 and Canon brand 12VDC camera batteries used on their line of camcorders. UPC: 847983000043
- HDMI-AC-18 Mini HDMI to Standard HDMI Cable (1.5') The ikan HDMI-AC-18 MiniHDMI Cable supports version 1.4 of the HDMI standard. It is approximately 1.5' long including connectors, which makes it extremely useful for connecting the HDMI output of your camera to an on-board monitor with a minimum of extra cable. It can be used to connect a device with a Mini (type C) HDMI connector to a device with a full size HDMI connector.
- HDMI-AD-18 Micro HDMI to Standard HDMI Cable (1.5') The ikan HDMI-AD-18 MicroHDMI Cable supports version 1.4 of the HDMI standard. It is 18" long, which makes it extremely useful for connecting the HDMI output of your camera to an on-board monitor with a minimum of extra cable. It can be used to connect a device with a Micro (type D) HDMI connector to a device with a full size HDMI connector.
In the Box Bundle Items Ultra-Heavy Duty Camera Shoe Mount BP5 Canon BP-900 Series Battery Plate for ikan Monitors ICH-945 Battery Charger HDMI-AC-18 Mini HDMI to Standard HDMI Cable (1.5') HDMI-AD-18 Micro HDMI to Standard HDMI Cable (1.5')
Also Includes - DH7 Monitor
- Screen Protection Film
- Sun Hood with 3 x Mounting Screws
- USB Drive
- AC Power Adapter
- Screen Cleaning Cloth
- Soft Padded Case
Quick start Guide PDF 518.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan DH7 7" HDMI LCD Monitor Deluxe Kit with Canon 900-Series Type Battery, Plate, & Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Ultra-Heavy Duty Camera Shoe Mount
| Bottom Mount | 1 x Accessory Foot | | Top Mount | 1 x 1/4"-20 Male | | | | Box Dimensions (LxWxH) | 5.25 x 2.85 x 1.45" | - BP5 Canon BP-900 Series Battery Plate for ikan Monitors
| | | Box Dimensions (LxWxH) | 2.5 x 2.5 x 0.6" | - ICH-945 Battery Charger
| | | Box Dimensions (LxWxH) | 5.9 x 3.0 x 3.0" | - HDMI-AC-18 Mini HDMI to Standard HDMI Cable (1.5')
| Cable Type | HDMI 1.4 | | Connector 1 | Mini (type C) | | Connector 2 | HDMI (type A) | | Length | 1.5' (45.7 cm) | | Weight | 0.1lb (45.4 g) | | | | Box Dimensions (LxWxH) | 7.5 x 6.0 x 0.2" | - HDMI-AD-18 Micro HDMI to Standard HDMI Cable (1.5')
| Cable Type | HDMI 1.4 | | Connector 1 | Micro (type D) | | Connector 2 | HDMI (type A) | | Length | 1.5' (45.7 cm) | | Weight | 0.1lb (45.4 g) | | | | Box Dimensions (LxWxH) | 7.5 x 6.0 x 0.2" |
