User Manual for ikan DS2-A Beholder Angled 3-Axis Gimbal Stabilizer and Dual-Grip Handle Kit Click to enlarge the picture
Contents of the user manual for the ikan DS2-A Beholder Angled 3-Axis Gimbal
- Product category: Gimbal Stabilizers ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Gimbal Stabilizers
 |
User manual for the ikan DS2-A Beholder Angled 3-Axis Gimbal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

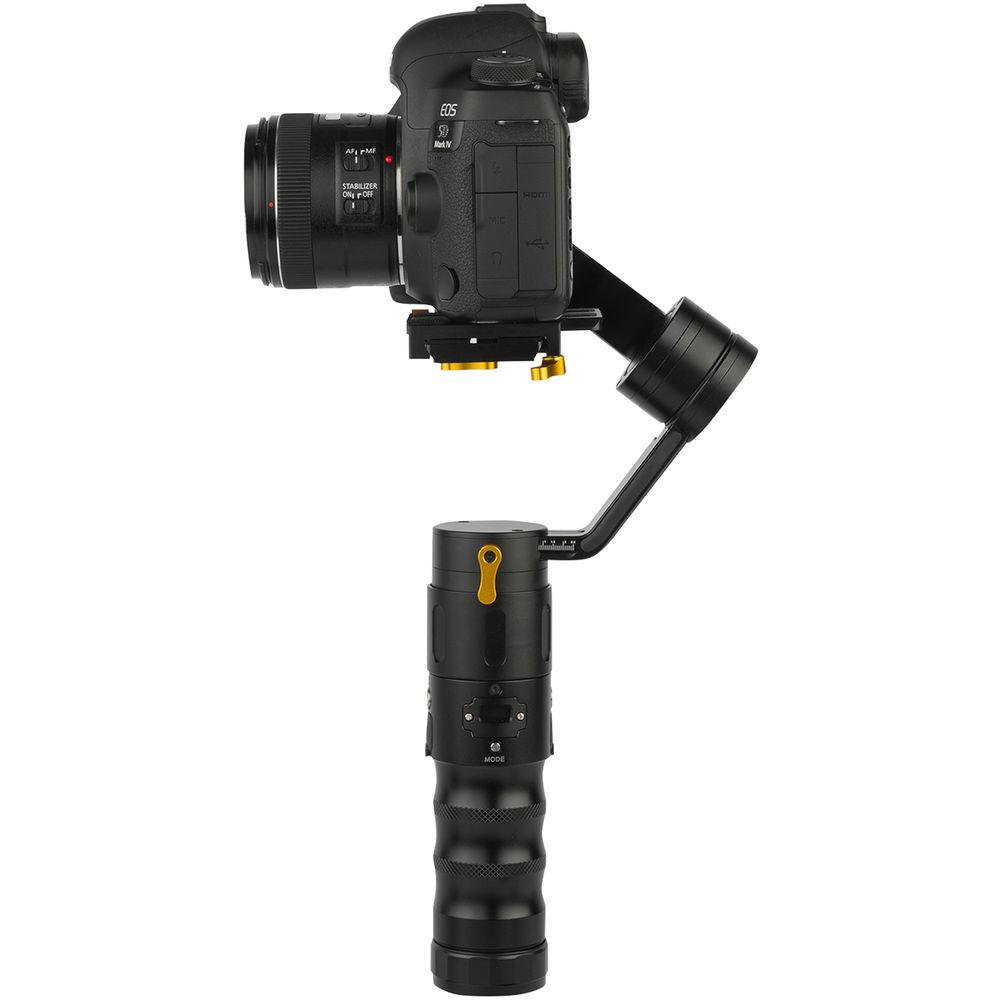

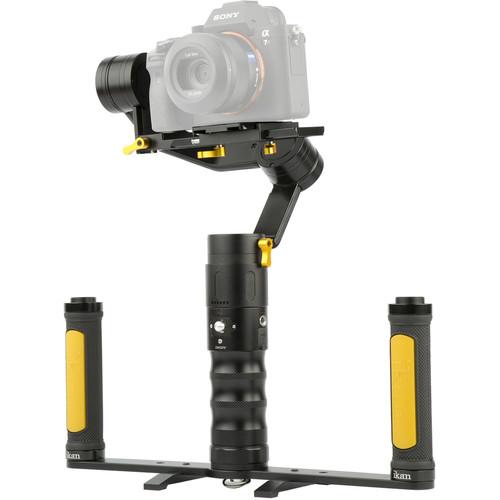

Product description The DS2-A Beholder Angled 3-Axis Gimbal Stabilizer and Dual-Grip Handle Kit from ikan includes the DS2-A Beholder Angled 3-Axis Gimbal Stabilizer with encoders, for DSLRs and mirrorless cameras, and the Dual-Grip Gimbal Handle with tabletop feet. - DS2-A Beholder 3-Axis Gimbal Stabilizer with Encoders The ikan DS2-A Beholder is a 3-axis handheld gimbal stabilizer for DSLR and mirrorless cameras weighing up to five pounds. The DS2-A offers unlimited 360° rotation along the pan (yaw) axis, and features an advanced 32-bit controller and 12-bit encoder system. The DS2-A features an angled support arm that allows you to operate the gimbal normally while having an unobstructed view of the camera's LCD screen. You will notice that the gimbal is silent when powering up, avoiding the start-up chimes of other gimbals. It offers three follow modes plus a lock mode that sets the camera in a fixed position. A point-and-lock mode allows you to physically position the camera, and it will hold that position until reset.
Auto inversion mode allows for upside-down operation, while retaining all the mode's functionality. The DS2-A also features a lock mode that sets the camera in a fixed position. An integrated OLED display on the rear confirms the selected mode of operation and provides battery life info. Designed with a quick release baseplate that allows for convenient camera attachment and tool-less balancing, the DS2-A also has two 1/4"-20 threaded mounting holes on the handle for attaching accessories for advanced setups, and a 3/8"-16 threaded mounting hole on the bottom for mounting onto a tripod, monopod, and other support gear. The DS2-A runs on three supplied 18650 batteries that provide 8-10 hours of operating life when used continuously, and up to 20 hours when the gimbal is switched between shooting and standby modes throughout the day. Mounted within a caddy, the batteries slide into the handle. Charging is done outside the DS2-A, with the batteries within the caddy. You cannot charge the batteries within the gimbal unit. The batteries can also be charged using optional chargers such as the ikan ICH-SC4. Included with the gimbal is a small folding tripod that can be used to support the gimbal on a flat level surface when balancing, and you can close the legs and use it as a handle for extra length. - 360° Rotation Motor
- The DS2-A features a 360° rotation brushless motor on the pan axis
- Designed for Multiple Camera Types

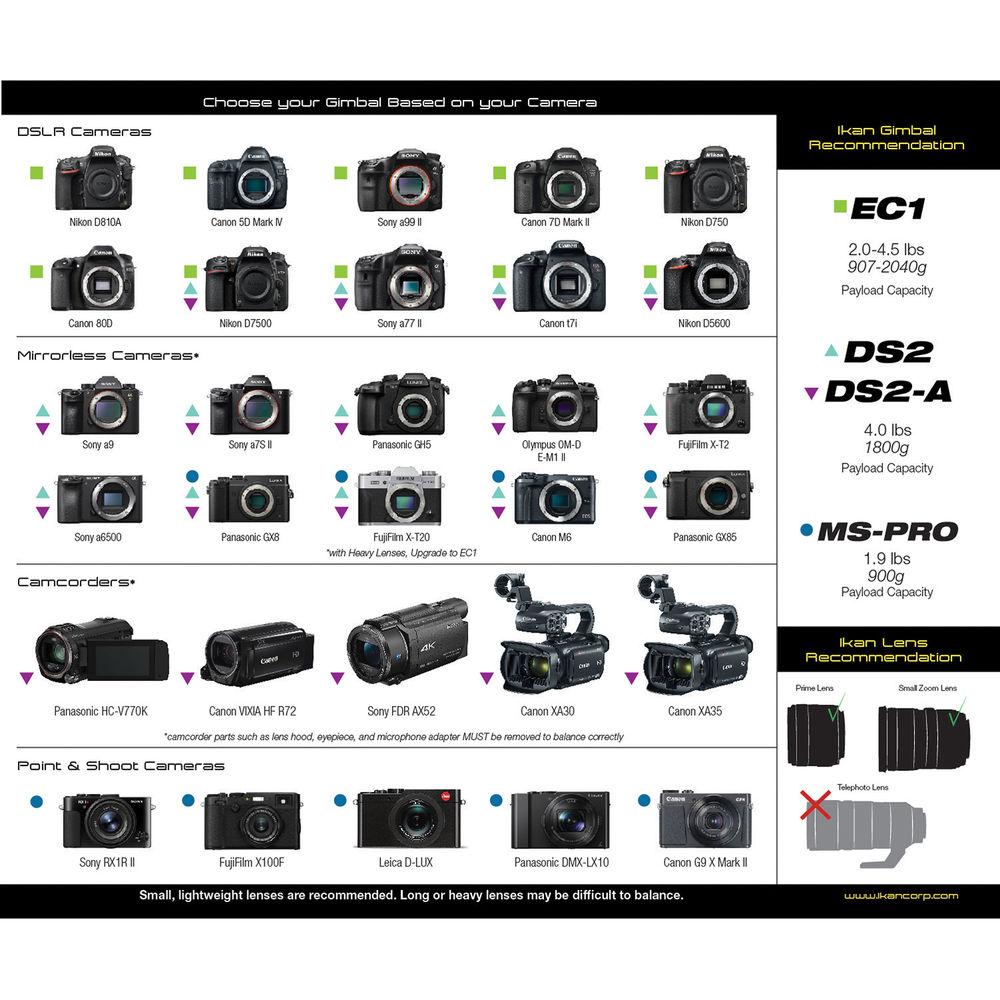

- With a payload up to 5 pounds, the DS2-A can stabilize a wide range of DSLR and mirrorless cameras including the Canon 5D Mark IV, Canon 6D, Canon 7D, Sony a6300, Sony a7S II, Panasonic GH5, GoPro, and select smartphones
- Lock Mode
- In the lock mode, the pan, pitch, and roll axes work together to keep the camera pointed in one direction. The camera's composition stays the same no matter how you move the handle
- Auto Inversion
- Simply flip the handle over the camera to switch to this mode at any time. It can be operated in conjunction with any of the lock or follow modes
- Three Follow Modes
- Pan axis: The DS2-A will only follow your pan movements
Pitch and yaw-axis follow mode: The DS2-A will follow your pan and tilt movements
Three-axis: Gives you full control, allowing you to pan, tilt, and roll - Other Features
-
- Durable all-aluminum construction
- 360° movement from pan axis
- Multiple modes of operation

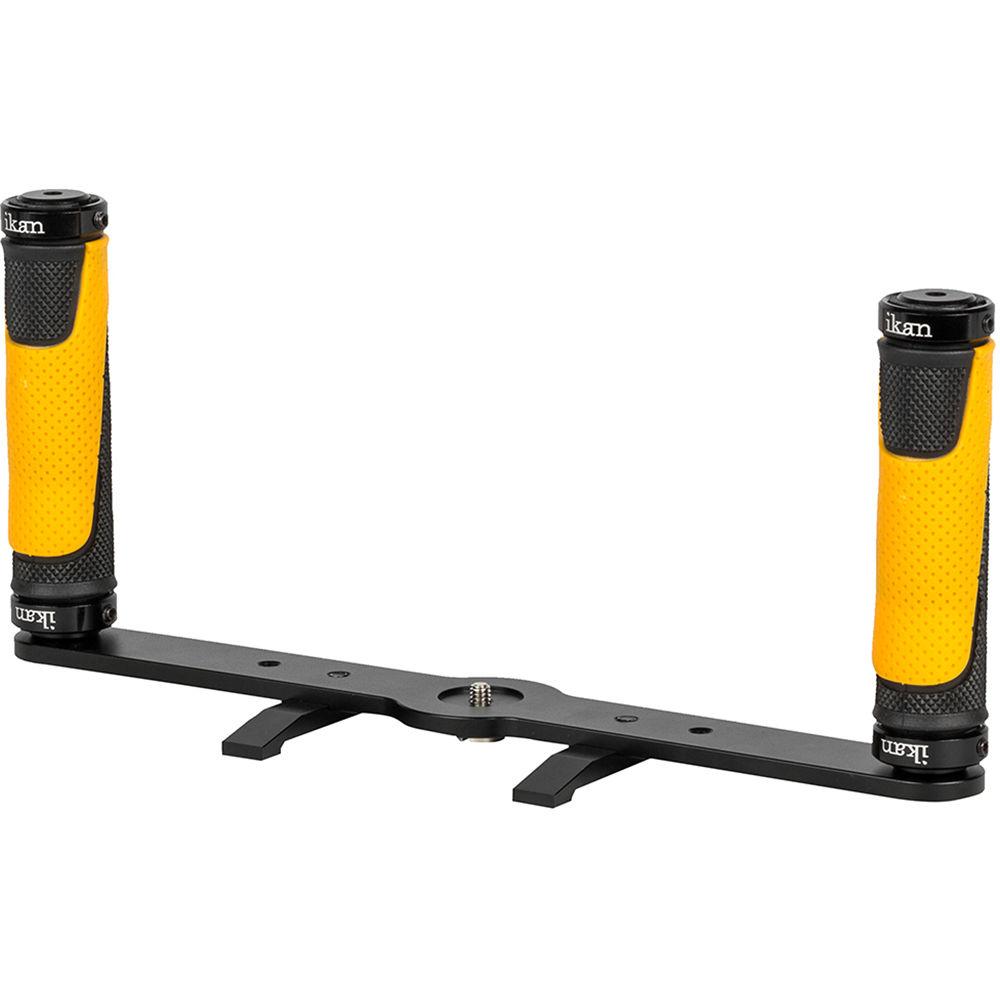

UPC: 847983022724 - Dual-Grip Gimbal Handle This Dual-Grip Gimbal Handle from ikan enables you to operate your gimbal with both hands rather than one. Capturing smooth, professional-looking footage with your gimbal-mounted DSLR is rewarding, but nursing an aching arm is not. By transferring movement from your wrist to your core, this two-handed grip increases the time you can shoot comfortably. The Dual-Grip Gimbal Handle can be grasped overhanded, or underhanded (with gimbals that work in an inverted mode).The Dual-Grip Gimbal Handle features built-in feet so you can rest the unit on a tabletop, creating a stable base for hands-free gimbal calibrating. Constructed of lightweight, durable aluminum, the DGH attaches to most gimbals with a 3/8"-16 mounting socket.
Features - Compatible with ikan DS1, MS1, and EC1 gimbals, and most other DSLR gimbals
- Two-handed grip reduces user fatigue, increasing potential shooting time
- Movement is transferred from the operator's wrist to the body's core for increased maneuverability and stability
- Built-in feet enable tabletop placement for hands-free gimbal calibration and for resting between shots
- Use overhanded, or underhanded with gimbals that have an inverted mode
- Lightweight, aluminum construction with 3/8"-16 mount

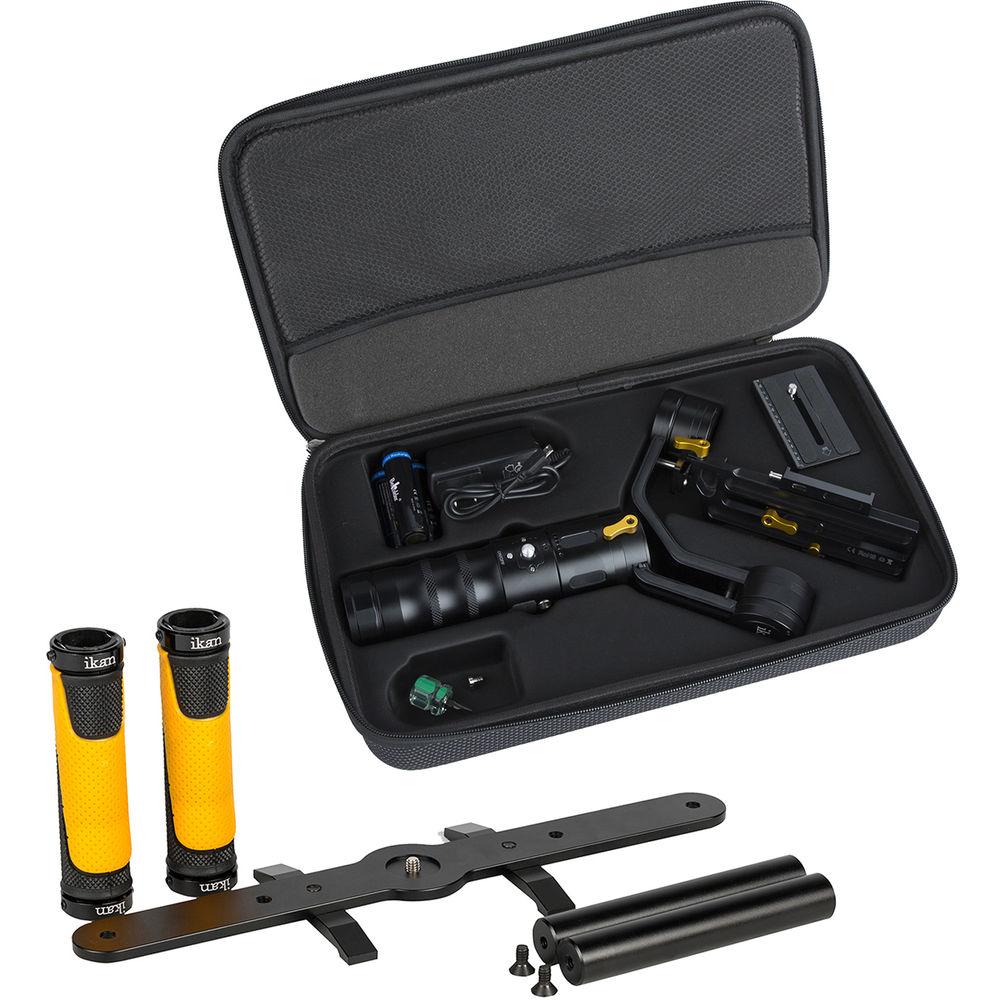

UPC: 847983017171 In the Box Bundle Items DS2-A Beholder 3-Axis Gimbal Stabilizer with Encoders zqdbefcdyqdzvvytcbcs - Mini Tripod/Handle with 3/8"-16 Mount for Beholder Gimbal Stabilizers
Dual-Grip Gimbal Handle User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan DS2-A Beholder Angled 3-Axis Gimbal Stabilizer and Dual-Grip Handle Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DS2-A Beholder 3-Axis Gimbal Stabilizer with Encoders
| | | Number of Axes | 3-Axis | | Rotation Range | Yaw (Pan): 360
