Product description

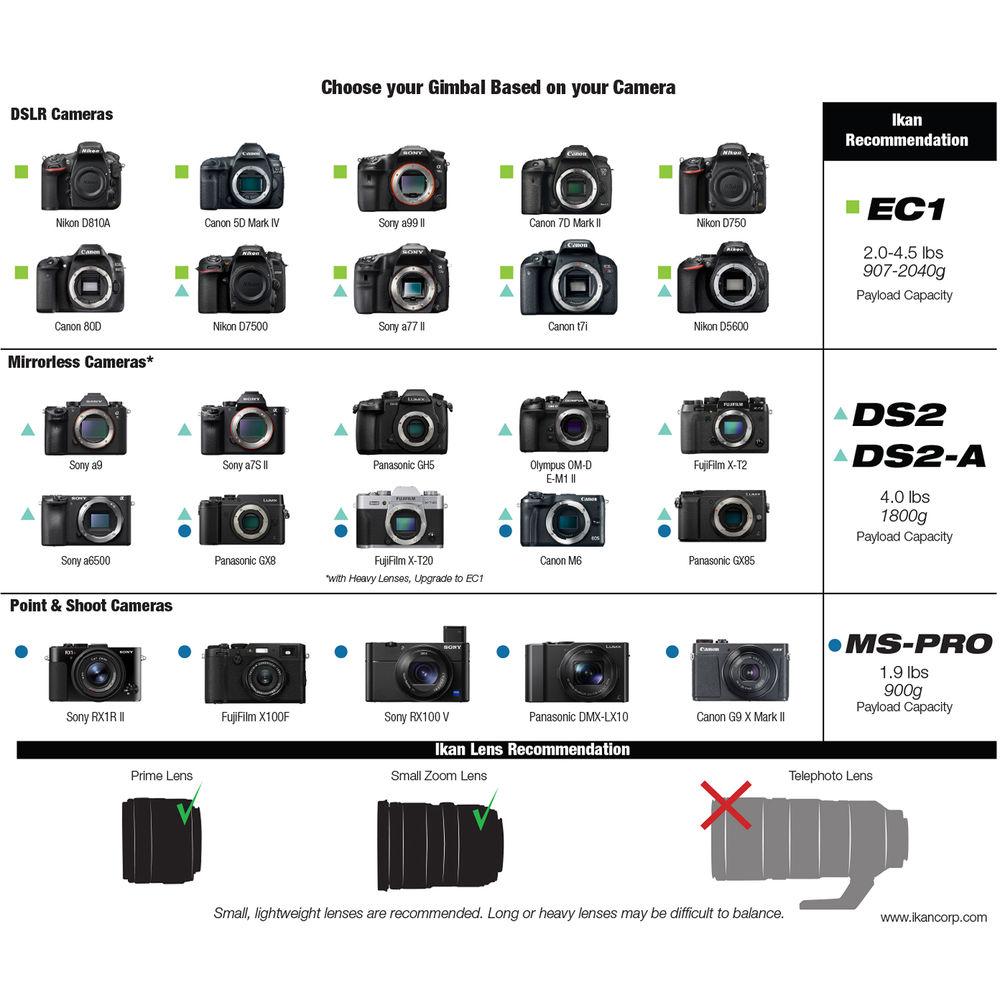

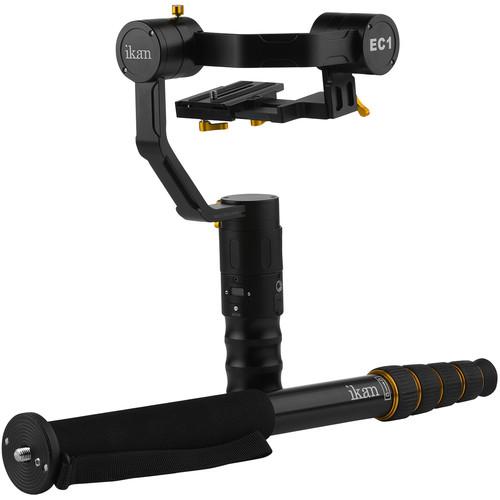

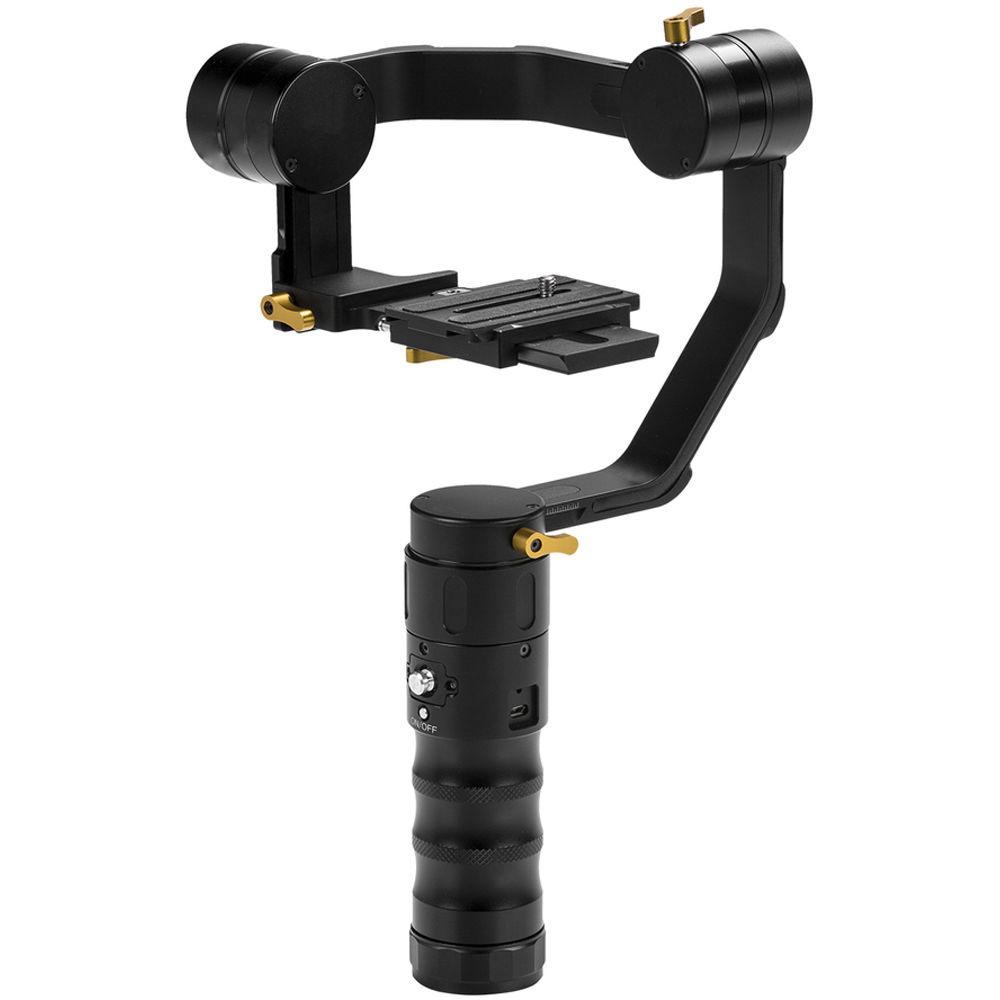

• EC1 Beholder 3-Axis Handheld Gimbal Stabilizer The ikan EC1 Beholder is a 3-axis handheld gimbal stabilizer for DSLR and mirrorless cameras weighing between 2 and 4.5 lb. The EC1 offers unlimited 360° rotation along the yaw, pitch, and roll axes, and features an advanced 32-bit controller and 12-bit encoder system. The gimbal employs an adaptive PID algorithm to deliver stable rotation.

  The EC1 offers three follow modes plus an auto-inversion mode that allows for upside down operation. Auto-inversion lets you use the gimbal with dual-handle support systems like the ikan DGH. The EC1 also features a lock mode that sets the camera in a fixed position, and a point-and-lock mode that locks the position you hold the camera in for a few seconds. The EC1 also has an OLED display on the rear that confirms the selected mode of operation and provides battery life info.

  The EC1 is designed with a quick release baseplate that allows for convenient camera attachment and tool-less balancing. It also has a 1/4"-20 threaded mounting hole on the handle for attaching accessories for advanced setups, and a 3/8"-16 threaded mounting hole on the bottom for mounting onto a tripod, monopod, and other support gear.

  The EC1 runs on three supplied 18650 batteries that provide 8 to 10 hours of operating life when used continuously, and up to 20 hours when the gimbal is switched between shooting and standby modes throughout the day. These batteries are rechargeable from within the EC1 via an included micro-USB AC adapter, and can also be charged using optional chargers such as the ikan ICH-SC4.
  Unlimited 360° Rotation
  • The EC1 Beholder features three 360° rotating brushless motors that give you a limitless range of motion along all three axes: yaw, roll, and pitch.
  Advanced Stabilization
  • Using a 32-bit controller with a 12-bit encoder, the EC1 uses an adaptive PID algorithm to produce a reliably efficient handheld stabilizer.
  Lock Mode
  • In Lock Mode, the Yaw, Pitch, and Roll axes work together to keep the camera fixed and pointed in one direction. The camera's position will stay the same no matter how you move the handle.
  Point & Lock
  • Quickly lock your camera into any position by manually pointing and holding it in any direction. After a few seconds, the camera will lock and hold its position until it is reset back to default.
  Multiple Follow Modes
  • The EC1 features 3 different follow modes. In yaw-axis follow mode, the EC1 will only follow your pan movements. In pitch and yaw-axis follow mode, the EC1 will follow your pan and tilt movements. The 3-axis follow mode gives you full control, allowing you to pan, tilt, and roll.
  Auto Inversion
  • Switch to inverted mode at any time by simply flipping the handle over the camera. Inverted mode can be operated in conjunction with any of the lock and follow modes.
  OLED Status Display
  • A display screen located on the back of the handle conveniently provides you with information on the battery life and operating mode.
  Quick Release Baseplate
  • Featuring a newly designed quick release baseplate system, the EC1 is easy to balance without any tools.
  Multiple Mounting Points
  • The EC1 handle a 1/4"-20 threaded mounting hole for attaching accessories such as a light, microphone, or monitor for advanced setups; and a 3/8"-16 threaded mounting hole on the bottom of the handle for to mount the EC1 on a tripod, jib, or dual-handle support system such as the ikan DGH.
  UPC: 847983019465

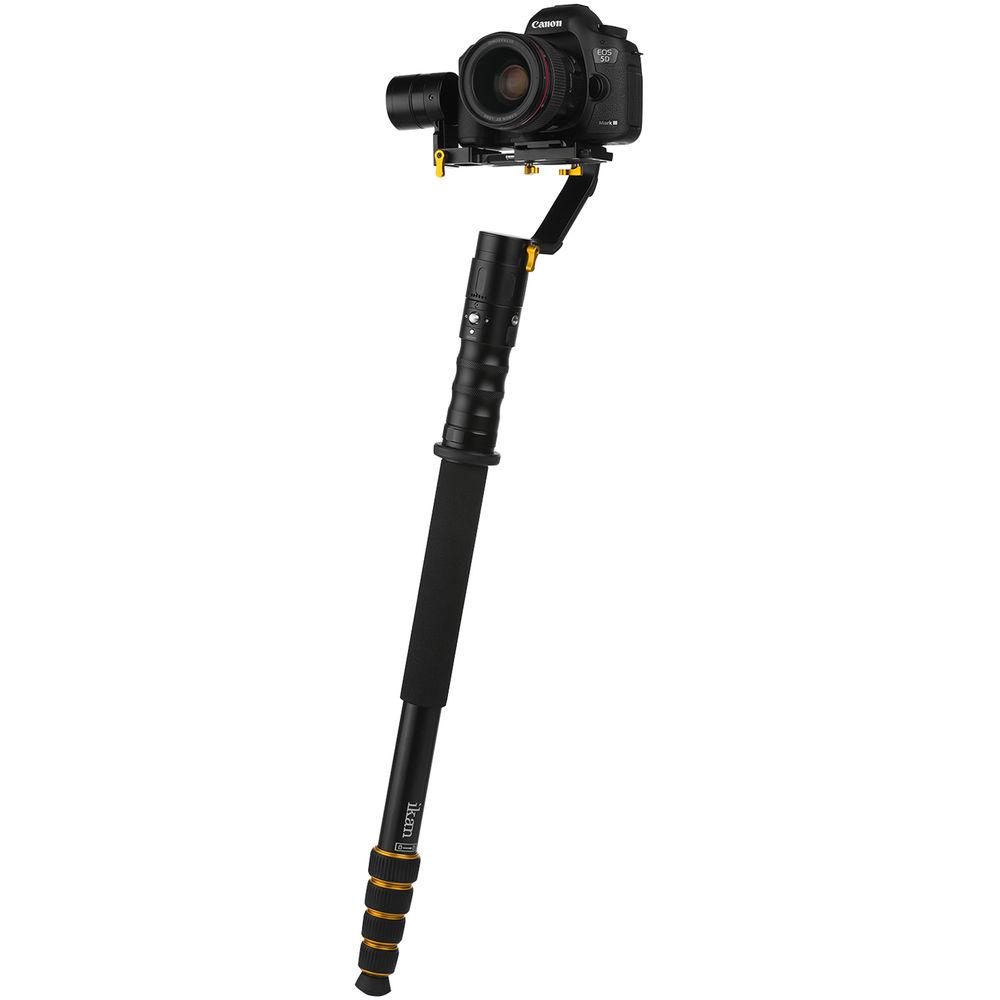

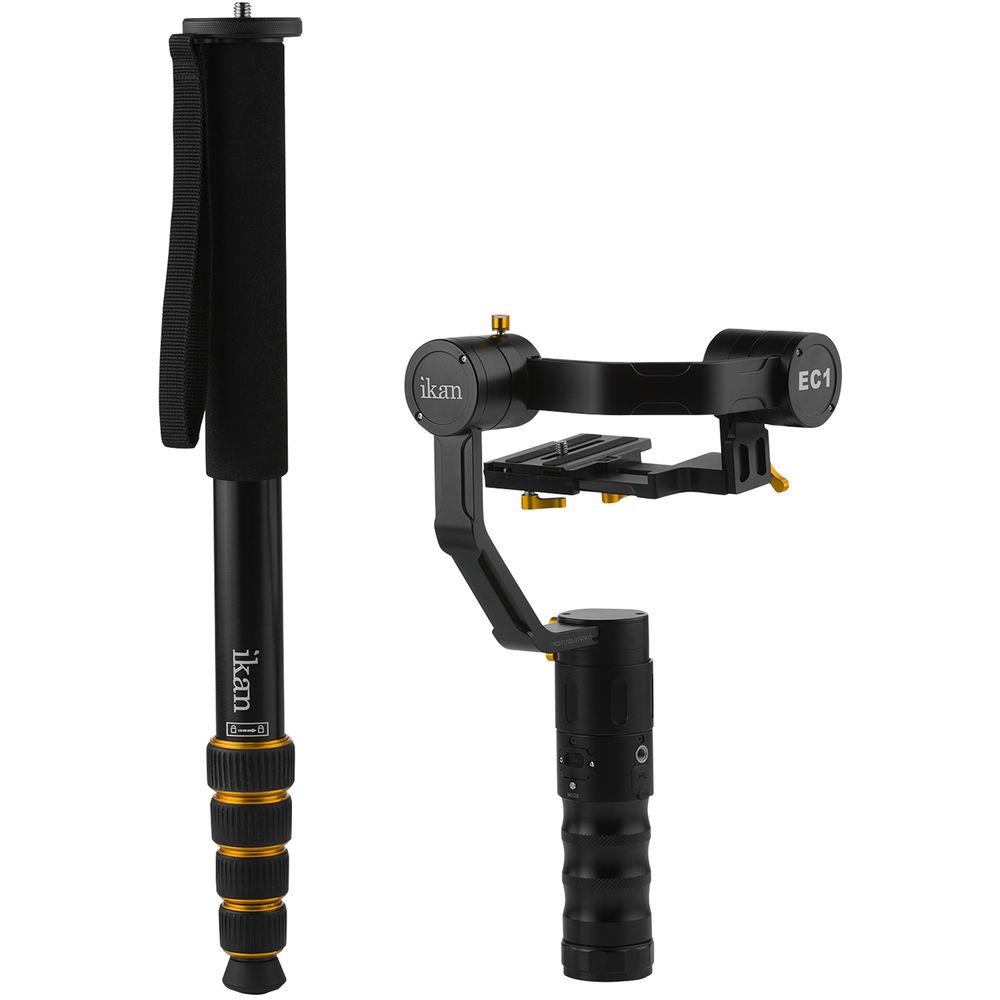

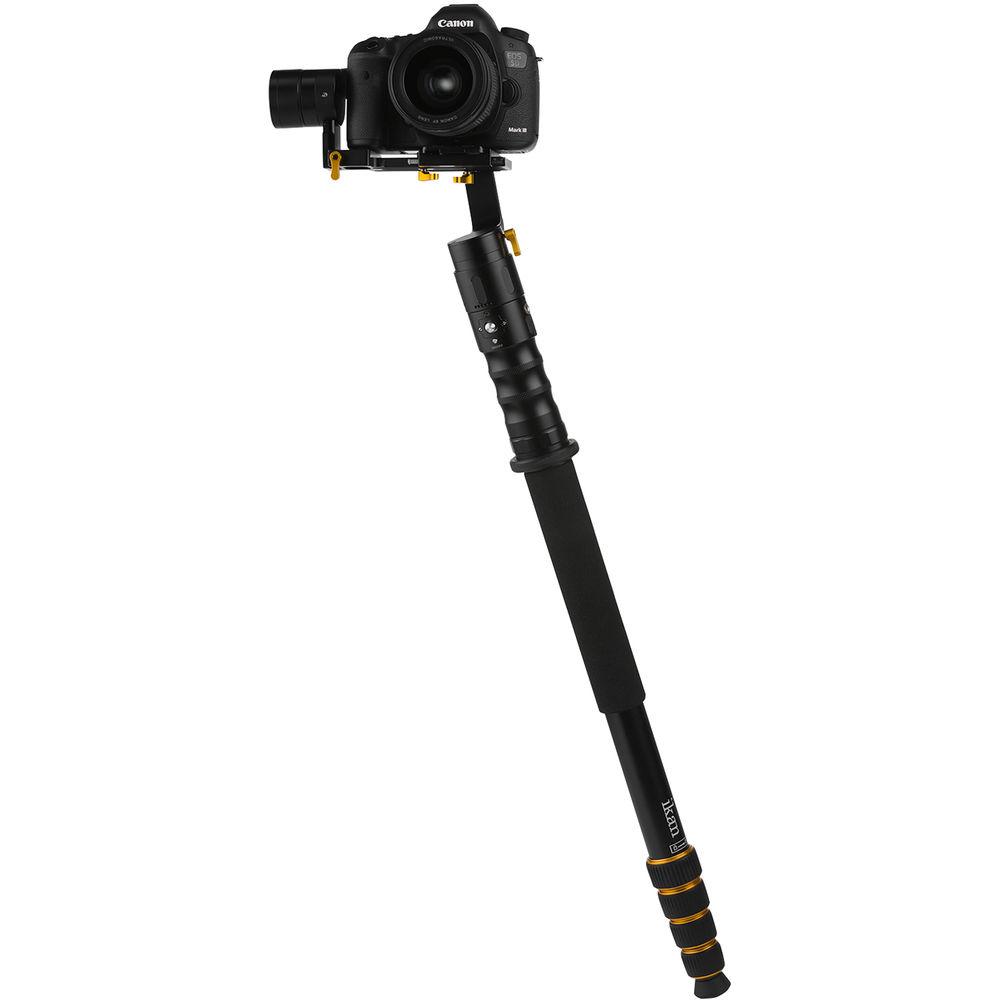

• MPA70 Monopod This ikan MPA70 Monopod supports up to 35.0 lb and measures 18.8" when folded. It is constructed from aluminum alloy, consists of five sections that utilize twist locks for rapid deployment, and can be positioned to a maximum height of 70.8". A foam cover along the top section provides a secure and comfortable grip while moving the monopod, and a rubber foot helps to enhance stability on a wide variety of surfaces.

  Cameras, lenses, sport optics, or accessories with 1/4"-20 or 3/8"-16 female accessory threads can be directly connected to the reversible mount on this monopod's 2.3" top platform. A carry bag with strap is included for storage and transport.
  Use and Handling
  • • Supports up to 35.0 lb
    • Can be set to a maximum height of 70.8"
    • Features 5 sections, twist locks for rapid deployment
    • Rubber foot helps to enhance stability on a wide variety of surfaces
    • Weighs 1.6 lb, measures 18.8" when folded
  Construction Details
  • • Durable and lightweight aluminum-alloy construction
    • 1/4"-20 or 3/8"-16 reversible mount
    • Hex key to remove or install reversible mount
    • Includes nylon carry bag for storage and transport
  UPC: 847983022113

• 3 x 18650 Battery

• Travel Case

• Quick Release Plate

• Micro-USB AC Adapter

• Battery Holder

• Battery Cap with 3/8"-16 Mount

• Limited 1-Year Warranty

• Carry Bag

• Hex Key for Reversible Mount

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EC1 Beholder 3-Axis Handheld Gimbal Stabilizer

  Number of Axes	3-Axis (Pitch, Roll, Yaw)
  Rotation Range	Yaw (Pan): 360 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 37 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
