Product description

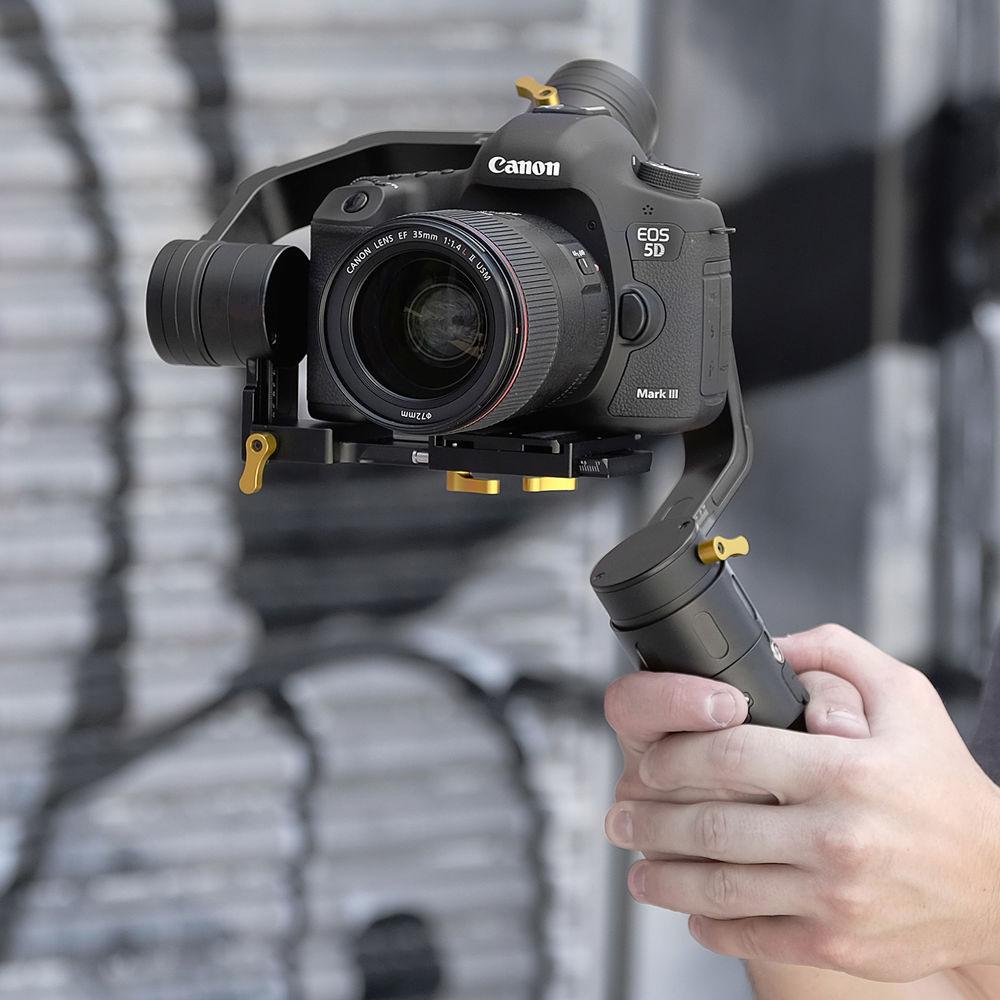

• EC1 Beholder 3-Axis Handheld Gimbal Stabilizer The ikan EC1 Beholder is a 3-axis handheld gimbal stabilizer for DSLR and mirrorless cameras weighing between 2 and 4.5 lb. The EC1 offers unlimited 360° rotation along the yaw, pitch, and roll axes, and features an advanced 32-bit controller and 12-bit encoder system. The gimbal employs an adaptive PID algorithm to deliver stable rotation.

  The EC1 offers three follow modes plus an auto-inversion mode that allows for upside down operation. Auto-inversion lets you use the gimbal with dual-handle support systems like the ikan DGH. The EC1 also features a lock mode that sets the camera in a fixed position, and a point-and-lock mode that locks the position you hold the camera in for a few seconds. The EC1 also has an OLED display on the rear that confirms the selected mode of operation and provides battery life info.

  The EC1 is designed with a quick release baseplate that allows for convenient camera attachment and tool-less balancing. It also has a 1/4"-20 threaded mounting hole on the handle for attaching accessories for advanced setups, and a 3/8"-16 threaded mounting hole on the bottom for mounting onto a tripod, monopod, and other support gear.

  The EC1 runs on three supplied 18650 batteries that provide 8 to 10 hours of operating life when used continuously, and up to 20 hours when the gimbal is switched between shooting and standby modes throughout the day. These batteries are rechargeable from within the EC1 via an included micro-USB AC adapter, and can also be charged using optional chargers such as the ikan ICH-SC4.
  Unlimited 360° Rotation
  • The EC1 Beholder features three 360° rotating brushless motors that give you a limitless range of motion along all three axes: yaw, roll, and pitch.
  Advanced Stabilization
  • Using a 32-bit controller with a 12-bit encoder, the EC1 uses an adaptive PID algorithm to produce a reliably efficient handheld stabilizer.
  Lock Mode
  • In Lock Mode, the Yaw, Pitch, and Roll axes work together to keep the camera fixed and pointed in one direction. The camera's position will stay the same no matter how you move the handle.
  Point & Lock
  • Quickly lock your camera into any position by manually pointing and holding it in any direction. After a few seconds, the camera will lock and hold its position until it is reset back to default.
  Multiple Follow Modes
  • The EC1 features 3 different follow modes. In yaw-axis follow mode, the EC1 will only follow your pan movements. In pitch and yaw-axis follow mode, the EC1 will follow your pan and tilt movements. The 3-axis follow mode gives you full control, allowing you to pan, tilt, and roll.
  Auto Inversion
  • Switch to inverted mode at any time by simply flipping the handle over the camera. Inverted mode can be operated in conjunction with any of the lock and follow modes.
  OLED Status Display
  • A display screen located on the back of the handle conveniently provides you with information on the battery life and operating mode.
  Quick Release Baseplate
  • Featuring a newly designed quick release baseplate system, the EC1 is easy to balance without any tools.
  Multiple Mounting Points
  • The EC1 handle a 1/4"-20 threaded mounting hole for attaching accessories such as a light, microphone, or monitor for advanced setups; and a 3/8"-16 threaded mounting hole on the bottom of the handle for to mount the EC1 on a tripod, jib, or dual-handle support system such as the ikan DGH.
  UPC: 847983019465
• Dual-Grip Gimbal Handle This Dual-Grip Gimbal Handle from ikan enables you to operate your gimbal with both hands rather than one. Capturing smooth, professional-looking footage with your gimbal-mounted DSLR is rewarding, but nursing an aching arm is not. By transferring movement from your wrist to your core, this two-handed grip increases the time you can shoot comfortably. The Dual-Grip Gimbal Handle can be grasped overhanded, or underhanded (with gimbals that work in an inverted mode).The Dual-Grip Gimbal Handle features built-in feet so you can rest the unit on a tabletop, creating a stable base for hands-free gimbal calibrating. Constructed of lightweight, durable aluminum, the DGH attaches to most gimbals with a 3/8"-16 mounting socket.

  Features

  • Compatible with ikan DS1, MS1, and EC1 gimbals, and most other DSLR gimbals
  • Two-handed grip reduces user fatigue, increasing potential shooting time
  • Movement is transferred from the operator's wrist to the body's core for increased maneuverability and stability
  • Built-in feet enable tabletop placement for hands-free gimbal calibration and for resting between shots
  • Use overhanded, or underhanded with gimbals that have an inverted mode
  • Lightweight, aluminum construction with 3/8"-16 mount
  UPC: 847983017171
• DH7 7" HDMI LCD Monitor Deluxe Kit with Panasonic D54-Series Type Battery, Plate, & Charger The DH7 7" HDMI LCD Monitor Deluxe Kit from Ikan includes the DH7 7" Full HD HDMI Monitor with UHD 4K support, BP5 Panasonic D54 DV Battery Plate, ICH-D54 Battery Charger, 1.5' Mini HDMI to HDMI Cable, 1.5' Micro HDMI to HDMI Cable, and an Ultra-Heavy Duty Camera Shoe Mount. The DH7 Monitor features a 1920 x 1200 WUXGA IPS panel, and downscales to display the incoming 4K image. The 4K-compatible HDMI connections can accept and provide loop-through 4K output signals over HDMI. The BP5-P Battery Plate supports Panasonic D54-series batteries. The ICH-D54 is a charger designed specifically for both the Ikan IBP-D54 and Panasonic brand 12 VDC camera batteries used on their line of camcorders.

  The Mini HDMI and Micro HDMI cables enable you to use the DH7 with a wide variety of cameras. They can be used to connect a device with a Mini (type C) or Micro (type D) HDMI connector to a device with a full-sized HDMI connector. The removable sun hood mounts with three mounting screws, and the included screen protection film helps protect your screen from the rigors of production. The Ultra-Heavy Duty Camera Shoe Mount from Ikan is a 1/4"-20 mount that can mount directly onto a DSLR shoe, allowing for the attachment of accessories such as display monitors. This ball head has a single locking knob for fast and safe operation, and is easily removable. The included padded soft case protects your kit during transport and storage.

• 3 x 18650 Battery

• Travel Case

• Quick Release Plate

• Micro-USB AC Adapter

• Battery Holder

• Battery Cap with 3/8"-16 Mount

• Limited 1-Year Warranty

• 3/8"-16 Mount

• Limited 1-Year Warranty

• Ultra-Heavy Duty Camera Shoe Mount

• BP5 Panasonic D54 DV Battery Plate for ikan Monitors

• ICH-D54 Battery Charger

• HDMI-AC-18 Mini HDMI to Standard HDMI Cable (1.5')

• HDMI-AD-18 Micro HDMI to Standard HDMI Cable (1.5')

• DH7 Monitor

• Screen Protection Film

• Sun Hood with 3 x Mounting Screws

• USB Drive

• AC Power Adapter

• Screen Cleaning Cloth

• Soft Padded Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EC1 Beholder 3-Axis Handheld Gimbal Stabilizer

  Number of Axes	3-Axis (Pitch, Roll, Yaw)
  Rotation Range	Yaw (Pan): 360 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 44 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
