Product description - Ikan Corp: Tech Corner - Beholder EC1 3 Axis Gimbal Stabilizer Balancing Tutorial
- Ikan Corp: Tech Corner - Beholder EC1 3 Axis Gimbal Stabilizer
- ikan Corp: Beholder EC1 3 Axis 360 degree Gimbal
- 10 Reasons to Choose a Handheld Beholder Gimbal vs Traditional Cinema Gimbal

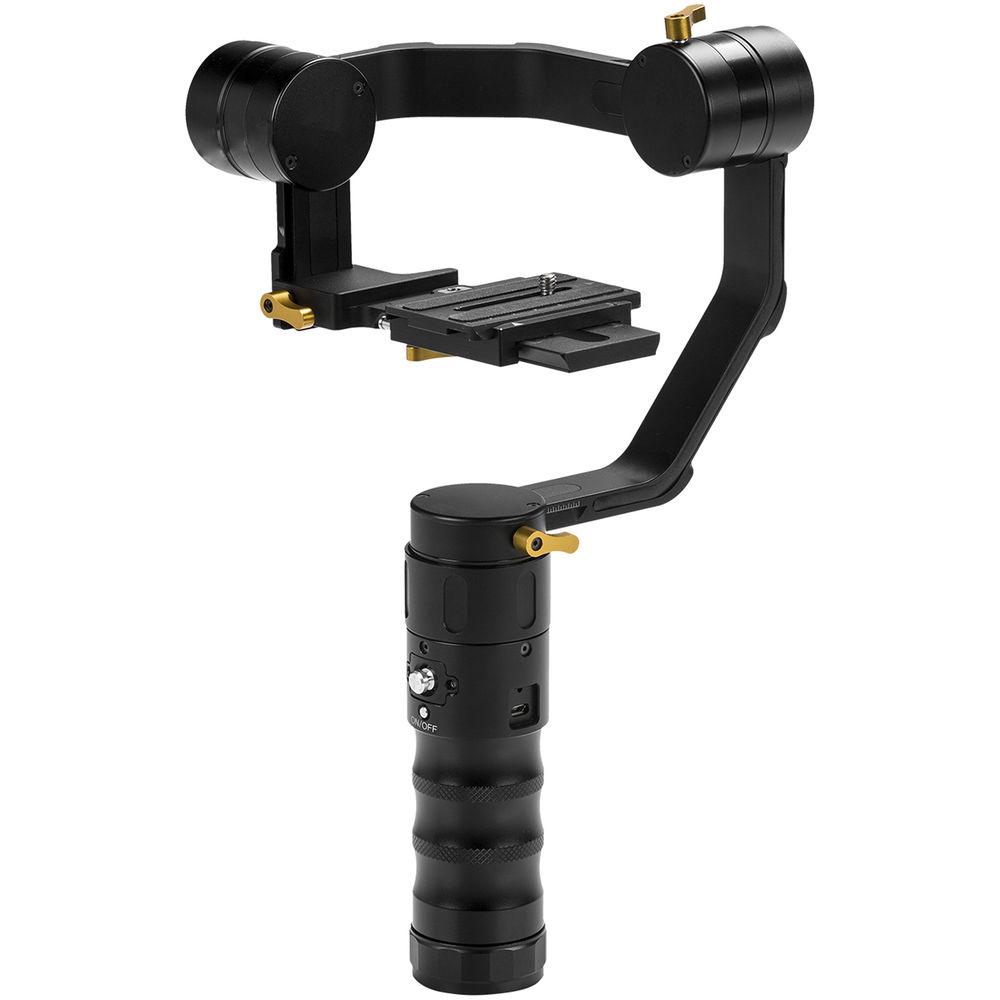

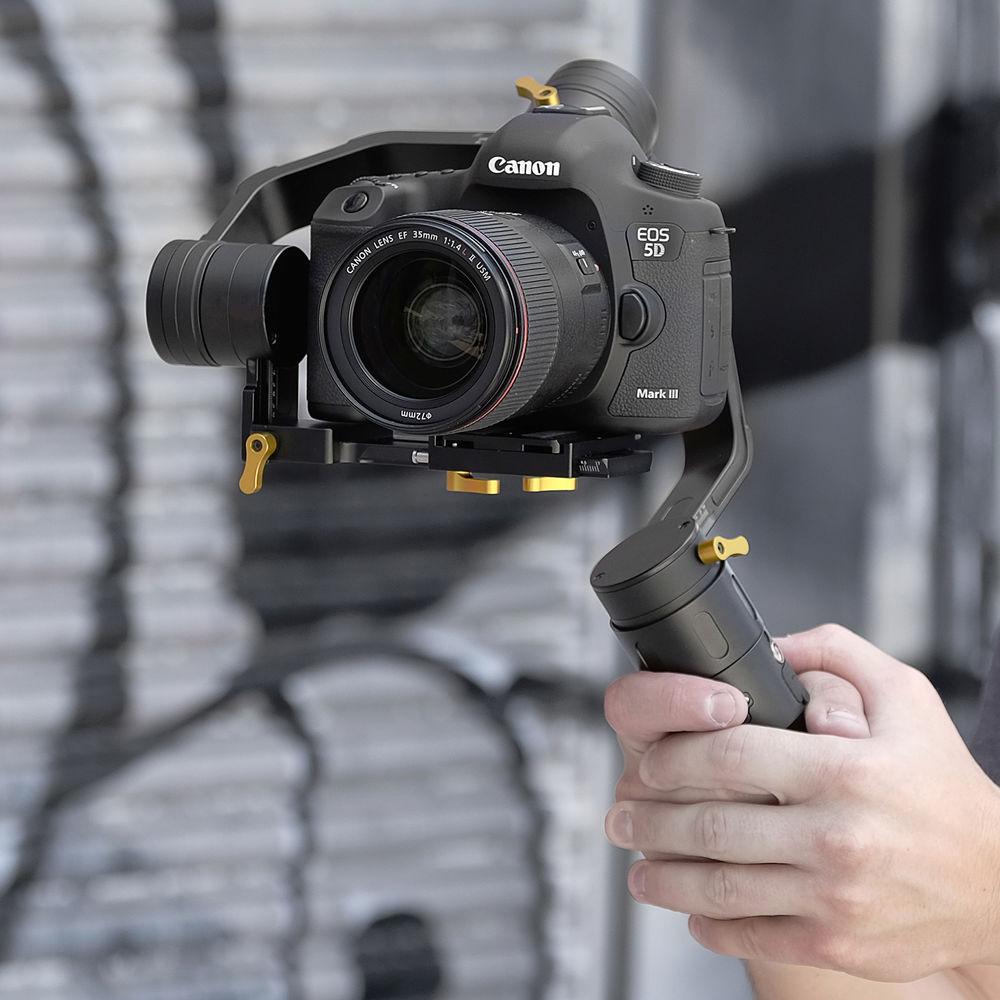

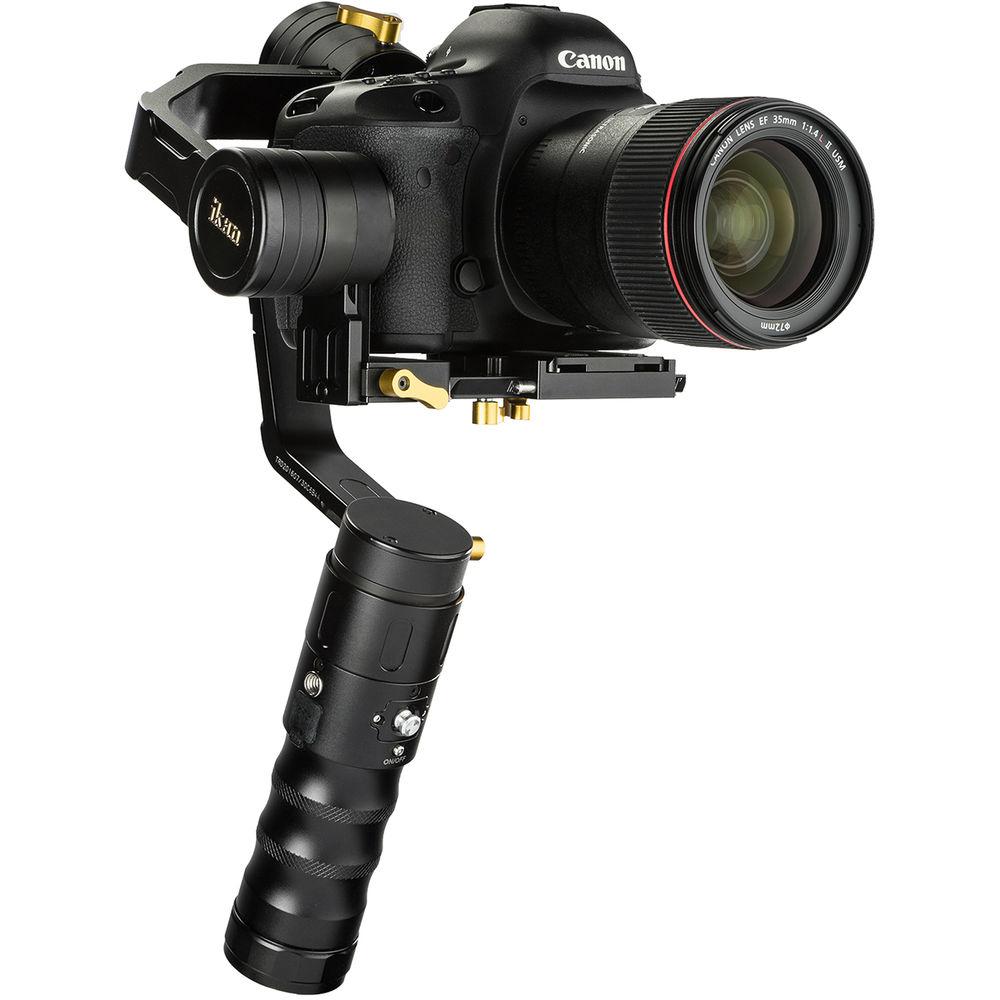

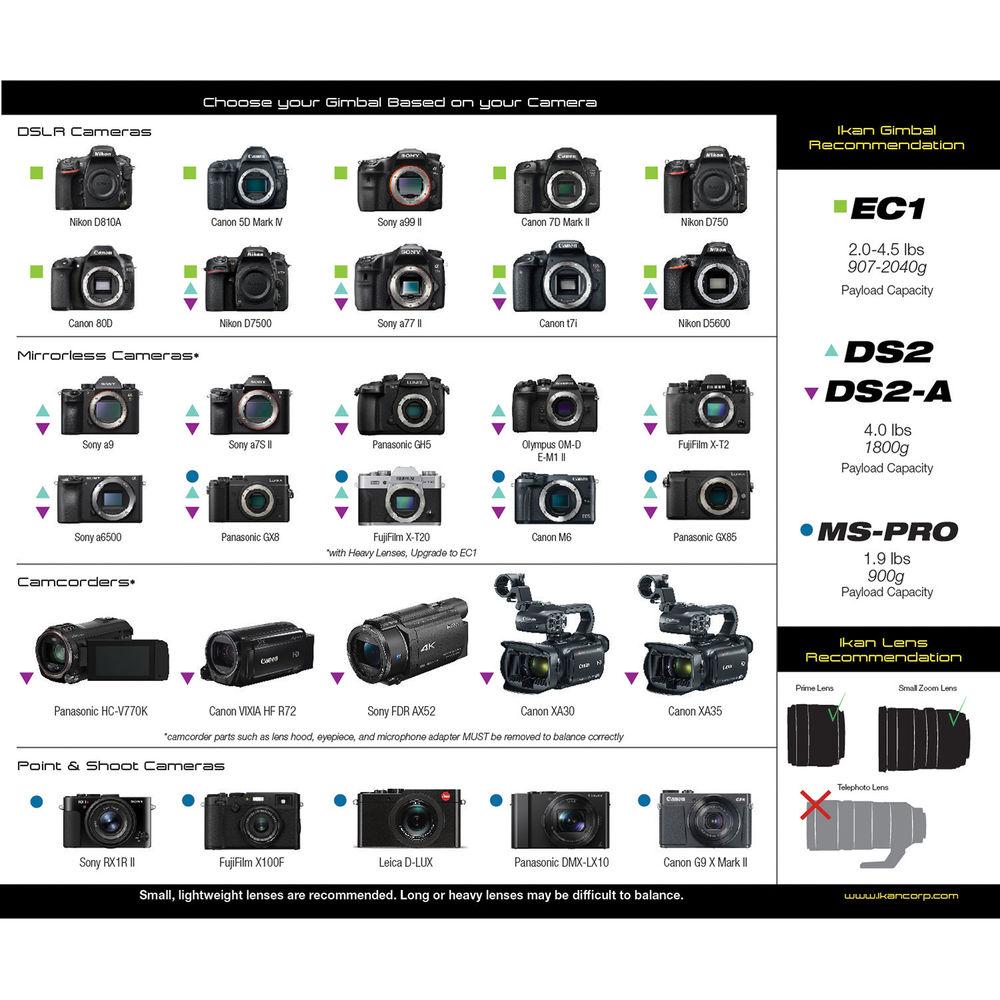

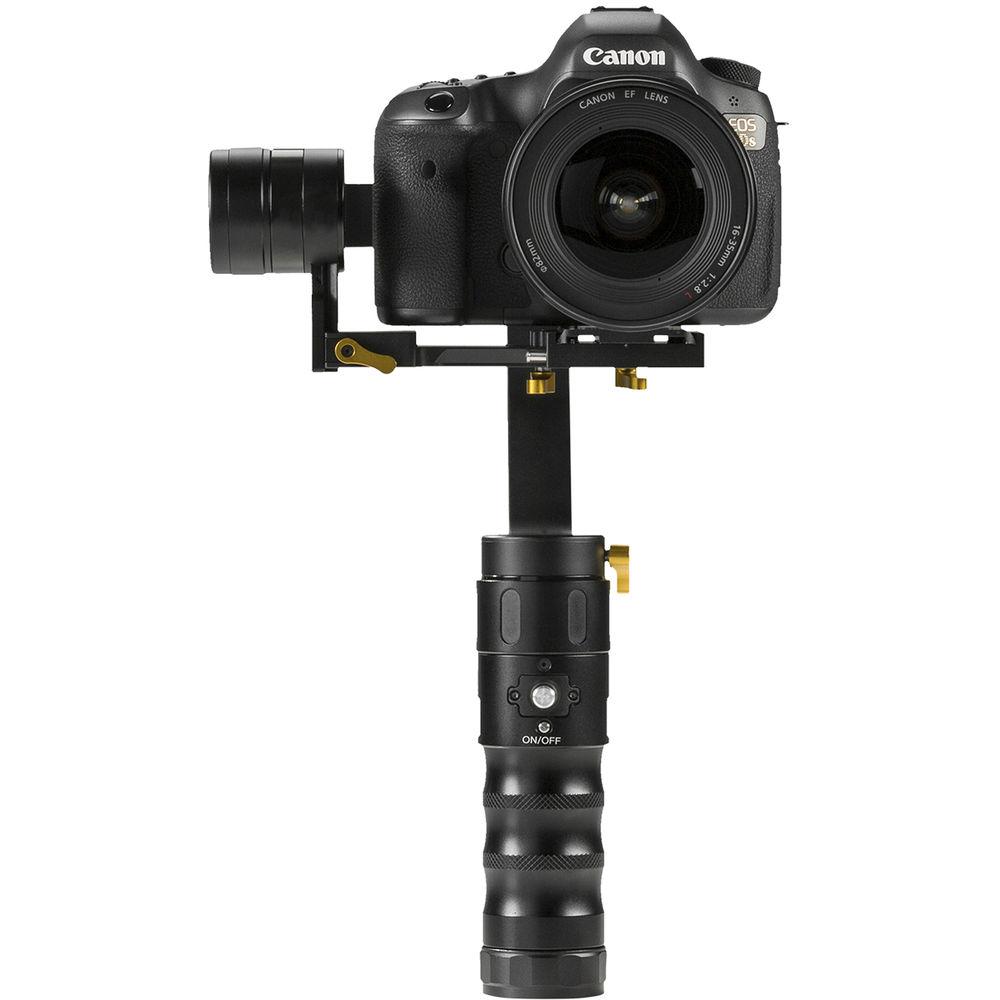

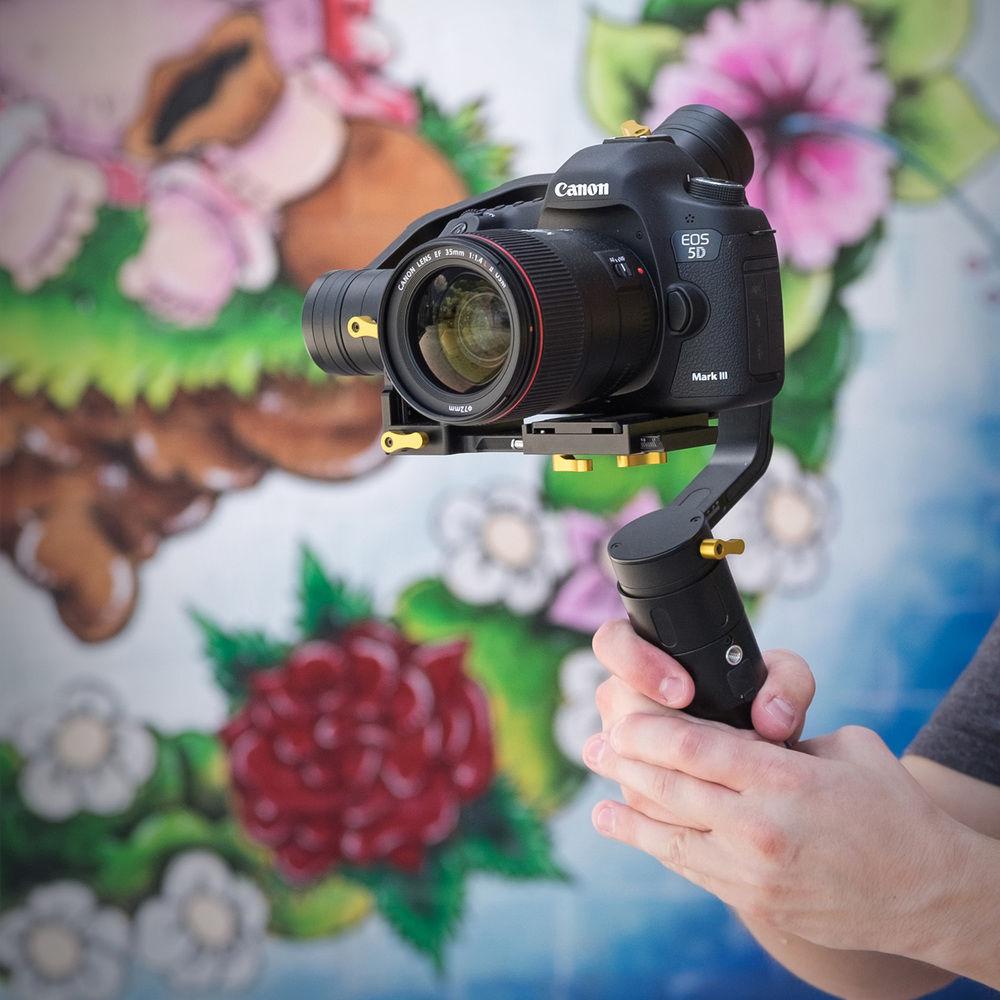

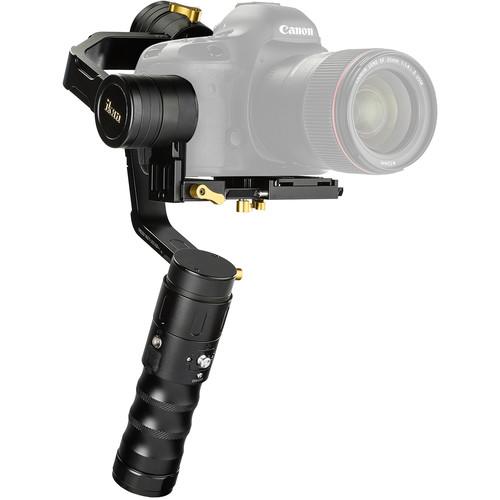

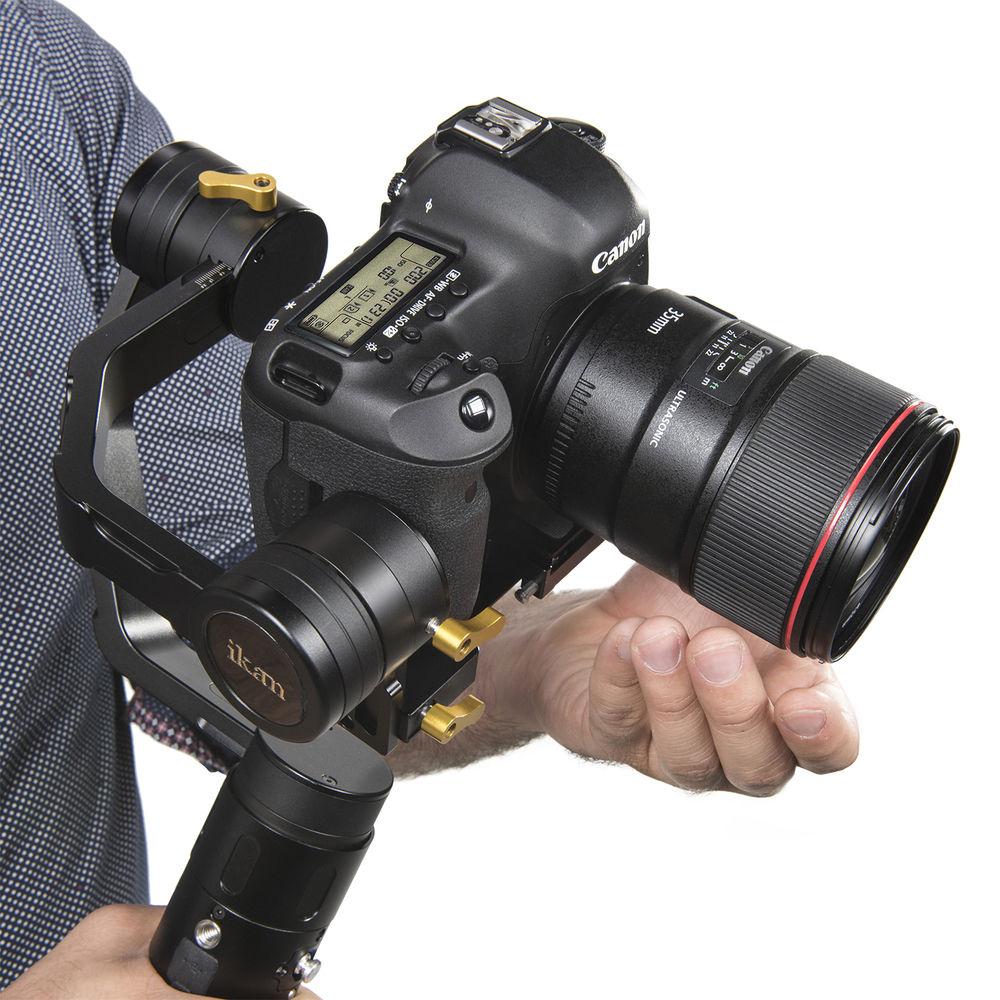

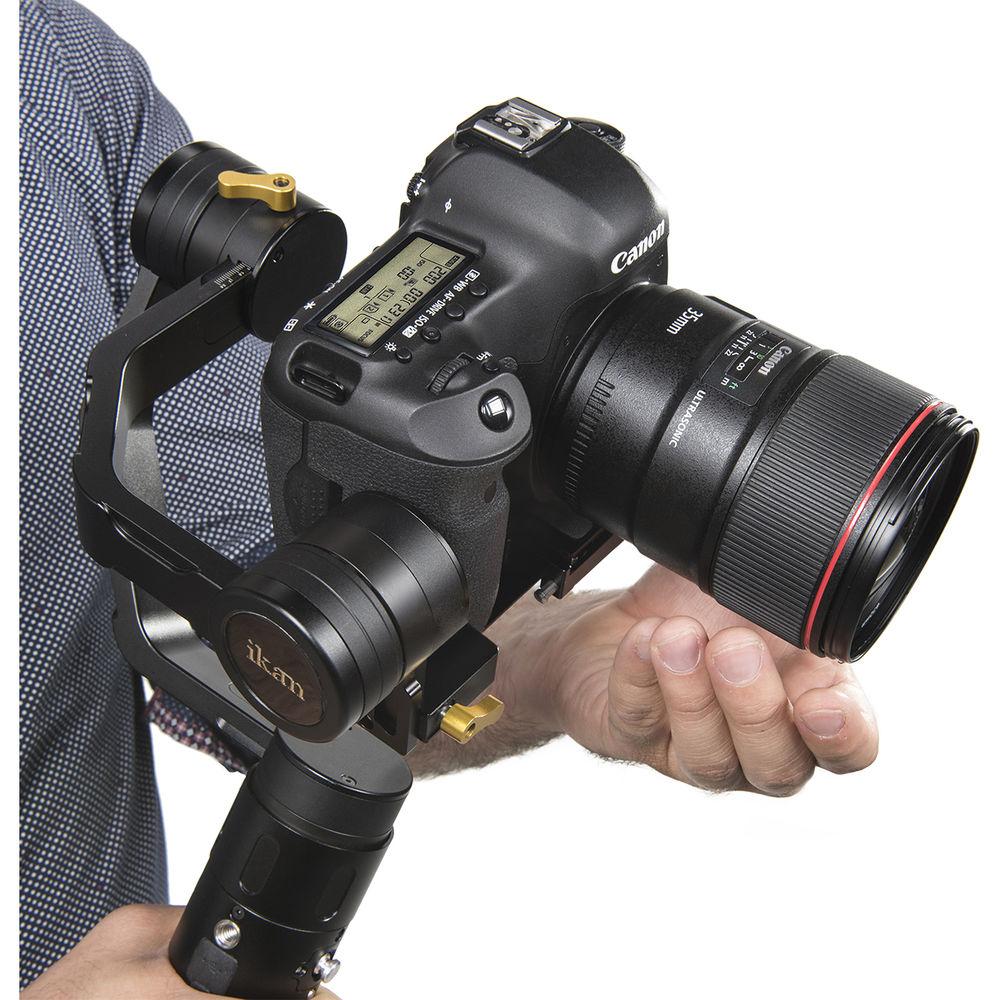

The ikan EC1 Beholder is a 3-axis handheld gimbal stabilizer for DSLR and mirrorless cameras weighing between 2 and 4.5 lb. The EC1 offers unlimited 360° rotation along the yaw, pitch, and roll axes, and features an advanced 32-bit controller and 12-bit encoder system. The gimbal employs an adaptive PID algorithm to deliver stable rotation.
The EC1 offers three follow modes plus an auto-inversion mode that allows for upside down operation. Auto-inversion lets you use the gimbal with dual-handle support systems like the ikan DGH. The EC1 also features a lock mode that sets the camera in a fixed position, and a point-and-lock mode that locks the position you hold the camera in for a few seconds. The EC1 also has an OLED display on the rear that confirms the selected mode of operation and provides battery life info.
The EC1 is designed with a quick release baseplate that allows for convenient camera attachment and tool-less balancing. It also has a 1/4"-20 threaded mounting hole on the handle for attaching accessories for advanced setups, and a 3/8"-16 threaded mounting hole on the bottom for mounting onto a tripod, monopod, and other support gear.
The EC1 runs on three supplied 18650 batteries that provide 8 to 10 hours of operating life when used continuously, and up to 20 hours when the gimbal is switched between shooting and standby modes throughout the day. These batteries are rechargeable from within the EC1 via an included micro-USB AC adapter, and can also be charged using optional chargers such as the ikan ICH-SC4. - Unlimited 360° Rotation
- The EC1 Beholder features three 360° rotating brushless motors that give you a limitless range of motion along all three axes: yaw, roll, and pitch.
- Advanced Stabilization
- Using a 32-bit controller with a 12-bit encoder, the EC1 uses an adaptive PID algorithm to produce a reliably efficient handheld stabilizer.
- Lock Mode
- In Lock Mode, the Yaw, Pitch, and Roll axes work together to keep the camera fixed and pointed in one direction. The camera's position will stay the same no matter how you move the handle.
- Point & Lock
- Quickly lock your camera into any position by manually pointing and holding it in any direction. After a few seconds, the camera will lock and hold its position until it is reset back to default.
- Multiple Follow Modes
- The EC1 features 3 different follow modes. In yaw-axis follow mode, the EC1 will only follow your pan movements. In pitch and yaw-axis follow mode, the EC1 will follow your pan and tilt movements. The 3-axis follow mode gives you full control, allowing you to pan, tilt, and roll.
- Auto Inversion
- Switch to inverted mode at any time by simply flipping the handle over the camera. Inverted mode can be operated in conjunction with any of the lock and follow modes.
- OLED Status Display
- A display screen located on the back of the handle conveniently provides you with information on the battery life and operating mode.

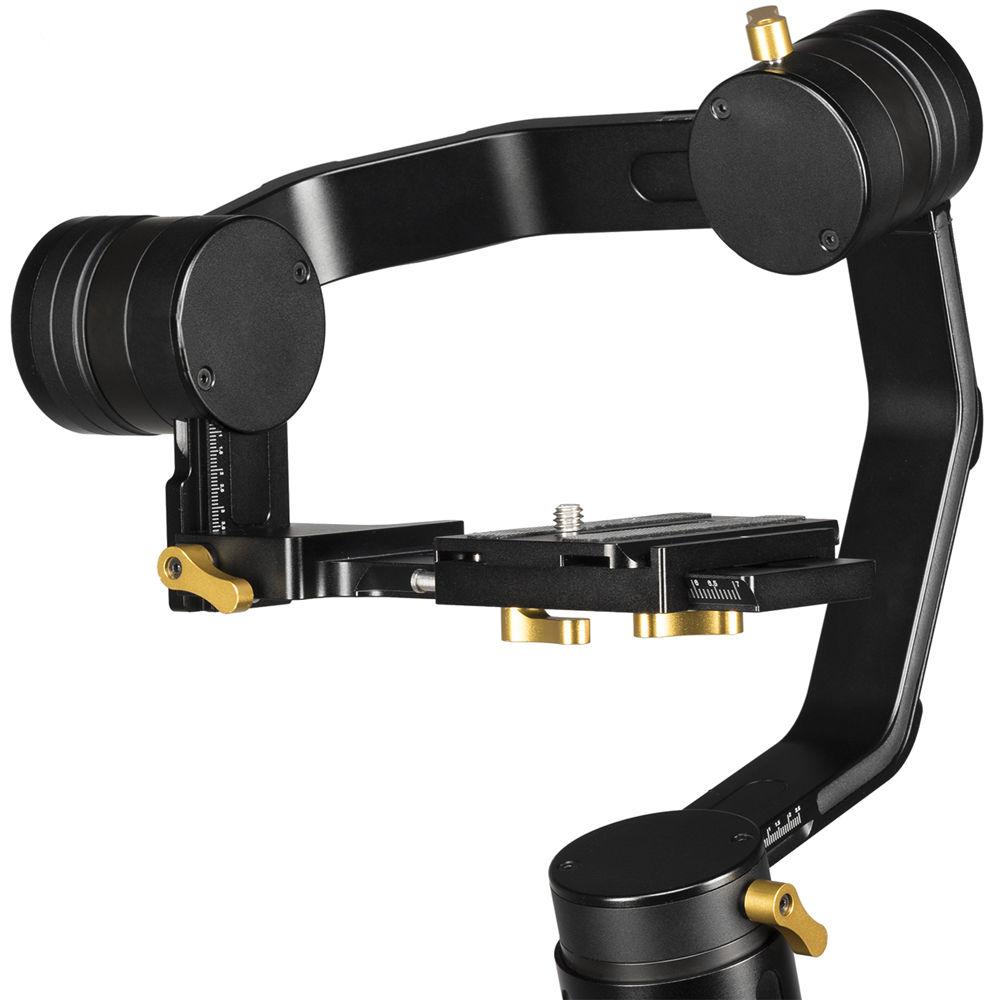

- Quick Release Baseplate
- Featuring a newly designed quick release baseplate system, the EC1 is easy to balance without any tools.
- Multiple Mounting Points
- The EC1 handle a 1/4"-20 threaded mounting hole for attaching accessories such as a light, microphone, or monitor for advanced setups; and a 3/8"-16 threaded mounting hole on the bottom of the handle for to mount the EC1 on a tripod, jib, or dual-handle support system such as the ikan DGH.
UPC: 847983019465 In the Box ikan EC1 Beholder 3-Axis Handheld Gimbal Stabilizer 3 x 18650 Battery Travel Case Quick Release Plate Micro-USB AC Adapter Battery Holder Battery Cap with 3/8"-16 Mount Limited 1-Year Warranty User Manual PDF 2.9mbrusdtefubcywbsbqbexvyydwq Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan EC1 Beholder 3-Axis Handheld Gimbal Stabilizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan EC1 BEHOLDER Specs | | | Number of Axes | 3-Axis (Pitch, Roll, Yaw) | | Rotation Range | Yaw (Pan): 360
