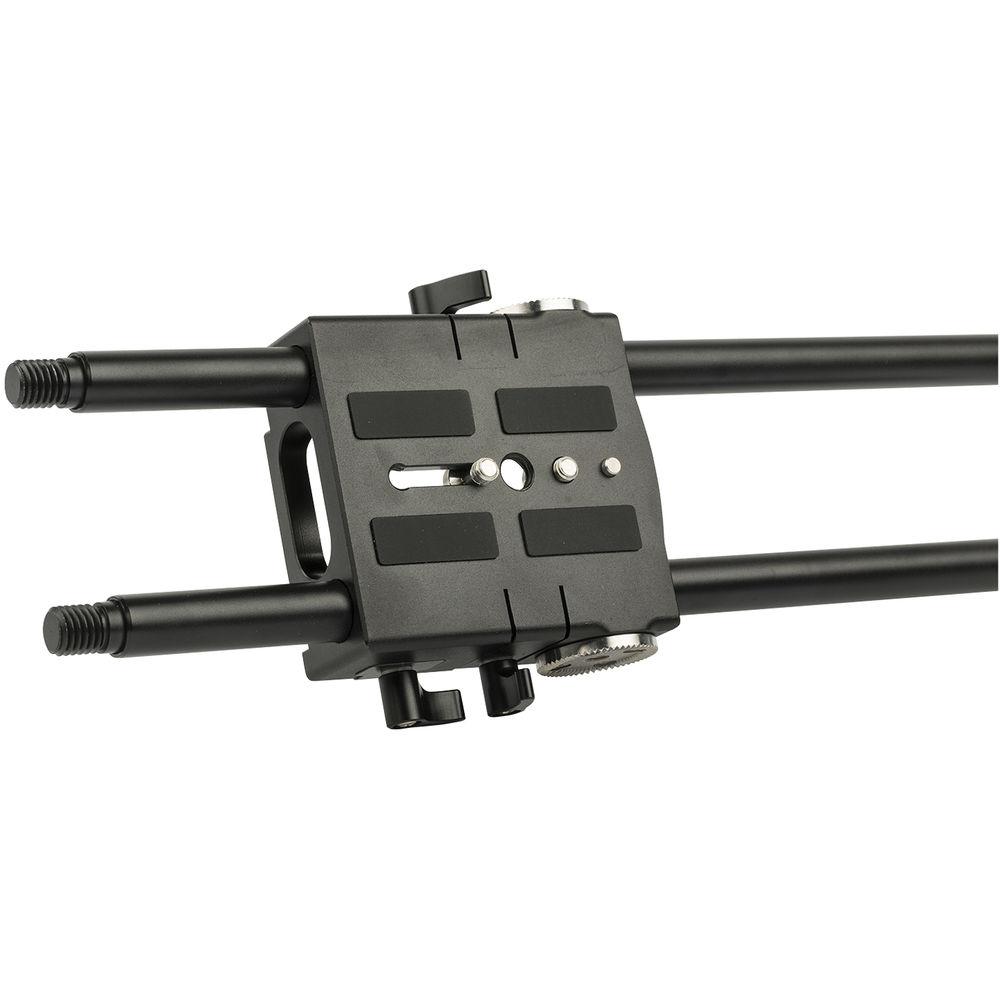

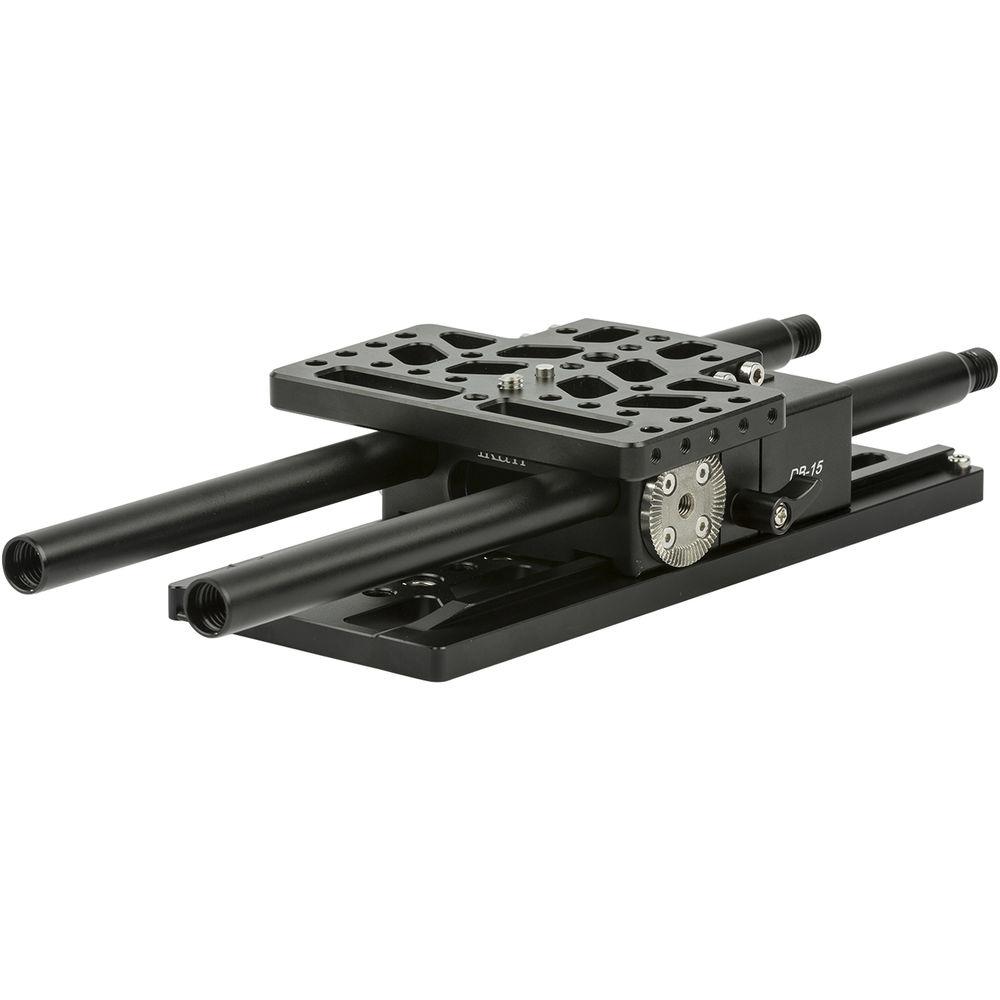

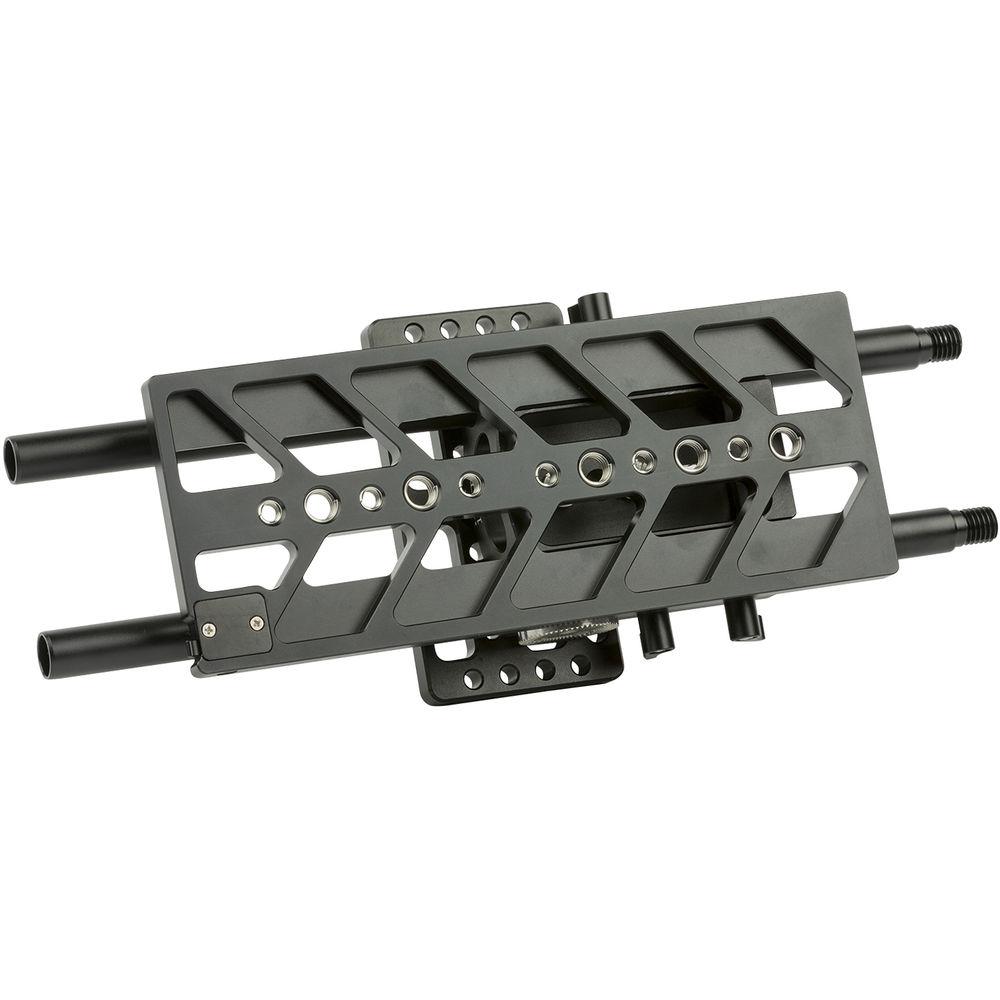

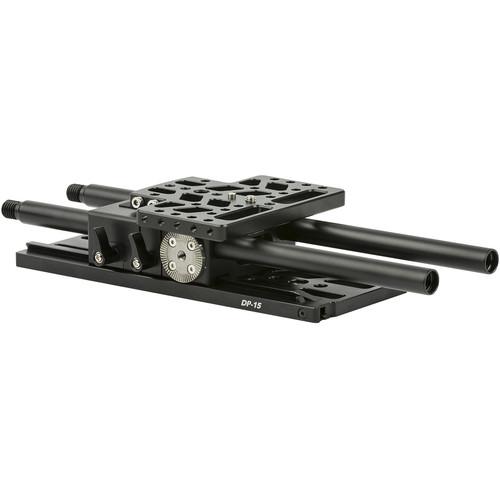

Product description The Elements EV Series Camera Mount with Dovetail Plate and Riser from ikan is a baseplate system consisting of a camera mounting plate, a 9" dovetail plate, a ventilated 1/4" riser, two 12" 15mm rods. The camera mounting plate has 1/4"-20 and 3/8"-16 camera mounting threads as well as two ARRI style rosettes on both sides for accessory mounting.The dovetail plate has six 1/4" -20 and five 3/8"-16 mounting threads for perfect camera balance and placement. It also features a rear removable hard stop and a front-release switch to secure the camera position. The included riser allows for air ventilation when used with cameras like the BlackMagic Cinema Camera, and also reduces the overall weight of the baseplate system. - Sturdy camera mounting plate
- ARRI style rosettes on both side of base plate for accessory mounting
- 9" dovetail plate with six 1/4" -20 and five 3/8"-16 mounting threads

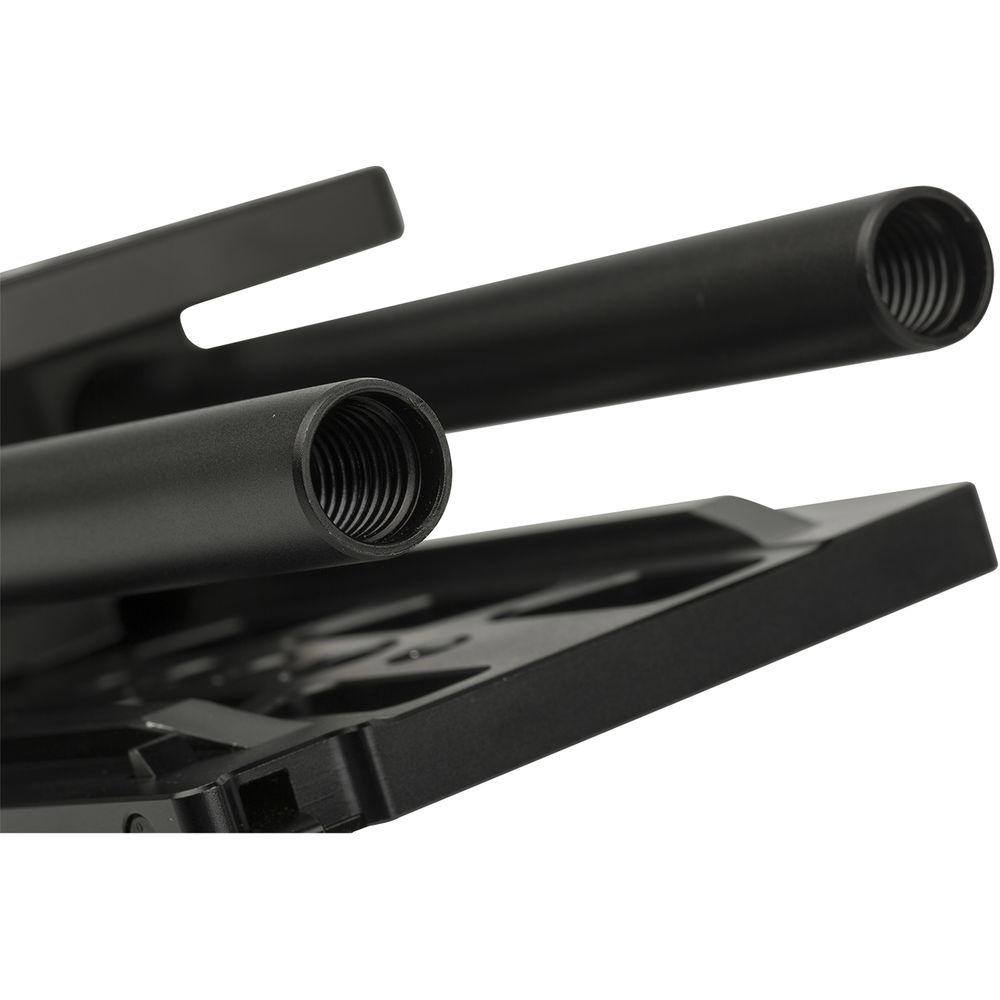

- Includes 1/4" ventilated riser and two threaded 12" 15mm rods

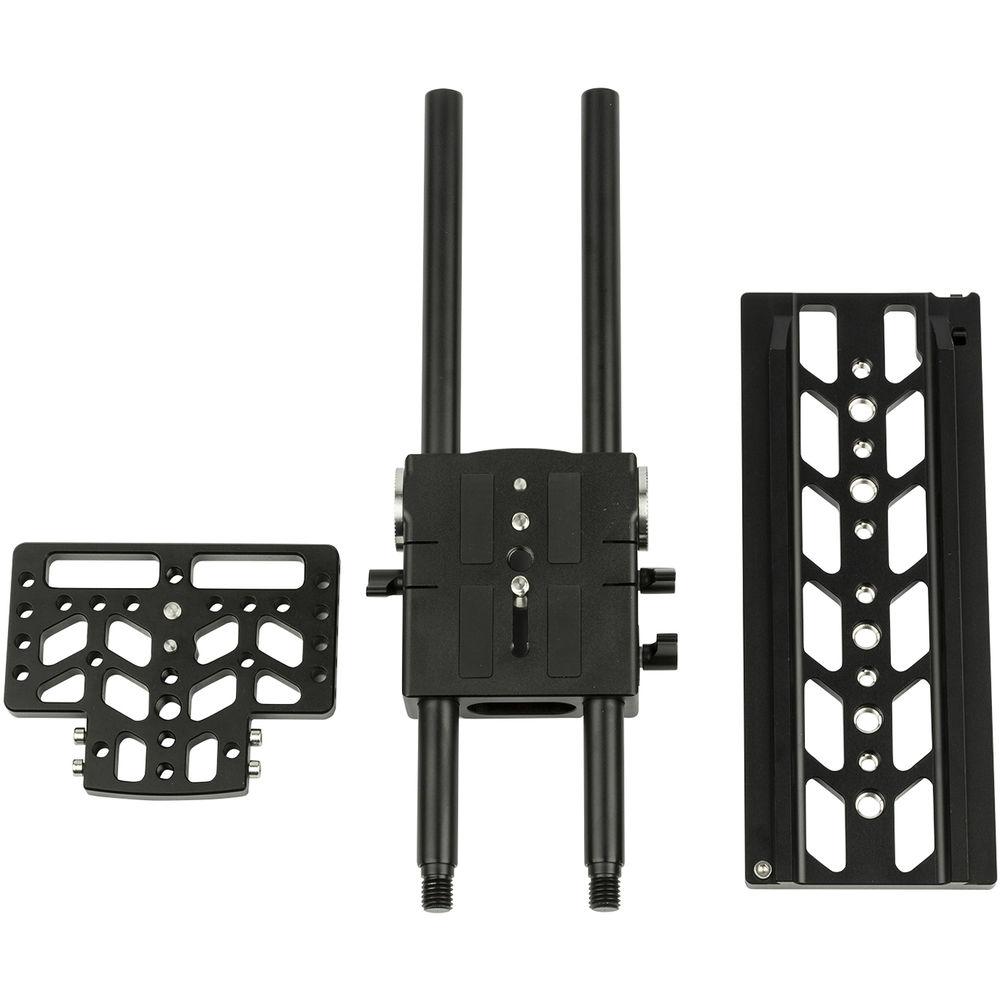

UPC: 847983021918 In the Box ikan Elements EV Series Camera Mount with 9" Dovetail Plate & Riser Camera Mounting Plate with 2 ARRI Rosettes Ventilated 1/4" Riser 9" Dovetail Plate 2 x 12" 15mm Rods Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Elements EV Series Camera Mount with 9" Dovetail Plate & Riser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan ELE-DOVETAIL-9 Specs | Material | Aluminum | | Dimensions | Camera Mounting Plate: 3.6 x 3.6 x 1.3" (9.2 x 9.2 x 3.2 cm)
Dovetail Plate: 9" (22.9 cm)
Rods: 12" (30.5 cm) | | Weight | 2.18 lb (1 kg) (w/Riser)
1.83 lb (.83 kg) (w/o Riser) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 12.6 x 8.3 x 3.3" |
