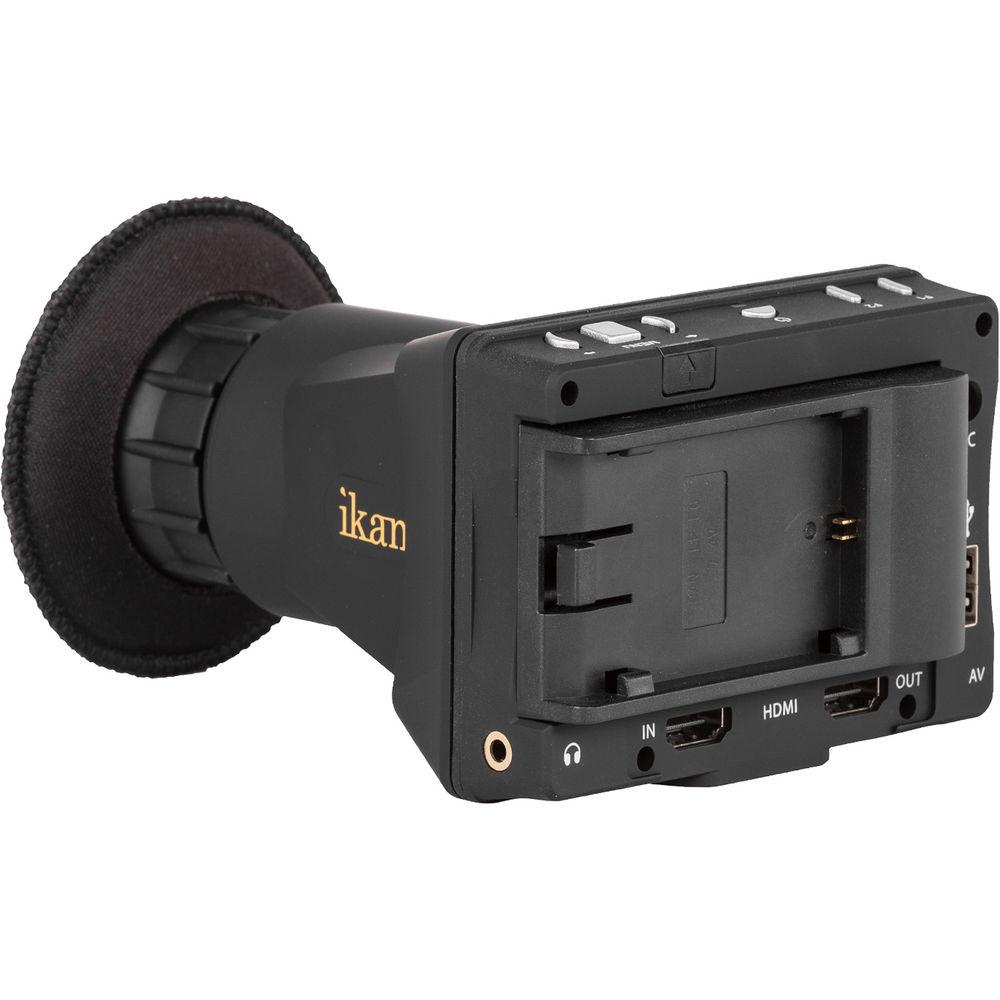

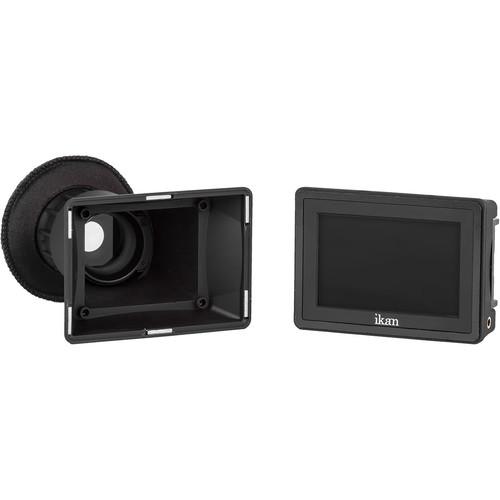

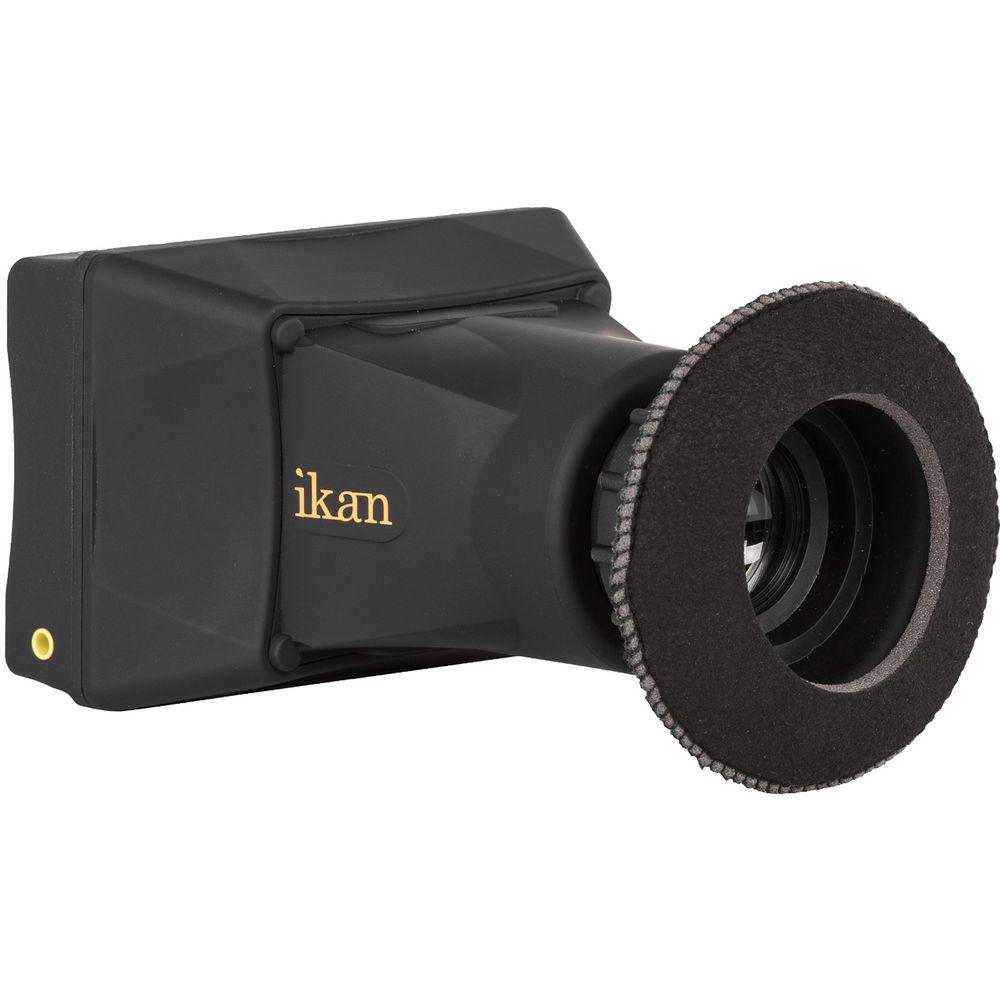

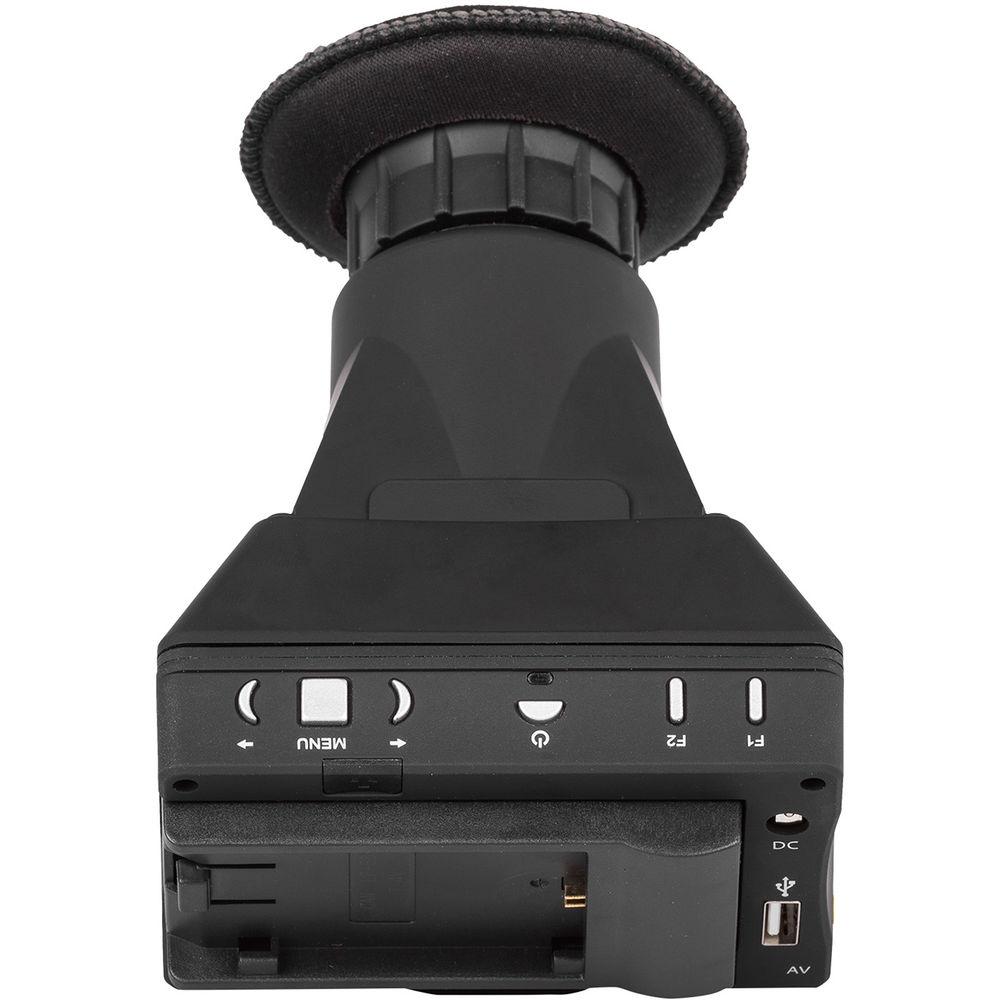

Product description The EVF35 4K-Support Electronic Viewfinder Kit from Ikan includes the VL35 3.5" 4K HDMI monitor and the EVF35 viewfinder. The VL35 is a 3.5" LCD on-camera monitor that works with up to 4K-resolution cameras by downscaling 4K/Ultra HD images to its native 800 x 480 resolution. The EVF35 component of this kit turns the monitor into an electronic viewfinder. The EVF35 magnetically fixes to the monitor and features a rotatable diopter for adjustable focus. A replaceable foam eye-cushion is included for more comfortable viewing. The VL35 3.5" 4K HDMI monitor has an integrated plate for Canon LP-E6 batteries.The VL35 3.5" 4K HDMI monitor includes standard features like histogram, false color, peaking for focus assist, pixel-to-pixel, and frame guides. The pixel-to-pixel feature provides a 1:1 pixel representation of the 4K image captured by the camera. The VL35's small size makes it suitable for gimbals and lightweight camera systems, especially those without a built-in display screen like the GoPro action cameras. It features an HDMI input and output, as well as a composite input via a 3.5mm connector. It also features a headphone output for audio monitoring and a USB port for future firmware updates. - Native resolution of 800 x 480
- Supports DCI and UHD 4K resolutions via HDMI

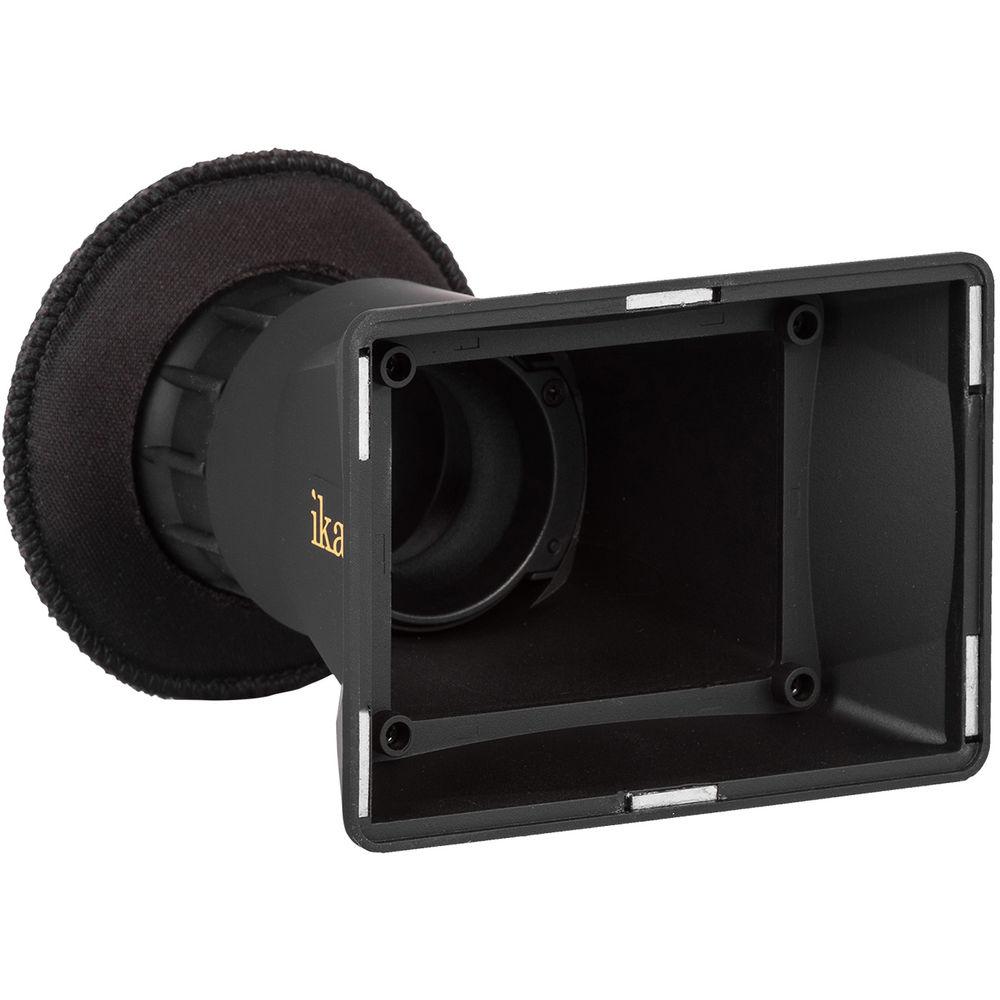

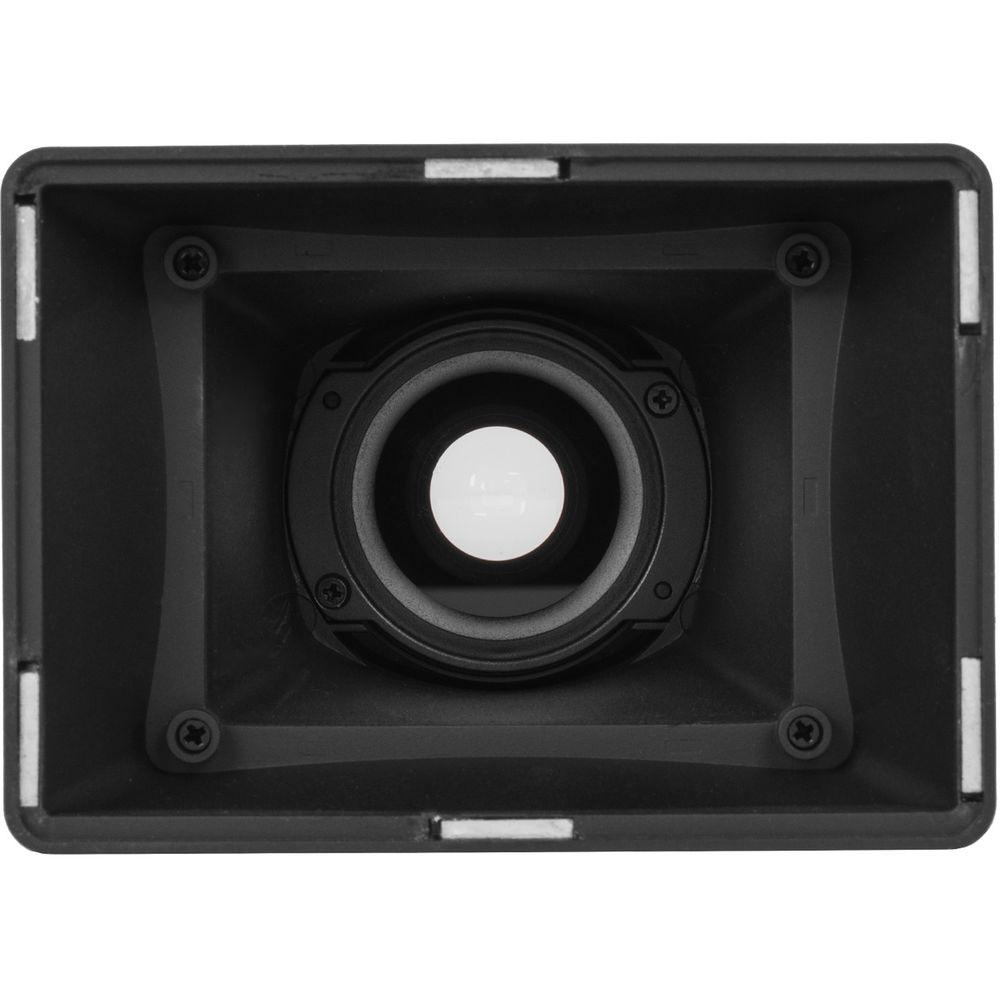

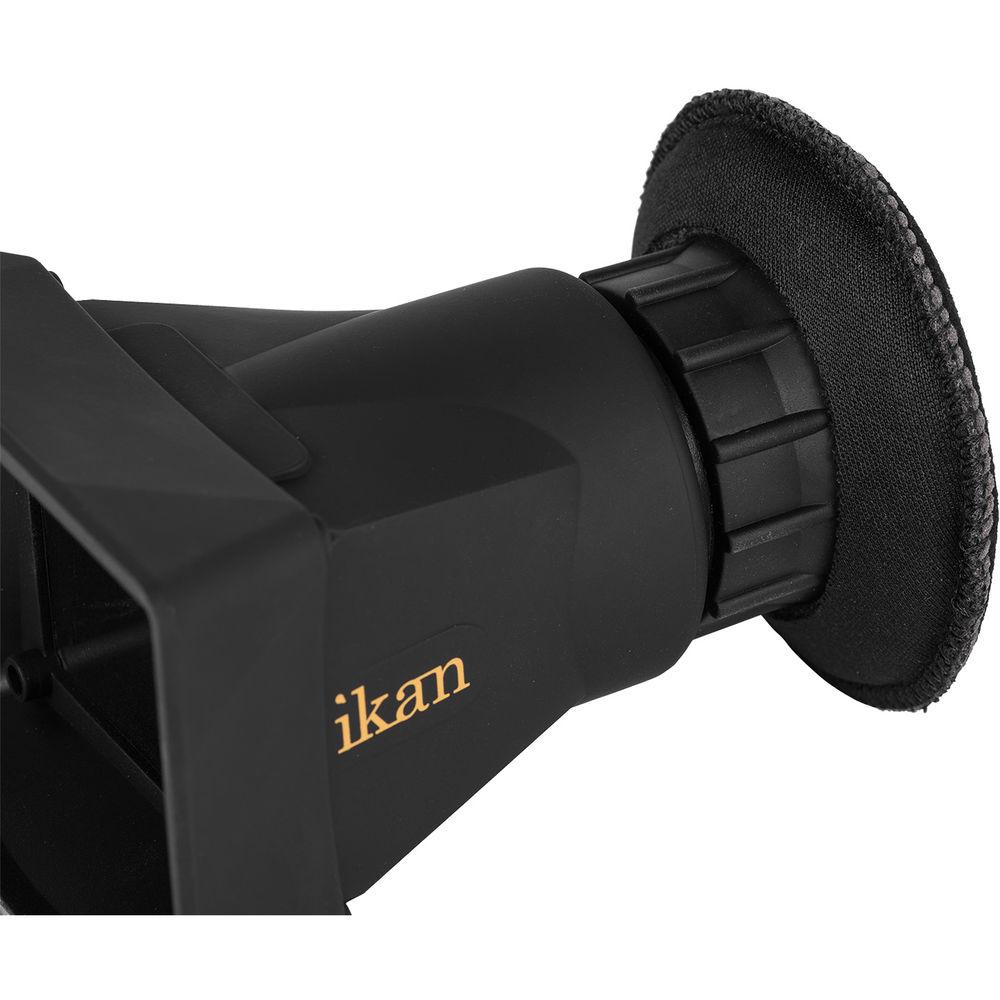

- Magnetically attached viewfinder with rotating focus diopter
- Histogram to get the perfect exposure
- Peaking for focus assist, false color, pixel-to-pixel, and clip guides

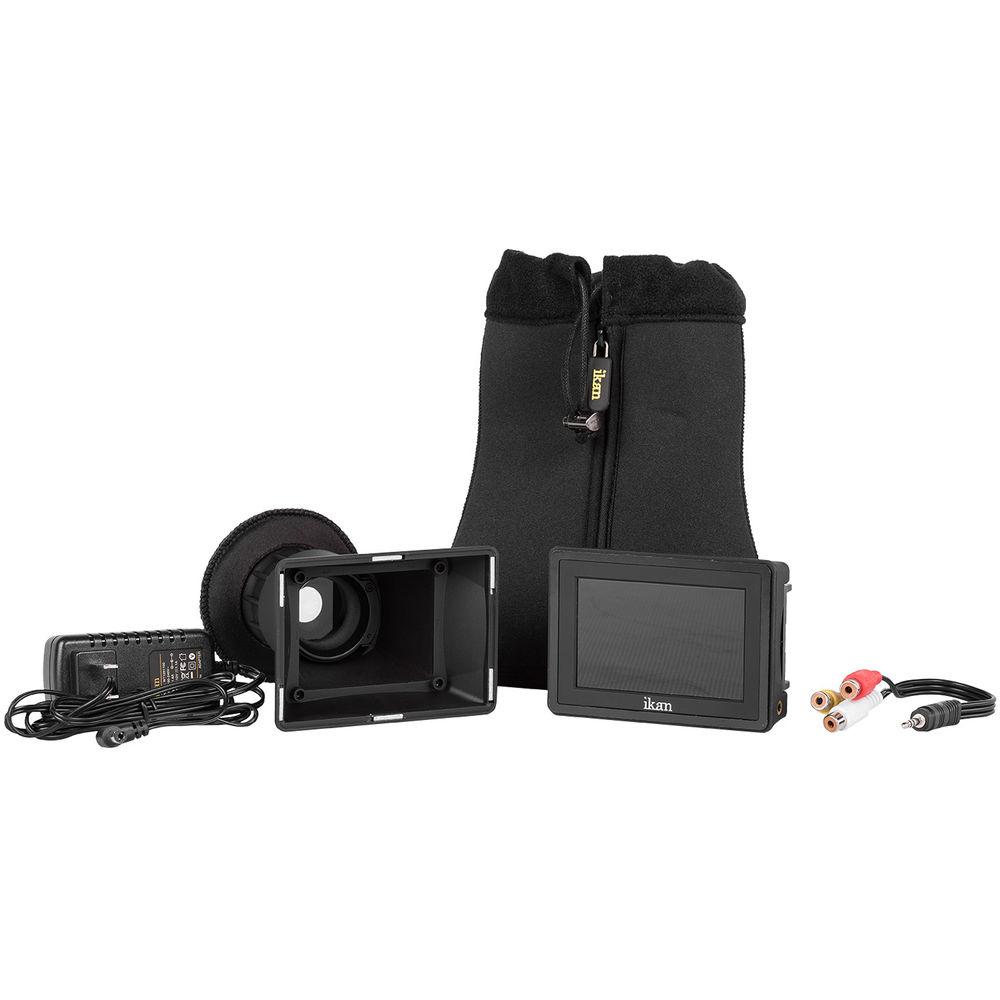

UPC: 847983019984 In the Box ikan EVF35 4K-Support Electronic Viewfinder Kit VL35 3.5" 4K HDMI On-Camera LCD Monitor with Canon LP-E6 Battery Plate EVF35 Viewfinder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan EVF35 4K-Support Electronic Viewfinder Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan EVF35-KIT Specs | Signal System | PAL/NTSC/SECAM (auto-detected) | | Monitor Type | On-camera LCD | | Screen Size | 3.5" (8.9 cm) | | Resolution | 800 x 480 | | Display Colors | 16.7 Million | | Viewing Angle (H x V) | 160° x 160° | | Brightness | 315 cd/m² | | Contrast Ratio | 800:1 | | Backlight | LED | | Surface Treatment | Anti-glare | | Inputs/Outputs | Inputs: HDMI, composite
Output: HDMI | | Supported Signals | HDMI:
4096 x 2160p @ 24 Hz
3840 x 2160p @ 24, 25, 30 Hz
1920 x 1080p @ 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
1920 x 1080PsF @ 24, 25, 29.97, 30 Hz
1920 x 1080i @ 50, 59.94, 60 Hz
1280 x 720p @ 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
720 x 576i @ 50 Hz
720 x 480p @ 59.94, 60 Hz
720 x 480i @ 59.94, 60 Hz
Composite:
NTSC-M, NTSC-J, NTSC 4.43
PAL B/G H I D, PAL M, PAL N
SECAM | | Material | Heavy-duty plastic | | Power Requirements | 6 to 24 VDC | | Power Consumption | 2.5 W | | Dimensions | 4.0 x 2.9 x 0.7" (10.2 x 7.4 x 1.8 cm) | | Weight | 0.2 lb (0.1 kg) | | | | Package Weight | 1.37 lb | | Box Dimensions (LxWxH) | 8.05 x 7.55 x 4.2" |
