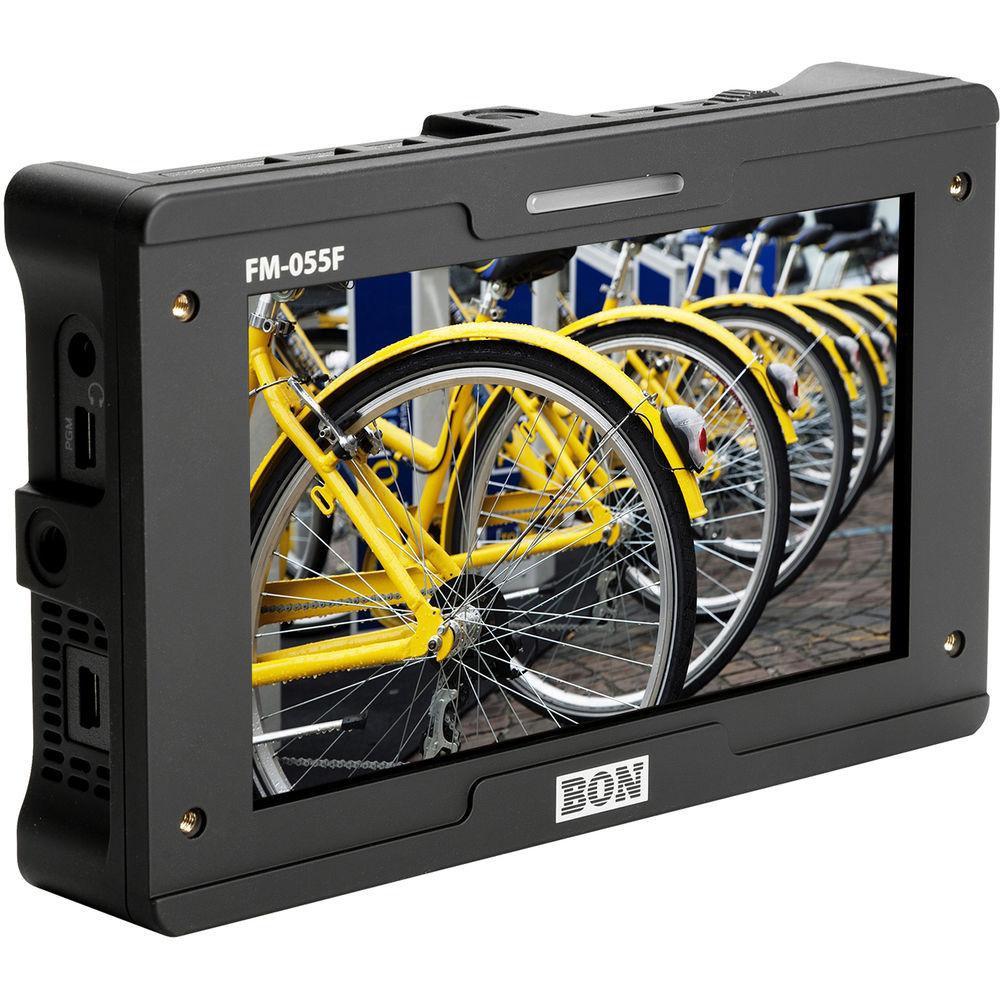

Product description The ikan FM-055F 3G-SDI/HDMI Full HD On-Camera Monitor Deluxe Kit includes the BON FM-055F 5.5" On-Camera Monitor, an NP-F750 L-Series type battery, an ICH-750 portable charger, and a soft case for transport and storage. - FM-055F 5.5" On-Camera Monitor Plug the Bon FM-055F 5.5" On-Camera Monitor into your camera and view a Full HD picture without any scaling. The 1920 x 1080 resolution LCD panel is great for HD workflows and beyond. Despite the monitor's compact design, it has powerful functionality. SDI and HDMI I/O offers cross conversion from input to output, ensuring that the FM-055F can be used in professional and prosumer workflows without a hitch. With 1/4"-20 mounts on all sides, the FM-055F can be positioned for optimal viewing on complex rigs. For even easier placement, an auto-image flip feature instantly reorients the image on the screen for right-side-up viewing. The included power supply or L-series battery plate can power the monitor in the studio or in the field, respectively. Other battery plates are available separately to accept popular DV batteries.
- Monitoring Tools
- Check your focus, exposure, and other aspects of your video image with this monitor's built-in monitoring tools. Preferred monitoring tools can be set to custom function buttons for quick accessibility.
- False color
- Waveform
- Vectorscope
- DSLR full-screen
- Focus assist (whole/center-only)
- Tally LED
- Exposure range check
- Zoom settings
- Timecode display
- H/V delay
- Pixel-to-pixel mapping
- Zero/under/over scan
- Various markers (4:3, 1.85:1, and more)
- R/G/B/luma-only
- Internal pattern generator
- H/V level meter
- 16Ch audio level meters
- Automatic Image Flip
- Regardless of orientation, the FM-055F will automatically flip the on-screen image for proper viewing. Image flip can be manually set as well.
- HDMI-SDI Cross Conversion
- Whether you're working with professional broadcast equipment or consumer/prosumer gear for your production, you can easily integrate the FM-055F. The HDMI input can be converted to an SDI output for using prosumer gear in broadcast workflows, or alternatively, the SDI input can be converted to an HDMI output for monitoring on computer monitors or televisions.
- Color-Calibrated Screen
- The monitor's LCD screen is calibrated at the factory, offering accurate color temperature selections out-of-the-box including 3200K, 5600K, 6500K, and 9300K.
UPC: 889716000012 - IBG-SC Soft Case for Small Monitors The IBG-SC Soft Case for Small Monitors from ikan is suitable for D5, VL5, VK5, V5600, and other small monitors.
- Made of sturdy, breathable nylon material
- Suitable for D5, VL5, VK5, V5600, and other small monitors
UPC: 847983001156 - NP-F750 L-Series Compatible Battery (7.4V, 5800 mAh) The NP-F750 L-Series Compatible Lithium-Ion Battery from ikan features a 7.4V output and 5800mAh capacity. It can be used with any device that accepts NP-F750 batteries. Compatible ikan devices include the iLED6, iLED144, iLED312 (-v2), ID508, and IB508. UPC: 847983008049
- ICH-750 Portable Battery Charger - for L Series Sony Batteries The Ikan ICH-750 is a portable charger for Sony L series lithium ion batteries. These batteries are used in consumer video equipment and this charger offers an economical option for charging these small batteries.

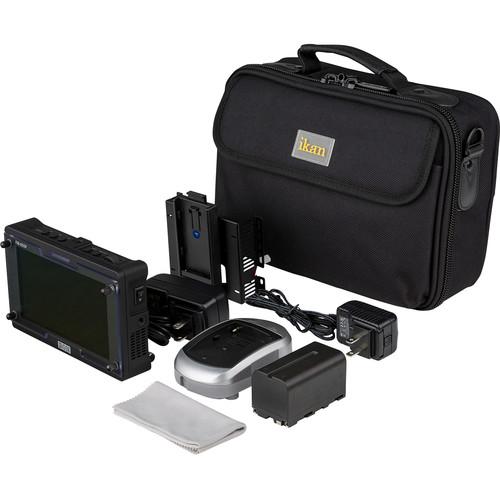

In the Box Bundle Items FM-055F 5.5" On-Camera Monitor szbtzxdudcqdzybzysbafxatyde - Single Sony L-Series Battery Mount for Bon FM-055F/RM-072S Monitor
IBG-SC Soft Case for Small Monitors - Limited 1-Year Warranty on Parts & Labor
NP-F750 L-Series Compatible Battery (7.4V, 5800 mAh) ICH-750 Portable Battery Charger - for L Series Sony Batteries Quick start Guide PDF 509.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan FM-055F 3G-SDI HDMI Full HD On-Camera Monitor Deluxe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FM-055F 5.5" On-Camera Monitor
| | | Display Size | 5.5" / 13.9 cm | | Active Area | 4.8 x 2.7" / 121 x 68 mm | | Screen Resolution | 1920 x 1080 | | Viewing Angle | Horizontal: 160°

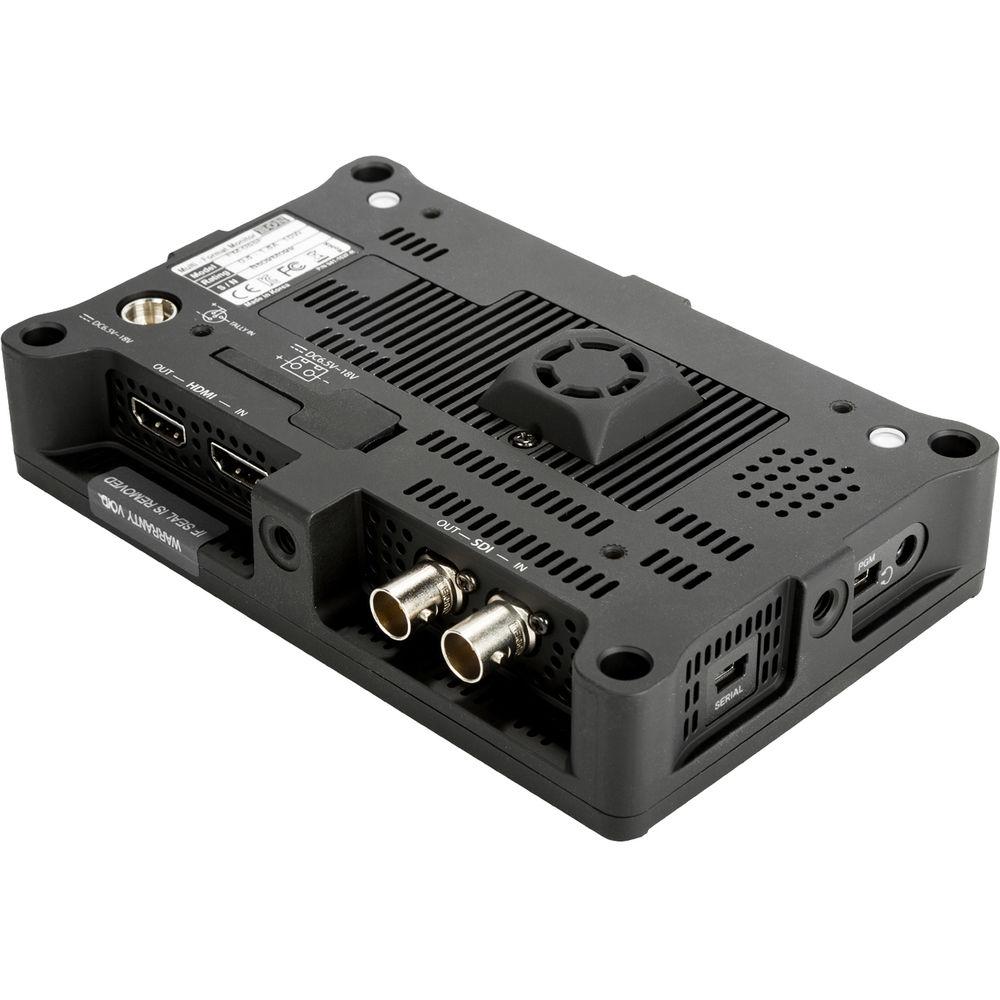

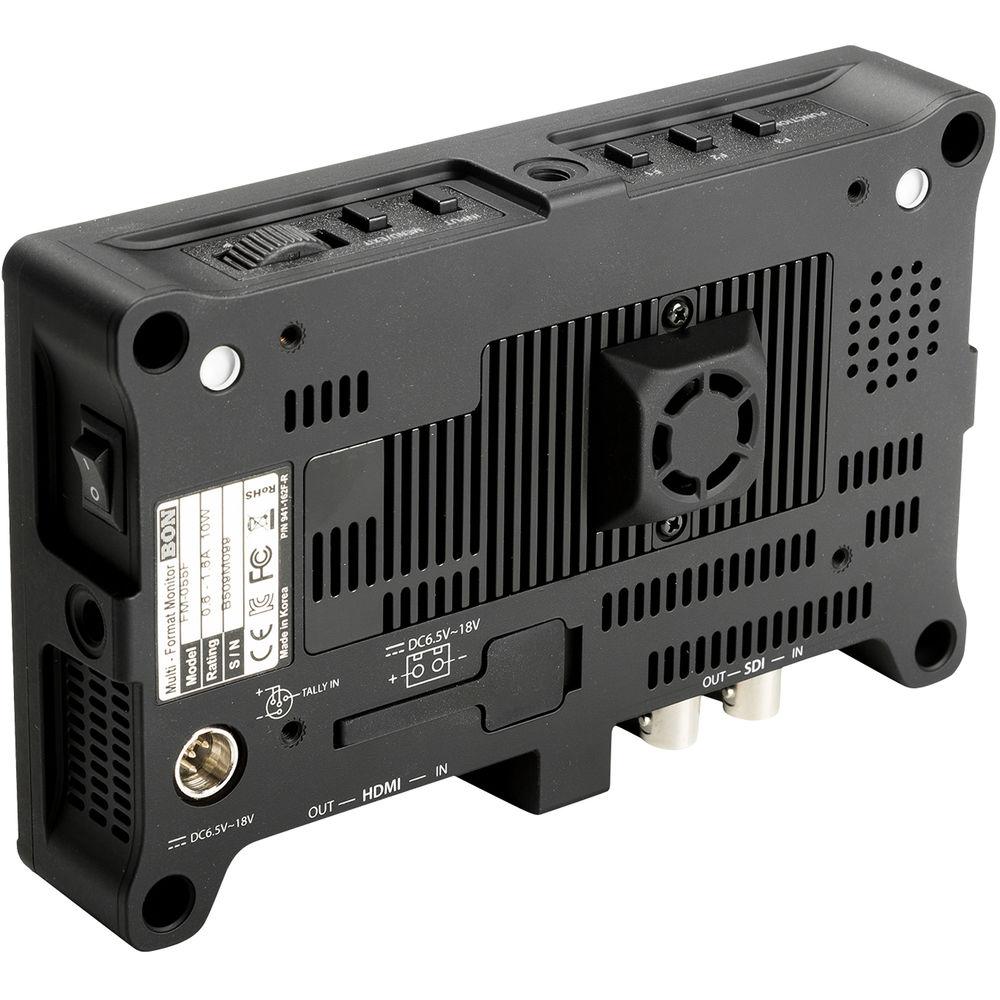

Vertical: 160° | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1000:1 | | Dot Pitch | 0.063 x 0.06 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Image Controls | False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A Input | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 x 0.5 W | | Other I/O | 1 x Mini-USB | | Card Slot | None | | | | Video Format | SDI
DCI 2K: 23.98/24
1080p: 23.98/24/25/29.97/30
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 50/59.94/60
NTSC
PAL | | | | Battery Type | None | | Power Consumption | 10 W | | | | Operating Humidity | 20 to 80% | | Operating Temperature | 14 to 104°F / -10 to 40°C | | | | Dimensions (W x H x D) | 6.1 x 3.9 x 1.2" / 156 x 98 x 30 mm | | Weight | 0.8 lb / 365 g | | | | Box Dimensions (LxWxH) | 8.2 x 5.9 x 4.8" | - IBG-SC Soft Case for Small Monitors
| Compatible With | D5, VL5, VK5, V5600, and other small monitors | | Material | Sturdy, breathable nylon | | | | Box Dimensions (LxWxH) | 10.5 x 6.5 x 4.0" | - NP-F750 L-Series Compatible Battery (7.4V, 5800 mAh)
| Mount / Series Type | Sony L-Series | | Chemistry | Lithium-Ion | | Capacity (Wh) | 43 Wh | | Amp-Hours | 5800 mAh | | Output Voltage | 7.4 VDC | | Dimensions (W x H x D) | 2.8 x 1.5 x 1.5" / 7.1 x 3.8 x 3.8 cm | | Weight | 0.4 lb / 181.4 g | | | | Box Dimensions (LxWxH) | 3.0 x 2.05 x 1.55" | - ICH-750 Portable Battery Charger - for L Series Sony Batteries
| Input | AC power from 120 VAC @ 60 Hz | | Chemistry | Lithium Ion Charger only | | Battery Type | Sony L Series Lithium Ion | | | | Box Dimensions (LxWxH) | 5.8 x 3.1 x 3.0" |
