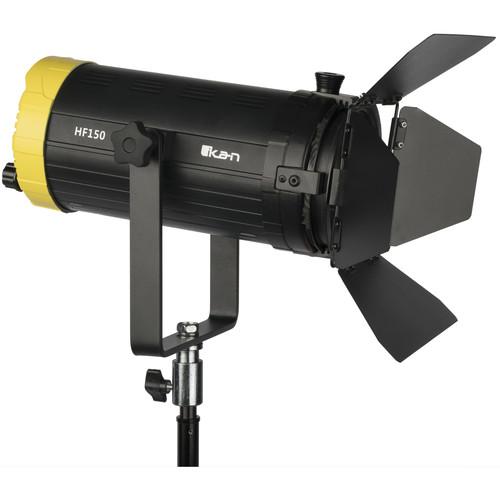

User Manual for ikan Helia 150W Bi-Color LED Fresnel Light Click to enlarge the picture
Contents of the user manual for the ikan Helia 150W Bi-Color LED Fresnel
- Product category: LED Lights ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan LED Lights
|
User manual for the ikan Helia 150W Bi-Color LED Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description With a focus on versatility, the Helia 150W LED Fresnel Light from ikan gives users extensive control over the intensity, warmth, and spread of their light. Built with a durable aluminum housing and a large 4" acrylic Fresnel lens, the fixture allows you to adjust the beam angle from 20 to 70° for both spot and flood options. Its bi-color design results in a color temperature range of 3200-5600K, allowing the fixture to match tungsten- or daylight-balanced sources in multiple light setups. Also offered is flicker-free dimming from 0 to 100% and an active cooling system thanks to a built-in fan. The Helia 150W can be adjusted via its back panel, featuring a large knob for the beam angle and smaller buttons along with an LCD readout for all other settings. Also in the back are 5-pin XLR in and out ports which enable quick, hands-on control with an optional DMX setup. Included in the package are four-leaf barndoors and a gel frame for modifying your light, as well as a yoke that can be mounted on either a 5/8" Baby pin or a 1-1/8" Junior receiver. The fixture runs on 120 VAC power and comes with a 6' long power cable. -
- Bi-color Fresnel LED light with color temperature range from 3200K to 5600K
- Spot-to-flood adjustment thanks to 4" acrylic lens, achieves beam angles from 20 to 70°
- Dimming range from 0 to 100% with flicker-free operation
- On-board adjustments via knobs and LCD readout, plus support for optional DMX control via in and out ports
- Designed to be durable with aluminum housing and active cooling fan
- Yoke with combination 1-1/8" stud and 5/8" receiver, works with wide variety of stands
- Gel frame and barndoors included for shaping and directing light
- Power cable with length of 6' / 1.8m, for use with 120 VAC mains power
UPC: 847983026012 In the Box ikan Helia 150W Bi-Color LED Fresnel Light Four-Leaf Barndoor Set Gel Frame Yoke Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Helia 150W Bi-Color LED Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan HF150 Specs | | | Beam Angle | 20 to 70° | | Color Temperature | 3200 to 5600K | | Cooling System | Fan | | Dimming | Yes, 10 to 100% | | Display | LCD | | Housing Material | Aluminum | | Fixture Dimensions | 19.0 x 6.0 x 12.0" / 48.3 x 15.2 x 30.5 cm | | Fixture Weight | 10 lb / 4.54 kg | | | | Battery Plate | None | | Power Input Connector | Proprietary | | DMX Connector | 5-Pin XLR | | | | Lens Diameter | 4" / 10.16 cm | | Lens Material | Acrylic | | Lens Type | Fresnel | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | | | Yoke Material | Aluminum | | Yoke Type | Yoke/Bracket | | | | AC Input Power | 120 VAC, 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 150 W | | | | Package Weight | 11.77 lb | | Box Dimensions (LxWxH) | 18.5 x 10.0 x 10.0" |
