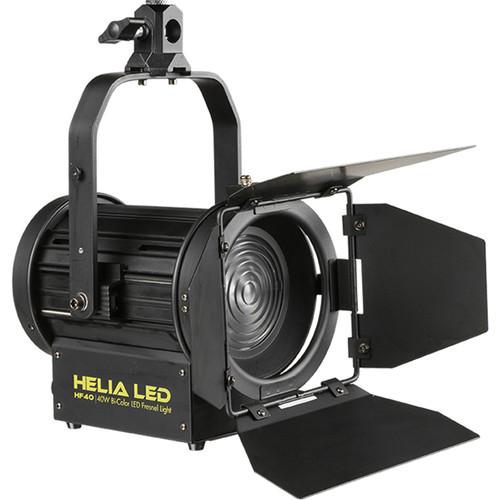

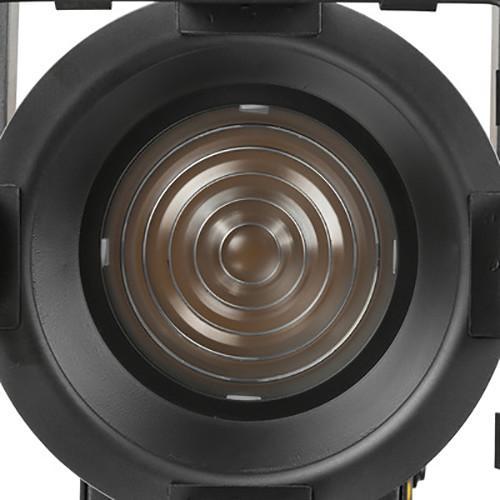

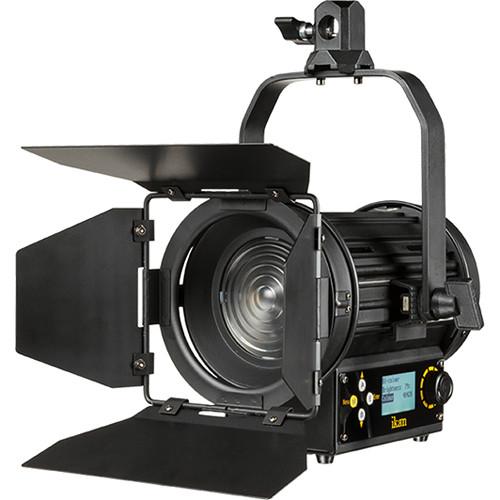

Product description Hands On Review: The Ikan Helia 40W Bi-Color LED Fresnel 3-Light Kit Read More Flexibility is the ikan Helia 40W Bi-Color LED Fresnel Light's strong suit with the ability to set a color temperature between 2700-5600K as well as adjust the beam angle from 15-60°, allowing it to offer both tungsten and daylight color along with spot and flood options. It is able to do this through the implementation of a large 4" acrylic fresnel lens for controlling the light. Also, while it has flicker-free dimming from 0-100%, a special flicker feature enables the use of strobe effects in your images.

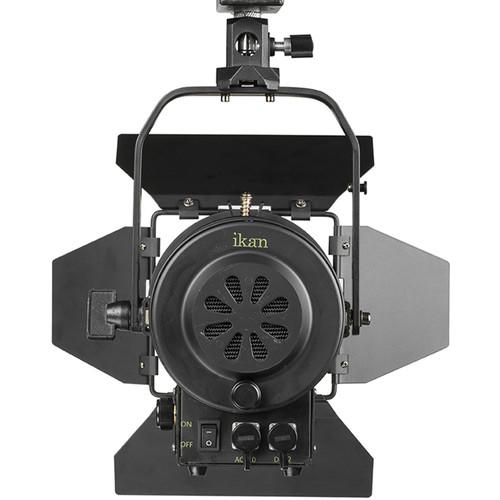

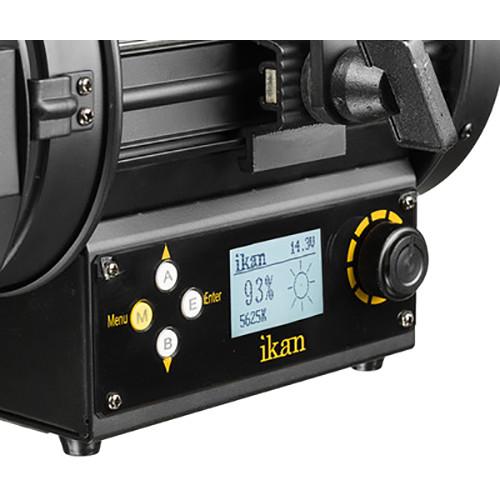

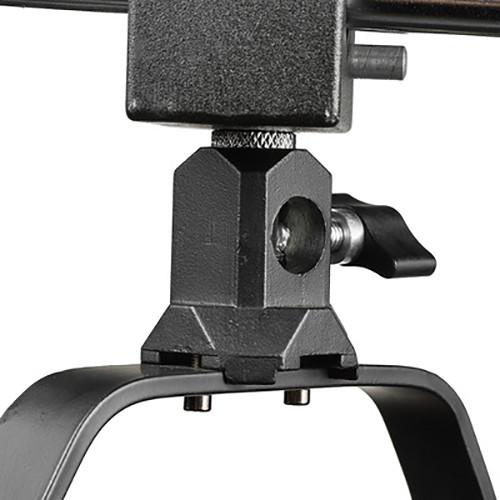

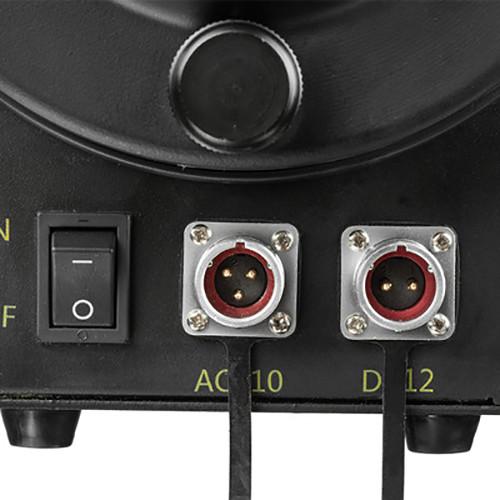

A digital readout along with buttons and rotating dials on the side of the fixture allow for full control and ease of use. This setup clearly displays current settings and allows you to make adjustments. Both AC and battery power options are available as the yoke mount is equipped with a V-mount battery plate. Additionally, the light is durable with an aluminum construction and includes barndoors for more control over light placement. - Photometrics

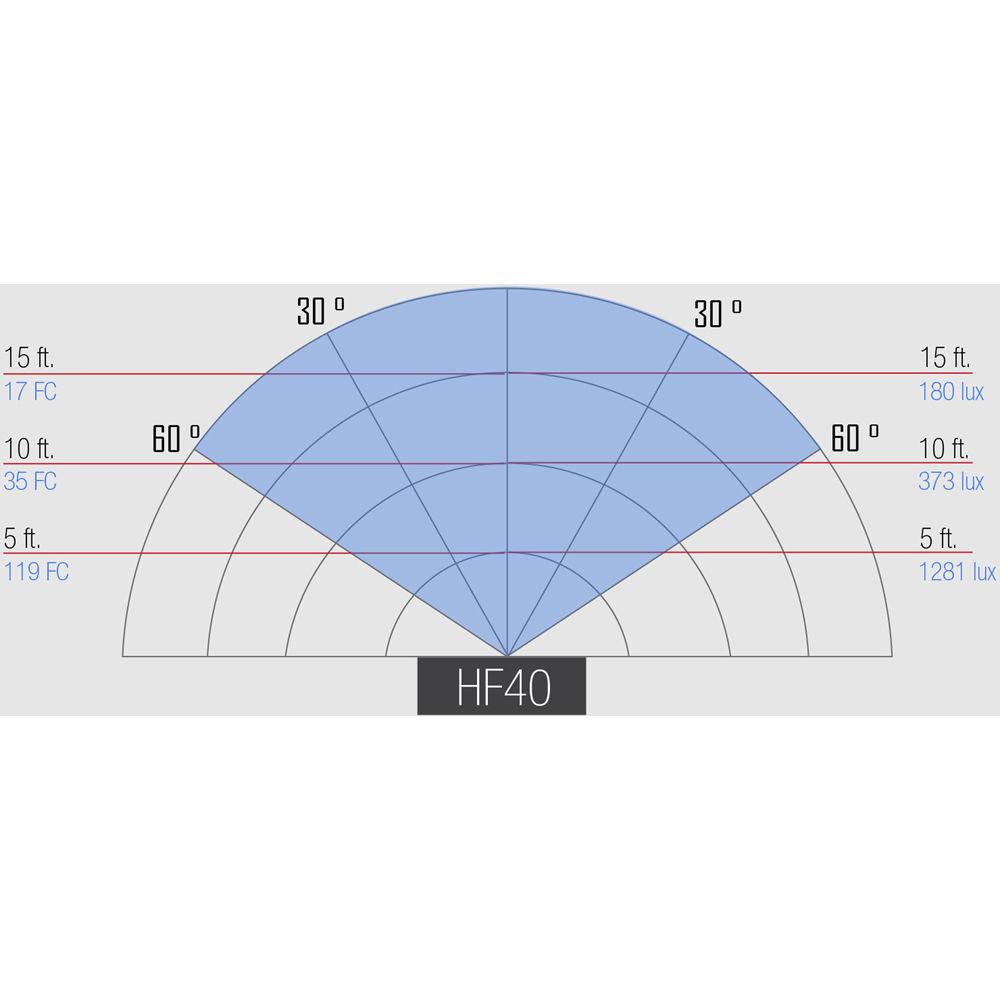

- Daylight
Flood: 119 fc / 1281 lux at 5' / 1.5 m
Spot: 219 fc / 2361 lux at 5' / 1.5 m

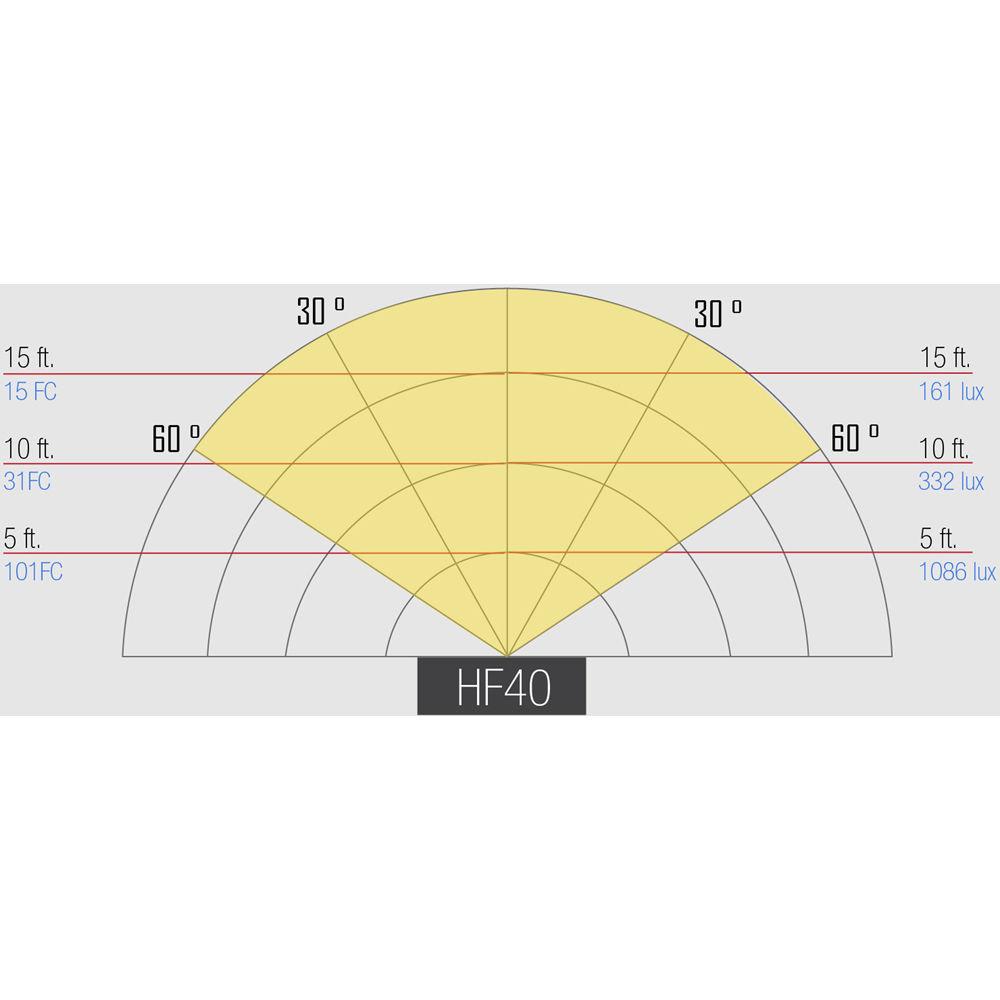

Tungsten
Flood: 101 fc / 1086 lux at 5' / 1.5 m
Spot: 187 fc / 2015 lux at 5' / 1.5 m UPC: 847983014453 In the Box ikan Helia 40W Bi-Color LED Fresnel Light Barndoors 6' AC Power Cable Yoke with V-Mount Battery Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Helia 40W Bi-Color LED Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan HF40 Specs | | | Beam Angle | 15 to 60° | | Color Temperature | 2700 to 5600K | | Cooling System | Fan | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 8.5 x 7.5 x 13.0" / 21.6 x 19.1 x 33.0 cm | | Fixture Weight | 5 lb / 2.3 kg | | | | Battery Plate | 1 x V-Mount | | | | Lens Diameter | 4" / 10 cm | | Lens Material | Acrylic | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 120 VAC, 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 40 W | | | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 11.6 x 10.3 x 8.8" |
