Product description

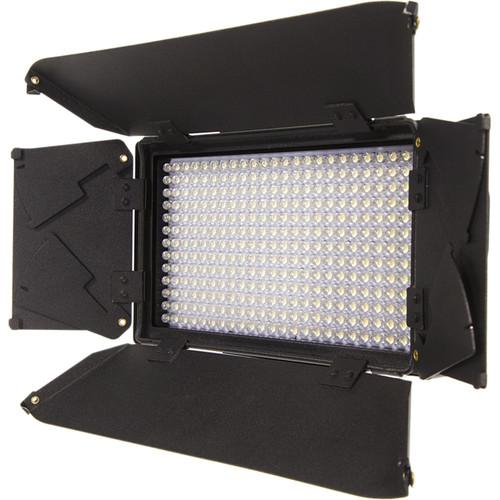

• iLED312-v2 On-Camera Bi-Color LED Light with Digital Display The ikan iLED312-v2 On-Camera Bi-Color LED Light with Digital Display is a compact battery powered daylight/tungsten balanced on camera light. It features a continuously variable color temperature between 3200 tungsten and 5600K daylight, and a built-in variable dimmer that can dim the lights output from 100 to 10%. Built into the light is an LCD display panel that shows a digital readout of the brightness level, color temperature of the light and features a battery gauge so you know how much power you have left.

  The light produces a 60° beam angle, and includes both a removable four leaf barn door and diffusion gel. The light features slots for two Sony L-Series type batteries, and includes two batteries and a dual battery charger. A 1/4"-20 threaded hole allows you to mount the light to your camera's accessory shoe via the included ball adapter. You can also stack multiple iLED312 lights together using the interlocking rail system. An included soft carry case allows you to easily pack and carry your light unit, gel, barn doors and included accessories to and from shoots.
  Variable Color Temperature & Dimming
  • The iLED312-v2 features 312 LEDs, and a single knob that allows you to vary the color temperature of the unit from 3200 to 5600K. A separate knob controls the dimming of the unit, with brightness range of 100 to 10%.
  Digital Display Screen

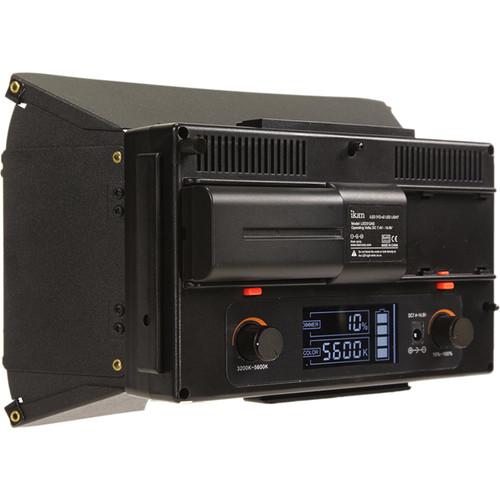

  • The dimmer and color temperature settings are controlled by analog knobs, but the built-in digital readout on the built-in display screen allows you to match the output of other units or repeat setups, if you have to go back and get pick up shots. The display also incorporates a four-step battery gauge so you know how much battery power you have left.
  Barn Doors
  • The included four sided removable barn doors are constructed so the doors can interlock together, limiting light leak from the edges, controlling light spill, and providing directionality to your light. The side doors feature articulating leafs that provide you a fairly wide range of adjustment while still controlling light leaks from the edges of the doors.
  Diffusion
  • Although you can attach diffusion gel to the barn doors, the iLED312-v2 features a slot for the included precut diffusion sheet, that can be used with or without the barn doors in place. The diffusion is notched, and a safety tab engages the notch to prevent it from accidentally falling out.
  Power
  • The light unit features slots for two Sony L-Series type batteries of any capacity, and includes two NP550-type batteries. The light can run on one or two batteries, you can use the AC adapter that powers the included dual battery charger to power the light instead, via the small power connector on the back of the unit.
  Mounting
  • The light incorporates a 1/4"-20 threaded mounting hole in the bottom of the unit, and an interlocking rail system that allows you to stack up to three units vertically or horizontally, with a maximum of six lights.
  UPC: 847983007691

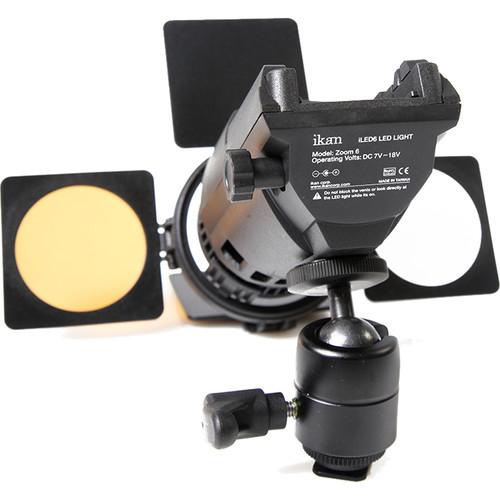

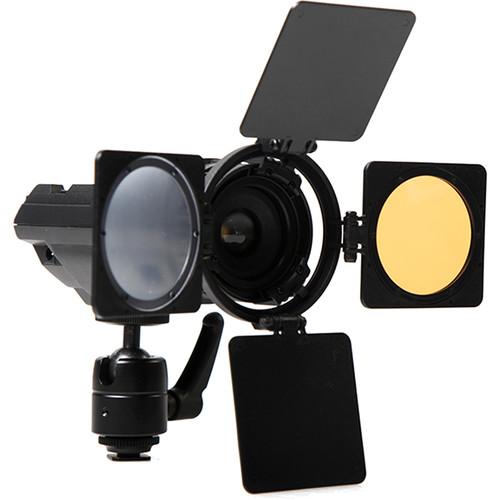

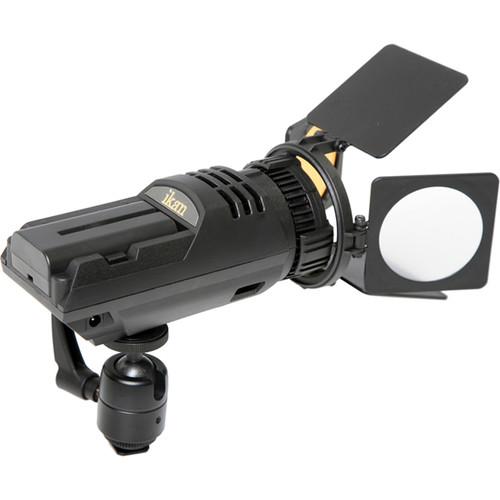

• iLED6 Zoom ENG LED On-Camera Light The ikan iLED6 Zoom ENG LED On-Camera Light is a daylight balanced LED on-camera ENG style light with a CRI rating of up to 95. The unit draws only 6 watts and produces 2500 Lux at 1 meter in full spot. It features a spot flood adjustment and smoothly dims from 100 percent brightness down to 0. It incorporates a rotating 4 leaf barn door system with two solid doors for spill control while the other two doors hold a diffusion and a CTO correction gel.

  The iLED6 is powered by Sony L type batteries and includes one 2000mAh Li-Ion battery, you can also power the unit using the included AC power adapter. The unit features a 1/4"-20 threaded mounting hole and includes a sturdy ball joint cold shoe to 1/4"-20 stud adapter. The ball joint utilizes a kipping (spring loaded) lever that allows you to lock the stud at up to 90 degrees of articulation with the light attached.
  • The iLED6 features a 6 watt daylight balanced LED with a color temperature of 5600K and a 95 CRI.
  • It has a spot flood range of 30 to 60°
  • You can dim the light from full brightness (100%) to zero (0%) using the on off knob.

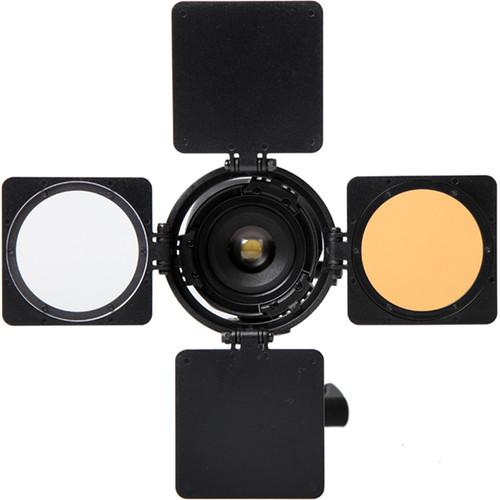

  • The barn doors provide spill control, with its two solid barn doors. The other two barn doors are used either to diffuse or balance the light to tungsten.
  • The light accepts Sony L type batteries.
  UPC: 847983008186
• CP-STND Compact Light Stand (6.25') The ikan CP-STND Compact Light Stand is ideal for supporting small lighting fixtures on location. The five-section stand rises to a height of 6.25', and by using a reversing-folding design, folds down to just 19" in length. The stand has a 5/8" stud and will support up to 5.5 lb.
• IBG312-3L Light Kit Bag for iLED312 Designed to hold a single iLED312 light and accessories, the ikan IBG312-3L 312 Light Kit Bag features sturdy nylon construction, dual zippered closure, a shoulder strap, and webbed handles that are stitched all the way around the bag. The interior measures 25 x 9 x 8", has two mesh pockets, and repositionable padded compartments. The exterior measures 26.5 x 9.5 x 9 and features non-skid, non-scratch rubber feet.
  • Features adjustable, heavy-duty padded shoulder strap and inserts
  • Two mesh accessory compartments
  • Sturdy and breathable nylon material
  • Snap-on clip for added security
  • Durable dual zippers
  • Non-skid rubber feet
  UPC: 847983007332

• AC Adapter

• 2 x Sony L-Type Battery

• Barn Doors

• Dual Sony L-Series Compatible Battery Charger

• Diffusion Filter

• Ultra-Heavy Duty Camera Shoe Mount

• Soft Carry Case

• Limited 1-Year Warranty

• AC Adapter

• NP-F550 L-Series Compatible Battery (7.4V, 2900 mAh)

• Battery Charger

• Accessory Shoe Ball Joint Adapter to 1/4"-20 Stud

• Limited 1-Year Warranty

• Adjustable Shoulder Strap & Inserts

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• iLED312-v2 On-Camera Bi-Color LED Light with Digital Display

  Beam Angle	60°
  Color Temperature	3200 to 5600K
  Number of LEDs	312

  Battery Plate	1 x Sony L-Series (NP-F)
  DC Input Power	7.4 to 14.8 VDC
  Power Input Connector	Barrel
  Power Source	AC Adapter, External Battery

  Mount Type	1/4"-20 Female Thread, Cold Shoe
  Dimensions	8.2 x 1.8 x 4.5" / 20.9 x 4.5 x 11.4 cm
  Weight	2 lb / 0.9 kg (Including Battery)

  Box Dimensions (LxWxH)	16.2 x 11.15 x 3.45"

• iLED6 Zoom ENG LED On-Camera Light

  Color Temperature	5600K ± 200K
  Color Accuracy Standard	CRI 95
  Dimming	Yes, 0 to 100%

  Battery Plate	1 x Sony L-Series (NP-F)
  DC Input Power	7.4 to 24 VDC
  Max Power Consumption	6 W
  Power Source	AC Adapter, External Battery

  Mount Type	1/4"-20 Female Thread, Cold Shoe
  Dimensions	2.7 x 7.3 x 2.7" / 6.9 x 18.5 x 2.7 cm
  Weight	2 lb / 0.9 kg (Including Battery, Barn Doors, Shoe Mount)

  Box Dimensions (LxWxH)	11.2 x 5.9 x 3.3"

• CP-STND Compact Light Stand (6.25')

  Number of Risers	4
  Sections	5
  Material	Aluminum
  Load Capacity	5.5 lb (2.5 kg)
  Dimensions	Maximum: 75" (190 cm) Minimum: 23" (58 cm) Closed: 19" (48 cm) Footprint: 36" (91.4 cm)
  Weight	2.0 lb (0.9 kg)

  Box Dimensions (LxWxH)	20.1 x 3.2 x 3.0"

• IBG312-3L Light Kit Bag for iLED312

  Interior Dimensions	25 x 9 x 8" / 63.5 x 22.9 x 20.3 cm

  Exterior Dimensions (W x H x D)	26.5 x 9.5 x 9" / 67.3 x 24.1 x 22.9 cm
  Weight	6 lb / 2.7 kg

  Box Dimensions (LxWxH)	27.0 x 13.0 x 6.0"
