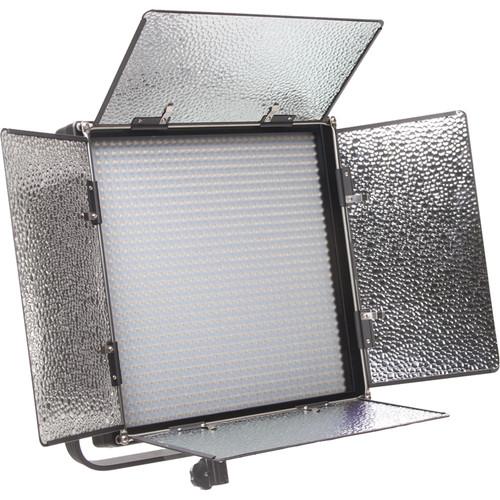

User Manual for ikan IFD1024 Featherweight Daylight LED Flood Fixture with AB and V-Mount Plates Click to enlarge the picture
Contents of the user manual for the ikan IFD1024 Featherweight Daylight LED Flood
- Product category: LED Lights ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan LED Lights
 |
User manual for the ikan IFD1024 Featherweight Daylight LED Flood contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description - IFD1024 & IFB1024 Featherweight Daylight & Dual Color LED Lights
The ikan IFD1024 Featherweight Daylight LED Flood Fixture with AB and V-Mount Plates is built into a heavy duty molded plastic chassis providing a lightweight yet strong fixture with enhanced features such as 100-10% dimming, LCD touch screen display, and an included wireless remote. It houses 1024 daylight-balanced LEDs with a 60° angle of spread, provides a tight beam akin to a spot-like setting. The light ships with a removable yoke with a 5/8" receiver so you can mount it on a stand or hang it from a grid with optional clamps.
The light incorporates an LCD touch panel that provides information on dimming and battery life, as well as allowing you to control the dimming from the touch screen. You can also use the manual dimming knob or the included wireless remote to control the dimming level of the light. The light features four built-in barndoors with integrated gel clips on the top and bottom door. A notable feature of the light is that the intensifiers are removable, which should satisfy those users who enjoy the quality that intensifiers lend to your light output and those who would rather not use intensifiers. The unit includes a diffusion filter and incorporates a lock that holds the diffusion in place. The light draws a maximum of only 82 watts, and you can power the light via the 4-pin XLR power connector and the included AC power supply or by an optional Gold Mount-type or V-mount-type battery. - Size
- The light features 1024 daylight balanced LEDs in a 14 x 14" fixture.
- Removable Intensifiers
- While some users may enjoy the small increase in light output that intensifiers bring, other users prefer to use barndoors without intensifiers. The removable intensifiers that come with this light attach securely to the barndoors. You do not have to attach all four intensifiers, which allows you choose how many barndoors to use for intensifying your output and how many barndoors to use to cut spill.
- Battery Power
- The fixture features a built-in Gold Mount battery plate. For those who have V-mount-type batteries, an included Gold Mount to V-Mount adapter allows you to mount your batteries directly to the fixture as you would with Gold Mount-type batteries.
- Remote Control
- The included wireless remote control allows you to pair your light to the remote, and then remotely control the light output of your unit in 25% steps.
UPC: 847983013357 In the Box ikan IFD1024 Featherweight Daylight LED Flood Fixture with AB and V-Mount Plates Diffuser AC Adapter AC Power Cord Yoke Remote Control Gold Mount to V-Mount Adapter Limited 1-Year Warranty Quick start Guide PDF 8.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan IFD1024 Featherweight Daylight LED Flood Fixture with AB and V-Mount Plates in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan IFD1024 Specs | | | Beam Angle | 60° | | Color Temperature | 5600K ± 100K | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Stepped) | | Display | LCD Touchscreen | | Housing Material | Resin | | Number of LEDs | 1024 | | Fixture Dimensions | 17.0 x 14.0 x 3.8" / 43.2 x 35.5 x 9.5 cm (Including Yoke)
14.0 x 14.0 x 2.8" / 35.5 x 35.5 x 7.0 cm | | Fixture Weight | 7.0 lb / 3.2 kg (Including Yoke)
6.0 lb / 2.7 kg | | | | Battery Plate | 1 x Gold Mount
1 x V-Mount | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | Proprietary Wireless | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 6.7 A | | Power Source | AC Adapter, External Battery | | Consumption Per LED | 0.06 W | | Max Power Consumption | 82 W | | | | Package Weight | 11.6 lb | | Box Dimensions (LxWxH) | 20.0 x 18.0 x 5.0" |
