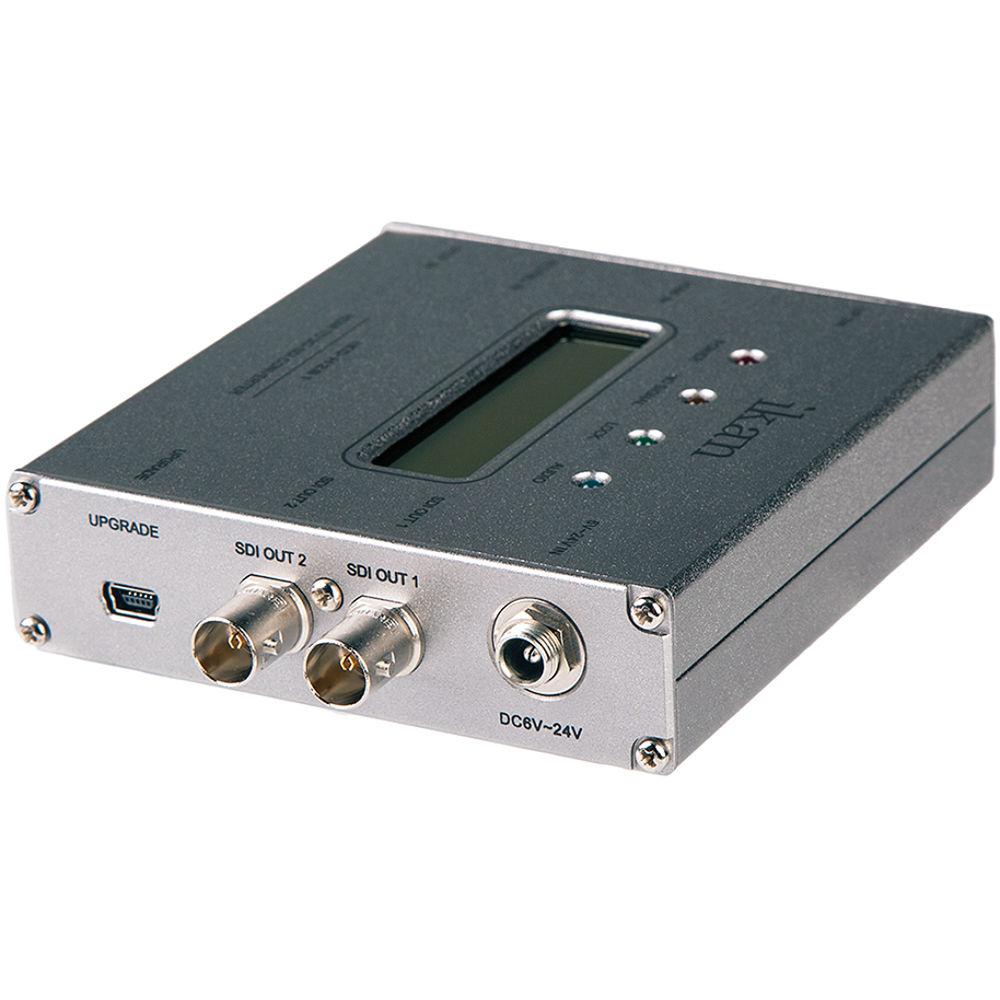

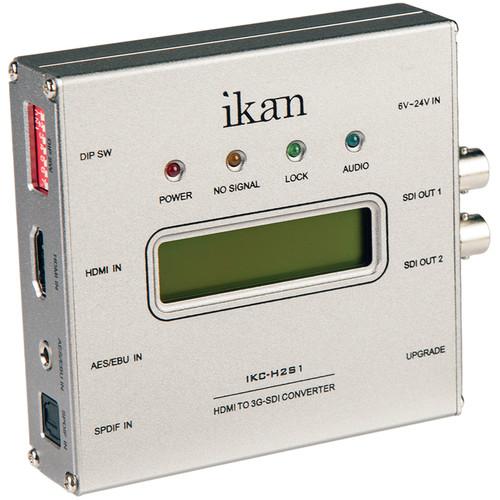

Product description ikan's IKC-H2S1 HDMI To SDI Converter is a rugged unit built into a CNC machined aluminum housing making it suitable for location or studio work. It features a two line LCD text display with information about the input signal and audio level meters. It supports HDMI 1.3 in with auto format detection; it converts the input signals to SDI video available simultaneously from both outputs. Audio can be embedded in the SDI stream from either the AES/EBU or SPDIF inputs.

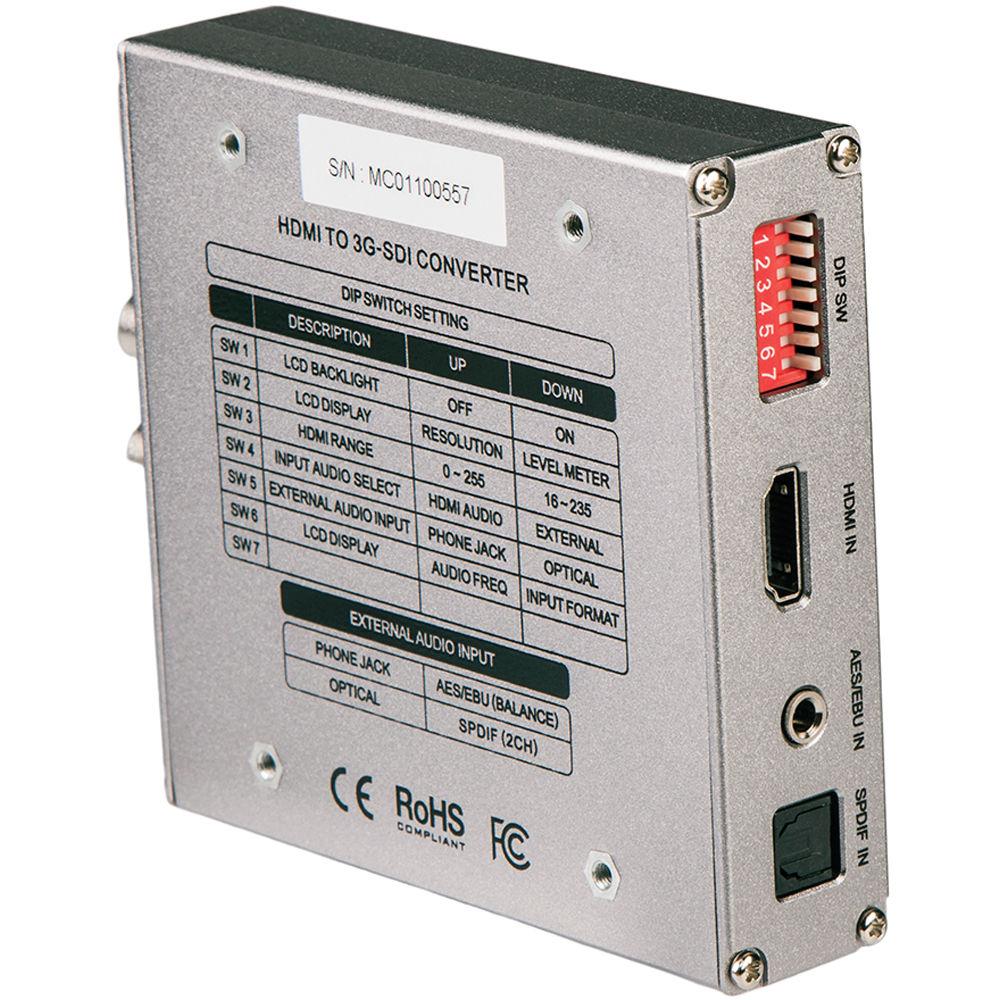

The video conversion process is automatic, with manual control only necessary to change the LCD display, or audio input, via DIP switches on the side of the unit. A USB 2.0 port allows you to upgrade the firmware, if that becomes necessary, and the unit powers from 6 to 24 volts DC, although 6 to 12 volts DC is preferred. The power in port features a threaded collar, allowing you to secure the power cable to the unit, and the included mounting plates allow you to mount the unit to a wall or other surface. - LCD Display
- The two line LCD display can be configured to display a variety of information about your input signal by adjusting DIP switches.
- LCD Backlight
- Resolution
- Brightness
- HDMI Range: 0 to 255/16 to 235
- Input Audio Select: Embedded HDMI/External
- External Audio Input: AES/EBU or SPDIF
- Audio Frequency
- Input format
- LED Indicators

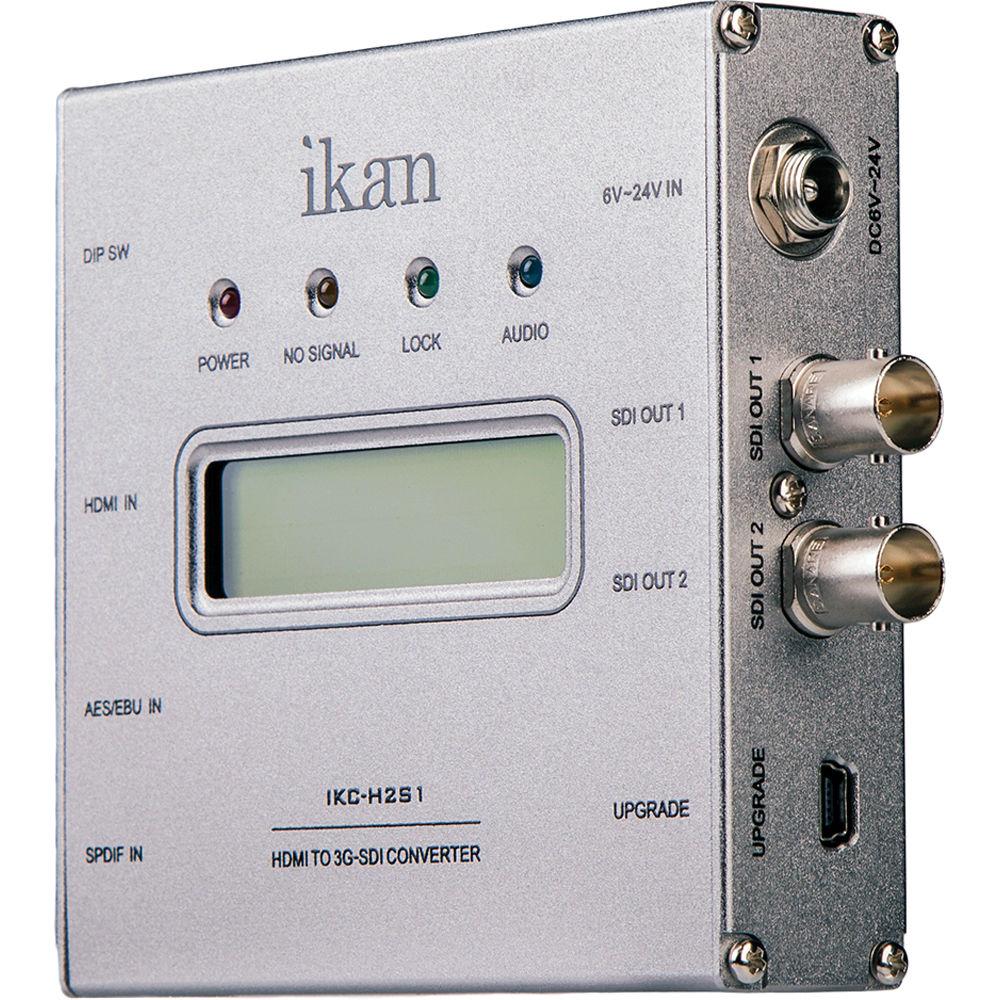

- The front of the unit features four LED indicators for :
- Power
- No Signal
- Lock
- Audio

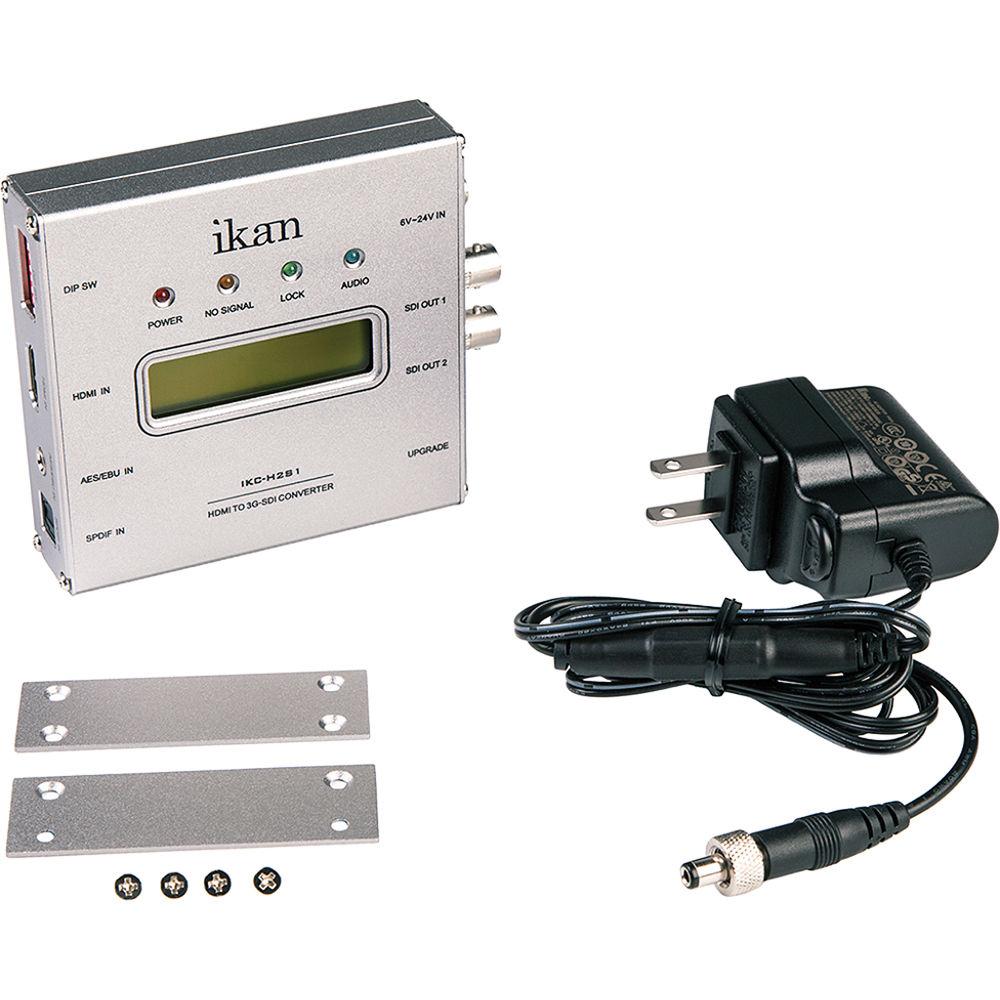

UPC: 847983012411 In the Box ikan IKC-H2S1 HDMI To SDI Converter AC Adapter 2 x Mounting Brackets 4 x Mounting Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan IKC-H2S1 HDMI To SDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan IKC-H2S1 Specs | Display | 2 x Line LCD text display | | Inputs | HDMI (1.3): 1 x Type A
AES/EBU: 1 x 3.5mm stereo mini-jack(2-Channel support)
SPDIF: 1 x Optical(2-Channel support) | | Outputs | 3G-SDI: 2 x BNC | | Upgrade Option | Mini-USB Port | | Signal System | NTSC, PAL | | Video Formats | 1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60
1920 x 1080i: 50/59.94/60
1280 x 720p: 50/59.94/60 | | Supported Audio | HDMI embedded 8ch and external 2ch audio support.
Automatic conversion to 48 KHz for SDI | | LCD Display | 2-Line
Input resolution
2Ch audio level meter
Input audio type
Input audio frequency
60-level bar-graph/digital value 2ch audio level meter (Range: -60dBFS to 0dBFS)
2Ch AES/EBU or SPDIF external audio input support
HDMI luminance range select (0-255/16-235) | | Power | 6 to 24 VDC (6 to 12 VDC recommended) | | Dimension | Housing Only: 3.9 x 3.7 x 0.98" / 100 x 95 x 25 mm
Including Connector: 4.6 x 3.7 x 0.98" / 118 x 95 x 25 | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 10.0 x 6.5 x 2.1" |
