User Manual for ikan IKC-S2H1 3G-SDI to HDMI Converter Click to enlarge the picture
Contents of the user manual for the ikan IKC-S2H1 3G-SDI to HDMI Converter
- Product category: Signal Converters ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Signal Converters
 |
User manual for the ikan IKC-S2H1 3G-SDI to HDMI Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

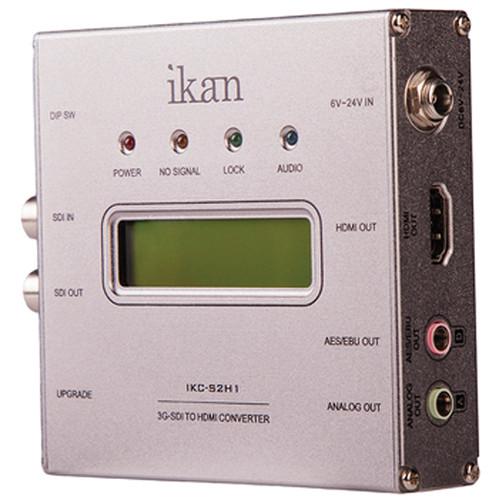

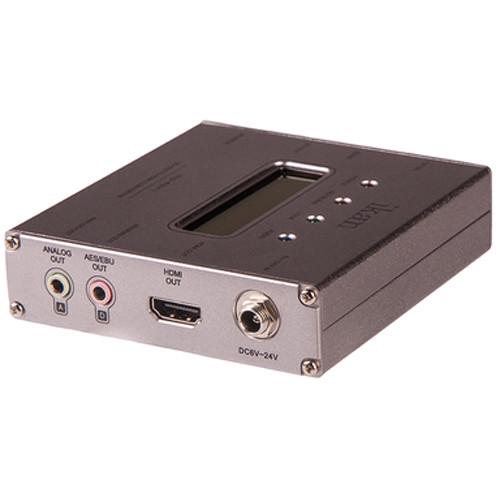

Product description ikan's IKC-S2H1 3G-SDI to HDMI Converter is a rugged unit built into a CNC machined aluminum housing making it suitable for location or studio work. It features a two line LCD text display with information about the input signal and audio level meters. It supports SD/HD/3G-SDI in with auto format detection; it converts the input signals to HDMI video, and loops through the signal to the SDI output. The converter supports 16 channels of Audio in the SDI stream, and makes two channels of audio available via AES/EBU or analog audio.

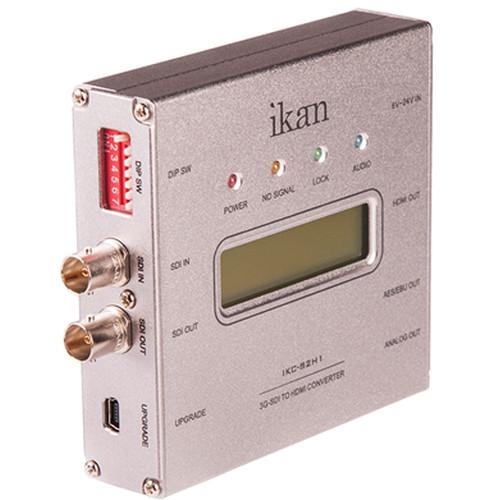

The video conversion process is automatic, with manual control only necessary to change the LCD display, or audio input, via DIP switches on the side of the unit. A USB 2.0 port allows you to upgrade the firmware, if that becomes necessary, and the unit powers from 6 to 24VDC, although 6 to 12VDC is preferred. The power in port features a threaded collar, allowing you to secure the power connectors to the unit, and the included mounting plates allow you to mount the unit to a wall or other surface. - LCD Display

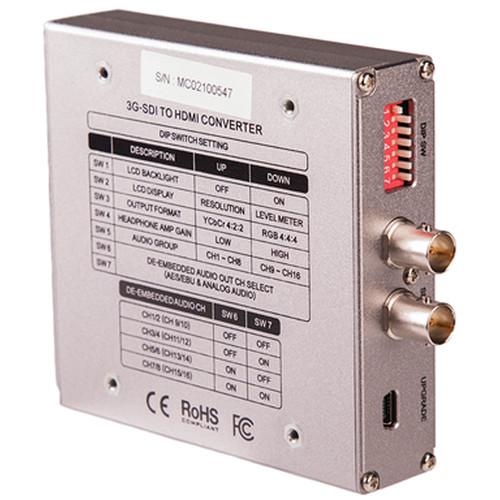

- The two line LCD display can be configured to display a variety of information about your input signal by adjusting DIP switches.
- 1. LCD Backlight: Off / On
- 2. LCD display: Resolution / Level Meters
- 3. Output Format: YCbCr 4:2:2 / RGB 4:4:4
- 4. Headphone AMP Gain: Low / High
- 5. Audio Group: CH 1-8 / CH 9-16
- DE-Embedded Audio Out CH Select
- CH1/2 (9/10) 6-off / 7-off
- CH3/4 (11/12) 6-off / 7-on
- CH5/6 (13/14) 6-on / 7-off
- CH7/8 (15/16) 6-on / 7-on
- LED Indicators
- The front of the unit features four LED indicators for :
- Power
- No Signal
- Lock
- Audio

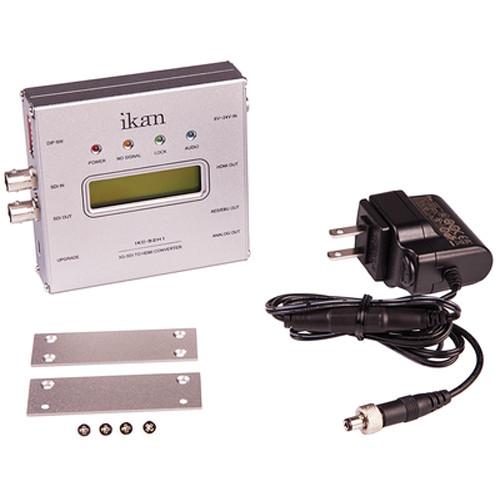

UPC: 847983012404 In the Box ikan IKC-S2H1 3G-SDI to HDMI Converter AC Adapter 2 x Mounting Brackets 4 x Mounting Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan IKC-S2H1 3G-SDI to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan IKC-S2H1 Specs | Display | 2 x Line LCD text display | | Inputs | SD/HD/3G-SDI: 1 x BNC | | Outputs | HDMI (1.3): 1 x HDMI (Type A)
SD/HD/3G-SDI: 1 x BNC
AES/EBU(SDI de-embedded): 1 x 3.5mm stereo mini-jack(2-Channel support)
Analog : 1 x 3.5mm stereo mini-jack(2-Channel support) | | Firmware Updates | Mini-USB Port | | Signal System | NTSC, PAL | | Video Formats | 1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60
1920 x 1080i: 50/59.94/60
1280 x 720p: 50/59.94/60 | | Supported Audio | SDI embedded 16ch audio support. | | LCD Display | 2-Line
Input resolution
2Ch audio level meter
Input audio type
Input audio frequency
60-level bar-graph/digital value 2ch audio level meter (Range: -60dBFS to 0dBFS)
2Ch AES/EBU or SPDIF external audio input support
HDMI luminance range select (0-255/16-235) | | Power | 6 to 24 VDC (6 to 12 VDC recommended) | | Dimension | Housing Only: 3.9 x 3.7 x 0.98" / 100 x 95 x 25 mm
Including Connector: 4.6 x 3.7 x 0.98" / 118 x 95 x 25 | | Weight | 0.49 lb / 220 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 10.0 x 6.5 x 2.2" |
