User Manual for ikan IKD-3GD6 1:6 3G-SDI Distribution Amp Click to enlarge the picture
Contents of the user manual for the ikan IKD-3GD6 1:6 3G-SDI Distribution Amp
- Product category: Distribution Amplifiers (DA's) ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Distribution Amplifiers (DA's)
 |
User manual for the ikan IKD-3GD6 1:6 3G-SDI Distribution Amp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

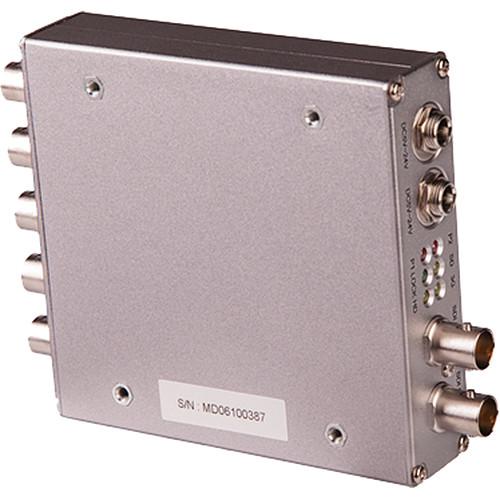

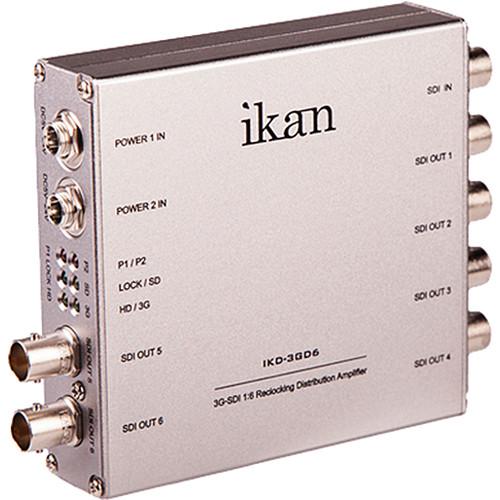

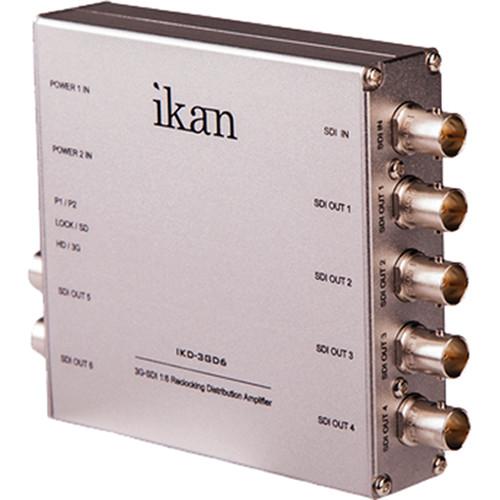

Product description Providing significant signal improvements over using an a simple splitter the ikan IKD-3GD6 1:6 3G-SDI Distribution Amp reclocks the input SDI signal and distributes it to each of the six SDI outputs. Reclocking the signal reduces signal degradation and allows it to travel the full distance beyond the distribution amp, as opposed to a splitter that weakens the signal.the unit features one input and six SD/HD/3G-SDI outputs that are always active.
The distribution amp only requires power and an input signal to operate, and features LED indicators for power, signal lock and signal type - SD, HD, 3G. Built out of CNC machined aluminum for a balance of durable and weight, the distribution amp includes mounting brackets so you can take it on location, or mount it in a facility. The dual locking power inputs provide you safety in case of power supply failure or kick out. - The IKD-3GD6's features 3G/HD/SD-SDI signal reclocking distrubtion from one input to 6 outputs.
- With dual power support for reliable operation, and CNC machined aluminum housing with mounting brackets, the IKD-3GD6 1:6 3G-SDI distribution amp is at home on location or in a production/postproduction facility.
- The power inputs feature a threaded connector to prevent accidental kick outs and power failure.
- Indication LEDs provide confirmation of power and signal.

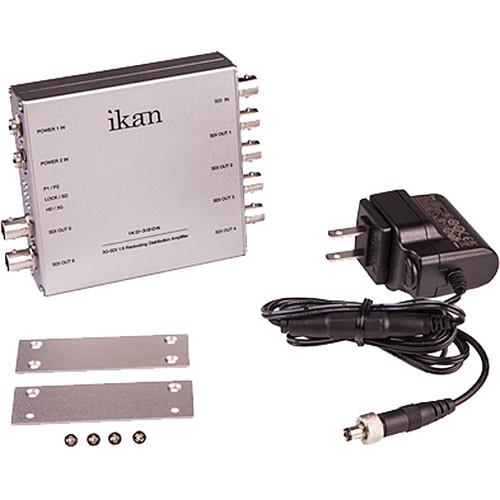

UPC: 847983012398 In the Box ikan IKD-3GD6 1:6 3G-SDI Distribution Amp AC Adapter 2 x Mounting Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan IKD-3GD6 1:6 3G-SDI Distribution Amp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan IKD-3GD6 Specs | Input | SD/HD/3G-SDI: 1 x BNC | | Output | SD/HD/3G-SDI: 6 x BNC | | Data Rate | 19.4Mb/s to 2.97Gb/s | | Supported Standards | SMPTE
259M
292M
424M
425M
DVB
ASI | | Power | 5 to 24 VDC | | Dimensions | Housing Only: 3.9 x 3.7 x 1" / 100 x 95 x 25 mm
Including Connector: 4.6 x 3.7 x 1" / 118 x 95 x 25 mm | | Weight | 0.53 lb / 240 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 10.0 x 6.4 x 2.3" |
