Product description - ikan - Micro Lights - LED Spot and Flood

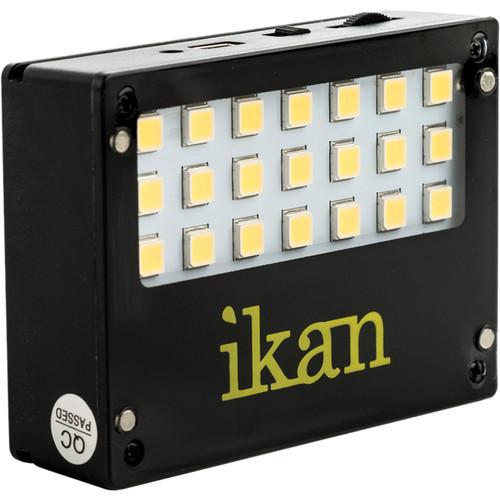

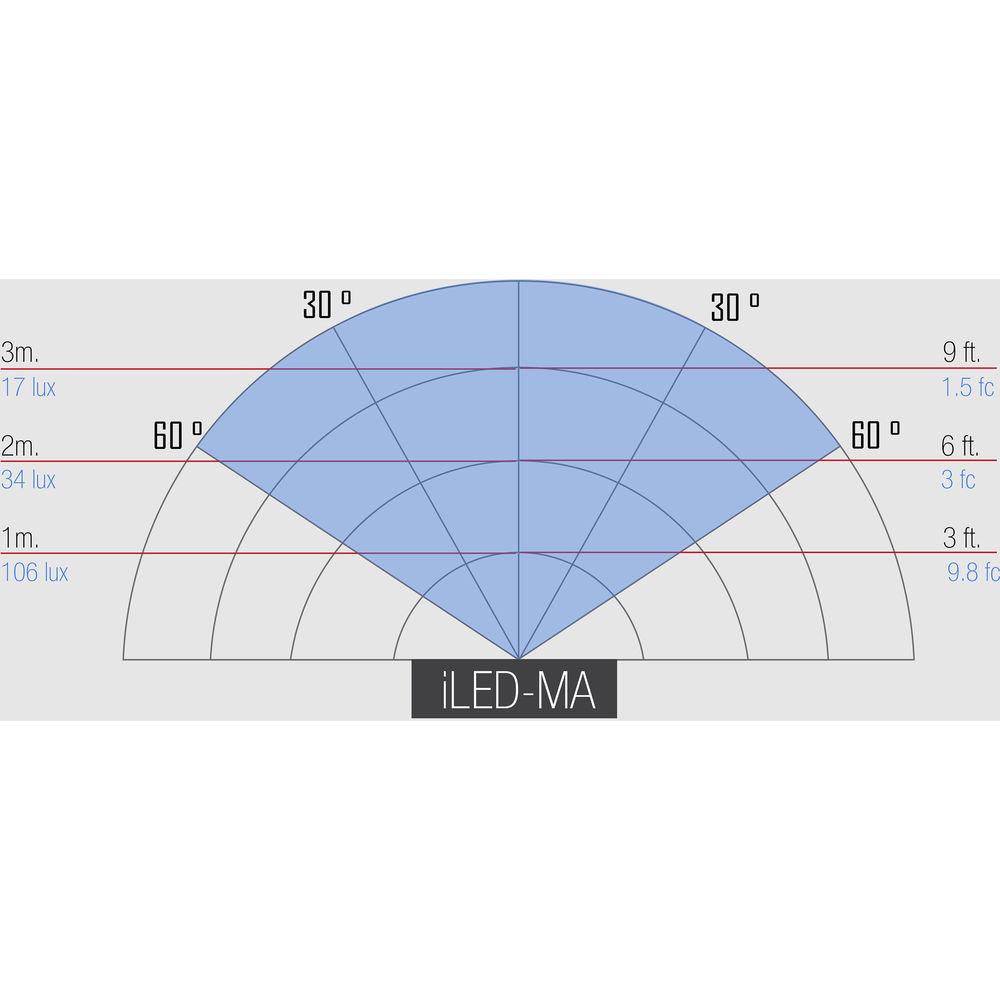

The iLED-MA Micro Flood Light from ikan is an on-camera LED flood light with a 120° beam of light. With 21 daylight balanced LEDs, the Micro Flood is suitable for use as a key light in a single-person ENG-style interview or as a fill light for small groups. The unit is dimmable from 100 to 10% brightness and features an integrated rechargeable battery that you can recharge while using the light.

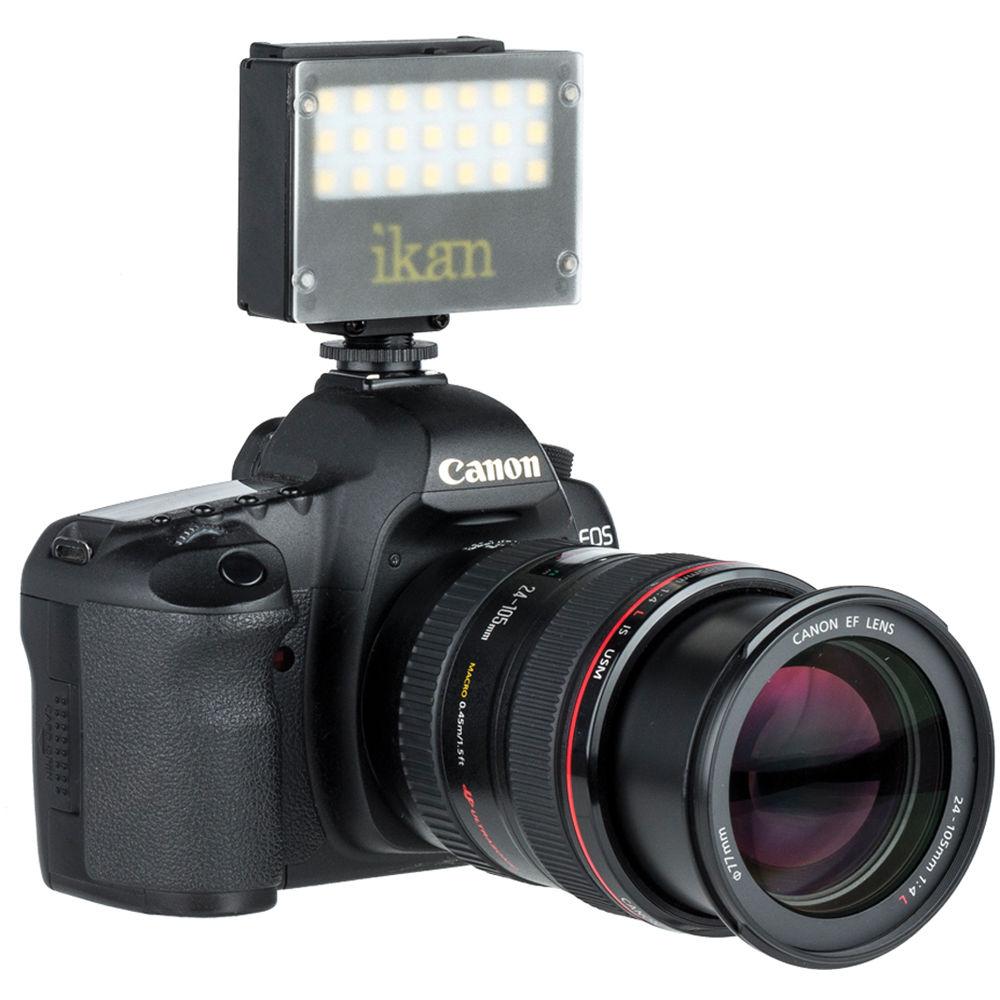

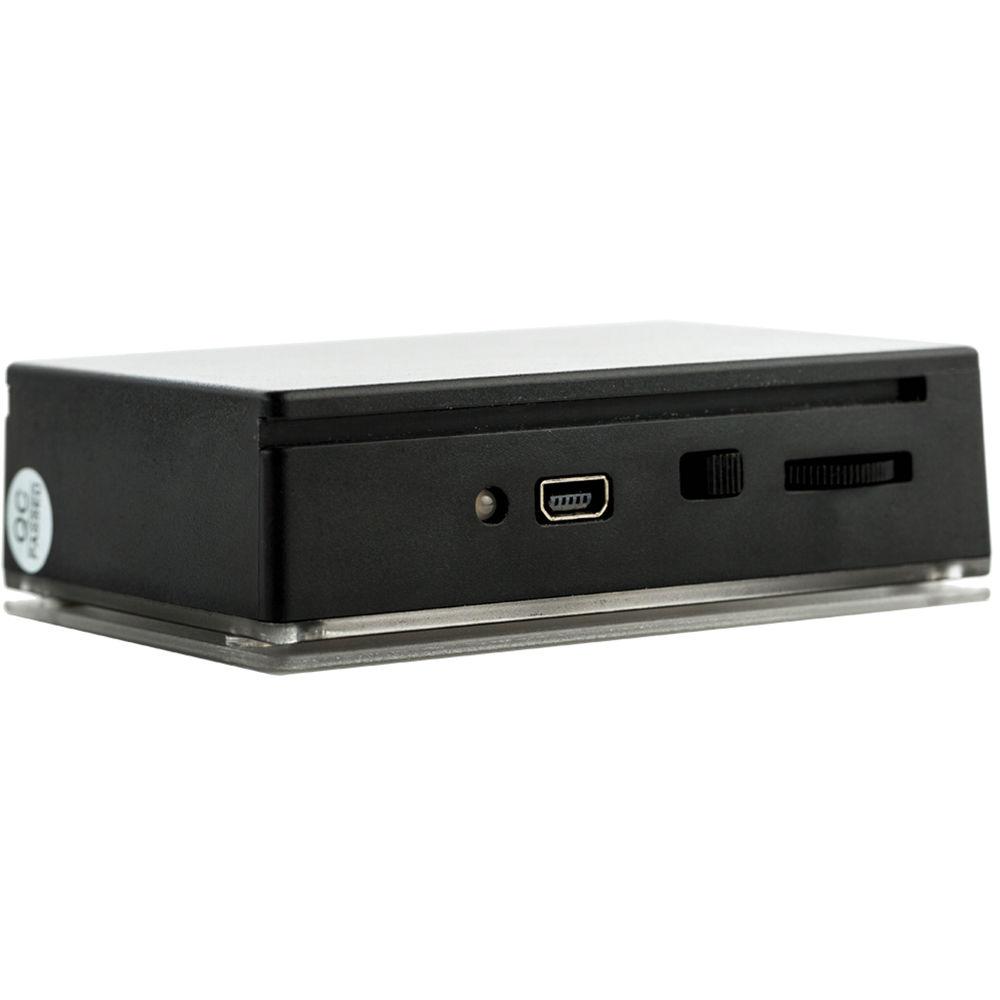

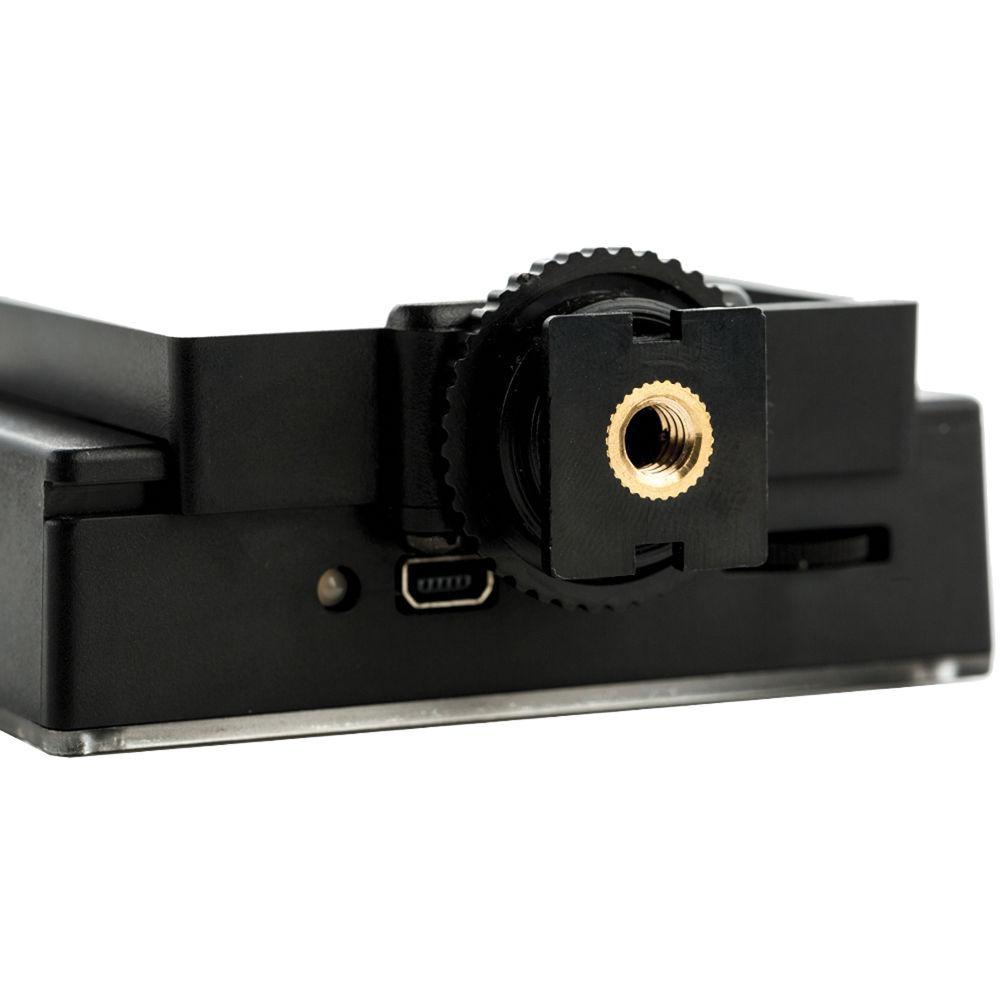

The light features a cold shoe mounting foot that fits into a standard hot shoe found on most DSLR and mirrorless cameras as well as many consumer camcorders. The mounting foot shoe incorporates a 1/4"-20 threaded mounting hole that allows you to use a variety of optional mounting accessories. An included magnetic diffusion filter mounts to the front of the light, allowing you to quickly add or remove light diffusion to your light. - The light features an integrated rechargeable battery that will power the light for approximately 90 to 120 minutes. It charges from a mini USB cable, and you can attach an external USB-style battery and charge the light while using it for extended battery life.
- The light is dimmable from 100-10% without flickering.

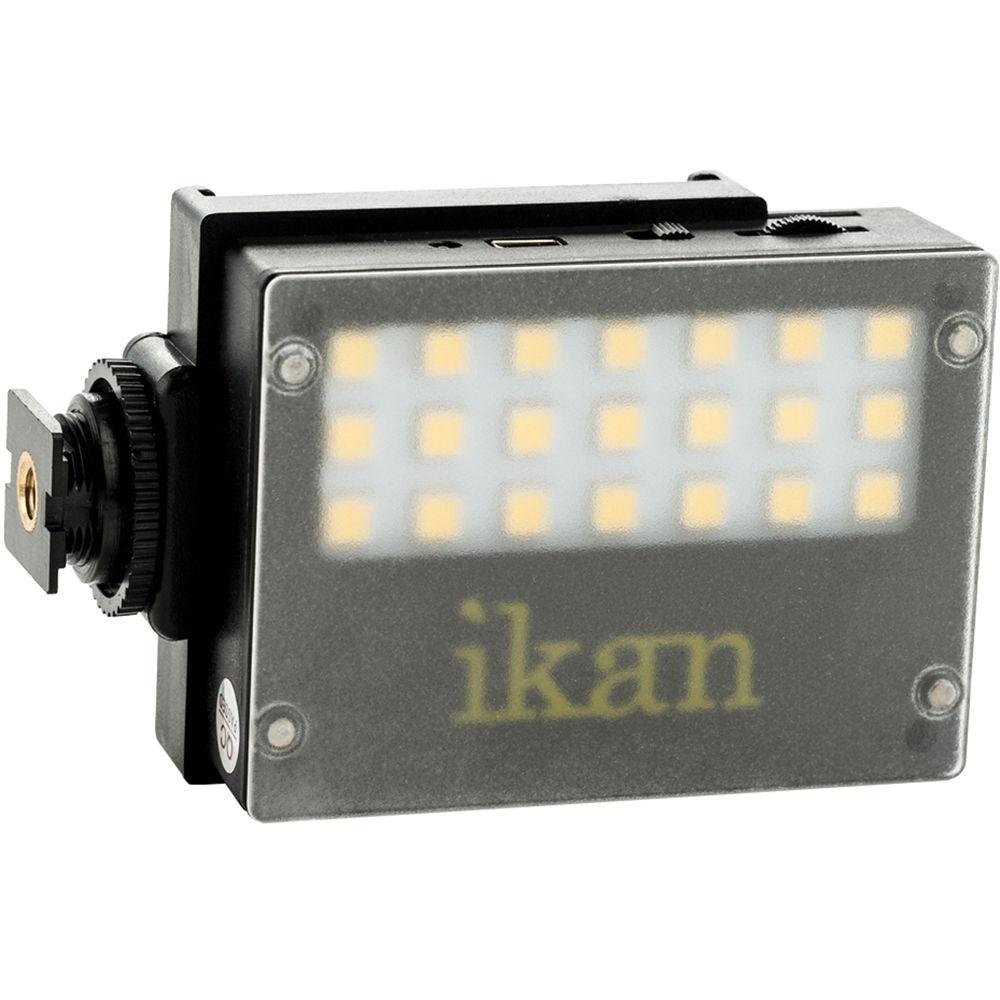

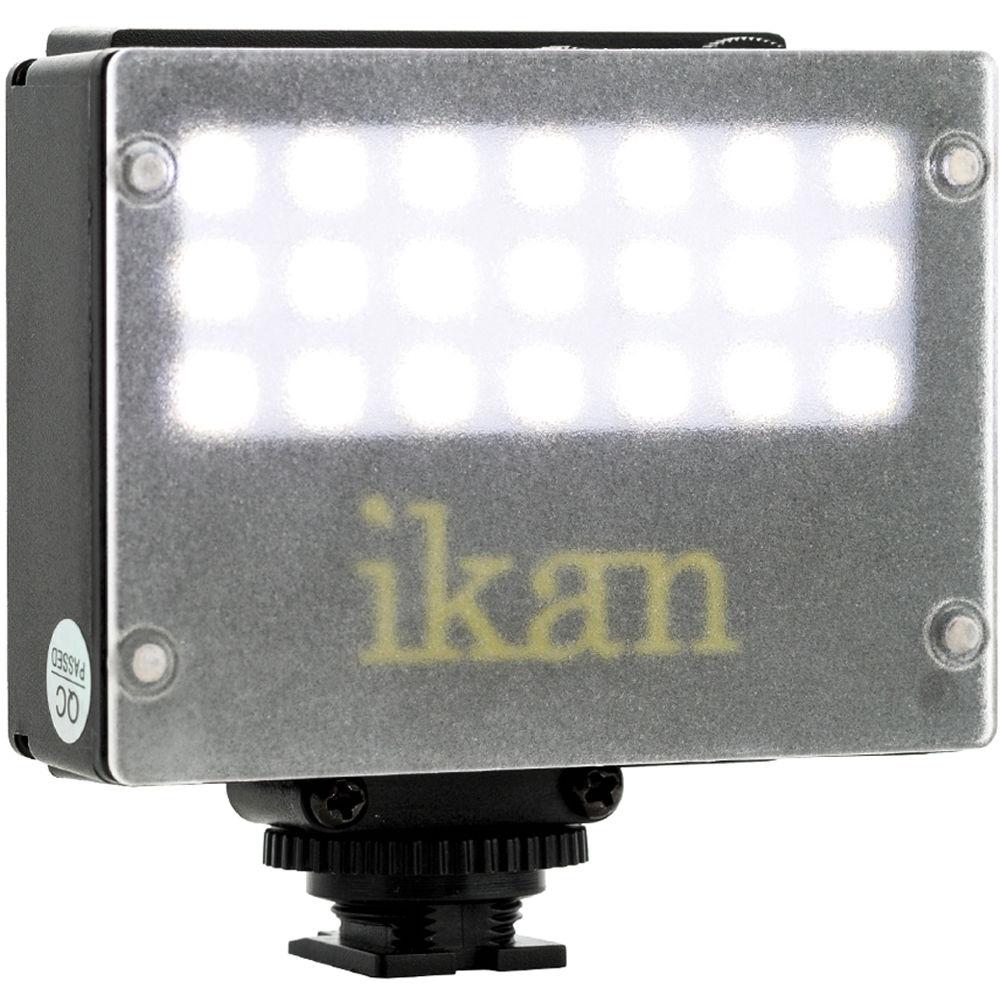

- The magnetically attached diffusion reduces exposure by approximately 1/4 stop.

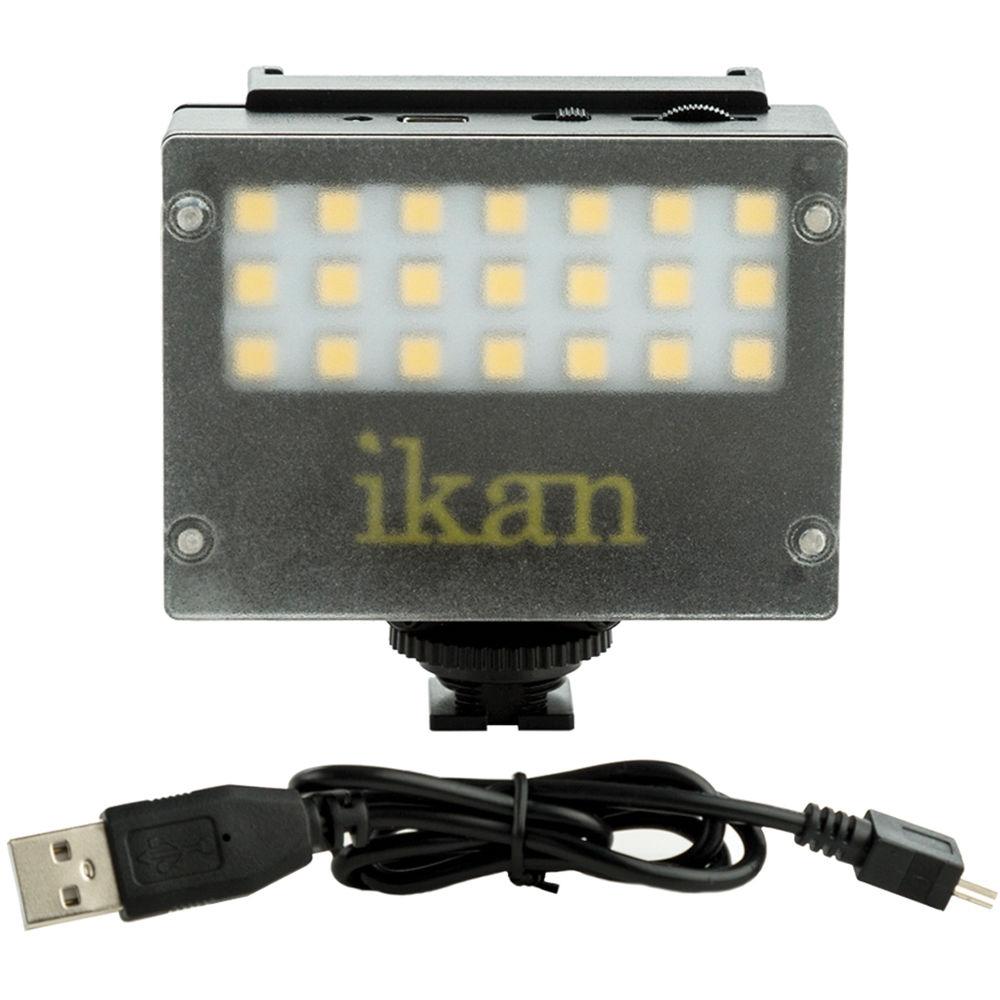

UPC: 847983013159 In the Box ikan iLED-MA Micro Flood Light Magnetic Diffusion USB Charging Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan iLED-MA Micro Flood Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan ILED-MA Specs | | | Beam Angle | 120° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 93 | | Dimming | Yes Continuous | | Cooling System | Passive | | Number of LEDs | 21 | | | | Max Power Consumption | 4.2 W | | Power Input Connector | Mini-USB | | Power Source | Integrated Battery | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 3.2 x 2.2 x 1.5" / 8.3 x 5.7 x 3.8 cm | | Weight | 4.8 oz / 136.1 g | | | | Package Weight | 0.395 lb | | Box Dimensions (LxWxH) | 5.95 x 4.65 x 1.55" |
