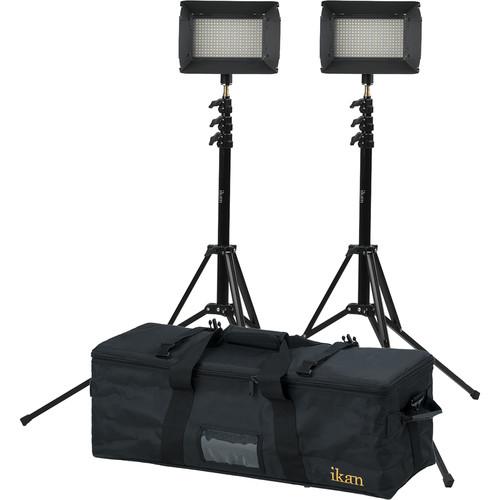

Product description This iLED312-V2 2-Point Bi-Color Flood Light Kit from ikan is made up of 2 iLED312-V2 LED lights, 2 stands, and a carrying bag. Each light runs off of two Sony L-series type batteries, which are included, as are battery chargers, A/C adapters, barn doors, and diffusers.
Each iLED312-V2 light features continuously variable color temperature between 3200K tungsten and 5600K daylight, and a built-in variable dimmer that can dim the lights output from 100 to 10%. Built into the light is an LCD display panel that shows a digital readout of the brightness level, color temperature of the light and features a battery gauge so you know how much power you have left.
The lights produce a 60° beam angle, and include both a removable four-leaf barn door and a diffusion gel. They feature slots for two Sony L-type batteries, and include two batteries and a dual battery charger for each light. A 1/4"-20 threaded receiver allows you to mount the light to your camera's accessory shoe via the included ball adapter. You can also stack multiple lights together using the interlocking rail system. An included soft carry bag allows you to easily pack and carry your lights and included accessories to and from shoots. - iLED312-v2 On-Camera Bi-Color LED Light with Digital Display The ikan iLED312-v2 On-Camera Bi-Color LED Light with Digital Display is a compact battery powered daylight/tungsten balanced on camera light. It features a continuously variable color temperature between 3200 tungsten and 5600K daylight, and a built-in variable dimmer that can dim the lights output from 100 to 10%. Built into the light is an LCD display panel that shows a digital readout of the brightness level, color temperature of the light and features a battery gauge so you know how much power you have left.
The light produces a 60° beam angle, and includes both a removable four leaf barn door and diffusion gel. The light features slots for two Sony L-Series type batteries, and includes two batteries and a dual battery charger. A 1/4"-20 threaded hole allows you to mount the light to your camera's accessory shoe via the included ball adapter. You can also stack multiple iLED312 lights together using the interlocking rail system. An included soft carry case allows you to easily pack and carry your light unit, gel, barn doors and included accessories to and from shoots. - Variable Color Temperature & Dimming
- The iLED312-v2 features 312 LEDs, and a single knob that allows you to vary the color temperature of the unit from 3200 to 5600K. A separate knob controls the dimming of the unit, with brightness range of 100 to 10%.
- Digital Display Screen

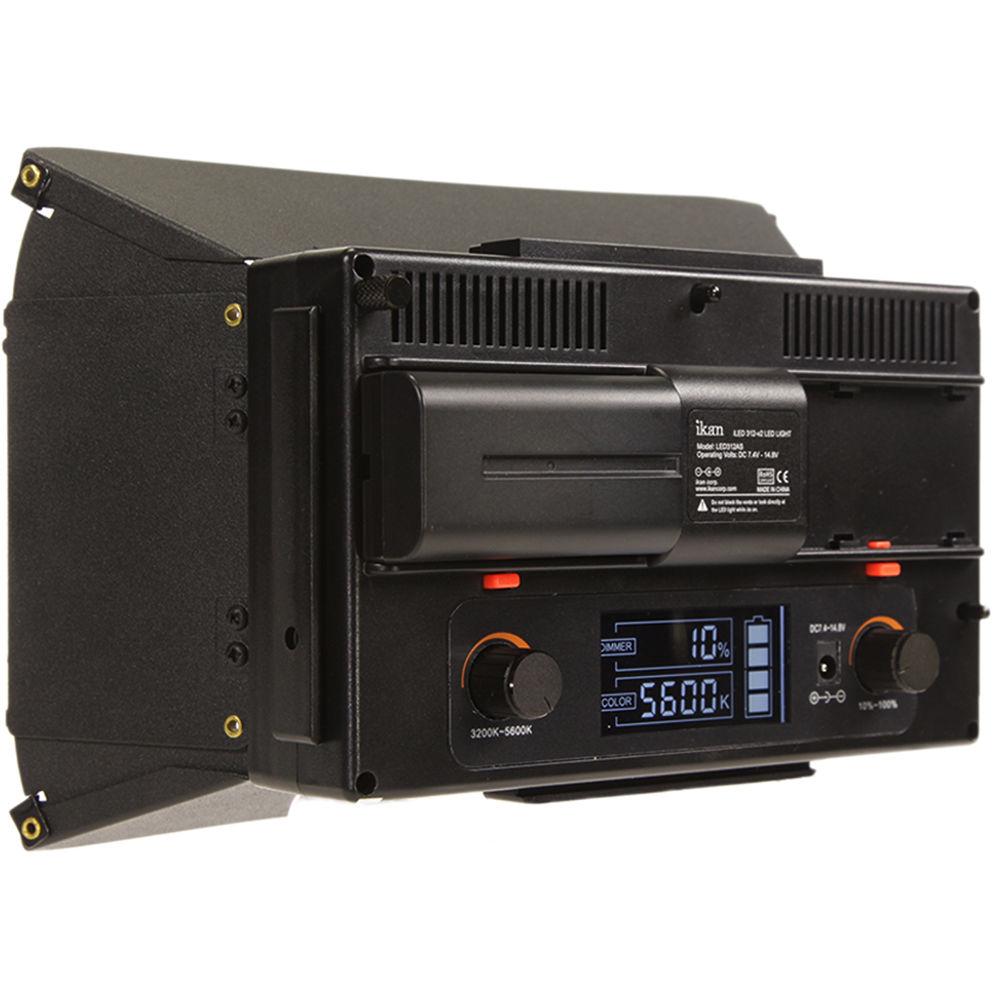

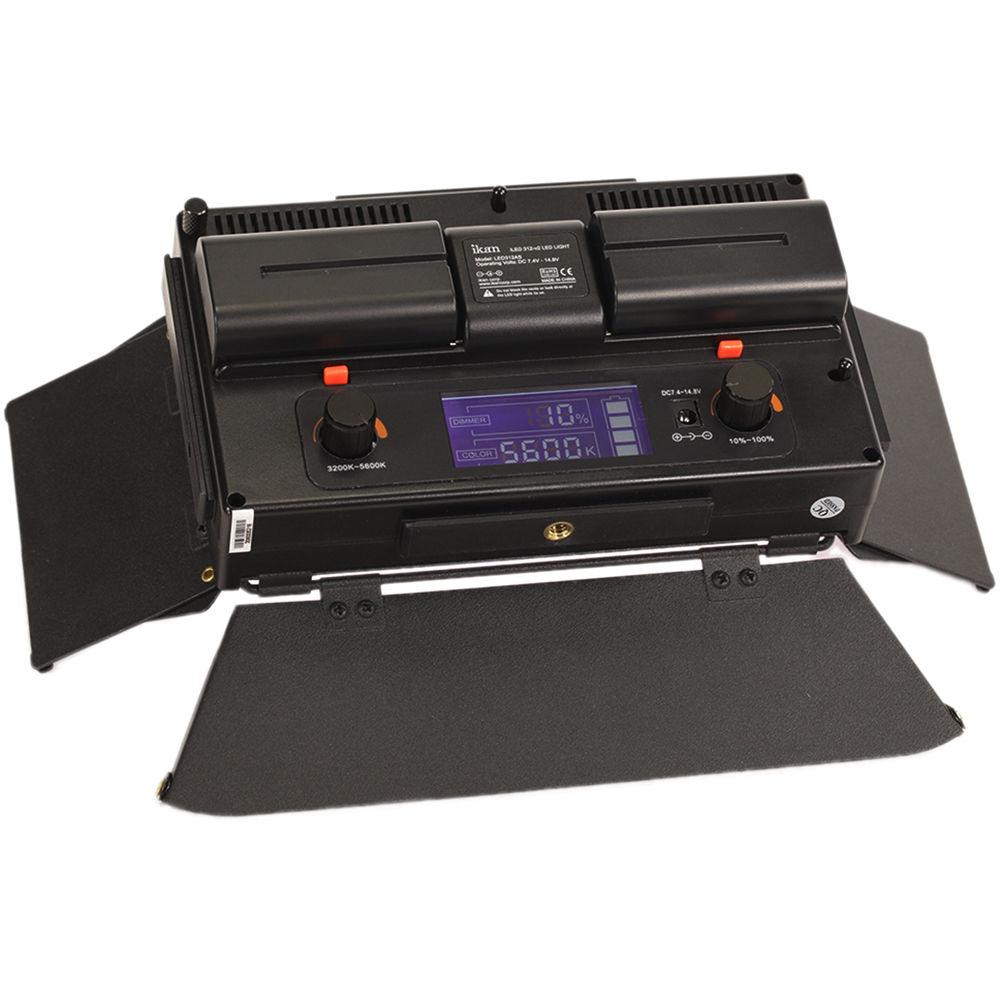

- The dimmer and color temperature settings are controlled by analog knobs, but the built-in digital readout on the built-in display screen allows you to match the output of other units or repeat setups, if you have to go back and get pick up shots. The display also incorporates a four-step battery gauge so you know how much battery power you have left.
- Barn Doors

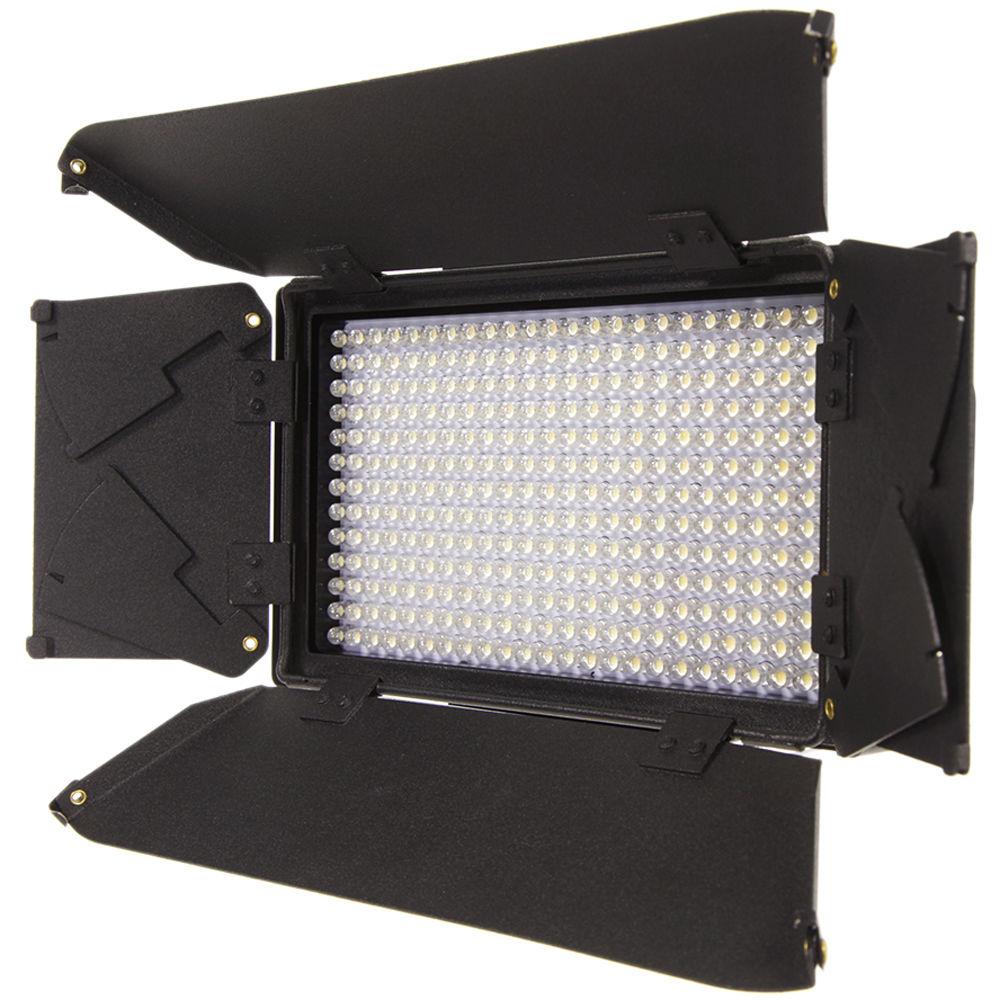

- The included four sided removable barn doors are constructed so the doors can interlock together, limiting light leak from the edges, controlling light spill, and providing directionality to your light. The side doors feature articulating leafs that provide you a fairly wide range of adjustment while still controlling light leaks from the edges of the doors.
- Diffusion
- Although you can attach diffusion gel to the barn doors, the iLED312-v2 features a slot for the included precut diffusion sheet, that can be used with or without the barn doors in place. The diffusion is notched, and a safety tab engages the notch to prevent it from accidentally falling out.
- Power
- The light unit features slots for two Sony L-Series type batteries of any capacity, and includes two NP550-type batteries. The light can run on one or two batteries, you can use the AC adapter that powers the included dual battery charger to power the light instead, via the small power connector on the back of the unit.
- Mounting

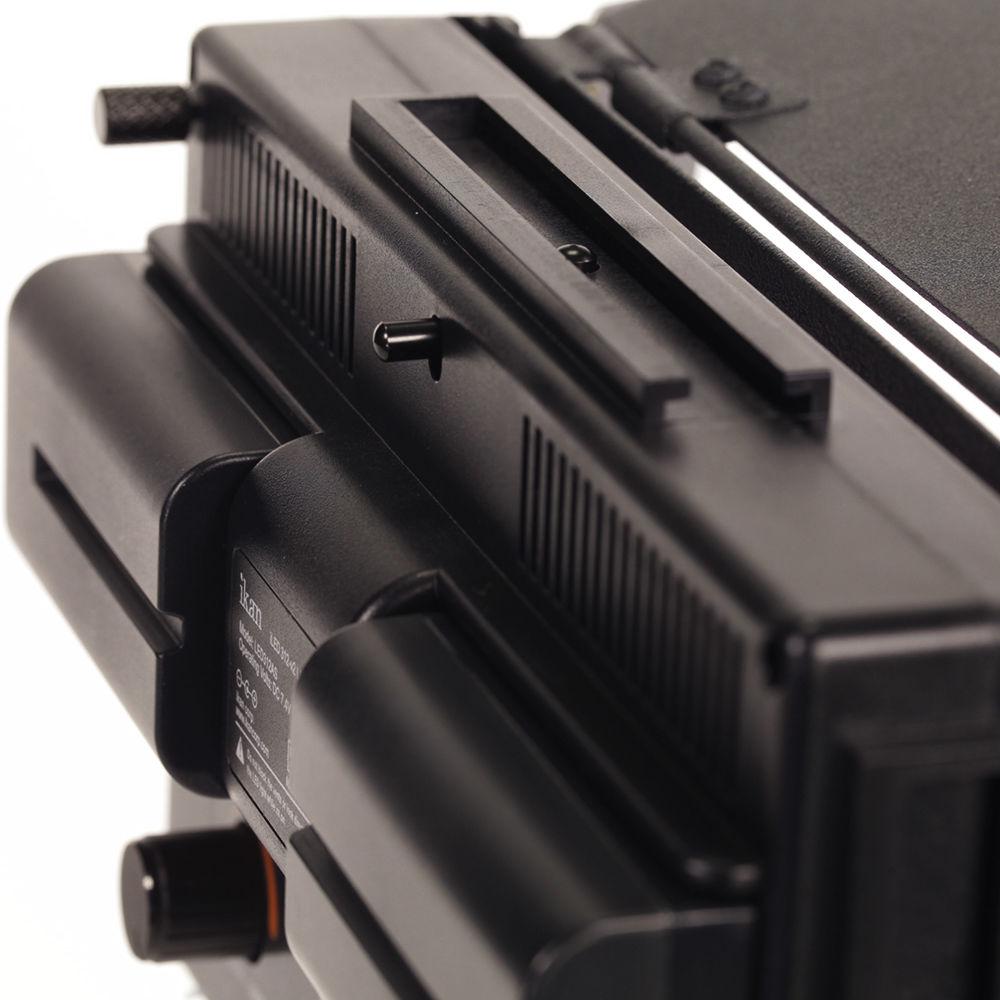

- The light incorporates a 1/4"-20 threaded mounting hole in the bottom of the unit, and an interlocking rail system that allows you to stack up to three units vertically or horizontally, with a maximum of six lights.
UPC: 847983007691 - CP-STND Compact Light Stand (6.25') The ikan CP-STND Compact Light Stand is ideal for supporting small lighting fixtures on location. The five-section stand rises to a height of 6.25', and by using a reversing-folding design, folds down to just 19" in length. The stand has a 5/8" stud and will support up to 5.5 lb.
- Dual Sony L-Series Compatible Battery Charger Charge two Sony L-Series compatible batteries simultaneously with this Dual L-Series Battery Charger from ikan. Four indicator lights next to each battery slot will let you know how full or empty each battery is. This charger is 100-220 VAC worldwide compatible and can be used internationally if you incorporate the appropriate power cable(s), sold separately. A North American power cable is included. UPC: 847983004461
- Ultra-Heavy Duty Camera Shoe Mount The Ultra-Heavy Duty Camera Shoe Mount from Ikan is a 1/4" mount that can mount directly to a DSLR shoe mount, and allows for the attachment of accessories like display monitors. This ball head has a single locking knob for fast and safe operation, and is easily removable.
Accessories attach via the 1/4"-20 screw thread on top and the bottom features a removable shoe mount. The head itself allows for 90° vertical articulation. UPC: 847983005116 In the Box Bundle Items 2 x iLED312-v2 On-Camera Bi-Color LED Light with Digital Display fzdxqbuzfwbqruxdtxuzxqvasvczawdtscyz - Dual Sony L-Series Compatible Battery Charger
- Ultra-Heavy Duty Camera Shoe Mount
2 x CP-STND Compact Light Stand (6.25') 2 x Dual Sony L-Series Compatible Battery Charger - North American Power Cable
2 x Ultra-Heavy Duty Camera Shoe Mount
Also Includes - AC Adapter
- 4 x Sony L-Type Batteries
- 2 x Barn Doors
- 2 x Diffusion Filter
- Carrying Bag for Kit
- Limited 1-Year Warranty
Quick start Guide PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan iLED312-V2 2-Point Bi-Color Flood Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - iLED312-v2 On-Camera Bi-Color LED Light with Digital Display
| | | Beam Angle | 60° | | Color Temperature | 3200 to 5600K | | Number of LEDs | 312 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 7.4 to 14.8 VDC | | Power Input Connector | Barrel | | Power Source | AC Adapter, External Battery | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 8.2 x 1.8 x 4.5" / 20.9 x 4.5 x 11.4 cm | | Weight | 2 lb / 0.9 kg (Including Battery) | | | | Box Dimensions (LxWxH) | 16.2 x 11.15 x 3.45" | - CP-STND Compact Light Stand (6.25')
| Number of Risers | 4 | | Sections | 5 | | Material | Aluminum | | Load Capacity | 5.5 lb (2.5 kg) | | Dimensions | Maximum: 75" (190 cm)
Minimum: 23" (58 cm)
Closed: 19" (48 cm)
Footprint: 36" (91.4 cm) | | Weight | 2.0 lb (0.9 kg) | | | | Box Dimensions (LxWxH) | 20.1 x 3.2 x 3.0" | - Dual Sony L-Series Compatible Battery Charger
| Input | 100-220 VAC, 50/60 Hz | | | | Box Dimensions (LxWxH) | 6.2 x 3.8 x 3.8" | - Ultra-Heavy Duty Camera Shoe Mount
| Bottom Mount | 1 x Accessory Foot | | Top Mount | 1 x 1/4"-20 Male | | | | Box Dimensions (LxWxH) | 5.25 x 2.85 x 1.45" |
