Product description

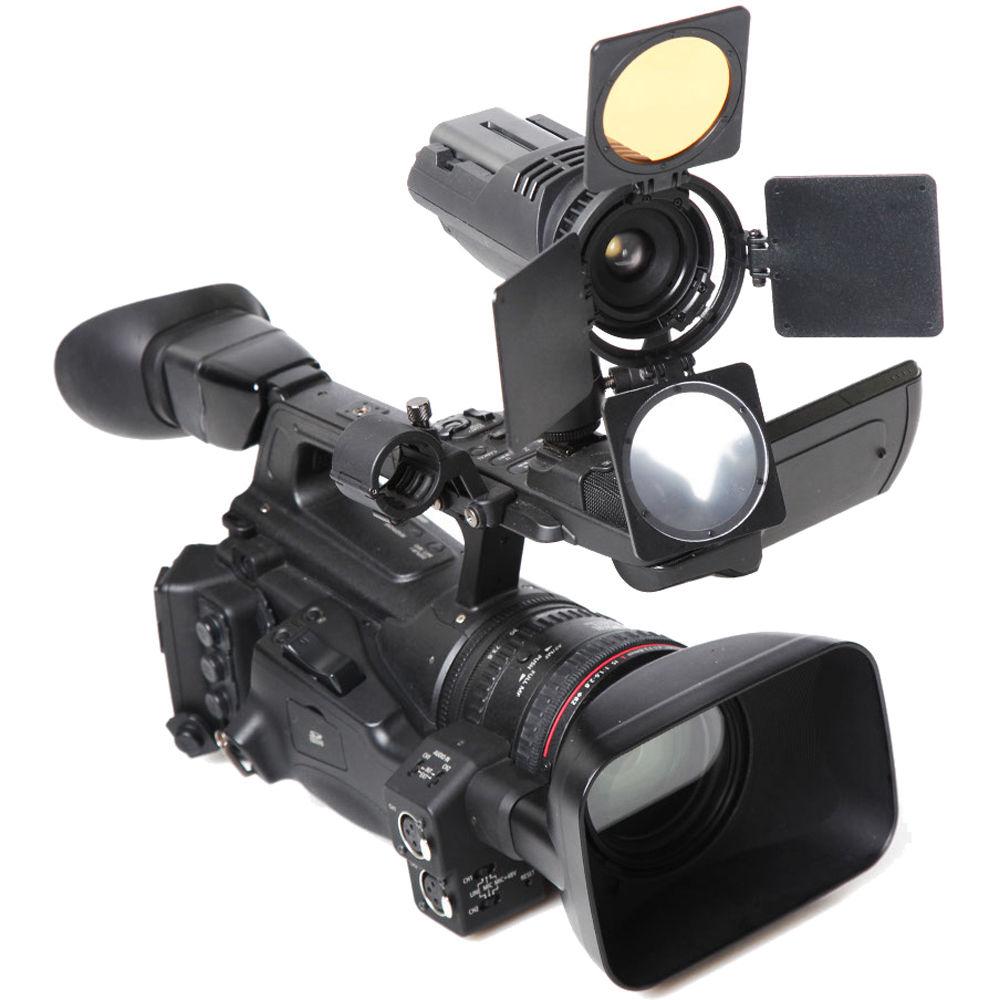

• iLED6 Zoom ENG LED On-Camera Light The ikan iLED6 Zoom ENG LED On-Camera Light is a daylight balanced LED on-camera ENG style light with a CRI rating of up to 95. The unit draws only 6 watts and produces 2500 Lux at 1 meter in full spot. It features a spot flood adjustment and smoothly dims from 100 percent brightness down to 0. It incorporates a rotating 4 leaf barn door system with two solid doors for spill control while the other two doors hold a diffusion and a CTO correction gel.

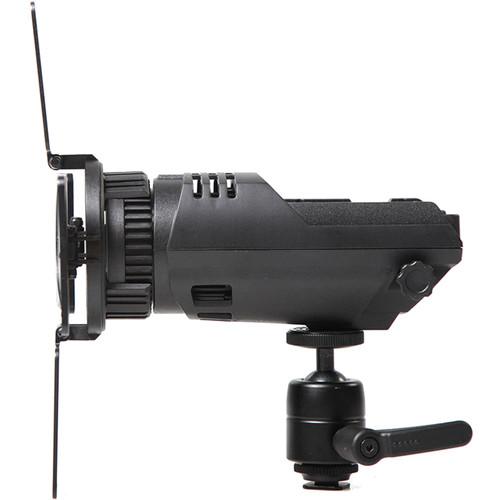

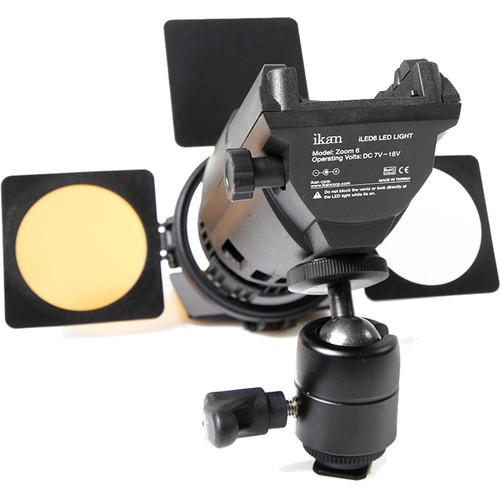

  The iLED6 is powered by Sony L type batteries and includes one 2000mAh Li-Ion battery, you can also power the unit using the included AC power adapter. The unit features a 1/4"-20 threaded mounting hole and includes a sturdy ball joint cold shoe to 1/4"-20 stud adapter. The ball joint utilizes a kipping (spring loaded) lever that allows you to lock the stud at up to 90 degrees of articulation with the light attached.
  • The iLED6 features a 6 watt daylight balanced LED with a color temperature of 5600K and a 95 CRI.
  • It has a spot flood range of 30 to 60°
  • You can dim the light from full brightness (100%) to zero (0%) using the on off knob.
  • The barn doors provide spill control, with its two solid barn doors. The other two barn doors are used either to diffuse or balance the light to tungsten.
  • The light accepts Sony L type batteries.
  UPC: 847983008186

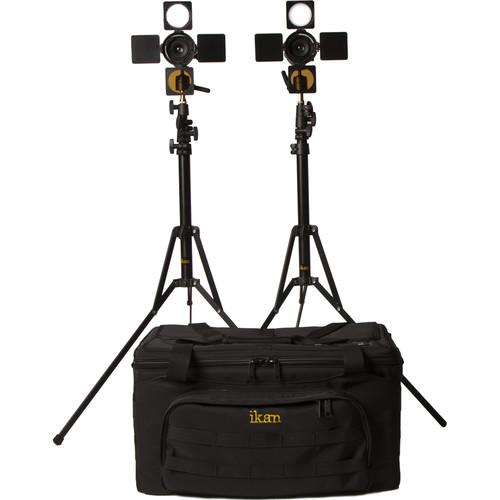

• CP-STND Compact Light Stand (6.25') The ikan CP-STND Compact Light Stand is ideal for supporting small lighting fixtures on location. The five-section stand rises to a height of 6.25', and by using a reversing-folding design, folds down to just 19" in length. The stand has a 5/8" stud and will support up to 5.5 lb.

• AC Adapter

• NP-F550 L-Series Compatible Battery (7.4V, 2900 mAh)

• Battery Charger

• Accessory Shoe Ball Joint Adapter to 1/4"-20 Stud

• Limited 1-Year Warranty

Also Includes

• Light Kit Bag
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• iLED6 Zoom ENG LED On-Camera Light

  Color Temperature	5600K ± 200K
  Color Accuracy Standard	CRI 95
  Dimming	Yes, 0 to 100%

  Battery Plate	1 x Sony L-Series (NP-F)
  DC Input Power	7.4 to 24 VDC
  Max Power Consumption	6 W
  Power Source	AC Adapter, External Battery

  Mount Type	1/4"-20 Female Thread, Cold Shoe
  Dimensions	2.7 x 7.3 x 2.7" / 6.9 x 18.5 x 2.7 cm
  Weight	2 lb / 0.9 kg (Including Battery, Barn Doors, Shoe Mount)

  Box Dimensions (LxWxH)	11.2 x 5.9 x 3.3"

• CP-STND Compact Light Stand (6.25')

  Number of Risers	4
  Sections	5
  Material	Aluminum
  Load Capacity	5.5 lb (2.5 kg)
  Dimensions	Maximum: 75" (190 cm) Minimum: 23" (58 cm) Closed: 19" (48 cm) Footprint: 36" (91.4 cm)
  Weight	2.0 lb (0.9 kg)

  Box Dimensions (LxWxH)	20.1 x 3.2 x 3.0"
