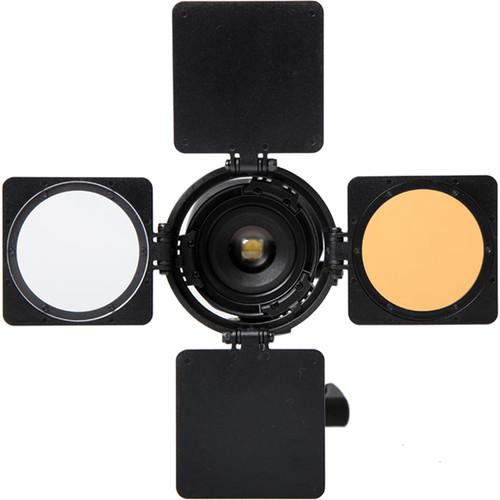

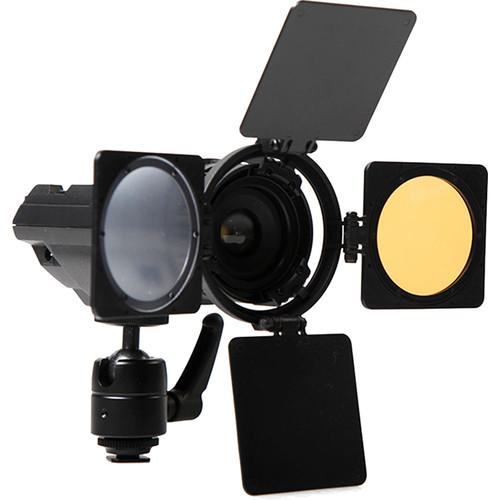

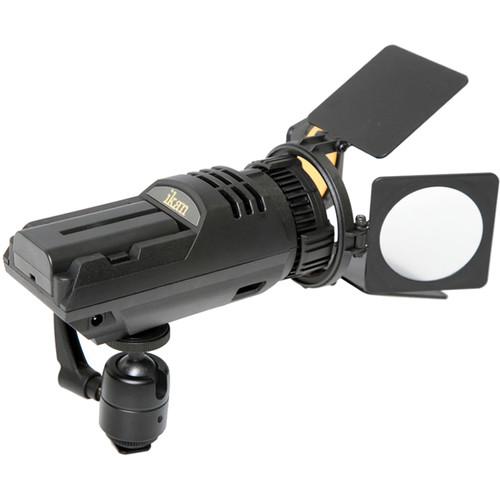

Product description The ikan iLED6-KIT iLED6 3 x Zoom ENG LED On-Camera Light Kit with Stands and Bag includes three daylight balanced LED on-camera ENG-style light with a CRI rating of up to 95, three light stands and a bag to carry the lights, stands, and included accessories. The unit draws only 6 watts and produces 3400 Lux at 3' (1 m) in full spot. It features a spot flood adjustment and smoothly dims from 100 percent brightness down to 0. It incorporates a rotating 4 leaf barn door system with two solid doors for spill control while the other two doors hold a diffusion and a CTO correction gel.

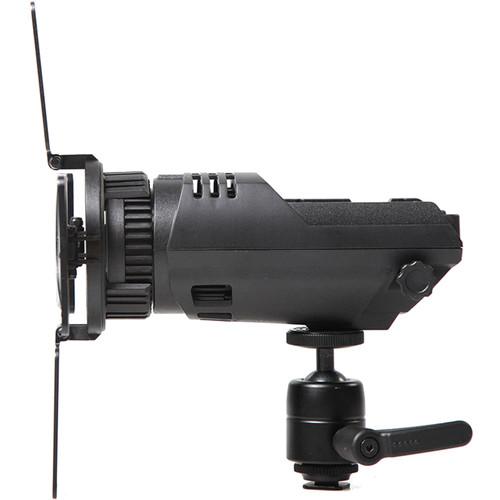

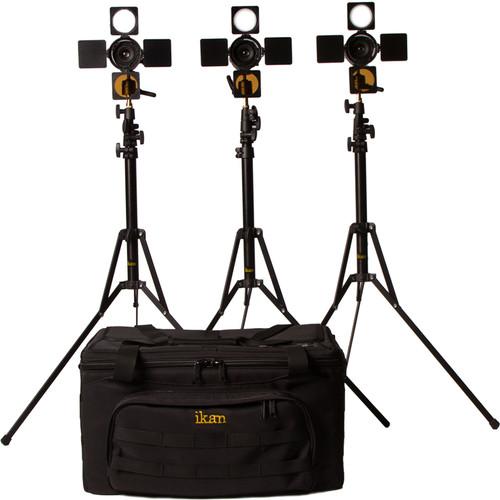

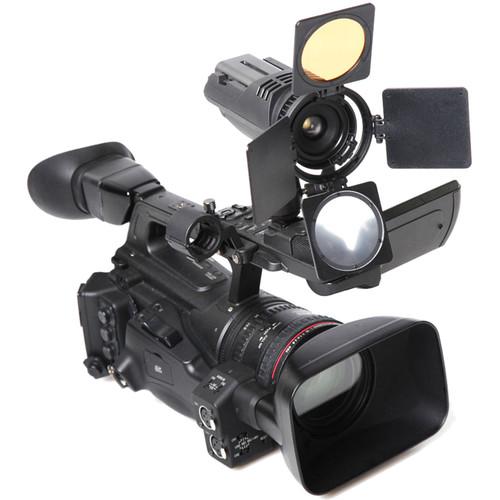

The kit allows you to use the lights mounted on a camera, or on the included light stands providing you shooting options of using an on-camera light, or lighting an interview, or small scene. The iLED6 fixture is powered by Sony L-type batteries or you can also power the unit using the included AC power adapter. The unit features a 1/4"-20 threaded mounting hole and includes a sturdy ball joint cold shoe to 1/4"-20 stud adapter. The ball joint utilizes a spring-loaded lever that allows you to lock the stud at up to 90 degrees of articulation with the light attached. - iLED6 Zoom ENG LED On-Camera Light The ikan iLED6 Zoom ENG LED On-Camera Light is a daylight balanced LED on-camera ENG style light with a CRI rating of up to 95. The unit draws only 6 watts and produces 2500 Lux at 1 meter in full spot. It features a spot flood adjustment and smoothly dims from 100 percent brightness down to 0. It incorporates a rotating 4 leaf barn door system with two solid doors for spill control while the other two doors hold a diffusion and a CTO correction gel.

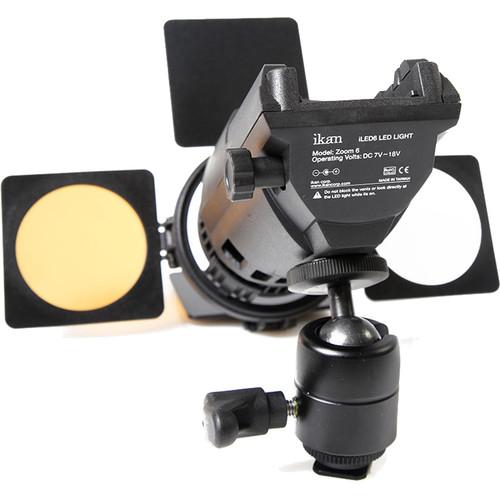

The iLED6 is powered by Sony L type batteries and includes one 2000mAh Li-Ion battery, you can also power the unit using the included AC power adapter. The unit features a 1/4"-20 threaded mounting hole and includes a sturdy ball joint cold shoe to 1/4"-20 stud adapter. The ball joint utilizes a kipping (spring loaded) lever that allows you to lock the stud at up to 90 degrees of articulation with the light attached. - The iLED6 features a 6 watt daylight balanced LED with a color temperature of 5600K and a 95 CRI.
- It has a spot flood range of 30 to 60°
- You can dim the light from full brightness (100%) to zero (0%) using the on off knob.
- The barn doors provide spill control, with its two solid barn doors. The other two barn doors are used either to diffuse or balance the light to tungsten.
- The light accepts Sony L type batteries.
UPC: 847983008186 - CP-STND Compact Light Stand (6.25') The ikan CP-STND Compact Light Stand is ideal for supporting small lighting fixtures on location. The five-section stand rises to a height of 6.25', and by using a reversing-folding design, folds down to just 19" in length. The stand has a 5/8" stud and will support up to 5.5 lb.

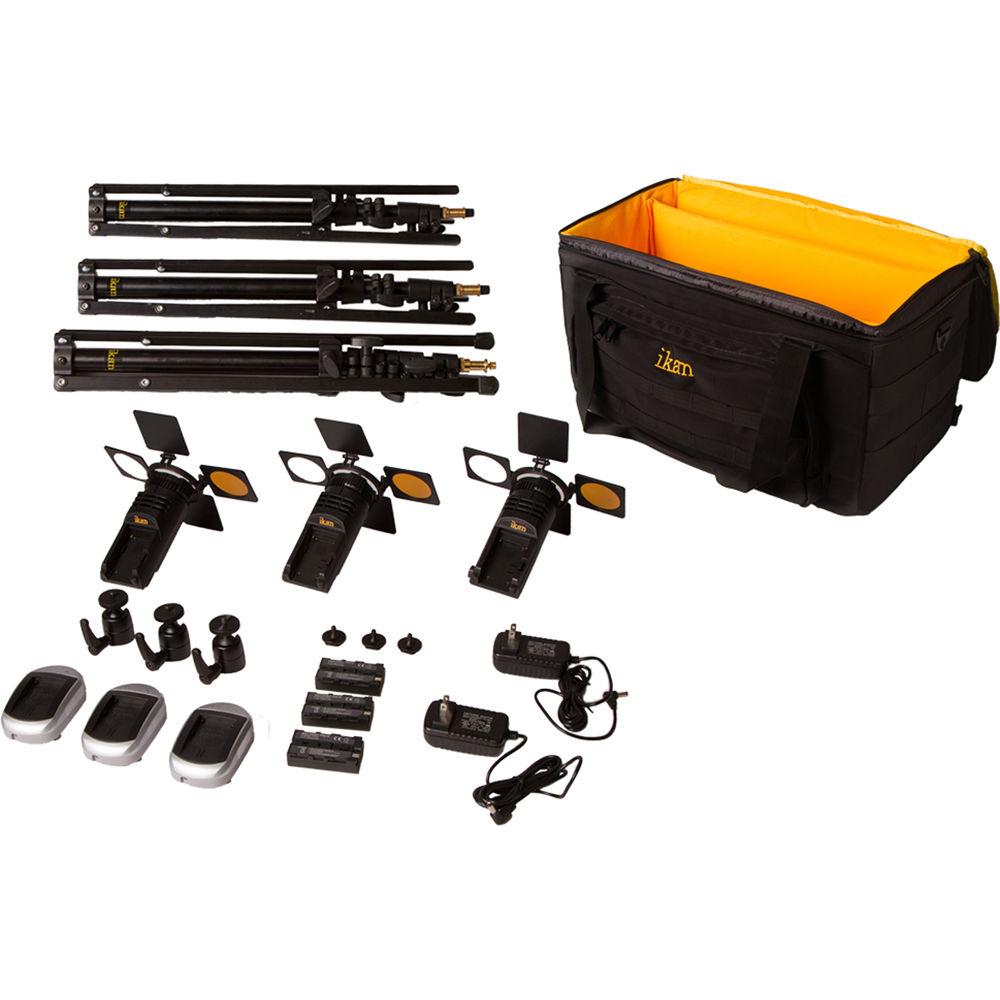

In the Box Bundle Items 3 x iLED6 Zoom ENG LED On-Camera Light - NP-F550 L-Series Compatible Battery (7.4V, 2900 mAh)
- Accessory Shoe Ball Joint Adapter to 1/4"-20 Stud
3 x CP-STND Compact Light Stand (6.25') yqffvxuf
Also Includes - Light Kit Bag
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan iLED6-KIT iLED6 3 x Zoom ENG LED On-Camera Light Kit with Stands and Bag in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - iLED6 Zoom ENG LED On-Camera Light
| | | Color Temperature | 5600K ± 200K | | Color Accuracy Standard | CRI 95 | | Dimming | Yes, 0 to 100% | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 7.4 to 24 VDC | | Max Power Consumption | 6 W | | Power Source | AC Adapter, External Battery | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 2.7 x 7.3 x 2.7" / 6.9 x 18.5 x 2.7 cm | | Weight | 2 lb / 0.9 kg (Including Battery, Barn Doors, Shoe Mount) | | | | Box Dimensions (LxWxH) | 11.2 x 5.9 x 3.3" | - CP-STND Compact Light Stand (6.25')
| Number of Risers | 4 | | Sections | 5 | | Material | Aluminum | | Load Capacity | 5.5 lb (2.5 kg) | | Dimensions | Maximum: 75" (190 cm)
Minimum: 23" (58 cm)
Closed: 19" (48 cm)
Footprint: 36" (91.4 cm) | | Weight | 2.0 lb (0.9 kg) | | | | Box Dimensions (LxWxH) | 20.1 x 3.2 x 3.0" |
