User Manual for ikan iLED6 Zoom ENG LED On-Camera Light Click to enlarge the picture
Contents of the user manual for the ikan iLED6 Zoom ENG LED On-Camera
- Product category: On Camera Lights ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan On Camera Lights
 |
User manual for the ikan iLED6 Zoom ENG LED On-Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

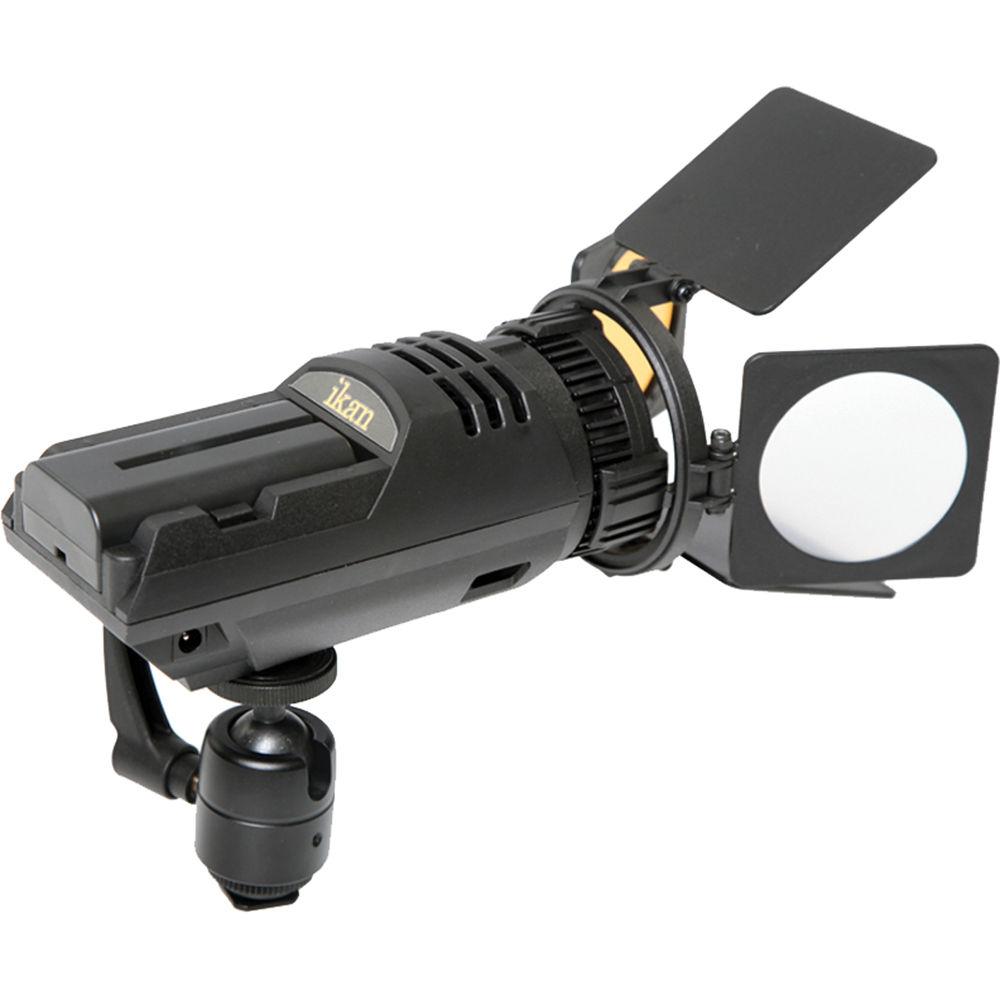

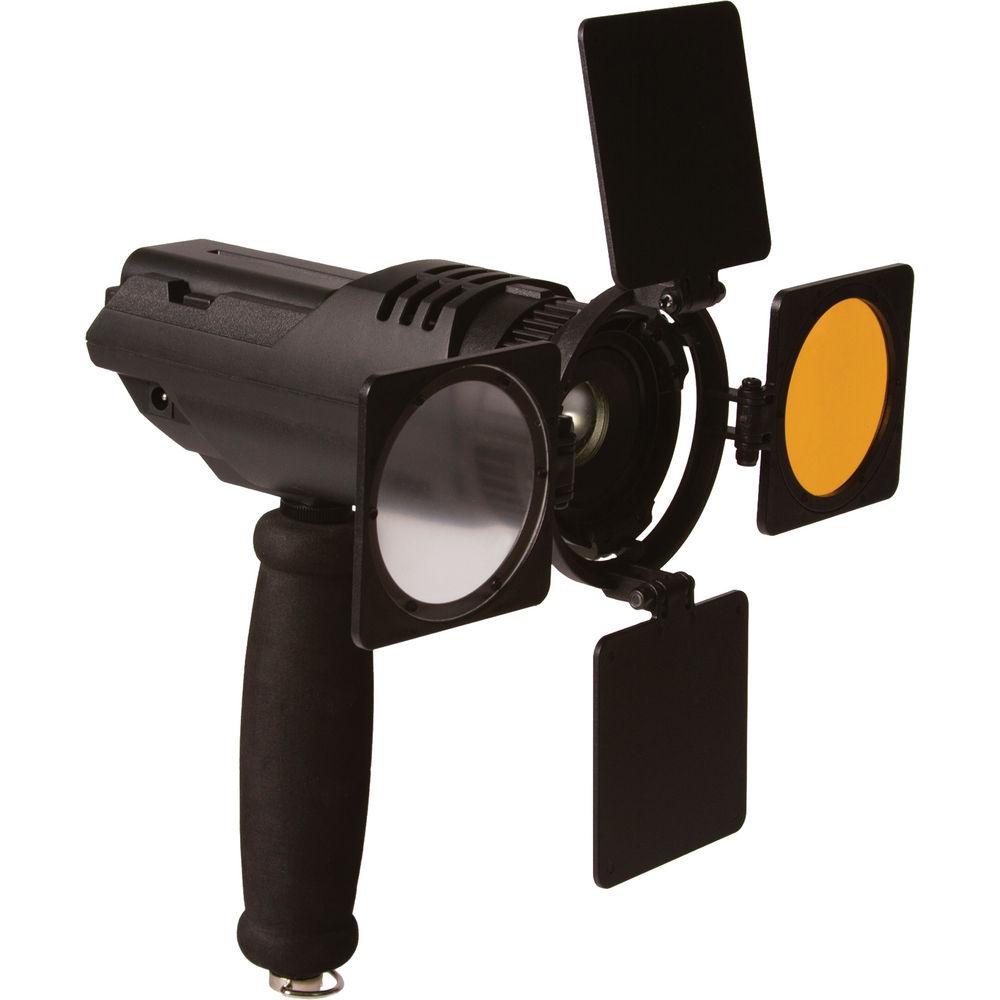

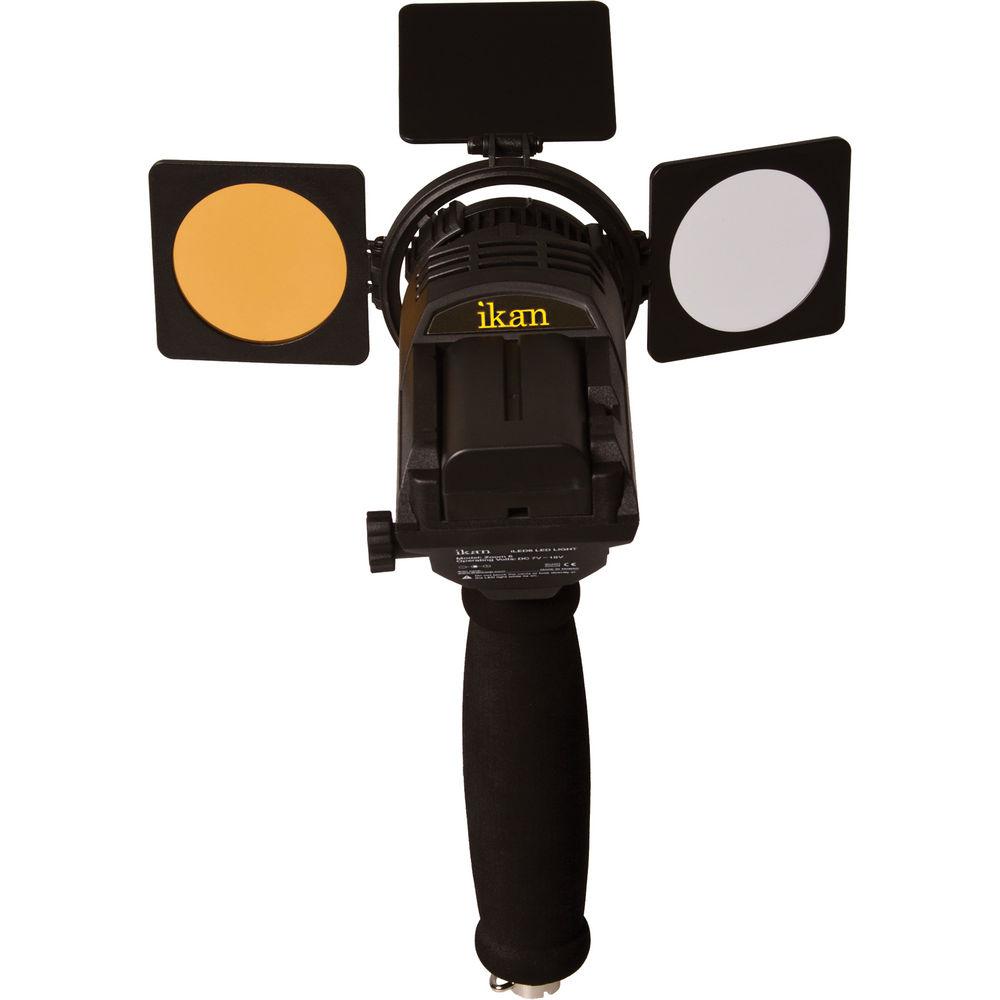

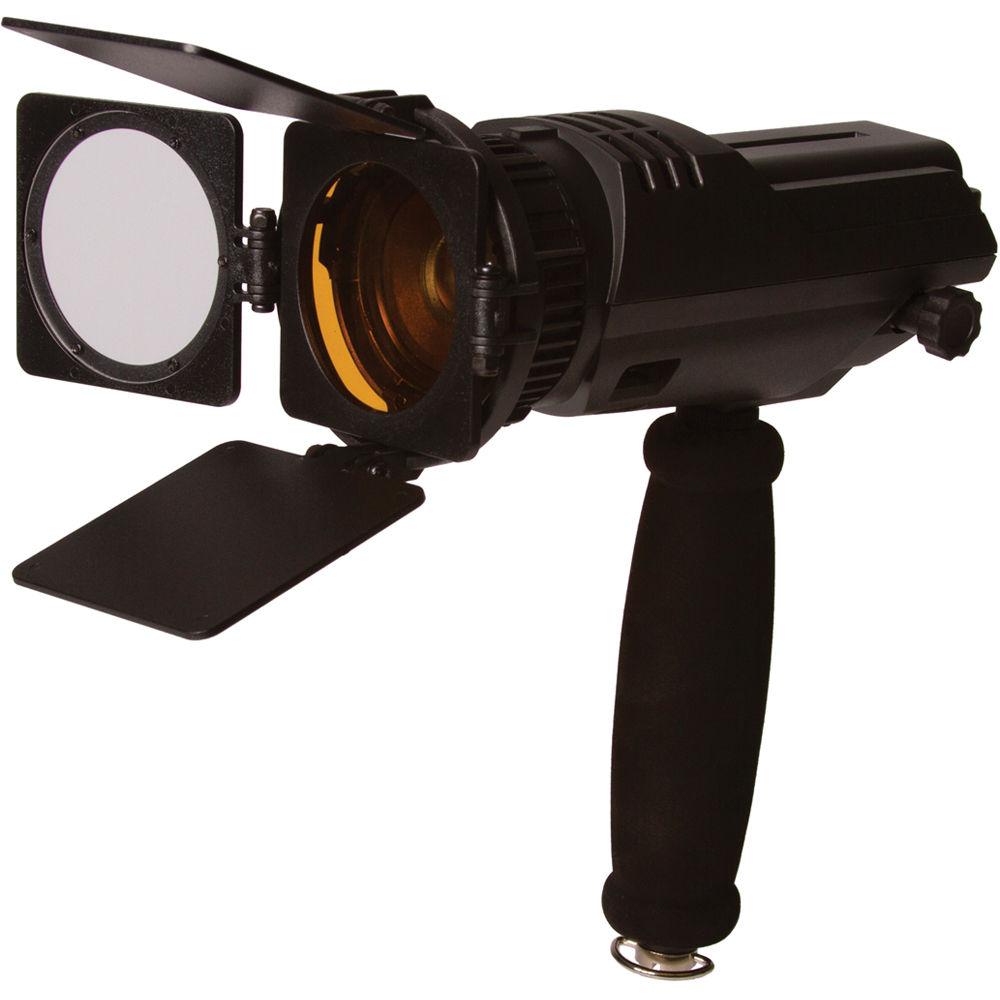

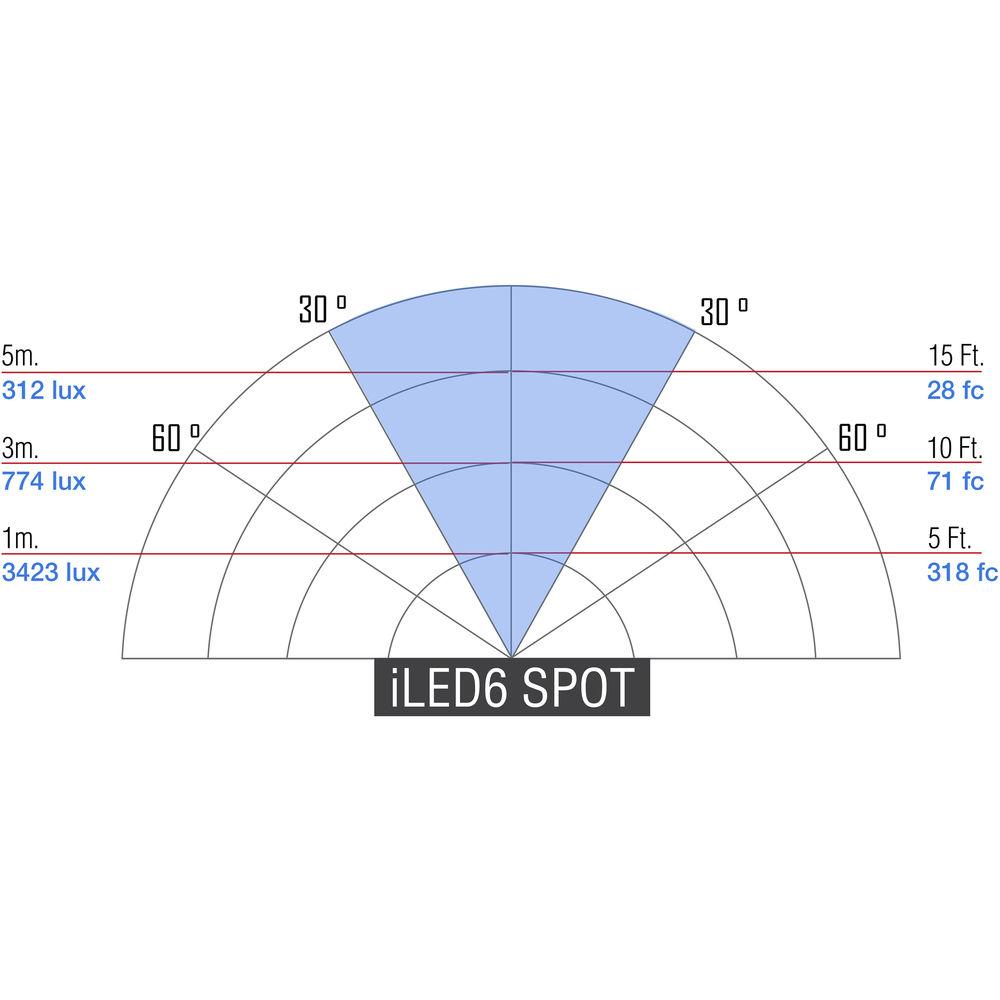

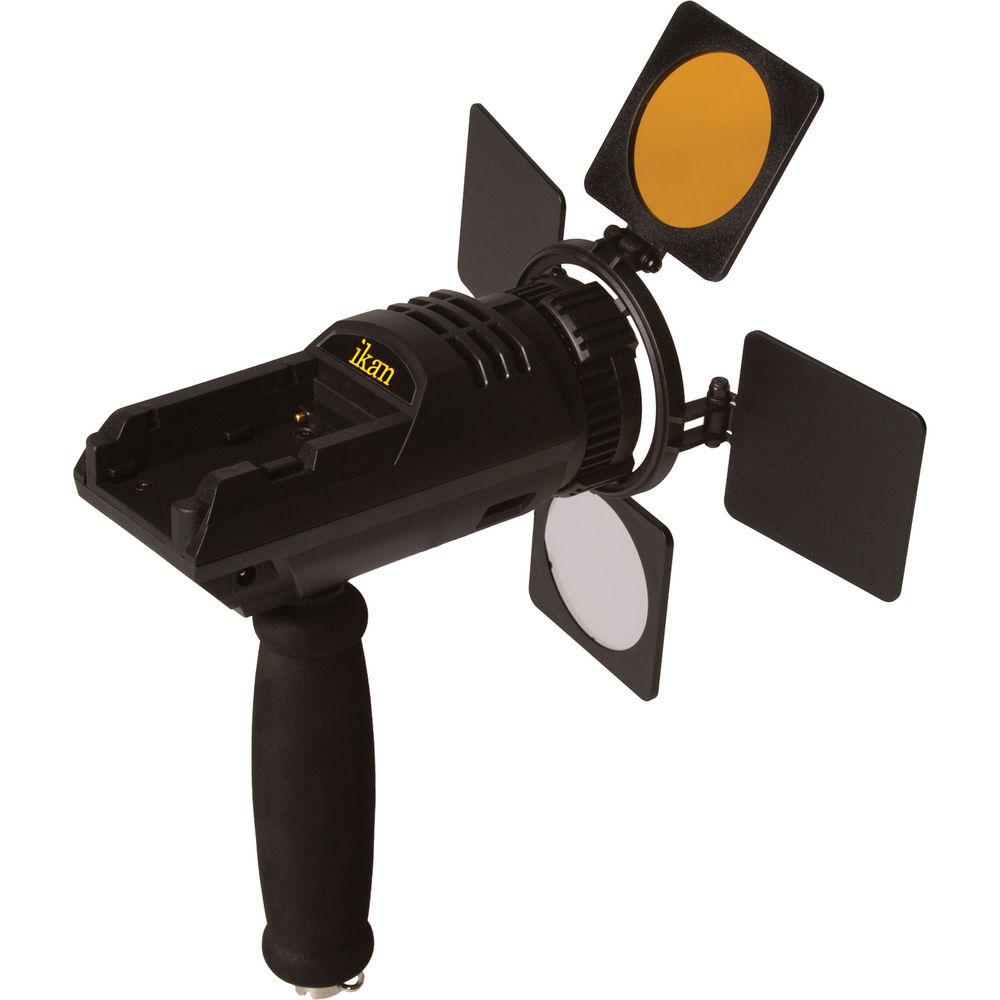

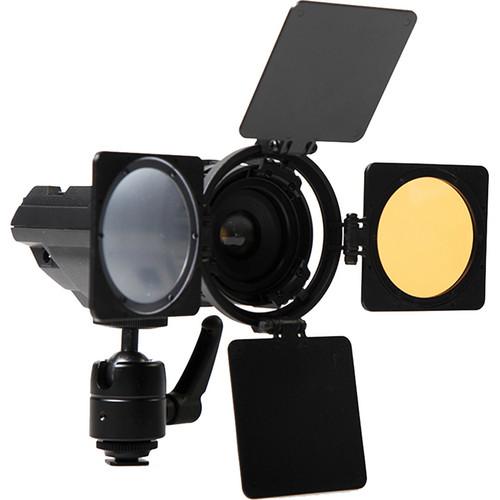

Product description The ikan iLED6 Zoom ENG LED On-Camera Light is a daylight balanced LED on-camera ENG style light with a CRI rating of up to 95. The unit draws only 6 watts and produces 2500 Lux at 1 meter in full spot. It features a spot flood adjustment and smoothly dims from 100 percent brightness down to 0. It incorporates a rotating 4 leaf barn door system with two solid doors for spill control while the other two doors hold a diffusion and a CTO correction gel.

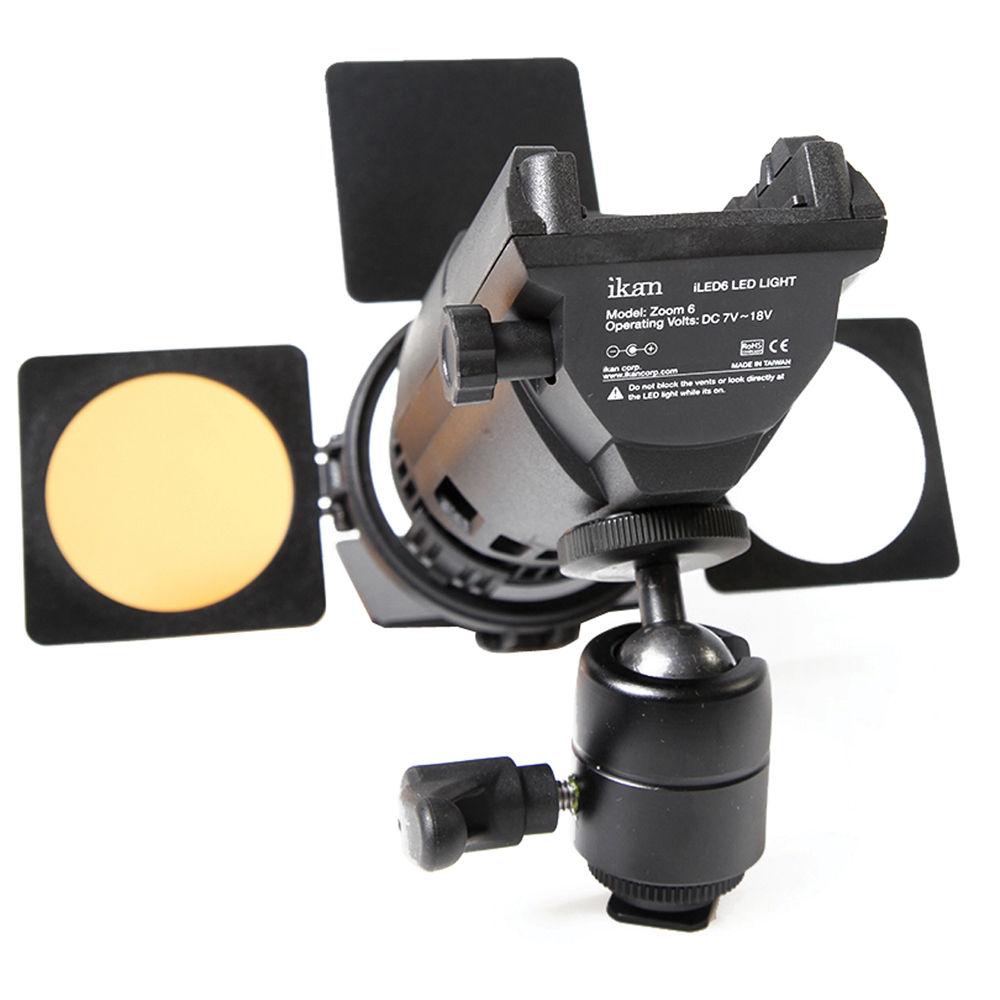

The iLED6 is powered by Sony L type batteries and includes one 2000mAh Li-Ion battery, you can also power the unit using the included AC power adapter. The unit features a 1/4"-20 threaded mounting hole and includes a sturdy ball joint cold shoe to 1/4"-20 stud adapter. The ball joint utilizes a kipping (spring loaded) lever that allows you to lock the stud at up to 90 degrees of articulation with the light attached. - The iLED6 features a 6 watt daylight balanced LED with a color temperature of 5600K and a 95 CRI.

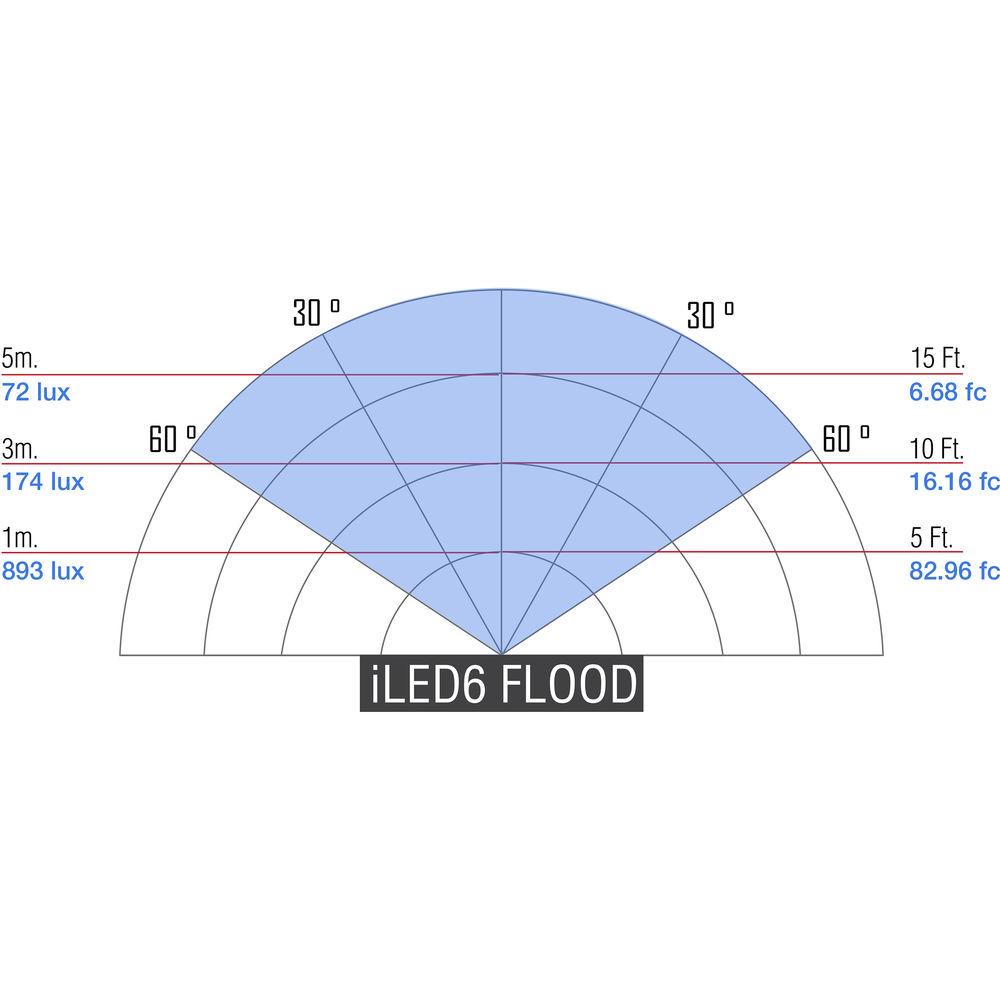

- It has a spot flood range of 30 to 60°
- You can dim the light from full brightness (100%) to zero (0%) using the on off knob.

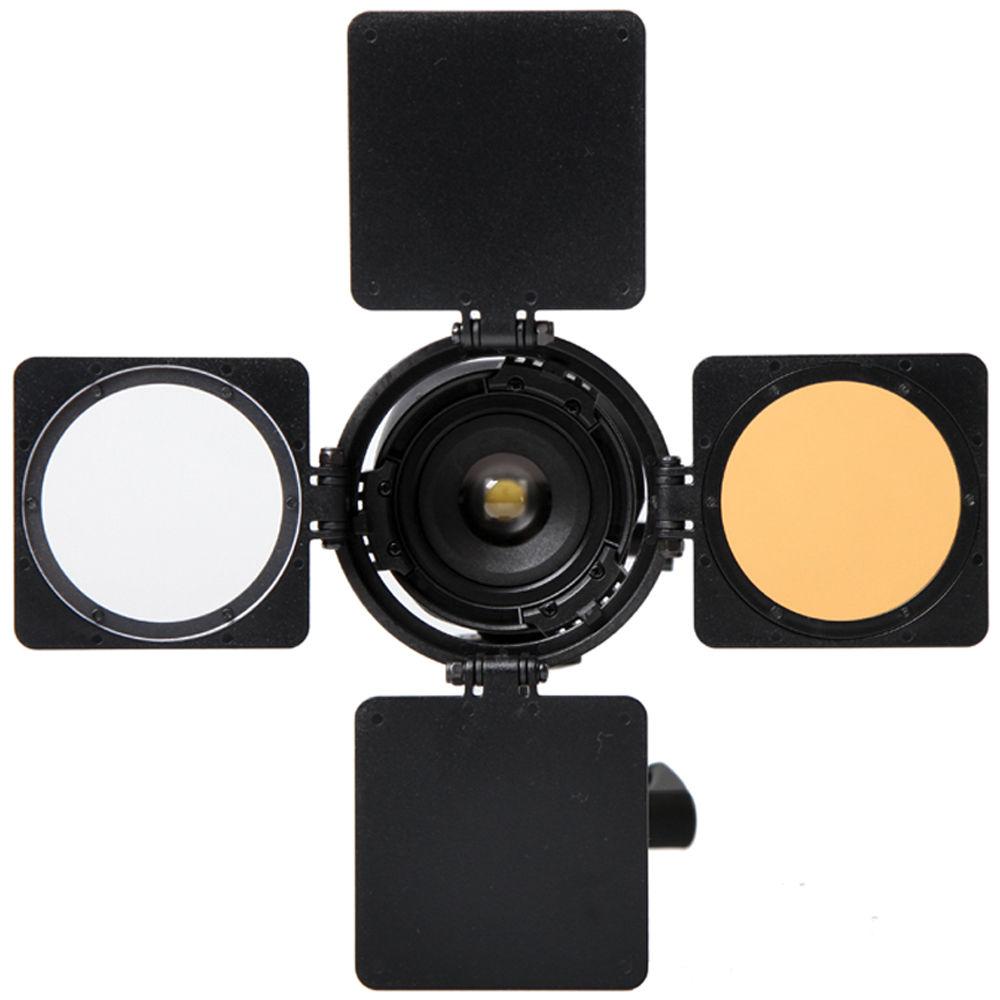

- The barn doors provide spill control, with its two solid barn doors. The other two barn doors are used either to diffuse or balance the light to tungsten.
- The light accepts Sony L type batteries.
UPC: 847983008186 In the Box ikan iLED6 Zoom ENG LED On-Camera Light AC Adapter NP-F550 L-Series Compatible Battery (7.4V, 2900 mAh) dxxqqywzaacusxerffzxtfc Battery Charger Accessory Shoe Ball Joint Adapter to 1/4"-20 Stud Quick-Start Guide PDF 843.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan iLED6 Zoom ENG LED On-Camera Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan iLED6 Specs | | | Color Temperature | 5600K ± 200K | | Color Accuracy Standard | CRI 95 | | Dimming | Yes, 0 to 100% | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 7.4 to 24 VDC | | Max Power Consumption | 6 W | | Power Source | AC Adapter, External Battery | | | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | | Dimensions | 2.7 x 7.3 x 2.7" / 6.9 x 18.5 x 2.7 cm | | Weight | 2 lb / 0.9 kg (Including Battery, Barn Doors, Shoe Mount) | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 11.2 x 5.9 x 3.3" |
