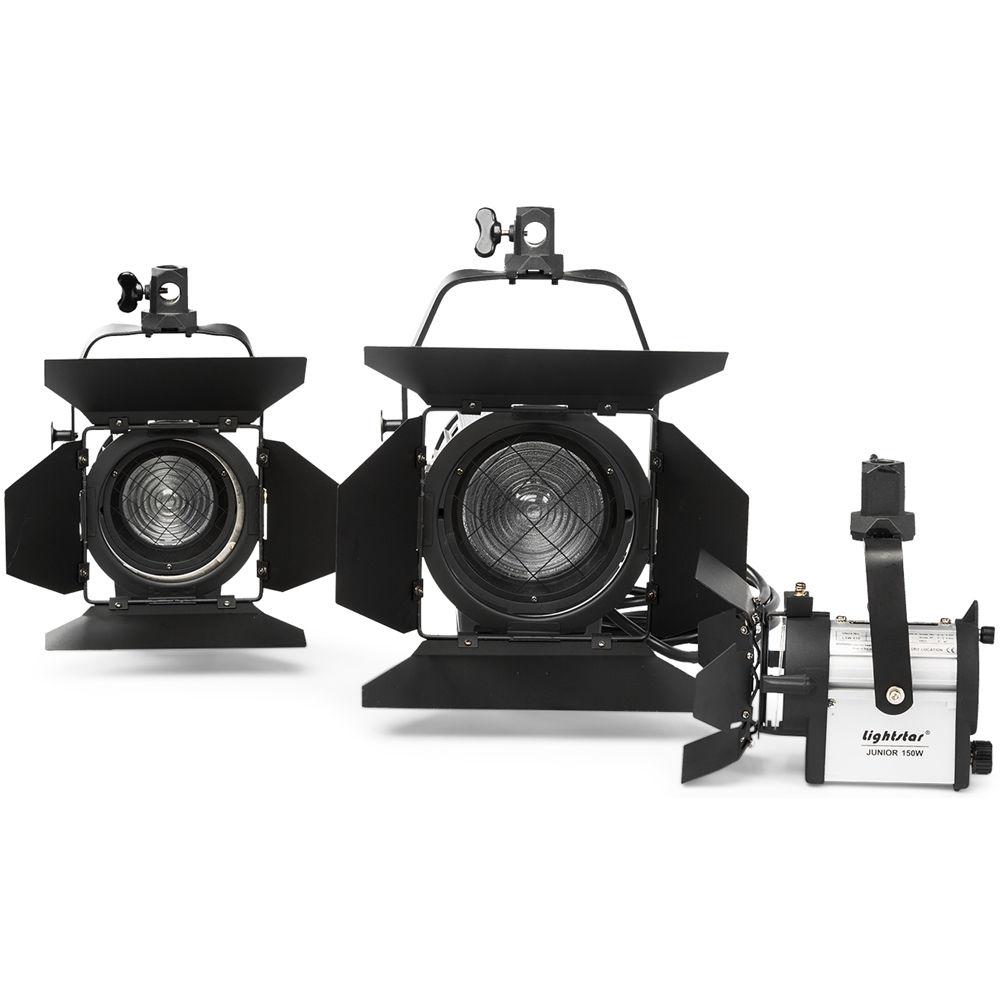

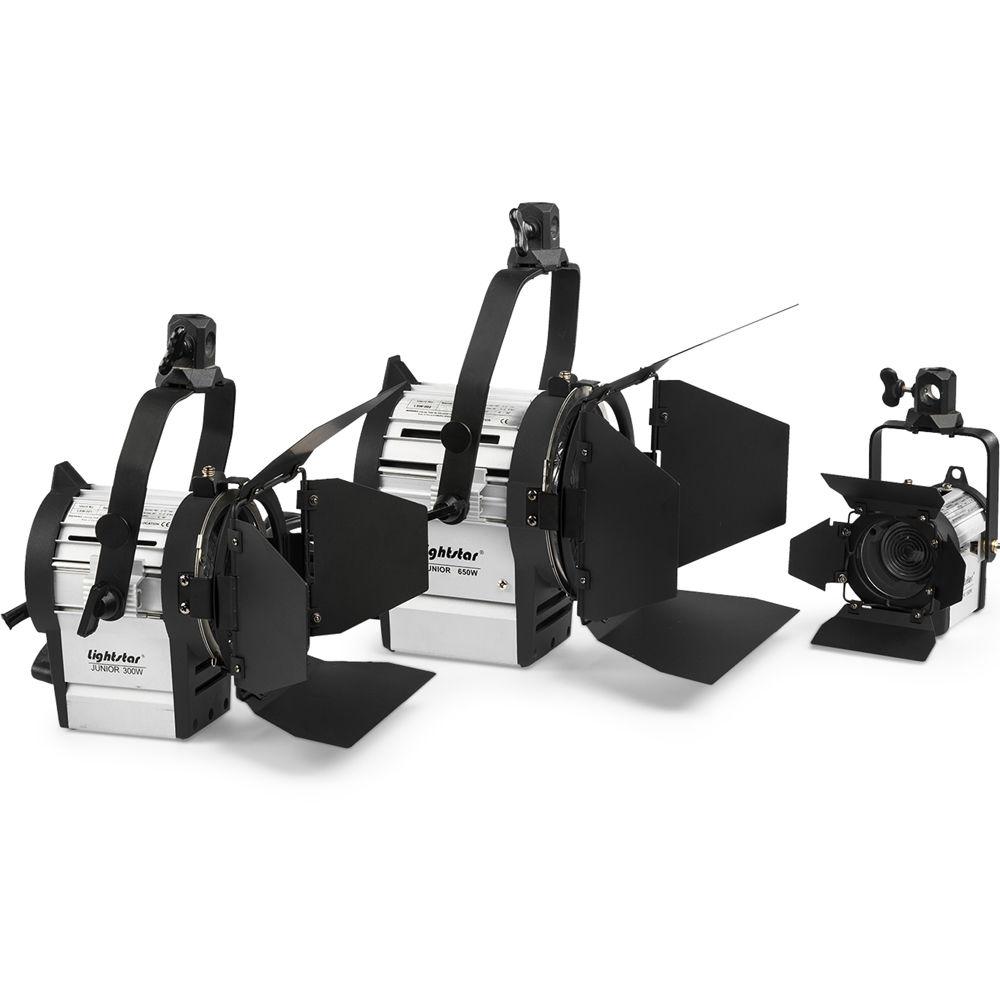

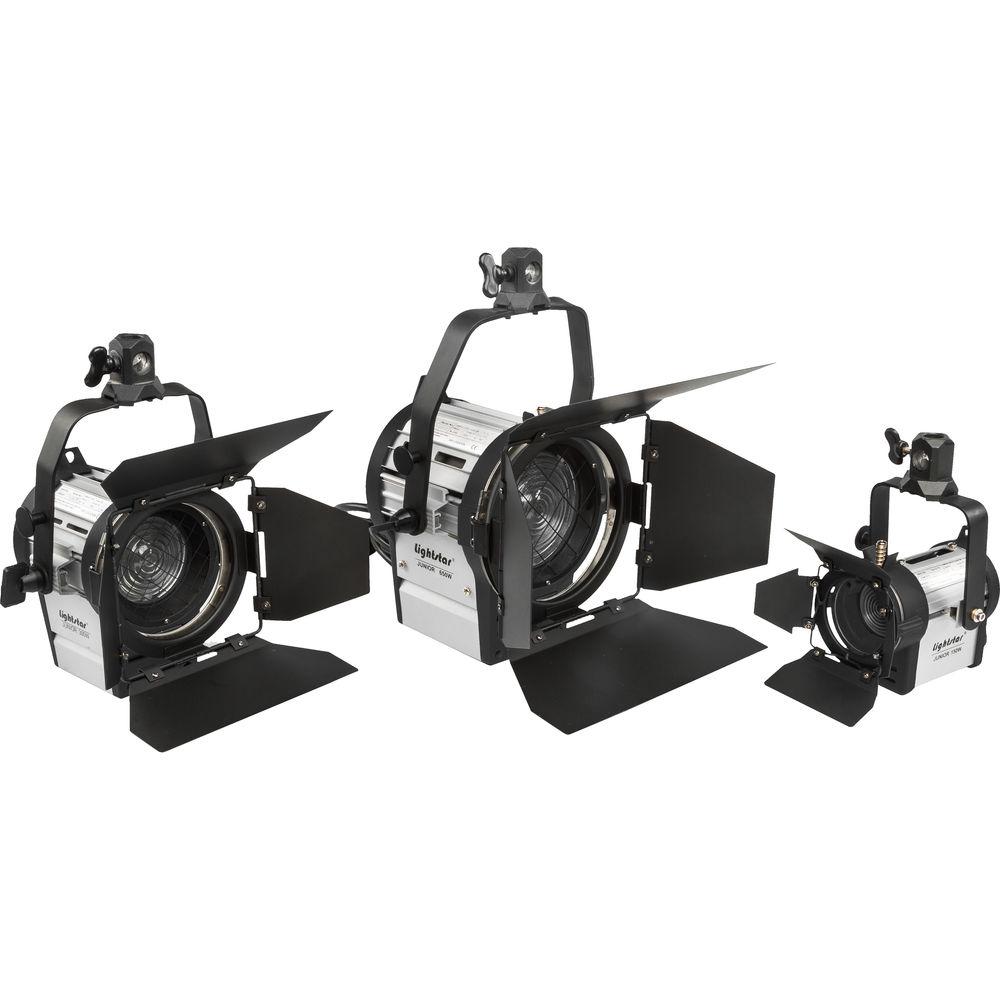

Product description The Lightstar 3-Point Tungsten Fresnel Light Kit with 150, 300, and 650 Watt Fixtures from ikan is for use with 120 VAC power and provides a classic small tungsten interview kit. It includes one each of the Lightstar 150, 300, and 650 Fresnel fixtures with barndoors, scrims, and a gel frame for each light. Rounding out the kit are bulbs for fixtures, three lightstands, and a roller bag to pack the kit for storage and transport.
The lights feature passively cooled aluminum housings with heat-resistant borosilicate glass Fresnel lenses. Focusing the beam from flood to spot is accomplished via a worm drive. Attached to the yoke is a 90° baby-pin receiver providing a variety of mounting options, and the yoke itself can be positioned above the fixture, so you can hang it from above, while the bulb maintains the correct orientation during operation. - Lightstar 300-Watt Tungsten Fresnel Light Featuring a clean industrial design that is lightweight and promotes passive cooling, the Lightstar 300-Watt Tungsten Fresnel Light from ikan is a small yet powerful lighting instrument. It incorporates a 3.1" temperature-resistant Fresnel lens that throws a hard tungsten-balanced light, and it features a 14° to 53° spot/flood adjustment. The worm-drive focusing mechanism employed by the fixture is reliable and well established.
The aluminum housing minimizes the weight of the fixture, while helping to dissipate heat. The fixture features a flip-up top that allows access to the inside for replacing the bulb (bulb not included). A 90° baby-pin receiver allows you to mount the fixture on top of a stand, or you can alternately insert a C-stand arm or similar through the receiver. The yoke features a cord wrap post and cord for coiling the attached power cord on the yoke, and the fixture includes a 4-leaf barndoor setup that you can rotate to adjust your spill control. - Small Size
- You can use this for a hair light or as a kicker to brighten up a specific part of your image. It is suitable for use as a backlight, or eyelight when you want to accentuate the eyes of your subject.
- Borosilicate Fresnel Lens
- The fixture incorporates a 3.1" temperature-resistant borosilicate Fresnel lens. The Fresnel lens allows the light to be more efficient and provides better control of the light than an open-face fixture.
- Hard/Soft Light
- The fixture's lens softens the light emitted by the bulb (bulb not included), enlarging the point-source nature of the bulb's filament. However, the light emitted by the fixture is still considered hard, just not as harsh in appearance as the light from a bare bulb. You can add diffusion to the fixture to soften the light further, use compatible soft boxes (not included), or bounce the light for a large soft source.
- Underslinging
- Removing the barndoors allows you to position the yoke above the fixture, so that you can undersling the fixture for alternate mounting possibilities. Remember to replace the barndoors after you have mounted the light.
- Barndoor Safety
- A spring-loaded safety minimizes the chance that the barndoors (or optional scrims) will fall out of the fixture.
UPC: 847983015559 - Lightstar 650-Watt Tungsten Fresnel Light Featuring a clean industrial design that is lightweight and promotes passive cooling, the Lightstar 650-Watt Tungsten Fresnel Light from ikan is a small, yet powerful lighting instrument. It incorporates a 4.4" temperature-resistant Fresnel lens that throws a hard tungsten-balanced light, and it features a 12° to 52° spot/flood adjustment. The worm-drive focusing mechanism employed by the fixture is reliable and well established.
The aluminum housing minimizes the weight of the fixture, while helping to dissipate heat. The fixture features a flip-up top that allows access to the inside for replacing the bulb (bulb not included). A 90° baby-pin receiver allows you to mount the fixture on top of a stand, or you can alternately insert a C-stand arm or similar through the receiver. The yoke features a cord-wrap post and cord for coiling the attached power cord on the yoke, and the fixture includes a 4-leaf barndoor setup that you can rotate to adjust your spill control. - Borosilicate Fresnel Lens
- The fixture incorporates a 4.4" temperature-resistant borosilicate Fresnel lens. The Fresnel lens allows the light to be more efficient and provides better control of the light than an open-face fixture.
- Hard/Soft Light
- The fixture's lens softens the light emitted by the bulb (bulb not included), enlarging the point-source nature of the bulb's filament. However, the light emitted by the fixture is still considered hard, just not as harsh in appearance as the light from a bare bulb. You can add diffusion to the fixture to soften the light further, or use compatible soft boxes (not included), or bounce the light for a large soft beam source.
- Underslinging
- Removing the barndoors allows you to position the yoke above the fixture, so that you can undersling the fixture for alternate mounting possibilities. Remember to replace the barndoors after you have mounted the light.
- Barndoor Safety
- A spring-loaded safety minimizes the chance that the barndoors (or optional scrims) will fall out of the fixture.
UPC: 847983009411 - Lightstar 150-Watt Tungsten Fresnel Light Featuring a clean industrial design that is lightweight and promotes passive cooling, the Lightstar 150-Watt Tungsten Fresnel Light from ikan is a small yet powerful lighting instrument. It incorporates a 1.9" temperature-resistant Fresnel lens that throws a hard tungsten-balanced light, and it features an 11° to 55° spot/flood adjustment. The worm-drive focusing mechanism employed by the fixture is reliable and well established.
The aluminum housing minimizes the weight of the fixture, while helping to dissipate heat. Access to the inside of the light for bulb changes is via a thumbscrew on the back of the fixture that allows the top of the chassis to slide forward revealing the internal bulb socket, reflector, and focusing mechanism. A 90° baby-pin receiver allows you to mount the fixture on top of a stand, or you can alternately insert a C-stand arm or similar through the receiver. The yoke features a cord wrap post and cord for coiling the power cord on the yoke, and the fixture includes a 4-leaf barndoor setup that you can rotate to set your light spill control. - Small Size
- The fixture's small size makes it idea for fitting into small places and providing just a little bit of light onto your subject. You can use this for a hair light, or as a kicker to brighten up a specific part of your image. It is suitable for use as a backlight, or eyelight when you want to accentuate the eyes of your subject.
- Borosilicate Fresnel Lens
- The fixture incorporates a 1.9" temperature-resistant borosilicate Fresnel lens. The Fresnel lens allows the light to be more efficient and provides better control of the light than an open-face fixture.
- Hard/Soft Light
- The fixture's lens softens the light emitted by the bulb (bulb not included), enlarging the point-source nature of the bulb's filament. However, the light emitted by the fixture is still considered hard, just not as harsh in appearance as the light from a bare bulb. You can add diffusion to the fixture to soften the light further, use compatible soft boxes (not included), or bounce the light for a large soft source.
- Underslinging
- Removing the barndoors allows you to position the yoke above the fixture, so that you can undersling the fixture for alternate mounting possibilities. Remember to replace the barndoors after you have mounted the light.
- Barndoor Safety
- A spring-loaded safety minimizes the chance that the barndoors (or optional scrims) will fall out of the fixture.

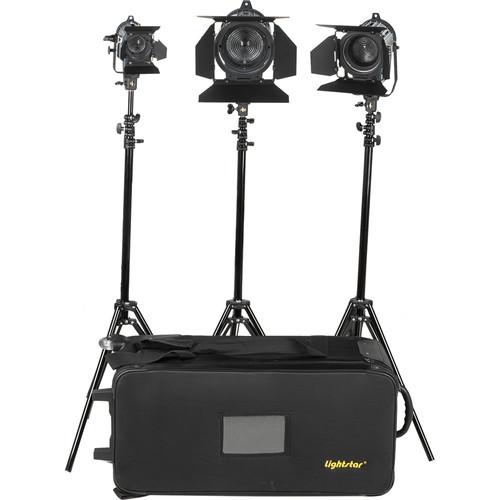

UPC: 847983011278 In the Box Bundle Items Lightstar 300-Watt Tungsten Fresnel Light bcfyywqqxqvsfaurzucduzwzzv Lightstar 650-Watt Tungsten Fresnel Light Lightstar 150-Watt Tungsten Fresnel Light
Also Includes - 300W Lamp
- 3 x Gel Frames
- 3 x Scrim Set (Single, Double, Half Single, Half Double)
- 650W Lamp
- 150W Lamp
- 3 x Light Stand (6')

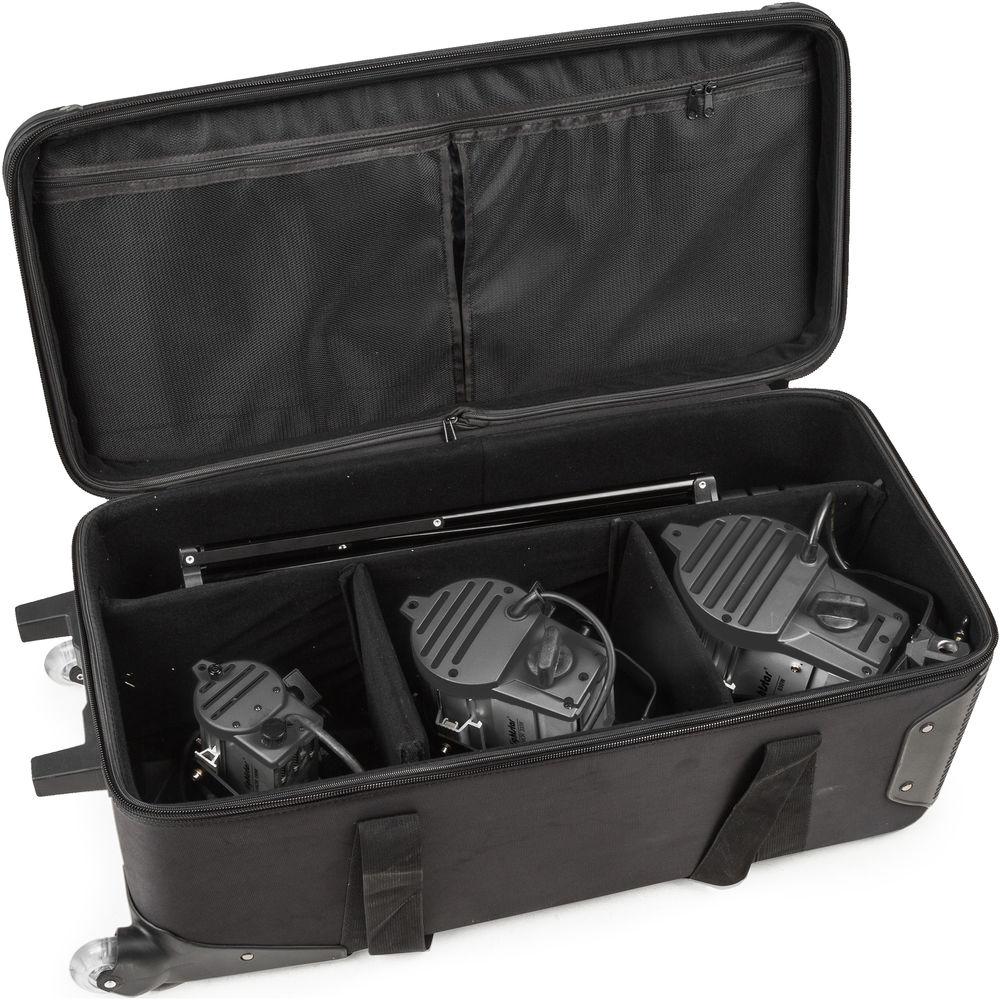

- Kit Roller Bag
Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Lightstar 3-Point Tungsten Fresnel Light Kit with 150W, 300W, 650W in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lightstar 300-Watt Tungsten Fresnel Light
| | | Beam Angle | 14 to 53° | | Bulb Type | 1 x GY9.5 | | Max Bulb Wattage | 300 W | | Lens Type | Fresnel | | Lens Diameter | 3.1" / 78.7 mm | | Photometrics | 14°:
1647.1 fc / 17,730 lux at 3.28' / 1 m
411.8 fc / 4433 lux at 6.56' / 2 m
183 fc / 1970 lux at 9.84' / 3 m
53°:
359.5 fc / 3870 lux at 3.28' / 1 m
89.9 fc / 968 lux at 6.56' / 2 m
39.9 fc / 430 lux at 9.84' / 3 m | | Built-In Dimmer | None | | Focusable | Yes | | Front Accessory Mount | 5" (Scrim) | | Umbrella Mount | None | | | | AC Input Power | 120 VAC, 60 Hz | | Mounting | 5/8" Receiver (via Included Yoke Mount) | | Cable Length | 6' / 1.8 m | | Material | Aluminum (Housing) | | Dimensions | 10.2 x 8.7 x 6.9" / 26 x 22 x 17.5 cm | | Weight | 4.6 lb / 2.1 kg | | | | Box Dimensions (LxWxH) | 10.5 x 9.0 x 7.5" | - Lightstar 650-Watt Tungsten Fresnel Light
| | | Beam Angle | 12 to 52° | | Bulb Type | 1 x GY9.5 | | Max Bulb Wattage | 650 W | | Lens Type | Fresnel | | Lens Diameter | 4.4" / 112 mm | | Photometrics | 12°:
1029.3 fc / 11,080 lux at 8.2' / 2.5 m
525.2 fc / 5653 lux at 11.48' / 3.5 m
317.7 fc / 3420 lux at 14.76' / 4.5 m
52°:
189.5 fc / 2040 lux at 8.2' / 2.5 m
96.7 fc / 1041 lux at 11.48' / 3.5 m
58.5 fc / 630 lux at 14.76' / 4.5 m | | Built-In Dimmer | None | | Focusable | Yes | | Front Accessory Mount | 6-5/8" (Scrim) | | Umbrella Mount | None | | | | AC Input Power | 120 VAC, 60 Hz | | Mounting | 5/8" Receiver (via Included Yoke Mount) | | Cable Length | 6' / 1.8 m | | Material | Aluminum (Housing) | | Dimensions | 12.8 x 8.9 x 7.7" / 32.5 x 22.5 x 19.5 cm | | Weight | 5.5 lb / 2.5 kg | | | | Box Dimensions (LxWxH) | 11.0 x 11.0 x 9.1" | - Lightstar 150-Watt Tungsten Fresnel Light
| | | Beam Angle | 11 to 55° | | Bulb Type | 1 x G6.35 | | Max Bulb Wattage | 150 W | | Lens Type | Fresnel | | Lens Diameter | 1.9" / 48.2 mm | | Photometrics | 12°:
1029.3 fc / 11,080 lux at 8.2' / 2.5 m
525.2 fc / 5653 lux at 11.48' / 3.5 m
317.7 fc / 3420 lux at 14.76' / 4.5 m
52°:
189.5 fc / 2040 lux at 8.2' / 2.5 m
96.7 fc / 1041 lux at 11.48' / 3.5 m
58.5 fc / 630 lux at 14.76' / 4.5 m | | Built-In Dimmer | None | | Focusable | Yes | | Umbrella Mount | None | | | | AC Input Power | 120 VAC, 60 Hz | | Mounting | 5/8" Receiver (via Included Yoke Mount) | | Cable Length | 6' / 1.8 m | | Material | Aluminum (Housing) | | Dimensions | 8.1 x 5.7 x 6.5" / 20.5 x 14.6 x 16.5 cm | | Weight | 2.6 lb / 1.2 kg | | | | Box Dimensions (LxWxH) | 11.4 x 7.65 x 7.5" |
