User Manual for ikan Lightstar 300-Watt Tungsten Fresnel Light Click to enlarge the picture
Contents of the user manual for the ikan Lightstar 300-Watt Tungsten Fresnel Light
- Product category: Tungsten Lights ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Tungsten Lights
 |
User manual for the ikan Lightstar 300-Watt Tungsten Fresnel Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

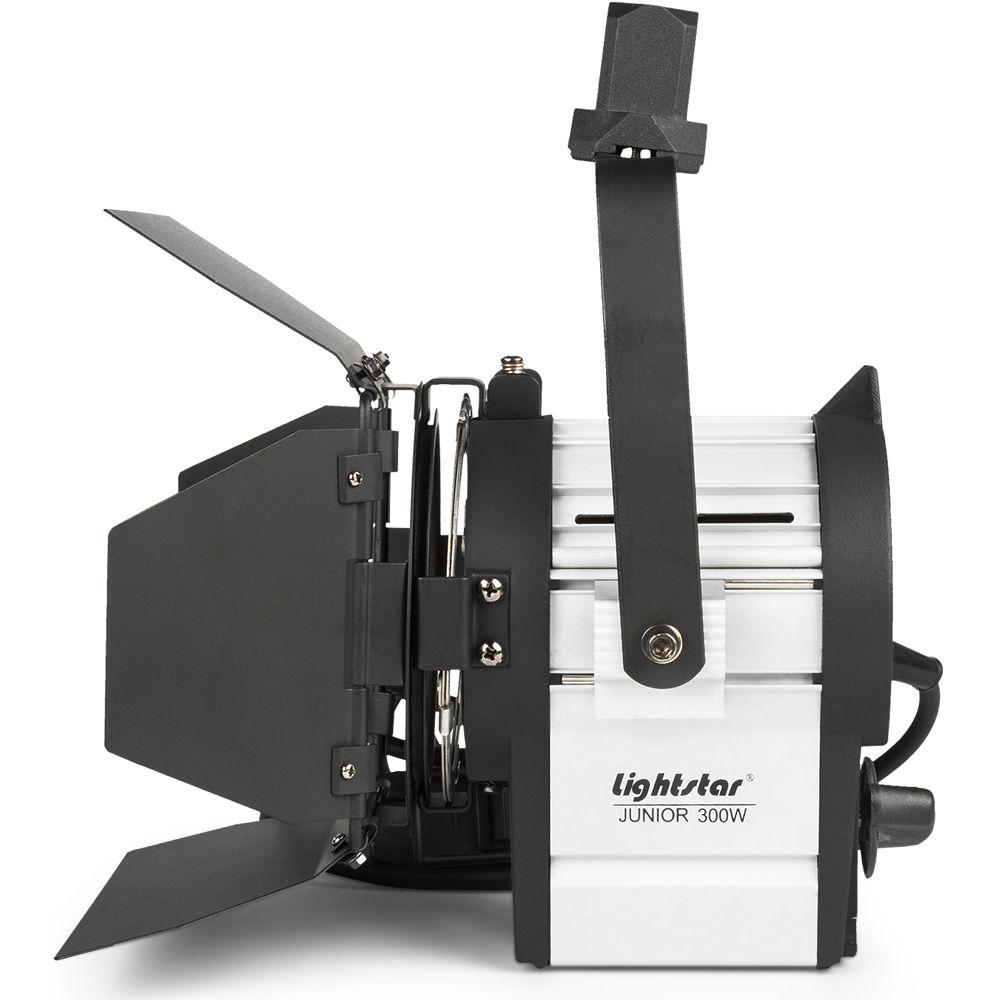

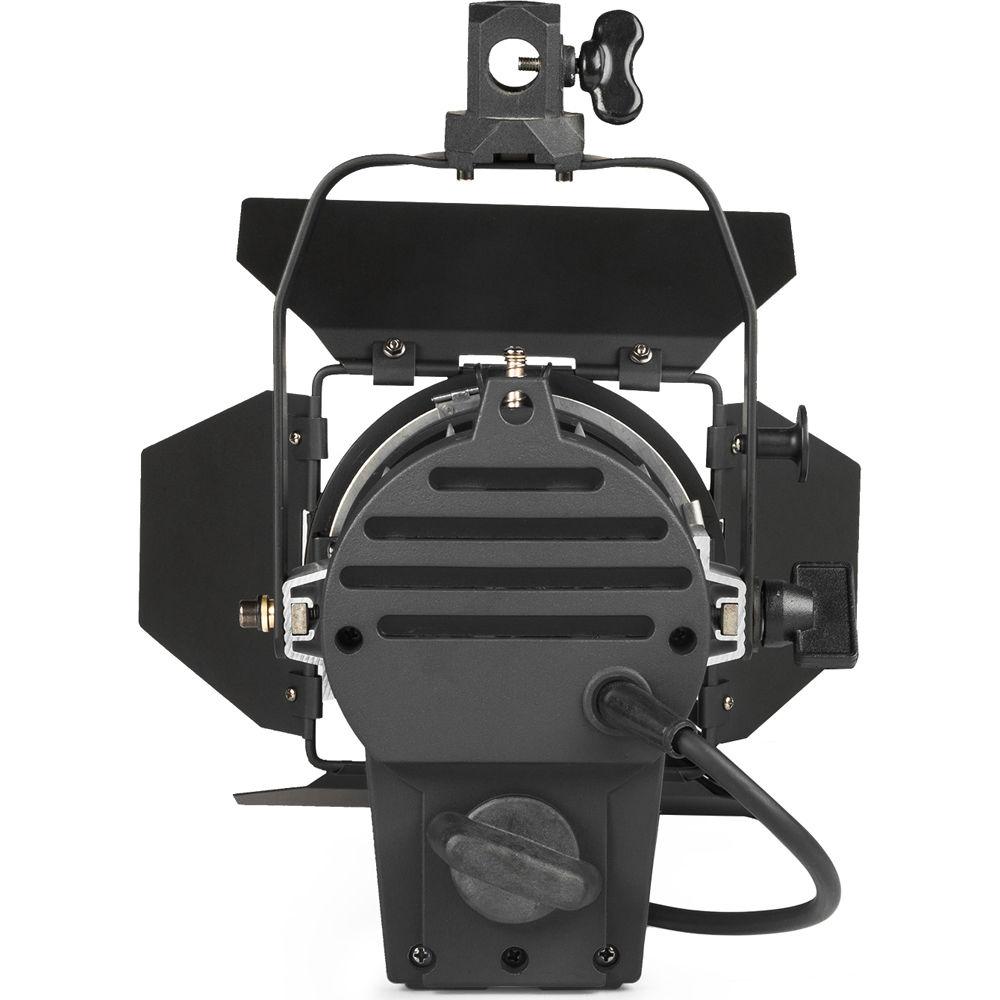

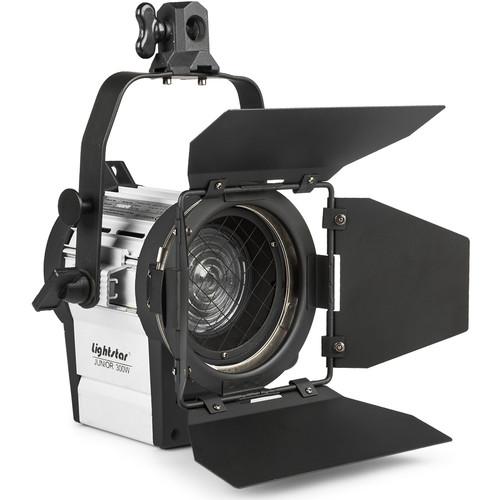

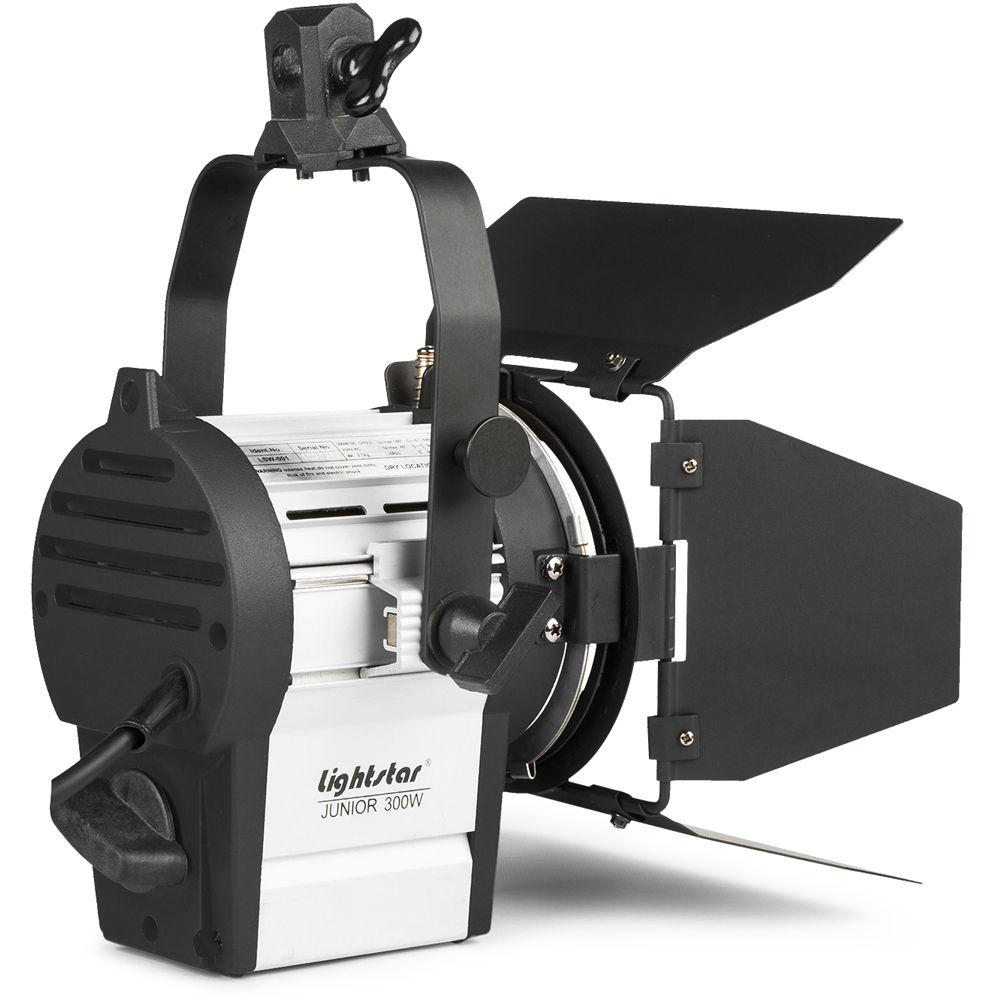

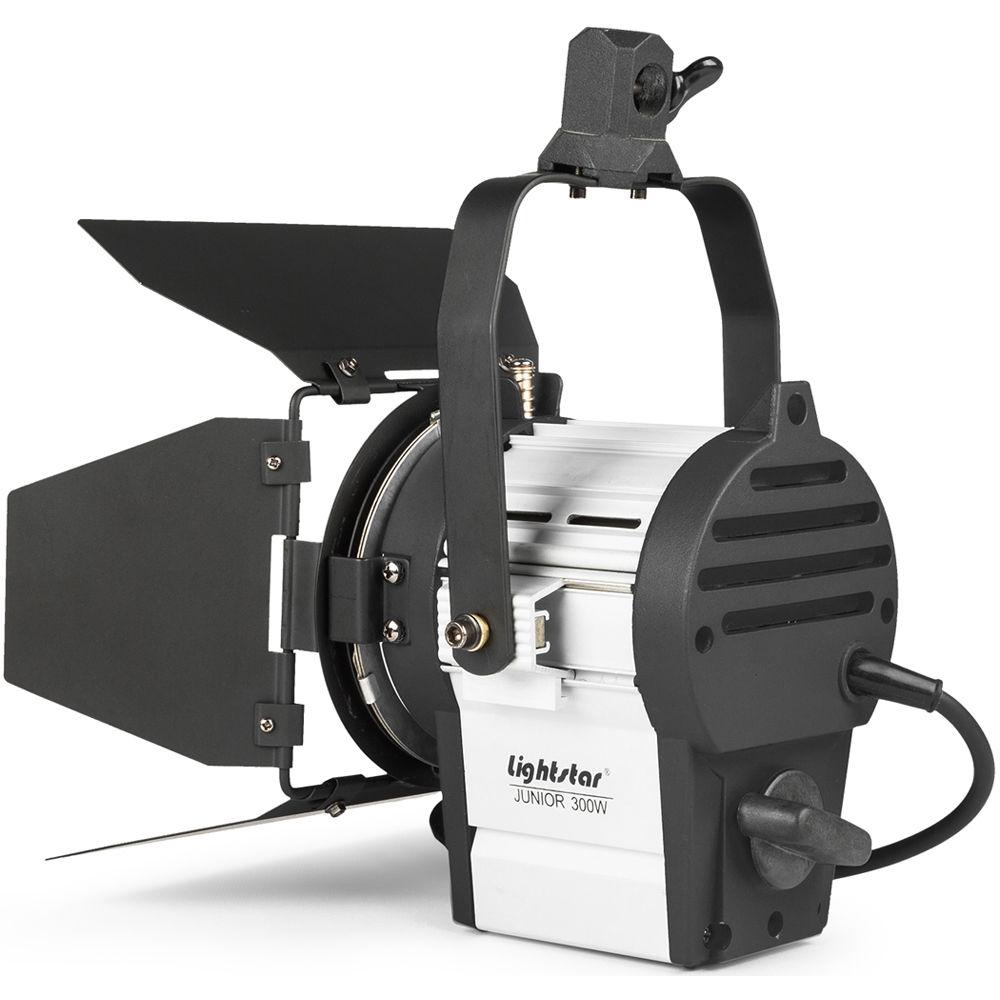

Product description Featuring a clean industrial design that is lightweight and promotes passive cooling, the Lightstar 300-Watt Tungsten Fresnel Light from ikan is a small yet powerful lighting instrument. It incorporates a 3.1" temperature-resistant Fresnel lens that throws a hard tungsten-balanced light, and it features a 14° to 53° spot/flood adjustment. The worm-drive focusing mechanism employed by the fixture is reliable and well established.

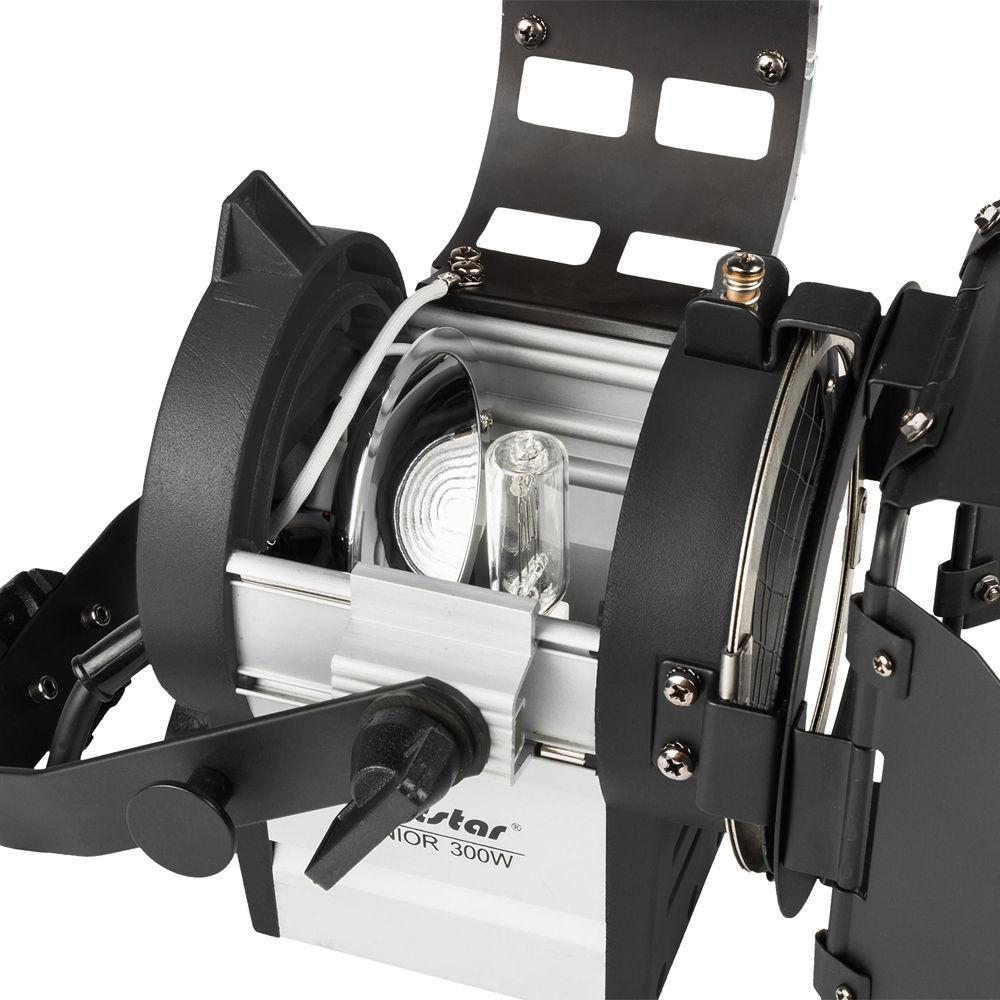

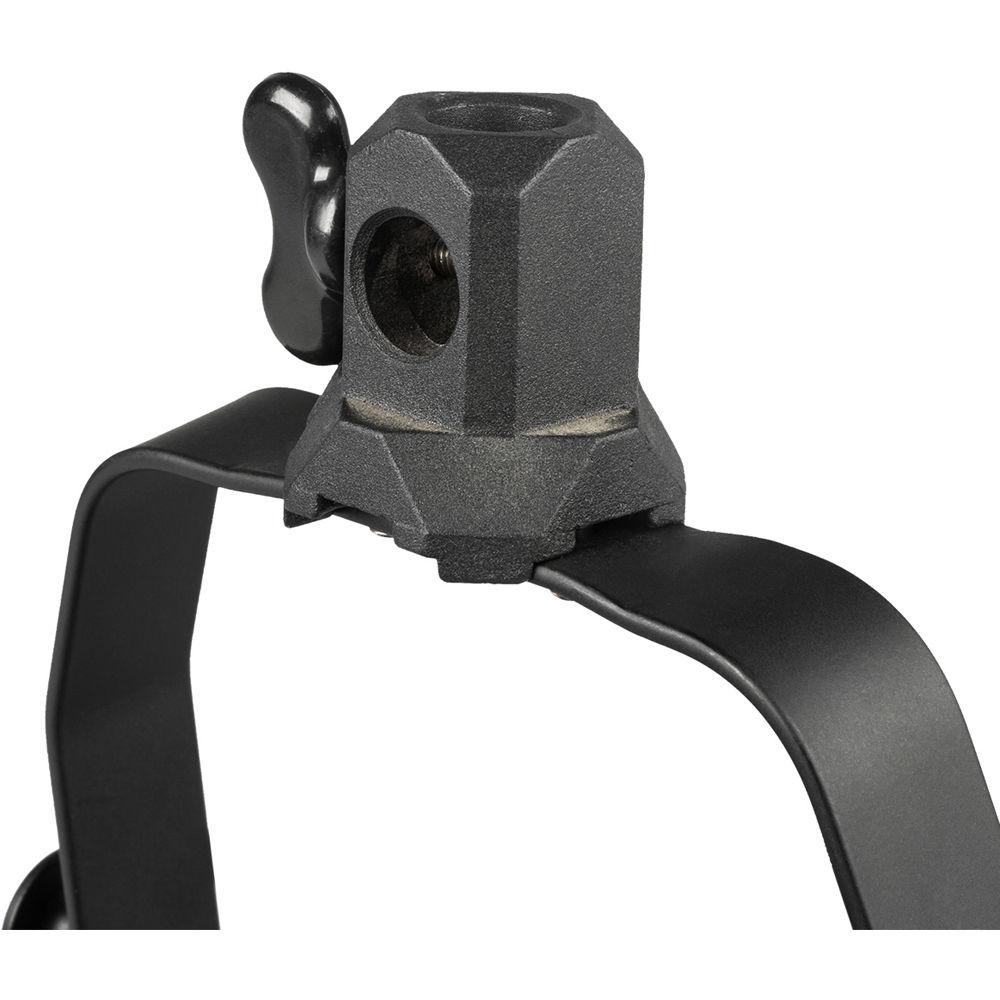

The aluminum housing minimizes the weight of the fixture, while helping to dissipate heat. The fixture features a flip-up top that allows access to the inside for replacing the bulb (bulb not included). A 90° baby-pin receiver allows you to mount the fixture on top of a stand, or you can alternately insert a C-stand arm or similar through the receiver. The yoke features a cord wrap post and cord for coiling the attached power cord on the yoke, and the fixture includes a 4-leaf barndoor setup that you can rotate to adjust your spill control. - Small Size
- You can use this for a hair light or as a kicker to brighten up a specific part of your image. It is suitable for use as a backlight, or eyelight when you want to accentuate the eyes of your subject.
- Borosilicate Fresnel Lens
- The fixture incorporates a 3.1" temperature-resistant borosilicate Fresnel lens. The Fresnel lens allows the light to be more efficient and provides better control of the light than an open-face fixture.
- Hard/Soft Light
- The fixture's lens softens the light emitted by the bulb (bulb not included), enlarging the point-source nature of the bulb's filament. However, the light emitted by the fixture is still considered hard, just not as harsh in appearance as the light from a bare bulb. You can add diffusion to the fixture to soften the light further, use compatible soft boxes (not included), or bounce the light for a large soft source.
- Underslinging

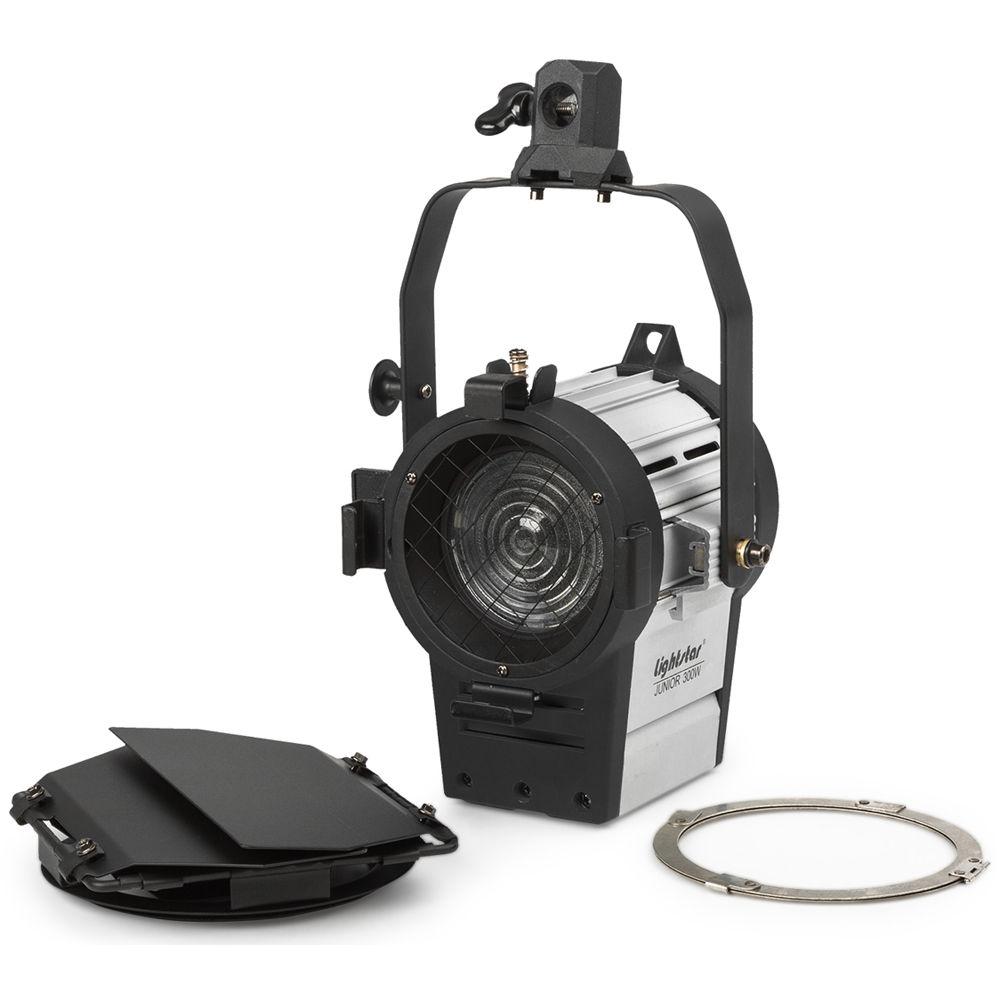

- Removing the barndoors allows you to position the yoke above the fixture, so that you can undersling the fixture for alternate mounting possibilities. Remember to replace the barndoors after you have mounted the light.
- Barndoor Safety

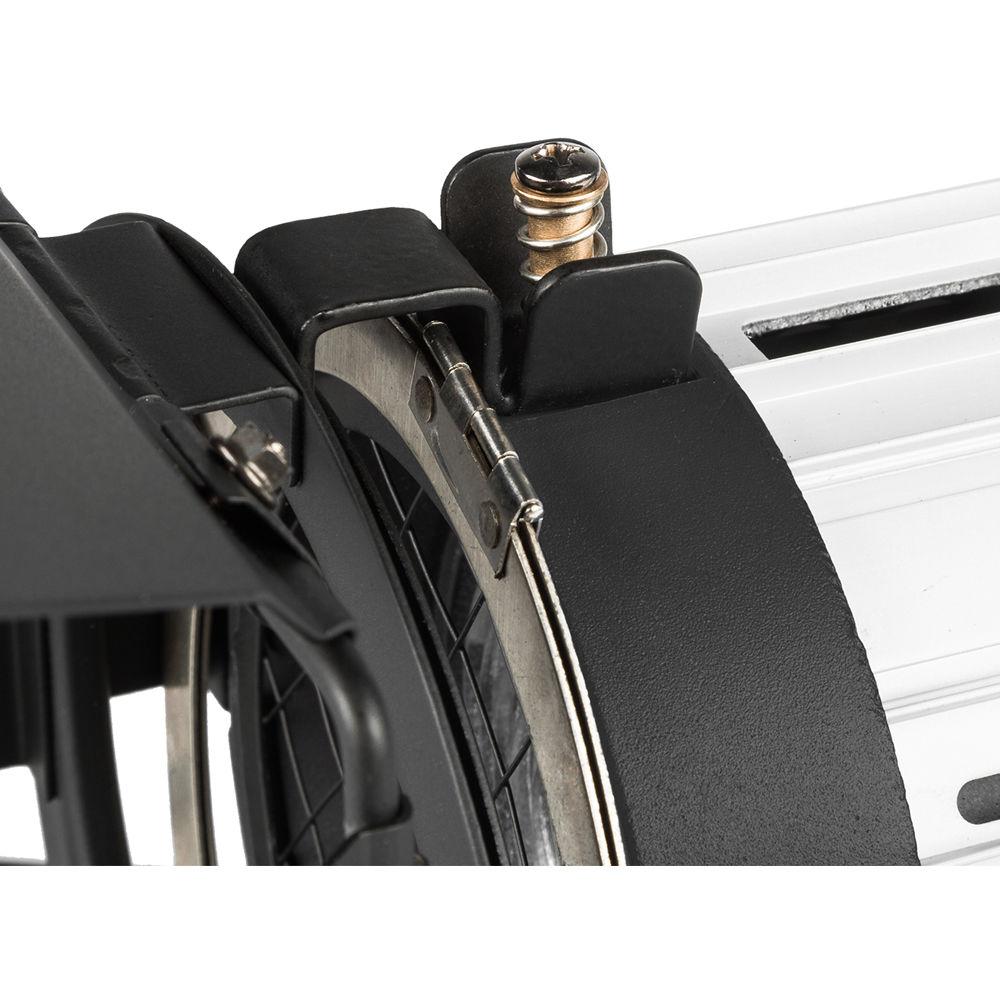

- A spring-loaded safety minimizes the chance that the barndoors (or optional scrims) will fall out of the fixture.
UPC: 847983015559 In the Box ikan Lightstar 300-Watt Tungsten Fresnel Light Barndoors Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Lightstar 300-Watt Tungsten Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan Lightstar 300 Specs | | | Beam Angle | 14 to 53° | | Bulb Type | 1 x GY9.5 | | Max Bulb Wattage | 300 W | | Lens Type | Fresnel | | Lens Diameter | 3.1" / 78.7 mm | | Photometrics | 14°:
1647.1 fc / 17,730 lux at 3.28' / 1 m
411.8 fc / 4433 lux at 6.56' / 2 m
183 fc / 1970 lux at 9.84' / 3 m
53°:
359.5 fc / 3870 lux at 3.28' / 1 m
89.9 fc / 968 lux at 6.56' / 2 m
39.9 fc / 430 lux at 9.84' / 3 m | | Built-In Dimmer | None | | Focusable | Yes | | Front Accessory Mount | 5" (Scrim) | | Umbrella Mount | None | | | | AC Input Power | 120 VAC, 60 Hz | | Mounting | 5/8" Receiver (via Included Yoke Mount) | | Cable Length | 6' / 1.8 m | | Material | Aluminum (Housing) | | Dimensions | 10.2 x 8.7 x 6.9" / 26 x 22 x 17.5 cm | | Weight | 4.6 lb / 2.1 kg | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 10.5 x 9.0 x 7.5" |
