User Manual for ikan Lightstar 575W HMI Super Spot PAR Light with 575W Ballast Click to enlarge the picture
Contents of the user manual for the ikan Lightstar 575W HMI Super Spot
- Product category: HMI & Plasma Lights ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan HMI & Plasma Lights
 |
User manual for the ikan Lightstar 575W HMI Super Spot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

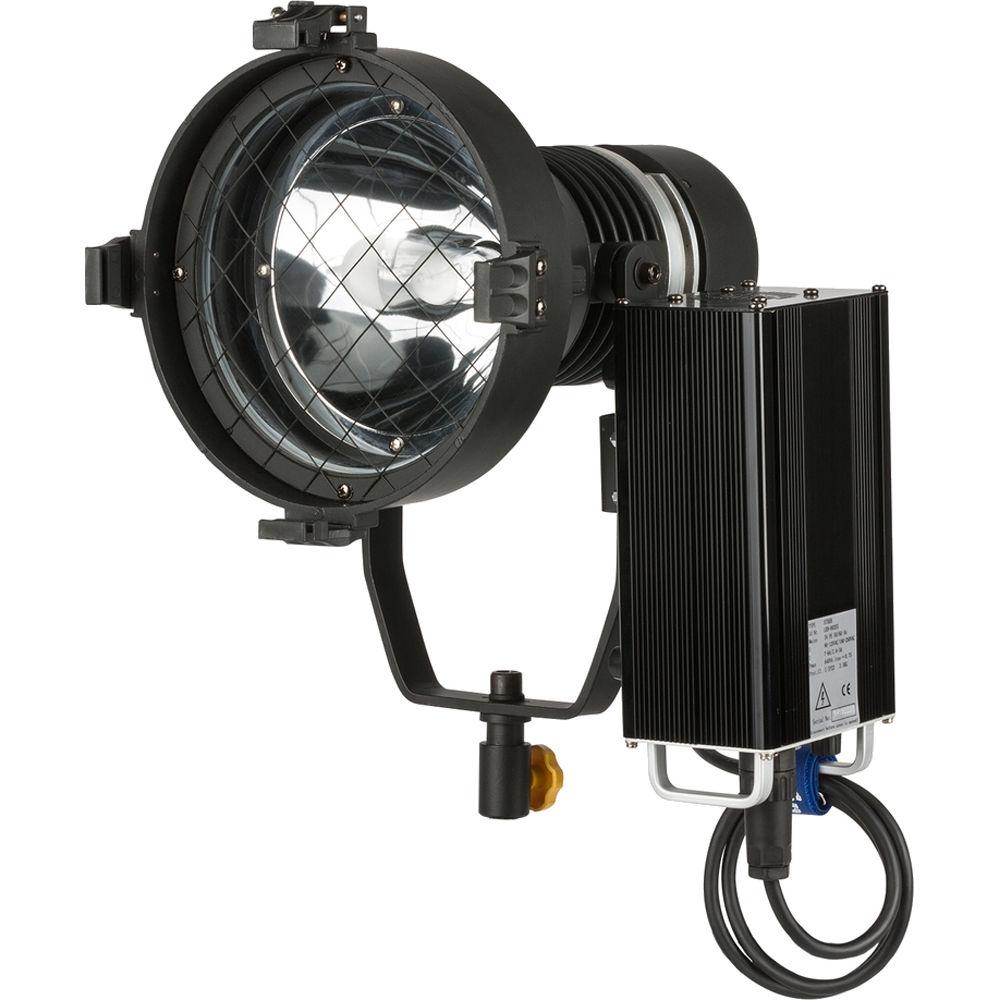

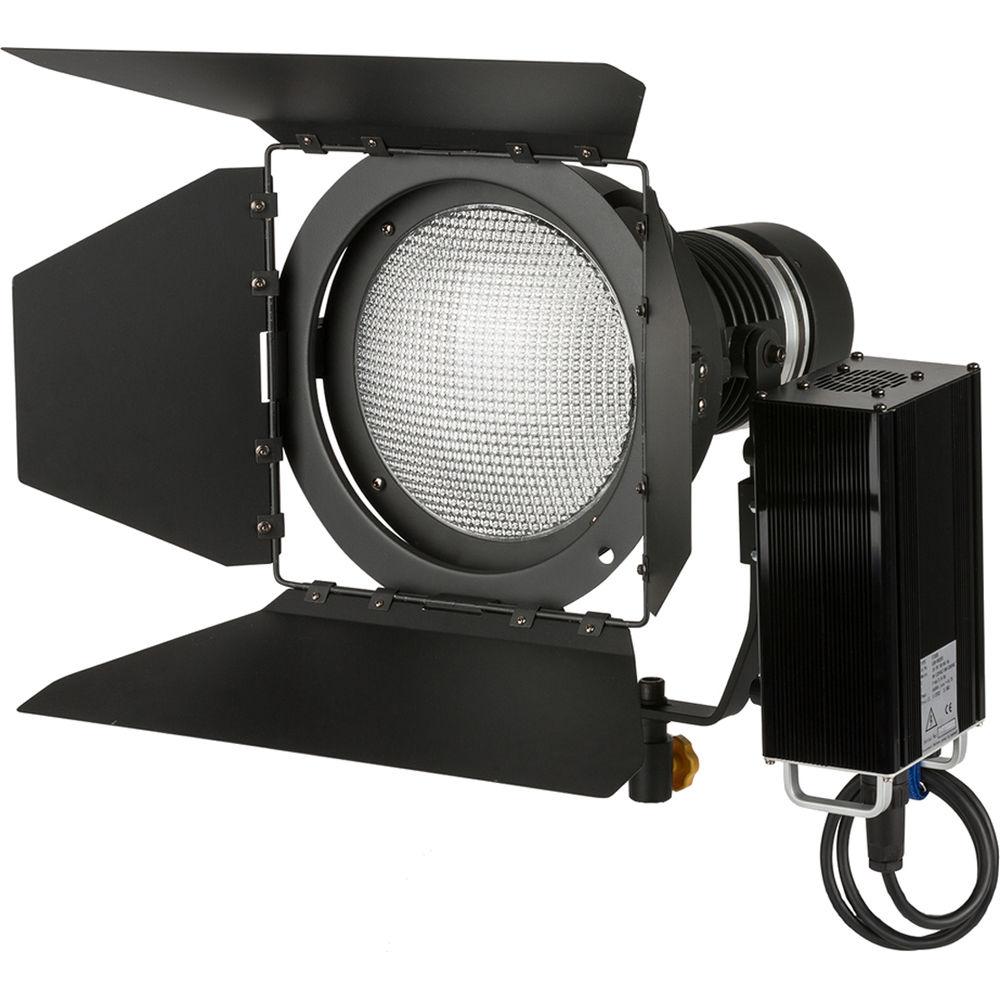

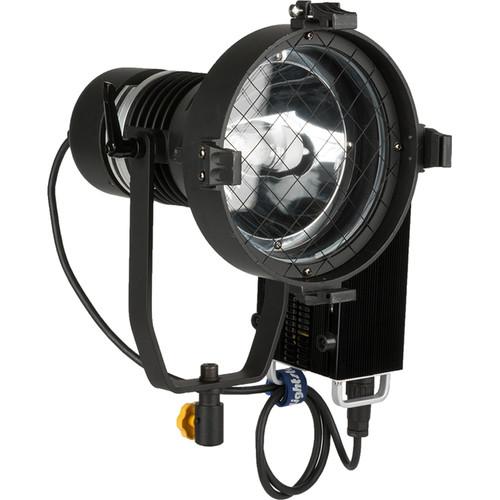

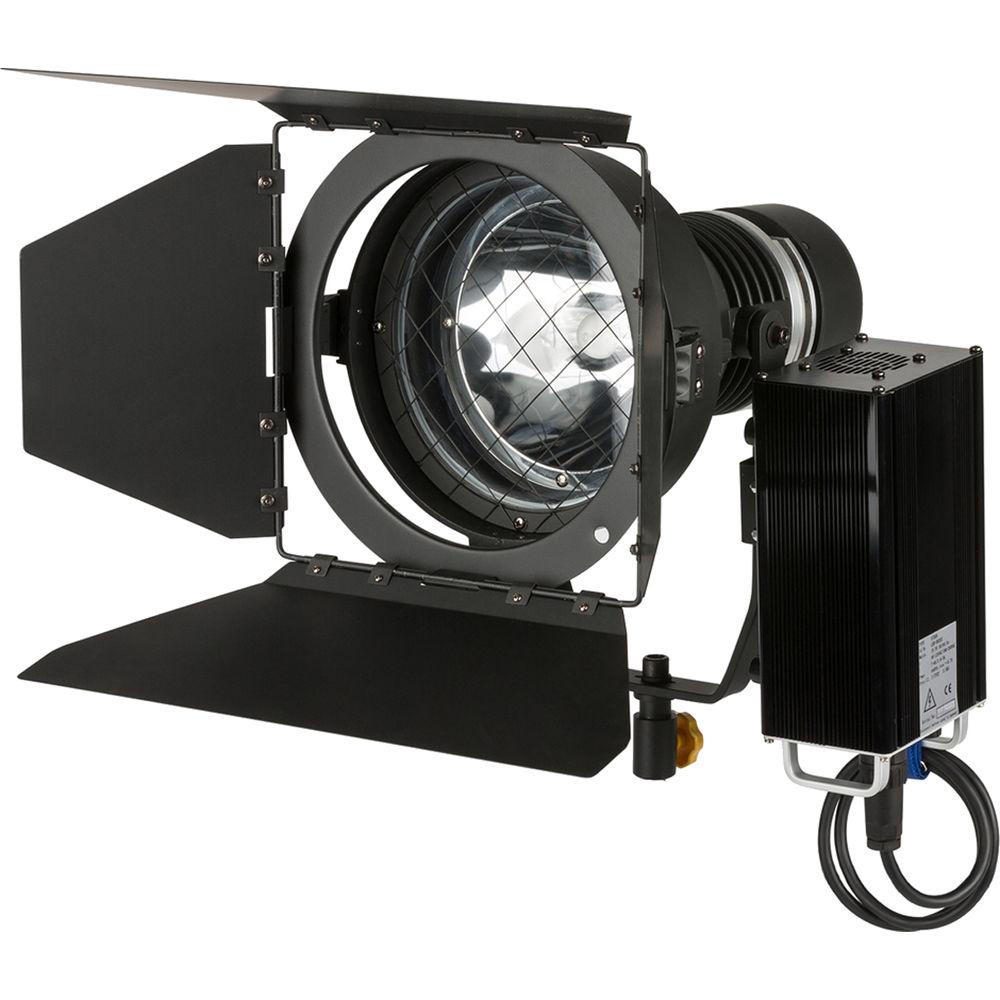

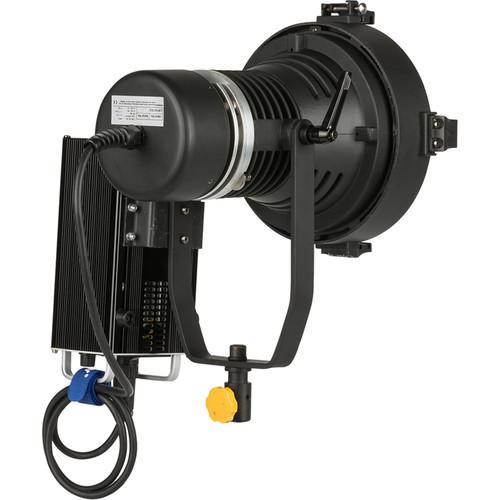

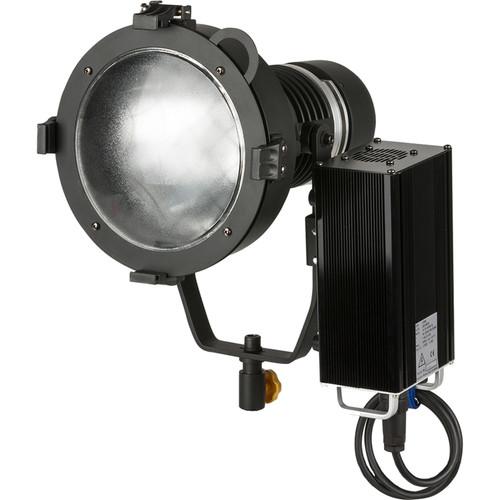

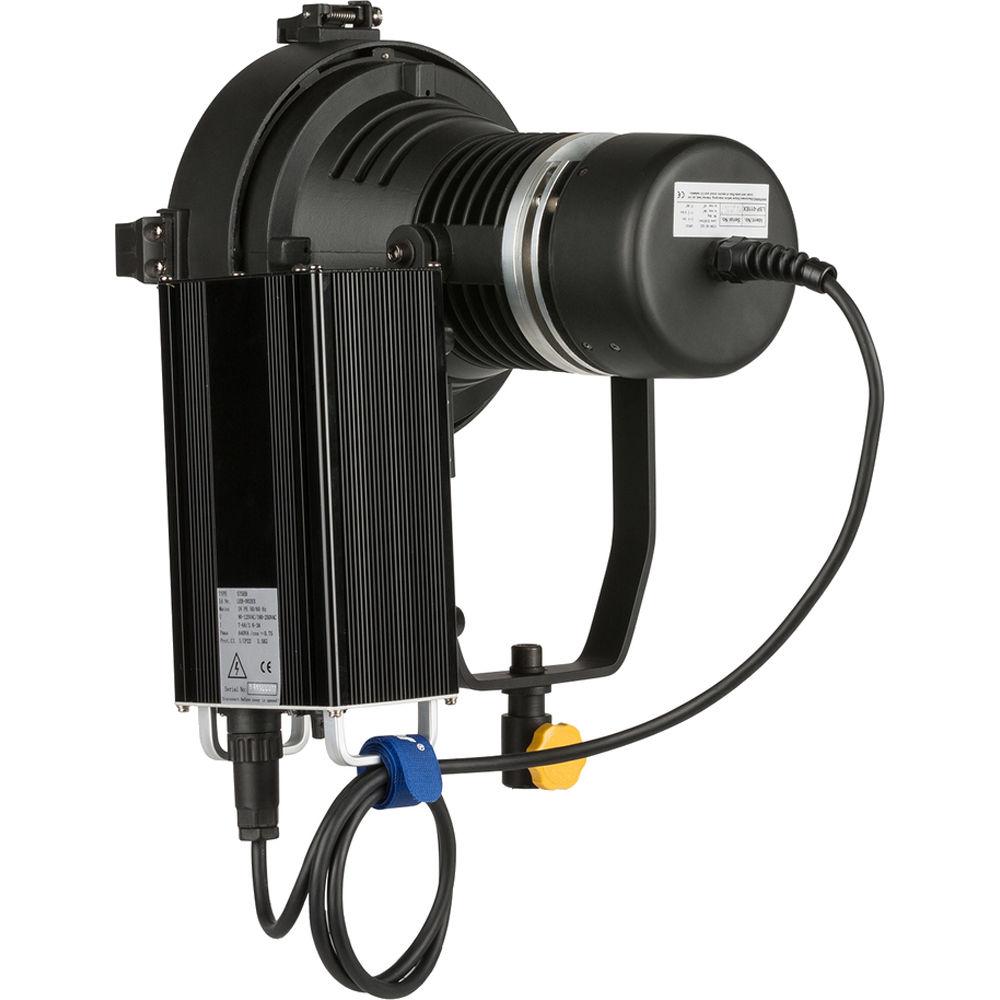

Product description The Lightstar 575W HMI Super Spot PAR Light with 575W Ballast from ikan is the way to go when you need a powerful light for sunlight effects, to punch through a silk or for street scenes. The system comes with a Fresnel lamp head with 4-way barndoors, gel filter holder, a yoke and a Junior 1-1/8" mounting pin. The electronic 575W ballast uses 90-125 VAC mains power. The efficient Lightstar 575W HMI head outputs 82,800 lux of light at 10' with the spot lens, significantly more light than a 575W tungsten light emits. The included Spot, Narrow Flood, Flood, Super Flood and Frost give you light quality and beam spread options from 9 to 42 degrees. Dimming from 50 to 100% is possible on the ballast as is flicker-free performance up to 10,000 fps. The 9 x 5 x 4" ballast is smaller and 10 lb lighter than the 575/1200W version and can be mounted to the light's yoke - ideal for hanging overhead on a pipe or a grid. The unit runs dead quiet thanks to passive cooling and is IP23 weather-resistant. - 5 Lens Set
- Spot, Narrow Flood, Flood, Super Flood and Frost vary the beam angle and quality of light
- Aluminum Alloy Design

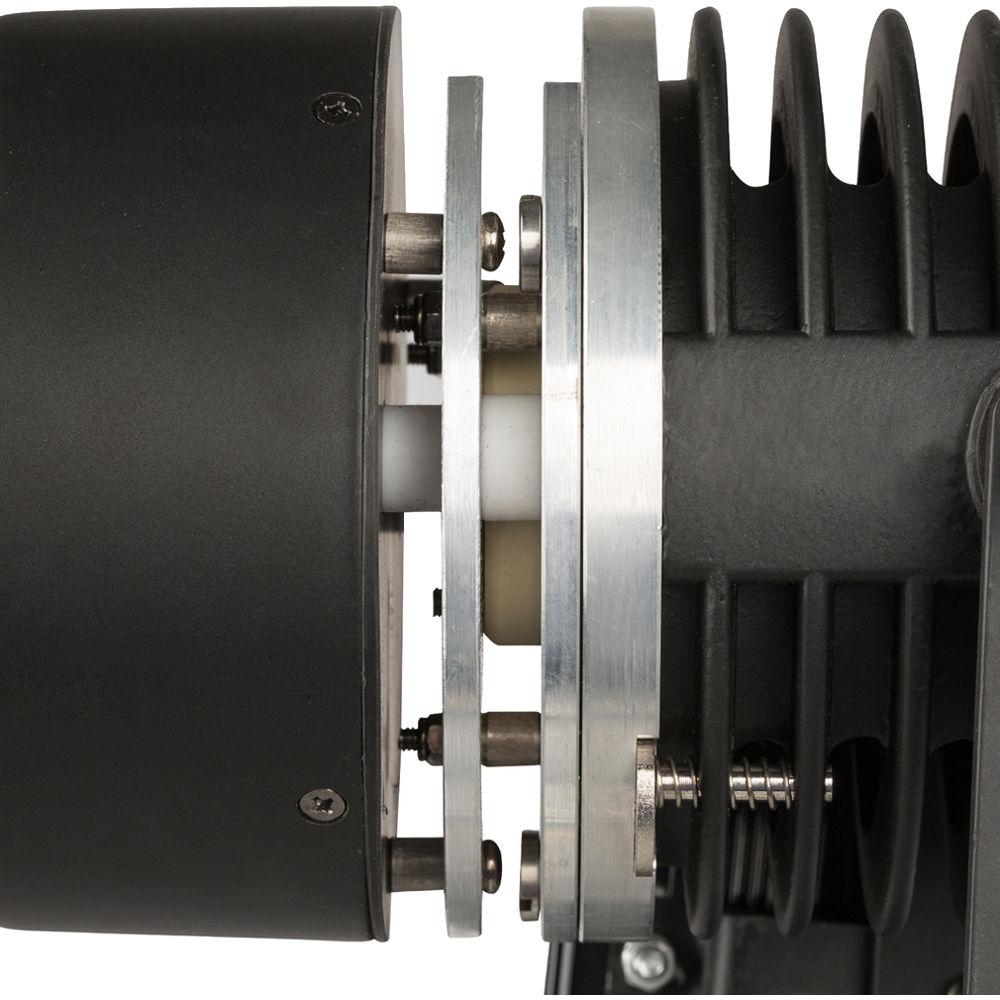

- The Lightstar features a heavy-duty aluminum body for quick heat venting
- 575W Ballast
- The electronic ballast provides flicker-free shooting at very high frame rates
- 4' Head-to-Ballast Cable
- Allows space-efficient use of ballast
- Photometrics
- With Spot Lens
7,692.3 fc / 82,800 lux @ 10' (3.0m)
2,777.8 fc / 29,900 lux @ 16' (4.9m)
696.7 fc / 7,500 lux @ 32' (9.75m)
With Narrow Flood Lens
3,121.5 fc / 33,600 lux @ 10' (3.0m)
1,114.8 fc / 12,000 lux @ 16' (4.9m)
282.4 fc / 3,040 lux @ 32' (9.75m)
With Flood Lens
882.5 fc / 9,500 lux @ 10' (3.0m)
315.8 fc / 3,400 lux @ 16' (4.9m)
78.9 fc / 850 lux @ 32' (9.75m)
With Super Flood Lens
668.9 fc / 7,200 lux @ 10' (3.0m)
241.5 fc / 2,600 lux @ 16' (4.9m)
60.3 fc / 600 lux @ 32' (9.75m) UPC: 847983015115 In the Box ikan Lightstar 575W HMI Super Spot PAR Light with 575W Ballast 575W HMI Fresnel Fixture 575W Electronic Ballast Head-to-Ballast Cable 4-Way Barndoor Set Yoke Gel Holder 5 Lens Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Lightstar 575W HMI Super Spot PAR Light with 575W Ballast in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan LS-575SPX Specs | | | Light Source | 575 W Metal Halide SE (HMI) (separately purchased) | | Color Temperature | Approximately 6000K | | Lamp Base | HMI 575 /95 V /G22 | | Lens (Condenser) | Spot, Narrow, Flood, Super Flood, Frost lenses | | Beam Angle | No lens: 5°
Flood lens: 21 to 42°
Narrow Flood lens: 11 to 22°
Super Flood lens: 42°
Spot lens: 9°
Frost lens: 35° | | Mounting | 1-1/8" (28 mm) Pin | | Cooling | Air-cooled | | IP Rating | IP23 | | Dimensions | 19.9 x 10 x 10" (50.5 x 25.4 x 25.4 cm) | | Weight | 18 lb (4.53 kg) | | | | Rating | Electronic Ballast 575W W | | Voltage | 90-125 VAC, 7.1-5.2 A | | Cable | 4.0' (1.2 m) | | Dimensions | 9.0 x 5.0 x 4.0" (22.8 x 12.7 x 10.2 cm) | | Weight | 6.0 lb (2.7 kg) | | Kit Weight | 24 lb (11.78 kg) |
