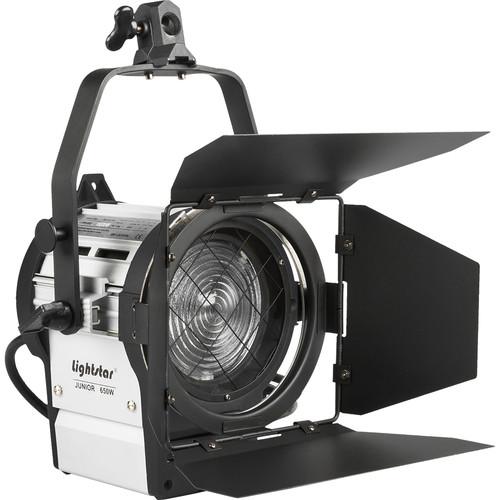

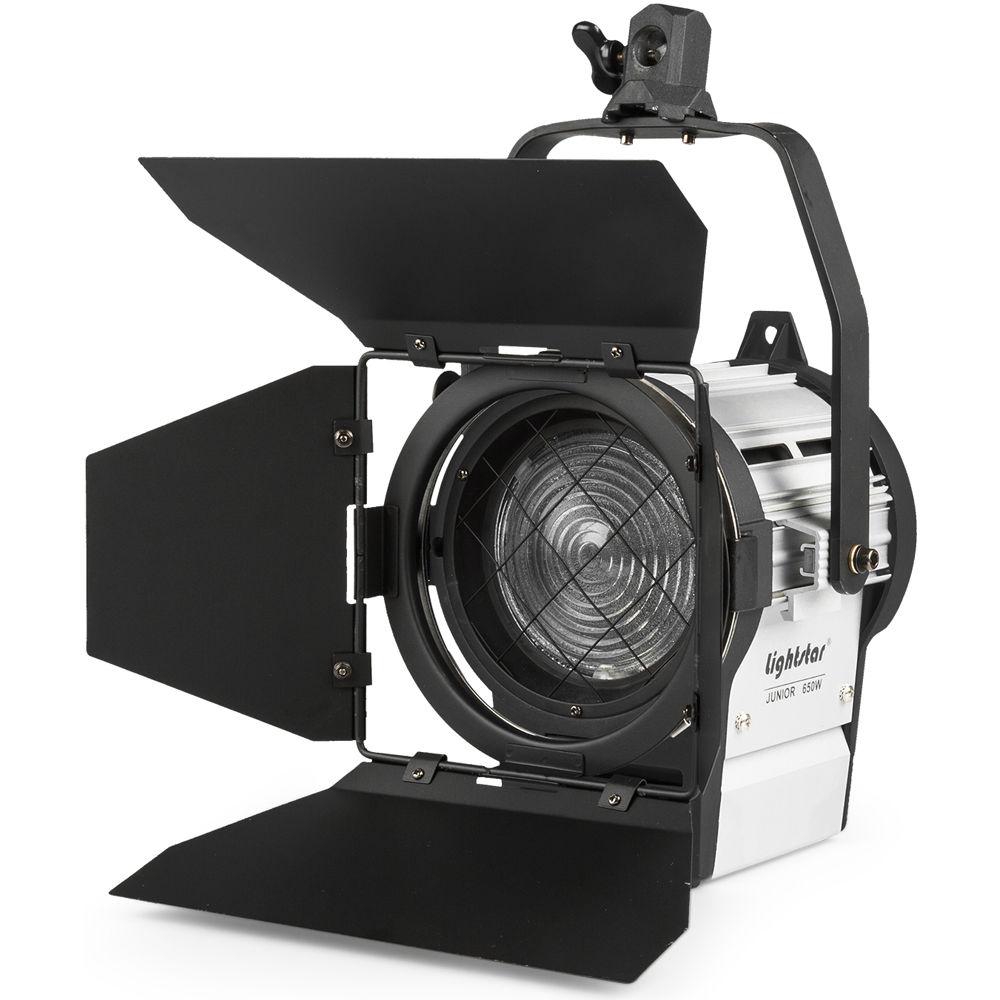

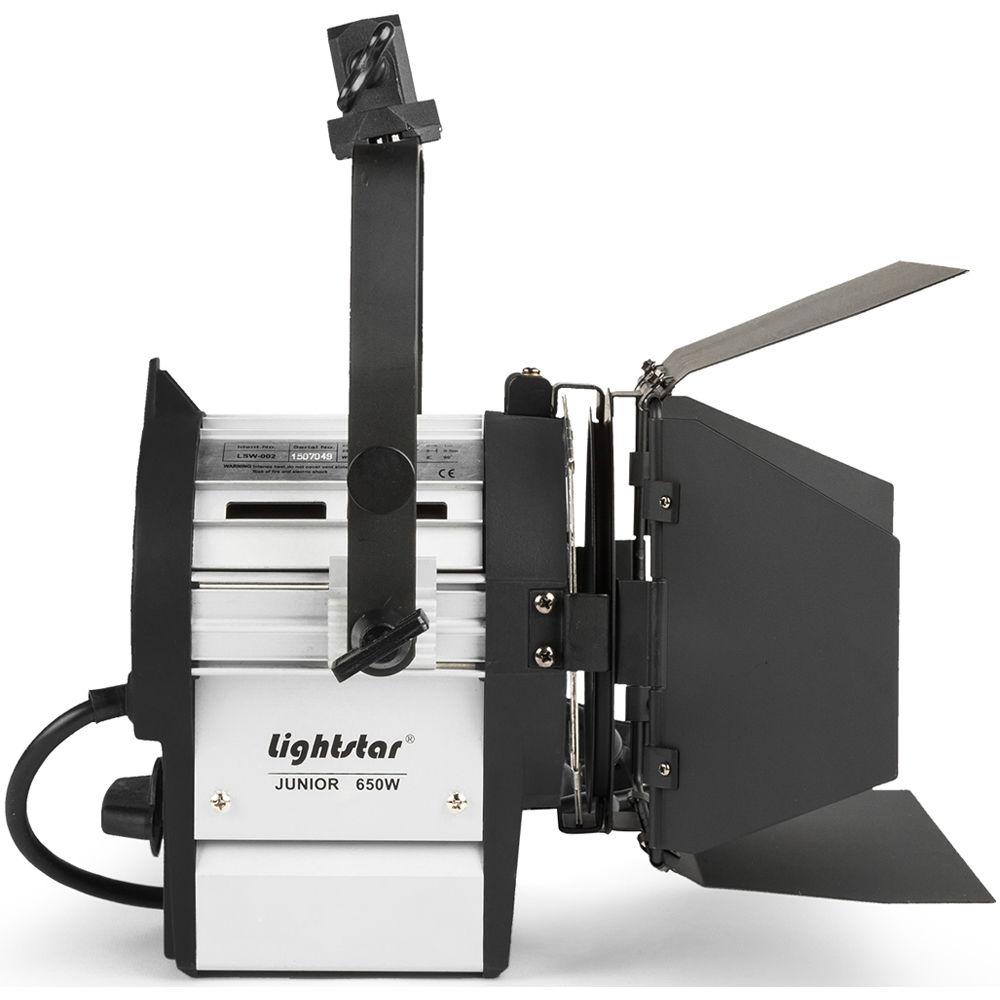

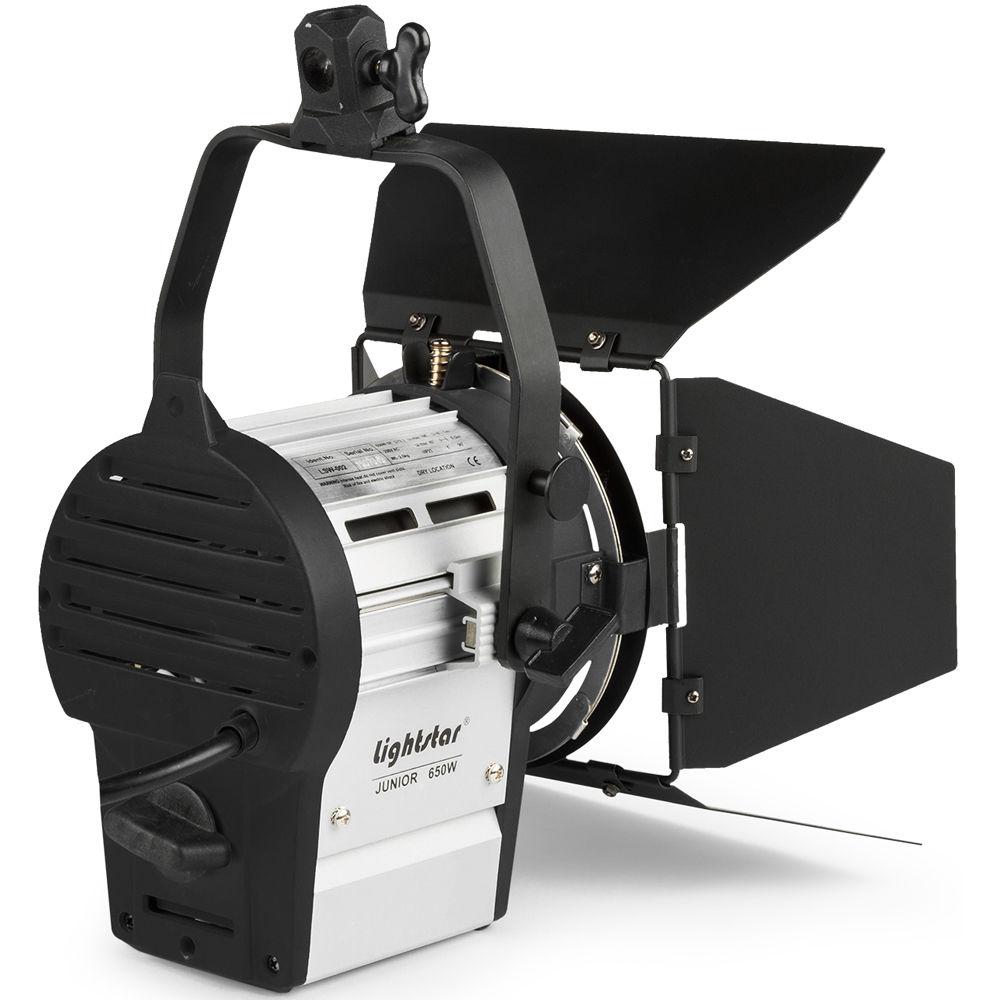

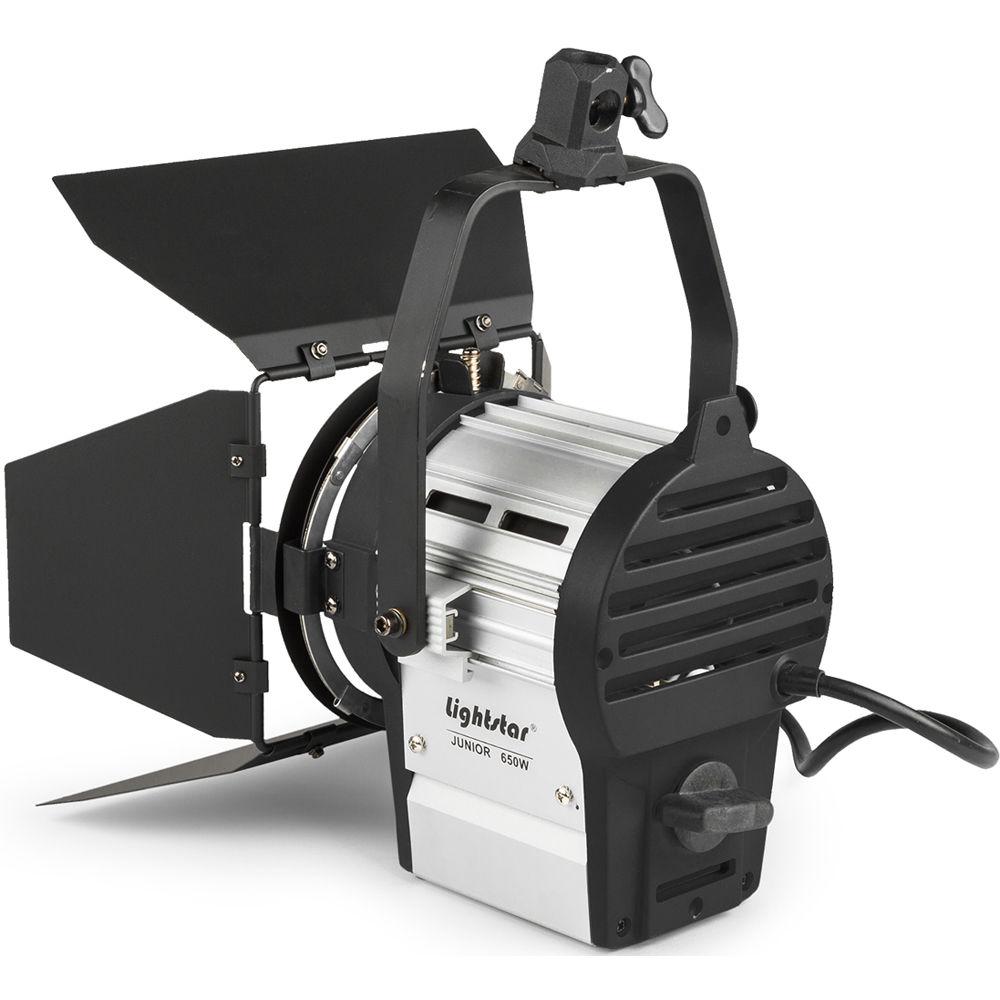

Product description Featuring a clean industrial design that is lightweight and promotes passive cooling, the Lightstar 650-Watt Tungsten Fresnel Light from ikan is a small, yet powerful lighting instrument. It incorporates a 4.4" temperature-resistant Fresnel lens that throws a hard tungsten-balanced light, and it features a 12° to 52° spot/flood adjustment. The worm-drive focusing mechanism employed by the fixture is reliable and well established.

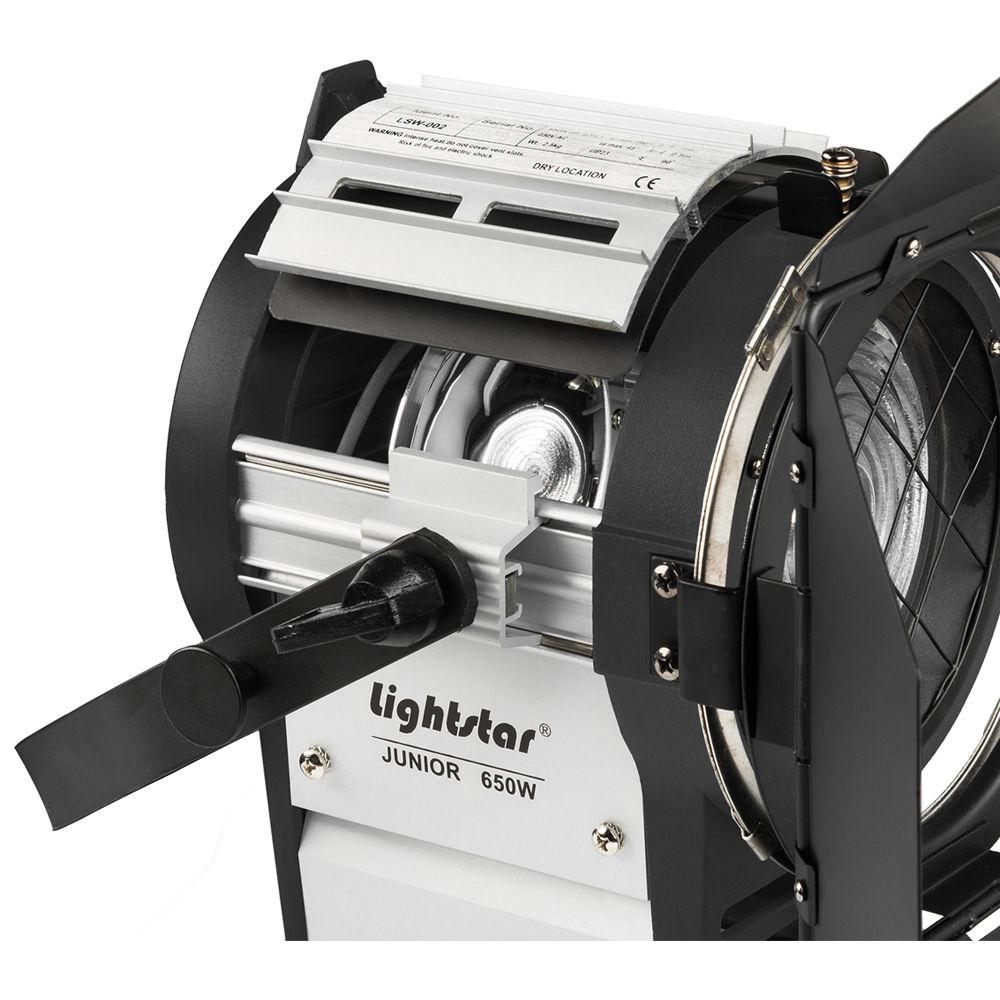

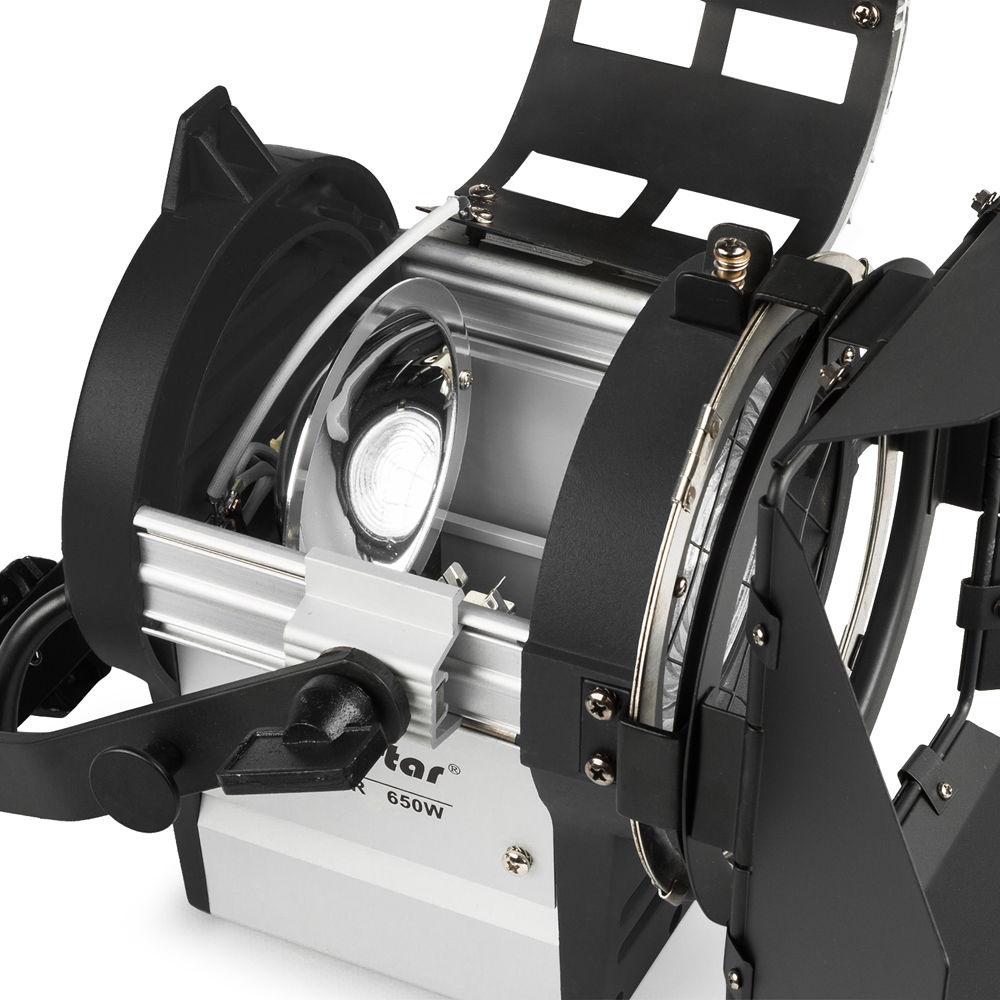

The aluminum housing minimizes the weight of the fixture, while helping to dissipate heat. The fixture features a flip-up top that allows access to the inside for replacing the bulb (bulb not included). A 90° baby-pin receiver allows you to mount the fixture on top of a stand, or you can alternately insert a C-stand arm or similar through the receiver. The yoke features a cord-wrap post and cord for coiling the attached power cord on the yoke, and the fixture includes a 4-leaf barndoor setup that you can rotate to adjust your spill control. - Borosilicate Fresnel Lens
- The fixture incorporates a 4.4" temperature-resistant borosilicate Fresnel lens. The Fresnel lens allows the light to be more efficient and provides better control of the light than an open-face fixture.
- Hard/Soft Light
- The fixture's lens softens the light emitted by the bulb (bulb not included), enlarging the point-source nature of the bulb's filament. However, the light emitted by the fixture is still considered hard, just not as harsh in appearance as the light from a bare bulb. You can add diffusion to the fixture to soften the light further, or use compatible soft boxes (not included), or bounce the light for a large soft beam source.
- Underslinging
- Removing the barndoors allows you to position the yoke above the fixture, so that you can undersling the fixture for alternate mounting possibilities. Remember to replace the barndoors after you have mounted the light.
- Barndoor Safety

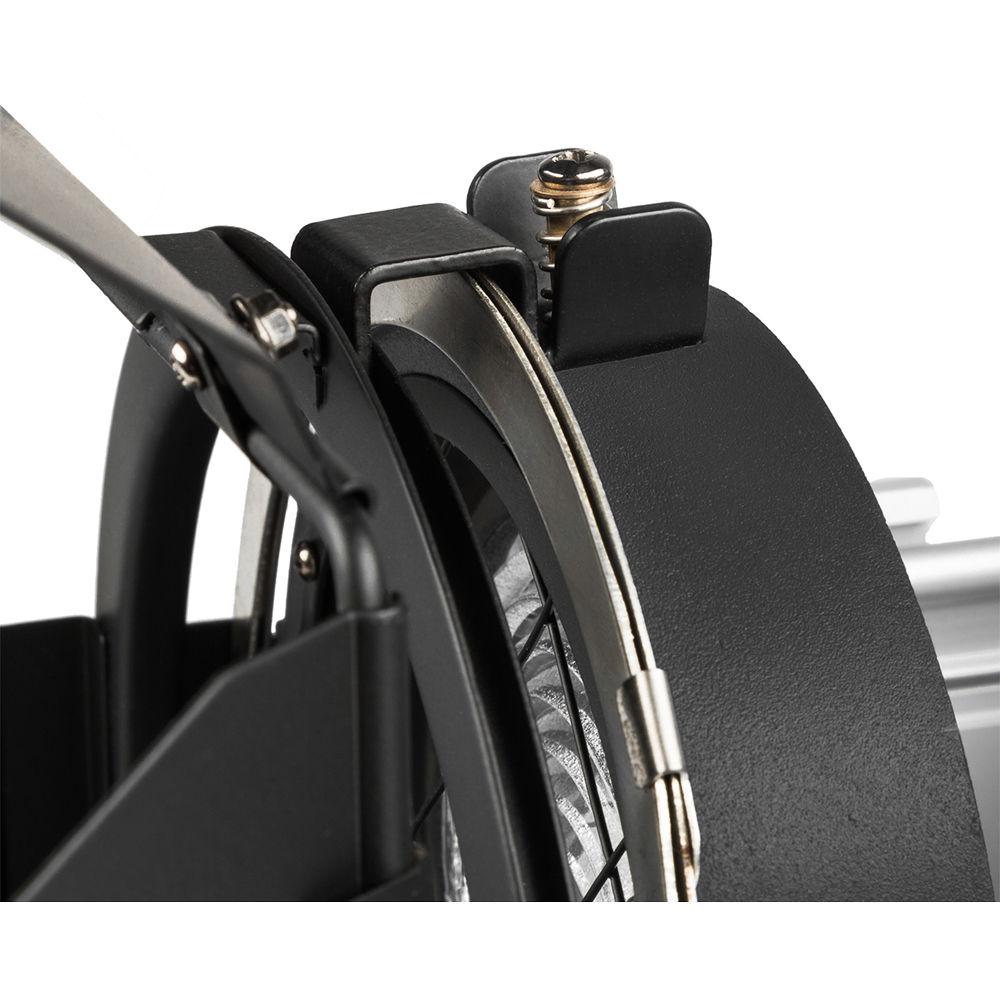

- A spring-loaded safety minimizes the chance that the barndoors (or optional scrims) will fall out of the fixture.

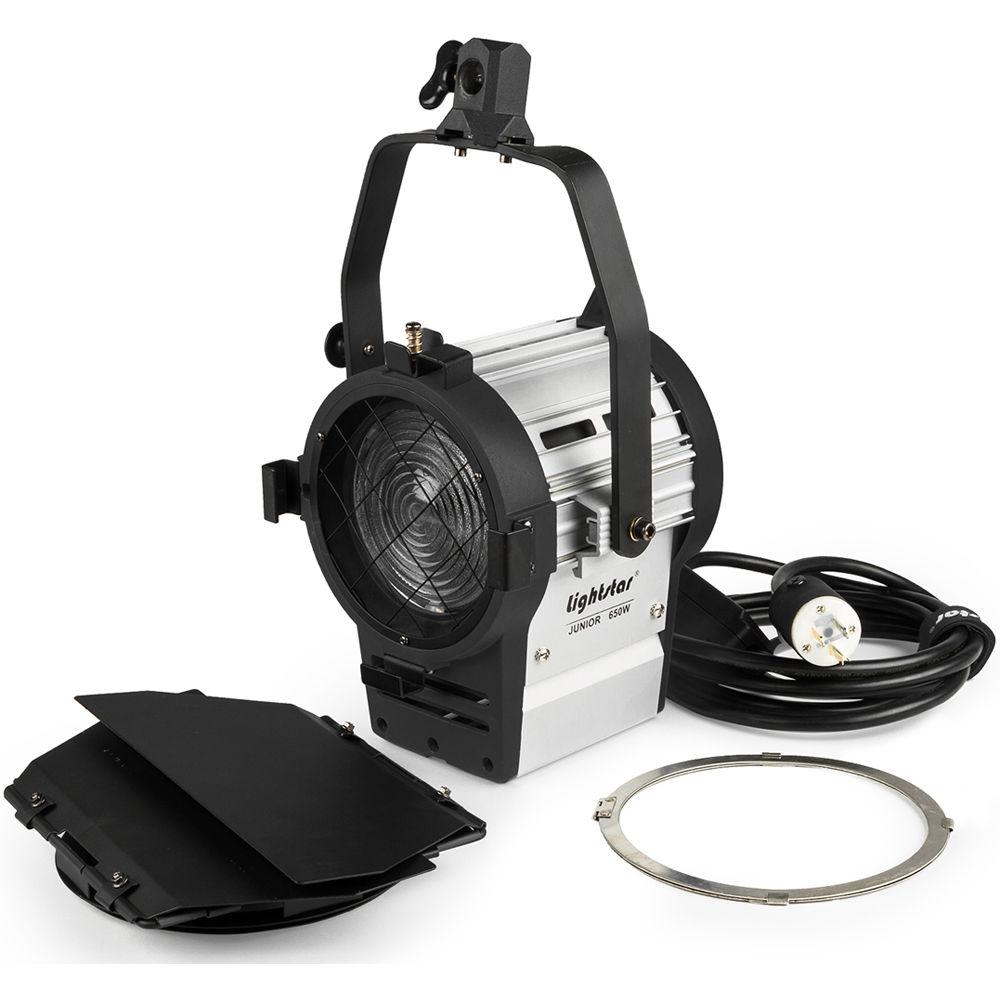

UPC: 847983009411 In the Box ikan Lightstar 650-Watt Tungsten Fresnel Light Barndoors Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Lightstar 650-Watt Tungsten Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan Lightstar 650 Specs | | | Beam Angle | 12 to 52° | | Bulb Type | 1 x GY9.5 | | Max Bulb Wattage | 650 W | | Lens Type | Fresnel | | Lens Diameter | 4.4" / 112 mm | | Photometrics | 12°:
1029.3 fc / 11,080 lux at 8.2' / 2.5 m
525.2 fc / 5653 lux at 11.48' / 3.5 m
317.7 fc / 3420 lux at 14.76' / 4.5 m
52°:
189.5 fc / 2040 lux at 8.2' / 2.5 m
96.7 fc / 1041 lux at 11.48' / 3.5 m
58.5 fc / 630 lux at 14.76' / 4.5 m | | Built-In Dimmer | None | | Focusable | Yes | | Front Accessory Mount | 6-5/8" (Scrim) | | Umbrella Mount | None | | | | AC Input Power | 120 VAC, 60 Hz | | Mounting | 5/8" Receiver (via Included Yoke Mount) | | Cable Length | 6' / 1.8 m | | Material | Aluminum (Housing) | | Dimensions | 12.8 x 8.9 x 7.7" / 32.5 x 22.5 x 19.5 cm | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 9.25 lb | | Box Dimensions (LxWxH) | 11.0 x 11.0 x 9.1" |
