User Manual for ikan Live Air Compact Wireless Lens Control System Click to enlarge the picture
Contents of the user manual for the ikan Live Air Compact Wireless Lens
- Product category: Wireless Lens Control Systems ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Wireless Lens Control Systems
 |
User manual for the ikan Live Air Compact Wireless Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description - Live Air Compact Follow Focus System PD Movie

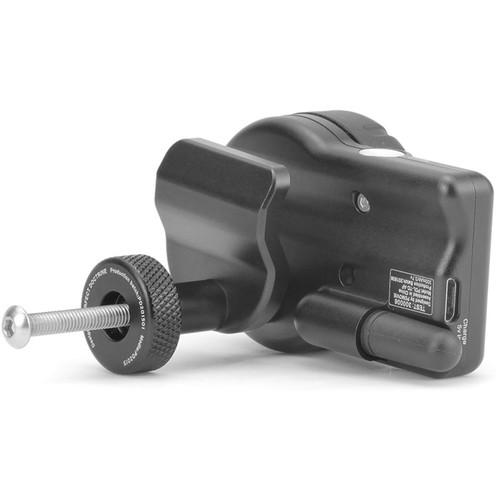

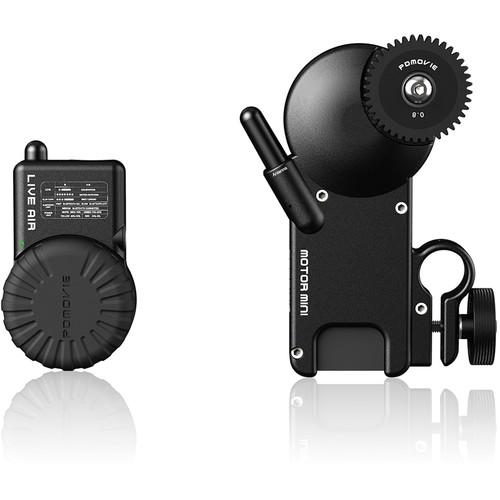

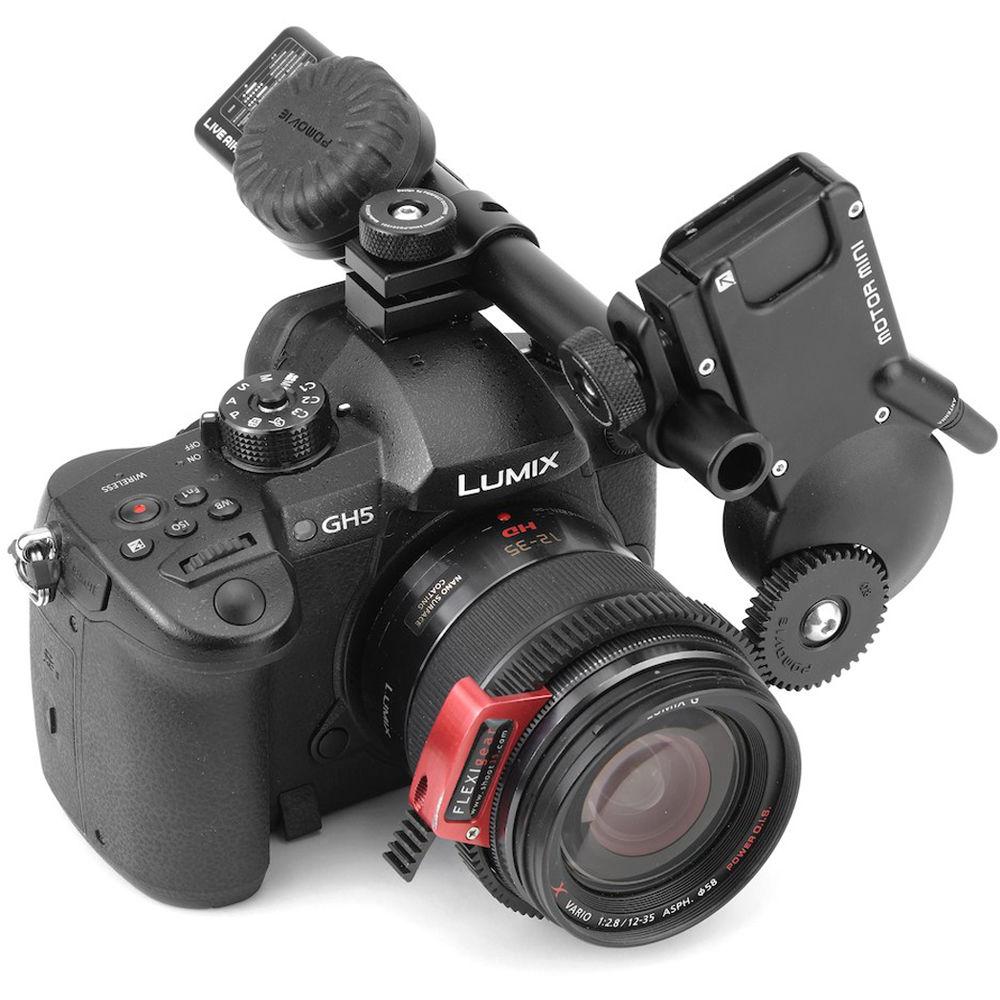

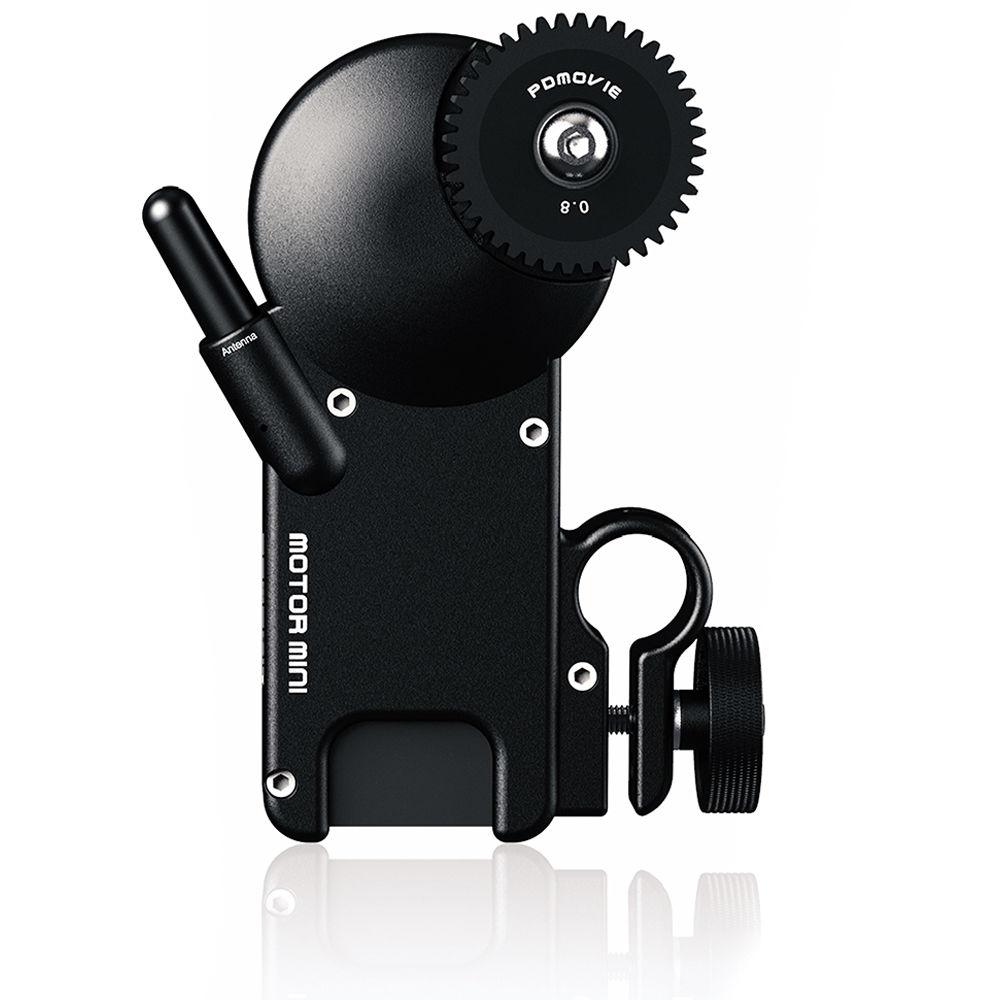

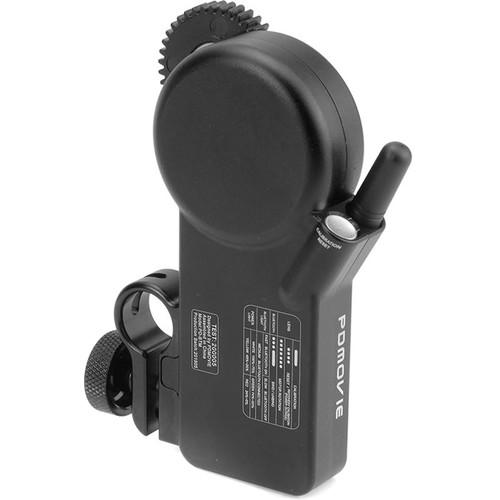

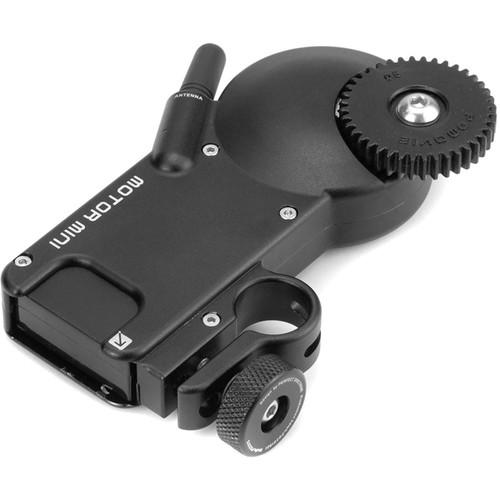

The ikan Live Air Compact Wireless Lens Control System allows you to adjust focus from up to 33' away. The system features a rod-mount follow focus mini motor and a wireless Bluetooth controller, both battery operated. Via an integrated 15mm rod clamp, the motor mounts on an included 15mm rod that attaches to your camera's hot shoe or a camera cage cold shoe using a supplied shoe-mount rod clamp. The motor sits on the side of the lens and automatically calibrates to the mapping of your lens and can handle both subtle and rapid focus pulls. Its 0.8 pitch drive gear is compatible with most cine lenses and with DSLR lenses with gear rings. This system is recommended for follow focus applications only because it has a variable thumb control on the Bluetooth controller. For zoom control, please see the PDL-AZ Live Air system, which offers a rocker on the Bluetooth controller.

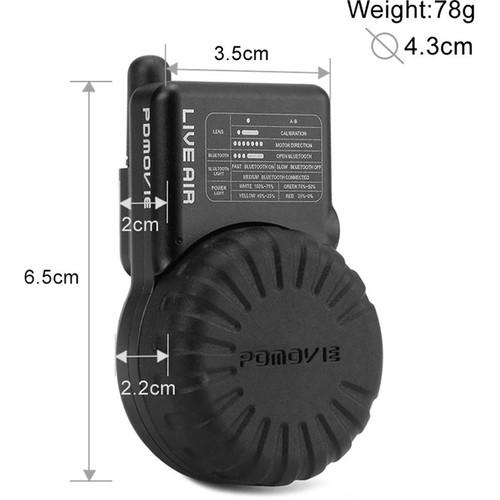

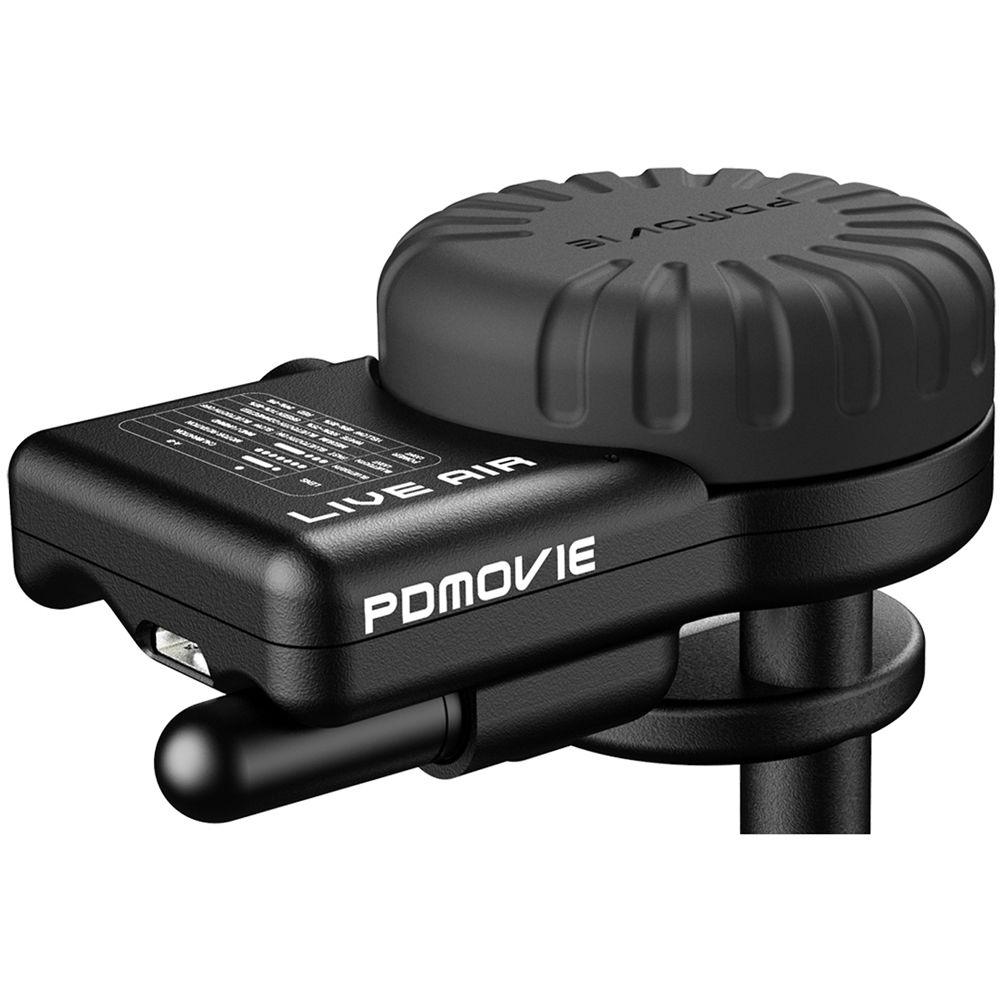

The Bluetooth controller is mountable as well via a built-in clamp that grips onto any rod/tube 15 to 30mm in diameter, such as a pan bar or gimbal handle. The Bluetooth controller runs on an internal battery that lasts up to 8 hours in use and 20 hours in standby. The motor uses an included 7.2V, 600mAh battery that runs approximately 4 hours thanks to a built-in power-saving feature. The batteries of both units are rechargeable using the included USB cables. Both units are designed with a magnesium alloy body that provides better shock absorption, lower density, and impact resistance. Note: The Live Air Compact has been successfully tested with the Nisi F3 and Zeiss CP.2 cine lenses. But some cine lenses require a higher torque. In such cases, consider the ikan Remote Air 4 Single Motor Wireless Lens Control Kit (MFR # PD2-M1). - Key Features
-
- Ultra-compact motor with built-in Bluetooth module and integrated single 15mm rod clamp
- Short rod mount and on-camera, shoe-mount rod clamp included
- 33' Bluetooth remote controller mountable on any rod/pole/tube 15 to 30mm in diameter
- 0.8 pitch drive gear
- Automatically calibrates to the mapping of your lens
- Suitable for both subtle and rapid focus pulls
- Fully battery-operated
- Magnesium alloy construction
- LED battery status indication
UPC: 847983027811 In the Box ikan Live Air Compact Wireless Lens Control System Motor Mini (PD Movie) Bluetooth Controller 2 x 7.2V, 600mAh Motor Battery Battery Charger 15mm Rod (5.9") Camera Hot Shoe Clamp 2 x Micro-USB Charging Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Live Air Compact Wireless Lens Control System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

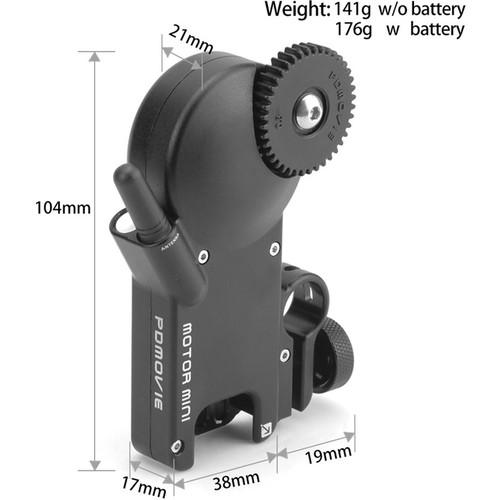

Technical parametersikan Live Air Specs | | | Pitch | 0.8 | | Torque | 0.4 Nm (Max) | | Working Voltage | 6.4 to 8.4 V | | Noise | < 28 dB | | Power Consumption | 8 W | | Standby Power Consumption | 0.14 W | | Maximum Current | 1 A | | Material of Construction | Magnesium Alloy | | Dimensions | 4.25 x 1.9 x 0.9" / 10.8 x 4.8 x 2.3 cm | | | | Transmission Distance | 33' / 10 m | | Working Voltage | 3.7 V | | Material of Construction | Magnesium Alloy | | Dimensions | 2.6 x 1.7 x 0.9" / 6.6 x 4.3 x 2.3 cm | | Weight | 2.8 oz / 79 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.0 x 5.4 x 3.5" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
