Product description

• Lyra LB10 Bi-Color Soft Panel 1 x 1 Studio and Field LED Light
  • Ikan Corp: Tech Corner - Lyra Soft LED Lights

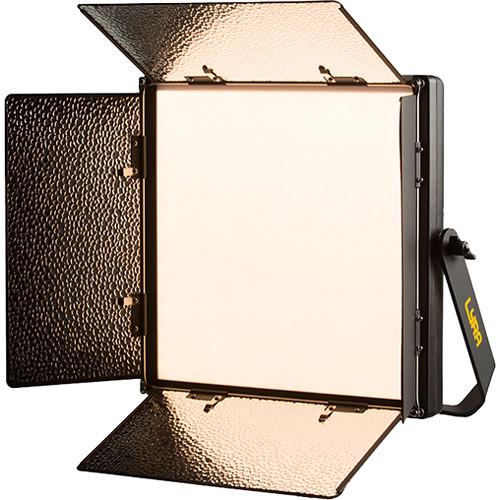

  The Lyra LB10 Bi-Color Soft Panel 1 x 1 Studio and Field LED Light from ikan is built into a heavy-duty molded plastic chassis providing a lightweight yet strong variable color fixture with enhanced features such as 100-10% flicker-free dimming , LCD display, and an included wireless remote to adjust color and light intensity. It features an integrated 1/2 stop diffuser for extra softness, while its 900 LEDs produce a 110° beam spread with a high CRI of 96 and a TLCI of 98 for precise color rendering. The fixture produces a soft single-source shadow pattern owing to the integrated diffusion.

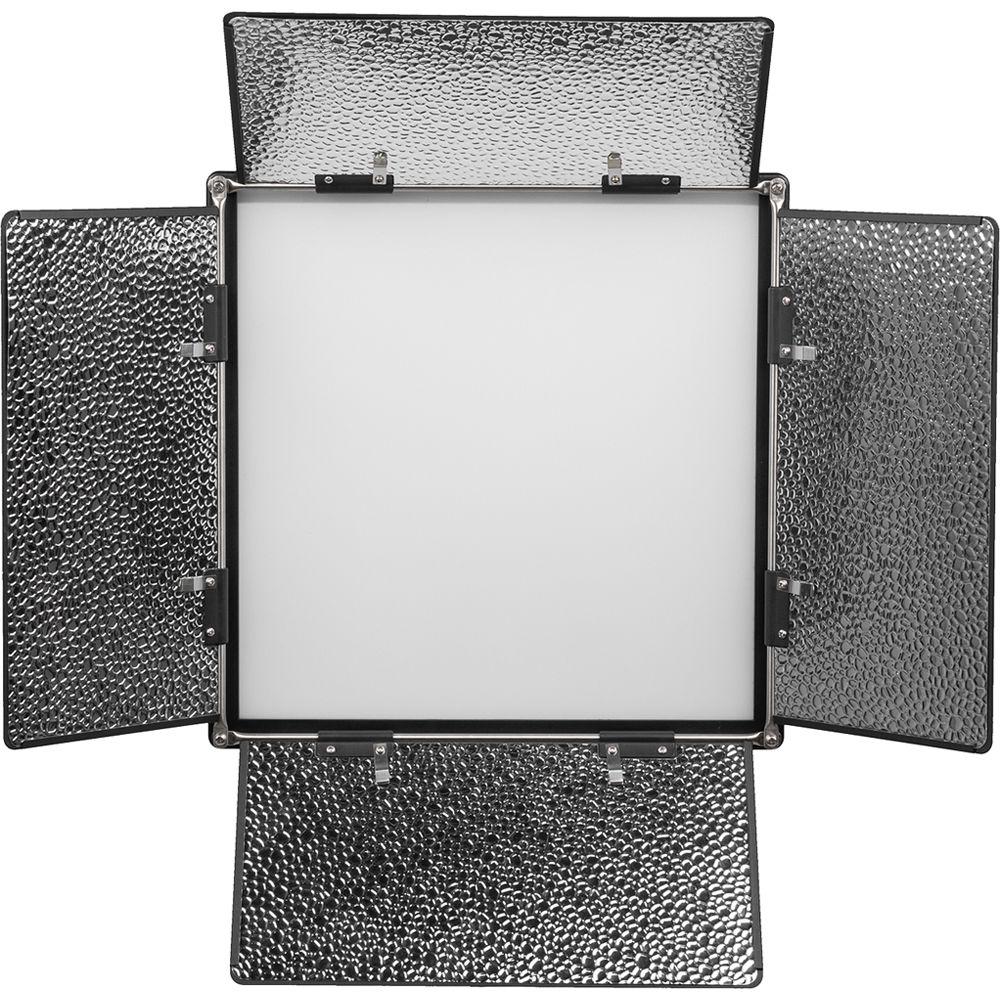

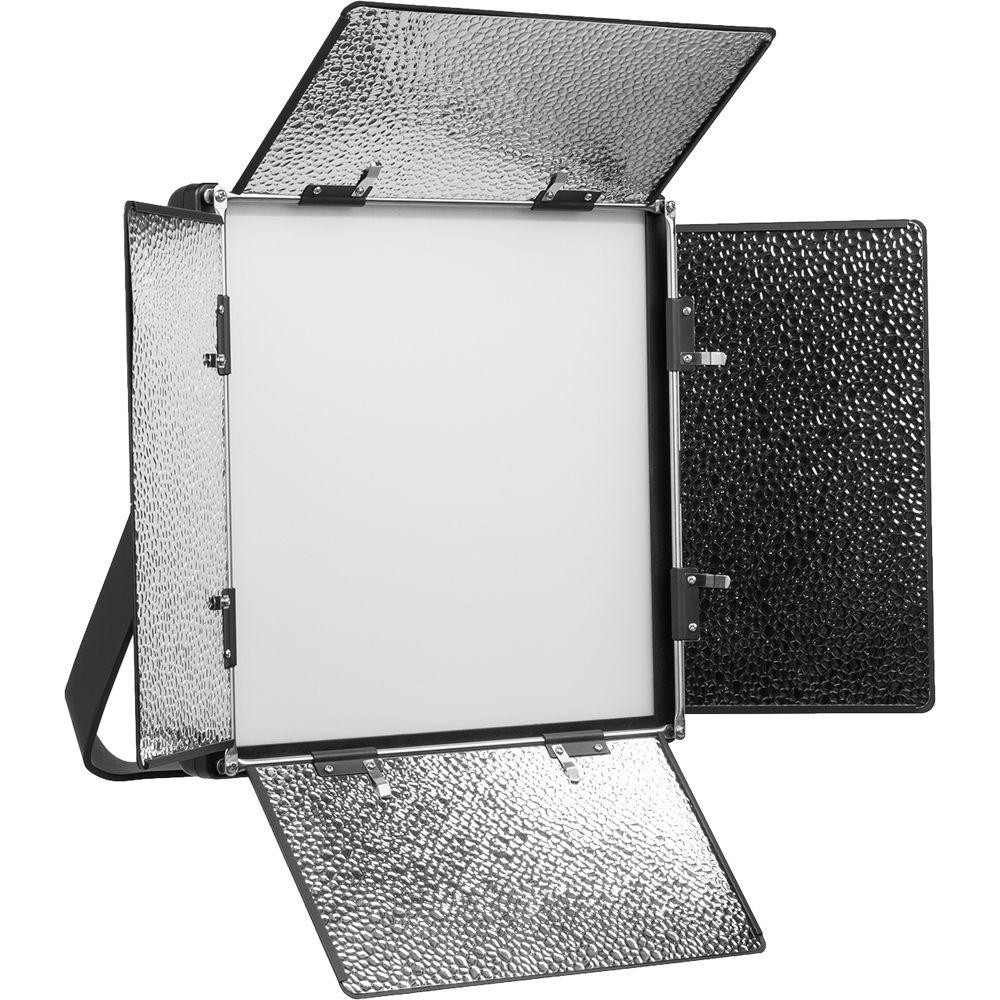

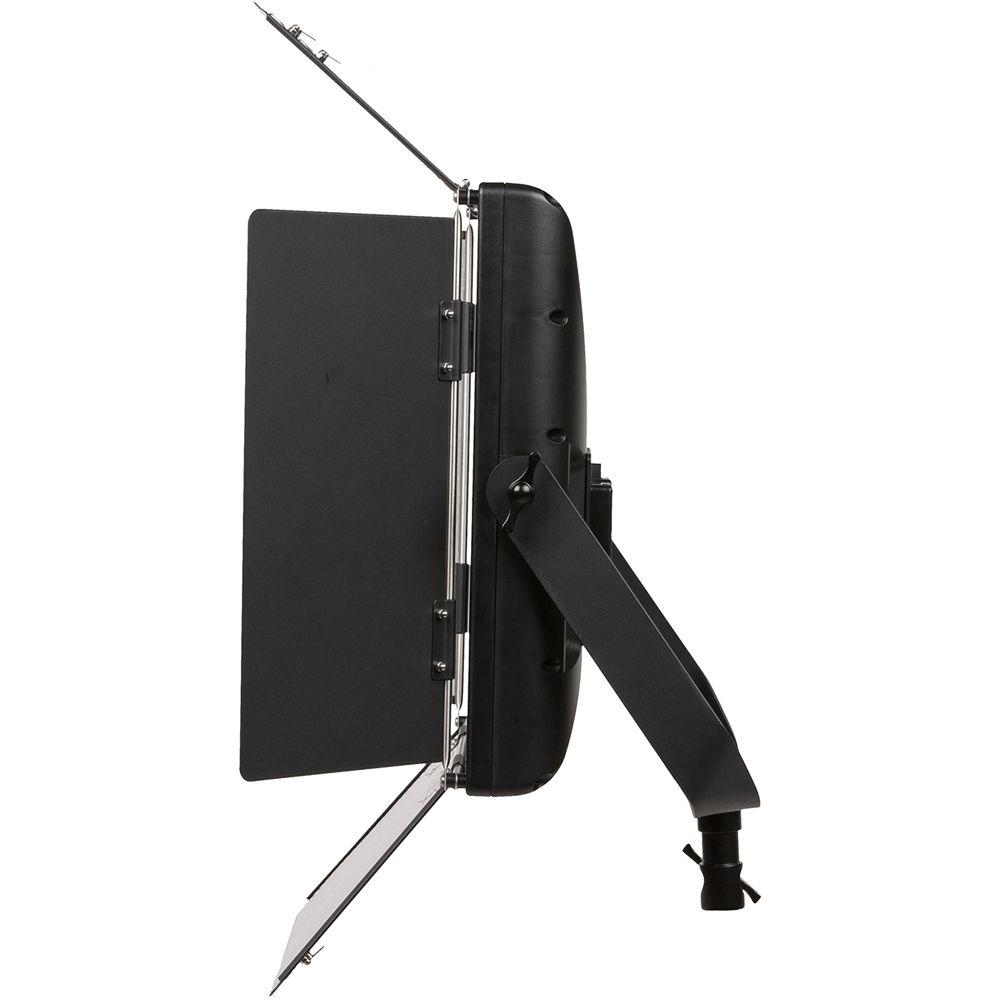

  The Lyra comes with a multi-voltage AC power supply but it also has a battery-powered option thanks to the inclusion of Gold Mount and V-Mount battery plates, while the four-leaf barndoors provide control over light spill, and feature removable light intensifiers to suit your taste. The yoke is angled forward 30°, which allows you to open the barndoors all the way without hitting the yoke when the light is pointed straight forward. The fixture also has a combo Baby receiver/Junior pin on the yoke so you can mount it on a stand or hang it from a grid with optional clamps.
  Color Temperature Adjustment and Dimming

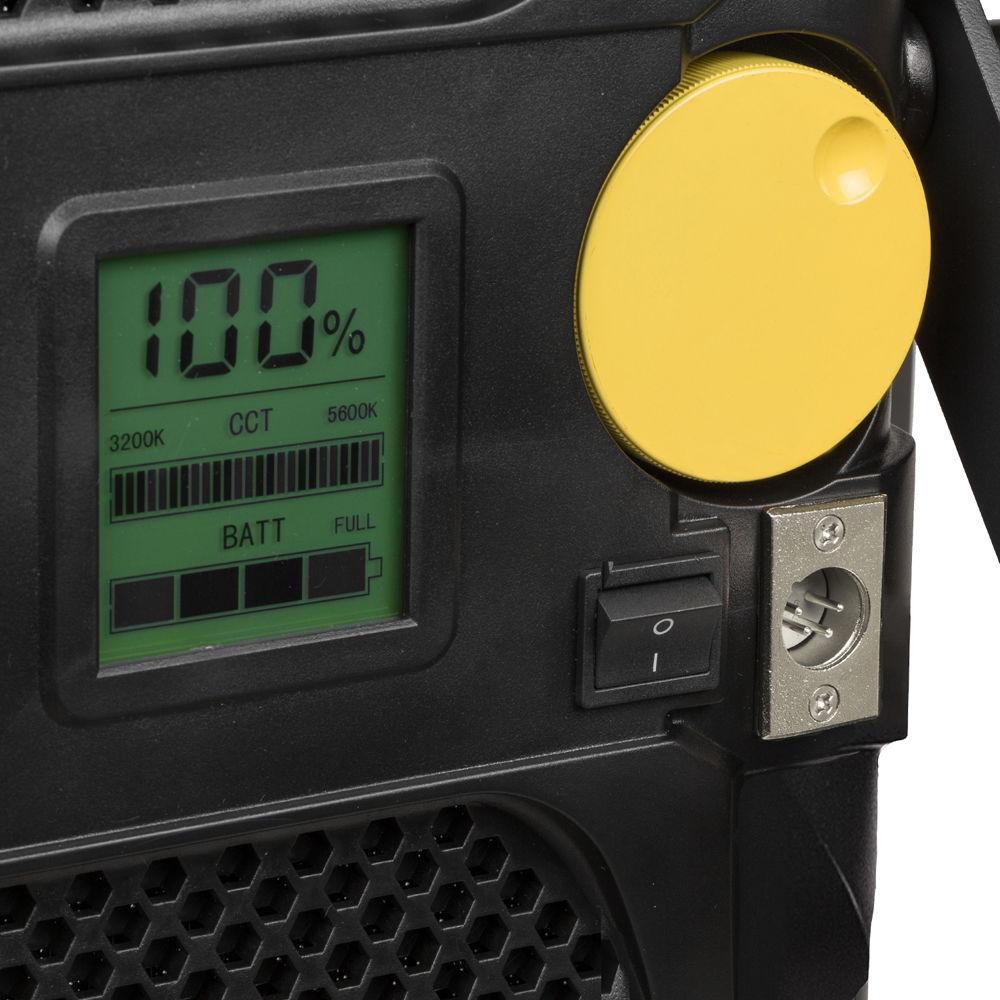

  • The big yellow knob on the back of the unit controls both the color temperature selection and the dimming of the unit. It features an indent for fingertip control and is positioned at the edge of the fixture, which is cut away allowing you to adjust the knob from the side of the unit when the back is difficult to access. When you power on the light the yellow dimming knob defaults to controlling the dimming, pressing in the knob switches it to color temperature control (3200 to 5600K), pressing it again reverts back to dimming. You can also use the included wireless remote to control the color temperature and dimming.
  Consistent Light Levels
  • The light output stays consistent as you transition across the color temperature range, preventing the brightness spike that happens with many LED lights around 4300K.
  Soft Source, Single Shadow
  • The 1/2 white diffusion softens the light and provides a 110° beam spread and a single source shadow.
  Removable Intensifiers
  • While some users may enjoy the small increase in light output that intensifiers bring, other users prefer to use barndoors without intensifiers. The removable intensifiers that come with this light attach securely to the barndoors. You do not have to attach all four intensifiers, which allows you choose how many barndoors to use for bumping up your output and how many barndoors to use to cut spill. The top and bottom barndoors integrate gel clips for attaching diffusion or gels.
  Battery Power
  • The fixture features an interchangeable Gold Mount battery plate. Removing four screws and disconnecting the snap connector allows you to swap out the included V-Mount plate.
  LCD Info Screen
  • On the back of the fixture is an LCD info screen that displays the battery power remaining, brightness percentage and color temperature.
  UPC: 847983016136

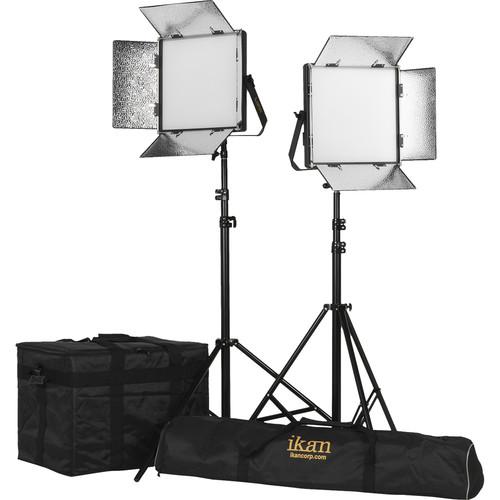

• V2 Heavy Duty Light Stand (8') The V2 Heavy Duty Light Stand from Ikan is a two-riser, three-section, air-cushioned support that rises to a height of 8' and folds down to 36". The stand supports up to 8 lb and has a 5/8" top stud. UPC: 847983019502

• Gold Mount Battery Plate

• V-Mount Battery Plate

• Power Supply Adapter for Lyra LB10 and LW10 LED Lights

• Barndoors with Removable Intensifiers

• Remote Control

• Yoke with Stand Receiver/Pin

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Stand Bag
• Light Kit Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Lyra LB10 Bi-Color Soft Panel 1 x 1 Studio and Field LED Light

  Beam Angle	110°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 96 at 3200K CRI 96 at 5600K TLCI 98 at 3200K TLCI 98 at 5600K
  Cooling System	Passive
  Dimming	Yes, 10 to 100% (Stepped)
  Display	None
  Housing Material	Resin
  Number of LEDs	900
  Fixture Dimensions	14.0 x 14.0 x 3.0" / 35.6 x 35.6 x 7.6 cm
  Fixture Weight	6.0 lb / 2.7 kg

  Battery Plate	1 x Gold Mount 1 x V-Mount

  Fixture Mount	Combination 1-1/8" Stud and 5/8" Receiver
  Accessory Mount	None

  Remote Control Type	Proprietary Wireless

  AC Input Power	110 to 220 VAC, 50 / 60 Hz
  DC Input Power	14 to 18 VDC
  Power Source	AC Adapter, External Battery
  Consumption Per LED	0.2 W
  Max Power Consumption	150 W

  Power Supply Output	15 VDC, 7 A

  IP Rating	IP20

  Box Dimensions (LxWxH)	21.0 x 18.0 x 5.6"

• V2 Heavy Duty Light Stand (8')

  Load Capacity	8.0 lb (3.6 kg)
  Maximum Height	95" (241.3 cm)
  Minimum Height	38.5" (97.8 cm)
  Folded Length	36" (91.4 cm)
  Air Cushioned	Yes
  Mount	5/8" (16 mm) stud

  Box Dimensions (LxWxH)	36.5 x 3.7 x 3.7"
