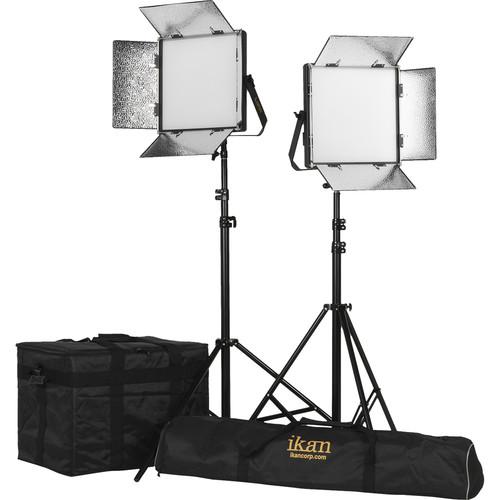

User Manual for ikan Lyra 1 x 1 Daylight 2-Point Soft Panel LED Light Kit

• Product category: LED Lights ikan
• Brand: ikan
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ikan LED Lights

Product description

• Lyra LW10 Daylight Balanced Soft Panel 1 x 1 Studio & Field LED Light
  • Ikan Corp: Tech Corner - Lyra Soft LED Lights

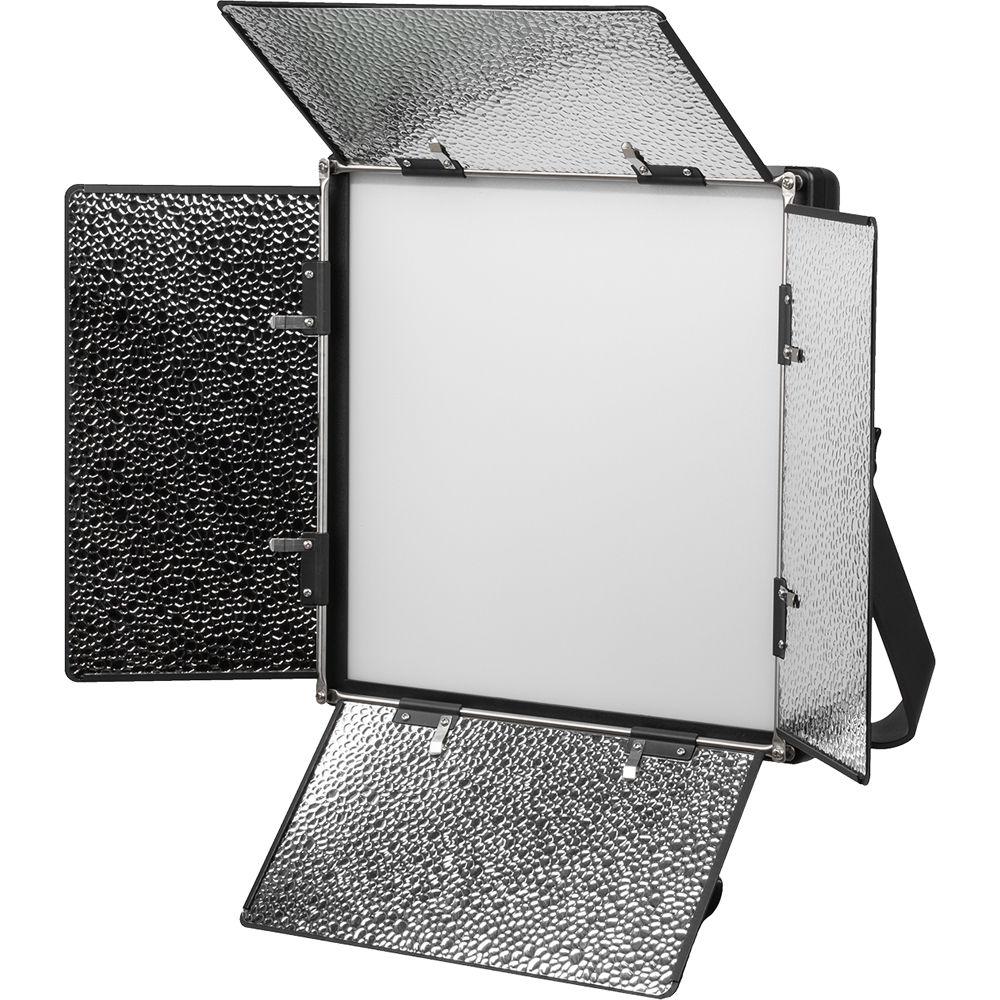

  The Lyra LW10 Daylight Balanced Soft Panel 1 x 1 Studio & Field LED Light from ikan is built into a heavy duty molded plastic chassis providing a lightweight yet strong fixture with enhanced features such as 100-10% flicker-free dimming, LCD display, and an included wireless remote. It features an integrated diffuser and houses 450 LEDs and produces a 110° beam spread. The fixture produces a soft single-source shadow pattern owing to the integrated diffusion.

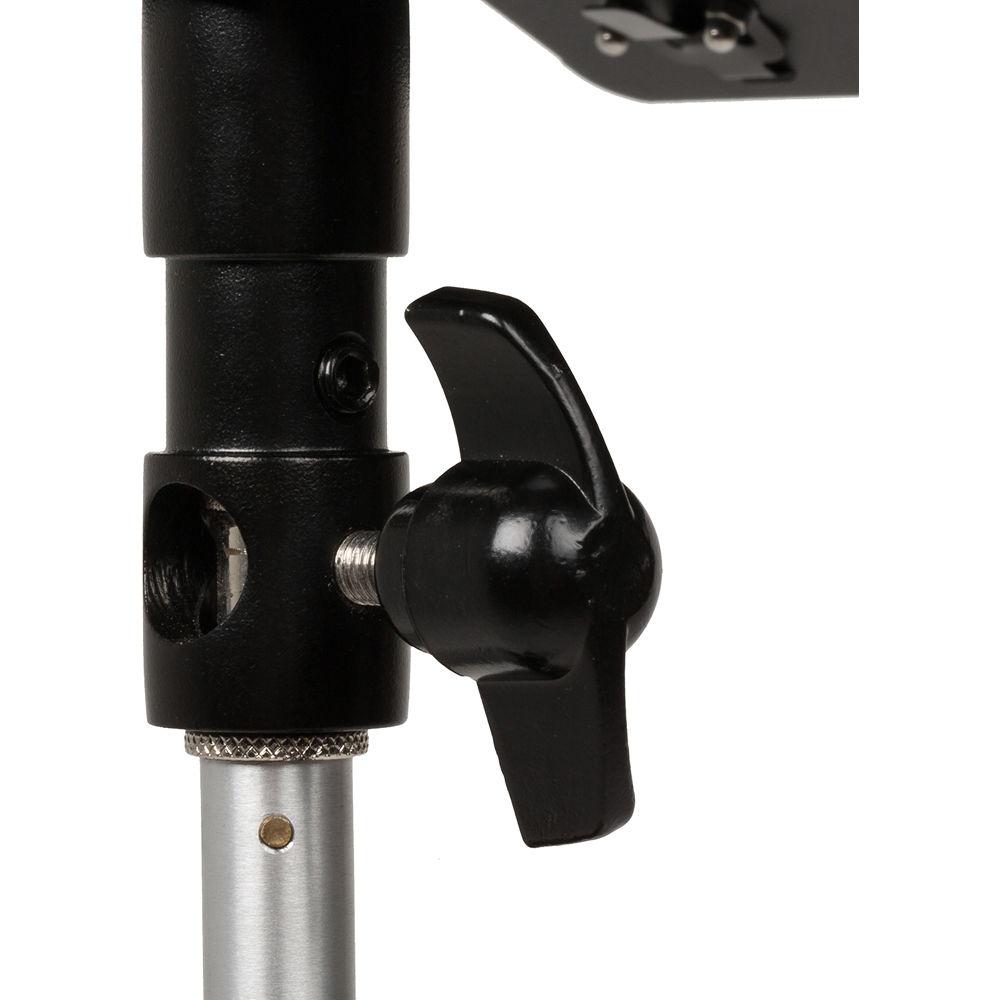

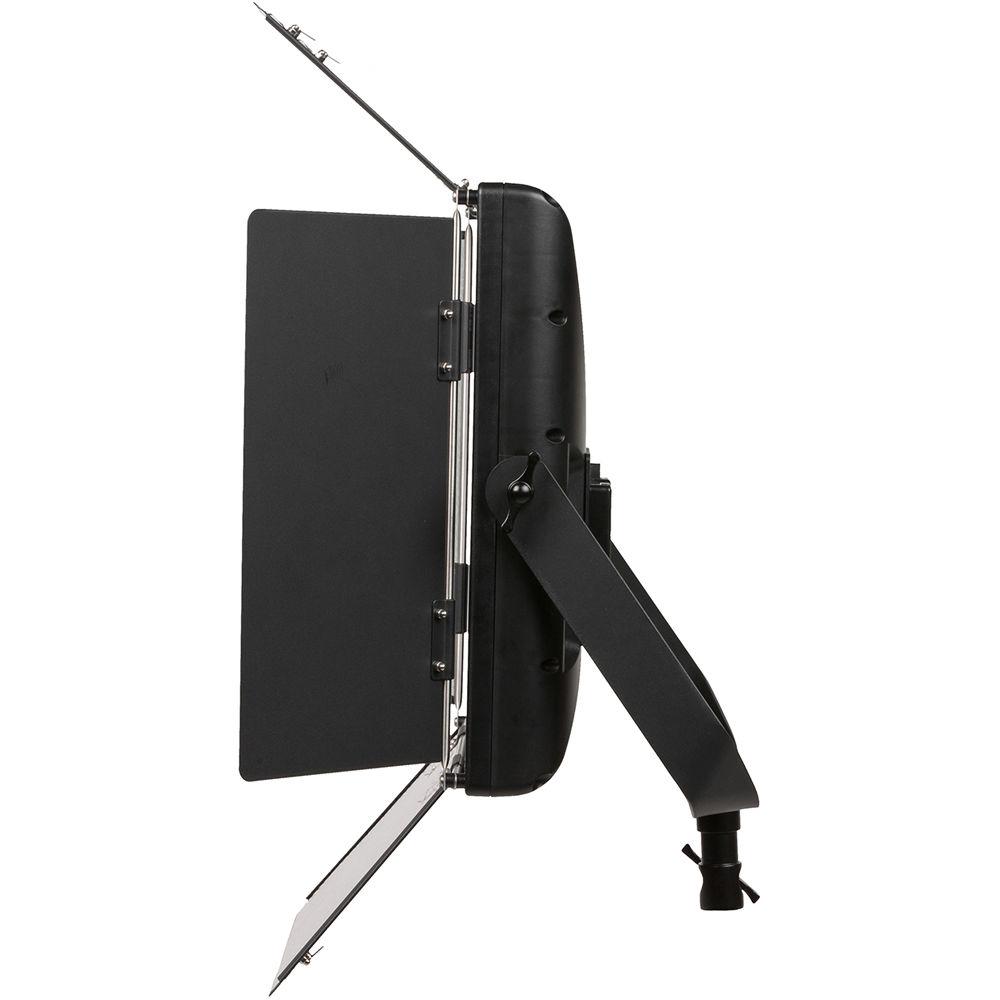

  The fixture is DC powered, incorporating a 4-pin XLR connector and including an AC/DC power supply for mains power. Interchangeable Gold Mount/V-Mount plates are included so no worrying about getting the fixture that matches your battery system. The four-leaf barndoors provide control over light spill, and feature removable light intensifiers to suit your taste. The yoke is angled forward 30°, which allows you to open the barndoors all the way without hitting the yoke when the light is pointed straight forward. The fixture also has a combo baby pin/junior stud mount so you can mount it on a stand or hang it from a grid with optional clamps.
  Dimming Adjustment

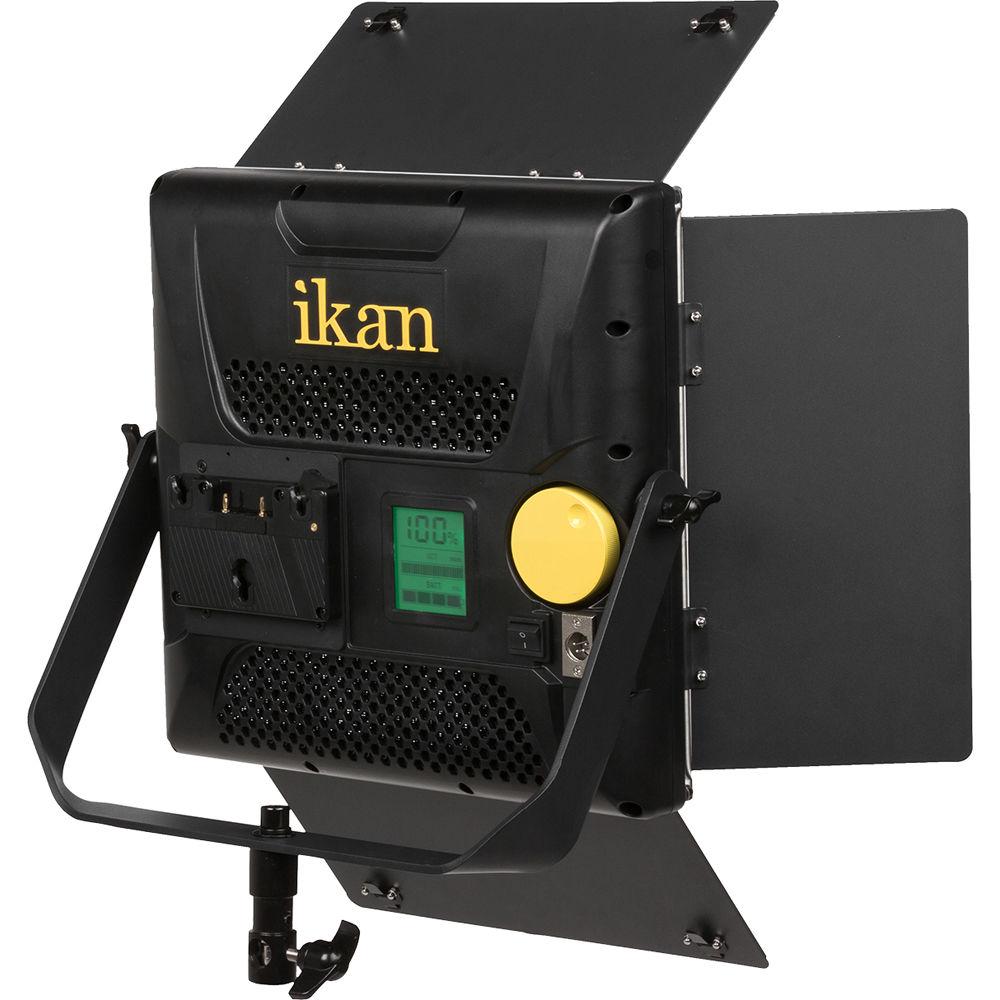

  • The big yellow knob on the back of the light controls dimming. It features an indent for fingertip control and is positioned at the edge of the fixture, which is cut away allowing you to adjust the knob from the side of the unit when the back is difficult to access. You can also use the included wireless remote to control the dimming.
  Soft Source, Single Shadow
  • The 1/2 white diffusion softens the light and provides a 110° beam spread and a single source shadow.

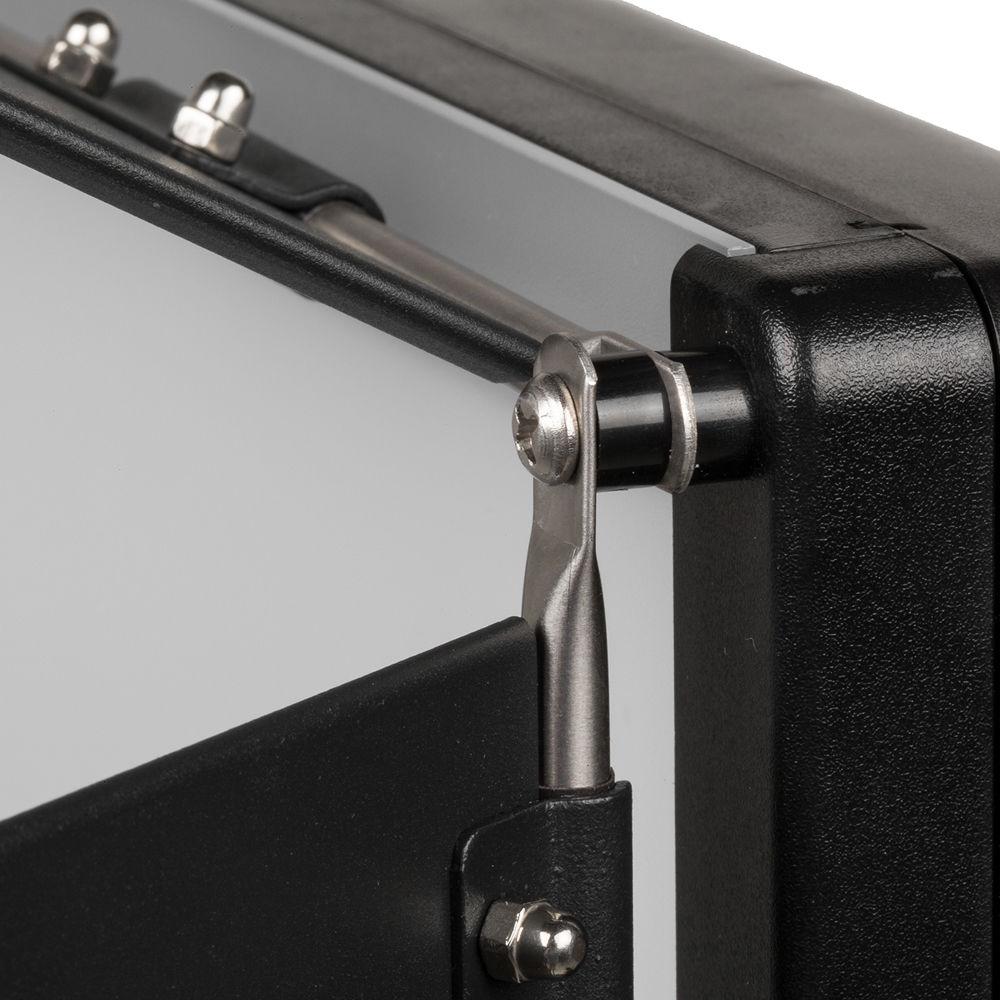

  Removable Intensifiers
  • While some users may enjoy the small increase in light output that intensifiers bring, other users prefer to use barndoors without intensifiers. The removable intensifiers that come with this light attach securely to the barndoors. You do not have to attach all four intensifiers, which allows you choose how many barndoors to use for intensifying your output and how many barndoors to use to cut spill.
  • The top and bottom barndoors integrate gel clips for attaching diffusion or gels.

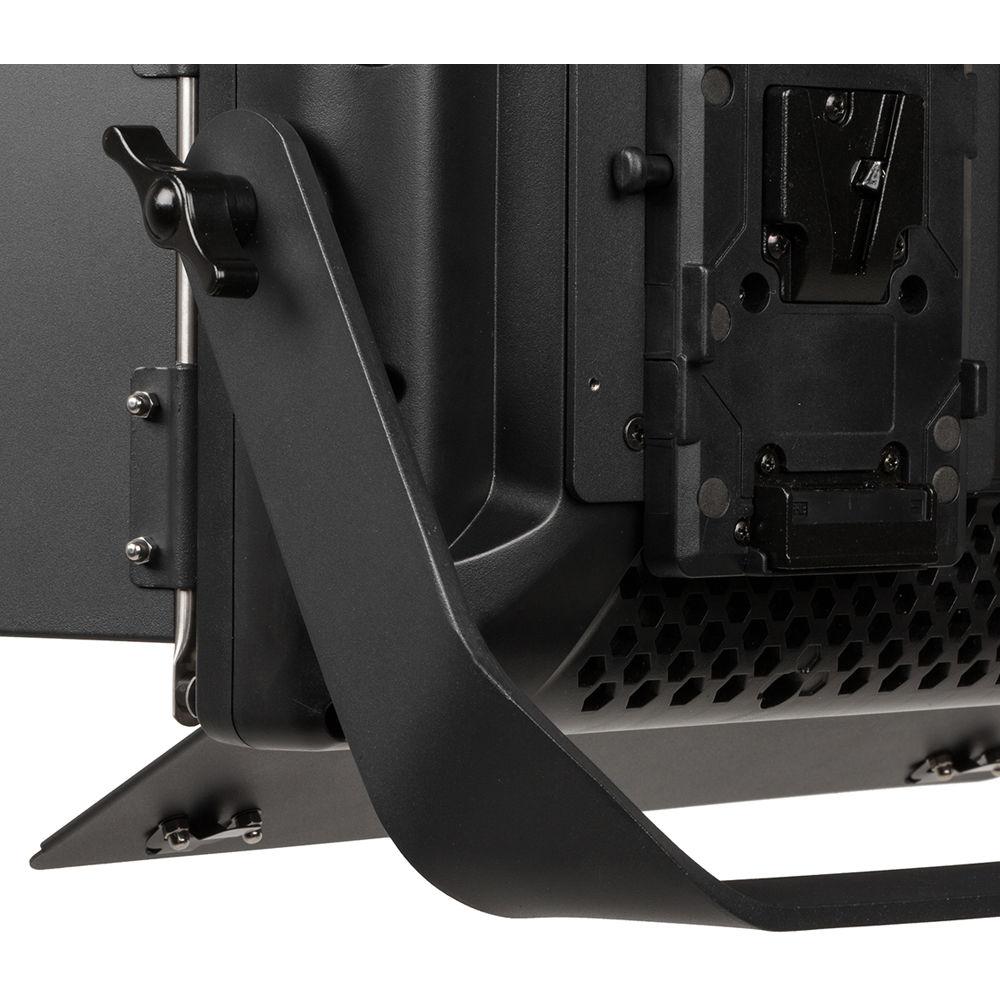

  Battery Power
  • The fixture features an interchangeable Gold Mount battery plate. Removing four screws and disconnecting the snap connector allows you to swap out the included V-mount plate.

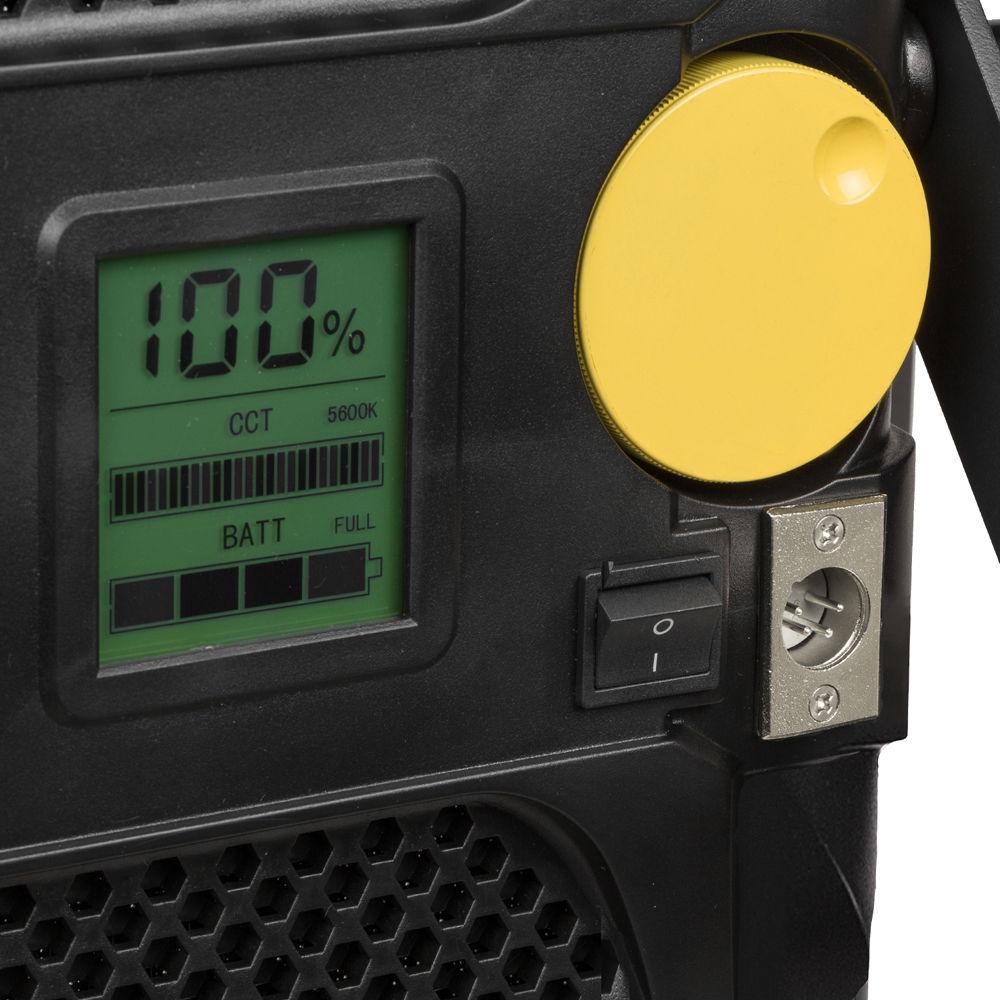

  LCD Info Screen
  • On the back of the fixture is an LCD info screen that displays the battery power remaining and brightness percentage.
  UPC: 847983016150
• Heavy Duty Light Stand The ikan Heavy Duty Light Stand is a 7.6' aluminum stand which supports up to 14 lb. It has a 5/8" top stud and folds down to 37.7 inches.

• AB Mount Battery Plate (Attached)

• V-Mount Battery Plate

• Power Supply with 4-Pin XLR Cable

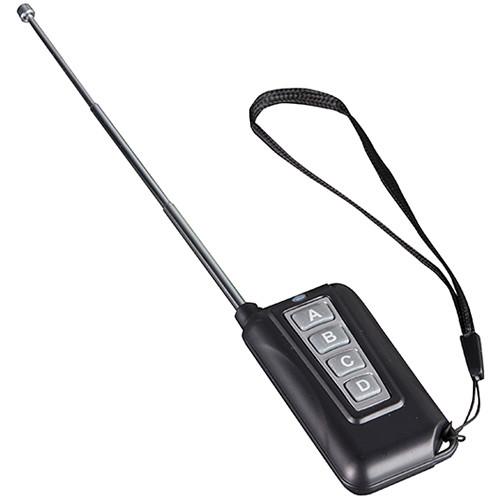

• Remote Control

• Yoke with Stand Receiver/Pin

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Stand Bag
• Light Kit Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Lyra LW10 Daylight Balanced Soft Panel 1 x 1 Studio & Field LED Light

  Beam Angle	110°
  Color Temperature	5600K
  Cooling System	Passive
  Dimming	Yes, 10 to 100% (Stepped)
  Display	None
  Housing Material	Resin
  Number of LEDs	450
  Fixture Dimensions	14.0 x 14.0 x 3.0" / 35.6 x 35.6 x 7.6 cm
  Fixture Weight	6.0 lb / 2.7 kg

  Battery Plate	1 x Gold Mount 1 x V-Mount

  Fixture Mount	Combination 1-1/8" Stud and 5/8" Receiver
  Accessory Mount	None

  Remote Control Type	Proprietary Wireless

  AC Input Power	110 to 220 VAC, 50 / 60 Hz
  DC Input Power	14 to 18 VDC
  Power Source	AC Adapter, External Battery
  Consumption Per LED	0.2 W
  Max Power Consumption	90 W

  Power Supply Output	15 VDC, 7 A

  IP Rating	IP20

  Box Dimensions (LxWxH)	21.0 x 18.0 x 5.7"

• Heavy Duty Light Stand

  Load Capacity	14 lb / 6.3 kg
  Mounting Options	5/8" Stud
  Maximum Working Height	7.6' / 2.3 m
  Collapsed Height	37.7" / 0.9 m
  Footprint Diameter	41.34" / 1 cm
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Weight	3.6 lb / 1.6 kg

  Box Dimensions (LxWxH)	40.0 x 4.4 x 3.9"
