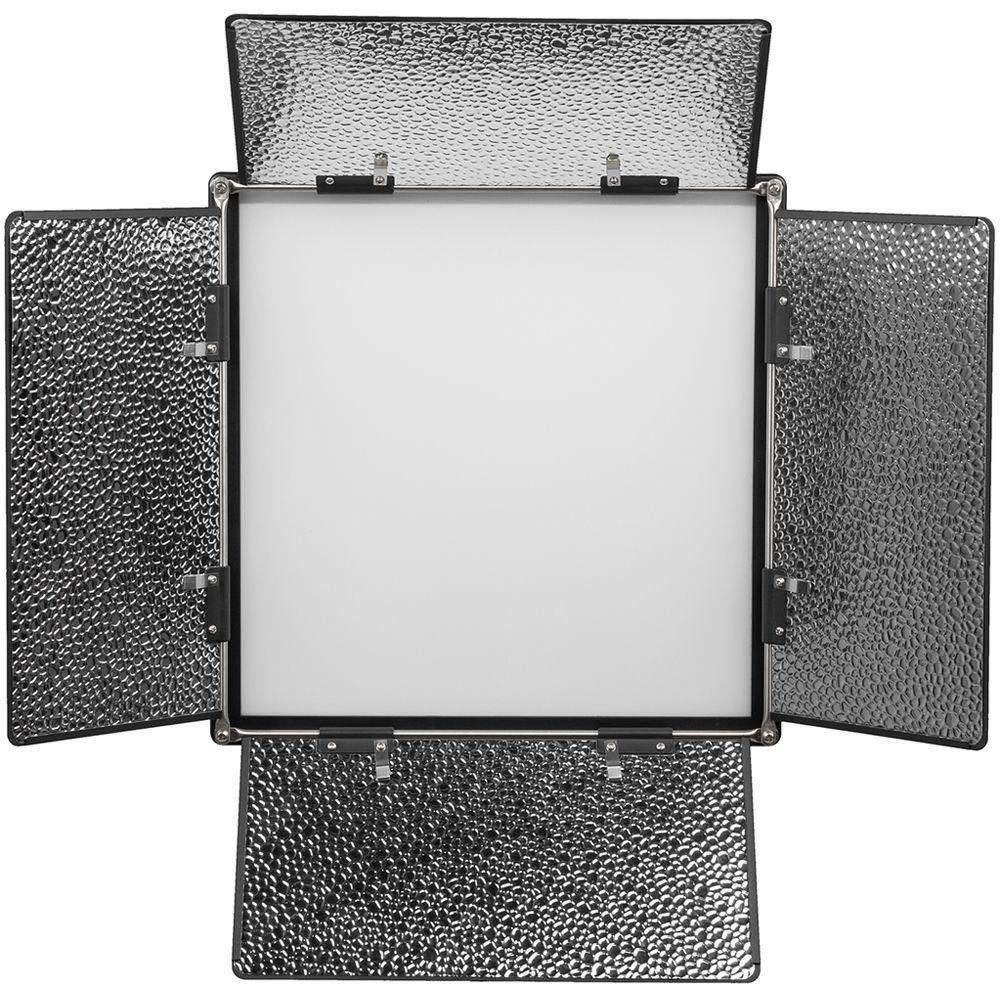

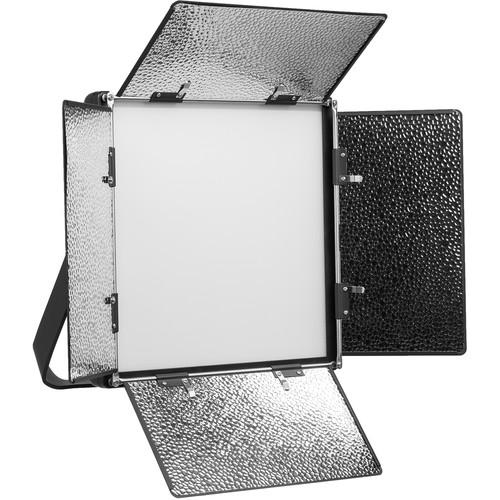

Product description The Lyra 1 x 1 Daylight Soft Studio and Field LED Light with DMX from ikan employs a heavy-duty molded resin chassis to provide a lightweight yet rugged fixture with features such as flicker-free dimming that can be controlled locally or via DMX and an LED display. It features an integrated 1/2 stop diffuser for extra softness, while its 450 LEDs produce a 110° beam spread with a high CRI and TLCI for precise color rendering. The fixture produces a soft single-source shadow pattern owing to the integrated diffuser.The fixture's four-leaf barndoors direct the light, help contain spill light and feature light intensifiers to maximize output. The yoke is angled forward 30°, which allows you to open the barndoors all the way without hitting the yoke when the light is pointed straight forward. The fixture also has a combo baby receiver/junior pin on the yoke, so you can mount it on a stand or hang it from a grid with optional clamps. - Consistent Color and Brightness
- The high CRI LED chips and 1/2-stop soft diffusion panel can output a strong, bright diffused light. The soft light's 5600K color temperature works well with any lighting production.
- Single Knob Control
- Whether it's brightness or DMX, you can adjust these settings with a single knob at any time. The enhanced LED readout is brighter and provides a quick reference of the light output with precise measurements.
- Improved Yoke Design and Better Components
- The 30-degree angled yoke provides unobstructed movement of the barndoors. The strong steel tension knobs securely lock the light in place at any angle.
- Industry Standard Combo Pin
- The baby 5/8" and junior 1-1/8" combo pin includes a right-angle receiver hole that allows you to attach it to any grip stand.
- Incandescent Watts Equivalency
- The Lyra Soft Light is equivalent to an 850W incandescent light and gives a clean, single shadow.
- Barndoors Included
- ikan's reliable barndoors with intensifiers allow you to shape the light to fit your needs.
- Benefits in Short
-
- High CRI Chip LEDs paired with 1/2 stop soft diffusion panel
- Daylight 5600K
- Bright consistent color temperature
- Beam angle of soft panel: 110 degrees
- A clean single shadow without the artifacts
- DMX512 In and Out
- Baby 5/8" / junior 1-1/8" combo pin adapter with right angle receiver hole
- 30-degree angled yoke for unobstructed movement
- Strong steel tension knobs for locking the light into place
- Single knob control for adjusting brightness, or DMX
- LED readout screen giving you precise adjustments
- Included barndoors with intensifiers
- Equivalent to 850W incandescent soft light
UPC: 847983021468 In the Box ikan Lyra 1 x 1 Daylight Soft Studio and Field LED Light with DMX Barndoors with Intensifiers Multi-Voltage Power Supply with Cable Yoke with Stand Receiver/Pin Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Lyra 1 x 1 Daylight Soft Studio and Field LED Light with DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan LWX10 Specs | | | Beam Angle | 110° | | Color Temperature | 5600K | | Cooling System | Passive | | Dimming | Yes | | Display | None | | Housing Material | Resin | | Number of LEDs | 450 | | Fixture Dimensions | 14.0 x 14.0 x 3.0" / 35.5 x 35.5 x 7.6 cm | | Fixture Weight | 6.0 lb / 2.7 kg | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 220 VAC, 50 / 60 Hz | | DC Input Power | 14 to 18 VDC | | Power Source | AC Adapter | | Consumption Per LED | 0.2 W | | Max Power Consumption | 150 W | | | | Power Supply Output | 15 VDC, 7 A | | | | Package Weight | 12.2 lb | | Box Dimensions (LxWxH) | 21.1 x 18.1 x 5.5" |
