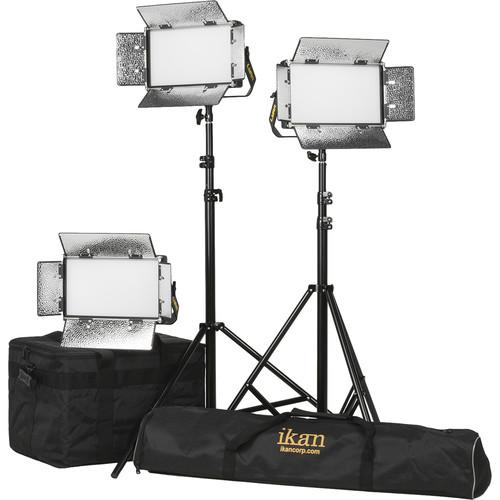

User Manual for ikan Lyra Half x 1 Bi-Color 3-Point Soft Panel LED Light Kit

• Product category: LED Lights ikan
• Brand: ikan
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ikan LED Lights

Product description

• Lyra LB5 Bi-Color Soft Panel Half x 1 Studio and Field LED Light
  • Ikan Corp: Tech Corner - Lyra Soft LED Lights

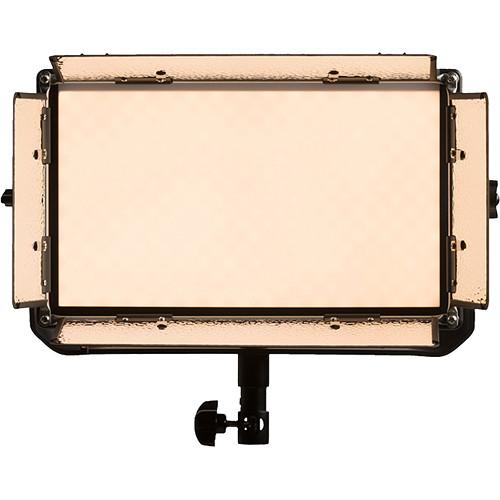

  The Lyra LB5 Bi-Color Soft Panel Half x 1 Studio and Field LED Light from ikan is built into a heavy-duty molded plastic chassis providing a lightweight yet strong variable color fixture with enhanced features such as 100-10% flicker-free dimming , LCD display, and an included wireless remote to adjust color and light intensity. It features an integrated 1/2 stop diffuser for extra softness, while its 510 LEDs produce a 110° beam spread with a high CRI of 96 and a TLCI of 98 for precise color rendering. The fixture produces a soft single-source shadow pattern owing to the integrated diffusion.

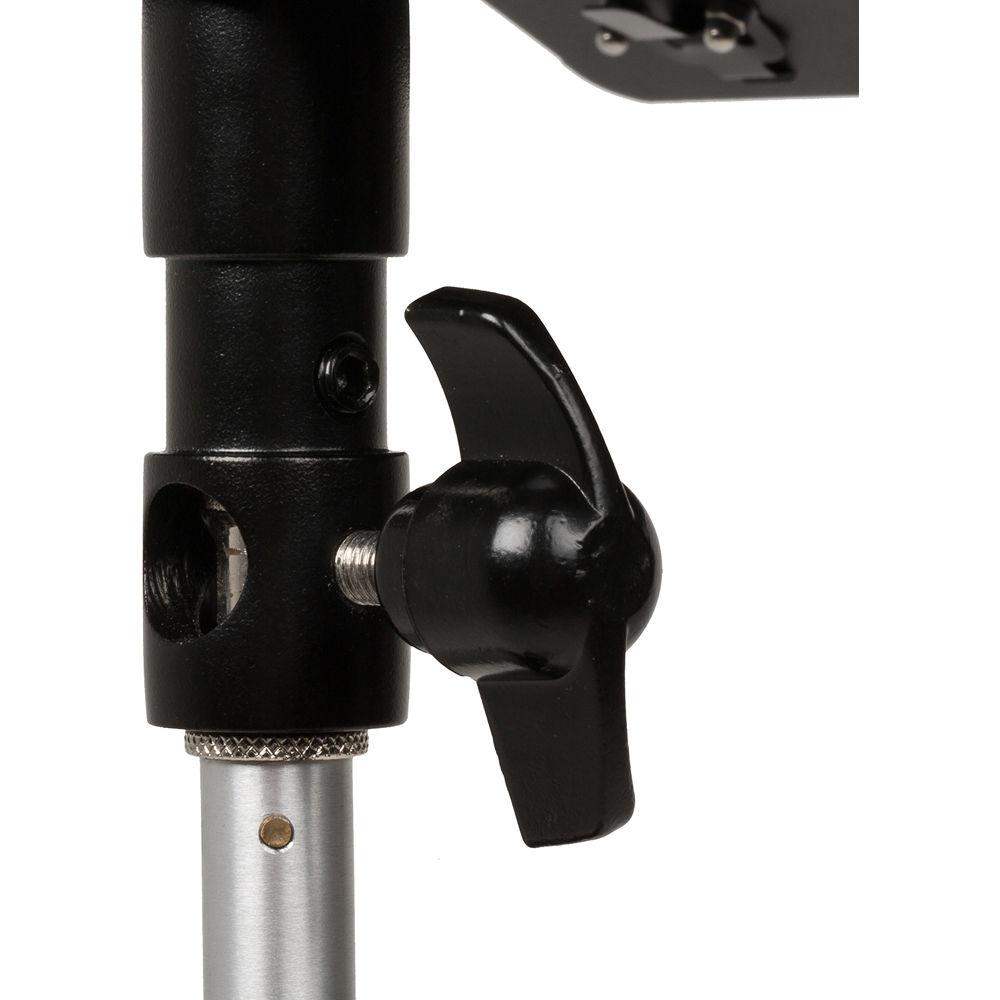

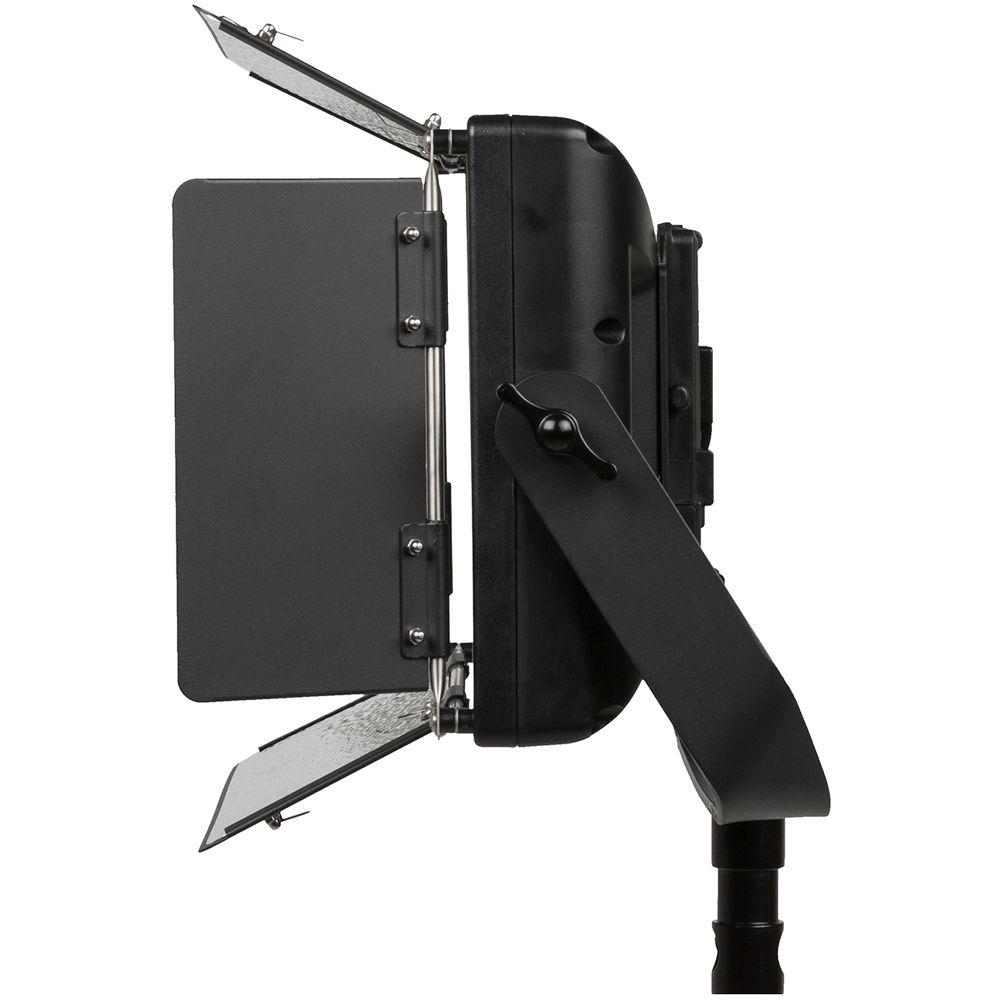

  The Lyra comes with a multi-voltage AC power supply but it also has a battery-powered option thanks to the inclusion of Gold Mount and V-Mount battery plates, while the four-leaf barndoors provide control over light spill, and feature removable light intensifiers to suit your taste. The yoke is angled forward 30°, which allows you to open the barndoors all the way without hitting the yoke when the light is pointed straight forward. The fixture also has a combo Baby receiver/Junior pin on the yoke so you can mount it on a stand or hang it from a grid with optional clamps.
  Color Temperature Adjustment and Dimming

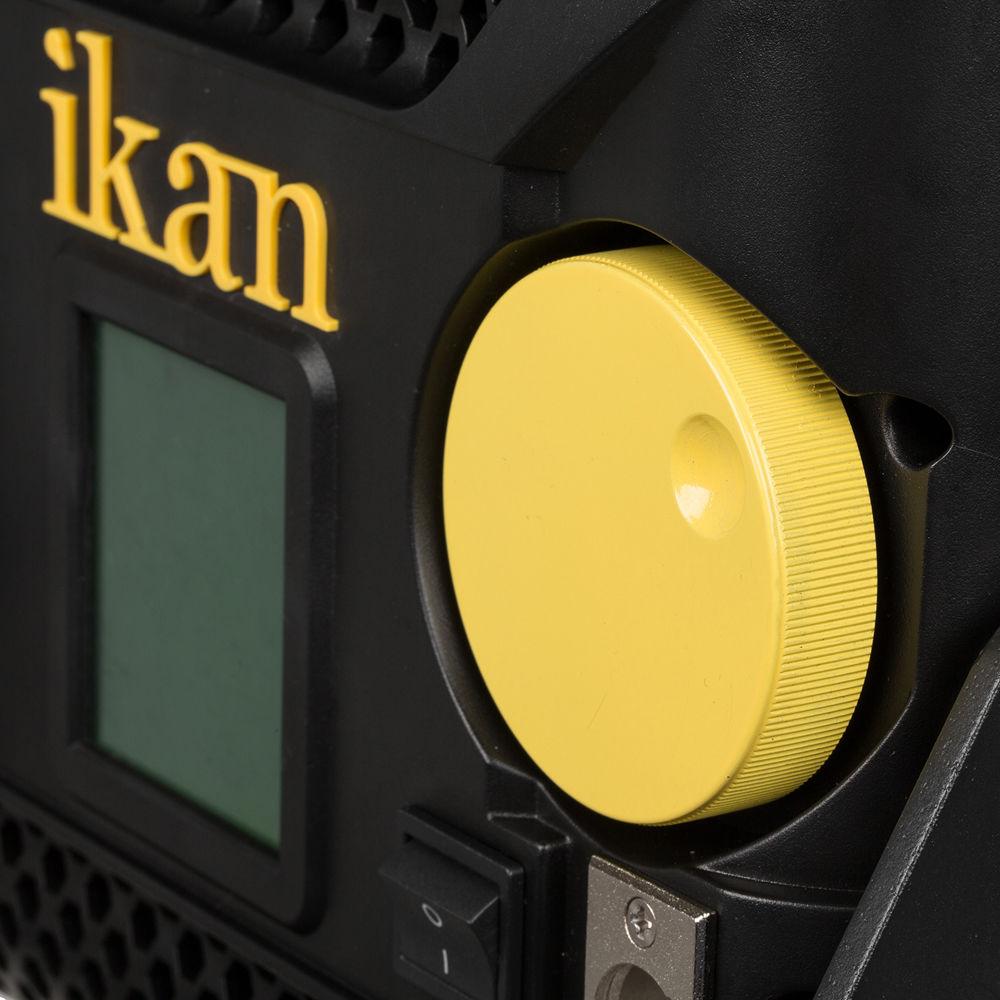

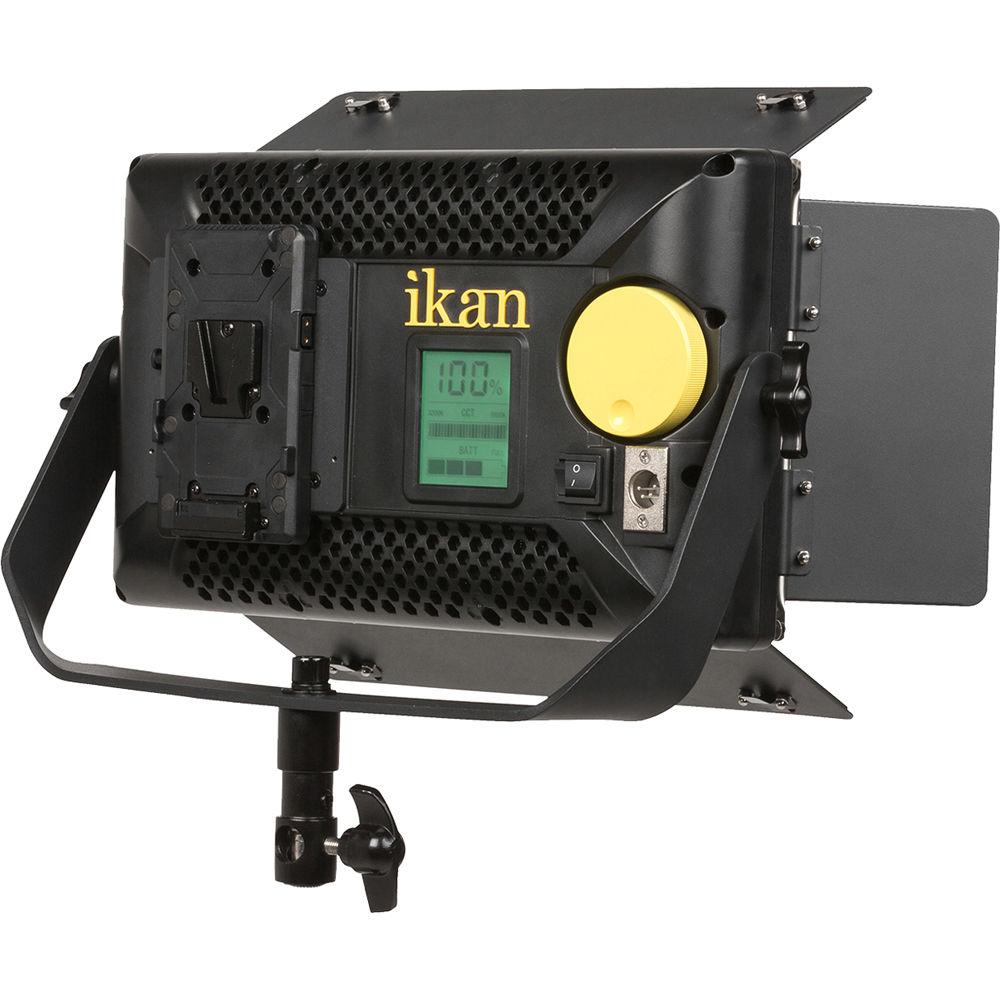

  • The big yellow knob on the back of the unit controls both the color temperature selection and the dimming of the unit. It features an indent for fingertip control and is positioned at the edge of the fixture, which is cut away allowing you to adjust the knob from the side of the unit when the back is difficult to access. When you power on the light the yellow dimming knob defaults to controlling the dimming, pressing in the knob switches it to color temperature control (3200 to 5600K), pressing it again reverts back to dimming. You can also use the included wireless remote to control the color temperature and dimming.
  Consistent Light Levels
  • The light output stays consistent as you transition across the color temperature range, preventing the brightness spike that happens with many LED lights around 4300K.
  Soft Source, Single Shadow
  • The 1/2 white diffusion softens the light and provides a 110° beam spread and a single source shadow.
  Removable Intensifiers

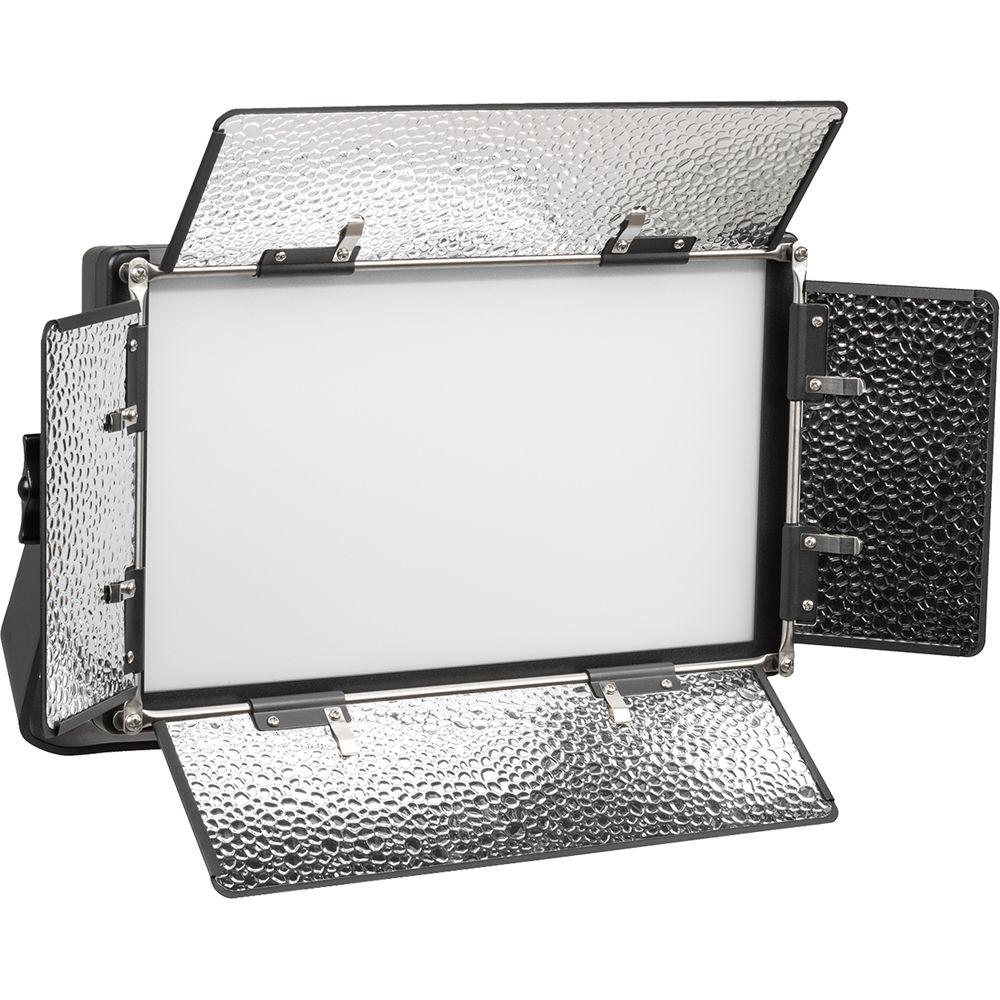

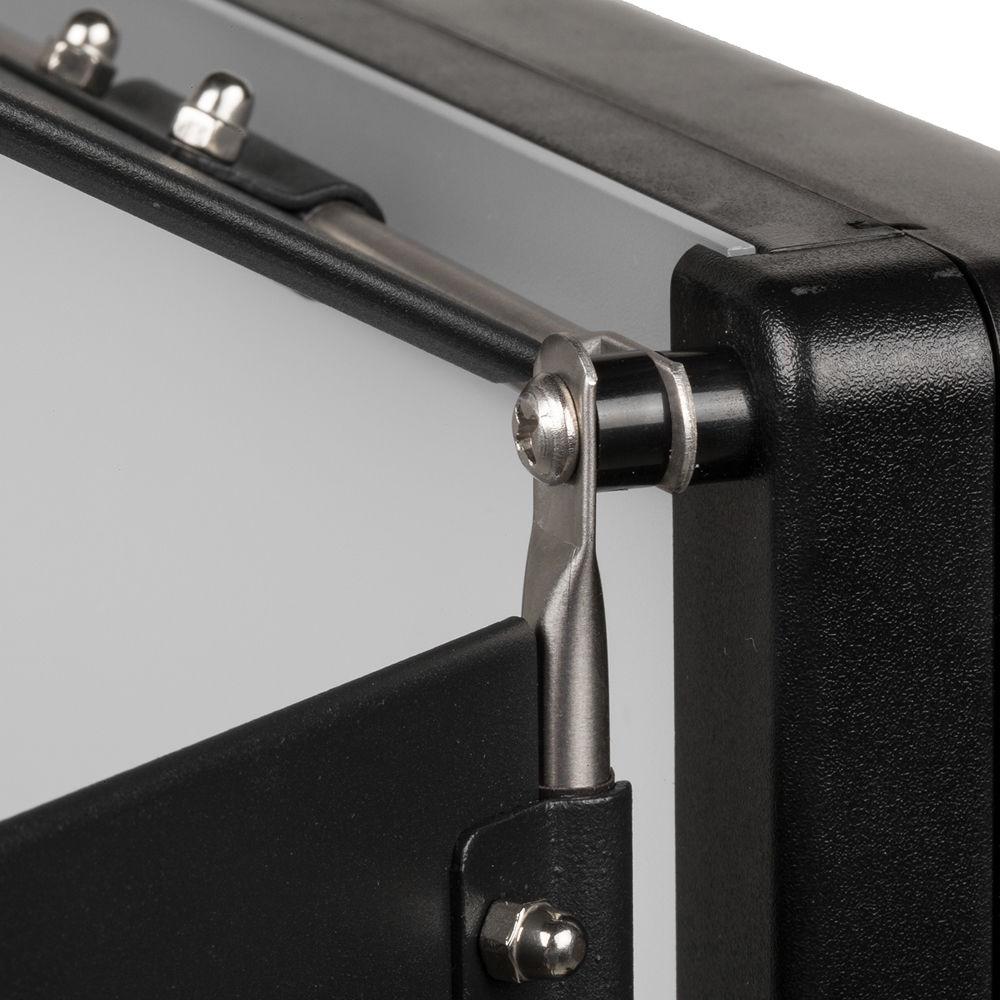

  • While some users may enjoy the small increase in light output that intensifiers bring, other users prefer to use barndoors without intensifiers. The removable intensifiers that come with this light attach securely to the barndoors. You do not have to attach all four intensifiers, which allows you choose how many barndoors to use for bumping up your output and how many barndoors to use to cut spill. The top and bottom barndoors integrate gel clips for attaching diffusion or gels.
  Battery Power

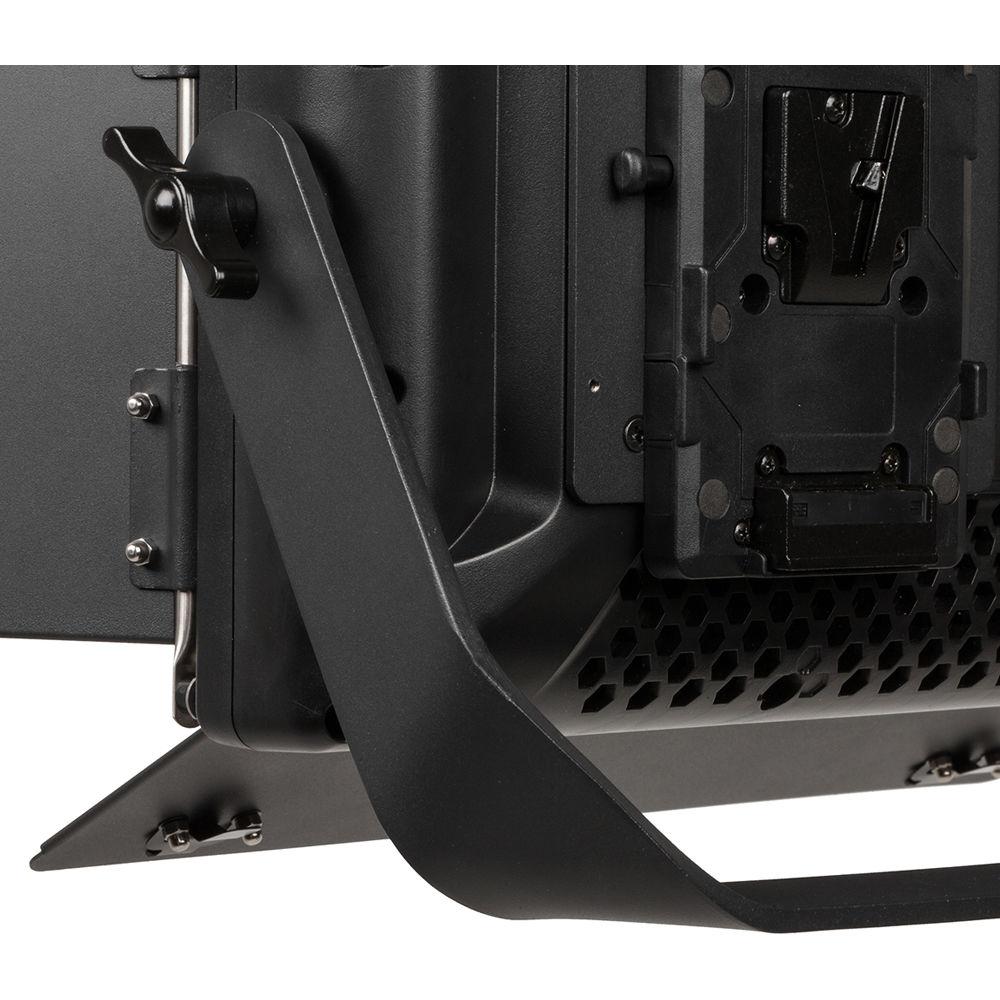

  • The fixture features an interchangeable Gold Mount battery plate. Removing four screws and disconnecting the snap connector allows you to swap out the included V-Mount plate.
  LCD Info Screen
  • On the back of the fixture is an LCD info screen that displays the battery power remaining, brightness percentage and color temperature.
  UPC: 847983016143
• V2 Heavy Duty Light Stand (8') The V2 Heavy Duty Light Stand from Ikan is a two-riser, three-section, air-cushioned support that rises to a height of 8' and folds down to 36". The stand supports up to 8 lb and has a 5/8" top stud. UPC: 847983019502
• IBG-STND Stand Bag The IBG-STND Stand Bag by ikan is a robust storage and transport carry case made of strong, black synthetic material intended for ikan ID500 and ID1000 light stands. The bag features a padded interior with individual compartments for each stand and zippered closures on both the top and side. A webbed strap encircles and reinforces the bag and its 2 handles join together with a padded touch-fastener.
  • Individual interior compartments for each stand
  • Opens from top and side
  • Heavy duty padded interior
  • Padded top strap
  UPC: 847983004881
• IBG-1000-3L Light Kit Bag The ikan IBG-1000-3L Light Kit Bag features a mesh pocket for included accessories and adequately fits 3 ID1000 lights and the adjustable padded inserts can be configured to fit the video professional’s needs. Its strong, durable nylon design protects and secures each individual light in the bag and keeps them scratch free. This bag is equipped with dual zippers and a snap-on strap for added security. Also, the IBG-1000-3L bag’s non-skid rubber feet provide a stable foundation for the lights. The plastic-padded side handles and heavy-duty padded shoulder strap provide multiple transportation options for one’s convenience.
  • Features adjustable, heavy-duty padded shoulder strap and inserts
  • Mesh accessory compartment
  • Made from sturdy, breathable, vinyl material
  • Snap-on clip for added security
  • Durable dual zippers
  • Non-skid rubber feet
  Compatibility
  • IFD1024-A 2-Point Light Kit with Anton Bauer Battery Plates
  • IFD1024-A 3-Point Light Kit with Anton Bauer Battery Plates
  • IFD1024-S 2-Point Light Kit with V-Mount Battery Plates
  • IFD1024-S 3-Point Light Kit with V-Mount Battery Plates
  • IFD1024 Featherweight Daylight LED Light with AB Battery Plate
  • IFD1024 Featherweight Daylight LED Light with V-Mount Battery Plate

• Gold Mount Battery Plate

• V-Mount Battery Plate

• AC Adapter for LB5 / LW5 / MB8 / MW8 / RB5 / RW5 LED Lights

• Barndoors with Removable Intensifiers

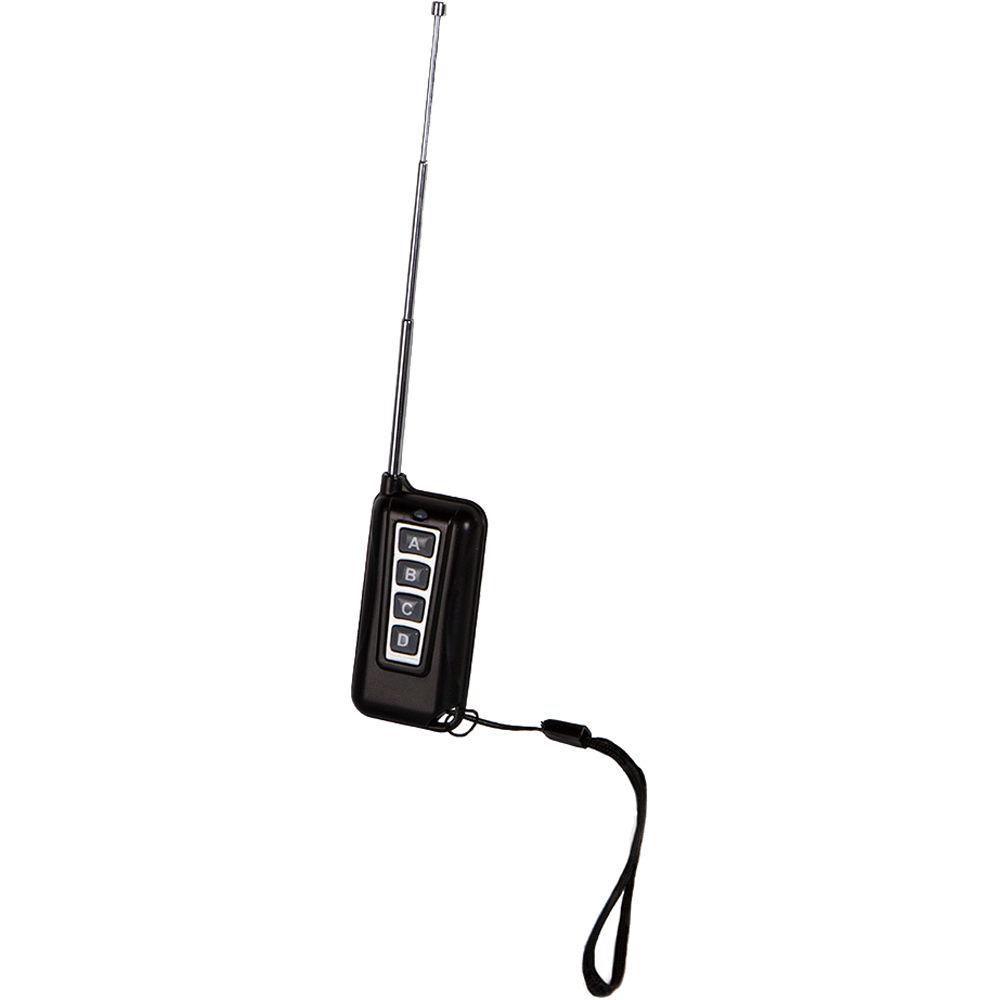

• Remote Control

• Yoke with Stand Receiver/Pin

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 1 Year Manufacturer's Warranty

• Adjustable Shoulder Strap & Inserts

• Limited 1-Year Warranty

Also Includes

• 3 x Safety Chain

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Lyra LB5 Bi-Color Soft Panel Half x 1 Studio and Field LED Light

  Beam Angle	110°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 96 at 3200K CRI 96 at 5600K TLCI 98 at 3200K TLCI 98 at 5600K
  Cooling System	Passive
  Dimming	Yes, 10 to 100% (Stepped)
  Display	None
  Housing Material	Resin
  Number of LEDs	510
  Fixture Dimensions	14.0 x 8.0 x 3.0" / 35.6 x 20.3 x 7.6 cm
  Fixture Weight	4 lb / 1.8 kg

  Battery Plate	1 x Gold Mount 1 x V-Mount

  Fixture Mount	Combination 1-1/8" Stud and 5/8" Receiver
  Accessory Mount	None

  Remote Control Type	Proprietary Wireless

  AC Input Power	110 to 220 VAC, 50 / 60 Hz
  DC Input Power	14 to 18 VDC
  Power Source	AC Adapter, External Battery
  Consumption Per LED	0.2 W
  Max Power Consumption	150 W

  Power Supply Output	15 VDC, 7 A

  IP Rating	IP20

  Box Dimensions (LxWxH)	18.0 x 15.6 x 5.5"

• V2 Heavy Duty Light Stand (8')

  Load Capacity	8.0 lb (3.6 kg)
  Maximum Height	95" (241.3 cm)
  Minimum Height	38.5" (97.8 cm)
  Folded Length	36" (91.4 cm)
  Air Cushioned	Yes
  Mount	5/8" (16 mm) stud

  Box Dimensions (LxWxH)	36.5 x 3.7 x 3.7"

• IBG-STND Stand Bag

  Material	Synthetic
  Type of Closure	Top and side zippers
  Padded	Yes, handle touch-fastener and interior compartments
  Carrying/Transport Options	Webbed strap with 2 handles joined with padded touch fastener
  Dimensions	Exterior: 39 x 8.0 x 6.5" (99 x 20.3 x 16.5 cm) Interior: 38 x 7.0 x 6.0" (96 x 17.8 x 15.2 cm)
  Weight	2.0 lb (0.9 kg)

  Box Dimensions (LxWxH)	14.6 x 12.2 x 4.4"

• IBG-1000-3L Light Kit Bag

  Dimensions	Internal: 20 x 15 x 16" (508 x 381 x 406.4 mm) External: 21.5 x 17.5 x 17" (546.1 x 444.5 x 431.8 mm)
  Weight	8 lb (3.62 kg)

  Box Dimensions (LxWxH)	21.0 x 17.0 x 7.0"
