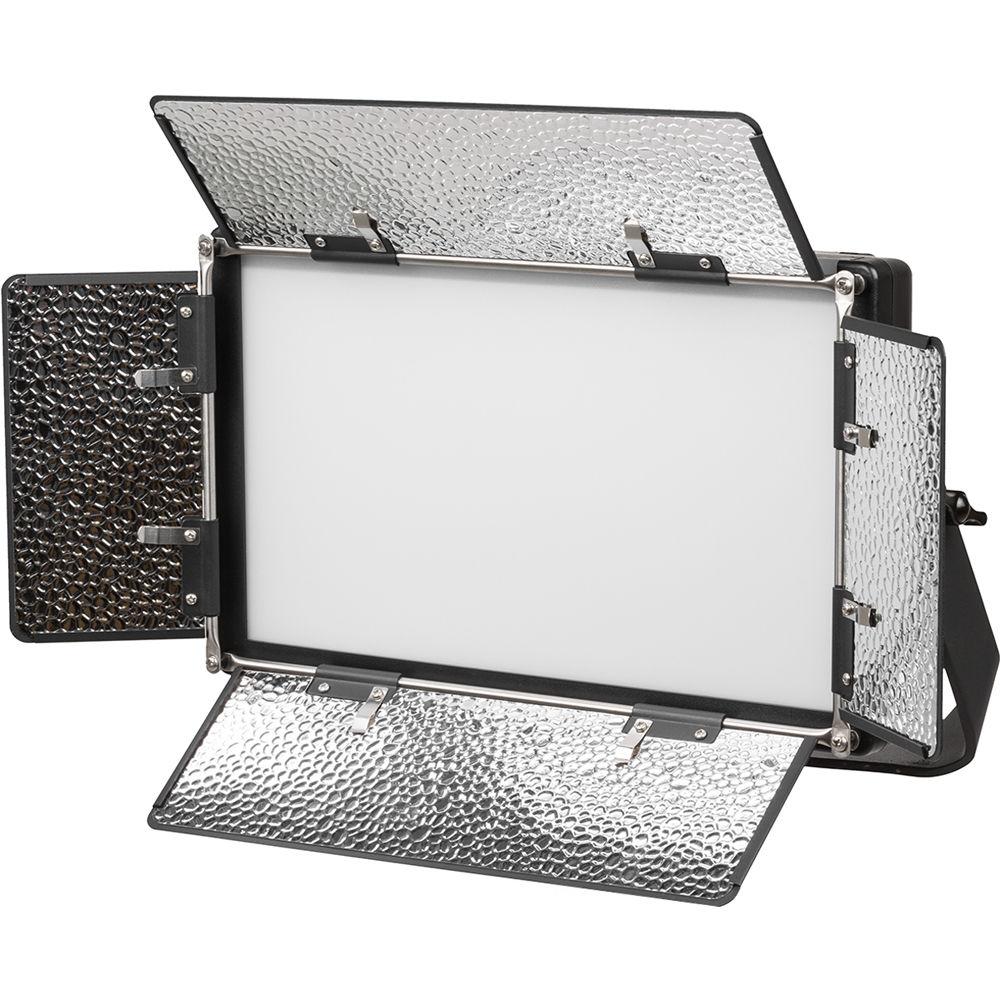

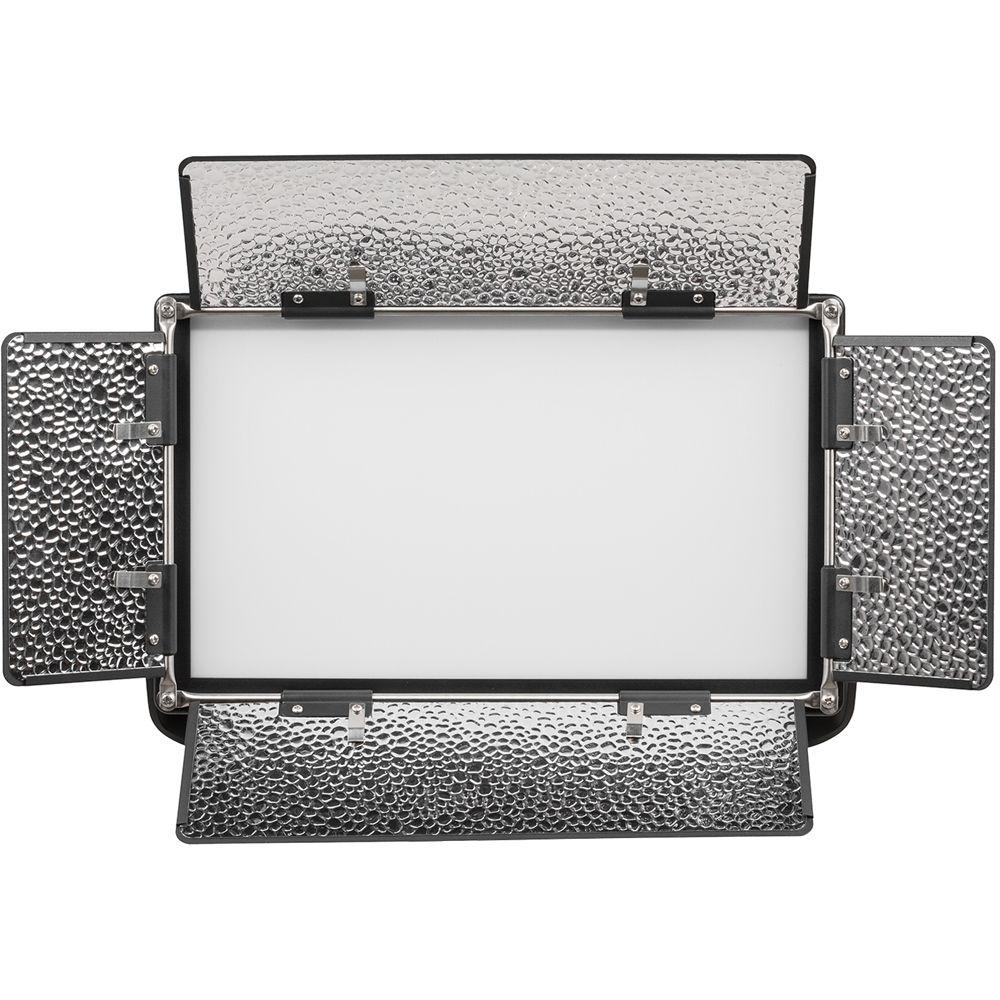

User Manual for ikan Lyra LB5 Bi-Color Soft Panel Half x 1 Studio and Field LED Light Click to enlarge the picture
Contents of the user manual for the ikan Lyra LB5 Bi-Color Soft Panel
- Product category: LED Lights ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan LED Lights
 |
User manual for the ikan Lyra LB5 Bi-Color Soft Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description - Ikan Corp: Tech Corner - Lyra Soft LED Lights
The Lyra LB5 Bi-Color Soft Panel Half x 1 Studio and Field LED Light from ikan is built into a heavy-duty molded plastic chassis providing a lightweight yet strong variable color fixture with enhanced features such as 100-10% flicker-free dimming , LCD display, and an included wireless remote to adjust color and light intensity. It features an integrated 1/2 stop diffuser for extra softness, while its 510 LEDs produce a 110° beam spread with a high CRI of 96 and a TLCI of 98 for precise color rendering. The fixture produces a soft single-source shadow pattern owing to the integrated diffusion.

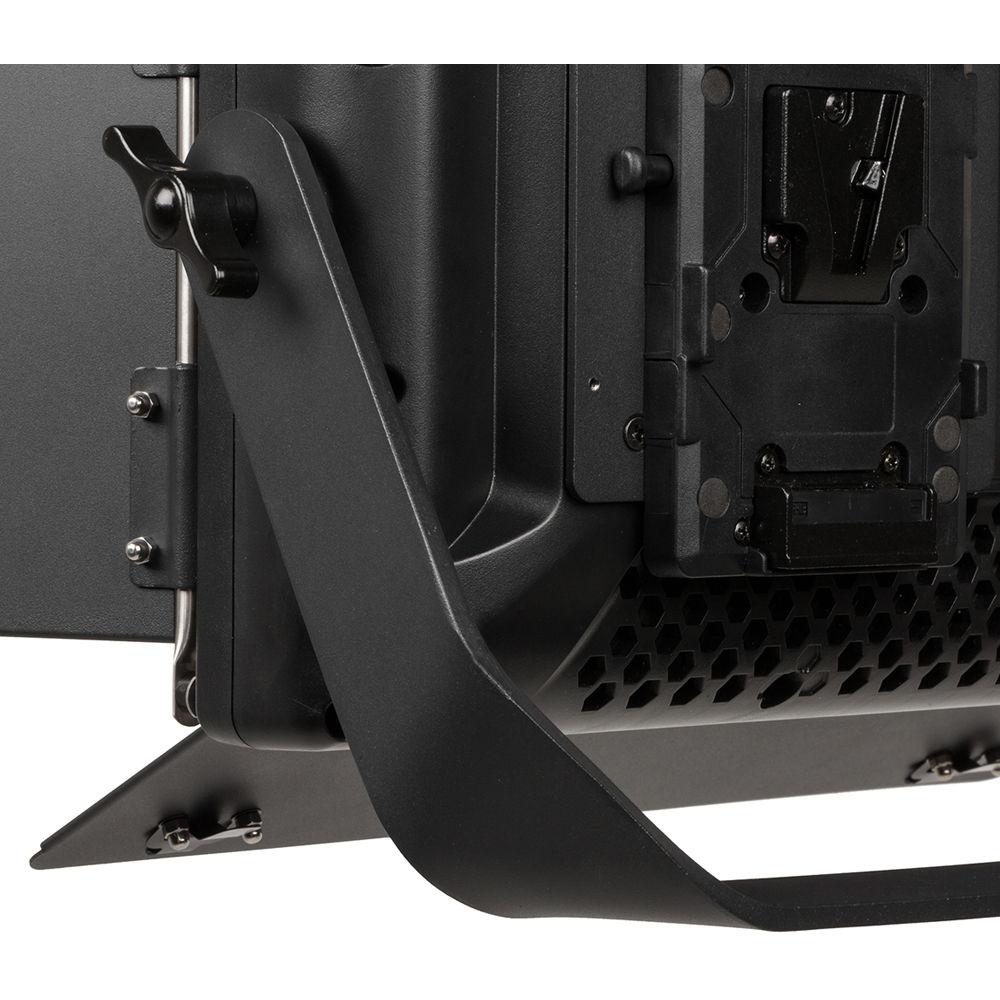

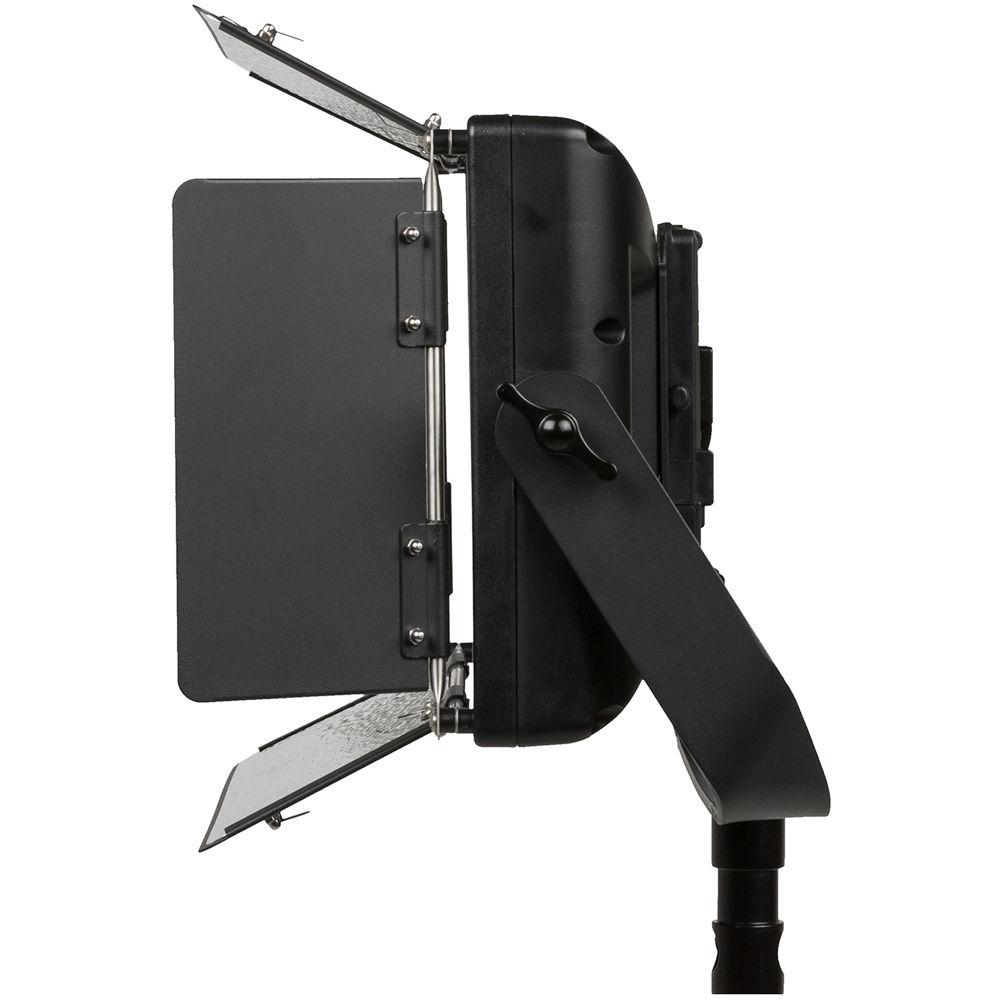

The Lyra comes with a multi-voltage AC power supply but it also has a battery-powered option thanks to the inclusion of Gold Mount and V-Mount battery plates, while the four-leaf barndoors provide control over light spill, and feature removable light intensifiers to suit your taste. The yoke is angled forward 30°, which allows you to open the barndoors all the way without hitting the yoke when the light is pointed straight forward. The fixture also has a combo Baby receiver/Junior pin on the yoke so you can mount it on a stand or hang it from a grid with optional clamps. - Color Temperature Adjustment and Dimming

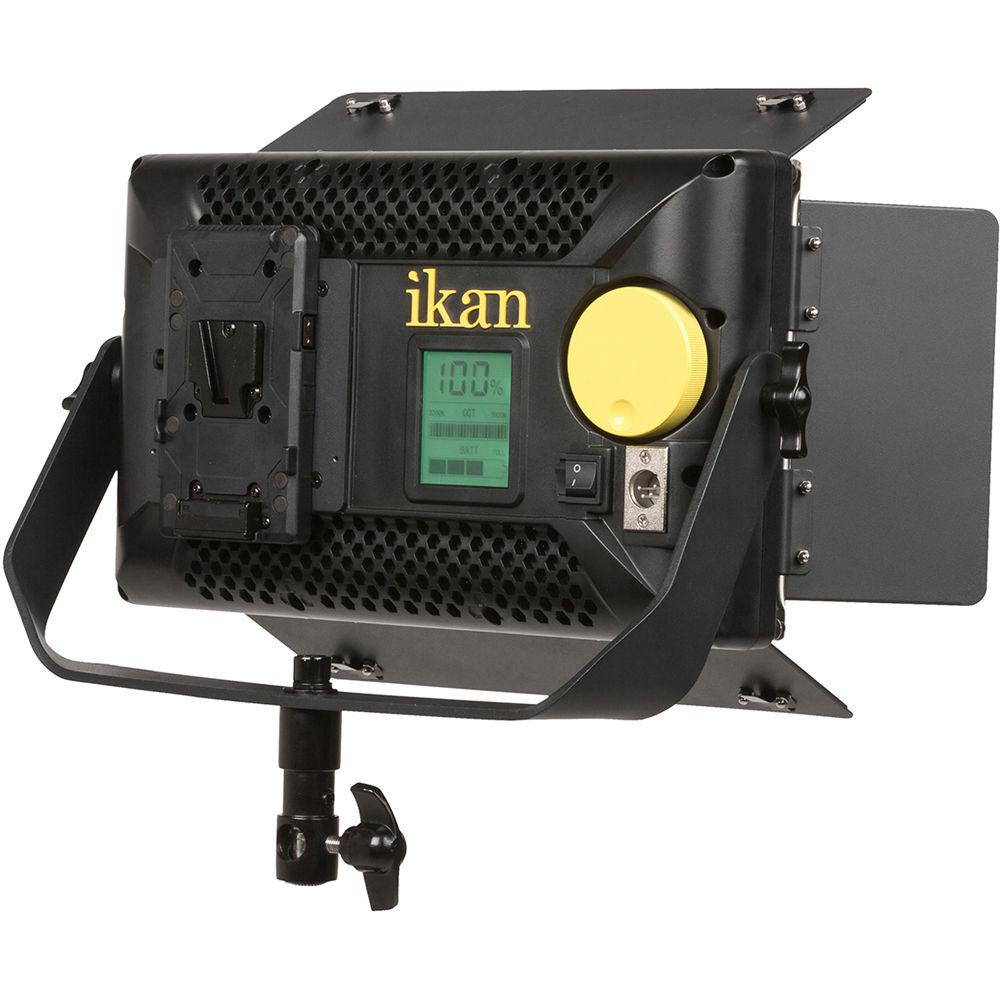

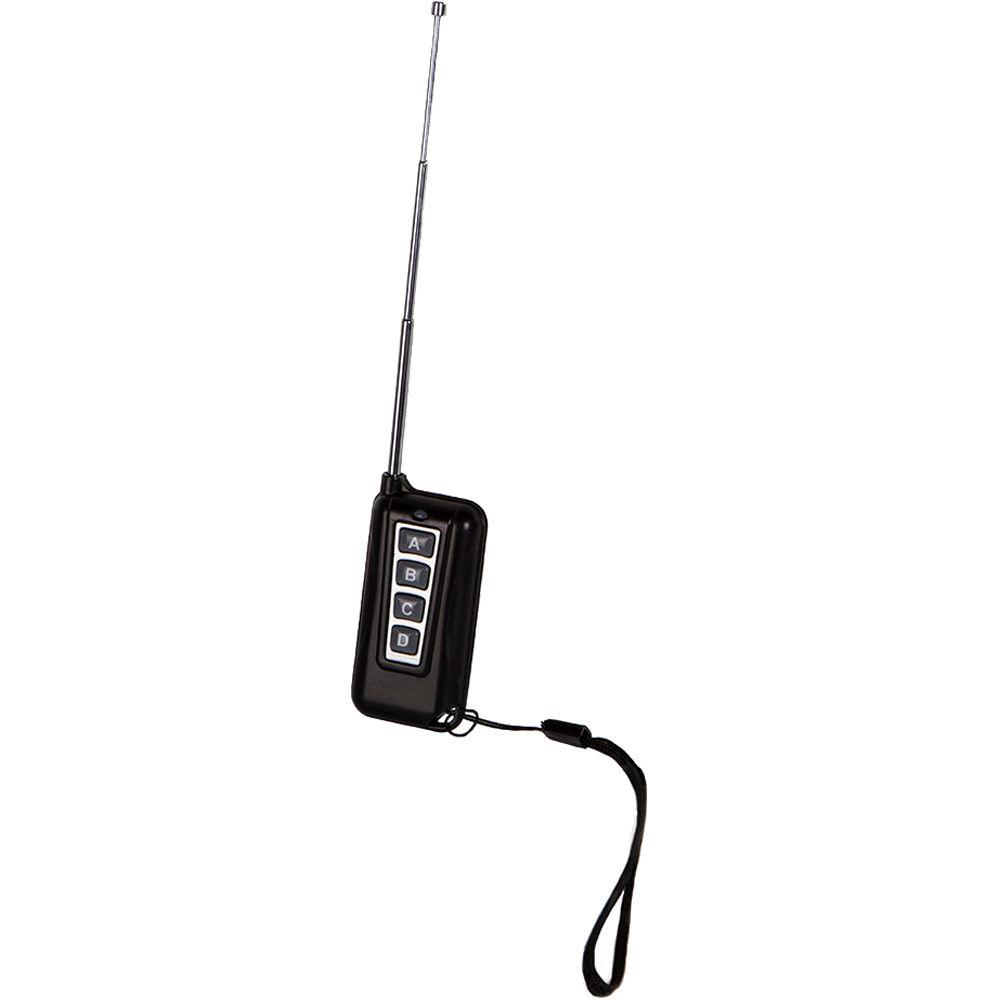

- The big yellow knob on the back of the unit controls both the color temperature selection and the dimming of the unit. It features an indent for fingertip control and is positioned at the edge of the fixture, which is cut away allowing you to adjust the knob from the side of the unit when the back is difficult to access. When you power on the light the yellow dimming knob defaults to controlling the dimming, pressing in the knob switches it to color temperature control (3200 to 5600K), pressing it again reverts back to dimming. You can also use the included wireless remote to control the color temperature and dimming.
- Consistent Light Levels
- The light output stays consistent as you transition across the color temperature range, preventing the brightness spike that happens with many LED lights around 4300K.
- Soft Source, Single Shadow
- The 1/2 white diffusion softens the light and provides a 110° beam spread and a single source shadow.
- Removable Intensifiers

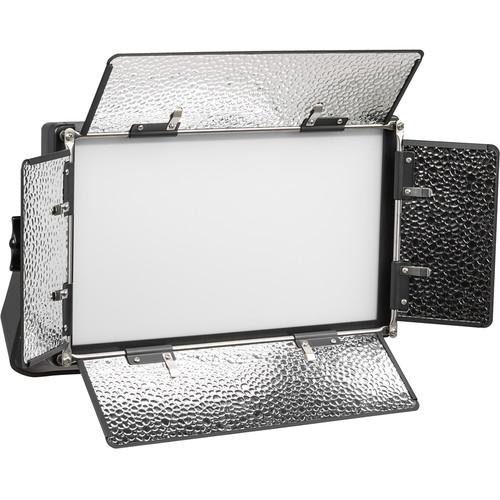

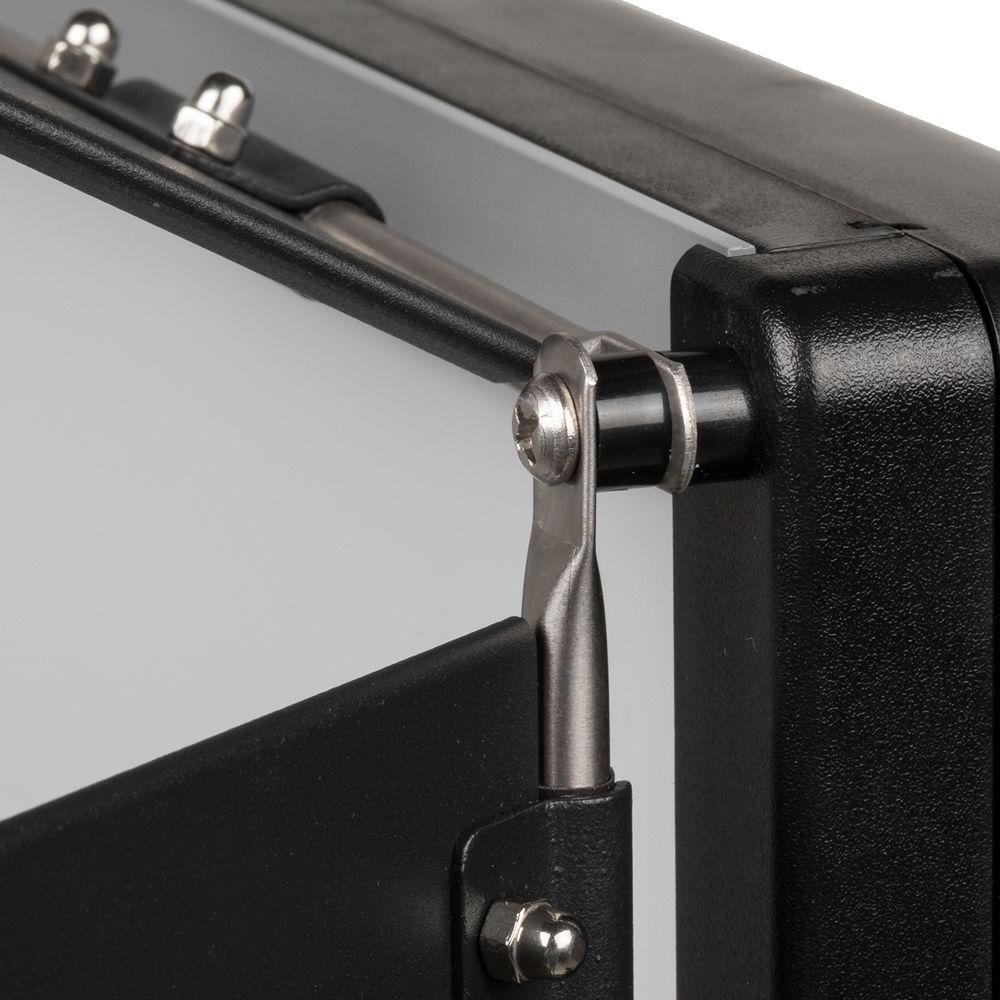

- While some users may enjoy the small increase in light output that intensifiers bring, other users prefer to use barndoors without intensifiers. The removable intensifiers that come with this light attach securely to the barndoors. You do not have to attach all four intensifiers, which allows you choose how many barndoors to use for bumping up your output and how many barndoors to use to cut spill. The top and bottom barndoors integrate gel clips for attaching diffusion or gels.
- Battery Power

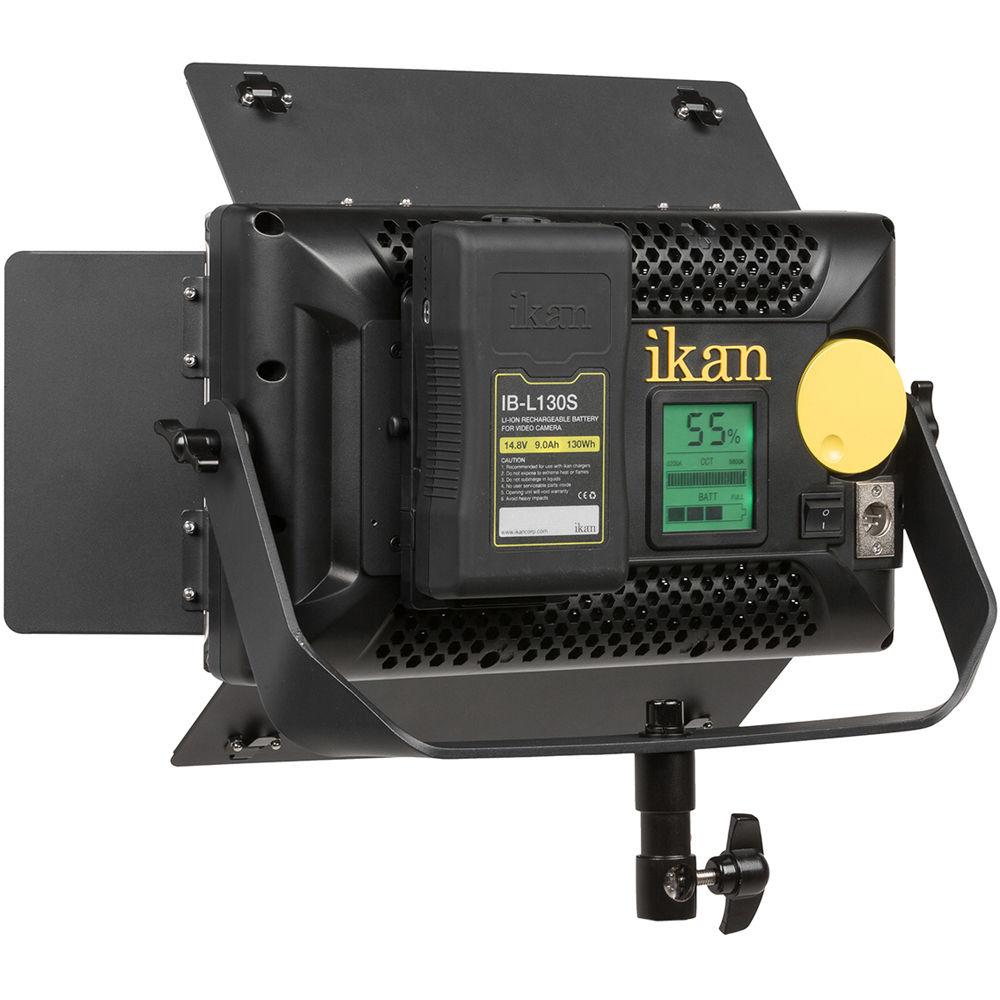

- The fixture features an interchangeable Gold Mount battery plate. Removing four screws and disconnecting the snap connector allows you to swap out the included V-Mount plate.
- LCD Info Screen

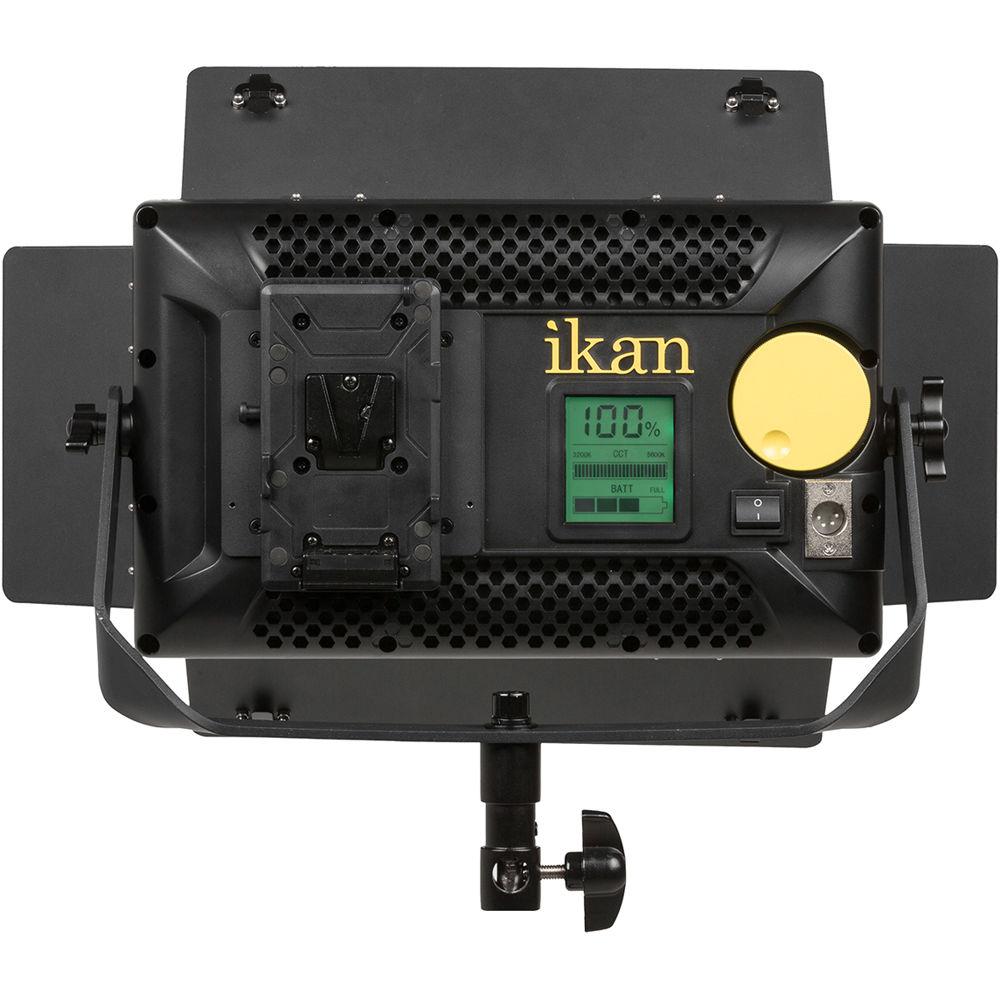

- On the back of the fixture is an LCD info screen that displays the battery power remaining, brightness percentage and color temperature.
UPC: 847983016143 In the Box ikan Lyra LB5 Bi-Color Soft Panel Half x 1 Studio and Field LED Light Gold Mount Battery Plate V-Mount Battery Plate AC Adapter for LB5 / LW5 / MB8 / MW8 / RB5 / RW5 LED Lights Barndoors with Removable Intensifiers Remote Control Yoke with Stand Receiver/Pin Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Lyra LB5 Bi-Color Soft Panel Half x 1 Studio and Field LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan LB5 Specs | | | Beam Angle | 110° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 96 at 3200K
CRI 96 at 5600K
TLCI 98 at 3200K
TLCI 98 at 5600K | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Housing Material | Resin | | Number of LEDs | 510 | | Fixture Dimensions | 14.0 x 8.0 x 3.0" / 35.6 x 20.3 x 7.6 cm | | Fixture Weight | 4 lb / 1.8 kg | | | | Battery Plate | 1 x Gold Mount
1 x V-Mount | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | Proprietary Wireless | | | | AC Input Power | 110 to 220 VAC, 50 / 60 Hz | | DC Input Power | 14 to 18 VDC | | Power Source | AC Adapter, External Battery | | Consumption Per LED | 0.2 W | | Max Power Consumption | 150 W | | | | Power Supply Output | 15 VDC, 7 A | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 18.0 x 15.6 x 5.5" |
