User Manual for ikan Lyra LBX40 Soft Panel 1 x 4 Studio and Field LED Light Click to enlarge the picture
Contents of the user manual for the ikan Lyra LBX40 Soft Panel 1
- Product category: LED Lights ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan LED Lights
 |
User manual for the ikan Lyra LBX40 Soft Panel 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description - Lyra Bi-Color Studio Soft Panel LED Light w/ DMX Control | Ikan Tech Corner

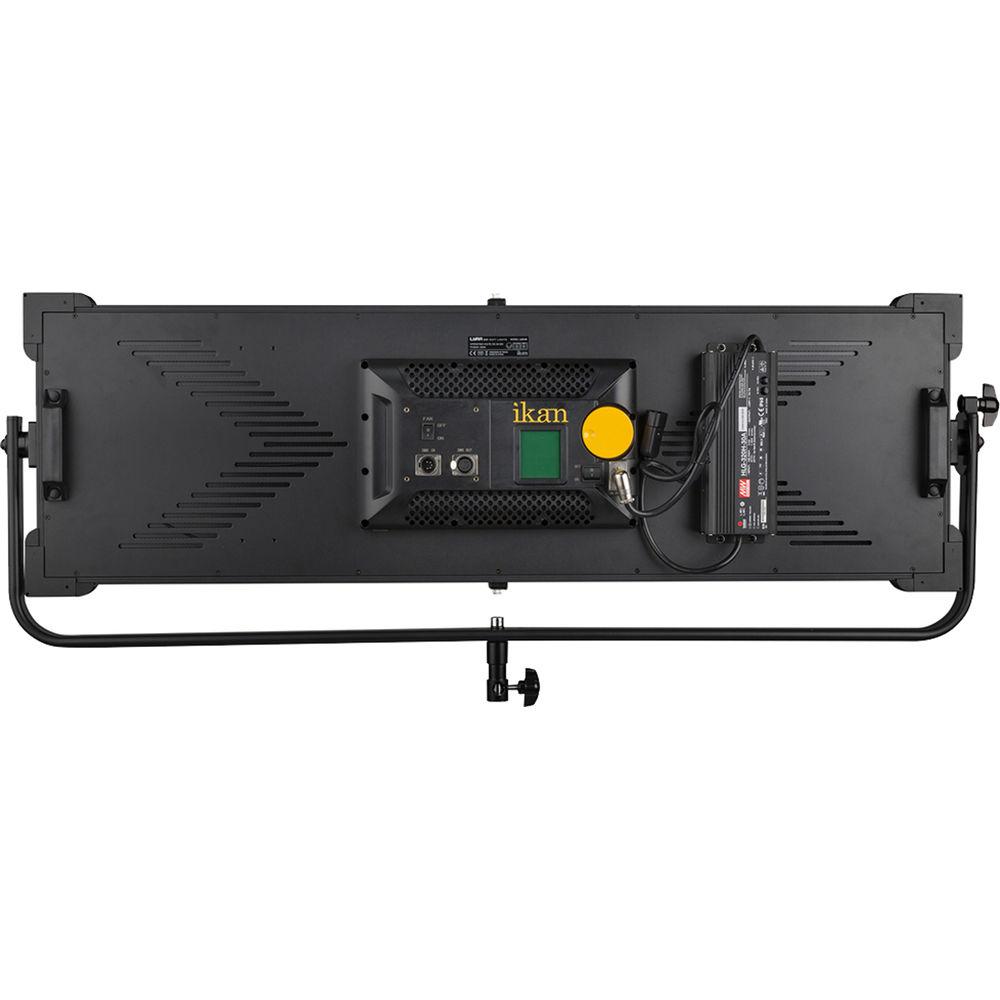

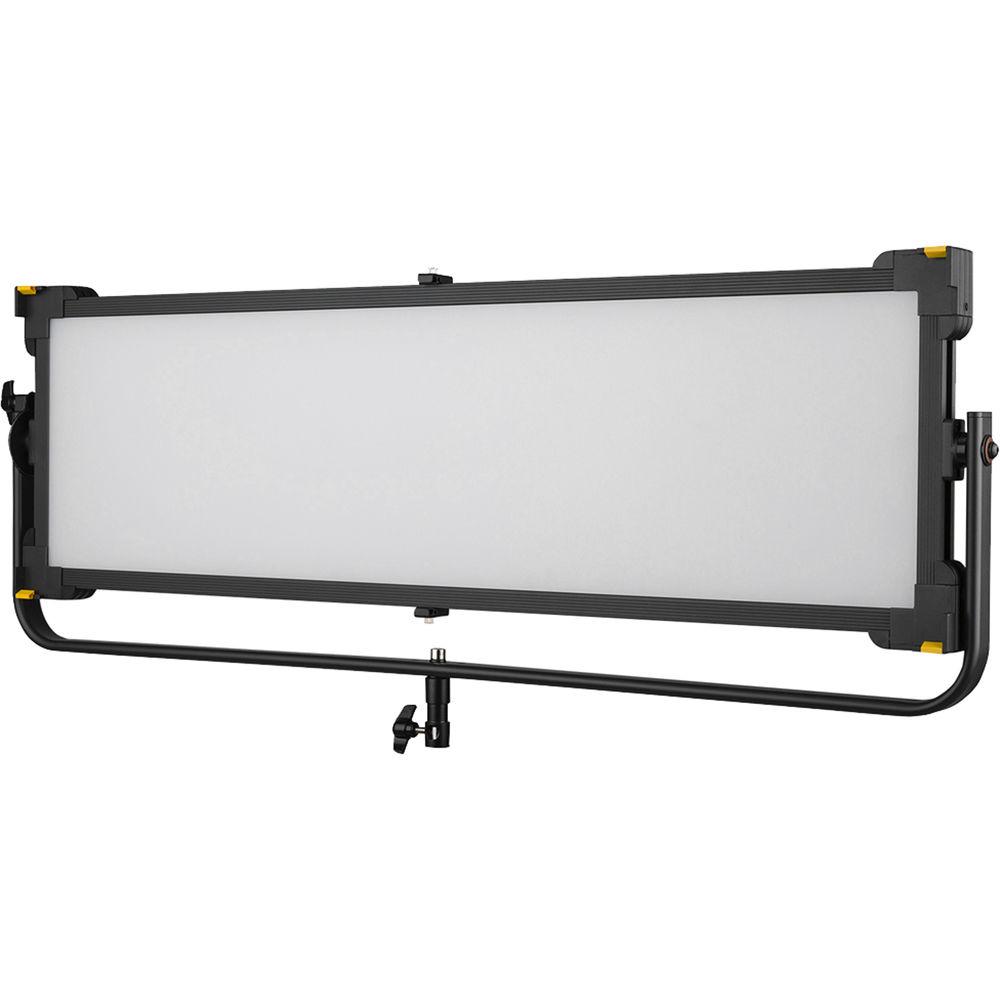

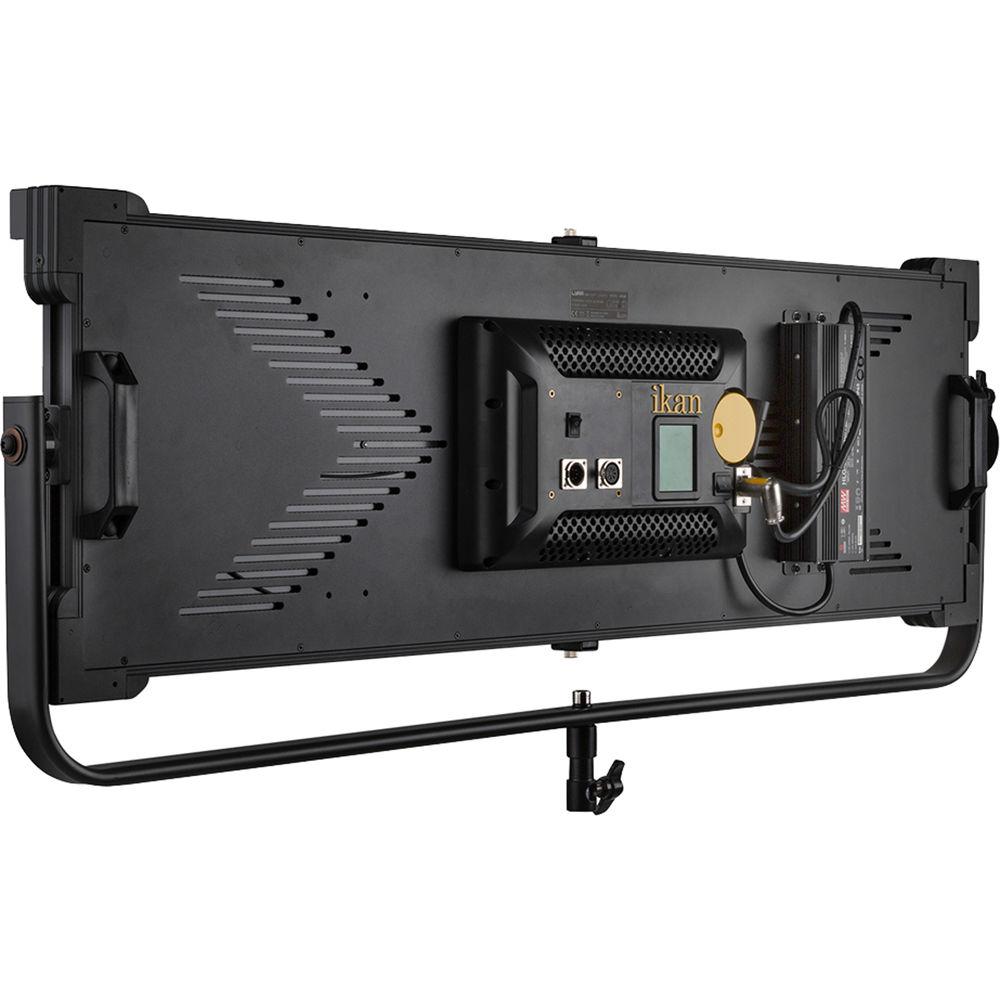

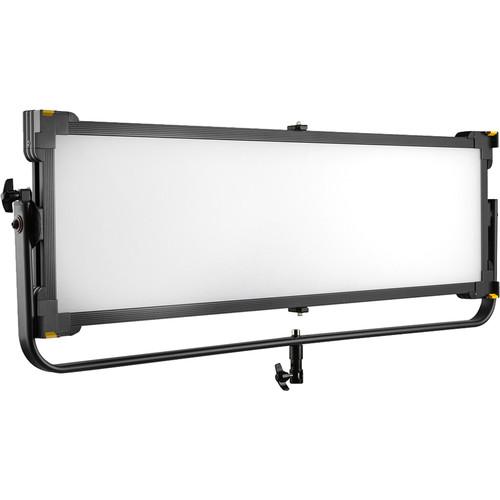

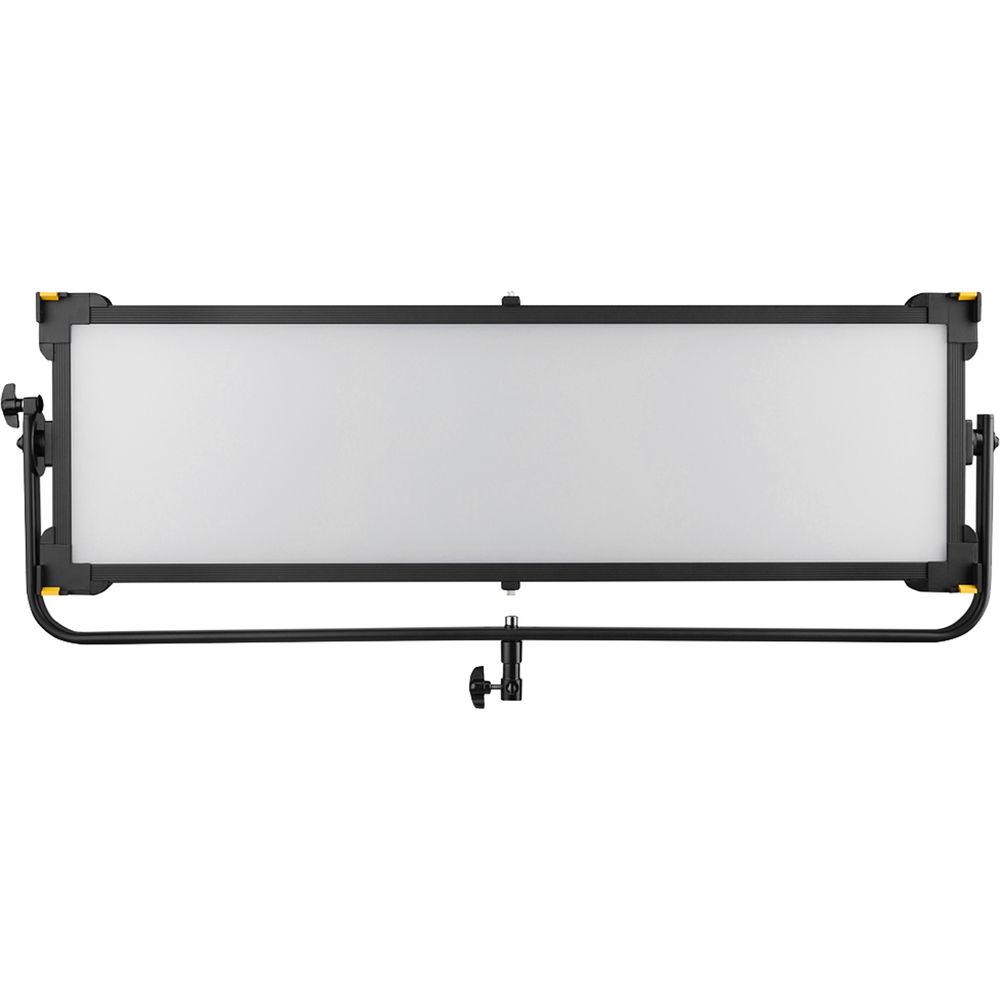

Combining high CRI LEDs with a 1/2 stop integrated soft panel, the Lyra LBX40 Soft Panel 1 x 4 Studio and Field LED Light from ikan is designed to deliver diffused light with single shadows at a wide beam angle of 110°. Its bi-color adjustable range from 3200K to 5600K suits this light for both indoor and outdoor scenarios, with brightness remaining consistent across all color temperatures for convenience. On the back of the fixture is a single knob that can be used for on-board dimming and color adjustment, as well as DMX in and out ports that enable external control through a user-supplied console. For viewing your output, an LED readout screen is also available on the back side. The Lyra LBX40 uses an active fan cooling system that can be controlled by a switch and accepts input power from 100 to 220 VAC. A yoke is included with the product, featuring a 5/8" and 1-1/8" combo pin that can be used with most available grip stands. -
- High CRI chip LEDs paired with 1/2 stop soft diffusion panel
- Bi-color adjustability from 3200-5600K, with consistent brightness across the temperature range
- Wide beam angle of 110° results in a flooding soft light

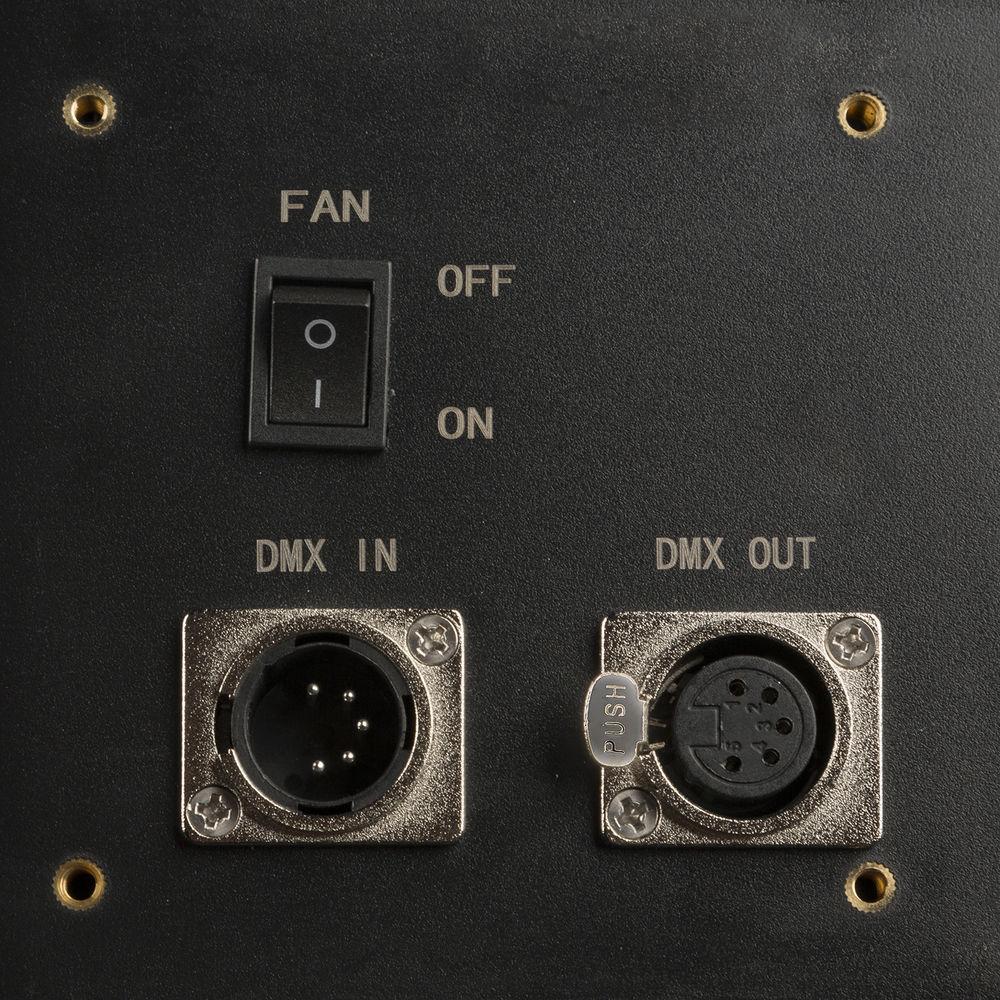

- On-board control with a knob in the back, with support for optional DMX control

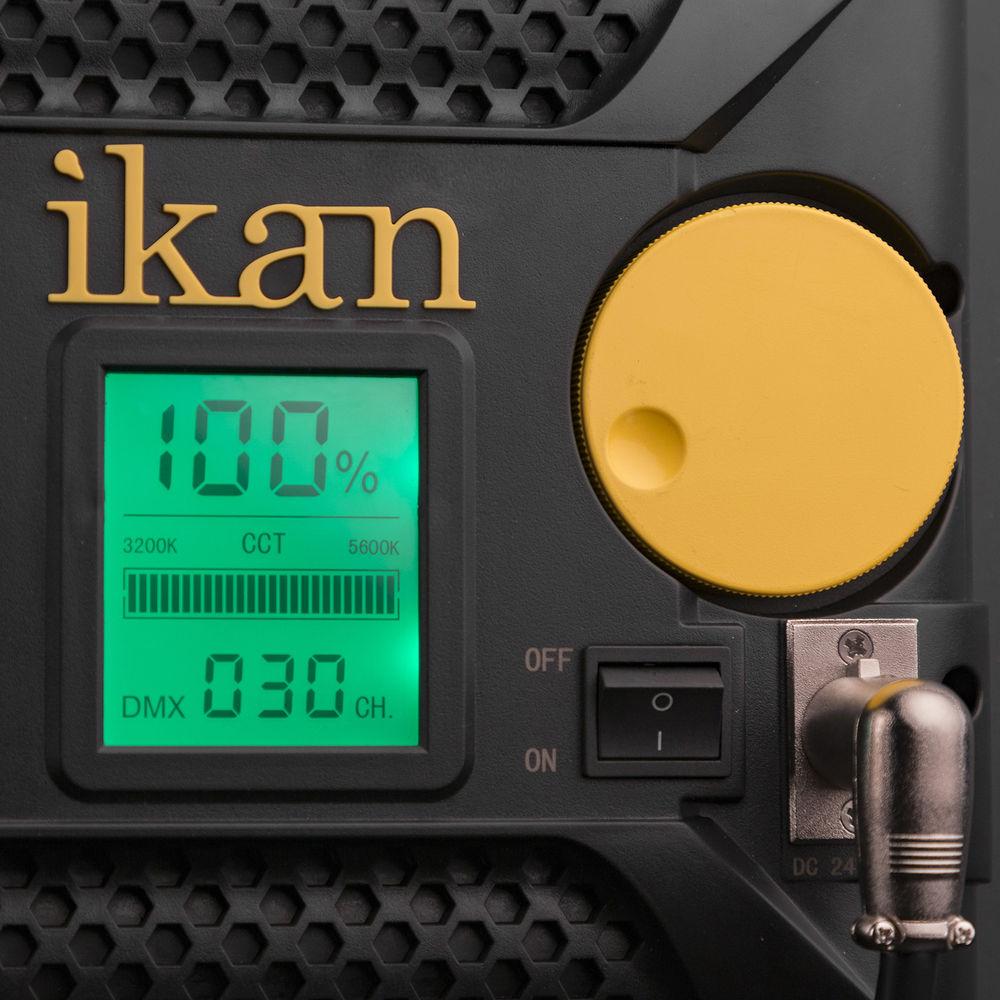

- Bright LED readout screen for viewing precise output measurements
- Active cooling system with a controllable fan

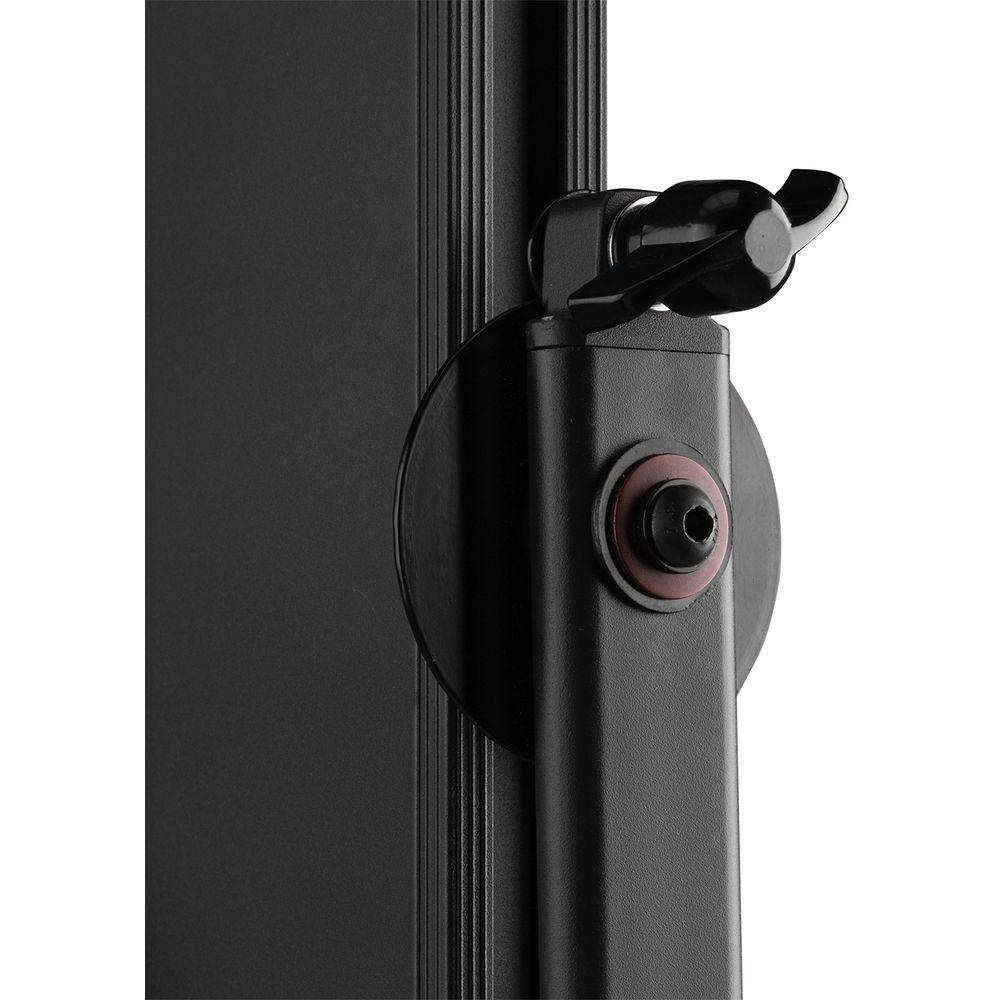

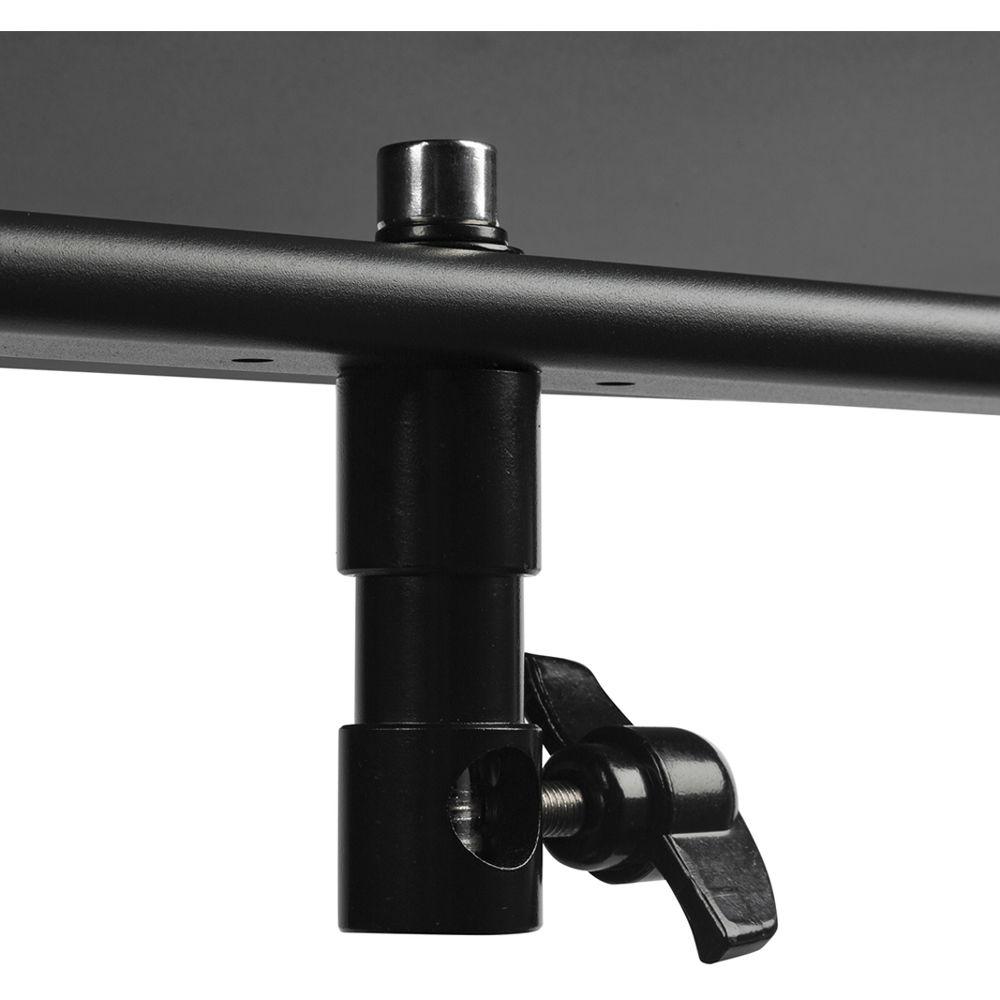

- Yoke with 5/8" and 1-1/8" combo pin compatible with most standard grip stands
- Light accepts input power from 100 to 220 VAC, power supply and cord included
UPC: 847983021963 In the Box ikan Lyra LBX40 Soft Panel 1 x 4 Studio and Field LED Light Yoke Mount Power Cord Power Supply Limited 1-Year Warranty Quick start Guide PDF 2.8mbxbdrbdubsqttzqvwtqudfudc Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Lyra LBX40 Soft Panel 1 x 4 Studio and Field LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan LBX40 Specs | Lens | 1/2 stop soft diffusion | | Dimming | Yes; no range given | | Color Temperature | 3200-5600K, adjustable | | Beam Angle | 110° | | Photometrics | 3200K
2.0' (0.6 m): 3487 lux
3.9' (1.2 m): 1593 lux
5.9' (1.8 m): 893 lux
7.9' (2.4 m): 527 lux
9.8' (3.0 m): 409 lux
11.8' (3.6 m): 312 lux
13.8' (4.2 m): 236 lux
15.7' (4.8 m): 193 lux
17.7' (5.4 m): 161 lux
20.0' (6.1 m): 129 lux
5600K
2.0' (0.6 m): 10,570 lux
3.9' (1.2 m): 4197 lux
5.9' (1.8 m): 2185 lux
7.9' (2.4 m): 1291 lux
9.8' (3.0 m): 925 lux
11.8' (3.6 m): 678 lux
13.8' (4.2 m): 538 lux
15.7' (4.8 m): 419 lux
17.7' (5.4 m): 333 lux
20.0' (6.1 m): 279 lux | | Power Supply | Input: 100-220 VAC
Output: 30 VDC | | Power Consumption | 297 W | | Control | On-board knob
DMX | | Cooling | Active cooling quiet fan with switch | | Construction | Metal
Plastic | | Mount | Yoke with Baby 5/8" and Junior 1-1/8" combo pin | | Dimensions | 1 x 4' (30.5 x 121.9 cm) | | Weight | 30 lb (13.6 kg) | | | | Package Weight | 44.7 lb | | Box Dimensions (LxWxH) | 55.0 x 26.0 x 10.0" |
