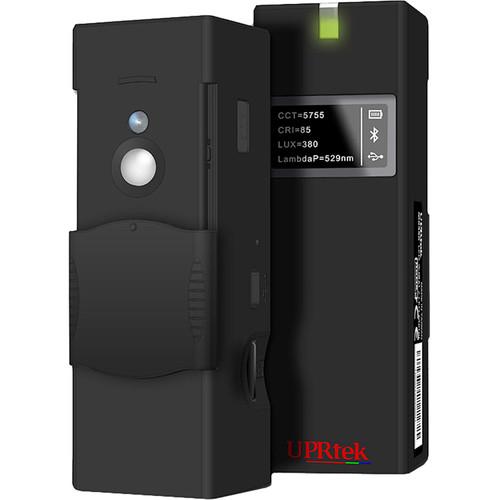

User Manual for ikan MK350D Compact Digital Spectrometer Click to enlarge the picture
Contents of the user manual for the ikan MK350D Compact Digital Spectrometer
- Product category: Light Meters ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Light Meters
|
User manual for the ikan MK350D Compact Digital Spectrometer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description A convenient handheld meter for measuring illuminance and the quality of light, the MK350D Spectrometer from ikan can produce highly accurate readings on CCT, CRI, lux, and foot candles as well as flicker percentage and frequency. Measurements are taken using a CMOS sensor that can read illuminance values between 70-70,000 lux, as well as a wavelength range of 380-780nm, with the ability to view readings in a spectrum graphics mode, CIE 1931/1976 chromaticity coordinates mode or R9, lux, fc, and flicker modes to suit a broad array of applications. In all, the MK350D has 27 units of different light measurement.
The meter's interface is navigable via a 0.96" display. An optional 2GB MicroSD memory card can be used to store up to 2000 reading files, and its wireless capabilities allow for remote access to the data from mobile devices. You can also access data from files stored on the device. For on-location use, this spectrometer also includes a 700mAh lithium-ion battery to provide approximately 3 hours of use per charge. UPC: 847983020065 In the Box ikan MK350D Compact Digital Spectrometer AC Power Supply/Charger Canvas Pouch Cleaning Cloth Li-Ion Battery USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan MK350D Compact Digital Spectrometer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan MK350D Specs | | | Sensor | CMOS linear image sensor | | Spectral Width | Approximately 12 nm (half bandwidth) | | Receptor Size | 6.6 mm ±0.1 mm diameter | | Cosine Correction | Yes | | Measurement Range | 70 to 70,000 lux | | Wavelength Range | 380 to 780 nm | | Integration Time Range | 6 to 1000 ms | | Capture Function | One time / Continuous | | Integration Mode | Auto / Manual
(Standalone mode only supports Auto) | | Measuring Modes | CCT, CRI, LUX, λP
Spectrum Graphics
CIE 1931 / CIE 1976 U.C.S Chromacity value
R9, LUX, FC, Flicker | | Measurement Data Saved to MicroSD Card | CCT
CRI (R1~R5)
LUX
λP
C.I.E Chromacity coordinates
CIE 1931 x,y coordinates
CIE 1976 U.C.S u',v' coordinates
Percentage flicker | | Digital Resolution | 16 bits | | Stray Light | -25 dB max | | Wavelength Data Increment | 1 nm | | Wavelength Reproducibility | CCT, CRI, LUX, λP
Spectrum Graphics
CIE 1931 / CIE 1976 U.C.S Chromacity value
R9, LUX, FC, Flicker | | Illuminance Accuracy | Illuminant A @ 2856K at 20,000 lux
±5% | | Color Accuracy | Illuminant A @ 2856K at 20,000 lux
CIE 1931 x,y: +/- 0.0025 | | Color Repeatability | Illuminant A @ 2856K at 20,000 lux
CIE 1931 x,y: ±0.0005 | | CCT Accuracy | Illuminant A @ 2856K at 20,000 lux
±2% | | CRI Accuracy @ Ra | Illuminant A @ 2856K at 20,000 lux
±1.5% | | Percentage Flicker | 1 to 100% | | Flicker Frequency | 10 to 165 Hz | | Bluetooth | 3.0 / 4.0 Compatible with iOS and Android | | | | Type | 0.96" (24.4 mm) 128 x 64 Mono OLED Panel | | | | File Storage | Approximately 2000 files on optional 2 GB MicroSD card | | | | Type | Rechargeable lithium-ion | | Capacity | 700 mAh | | Battery Operation Time | Approximately 3 hours on a full charge | | | | Language Support | English, Traditional Chinese, Simplified Chinese, Japanese, Spanish, German, French, Italian, Russian (Standalone mode only supports English) | | Data Output Interface | MicroSD card (SD 2.0, SDHC / above 1 GB, up to 32 GB)
Mini USB port (UBS 2.0) | | Data Format | Compatible Microsoft Office Excel | | Operating Temperature | 32 to 95°F (0 to 35°C) | | Storage Temperature | 14 to 104°F (-10 to 40°C) | | Dimensions | 1.3 x 1.3 x 3.5" (33 x 33 x 90 cm) | | Weight | Approximately 2.46 oz +/- 0.17 oz (70 g +/- 5 g) with battery |
