User Manual for ikan Motor Pro Click to enlarge the picture
Contents of the user manual for the ikan Motor Pro
- Product category: Wireless Lens Control Accessories ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan Wireless Lens Control Accessories
|
User manual for the ikan Motor Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|

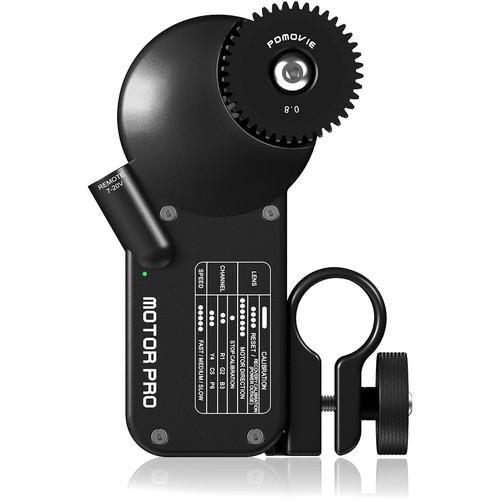

Product description Remotely control your lens focus, iris, or zoom with the PD Movie Motor Pro from ikan. The Motor Pro has just one button for setup and it automatically calibrates to your lens, but can also be calibrated manually. It features high-speed 1.2 Nm torque and is compatible with most DSLR or cine lenses on the market with its 0.8 MOD gear. It has three adjustable speeds—fast, medium, and slow—and it can change the direction of the motor gear.
The Motor Pro can be controlled with a separately available wired controller and motor cable and can be daisy-chained with other slave motors, or it can be tethered to a wireless receiver motor and controlled with a wireless hand controller over Bluetooth. The PD-MP is compatible with all the controllers in the Remote Live, Remote Air Pro, Remote Air, and Live Pro series. The motor retains lens calibration data, and that data can be restored even when the motor is turned off.
The motor has a built-in 15mm rod port to mount on standard LWS rod systems. It uses an included 7.4V, 600mAh removable battery that offers four hours of usage time when its power-saving feature is activated, and an LED light displays battery status by color. The battery is charged via a separately available micro-USB cable power source. - Lightweight, compact, 1.2 Nm torque focus/iris/zoom motor with 0.8 MOD cine gear
- Auto or manual lens calibration
- Wired lens control with separately available motor cable; can be daisy-chained with slave motors or tethered to a wireless receiver motor for control with a Bluetooth hand controller
- Retains lens calibration data and can be restored even after the motor has been turned off
- Powered with removable 600mAh, 7.4V battery; charged via micro-USB port
- Built-in standard 15mm LWS rod clamp
UPC: 847983027712 In the Box ikan Motor Pro (PD Movie) Replacement battery for the Live Air Motor Mini tqvwcaxaxadzbeazzwafq Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Motor Pro in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan PD-MP Specs | Rod System | 15 mm | | Gear Pitch | 0.8 MOD | | Noise | < 28 dB | | Power Consumption | 8 W | | Battery | Lithium-Ion, 7.4 V, 600 mAh | | Torque | 1.2 Nm | | Voltage | 7 to 20 V | | Dimensions | 4.3 x 2.5 x 0.7" / 10.8 x 6.4 x 1.8 cm | | Weight | 7.3 oz / 206 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
