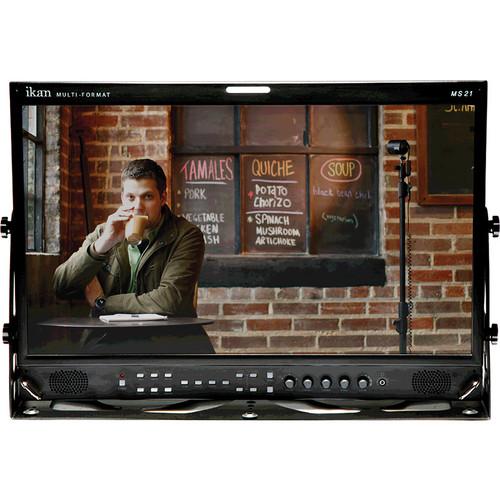

Product description The MS21 21.5" SD/HD-SDI Studio Monitor from ikan is a full-featured, color-calibrated monitor with Full HD 1920 x 1080 resolution. The MS21 features a 21.5" LED backlit screen with 250 Nit brightness, 3000:1 contrast ratio, and wide 178° horizontal and vertical viewing angles. It accepts two SD/HD-SDI signals and easily switches between the two input signals with the touch of a button on the front of the monitor. Each signal has its own loop-through port for sharing it with other monitors. The color-calibrated panel lets you enjoy the same color representation between MS21 models - ideal for cooperative use on set or in the studio.
The MS21 provides two SD/HD-SDI inputs, one HDMI input, and one DVI input. It also provides three BNC connectors for analog component, composite, and S-Video signals. The MS21 supports resolutions up to 2048x1080p at 24 fps via HD-SDI, and 1920x1080p at up to 60 fps via HDMI. NTSC and PAL signals are supported over HDMI and analog inputs. The monitor scales video to fit its screen.
The MS21 features built-in advanced focus and exposure assist tools such as, Peaking, False Color, Waveform display, and Clip Guides. There is also a 1:1 pixel mode for checking fine details of your image, guide lines for framing your shot, and underscan/overscan modes. The MS21 accepts 12 to 24 volt DC via the 4-pin XLR connector, and the VESA mounting holes on the back of the unit allow you to attach available battery plates for powering the unit with batteries. You can also power it via the included AC adapter. -
- Built-in speakers and headphone jack for audio monitoring
- 8-16 channel audio level meter
- Framing Guide lines
- Aspect ratio adjustment - 4:3, 16:9, Fill, Native
v4 User-assignable function keys - Brightness, Contrast, Chroma, Phase, sharpness Adjust
- Waveform Display
- False color, peaking, clip guides
- Under scan, over scan, pixel-to-pixel
- Closed caption
- Time code display
- Tally display
- NTSC IRE Adjustment - 0 to 7.5
- HDMI UV/RGB swap
- 1:1 scan
- Dithering mode
- Metal construction

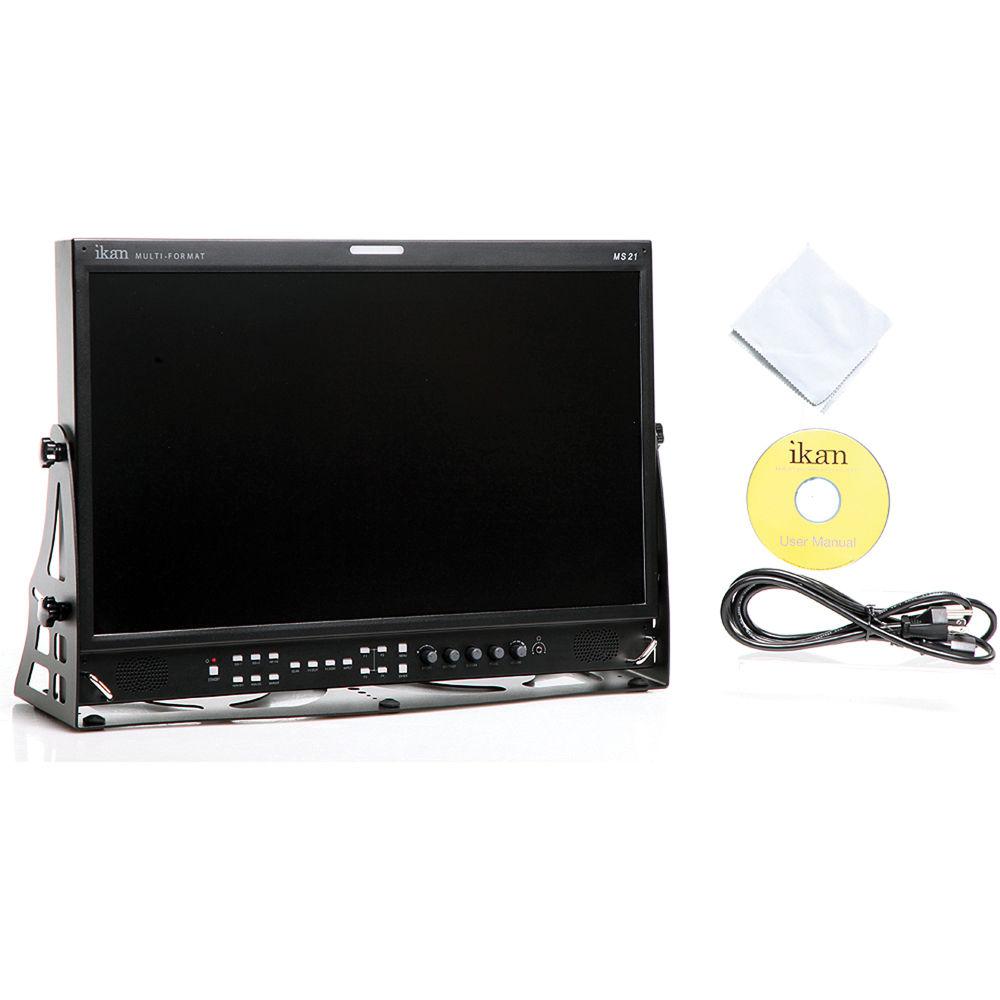

UPC: 847983008155 In the Box ikan MS21 21.5" SD/HD-SDI Studio Monitor Power Cable Table Stand LCD Cleaning Cloth CD-ROM with Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan MS21 21.5" SD HD-SDI Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan MS21 Specs | | | Screen Size (Diagonal) | 21.5" (54.6 cm) | | Resolution | 1920 x 1080 | | Pixel Pitch | 248.25 µm | | Display Area (H × V) | 18.765 x 10.556" (47.664 x 26.811 cm) | | Backlight Type | LED | | Color | 16.7 M (8-bit) | | Viewing Angle (H/V) | 178° / 178° | | Luminance | 250 cd/m2 | | Contrast Ratio | 3000 : 1 | | | | Video Input | 2 x BNC, HD/SD-SDI

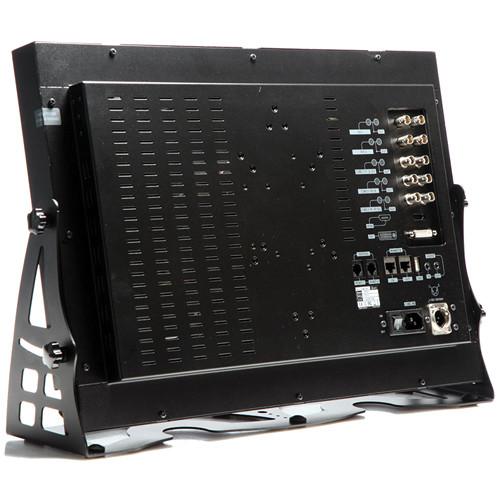

3 x BNC, Analog (YPbPr / CVBS / S-Video / RGB)
1 x HDMI Type A (HDCP v. 1.1)
1 x DVI-I, 24-pin | | Video Output | 2 x BNC, HD/SD-SDI
3 x BNC, Analog (YPbPr / CVBS / S-Video / RGB) | | Audio I/O | 1 x Phone jack in, line in (stereo)
2 x Phone jack out, line out (stereo), H/P out (front, stereo)
2 x Speaker out, 2 W each (stereo) | | Interfaces | 2 x RJ-11, Serial communication terminal
1 x RJ-45, Remote Ethernet In
1 x RJ-45, Remote Ethernet Out
1 x USB (for firmware updates) | | Compatible Video Import Formats | Composite / S-Video (RGB)
NTSC
PAL
Component (YPbPr)
525/60i (SD)
625/60i (SD)
720x480p 59.94
720x576p 50
1280x720p 50/59.94/60
1920x1035i 59.94/60
1920x1080i 50/59.94/60
1920x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080psf 23.98/24
Component (RGB)
525/60i (SD)
625/50i (SD)
HDMI (HD, YPbPr)
NTSC
PAL
720x480i 59.94/60
720x480p 59.94/60
720x576i 50
720x576p 50
1280x720p 23.98/24/25/29.97/30/50/59.94/60
1920x1080i 50/59.94/60
1920x1080p 29.98/24/25/29.97/60/50/59.94/60
HD/SD-SDI
720x480p 59.94
720x576p 50
1280x720p 50/59.94/60
1920x1035i 59.94/60
1920x1080i 50/59.94/60
1920x1080p 23.98/24/25/29.97/30
1920x1080psf 23.98/24
2048x1080p 23.98/24
2048x1080psf 23.98/24
DVI
720x480p 59.94
720x576p 50
1280x720p 50/59.94/60
1920x1035i 59.94/60
1920x1080i 50/59.94/60
1920x1080p 25/29.97/30/50/59.94/60 | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity (Relative) | 20 to 80% | | Power Requirements | 12 to 24 VDC, 100 to 230 VAC (50/60 Hz) | | Power Consumption | 51 W | | Dimensions (W x H x D) | 19.83 x 13.70 x 2.33" (50.36 x 34.80 x 5.92 cm) | | Weight | 15.9 lb (7.2 kg) | | | | Package Weight | 21.8 lb | | Box Dimensions (LxWxH) | 26.7 x 21.0 x 10.5" |
