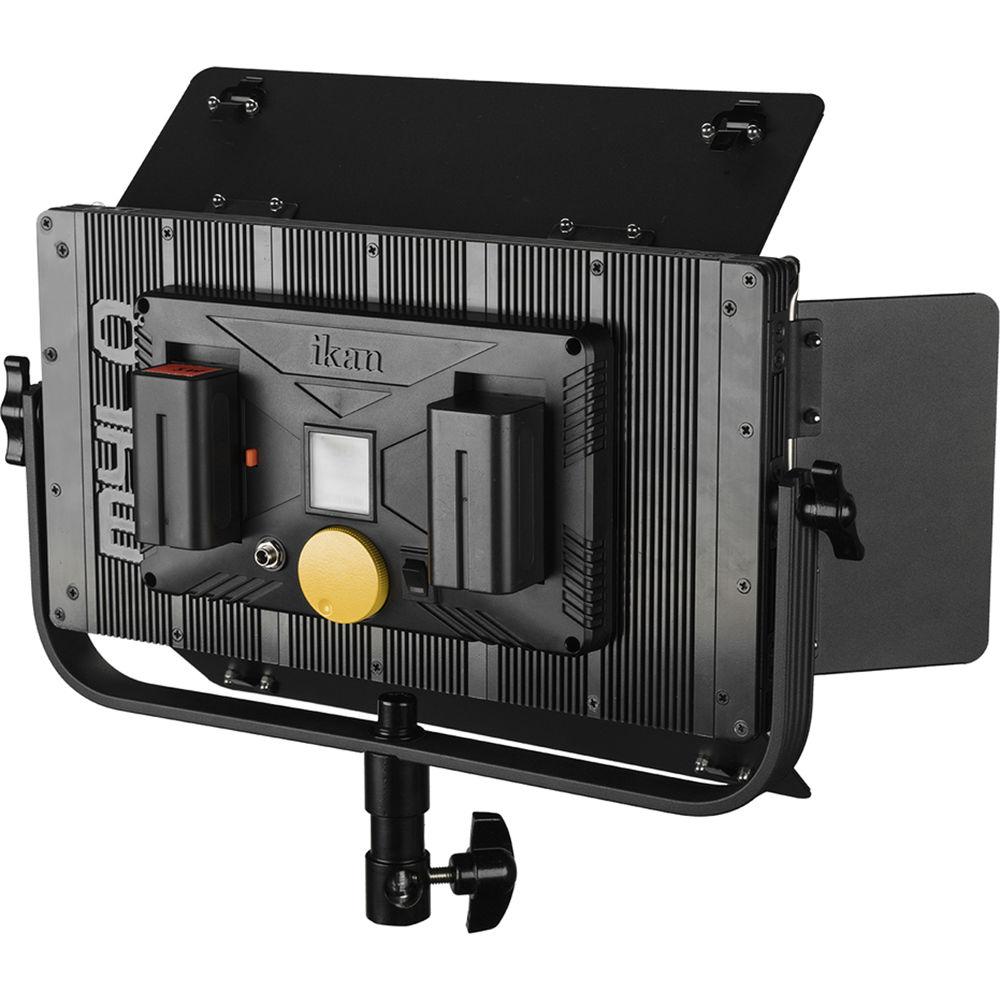

User Manual for ikan Mylo Bi-Color 3200-5600K Half x 1 Portable Field LED Light Click to enlarge the picture
Contents of the user manual for the ikan Mylo Bi-Color 3200-5600K Half x
- Product category: LED Lights ikan
- Brand: ikan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ikan LED Lights
 |
User manual for the ikan Mylo Bi-Color 3200-5600K Half x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ikan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ikan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ikan product will considerably shorten its lifespan!
|
Product description Creating Real-World Lighting with the ikan Mylo Lights Read More - Mylo Portable LED Lights
- Mylo LED Lights - Extremely Portable

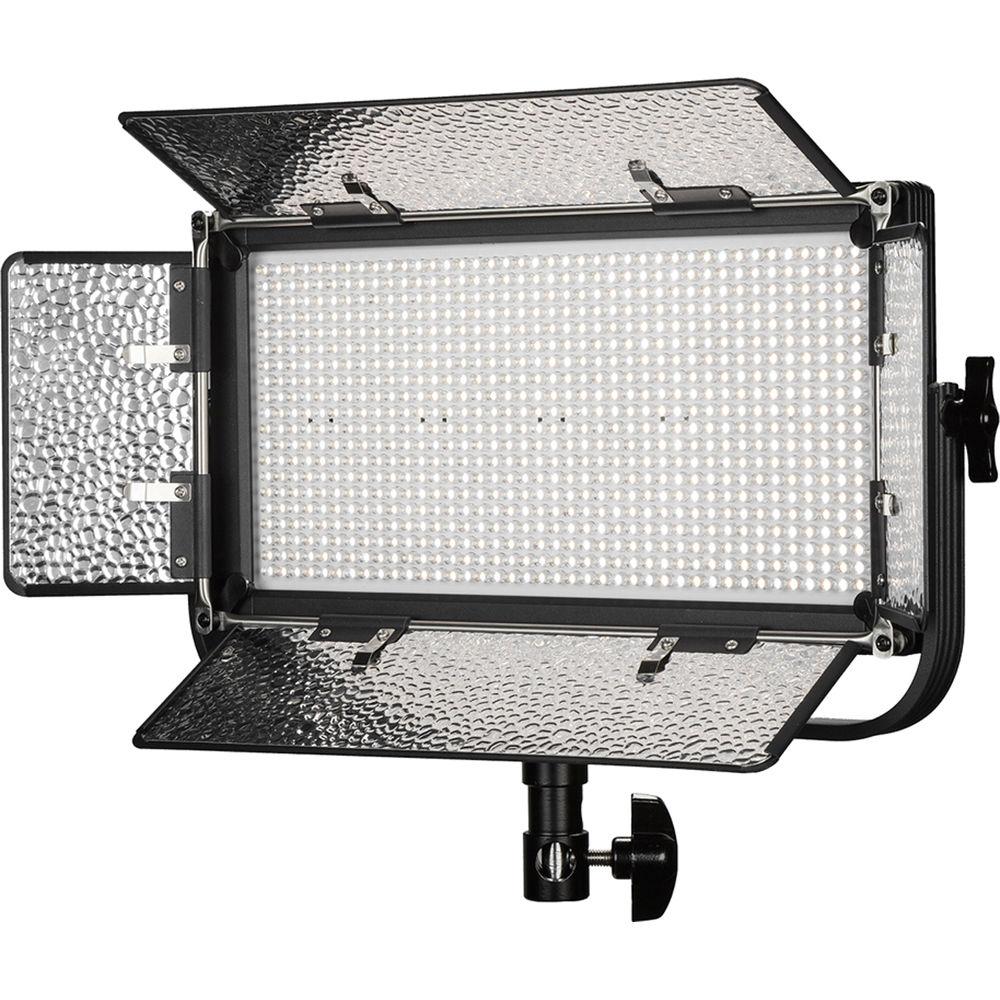

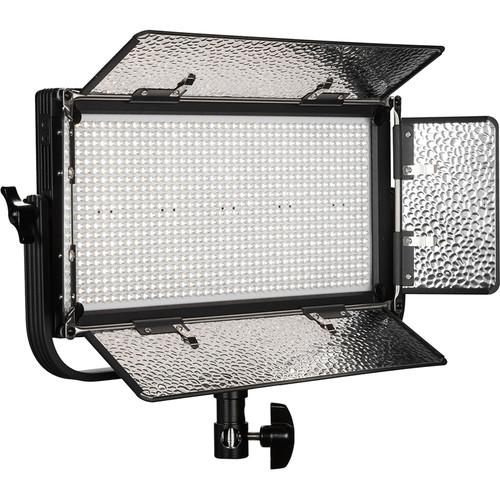

The Mylo Bi-Color 3200-5600K Half x 1 Portable Field LED Light from ikan is a 14 x 7 x 2" LED panel that allows you to select color temperatures from 3200 to 5600 or anywhere in between instead of fumbling with filters to match your light sources or environment. The sturdy metal 800 LED fixture outputs the 550W tungsten equivalent while consuming only 24W on the average and running cool to the touch. ikan continues to develop their convenience features. Dimming and color temperature, for example, are adjusted via a single knob. The light runs on 110-240 VAC mains current but can also be powered by the 2 included Sony-type L series batteries. The Mylo's strong steel tension knobs lock the yoke into place while its mount is a combo 5/8" / 1-1/8" pin with right angle access. The Mylo Bi-Color 3200-5600K Half x 1 comes with a multi-voltage power supply for worldwide use, 2 L batteries, a dual charger, neutral density filter, and yoke. - Benefits
-
- 95+ CRI LED's
- Bi-Color adjustable from 3200-5600K
- Beam Angle of 50 degrees
- Baby 5/8" / Junior 1-1/8" combo pin adapter with right angle receiver hole

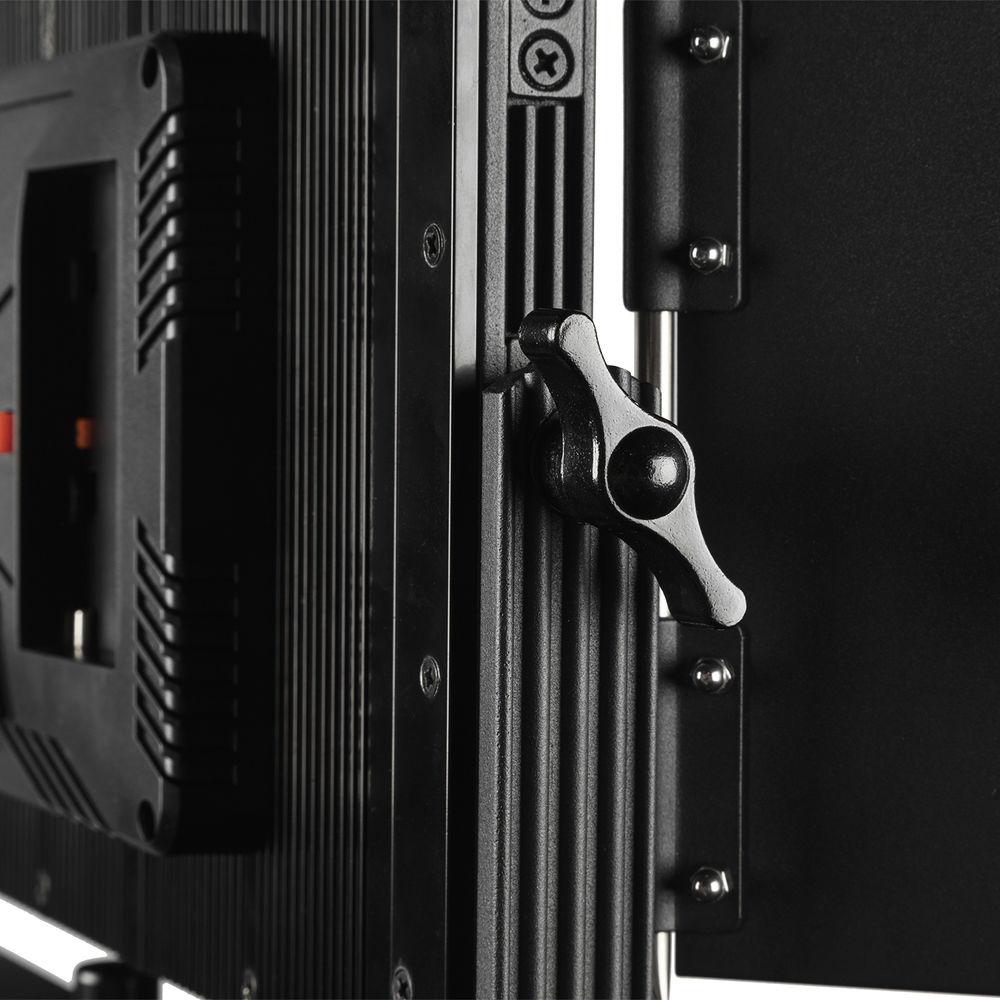

- Strong steel tension knobs for locking the light into place

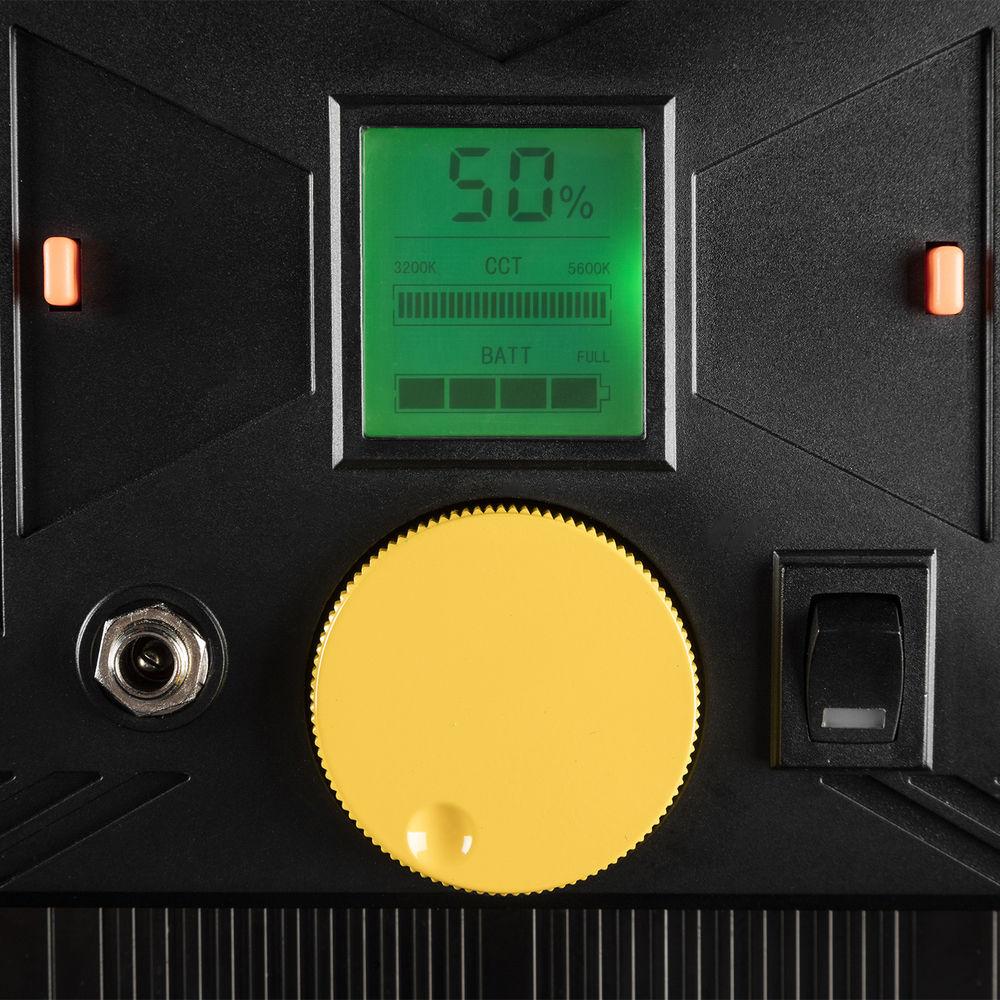

- Single knob adjustment
- Bright LED readout screen gives you precise adjustments

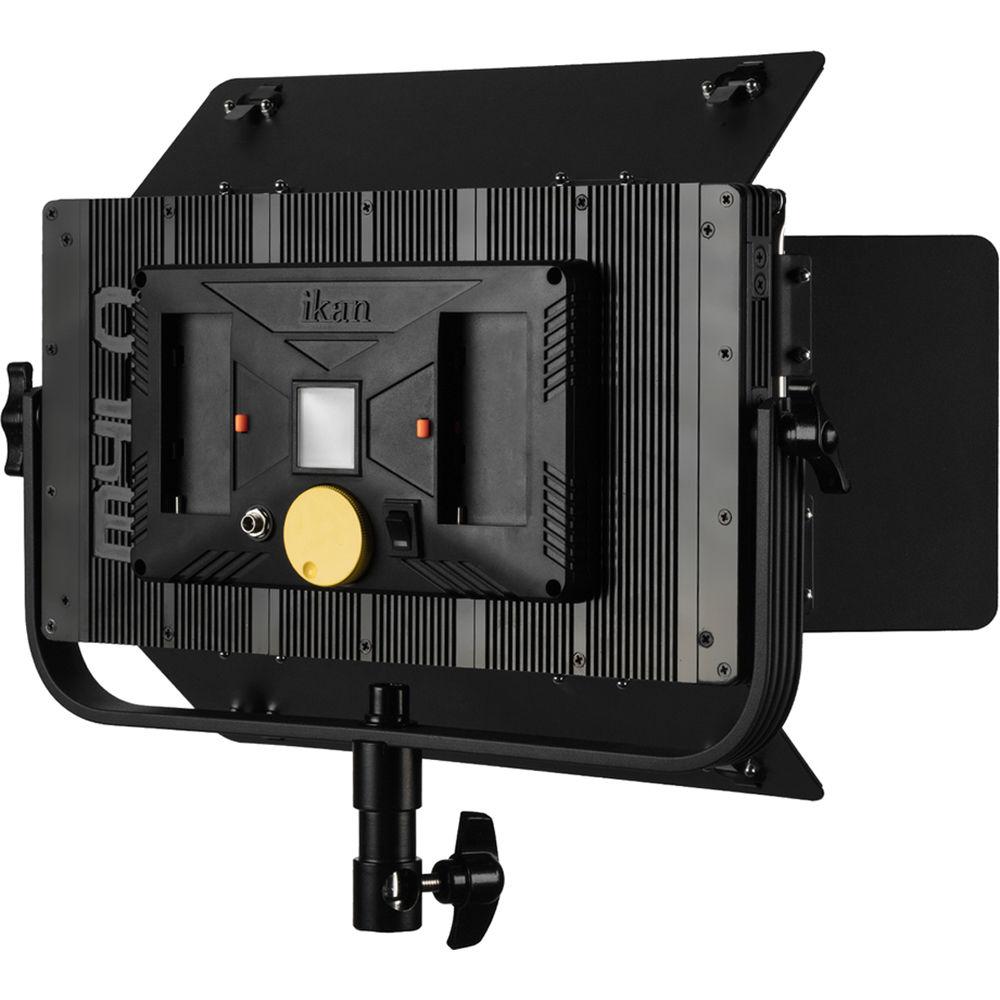

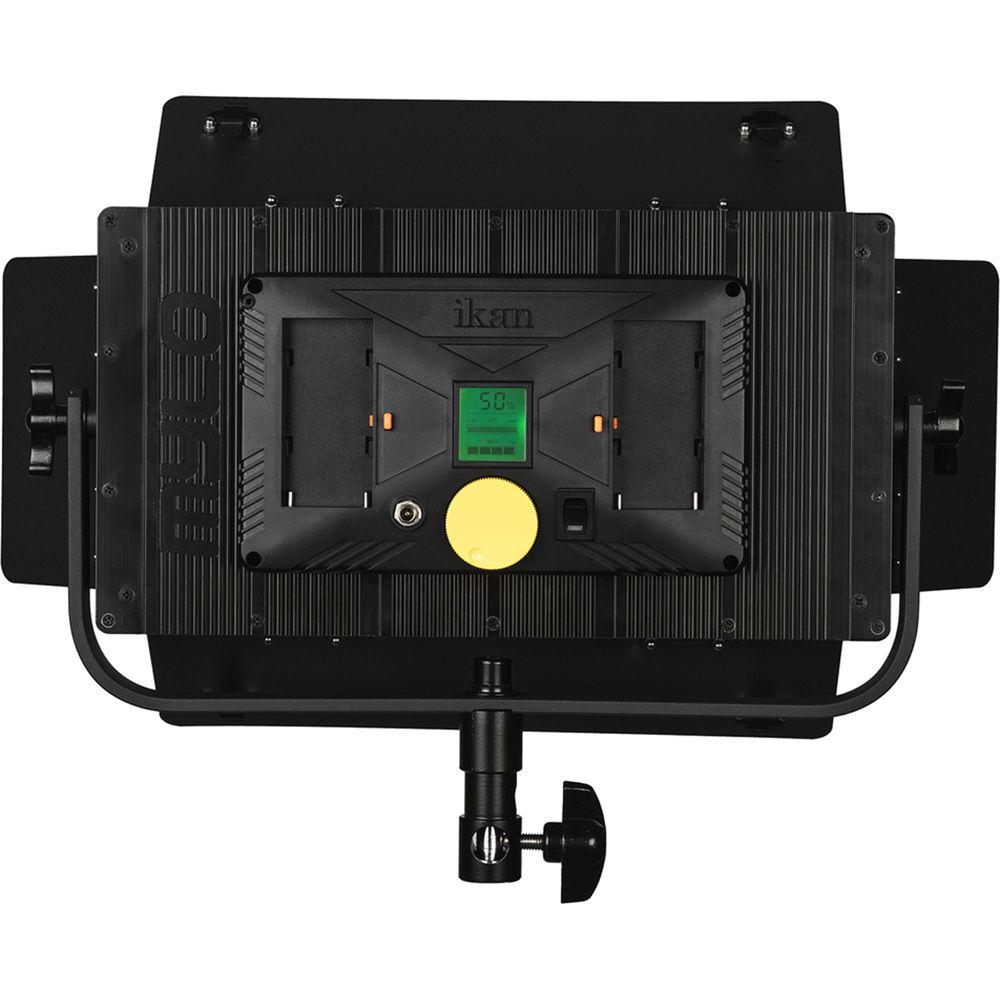

- Battery powered by two included Sony style "L" series batteries

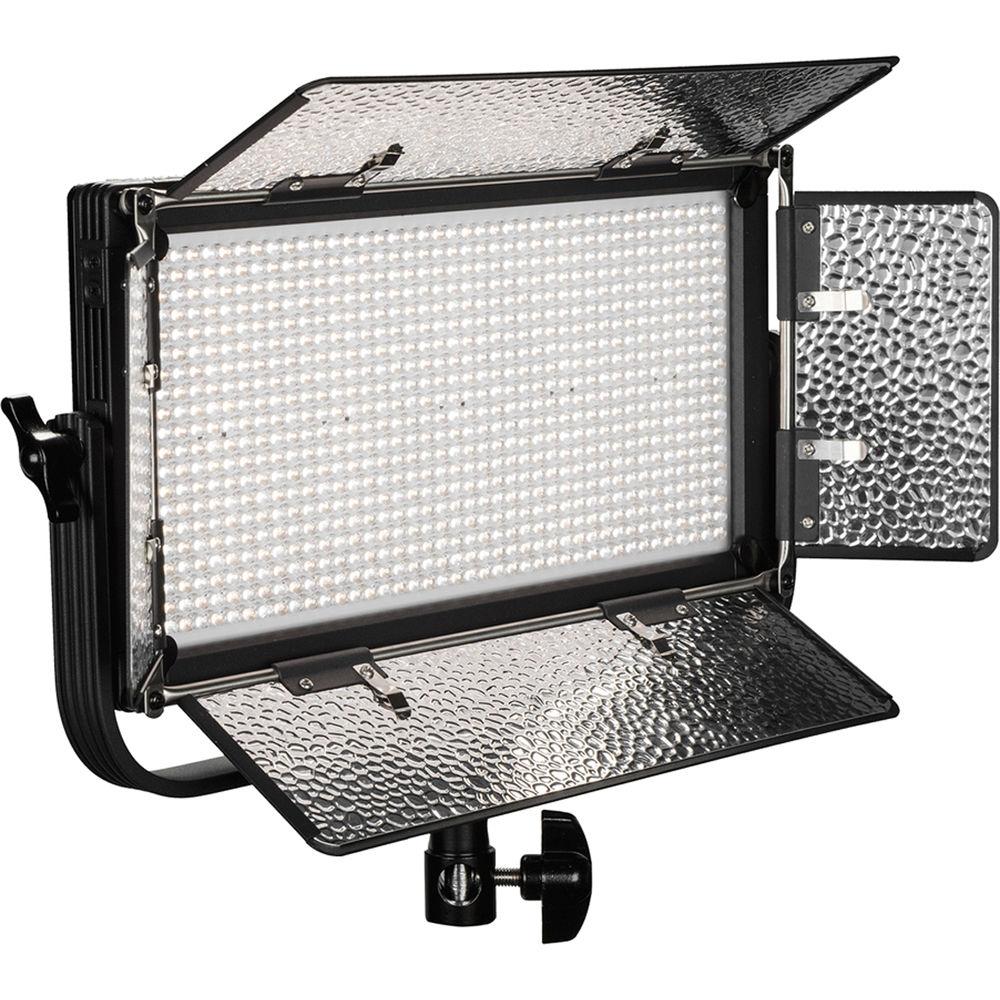

- Included barndoors with intensifiers
- Equivalent to 550W incandescent flood light
- Maximum power draw 50W at 120VAC
UPC: 644137000153 In the Box ikan Mylo Bi-Color 3200-5600K Half x 1 Portable Field LED Light Dual Charger with Power Supply 2 x Sony L-Series Battery Neutral Density Filter Power Supply with Cable Yoke Mount Limited 1-Year Warranty Quick start Guide PDF 3.4mbwybzeuadwdcvbscsuuuzwvcuerbysbebe Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Mylo Bi-Color 3200-5600K Half x 1 Portable Field LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan MB8 Specs | | | Beam Angle | 50° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes | | Display | None | | Housing Material | Metal | | Number of LEDs | 800 | | Fixture Dimensions | 14.0 x 7.0 x 2.0" / 36.0 x 18.0 x 5.0 cm | | Fixture Weight | 6 lb / 2.7 kg | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 7.4 to 14.8 VDC | | Power Source | AC Adapter, External Battery | | Consumption Per LED | 0.06 W | | Max Power Consumption | 50 W | | Power Supply Output | 12 VDC, 5 A | | | | Package Weight | 11.2 lb | | Box Dimensions (LxWxH) | 18.8 x 14.9 x 5.6" |
