Product description - Mylo Portable LED Lights
- Mylo LED Lights - Extremely Portable

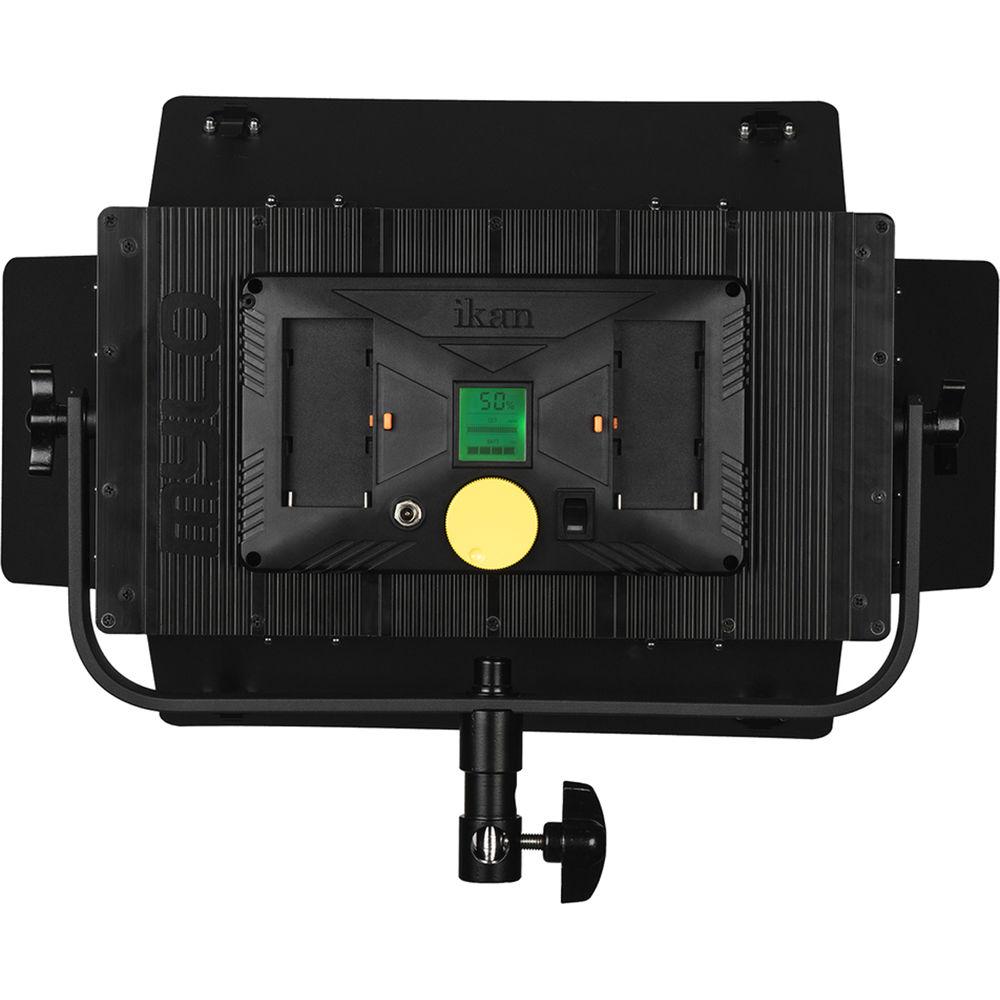

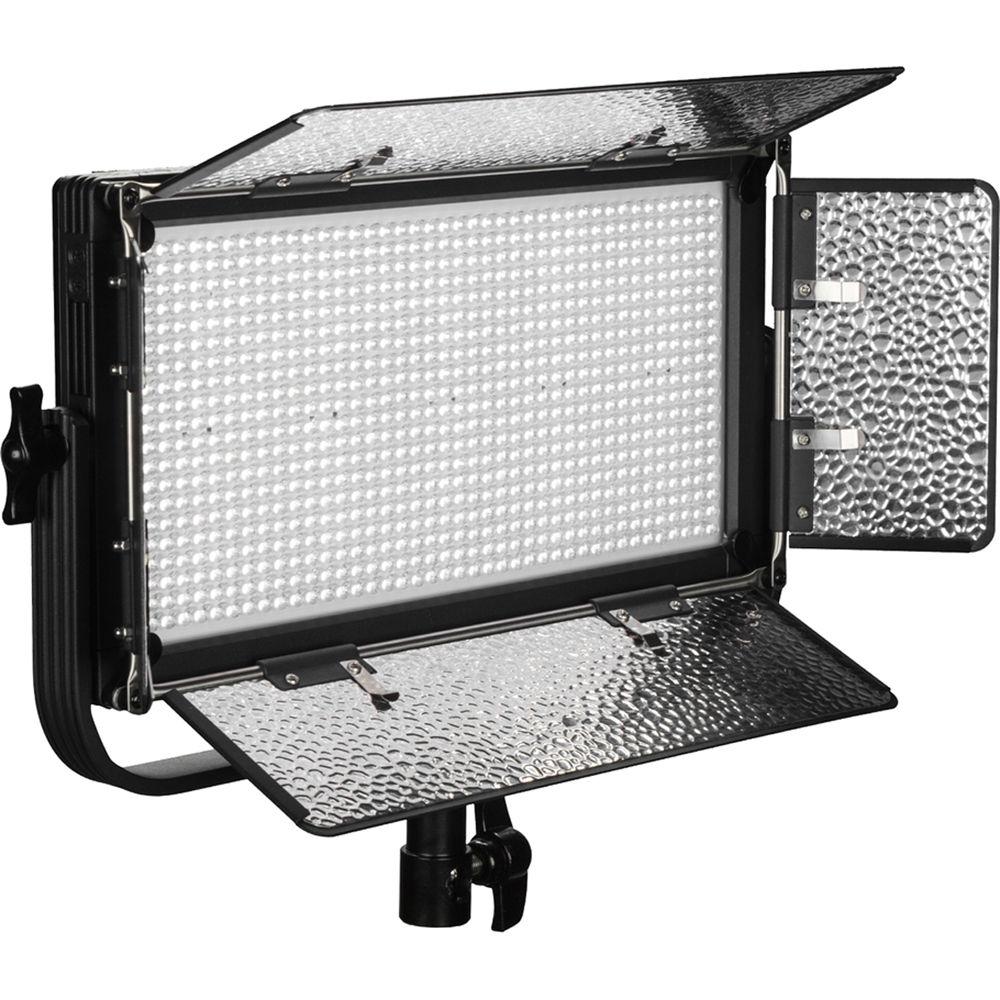

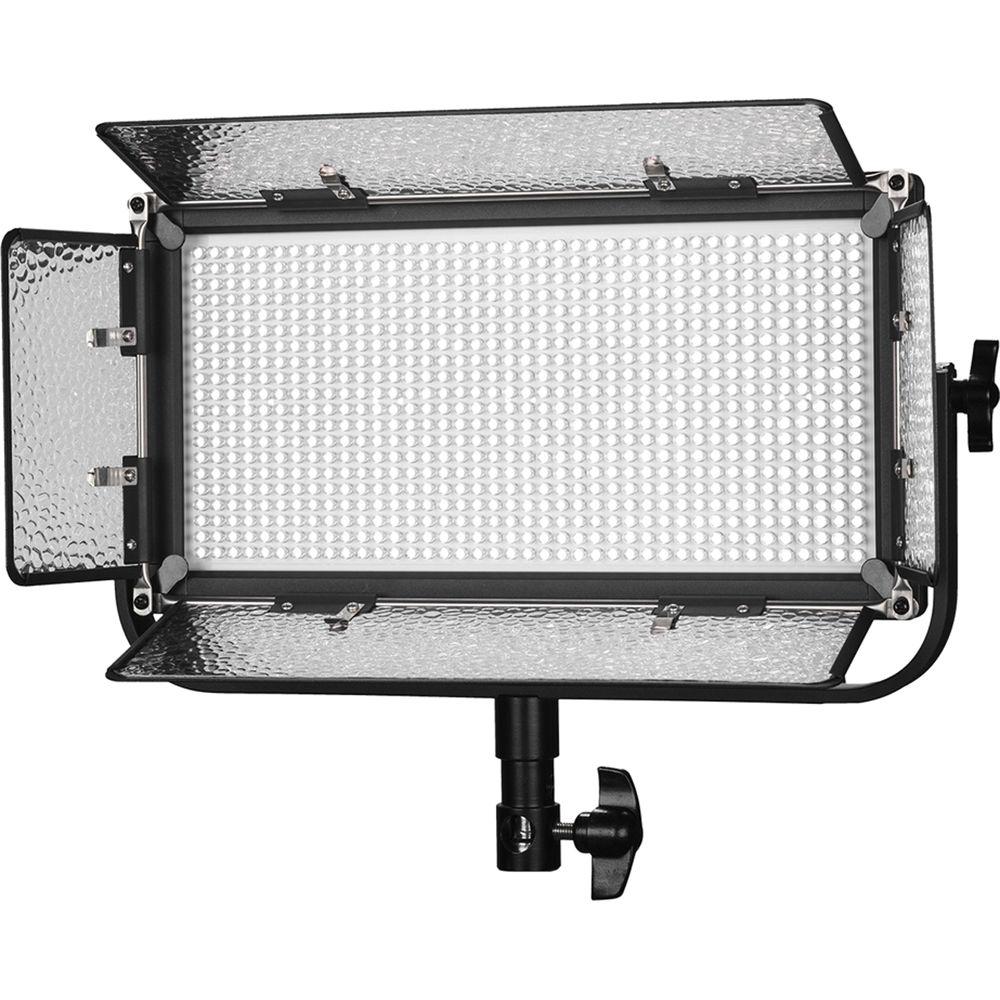

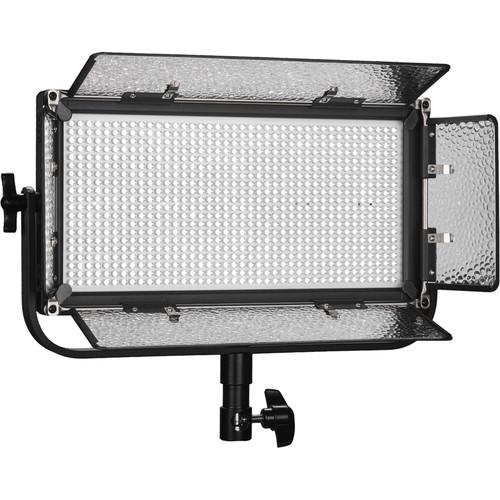

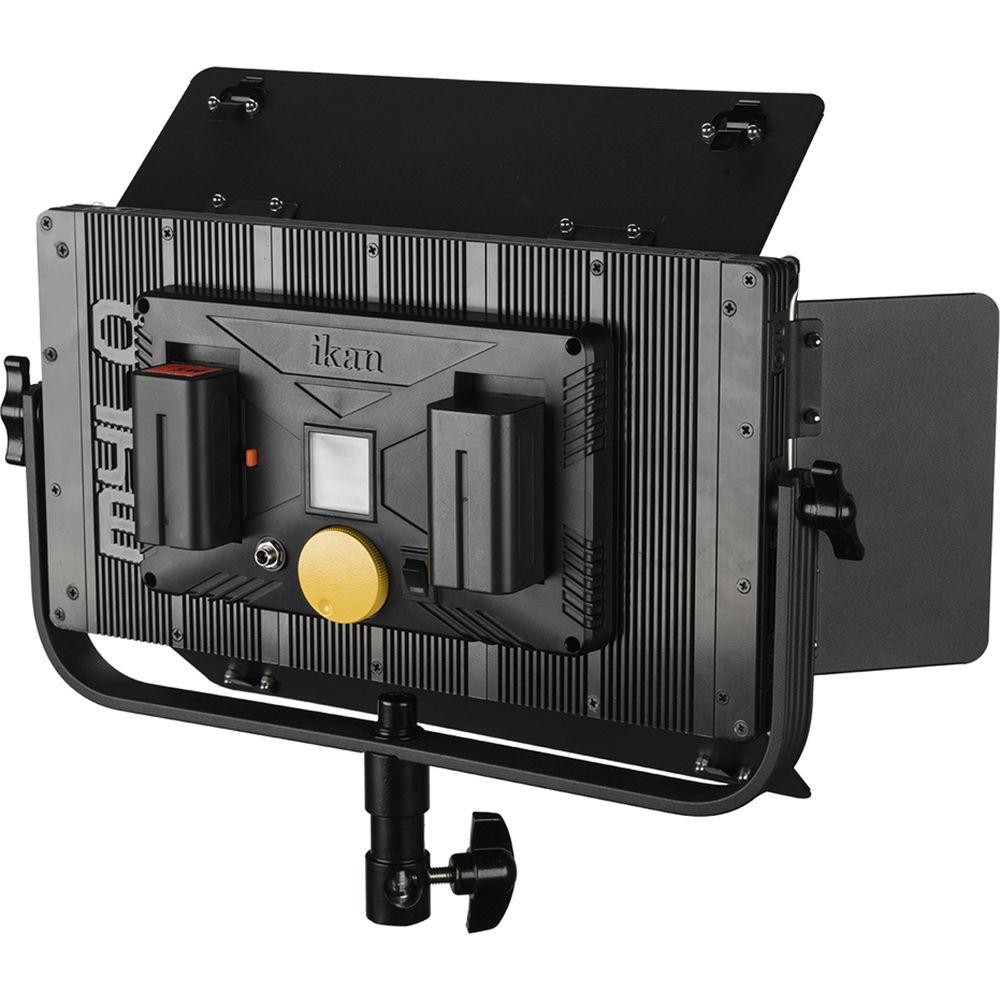

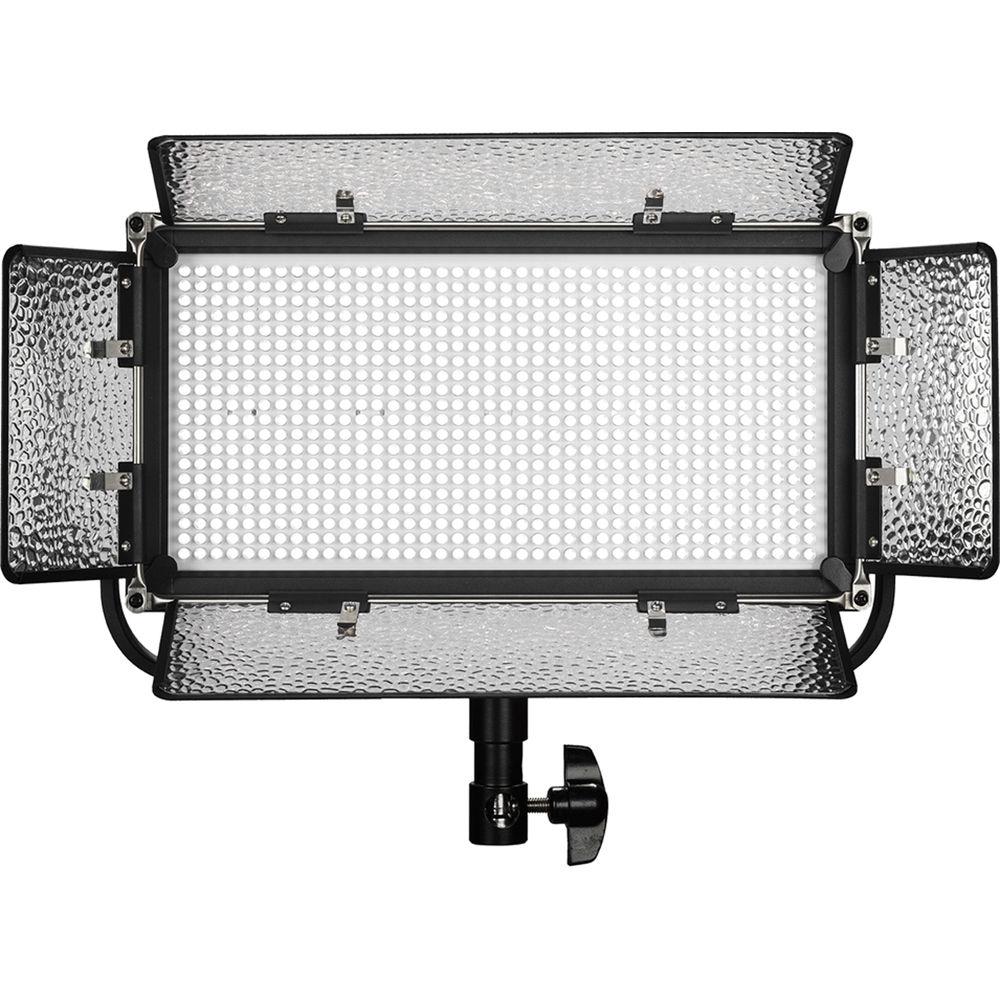

The Mylo Daylight 5600K Half x 1 Portable Field LED Light from ikan is a 14 x 7 x 2" LED panel with a color temperature of 5600K that allows you to work outdoors or in environments with lots of windows or daylight-balanced fixtures. The sturdy metal 800 LED fixture outputs the 550W tungsten equivalent while consuming only 24W on the average and running cool to the touch. ikan continues to develop their convenience features. Dimming is easily done via a single knob, and adjustments read out on a bright LED screen. The light runs on 110-240 VAC mains current but can also be powered by the 2 included Sony-type L series batteries. The Mylo's strong steel tension knobs lock the yoke into place while its mount is a combo 5/8" / 1-1/8" pin with right angle access. The Mylo Daylight 5600K Half x 1 comes with a multi-voltage power supply for worldwide use, 2 L batteries, a dual charger, neutral density filter, and yoke. - Benefits
-
- 95+ CRI LED's
- Daylight-balanced 5600K LEDs
- Beam Angle of 50 degrees
- Baby 5/8" / Junior 1-1/8" combo pin adapter with right angle receiver hole

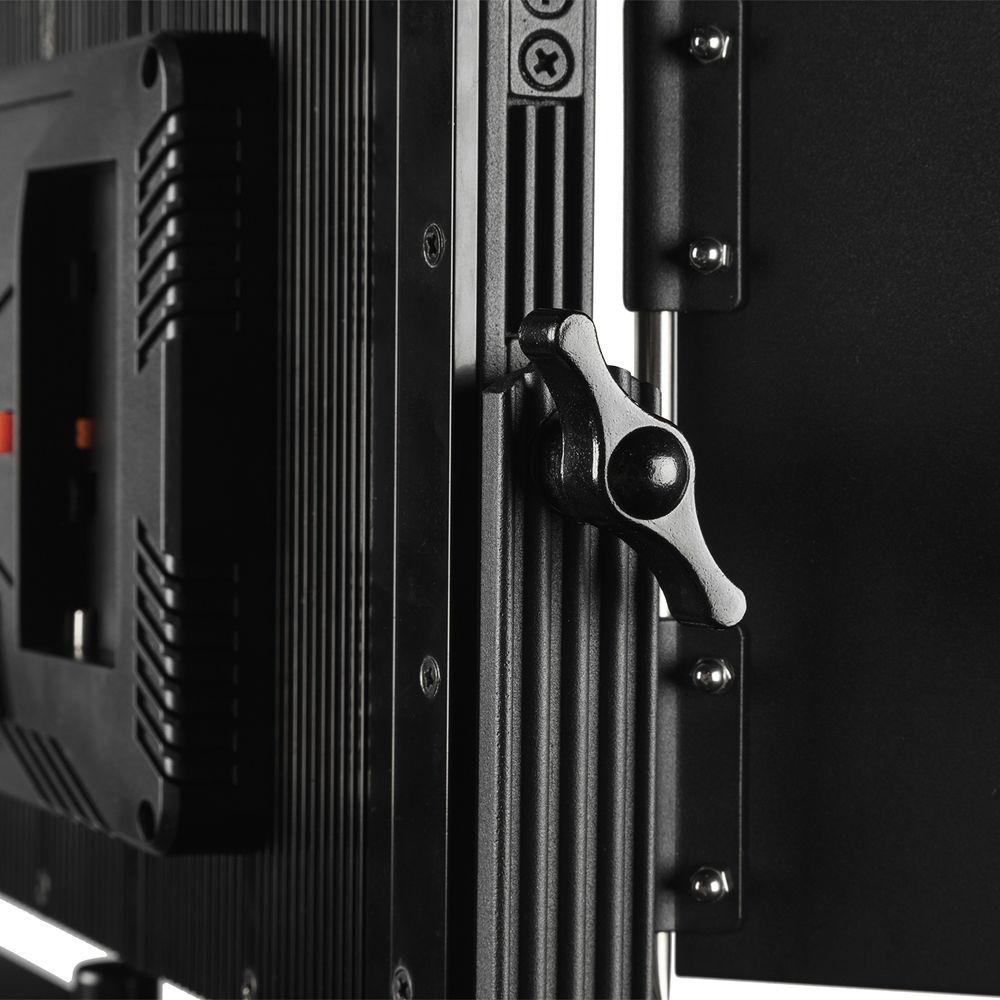

- Strong steel tension knobs for locking the light into place
- Single knob adjustment

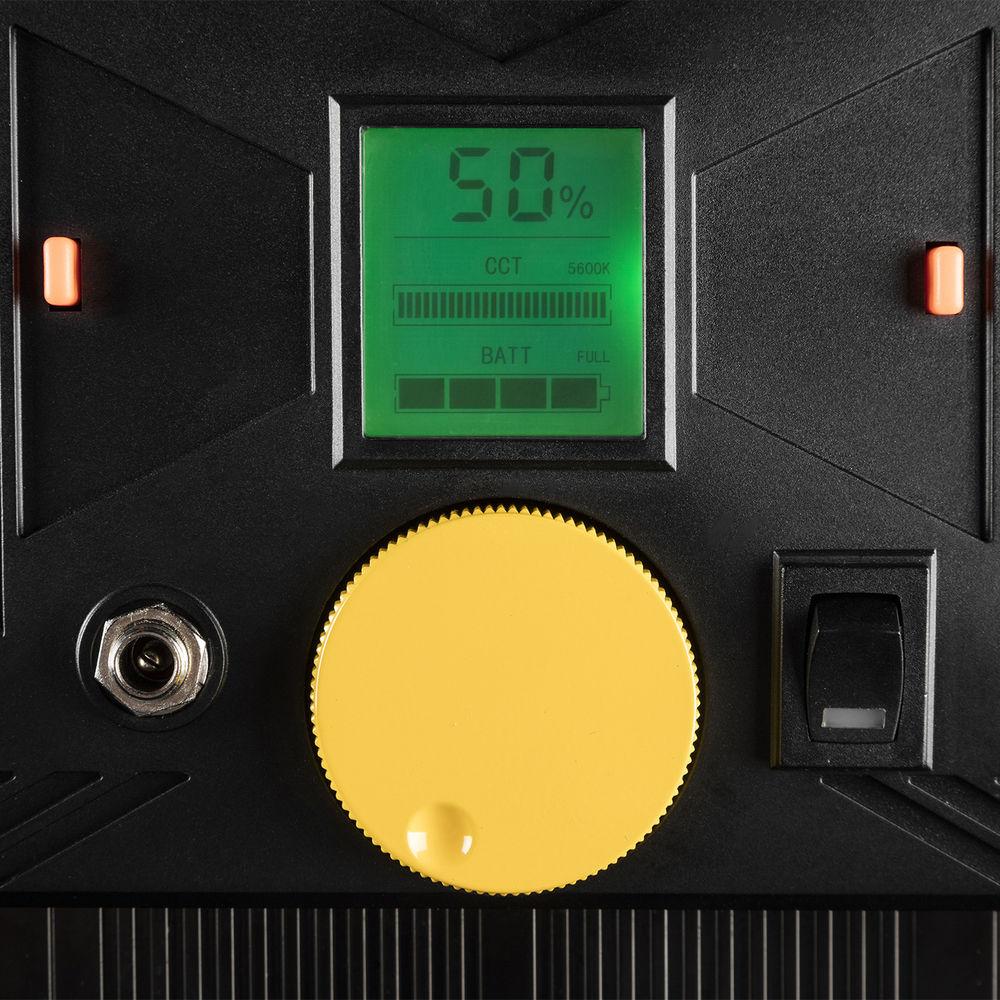

- Bright LED readout screen gives you precise adjustments

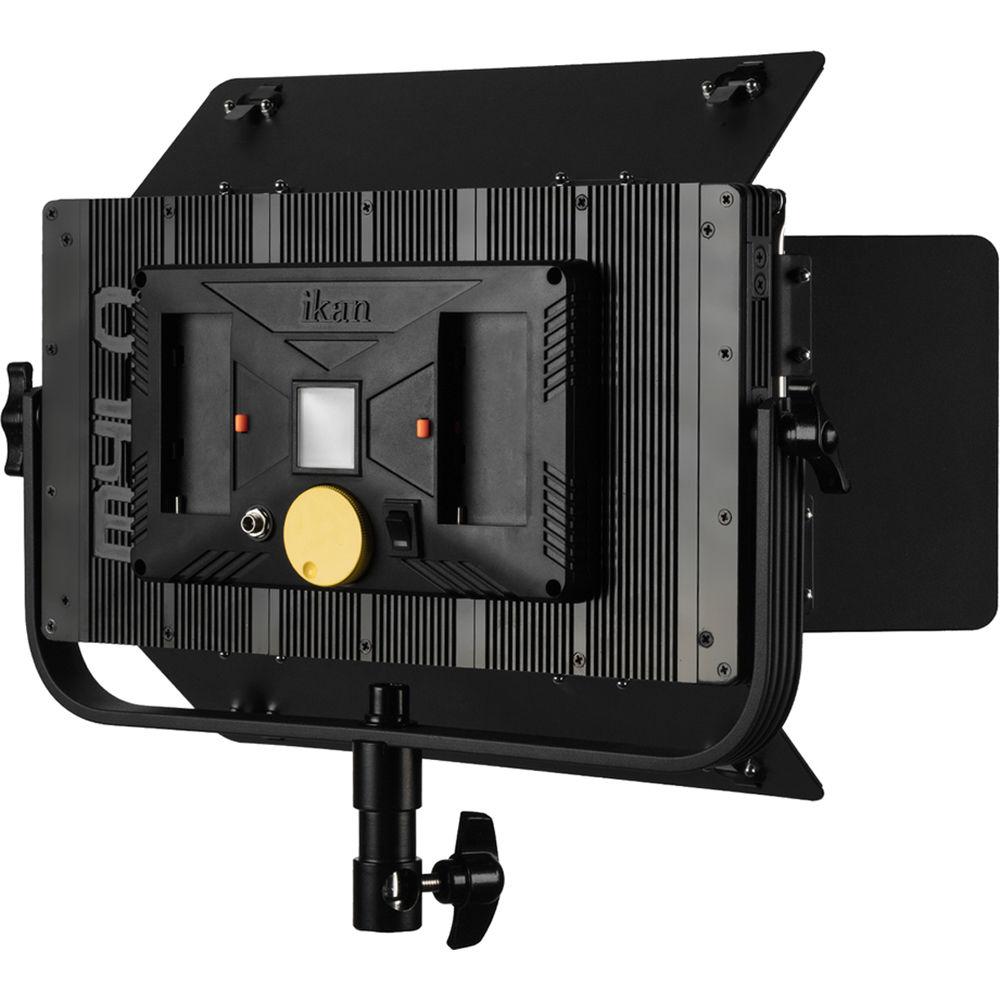

- Battery powered by two included Sony style "L" series batteries

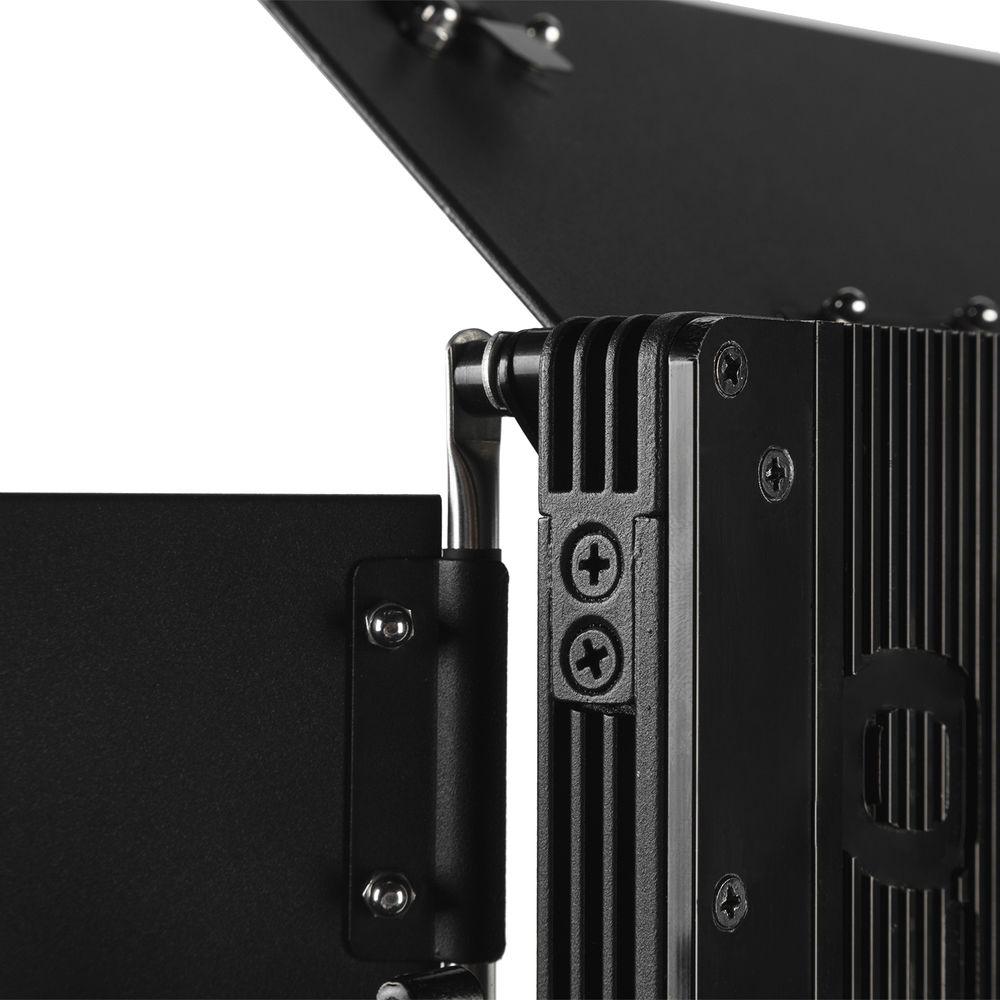

- Included barndoors with intensifiers
- Equivalent to 550W incandescent flood light
- Maximum power draw 50W at 120VAC
UPC: 847983017133 In the Box ikan Mylo Daylight 5600K Half x 1 Portable Field LED Light Dual Charger with Power Supply 2 x Sony L-Series Battery Neutral Density Filter Power Supply with Cable Yoke Mount Limited 1-Year Warranty Quick start Guide PDF 3.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ikan Mylo Daylight 5600K Half x 1 Portable Field LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersikan MW8 Specs | | | Beam Angle | 50° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes | | Display | None | | Housing Material | Metal | | Number of LEDs | 800 | | Fixture Dimensions | 14.0 x 7.0 x 2.0" / 36.0 x 18.0 x 5.0 cm | | Fixture Weight | 6 lb / 2.7 kg | | | | Battery Plate | 2 x Sony L-Series (NP-F) | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | DC Input Power | 7.4 to 14.8 VDC | | Power Source | AC Adapter, External Battery | | Consumption Per LED | 0.06 W | | Max Power Consumption | 50 W | | Power Supply Output | 12 VDC, 5 A | | | | Package Weight | 11.25 lb | | Box Dimensions (LxWxH) | 18.9 x 14.8 x 5.5" |
