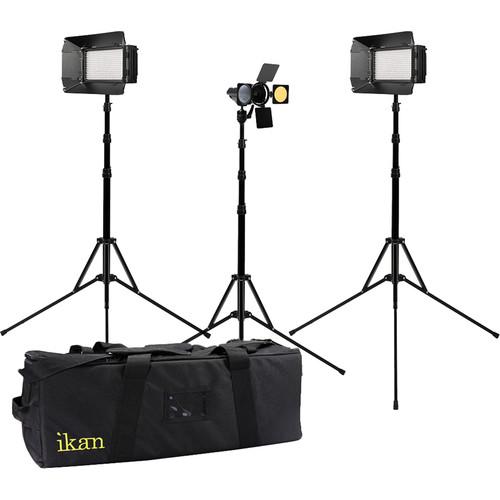

User Manual for ikan Mylo Macro Bi-Color 3-Point LED Light Kit

• Product category: LED Lights ikan
• Brand: ikan
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for ikan LED Lights

Product description

• Mylo MB4 Mini Bi-Color Portable Field LED Light
  • Mylo LED Lights - Extremely Portable
  The ikan Mylo MB4 Mini Bi-Color Portable Field LED Light is a compact battery-powered daylight/tungsten-balanced lighting unit that you can mount on a camera. It features a continuously variable color temperature between tungsten and daylight and incorporates a built-in variable dimmer that can dim the lights output from 100 to 10%. Built into the light is an LCD display panel that shows a digital readout of the brightness level, color temperature of the light and features a battery gauge so you know how much power you have left.

  The light produces a 50° beam angle and features slots for two Sony L-series type batteries but does not come with batteries. A 1/4"-20 threaded hole allows you to mount the light to your camera's accessory shoe via the included ball adapter. You can also stack up to four units together using the interlocking fixture. The fixture outputs the approximate equivalent of a 300W incandescent fixture without the heat or power draw.
  Variable Color Temperature & Dimming
  • The MB4 features a total of 420 LEDs, and a single knob that allows you to vary the color temperature of the unit from 3200 to 5600K. A separate knob controls the dimming of the unit, with brightness range of 100 to 10%.
  Beam Angle
  • Individual LEDs feature a 45° lens; however, the array of LEDs feature a beam spread of 50°.
  Digital Display Screen
  • The dimmer and color temperature settings are controlled by analog knobs, but the built-in digital readout on the built-in display screen allows you to match the output of other units or repeat setups, if you have to go back and get pick up shots. The display also incorporates a four-step battery gauge so you know how much battery power you have left.
  Power
  • The light unit features slots for two Sony L-series type batteries of any capacity. The light can run on one or two batteries, you can use the AC adapter that powers the included dual battery charger to power the light instead, via the small power connector on the back of the unit.
  Mounting
  • The light incorporates a 1/4"-20 threaded mounting hole in the bottom of the unit, and an interlocking rail system that allows you to stack up to three units vertically or horizontally, with a maximum of four fixtures.
  UPC: 847983021369
• iLED6 Zoom ENG LED On-Camera Light The ikan iLED6 Zoom ENG LED On-Camera Light is a daylight balanced LED on-camera ENG style light with a CRI rating of up to 95. The unit draws only 6 watts and produces 2500 Lux at 1 meter in full spot. It features a spot flood adjustment and smoothly dims from 100 percent brightness down to 0. It incorporates a rotating 4 leaf barn door system with two solid doors for spill control while the other two doors hold a diffusion and a CTO correction gel.

  The iLED6 is powered by Sony L type batteries and includes one 2000mAh Li-Ion battery, you can also power the unit using the included AC power adapter. The unit features a 1/4"-20 threaded mounting hole and includes a sturdy ball joint cold shoe to 1/4"-20 stud adapter. The ball joint utilizes a kipping (spring loaded) lever that allows you to lock the stud at up to 90 degrees of articulation with the light attached.
  • The iLED6 features a 6 watt daylight balanced LED with a color temperature of 5600K and a 95 CRI.
  • It has a spot flood range of 30 to 60°
  • You can dim the light from full brightness (100%) to zero (0%) using the on off knob.
  • The barn doors provide spill control, with its two solid barn doors. The other two barn doors are used either to diffuse or balance the light to tungsten.
  • The light accepts Sony L type batteries.
  UPC: 847983008186
• Compact Light Stand Version 3 (74") The Compact Light Stand Version 3 from Ikan is a space-saving support that rises to a height of 74" and, thanks to a clever reverse folding leg design, folds down to just 21" in length. The matte black stand boasts extra long legs that ensure it doesn't tip over easily, as well as a 5/8" top stud. UPC: 847983015184
• IBG312-3L Light Kit Bag for iLED312 Designed to hold a single iLED312 light and accessories, the ikan IBG312-3L 312 Light Kit Bag features sturdy nylon construction, dual zippered closure, a shoulder strap, and webbed handles that are stitched all the way around the bag. The interior measures 25 x 9 x 8", has two mesh pockets, and repositionable padded compartments. The exterior measures 26.5 x 9.5 x 9 and features non-skid, non-scratch rubber feet.
  • Features adjustable, heavy-duty padded shoulder strap and inserts
  • Two mesh accessory compartments
  • Sturdy and breathable nylon material
  • Snap-on clip for added security
  • Durable dual zippers
  • Non-skid rubber feet
  UPC: 847983007332

• AC Adapter

• Ultra-Heavy Duty Camera Shoe Mount

• Limited 1-Year Warranty

• AC Adapter

• NP-F550 L-Series Compatible Battery (7.4V, 2900 mAh)

• Battery Charger

• Accessory Shoe Ball Joint Adapter to 1/4"-20 Stud

• Limited 1-Year Warranty

• Adjustable Shoulder Strap & Inserts

• Limited 1-Year Warranty

Also Includes

• Light Stand Bag

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Mylo MB4 Mini Bi-Color Portable Field LED Light

  Beam Angle	50°
  Color Temperature	3200 to 5600K
  Number of LEDs	420

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Battery Plate	2 x Sony L-Series (NP-F)
  DC Input Power	7.4 to 14.8 VDC
  Max Power Consumption	24 W
  Power Source	AC Adapter, External Battery

  Dimensions	8 x 5 x 2" / 20.3 x 12.7 x 5.1 cm
  Weight	1.0 lb / 0.5 kg

  Box Dimensions (LxWxH)	10.4 x 9.2 x 3.2"

• iLED6 Zoom ENG LED On-Camera Light

  Color Temperature	5600K ± 200K
  Color Accuracy Standard	CRI 95
  Dimming	Yes, 0 to 100%

  Battery Plate	1 x Sony L-Series (NP-F)
  DC Input Power	7.4 to 24 VDC
  Max Power Consumption	6 W
  Power Source	AC Adapter, External Battery

  Mount Type	1/4"-20 Female Thread, Cold Shoe
  Dimensions	2.7 x 7.3 x 2.7" / 6.9 x 18.5 x 2.7 cm
  Weight	2 lb / 0.9 kg (Including Battery, Barn Doors, Shoe Mount)

  Box Dimensions (LxWxH)	11.2 x 5.9 x 3.3"

• Compact Light Stand Version 3 (74")

  Load Capacity	7 lb / 3.2 kg
  Mounting Options	5/8" Stud
  Number of Sections	4
  Maximum Working Height	74" / 188 cm
  Minimum Working Height	23" / 58.4 cm
  Collapsed Height	23" / 58.4 cm
  Leg Shape	Rectangular
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	Yes
  Finish	Black

  Box Dimensions (LxWxH)	23.75 x 3.5 x 3.5"

• IBG312-3L Light Kit Bag for iLED312

  Interior Dimensions	25 x 9 x 8" / 63.5 x 22.9 x 20.3 cm

  Exterior Dimensions (W x H x D)	26.5 x 9.5 x 9" / 67.3 x 24.1 x 22.9 cm
  Weight	6 lb / 2.7 kg

  Box Dimensions (LxWxH)	27.0 x 13.0 x 6.0"
